Mori Seiki NL-2000SY CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Mori Seiki

Model:: NL-2000SY

Year:: 2005

Ref #:: 179295

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

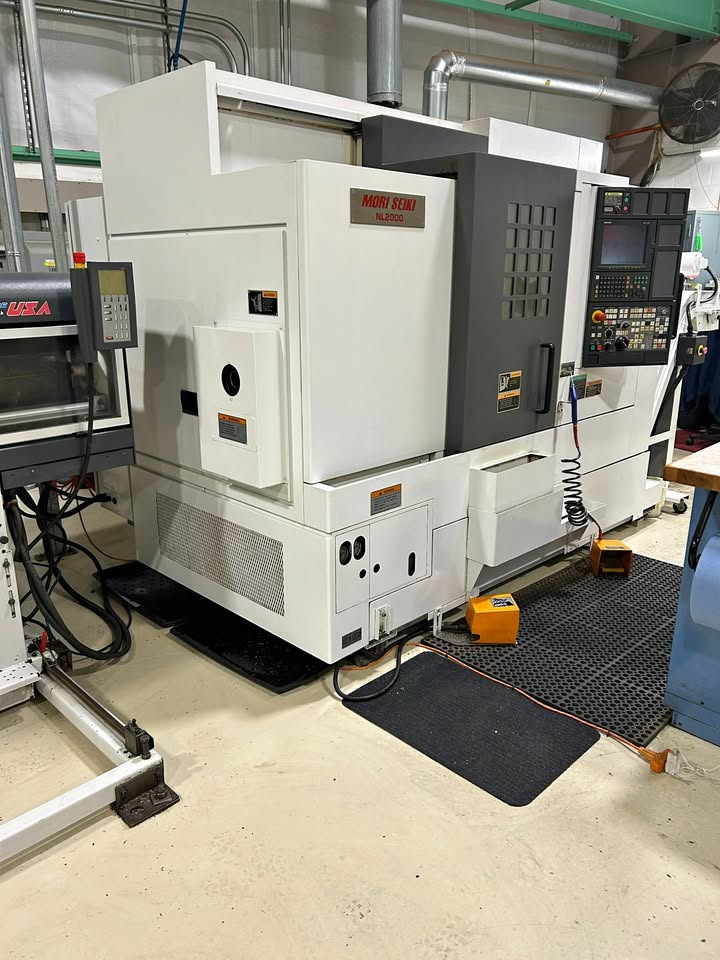

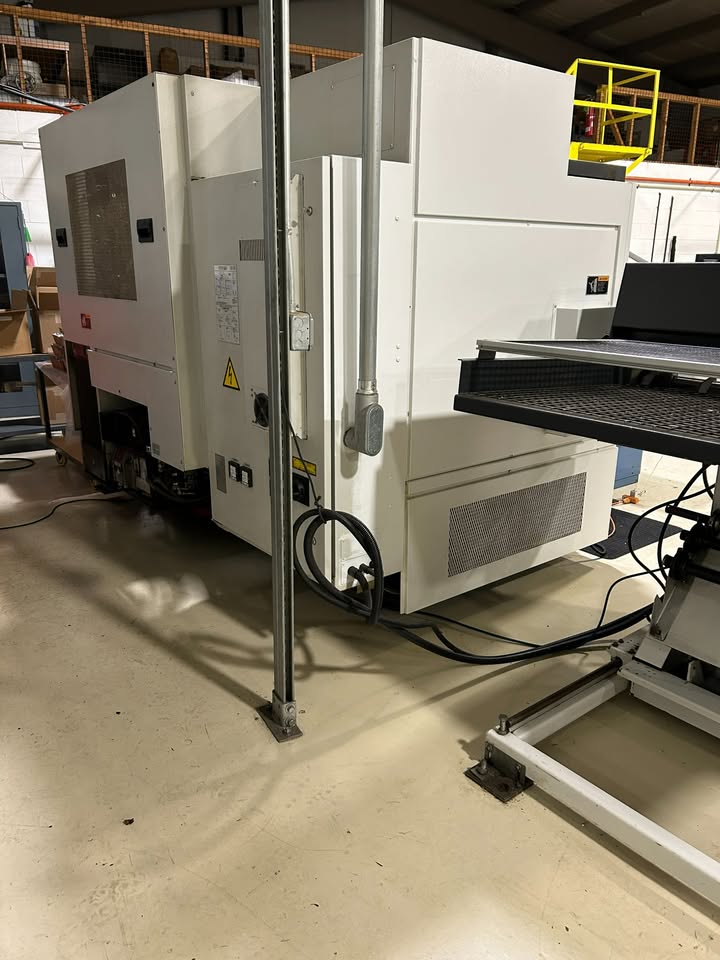

MORI SEIKI MODEL: NL-2000SY/500 CNC TURNING CENTER
NEW: 2005

MACHINE SPECIFICATIONS:
SWING OVER BED ...................... 36.4"
SWING OVER CROSS SLIDE .............. 29.7"
MAX. TURNING DIAMETER ............... 14"
STANDARD TURNING DIAMETER ........... 10.8"
MAX. TURNING LENGTH ................. 20"
BAR WORK CAPACITY ................... 2.5"
X-AXIS TRAVEL ....................... 10.2"
Z-AXIS TRAVEL ....................... 23.2"
Y-AXIS TRAVEL ....................... 5.9"
HEADSTOCK 2 TRAVEL (B-AXIS) ......... 21"
MAX. SPINDLE SPEED HEADSTOCK 1 ...... 5,000 RPM
MAX. SPINDLE SPEED HEADSTOCK 2 ...... 6,000 RPM
TYPE OF SPINDLE NOSE HEADSTOCK 1 .... JIS A2-6
TYPE OF SPINDLE NOSE HEADSTOCK 2 .... JIS A2-5
THROUGH SPINDLE HOLE DIAMETER ....... 2.9" HEAD1/2.4" HEAD2
MIN. SPINDLE INDEXING ANGLE ......... 0.001 DEG.
NUMBER OF TOOL STATIONS ............. 12
SHANK HEIGHT FOR SQUARE TOOL ........ 1"
SHANK DIA. FOR BORING BAR HEAD 1 .... 2"(1.25"DBL HOLDER)
SHANK DIA. FOR BORING BAR HEAD 2 .... 1.25"
TURRET INDEXING TIME ................ 0.25 sec.
MAX. ROTARY TOOL SPINDLE SPEED ...... 6,000 RPM
RAPID TRAVERSE RATE X,Z,B ........... 1181 IPM
RAPID TRAVERSE RATE Y ............... 393.7 IPM
RAPID TRAVERSE RATE C ............... 400 MIN
SPINDLE DRIVE MOTOR HEADSTOCK 1 ..... 20/15 HP
SPINDLE DRIVE MOTOR HEADSTOCK 2 ..... 15/10 HP
ROTARY TOOL DRIVE MOTOR ............. 7.5/5 HP
APRROX. DIMENSIONS .................. 150" x 81" x 84"
APPROX. WEIGHT ...................... 12,760 LBS.

EQUIPPED WITH:

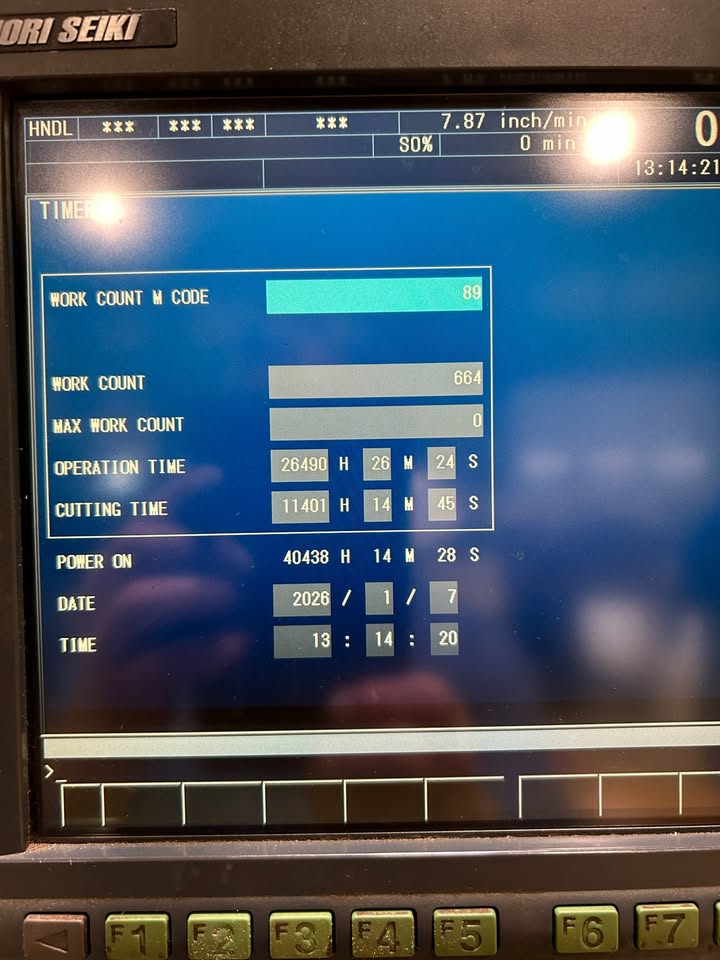

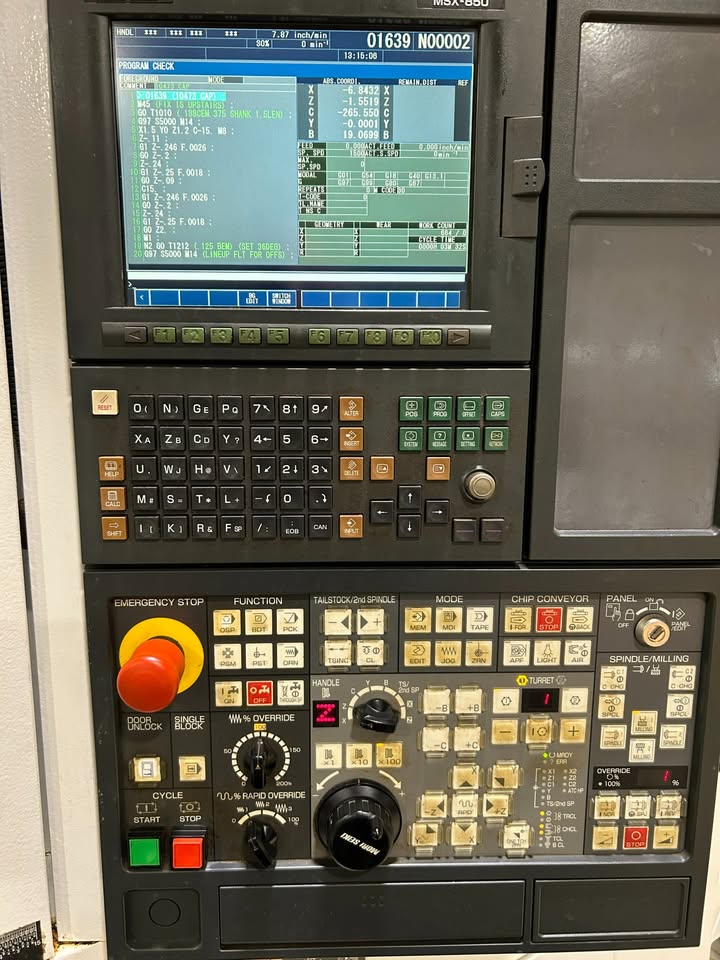

 - MSX-850 CNC CONTROL

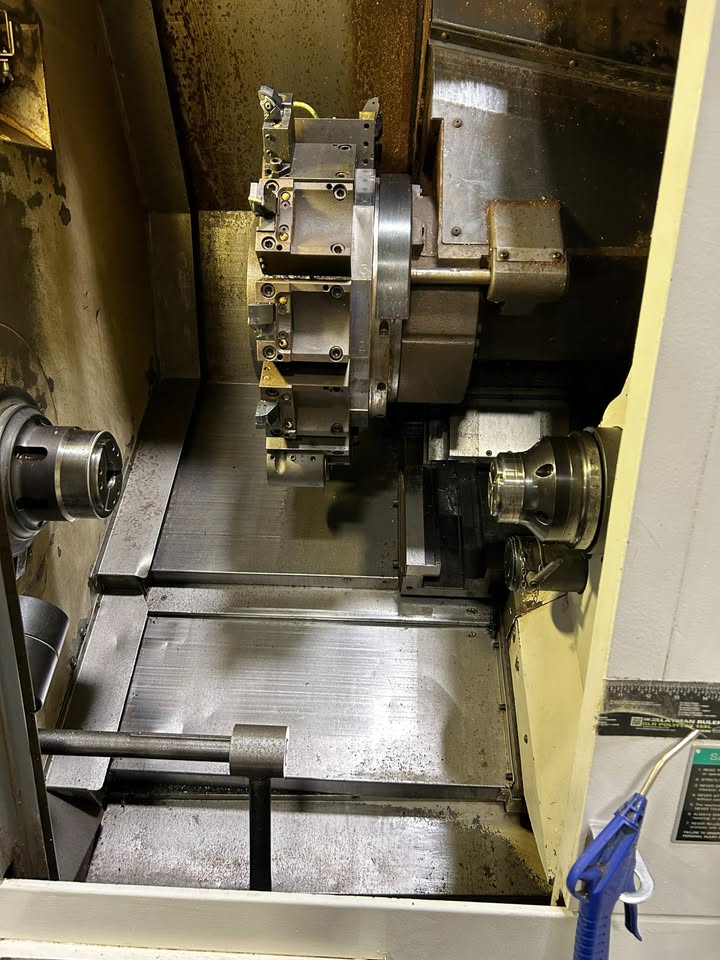

 - ROYAL COLLET CHUCKS ON MAIN AND SUBSPINDLES
 - TOOLSETTER
 - PARTS CATCHER
 - FULL C-AXIS ON MAIN AND SUB SPINDLES

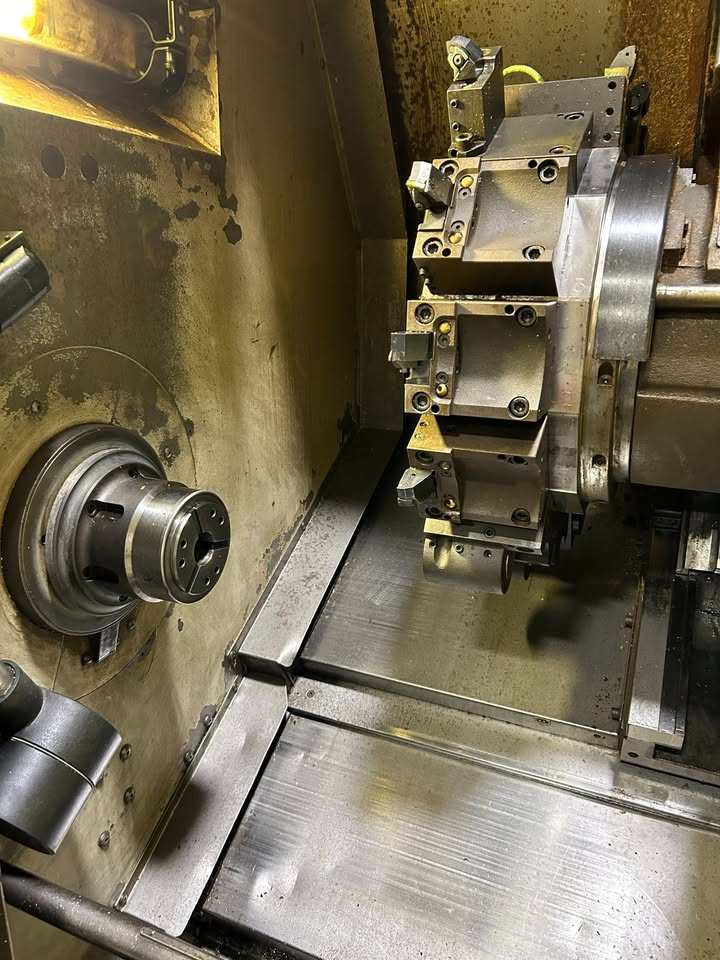

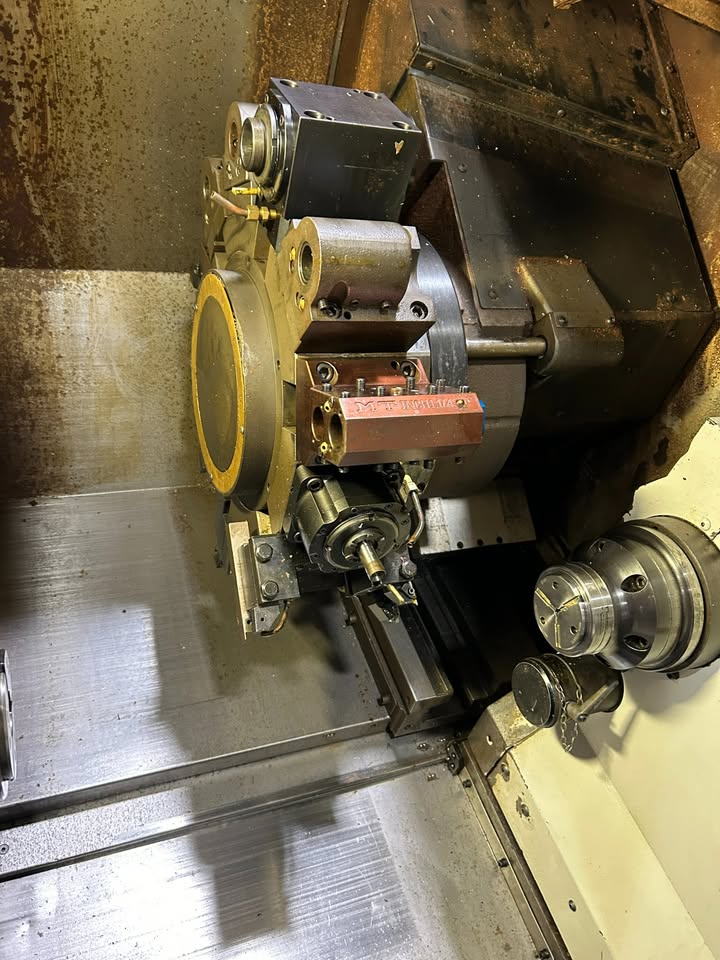

 - 12 POSITION TURRET

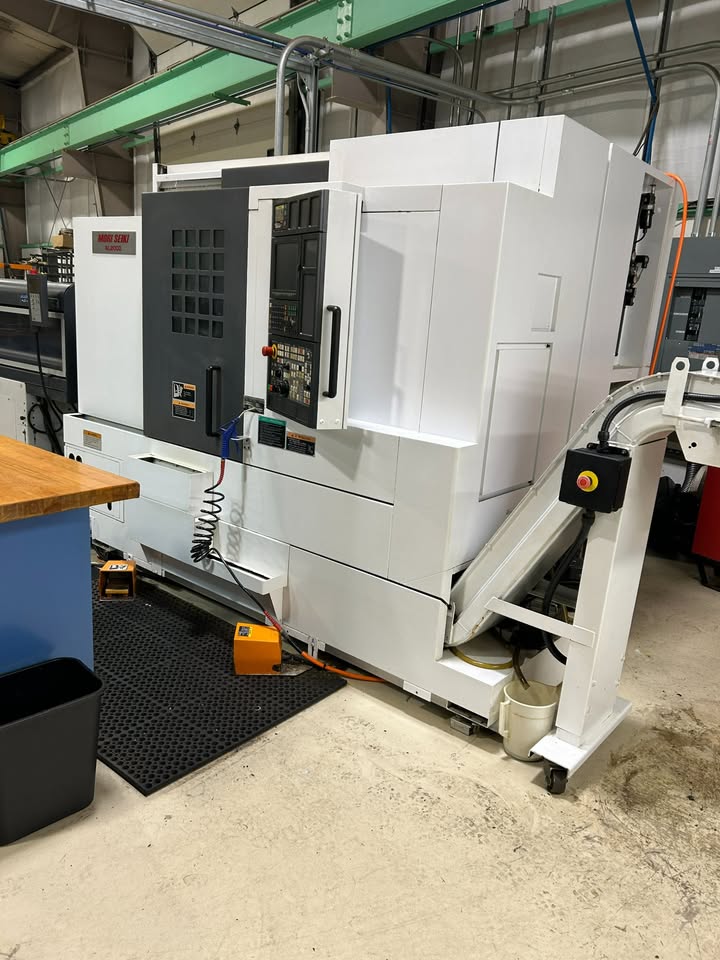

 - CHIP CONVEYOR
 - BARFEED INTERFACE
 - ALL AVAILABLE STANDARD AND LIVE TOOL HOLDERS

    *** LNS BARFEED AVAILABLE FOR ADDITIONAL COST ***
