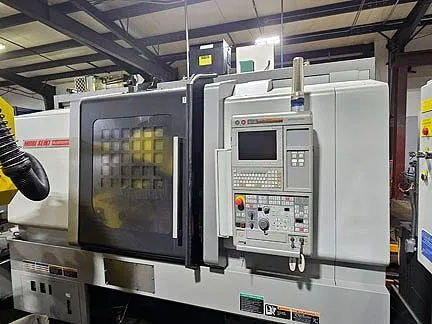

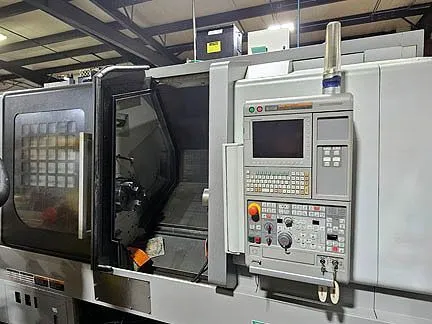

Mori Seiki NL-2500SY CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Mori Seiki

Model:: NL-2500SY

Year:: 2012

Ref #:: 178531

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

MORI SEIKI NLX-2500SY CNC TURNING CENTER
NEW: 2012

Description:

SPECIFICATIONS
X-Travel: 10.24"
Z-Travel: 31.30"
Distance Between Centers: 28"
Max Swing Over Bed: 23.23"
Max Turning / Cutting Length: 31.30"
Max Cutting / Turning Diameter: 18.11"
Rapid Traverse: 1181 IPM

SPINDLE
Bar Capacity: 3.15"

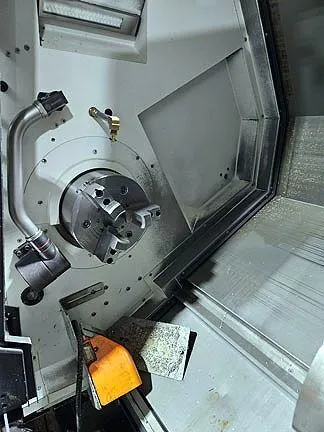

Chuck Size: 10.0"
Chuck Type: Hydraulic
Chuck Description: 3-Jaw
Spindle Bore: 3.60"
Spindle Speed: 4,000 RPM
Spindle Motor: 25 HP
Spindle Nose: A2-8

SECOND SPINDLE
Sub-Spindle: Equipped With
Second Bar Capacity: 1.69"
Second Chuck Size: 6.0"
Second Chuck Description: 3-Jaw
Second Spindle Bore: 1.70"
Second Spindle Speed: 6000 RPM
Second Spindle Motor: 15 HP
Second Spindle Nose: A2-5

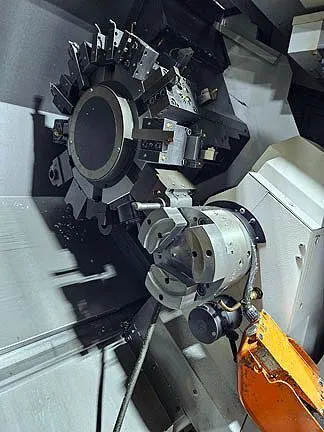

TURRET
Single Turret Live Tooling: Equipped With
Tool Positions: 12
Live Milling Max RPM: 6,000 RPM

CONTROL

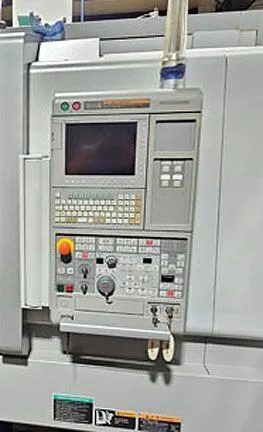

Control Make/Model: Mori Seiki M730 BM CNC Control

OPTIONS
Machine Options: All Available Manuals;Tool Presetter
Additional Machine Specs: Bolt-On Turret
Tool Holders
Spindle Travel: 28.9"
Y-Axis Travel: +/1.97"
Chip Removal: Chip Conveyor
LIVE TOOLING / MILLING
C-Axis: Equipped With
Y-Axis: Equipped With
Live Tooling / Milling: Equipped With

Dimensions: 128" x 83" x 97"
Weight: 15,000 LBS approx
