Mori Seiki NLX2500SY/700 CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Mori Seiki

Model:: NLX2500SY/700

Year:: 2012

Ref #:: 178524

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

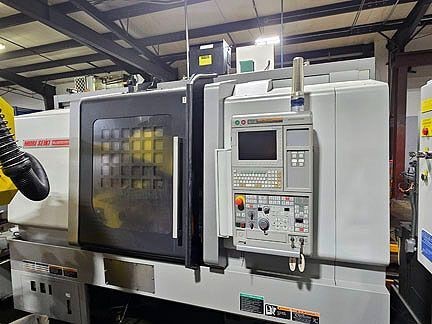

Mori Seiki NLX2500SY/700 2012 CNC Lathe

Description:

LIVE TOOLING / MILLING
C-Axis: Equipped With
Y-Axis: Equipped With
Live Tooling / Milling: Equipped With
SPECIFICATIONS
X-Travel: 10.24"
Z-Travel: 31.30"
Distance Between Centers: 28"
Max Swing Over Bed: 23.23"
Max Turning / Cutting Length: 31.30"
Max Cutting / Turning Diameter: 18.11"
Rapid Traverse: 1181 IPM
SPINDLE
Bar Capacity: 3.15"
Chuck Size: 10.0"
Chuck Type: Hydraulic
Chuck Description: 3-Jaw
Spindle Bore: 3.60"
Spindle Speed: 4,000 RPM
Spindle Motor: 25 HP
Spindle Nose: A2-8
SECOND SPINDLE
Sub-Spindle: Equipped With
Second Bar Capacity: 1.69"
Second Chuck Size: 6.0"
Second Chuck Description: 3-Jaw
Second Spindle Bore: 1.70"
Second Spindle Speed: 6000 RPM
Second Spindle Motor: 15 HP
Second Spindle Nose: A2-5
TURRET
Single Turret Live Tooling: Equipped With
Tool Positions: 12
Live Milling Max RPM: 6,000 RPM
CONTROL
Control Make/Model: Mori Seiki M730 BM CNC Control
OPTIONS
Machine Options: All Available Manuals;Tool Presetter
Additional Machine Specs: Bolt-On Turret
Tool Holders
Spindle Travel: 28.9"
Y-Axis Travel: +/1.97"
Chip Removal: Chip Conveyor
Dimensions: 128" x 83" x 97"
Weight: 15,000 LBS approx

The 2012 Mori Seiki NLX-2500SY/700 is a high-end multi-axis CNC turning center, configured for complex part manufacturing with both main and sub spindles, live tooling, and Y-axis capability. Outfitted with the Mori Seiki M730BM CNC control, this lathe enables simultaneous machining operations with precision and speed. This lathe boasts a maximum turning diameter of 18.11 inches and a maximum turning length of 31.3 inches, making it well-suited for medium to long parts. The main spindle, with a robust 25 HP motor, handles bars up to 3.15 inches in diameter and reaches 4,000 RPM, while the sub spindle operates up to 6,000 RPM and accommodates 1.69-inch bar stock. Its 12-station live tool turret supports 6,000 RPM milling, powered by a 7.5 HP live tool drive, granting significant versatility for secondary operations without part repositioning. With Y-axis travel of ±1.97 inches, and C-axis control on both spindles with .001° indexing, this machine is capable of intricate contouring and cross-axis features. Rapid traverse rates of 1,181 IPM (X/Z) and 393.7 IPM (Y) ensure swift positioning, minimising idle time. The machine also includes an L-style chip conveyor, coolant system, bolt-on turret holders, presetter, and both 10" and 6" 3-jaw chucks. At approximately 15,000 lbs, and measuring 128" x 83" x 97", the NLX-2500SY/700 is a compact yet formidable multitasking centre built for reliability and precision.
