Mori Seiki NLX2500SY CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Mori Seiki

Model:: NLX2500SY

Year:: 2011

Ref #:: 178339

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

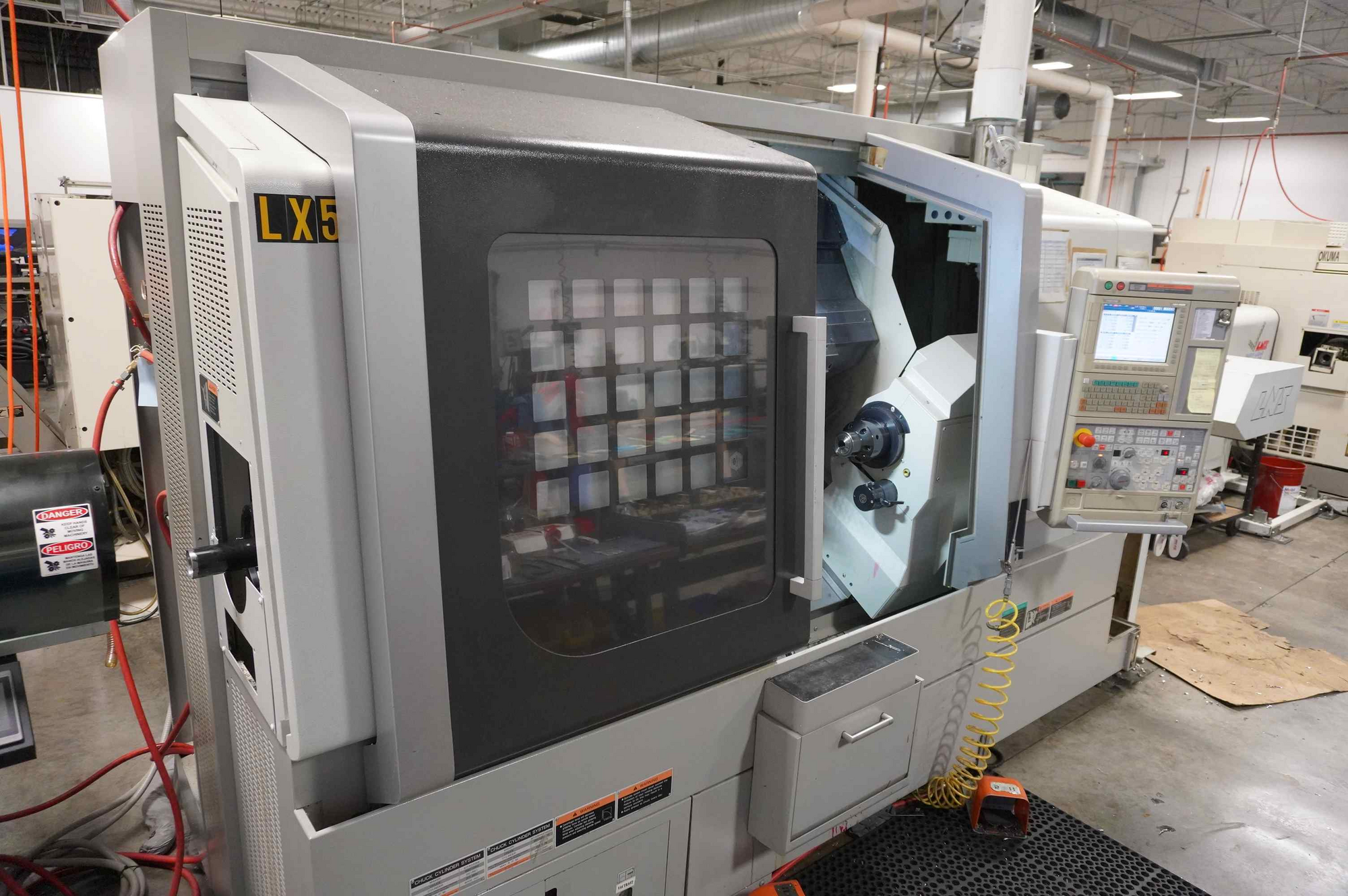

DMG MORI NLX2500SY MULTI AXIS CNC LATHE NEW: 2011

SPECIFICATIONS:

# AXIS	5
SWING	23.2"
MACHINING LENGTH	27.7"
CHUCK SIZE	10"
BAR CAPACITY	3.1"
POWER	25 hp
MAX RPM	4,000 RPM
TURNING DIA	14.4"

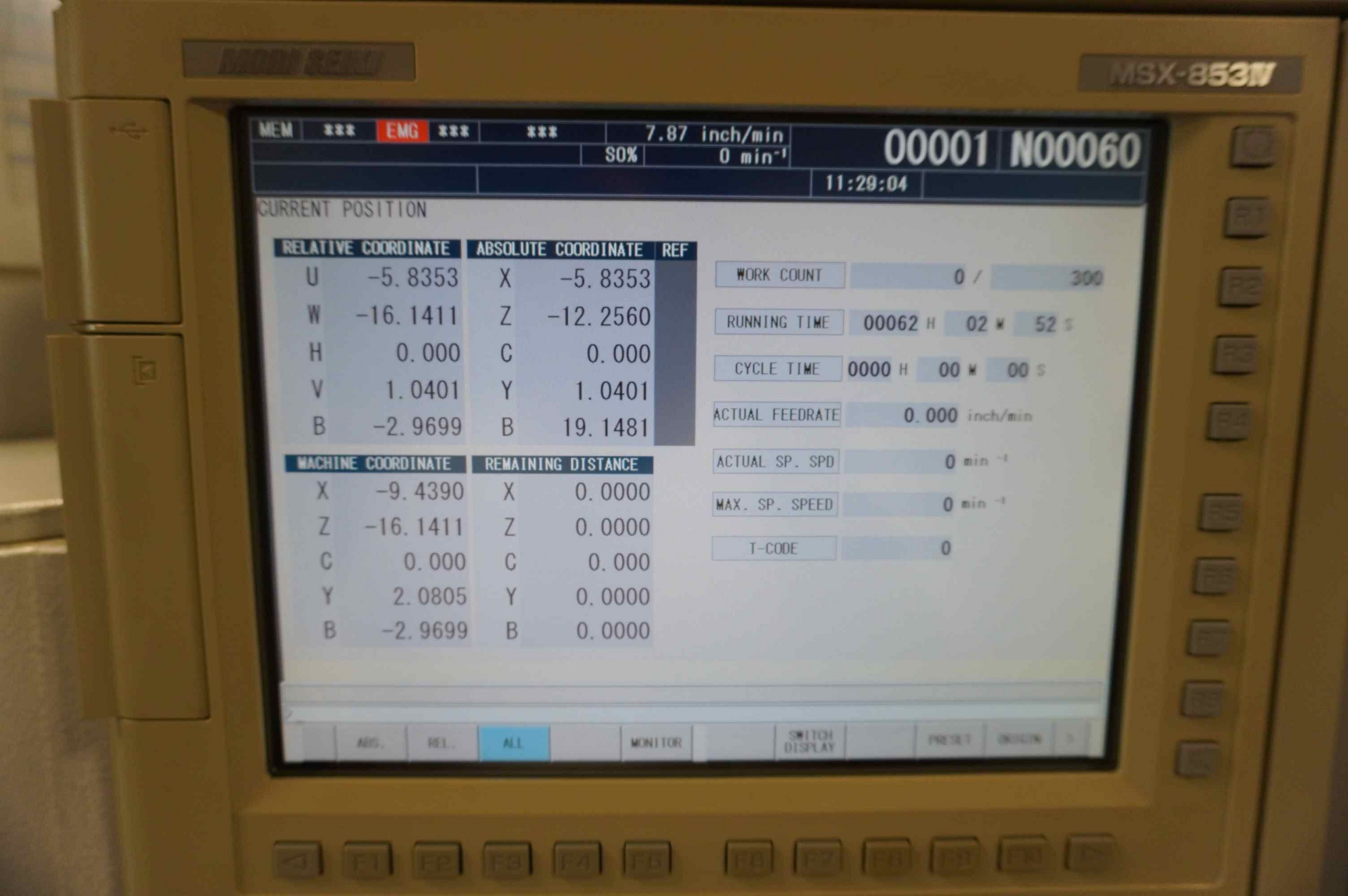

CONTROL	CNC (M730BM MAPPS CONTROL)
DIMENSIONS	156" X 82.9" X 86.6"
WEIGHT	14,000 LBS
TRAVELS:
X AXIS TRAVEL: 10.2"
Z AXIS TRAVEL: 31.3"
BAR CAPACITY: 3.1"
CHUCK SIZE: 10"
SPINDLE SPEED: 4,000 RPM
SPINDLE MOTOR: 25 HP
RAPID RATE Z AXIS: 1,181 IPM
TURRET TOOLS: 12 STATION
RAPID RATE X AXIS: 1,181 IPM
MAX TURNING DIA: 18.1"
MAX TURNING LENGTH: 27.7"
MAX SWING: 23.2"
MAIN SPINDLE SPEED: 4,000 RPM

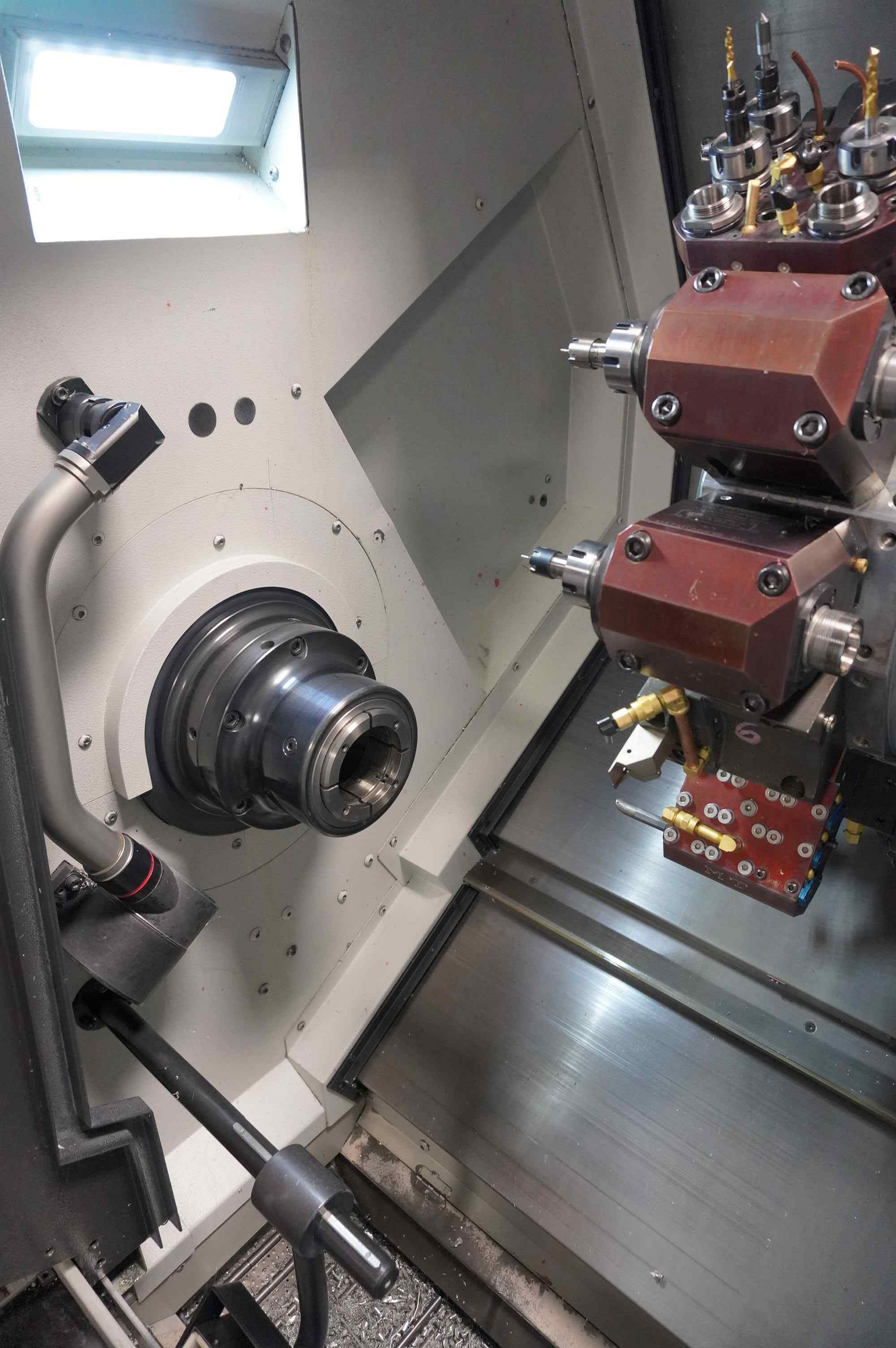

MAIN SPINDLE NOSE: A2-8
MAIN SPINDLE BORE: 3.5"
MAIN BAR CAPACITY: 3.1"
MAIN SPINDLE MOTOR: 25 HP
TRAVELS (C AXIS): 0.001 DEG

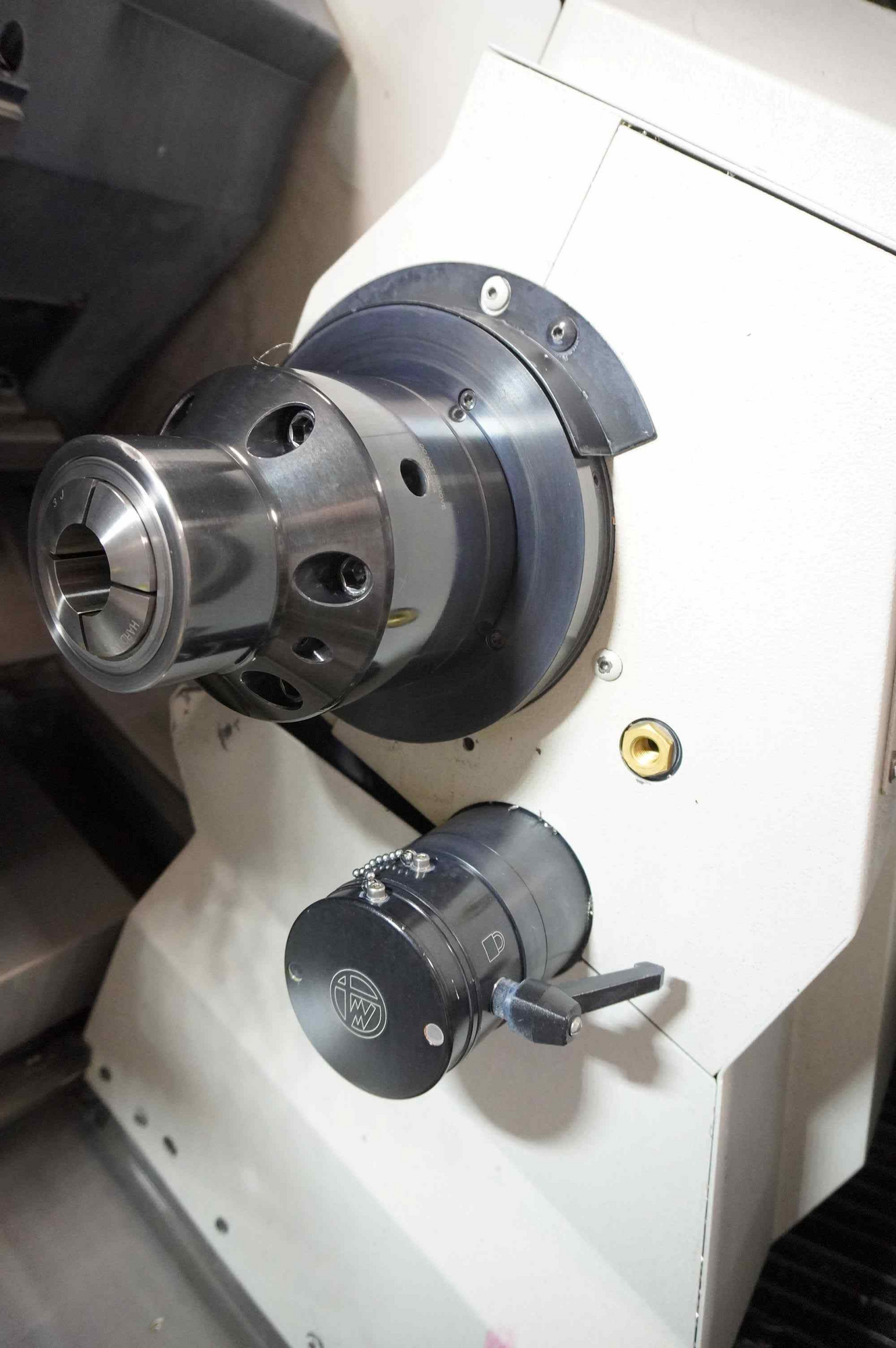

SUB SPINDLE SPEED: 6,000 RPM
SUB SPINDLE NOSE: A2-5
SUB SPINDLE MOTOR: 15 HP
TRAVELS (B AXIS, SUB-SPINDLE): 28.9"

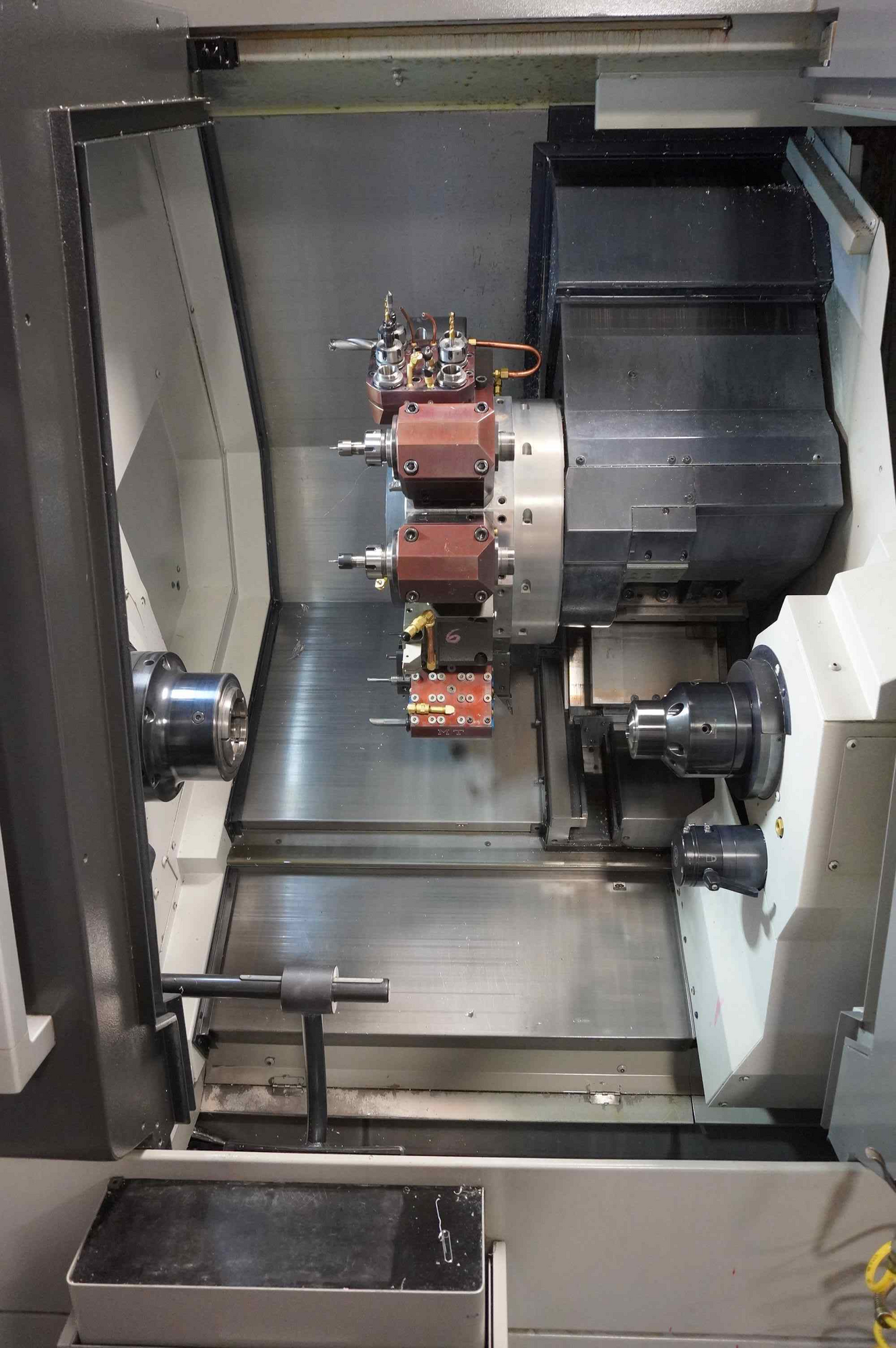

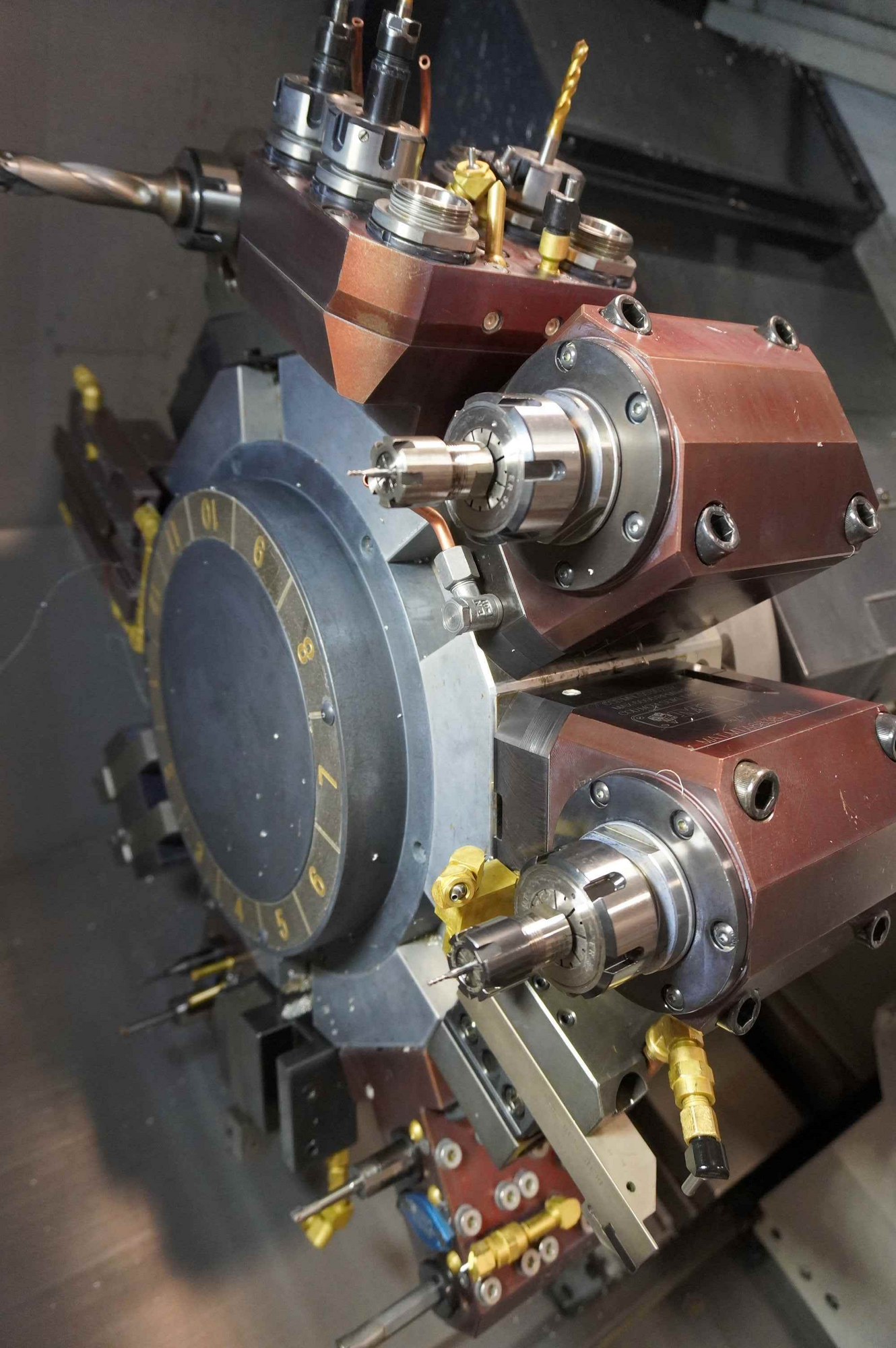

TURRET TYPE: BLOCK STYLE
TURRET POSITIONS: 12
TURRET INDEX TIME: 0.27 SEC
ROTARY TOOL SPINDLE SPEED: 10,000 RPM
TRAVELS (Y AXIS): +/- 2.0"
ROTARY TOOL SPINDLE MOTOR: 7.5 HP
DIMENSIONS: 156" X 82.9" X 86.6"
WEIGHT: 14,000 LBS

EQUIPPED WITH:

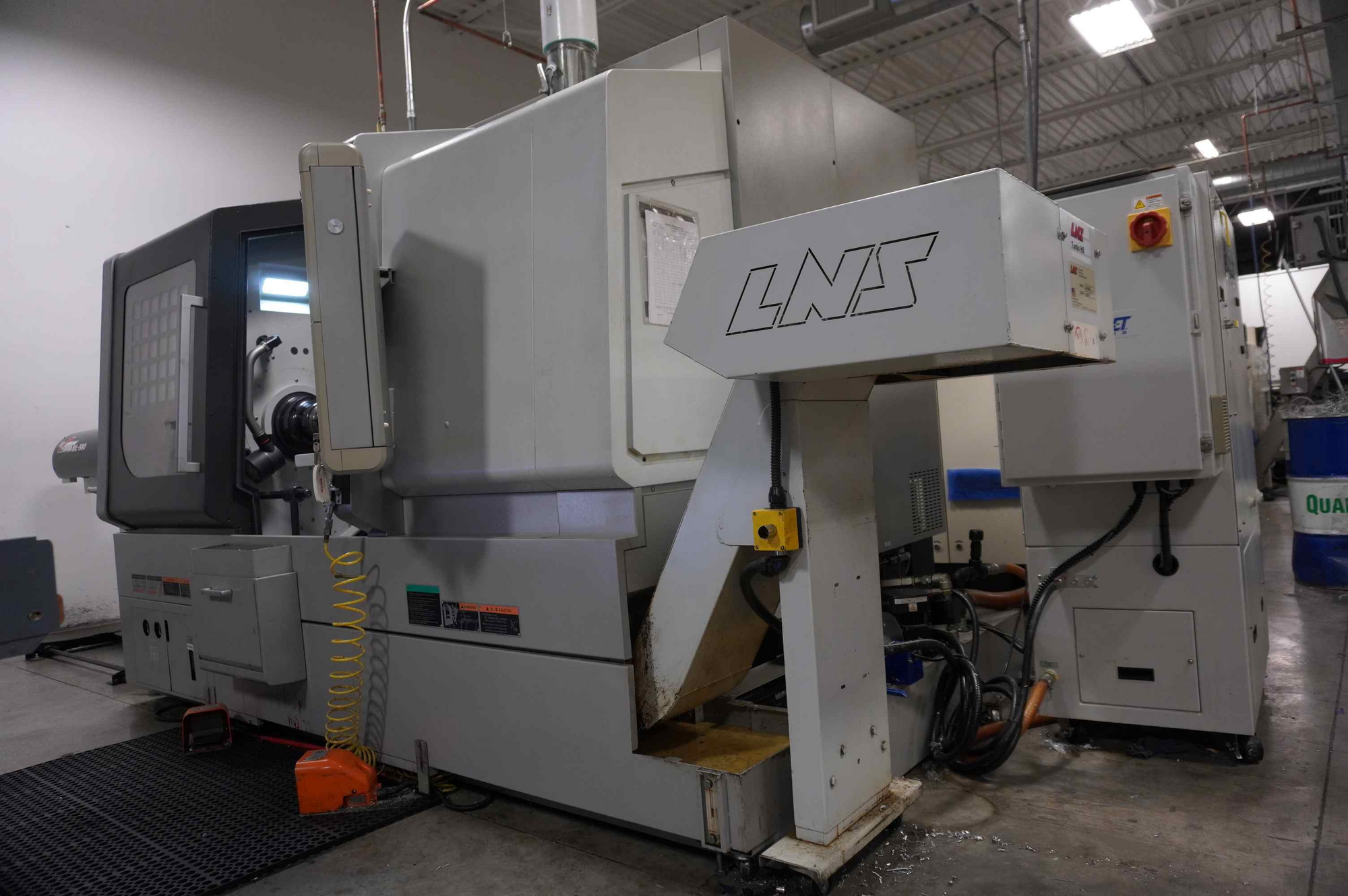

CHIP CONVEYOR
TOOL PRESETTER
LIVE TOOLING
SUB SPINDLE
5 LIVE TOOLS INCLUDED
Y AXIS
5 AXIS
