Mori Seiki NT4300DCG/1500SZ CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Mori Seiki

Model:: NT4300DCG/1500SZ

Year:: 2007

Ref #:: 176668

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

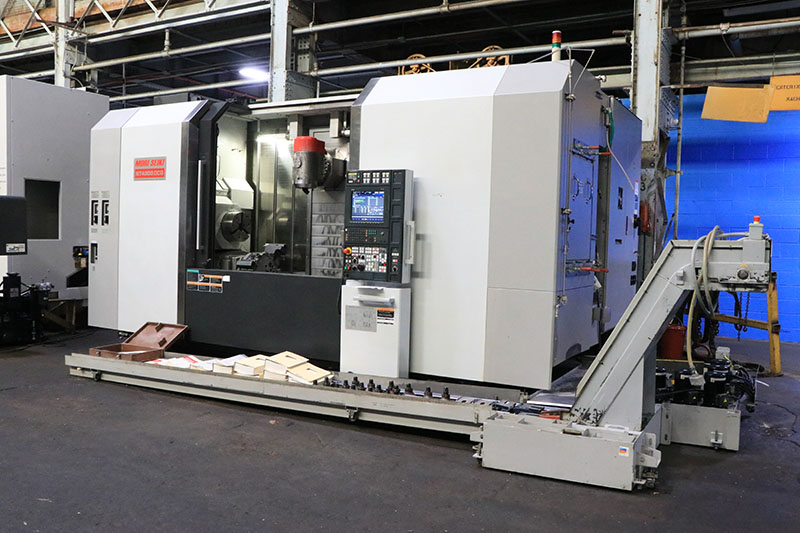

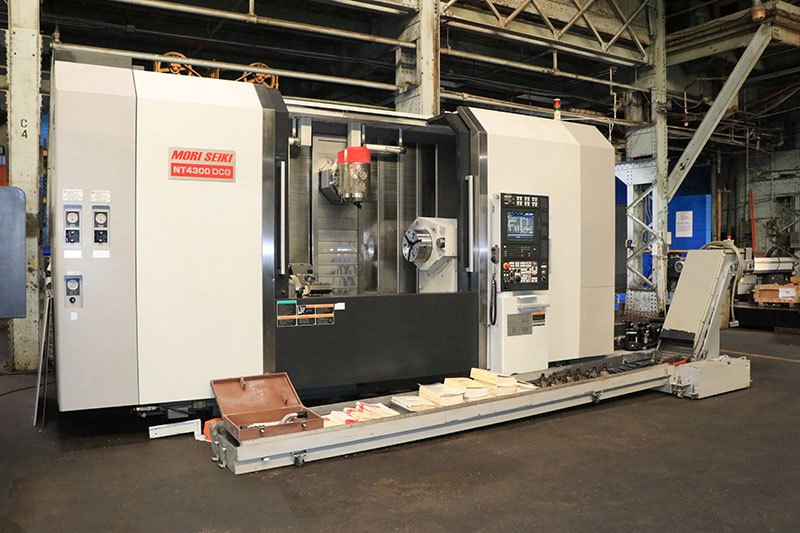

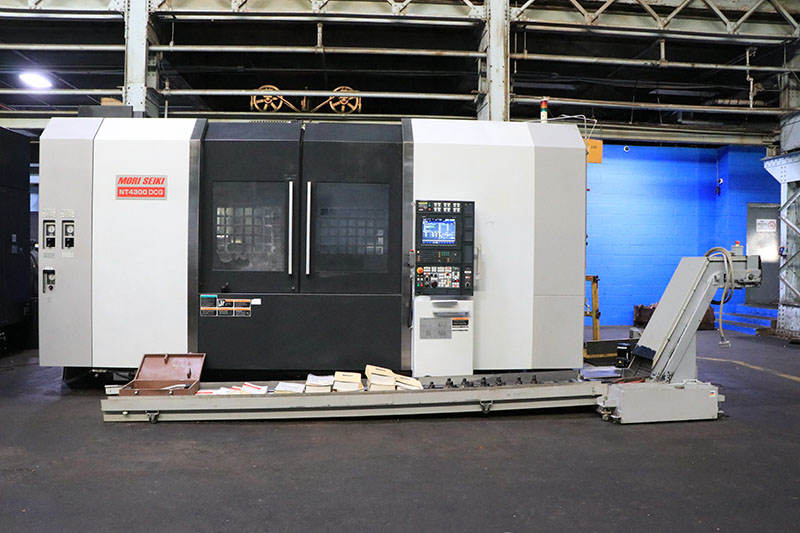

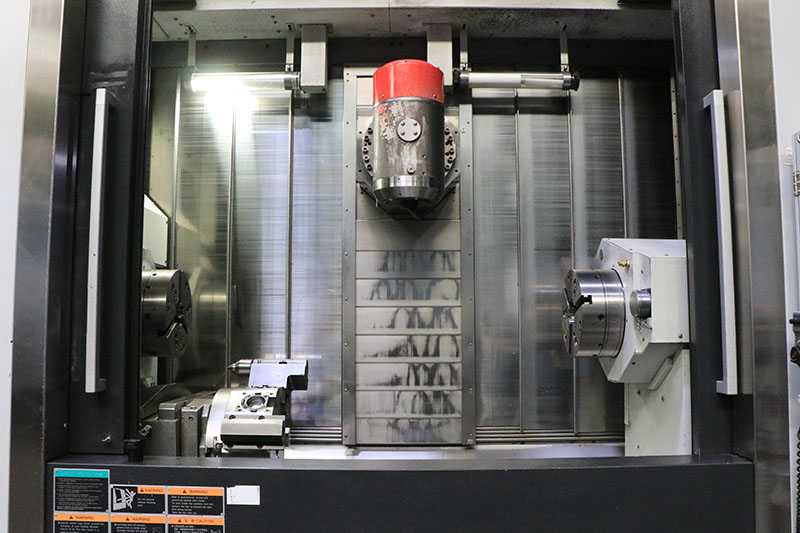

MORI SEIKI NT-4300DCG/1500SZ MULTI-AXIS CNC TURNING CENTER
NEW: 2007

SPECIFICATIONS:
MAXIMUM SWING OF WORK PIECE             28.7"
SWING OVER CROSS SLIDE/TURRET 2         28.7"/15.7"
MAXIMUM DISTANCE BETWEEN SPINDLES       73.3"
MAX TURNING DIA. TOOL SPINDLE/TURRET 2) 25.9"/13.7"
MAXIMUM TURNING LENGTH                  59"
BAR CAPACITY                            3.5"
X1-AXIS TRAVEL                          29.5"
Y-AXIS TRAVEL TOOLHEAD                  +/- 8.3"
Z1-AXIS TRAVEL                          61"+3.9"
B-AXIS ROTATION RANGE                   +/- 120 DEGREES
X-AXIS TRAVEL (TURRET 2)                7.7"
Z-AXIS TRAVEL (TURRET 2)                60"
SPINDLE SPEED MAX. (L/R SPINDLES)       3,000 RPM
SPINDLE NOSE (L/R)                      A2-8
SPINDLE THROUGH HOLE DIA. (L/R)         4.1"
MINIMUM SPINDLE INDEXING ANGLE (L/R)    0.0001 DEGREE
NUMBER OF TOOLS ON TOOL SPINDLE HEAD    1
MINIMUM B-AXIS INDEXING ANGLE           1 DEGREE
TOOL SPINDLE SPEED                      12000 RPM
TAPER TOOL OF TOOL SPINDLE              CAPTO C6
TOOL STORAGE MAGAZINE                   100

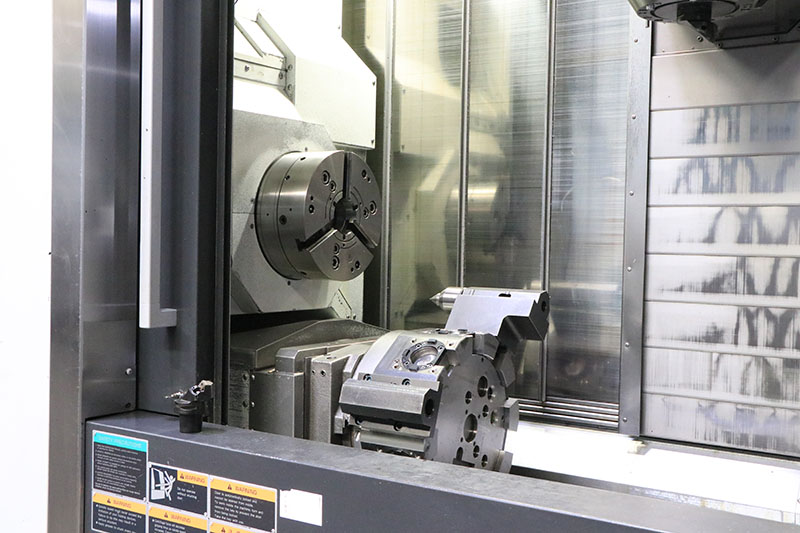

LOWER TURRET TOOL STATIONS              10
SHANK HEIGHT FOR SQUARE TOOL            1.0"
SHANK DIAMETER FOR BORING BAR           2.0"
DRIVE MOTOR SPINDLE 1 & 2               30/24.7 HP each
TOOL SPINDLE DRIVE MOTOR                24.7/15 HP
APPROX WEIGHT                           58,520 LBS.

EQUIPPED WITH:

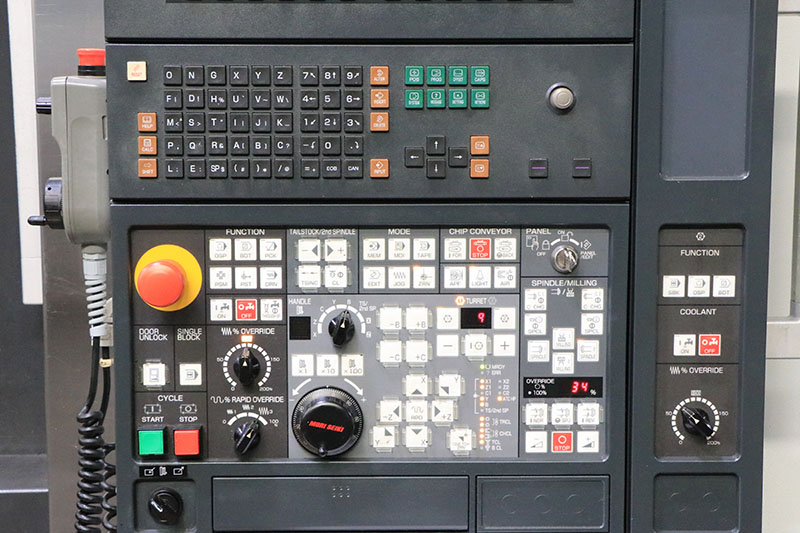

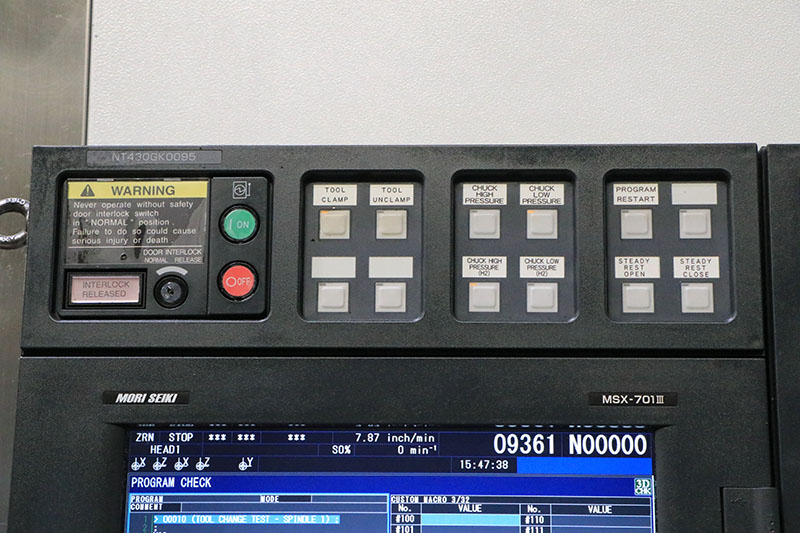

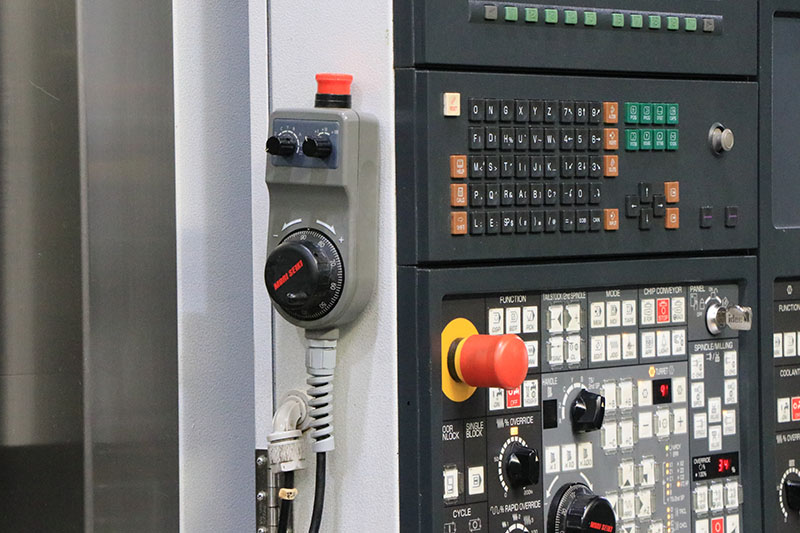

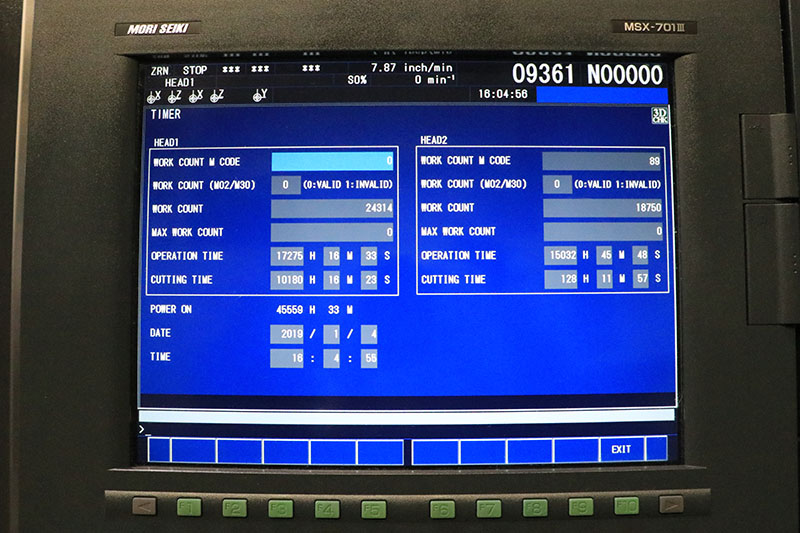

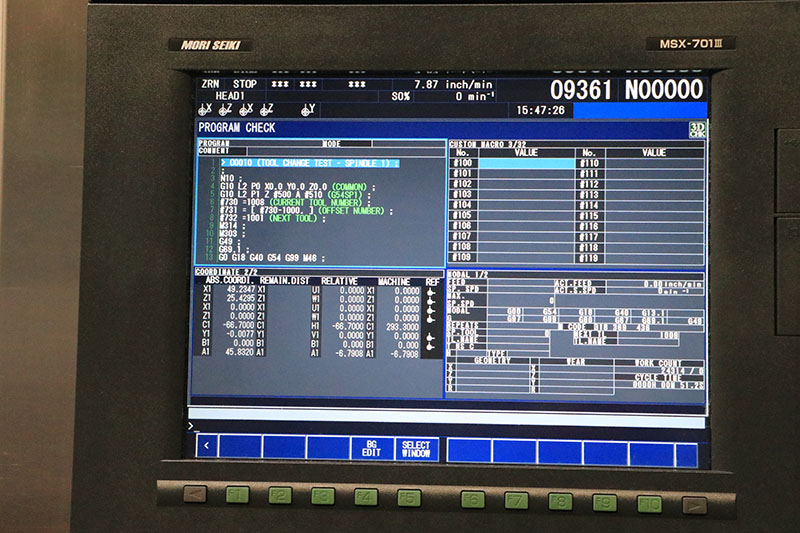

 - MSX-701III CNC CONTROL
 - TOOLSETTER

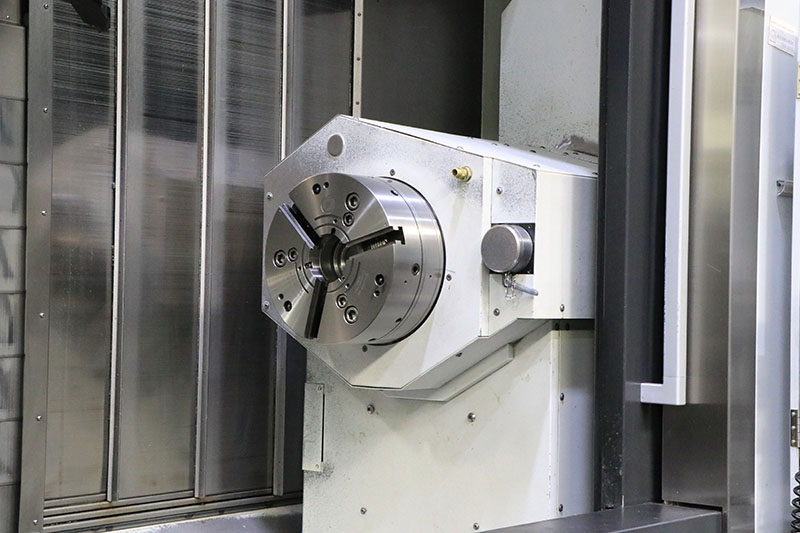

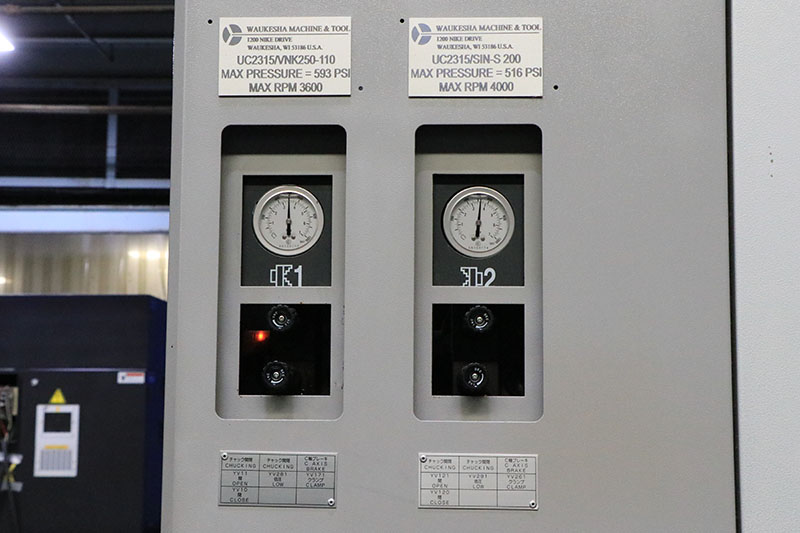

 - (2)SMX ULTIMA NCSE 315-91 3-JAW CHUCKS

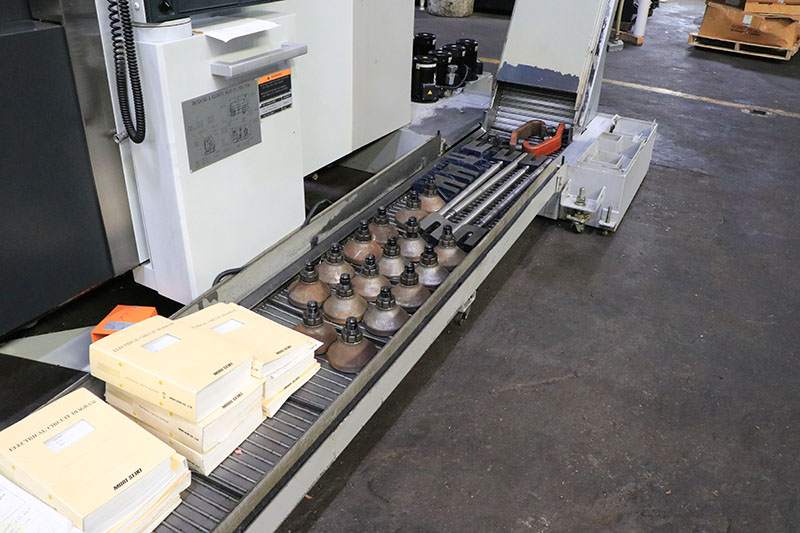

 - CHIP CONVEYOR
