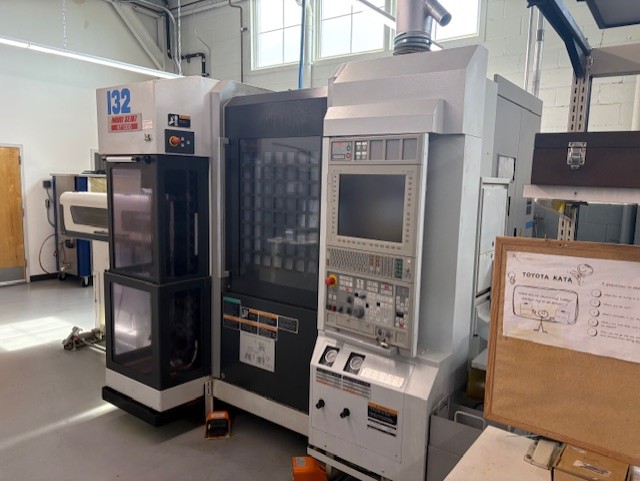

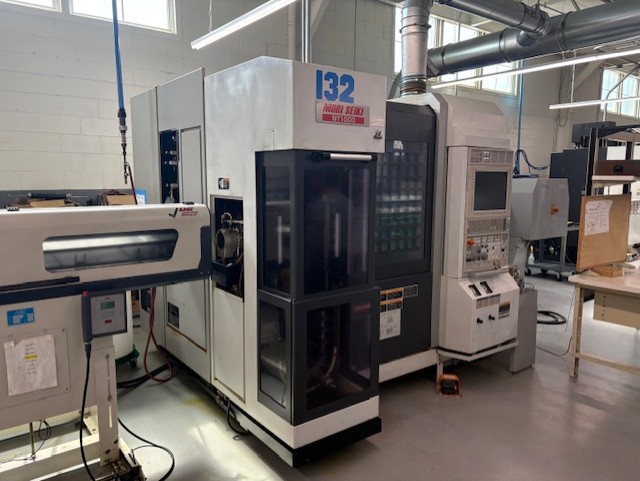

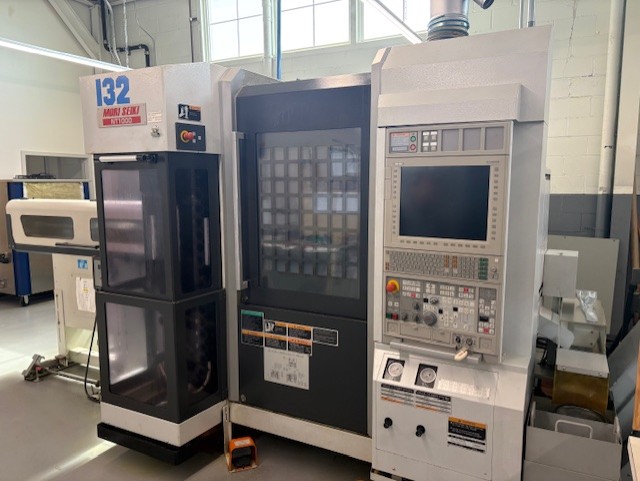

Mori Seiki NTX-1000/SZ CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Mori Seiki

Model:: NTX-1000/SZ

Year:: 2010

Ref #:: 179291

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

Description:
Mori Seiki NT-1000 SZ CNC Mill/Turn Center. integrated milling & turning, MSX-711 IV CNC control, and 38-position tool changer. Maximum turning diameter 14.5", spindle speeds up to 12,000 RPM. Includes Renishaw probe.


Specifications:

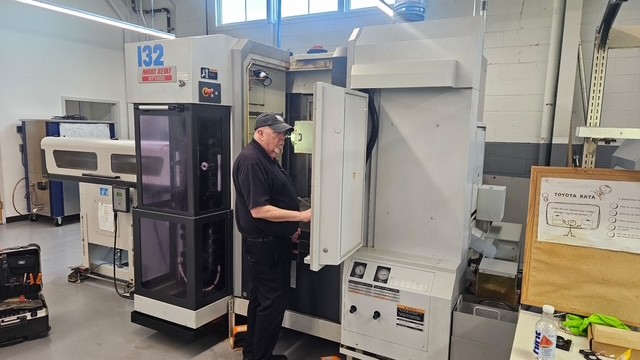

2010 Mori Seiki NT-1000/SZ CNC Integrated Milling & Turning Center

CAPACITY:
Max Turning Diameter for Tool Spindle: 14.5"
Max Turning Diameter for Turret 2: 10.6"
Maximum Turning Length: 16.6″
Bar Work Capacity: 2″

SPINDLE 1, MAIN SPINDLE:
Max. Spindle Speed: 6000 RPM
Spindle Nose: JIS A2-5
Spindle Hole Diameter: 2.4″
Bar Capacity: 2″
Min. Spindle Indexing Increment: 0.0001 Degree
Spindle Motor: 15 HP
C-Axis 360 Degree

SPINDLE 2, SUB-SPINDLE:
Spindle Speed: 6000 RPM
Bar Capacity: 1.5″
Spindle Motor: 10 HP
X-2-Axis: 6.1"
Z2 Axis: 24"

TOOL SPINDLE
Spindle Speed: 12,000 RPM
Spindle Taper: CAPTO C5
Tool Capacity (ATC): 38 ATC
Tool Change Time: 1.2 Seconds
B-Axis Indexing Increment: 0.0001 Degrees
Spindle Motor: 12 HP
X1-Axis: 15"
Y-Axis: 8.3"
Z1-Axis: 18.1"
B-Axis: +- 120 Degrees

Turret 2 (lower Turret)
Number of tool Stations: 10

DIMENSIONS & WEIGHTS:
Floor Space: 95.5″ L (153" W Chip Conv) x 106.5″ W
Machine Height: 94″
Machine Weight: 19,000 Lbs.

Equipped With:

EQUIPPED WITH:

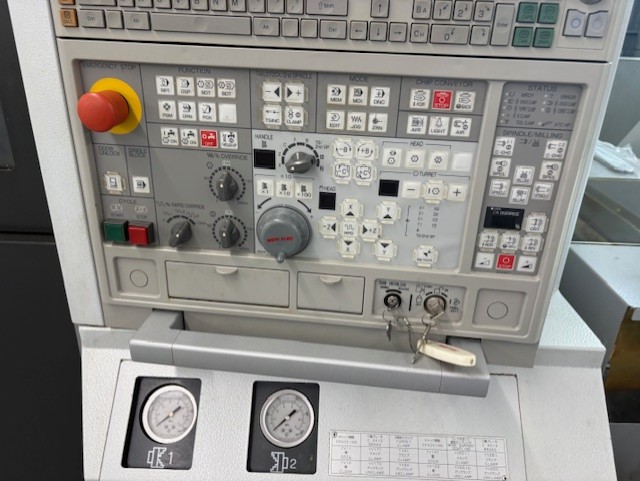

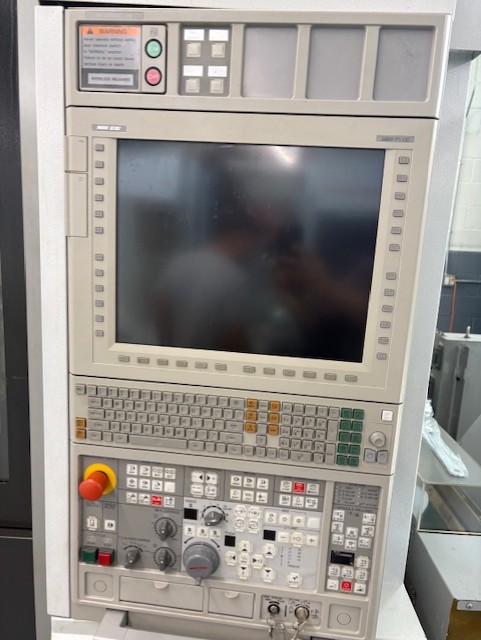

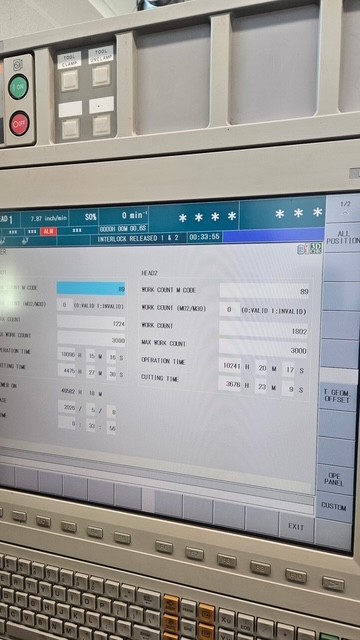

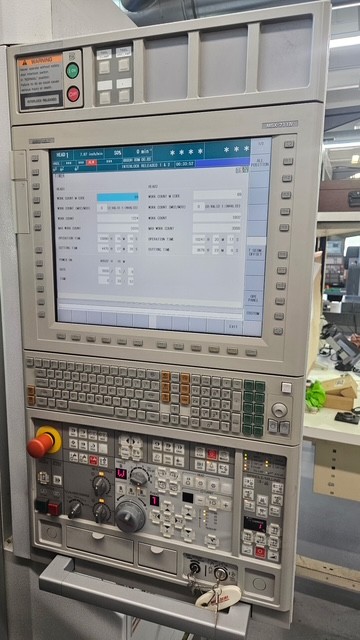

MORI SEIKI MSX 711 IV CNC Control
38-Position Automatic Tool Changer
Collet for Main Spindle
5" Chuck for Sub Spindle
Renishaw Probe

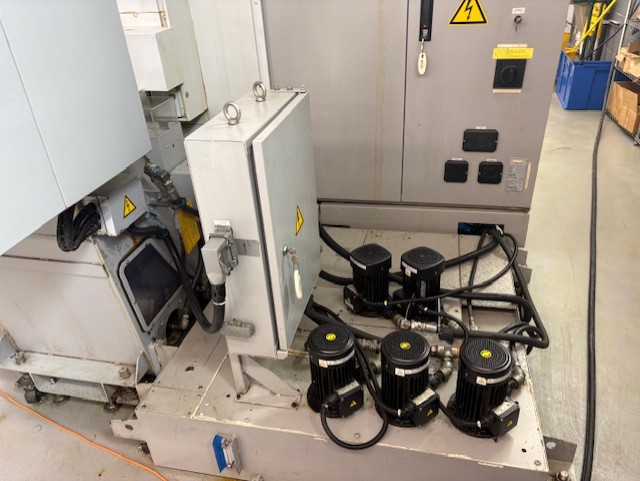

Coolant System

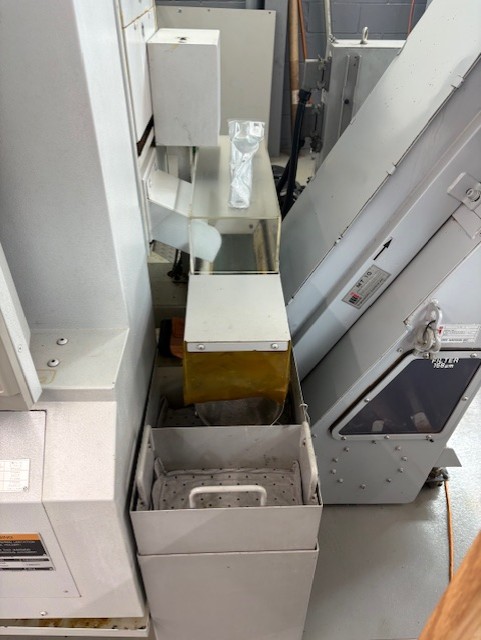

Chip Conveyor
Workpiece Discharge Unit

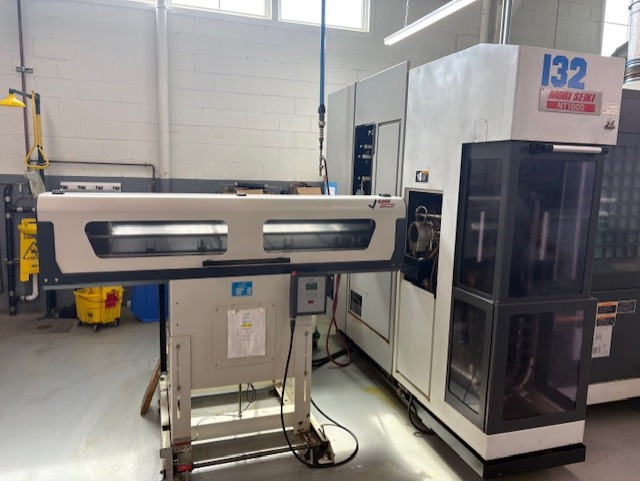

LNS Bar Feeder
