Nakamura-Tome WT-150MMY CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Nakamura-Tome

Model:: WT-150MMY

Year:: 2004

Ref #:: 178397

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

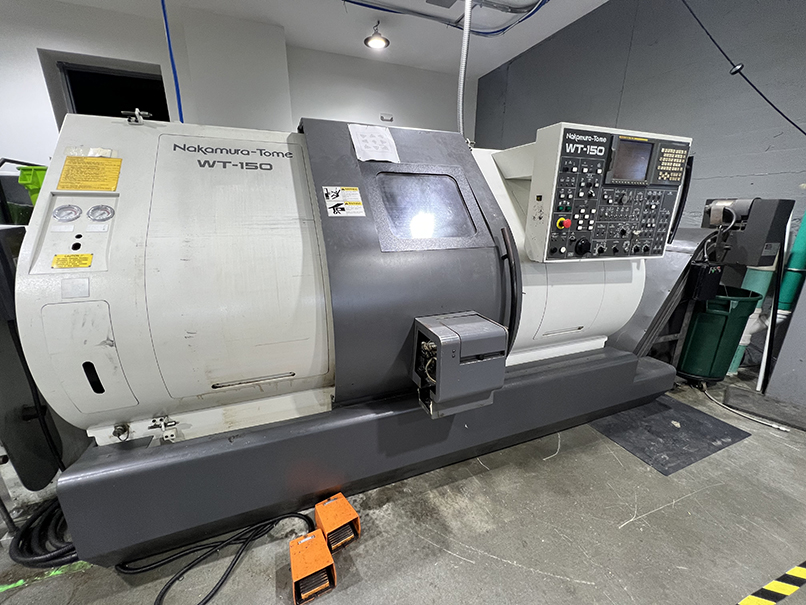

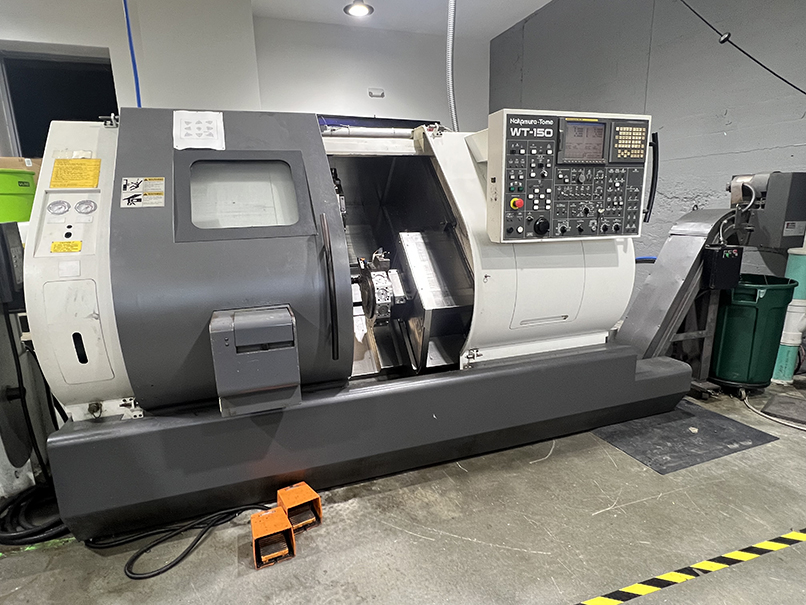

2004 Nakamura Tome WT-150MMY Twin Spindle, Dual Turret, & Live Tooling CNC Lathe

Specifications:
Bar Capacity                      2”
Chuck Size                        6”
Max. Turning Diameter             7.48”
Max. Swing                        7.48”
Max. Turning Length               15.75”
Distance Between Spindle Nose     29.52” Max. / 7.87” Min.
X1-Travel                         6.2”
X2-Travel                         6.59”
Z1-Travel                         18.3”
Z2-Travel                         18.31”
B-Axis on Subspindle              21.65”
C- Axis Contouring (L/R Spindles) 0.001 Degree
Y- Axis Travel on Upper Turret    2.75”
Spinlde Nose (L/R Spindles)       A2-5
Spindle Speed (L/R Spindles)      5,000 RPM
Turning Spindle Motor (L/R)       20/15 HP
Upper/ Lower Drive Motor          7.5 HP
Number of Turret Stations         12 Tools per Turret
Turret Index Time                 0.15 Sec/Station
Live Tooling Motor                7.5 HP
Live Tooling Speeds               3,600 RPM
Approx. Machine Dimensions        170”x86”x73”
Approx. Machine Weight            20,000 lbs.

Equipped With:

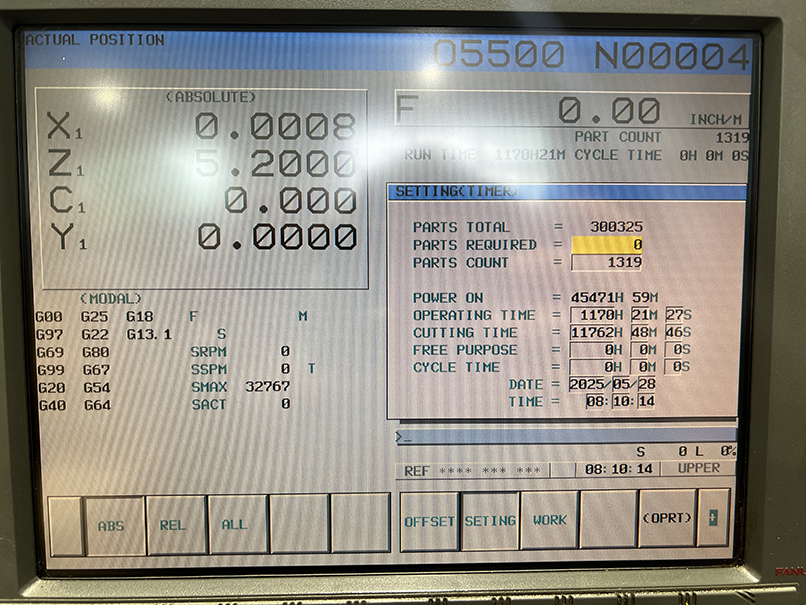

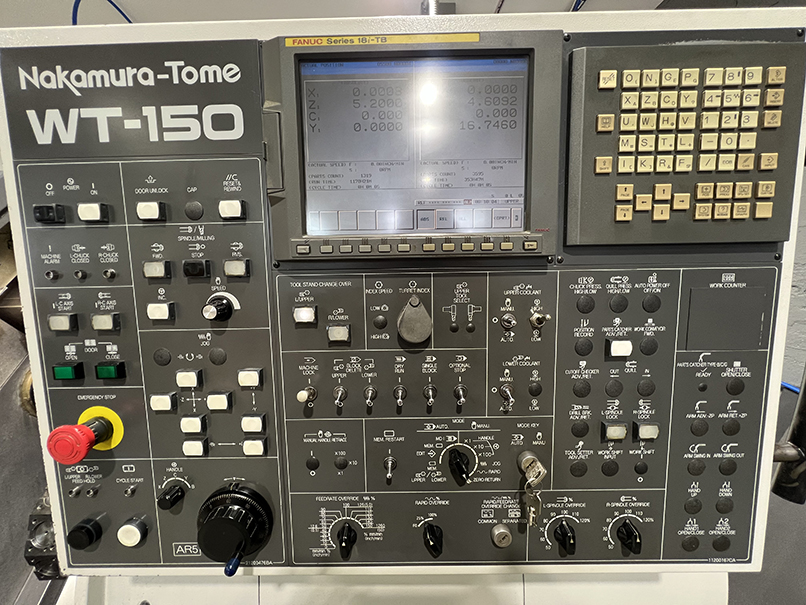

Fanuc 18i-TB CNC Control
Twin Spindle

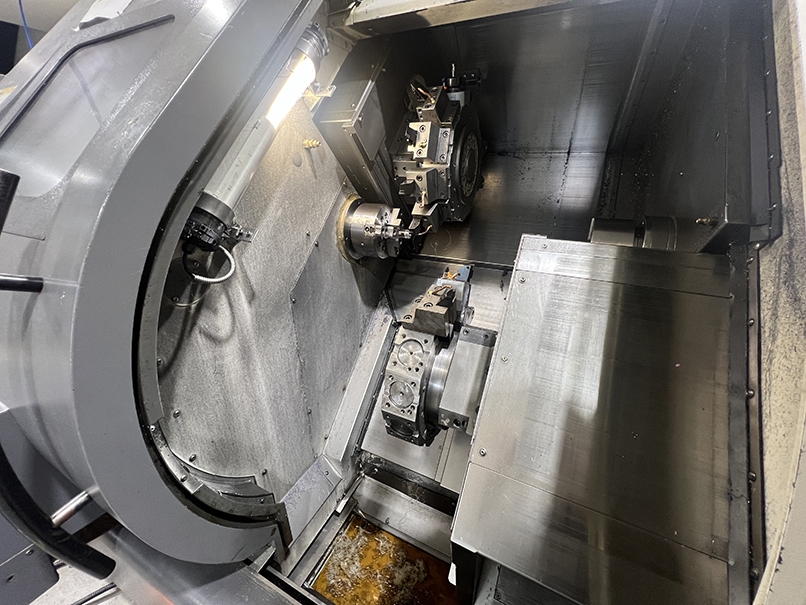

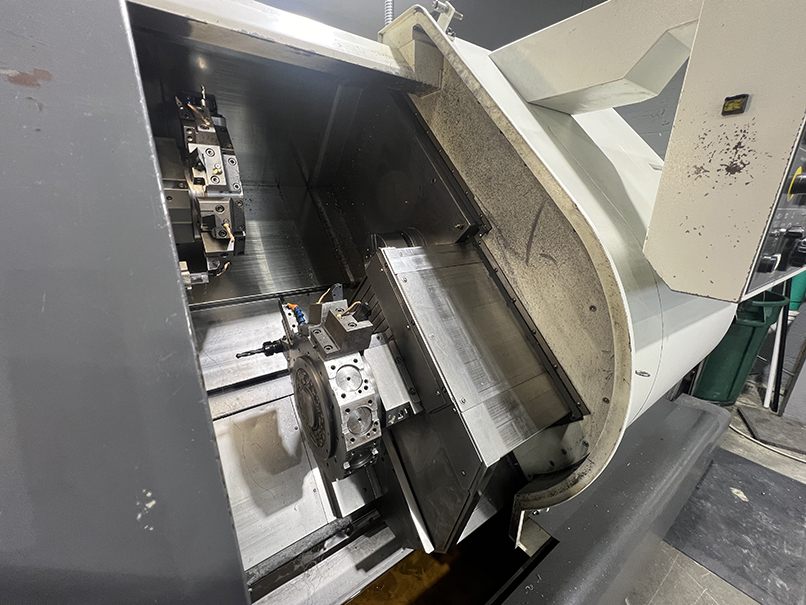

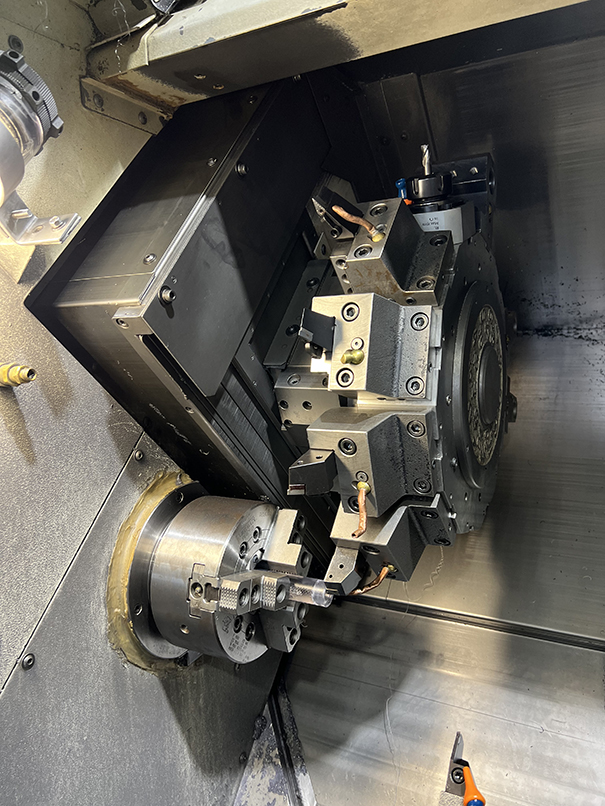

Dual Turret

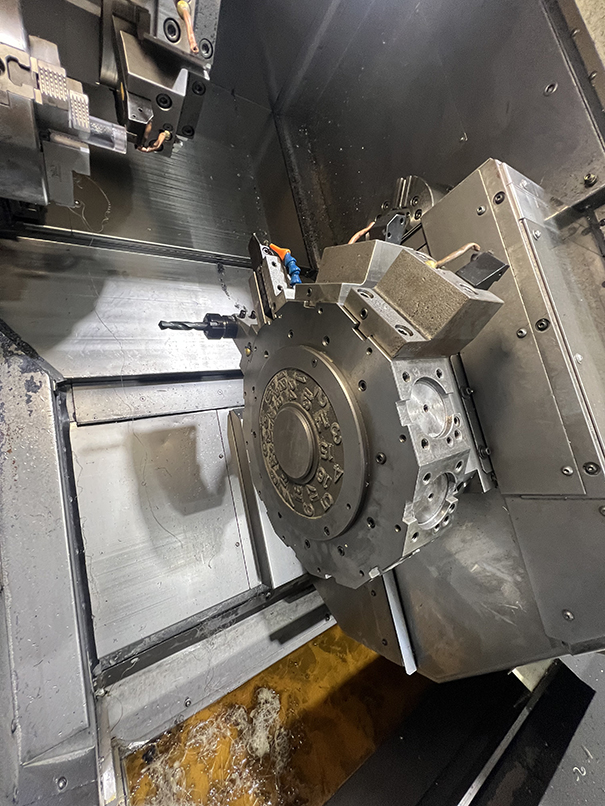

Live Tooling
Right Hand Discharge Lift-Up Chip Conveyor
Y-Axis Upper Turret
C-Axis (L/R)
(8) Live Face Drill Holders
(8) Live Cross Drill Holders
All Available Static Toolholders

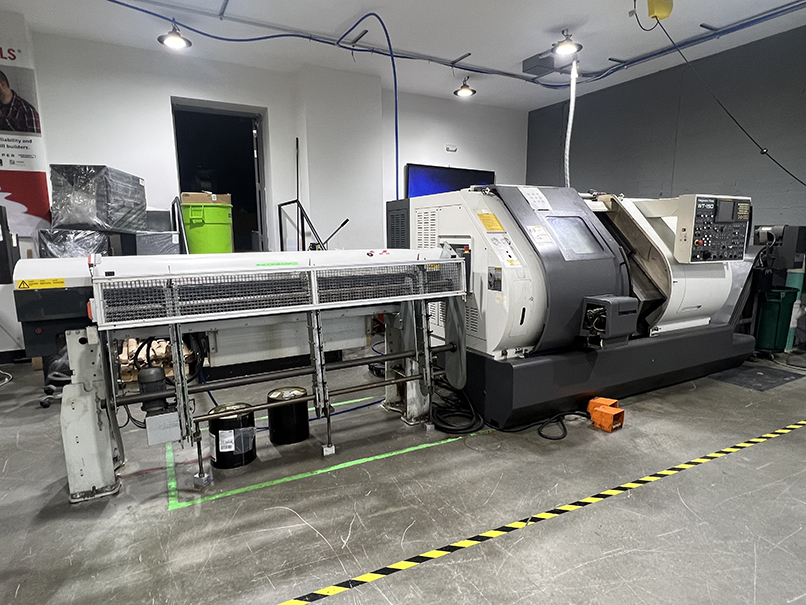

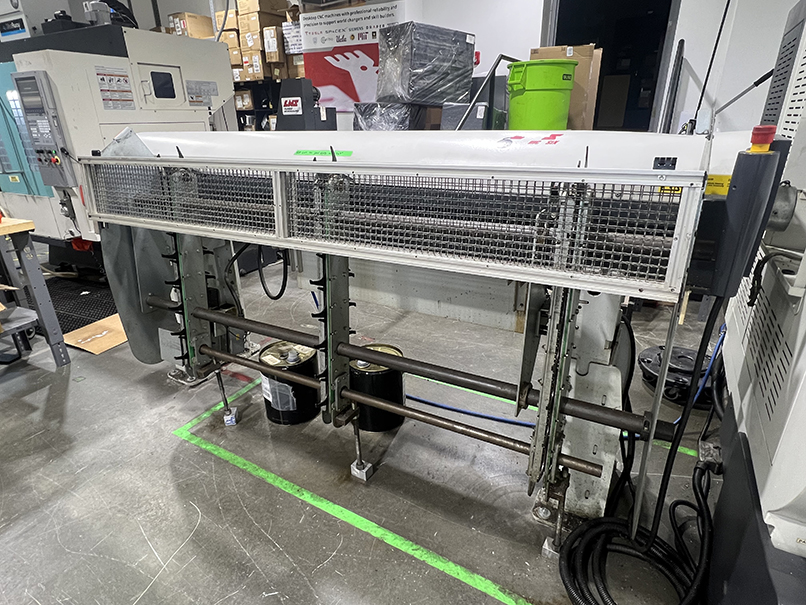

LNS Quick Six Barfeed
