Nippei THOMPSON FSH-30/90, SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Nippei

Model:: THOMPSON FSH-30/90,

Year:: 1985

Ref #:: 163589

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

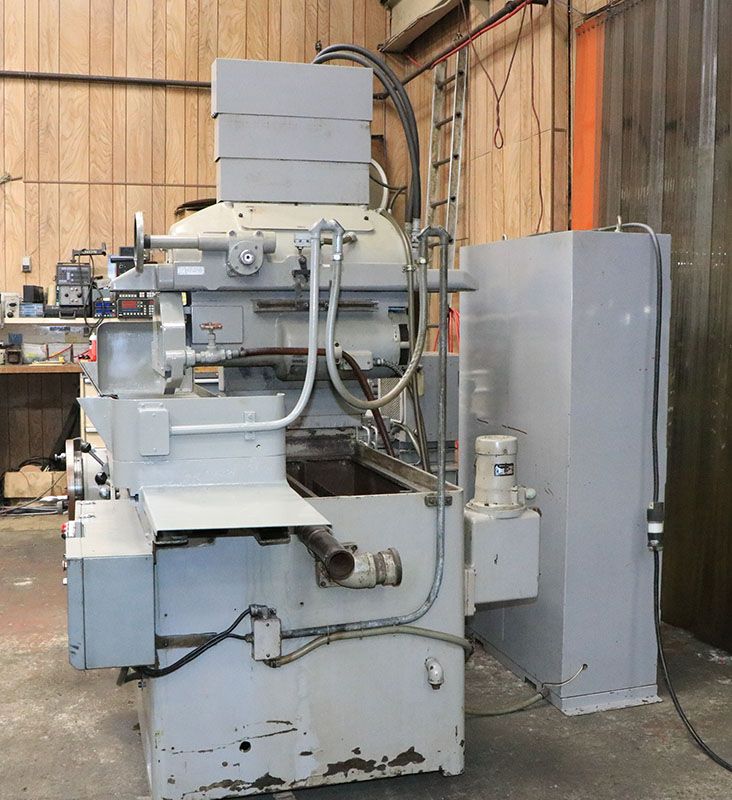

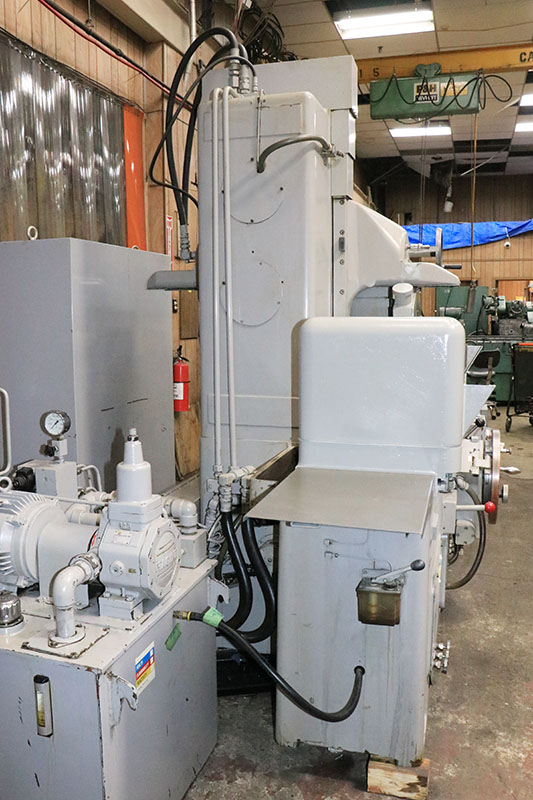

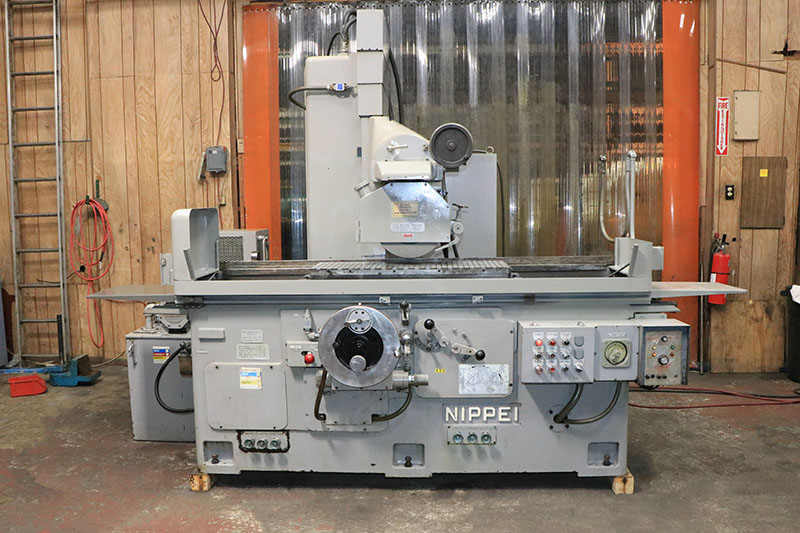

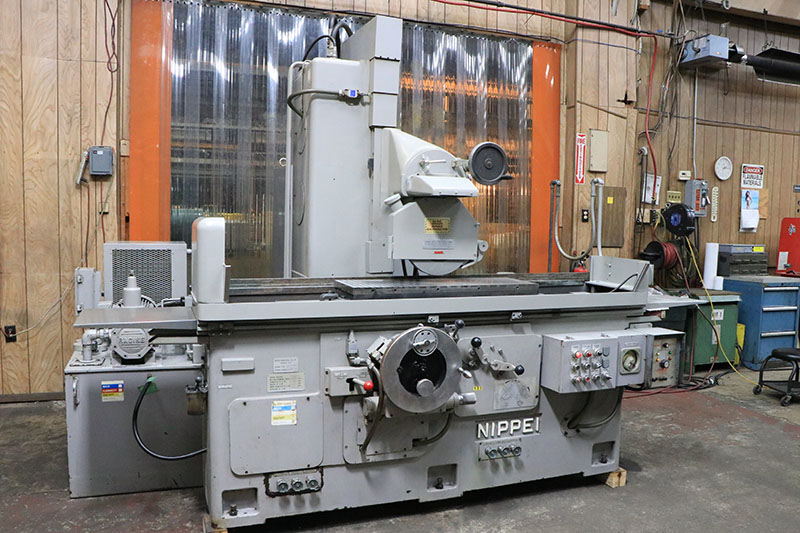

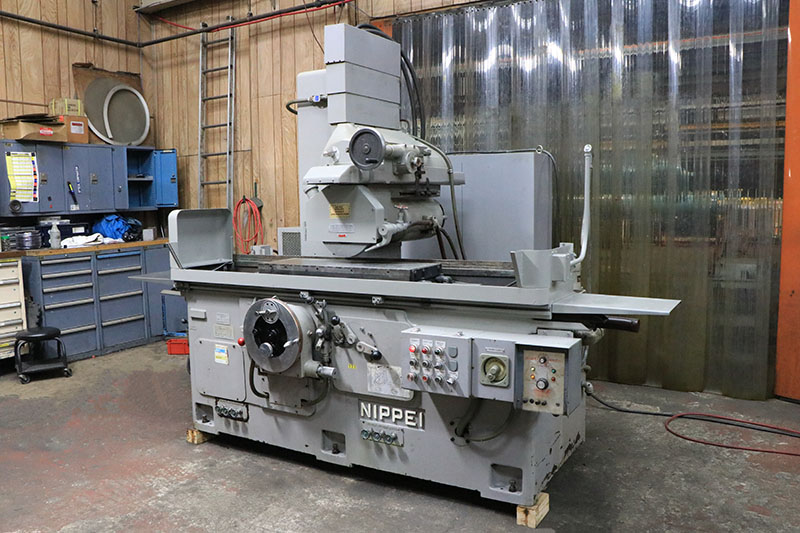

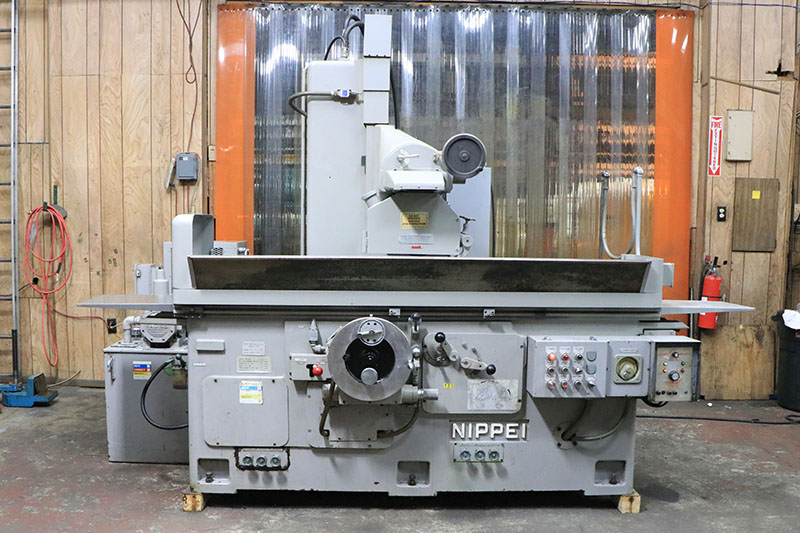

 12" X 36" NIPPEI-THOMPSON PRECISION HYDRAULIC SURFACE GRINDER
W/AUTO INCREMENTAL DOWNFEED

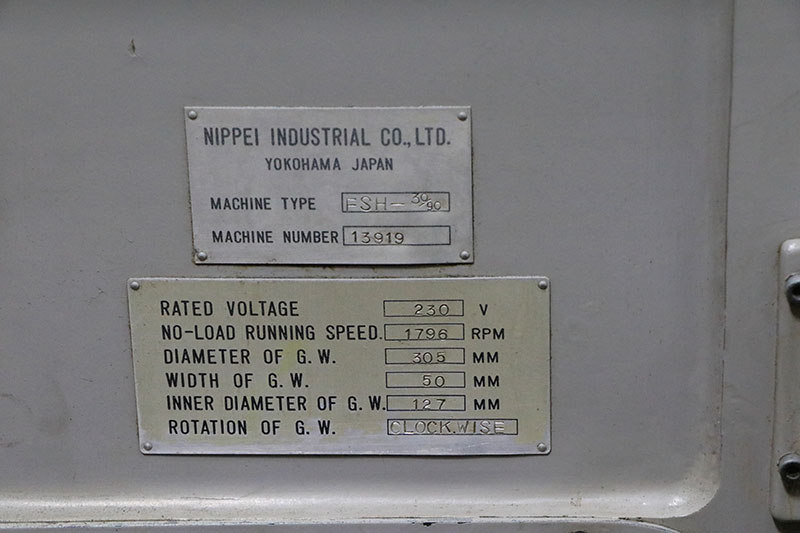

  MODEL: FSH 30-90    S/N: 13919    NEW: 1985

WIDTH & LENGTH GROUND ................ 12" X 36"
VERTICAL CAPACITY W/NEW WHEEL ........ 16.75
GRINDING WHEEL SIZE .................. 14" X 2" X 5"
LONGITUDINAL TABLE TRAVEL ............ 72"
HYDRAULIC TABLE SPEED ................ 10' TO 100' FPM
CROSS FEED TRAVEL .................... 28"
AUTO CROSS FEED INCREMENT ............ 0.03" TO 1"

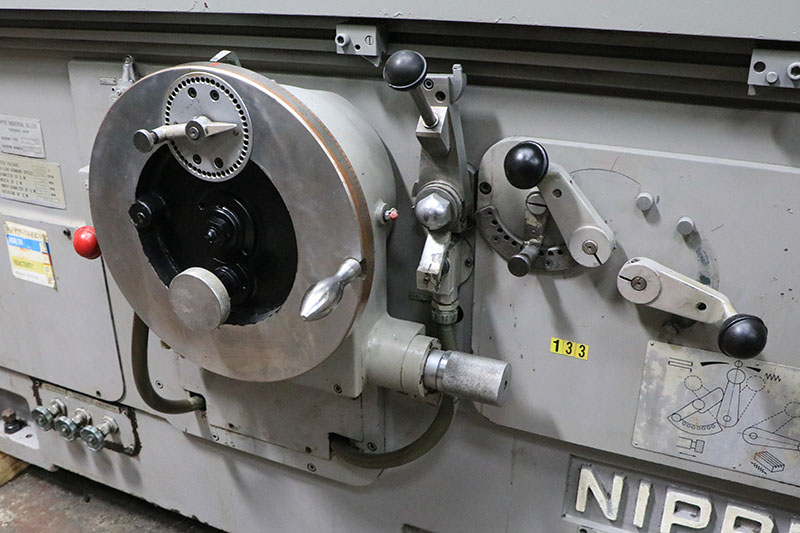

CROSS FEED HAND WHEEL GRAD. .......... 0.001"
WHEELHEAD CROSSFEED RAPID TRAVERSE ... 20' FPM
APPROX. MACHINE WEIGHT ............... 12,000 LBS.
APPROX. DIMS. ........................ 130" x

EQUIPPED WITH:

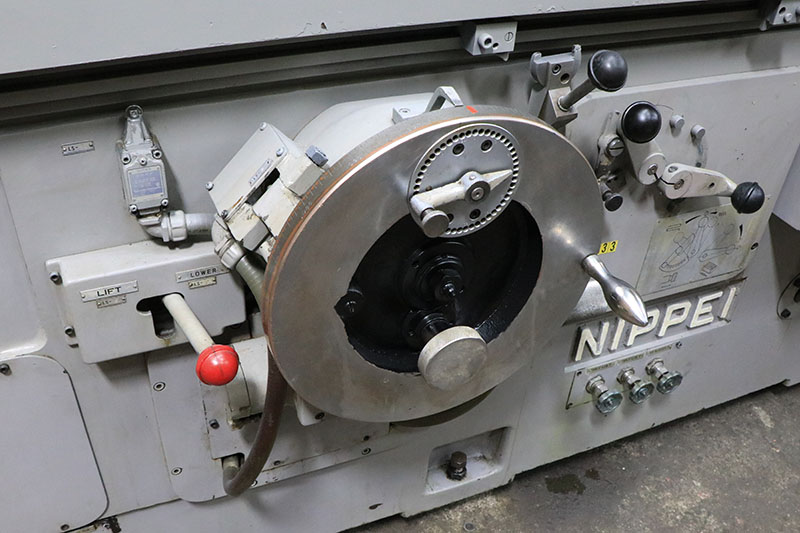

AUTO INCREMENTAL DOWNFEED
HYDRAULIC LONGITUDINAL & CROSS FEEDS
20" DIAMETER X 6" WIDE  GRINDING WHEEL

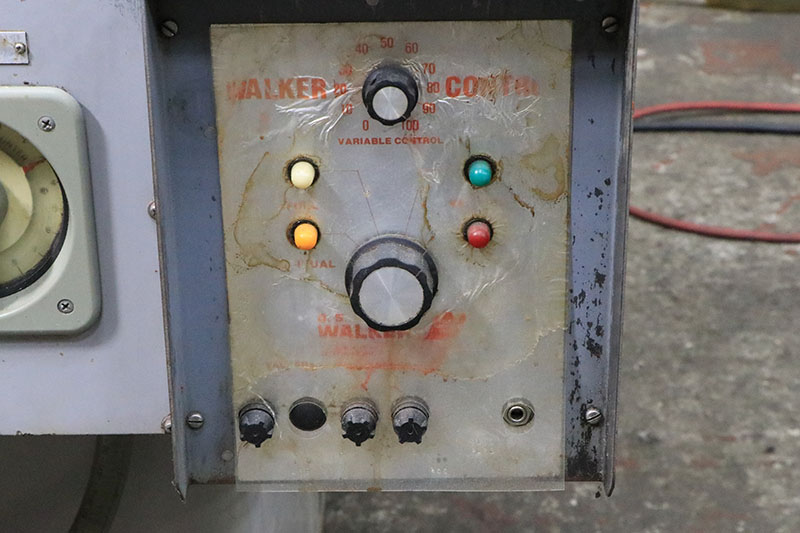

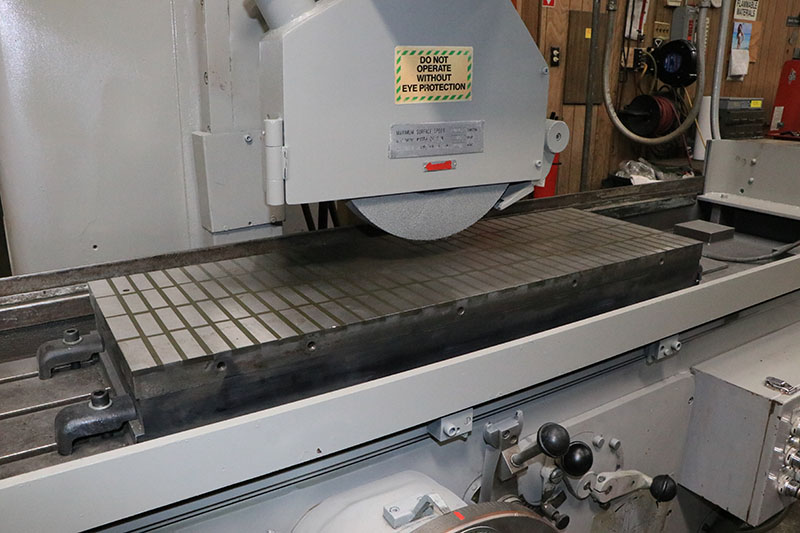

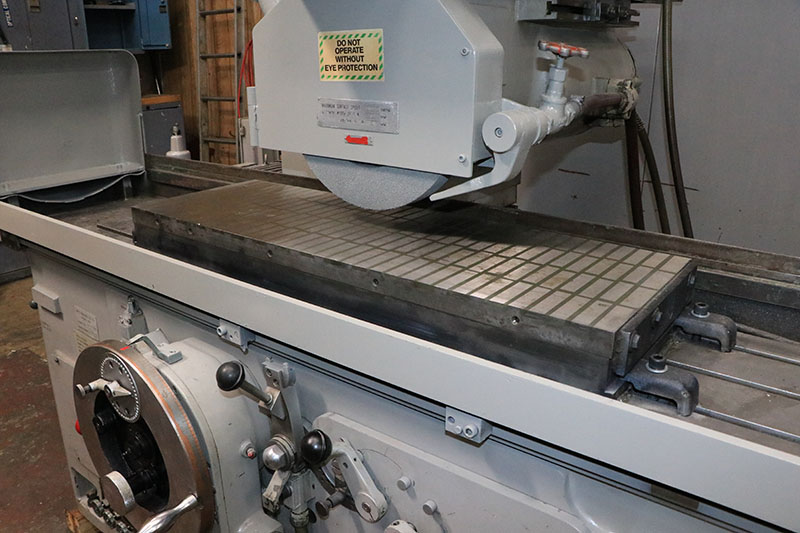

24" X 60" ELECTRO-MAGNETIC W/NEUTROFIER CONTROL

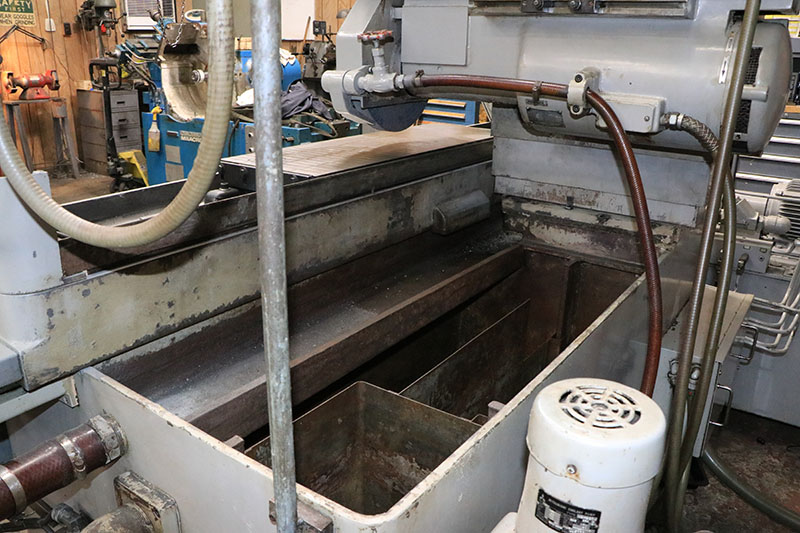

COOLANT SYSTEM IN THE BASE (NOT EXTERNAL)

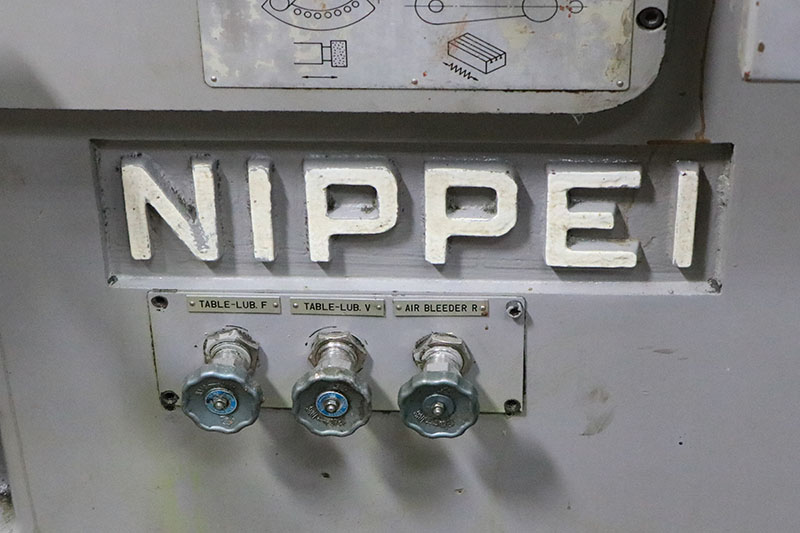

TABLE WAYS ARE LUBRICATED BY HYDRAULIC SYSTEM

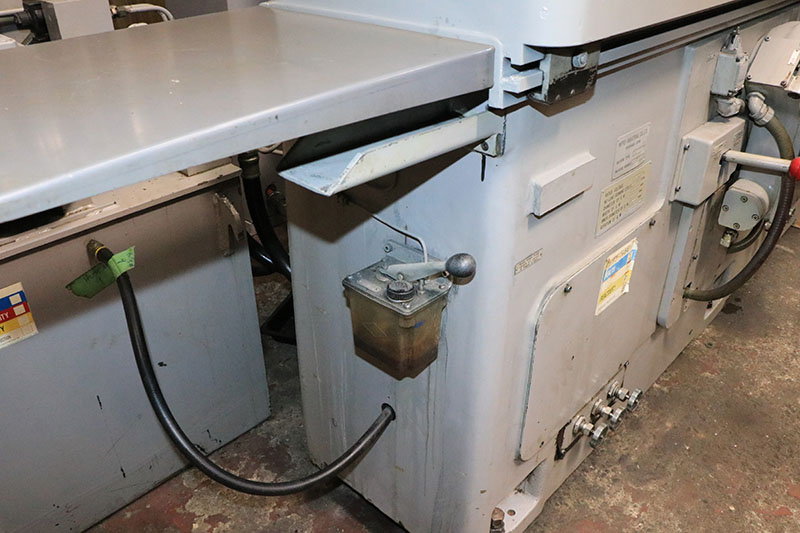

COLUMN & SADDLE WAYS ARE LUBRICATED BY A SEPERATE
  HAND LUBRICATION PUMP.

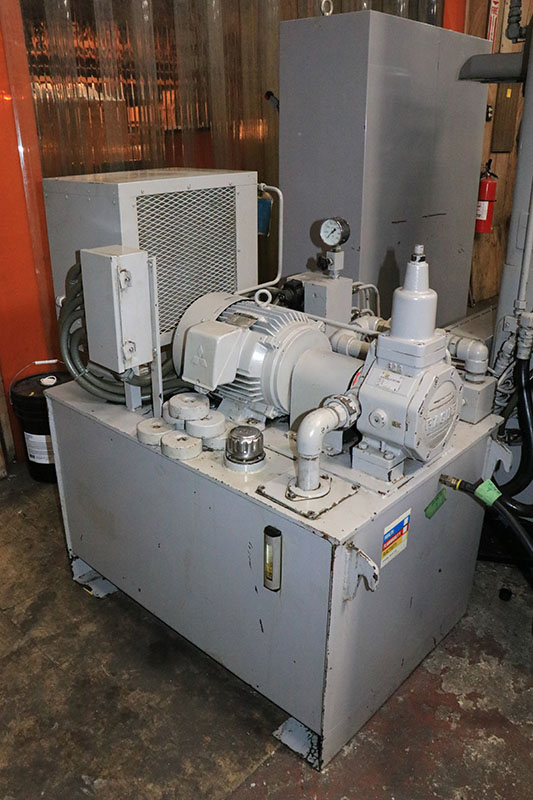

5 H.P. HYDRAULIC PUMP MOTOR
5 H.P./3/60/220-440 VOLT SPINDLE MOTOR

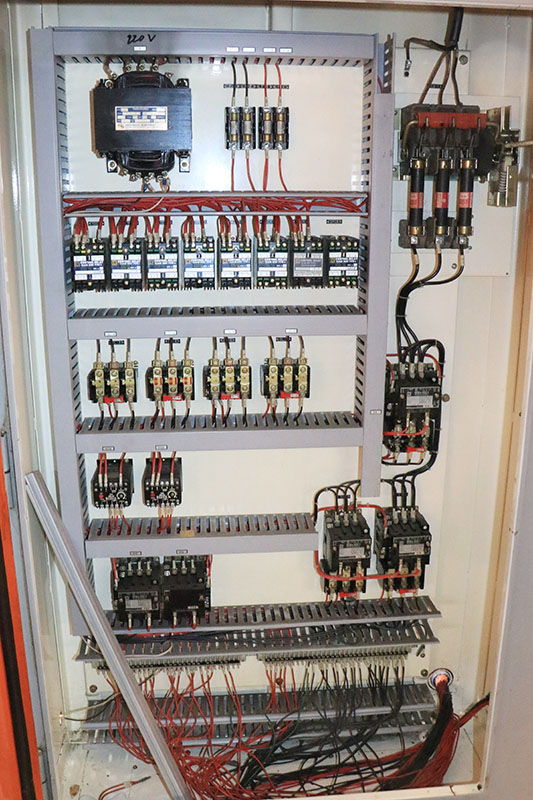

MACHINE IS WIRED FOR 3/60/230 VOLTS

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
