Okamoto ACC 618 DX3, 2018, 3X AUTO FEEDS, PROG. AUTO IDF SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Okamoto

Model:: ACC 618 DX3, 2018, 3X AUTO FEEDS, PROG. AUTO IDF

Year:: 2018

Ref #:: 178781

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

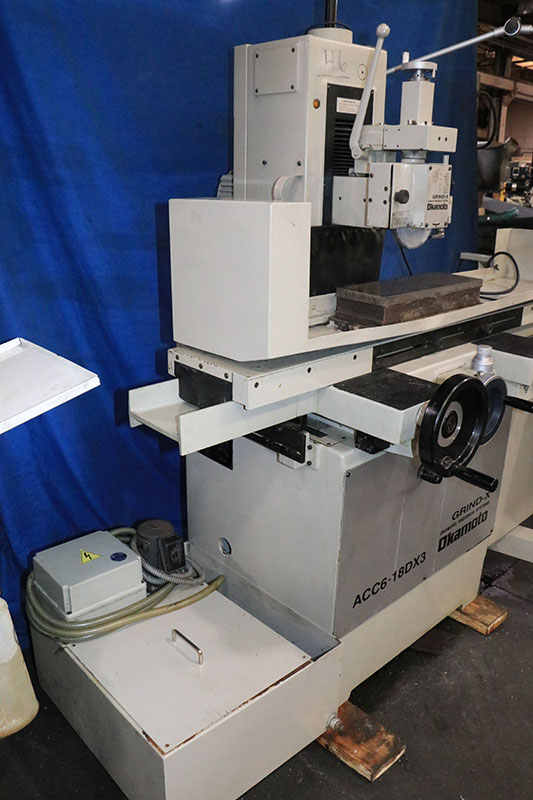

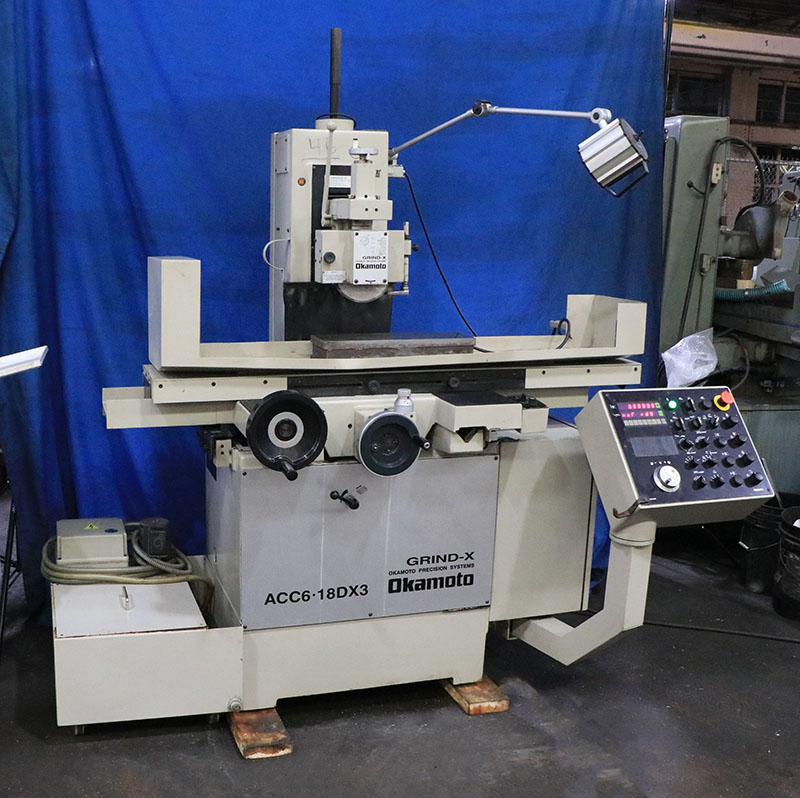

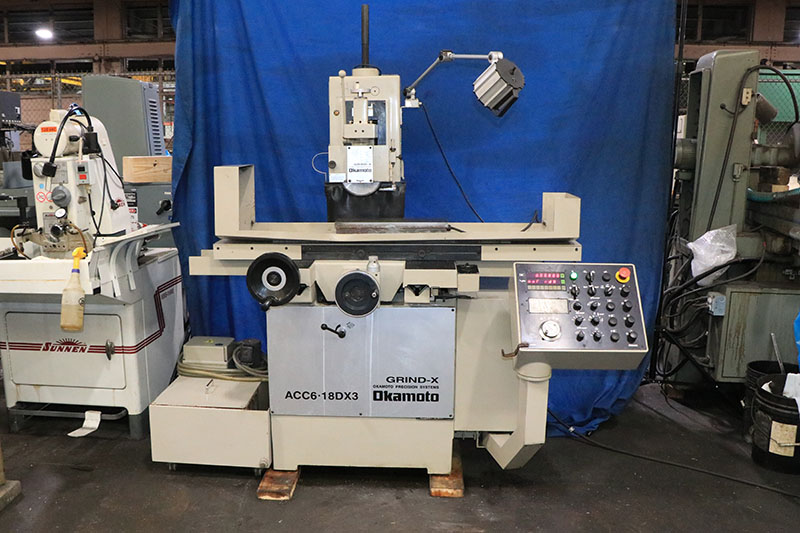

          6" X 18" OKAMOTO "HIGH-PRECISION"
          3-AXIS AUTO FEEDS SURFACE GRINDER
   W/"DX" SERIES PROGRAMMABLE AUTO INCREMENTAL DOWNFEED

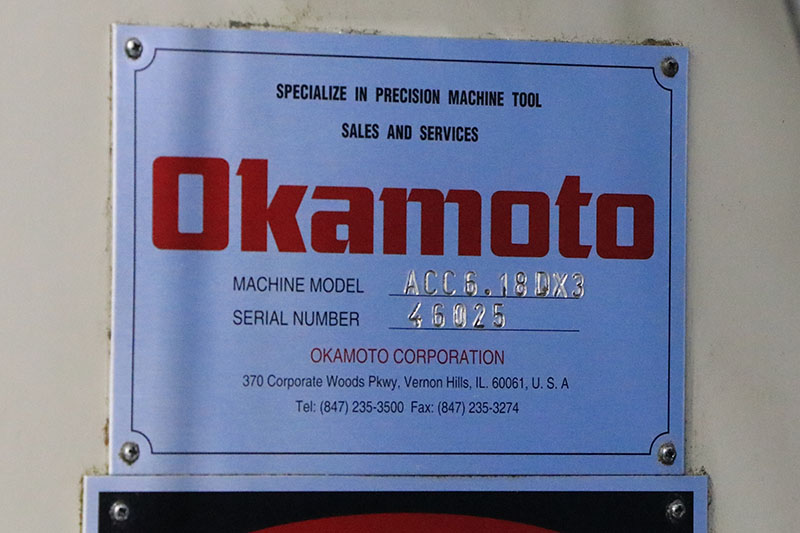

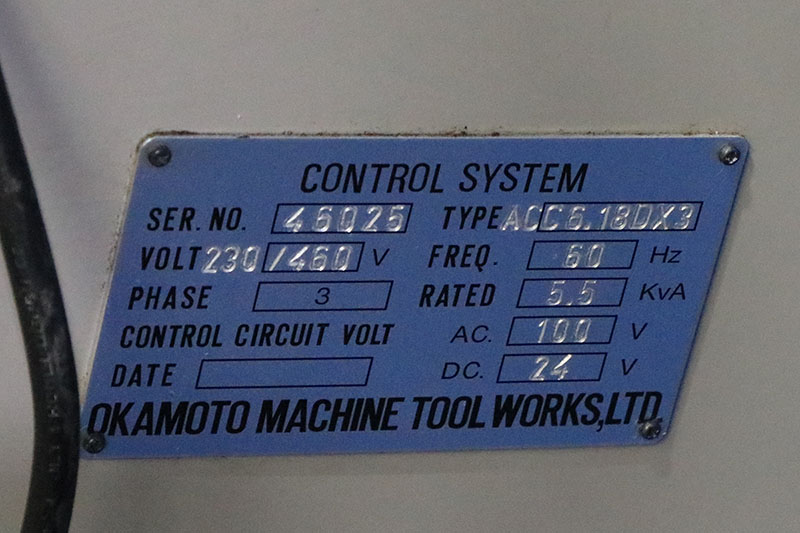

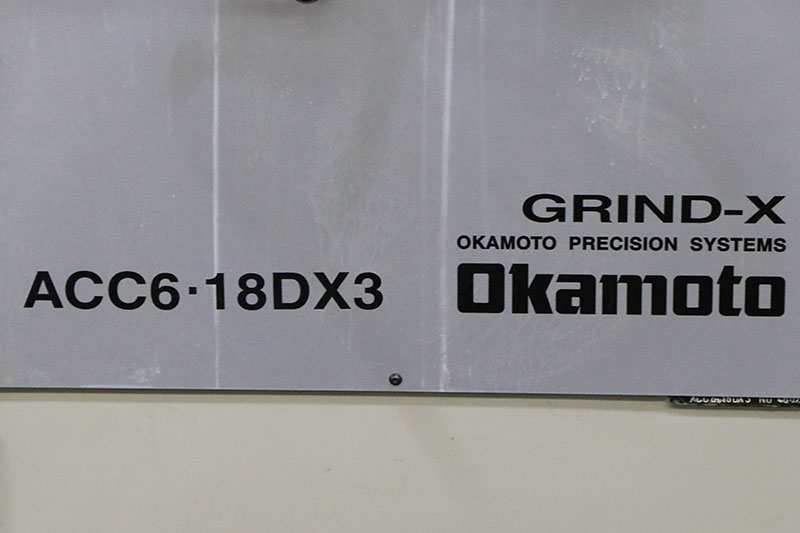

 MODEL: ACC-618-DX3      S/N: 46025     NEW: 2018

NOMINAL GRINDING CAPACITY .................. 6" x 18"
MAXIMUM HEIGHT UNDER 8" WHEEL .............. 11.7"
TABLE SPEED, INFINITELY VARIABLE ........... UP TO 82' FPM
MAX. LONGITUDINAL TABLE MOVEMENT, MANUAL ... 24"
AUTO CROSS FEED INCREMENT .................. 0.002" TO 0.40"
AUTO CONINOUS CROSSFEED .................... 4' TO 40' FPM
CROSSFEED, MANUAL, HAND FEED PER REV. ...... 0.25"
                   GRAD. OF HANDWHEEL ...... 0.0004"
FINE FEED KNOB FOR CROSSFEED, GRAD. ........ 0.00002"
MAX. CROSSFEED, MANUAL ..................... 7"
AUTO INCREMENTAL DOWNFEED INCREMENTS ....... 0.00005" TO .0015"
POWER RAPID WHEEL POSITIONING RATE ......... 16" IPM
SPINDLE MOTOR .............................. 2 H.P.

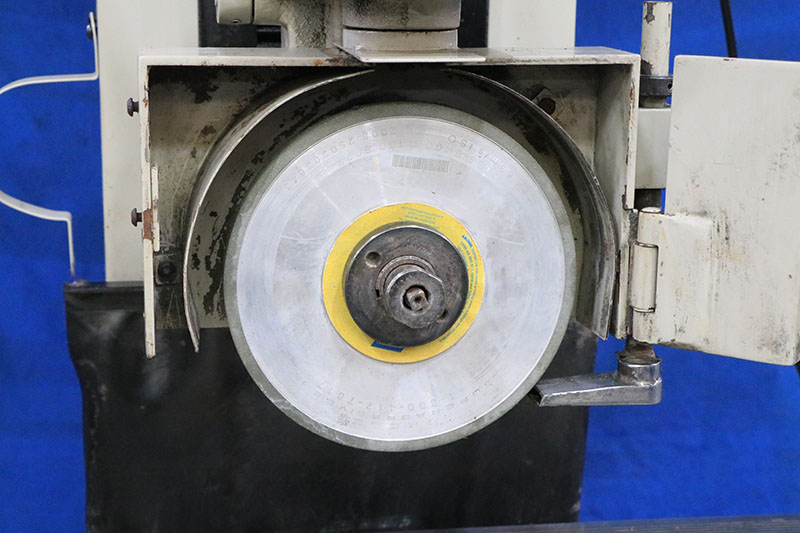

WHEEL SIZE ................................. 8"DIA. x 1"W x 1.25"B

APPROX. DIMS. FOR OPERATION ................ 85" x 63"D x 70"H
APPROX. MACHINE WEIGHT ..................... 2,500 LBS.

MACHINE FEATURES:
"DX" SERIES PROGRAMMABLE ELECTRONIC AUTO INCREMENTAL DOWNFEED:
-AC SERVO DRIVEN DOWNFEED
-AUTO INCREMENTAL DOWNFEED FOR BOTH SURFACE & PLUNGE
  OPERATIONS

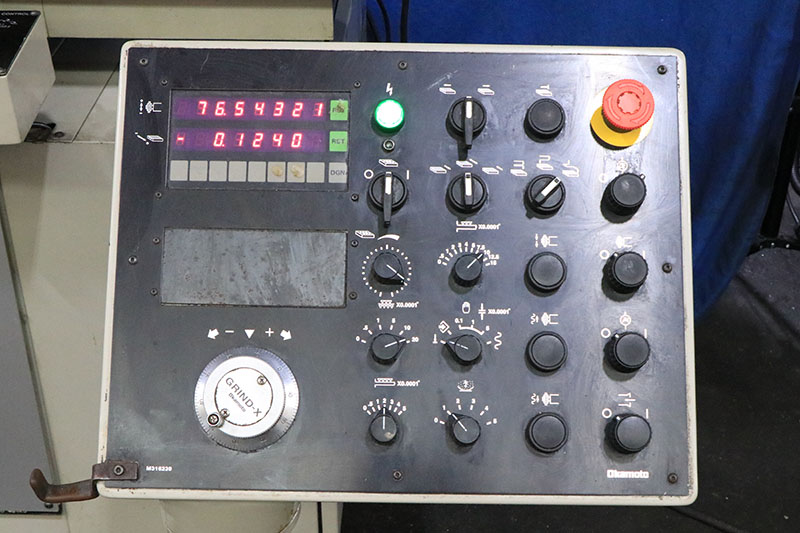

-DIGITAL DISPLAY FOR THE VERTICAL AXIS
-DUAL RATE AUTO DOWNFEED W/COARSE & FINE SELECTIONS
-SPARKOUT PASSES (0 TO 5) W/AUTO TABLE PARK AT
  COMPLETION OF GRIND CYCLE
-ELECTRONIC HANDWHEEL FOR MANUAL VERTICAL MOVEMENT
  W/EACH GRAD. EQUIVALENT TO .00001", .0001" OR .001"
-POWER RAPID WHEEL POSITIONING

HYDRAULIC TABLE TRAVERSE

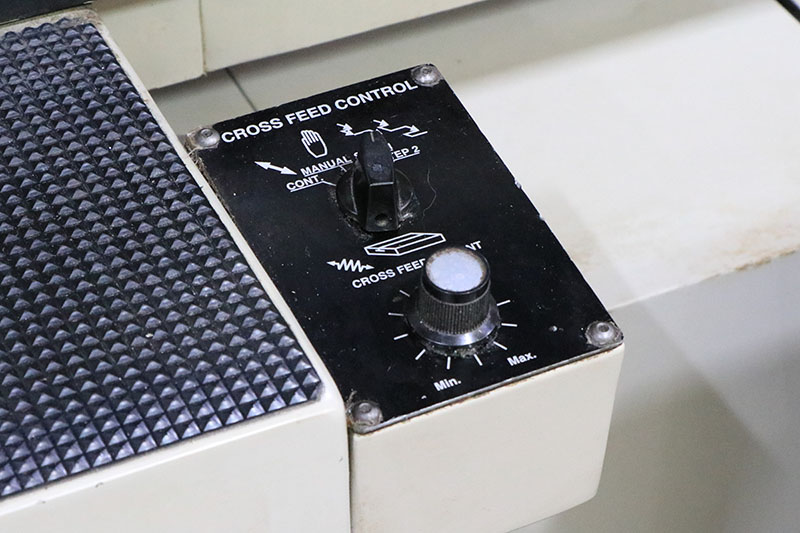

ELECTRONIC AUTOMATIC CROSSFEED

EQUIPPED WITH:

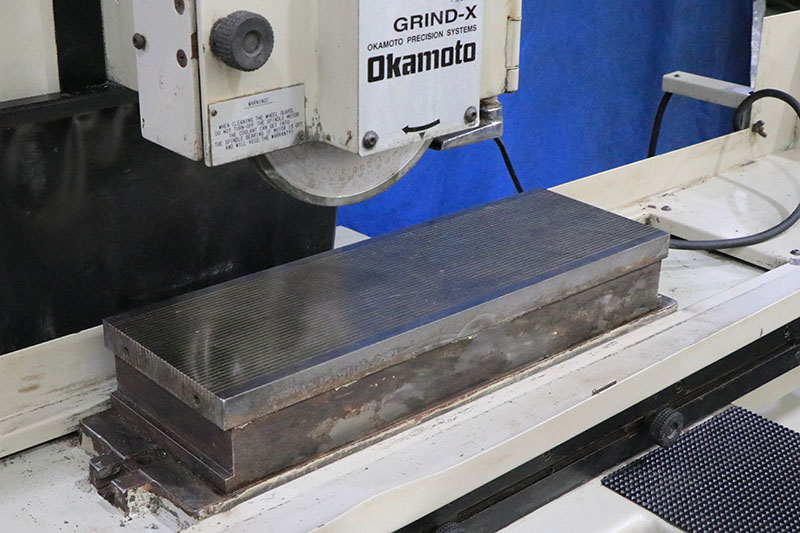

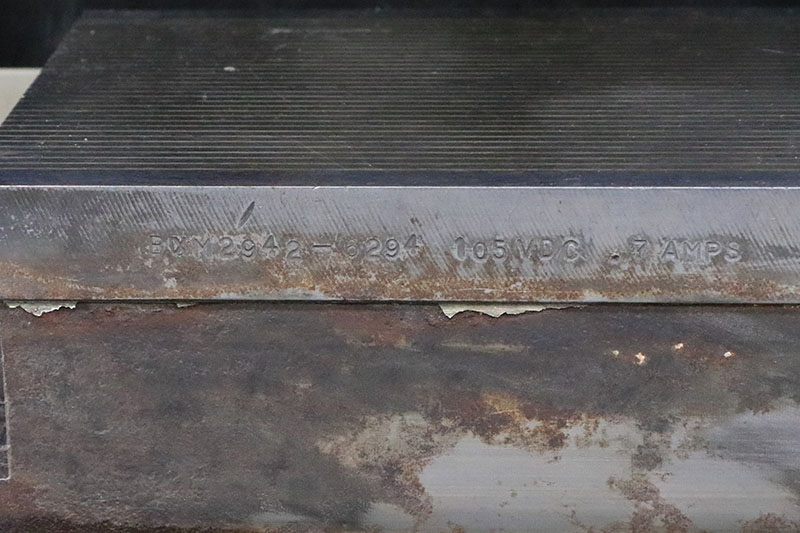

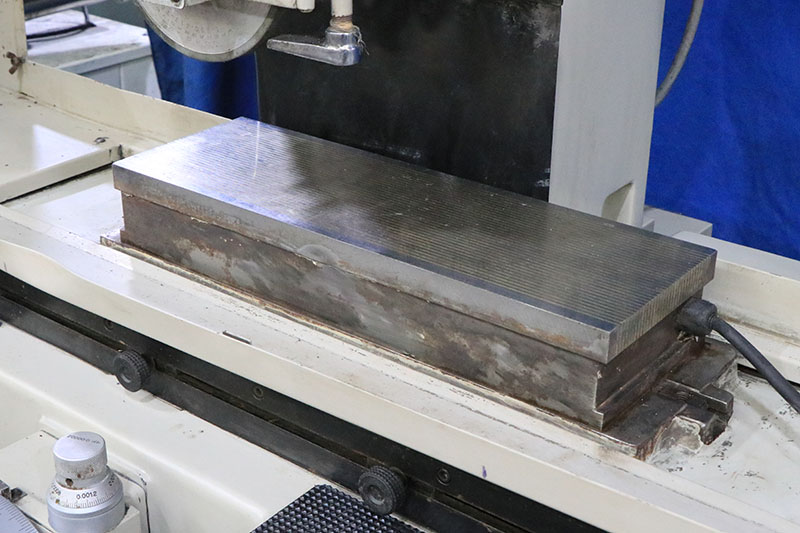

6" X 18" "O.S. WALKER" "MADE IN USA" "LBP"
  FINE-DIVISION ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL ON MACHINE'S CONSOLE

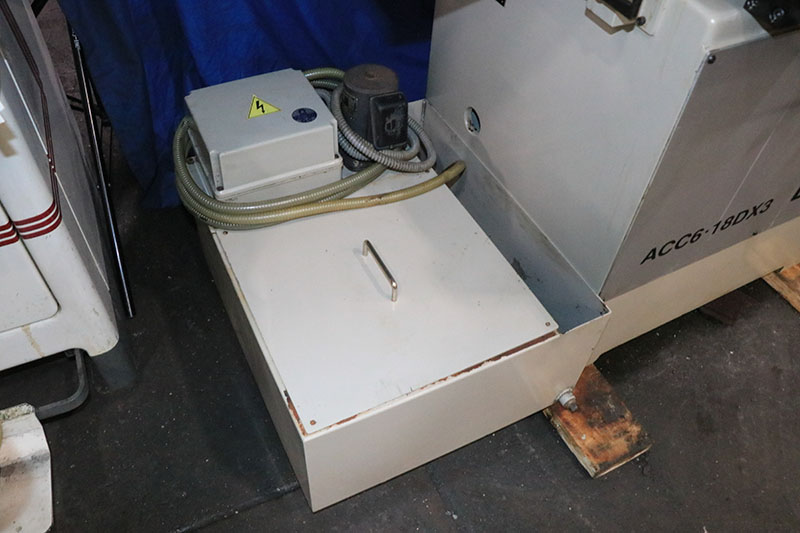

COOLANT SYSTEM

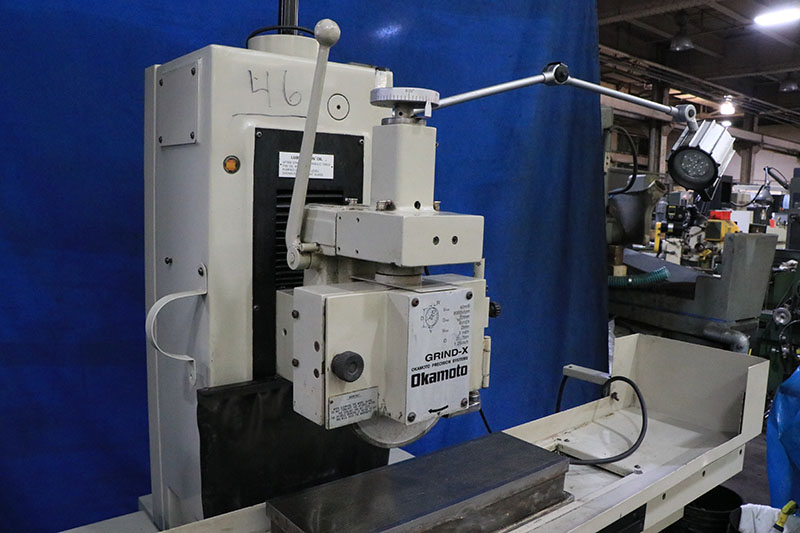

OVER-THE-WHEEL DRESSER WITH MICROMETER ADJUSTMENT

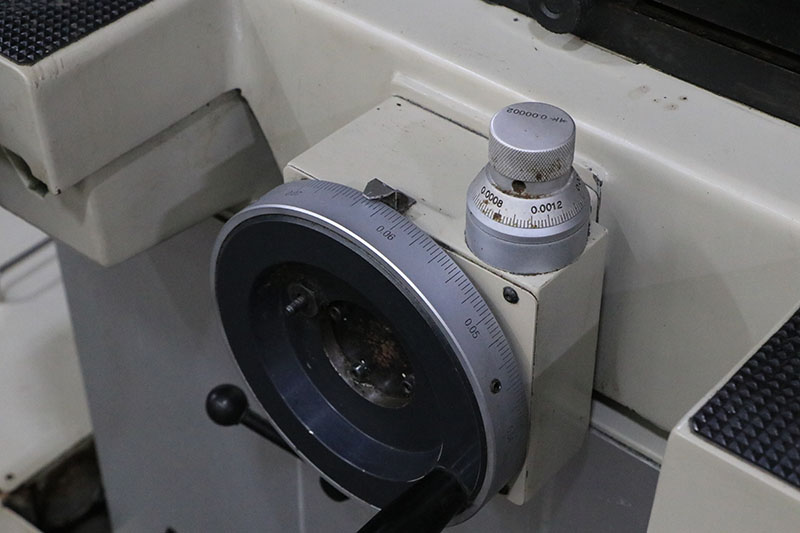

OPTIONAL FINE FEED KNOB, FOR THE CROSS FEED
WORK LIGHT
2 H.P./220-230-440-460 VOLT SPINDLE MOTOR
MACHINE IS PRESENTLY WIRED FOR 220 VOLTS

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
