Okamoto ACCUGAR 124N, 1980, 3X AUTO FEEDS, AUTO IDF SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Okamoto

Model:: ACCUGAR 124N, 1980, 3X AUTO FEEDS, AUTO IDF

Year:: 1980

Ref #:: 167531

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

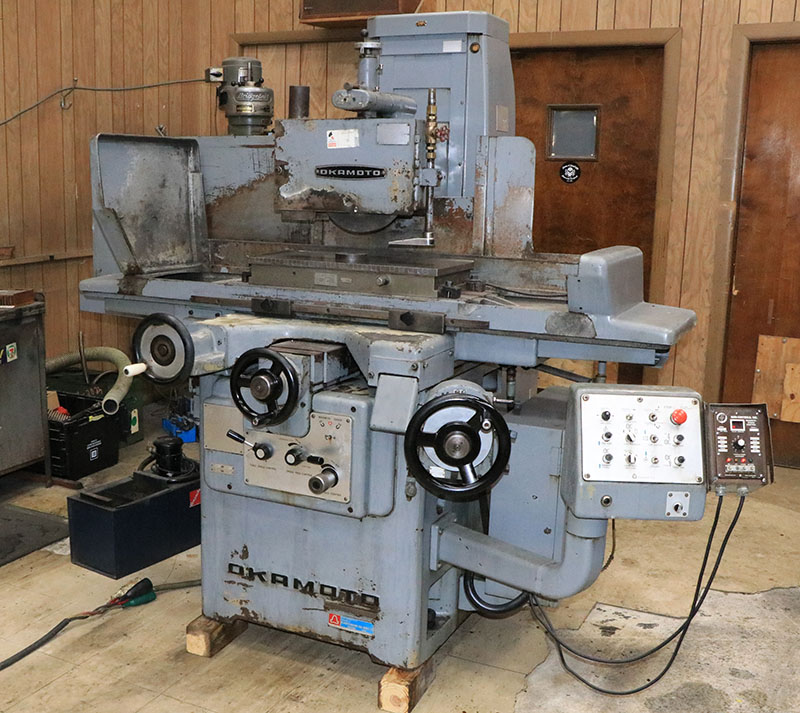

       12" X 24" OKAMOTO HIGH-PRECISION
SURFACE GRINDER WITH AUTO INCREMENTAL DOWNFEED

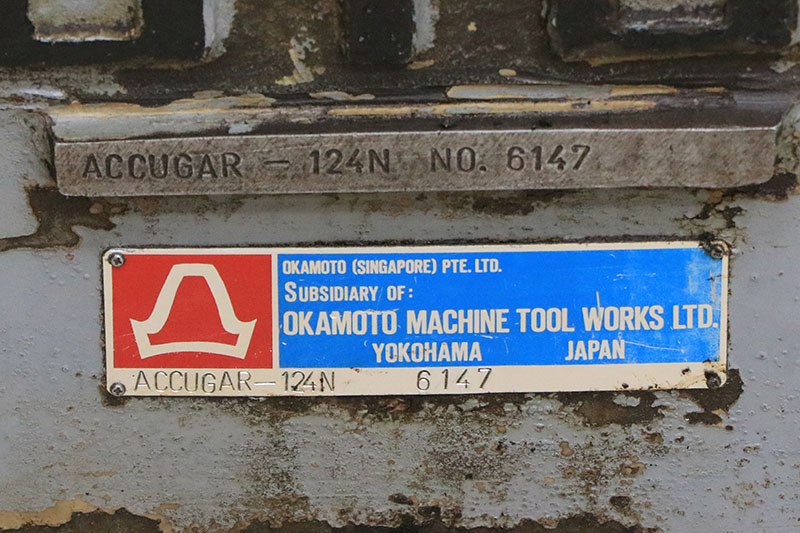

MODEL: ACCUGAR 124-N      S/N: 6147      NEW: 1980

  MAXIMUM GRINDING LENGTH ............ 24"
MAXIMUM GRINDING WIDTH ............... 12"
MAXIMUM HEIGHT UNDER 14" WHEEL ....... 13.7"
MAXIMUM LONGITUDINAL MOVEMENT ........ 29.5"
MAXIMUM CROSS MOVEMENT ............... 13.6"

FEEDS:
LONGITUDINAL HYDRAULIC FEED .......... 1' TO 100' FPM

CROSS FEED:
HYDRAULIC INTERMITTENT ............... 0.02" -.8"
HYDRAULIC CONTINUOUS ................. 0.4" 40" IPM
HAND FEED/REVOLUTION ................. 0.25"
GRADUATION OF WHEEL .................. 0.001"

VERTICAL MOVEMENT OF WHEELHEAD:
AUTO FEED/TABLE STROKE ............ 0.0001" - 0.00015"
AUTO FEED/SADDLE REVERSAL ........  0.0001" - 0.00015"
HAND FEED/REVOLUTION ................. 0.05"
GRADUATION OF HANDWHEEL .............. 0.0001"
RAPID FEEDRATE ....................... 19" IPM
GRINDING WHEEL ................... 12" x 1- 1/2" x 5"

MOTORS:
SPINDLE MOTOR ........................ 5 HP
HYDRAULIC PUMP MOTOR ................. 3 HP
VERTICAL RAPID FEED MOTOR ............ 0.5 HP

DIMENSIONS ....................... 74"FB x 103"RL x 74"H
APPROX. MACHINE WEIGHT ............... 5,000 LBS.

EQUIPPED WITH:
HYDRAULIC TABLE TRAVERSE
AUTO CROSSFEED
AUTO INCREMENTAL DOWNFEED
AUTOMATIC SPARKOUT UP TO 5 PASSES
POWER ELEVATION
12" x 24" "KANETEC" "KET-3060-212BY" ELECTRO-MAGNETIC CHUCK
"SEMI-CONTROLS, INC." "NEUTROFIER" CONTROL,
   WITH VARIABLE HOLDING FEATURE

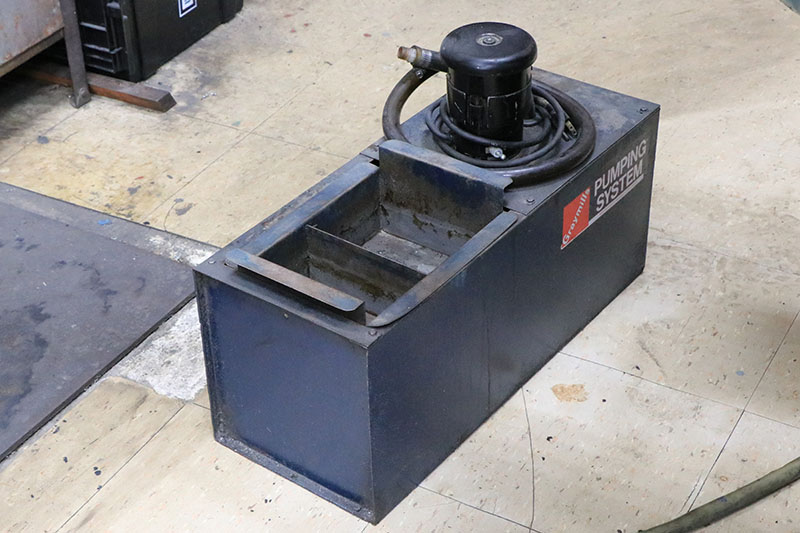

"GRAYMILLES" COOLANT SYSTEM
5 H.P./3/60/230-460 VOLT SPINDLE MOTOR
MACHINE IS PRESENTLY WIRED FOR 220 VOLTS

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** VERY GOOD CONDITION & APPEARANCE - RUNS VERY WELL **
