Okamoto LINEAR 6.18, 1997, ROLLER BEARING TABLE, SURFACE GRINDERS, HAND FEED

Price on Request

Make:: Okamoto

Model:: LINEAR 6.18, 1997, ROLLER BEARING TABLE,

Year:: 1997

Ref #:: 164313

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

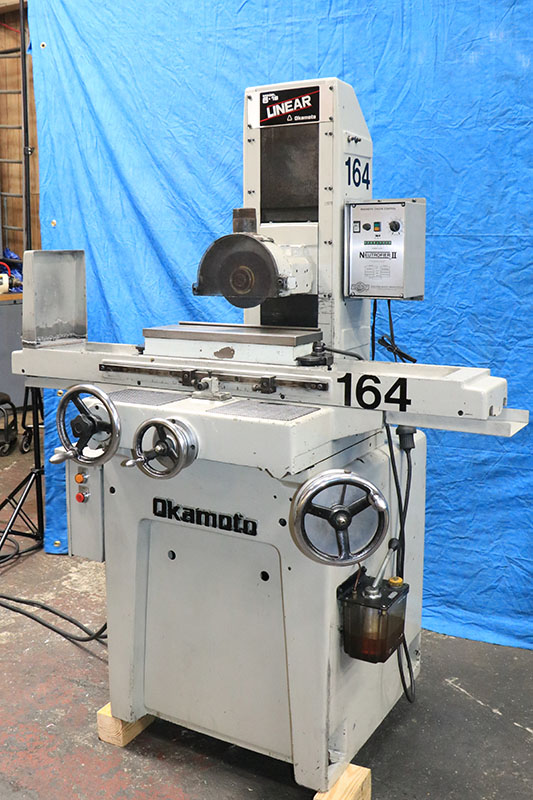

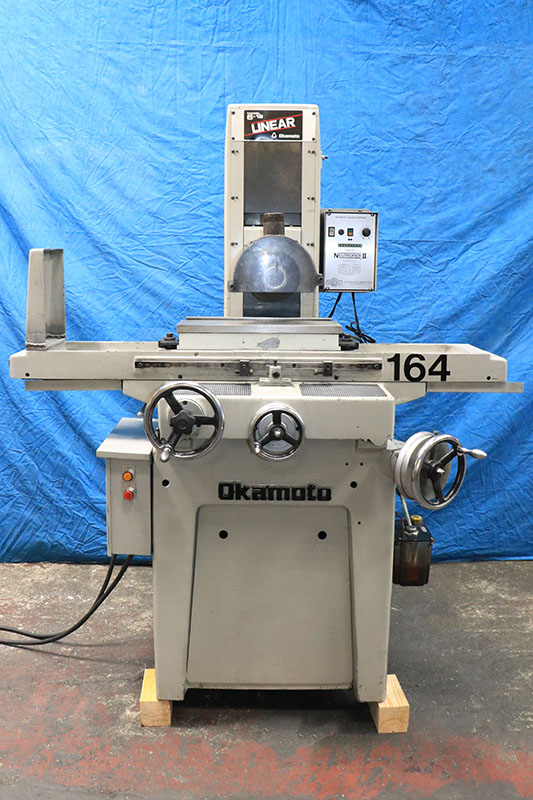

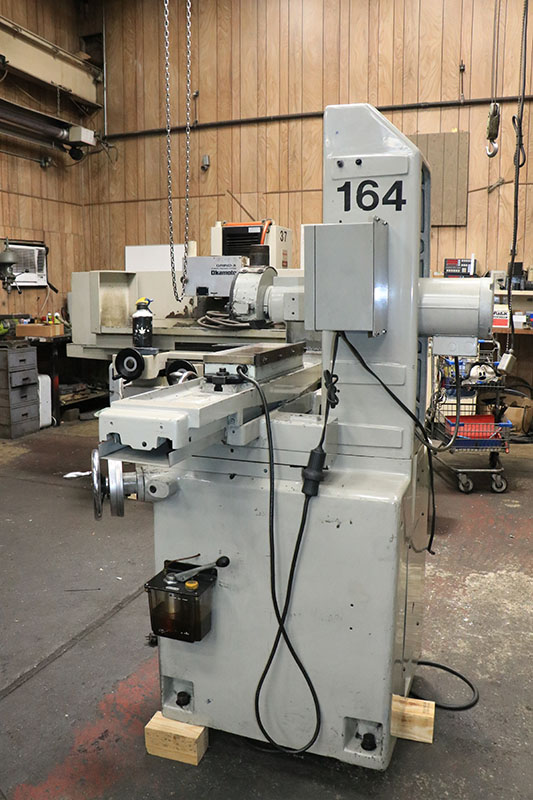

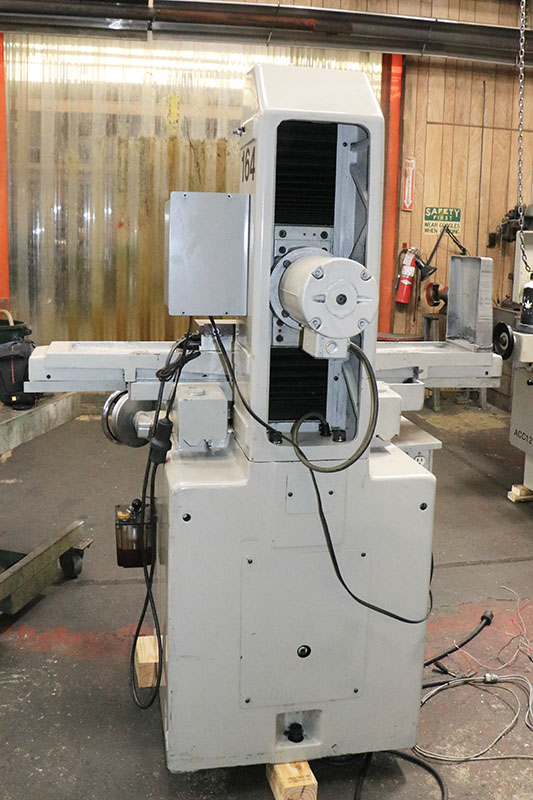

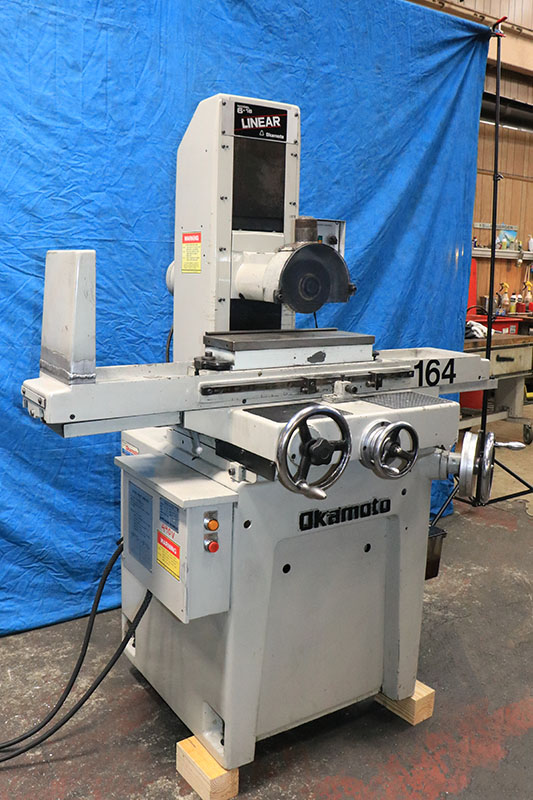

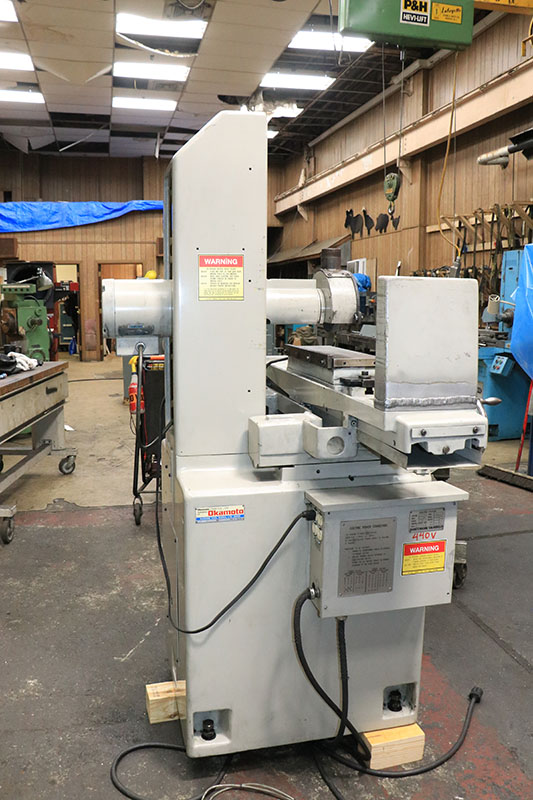

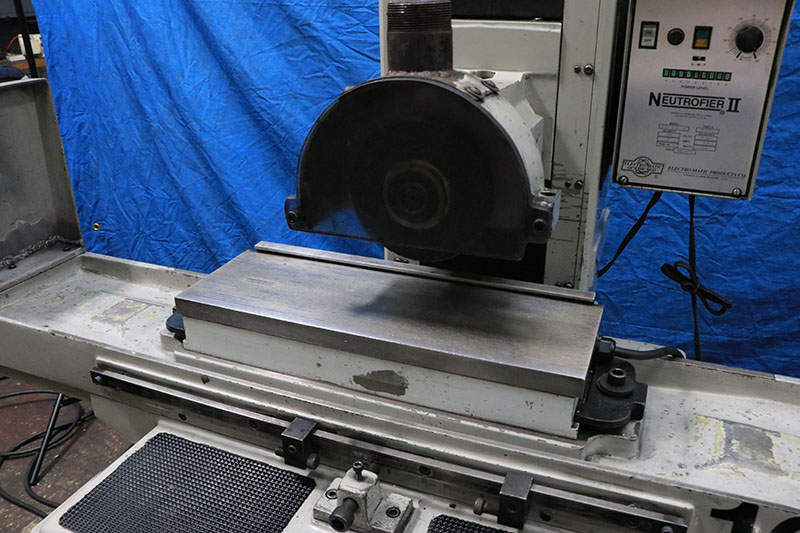

     6" x 18" OKAMOTO "HIGH-PRECISION"
       HANDFEED SURFACE GRINDER
     WITH ROLLER BEARING TABLE DESIGN

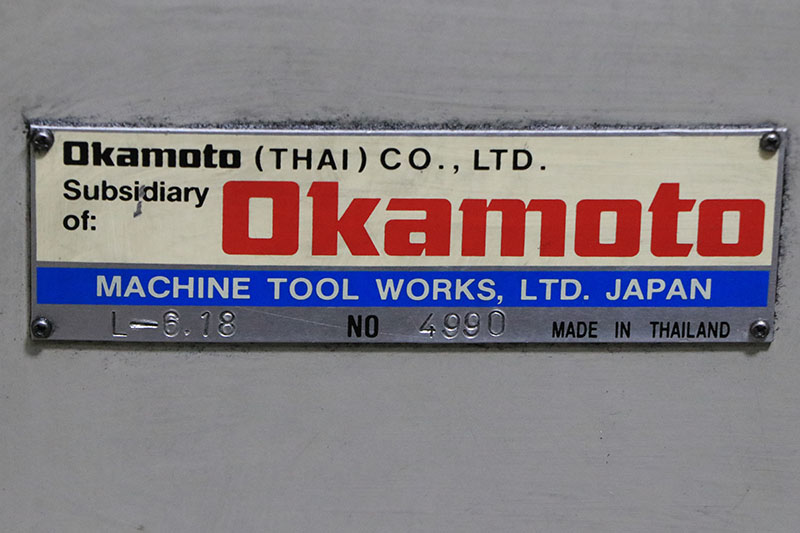

MODEL: LINEAR 618     S/N: 4990      NEW: 1997

WIDTH & LENGTH GROUND .....................6" x 18"
TABLE TO SPINDLE CENTER .................. 18"
HEIGHT UNDER 8" WHEEL TO CHUCK SURFACE ... 11"
LONGITUDINAL TABLE TRAVEL ................ 19"
CROSS TRAVEL ............................. 8"
GRINDING WHEEL CAPACITY .......... 8" x 1" x 1-1/4"B

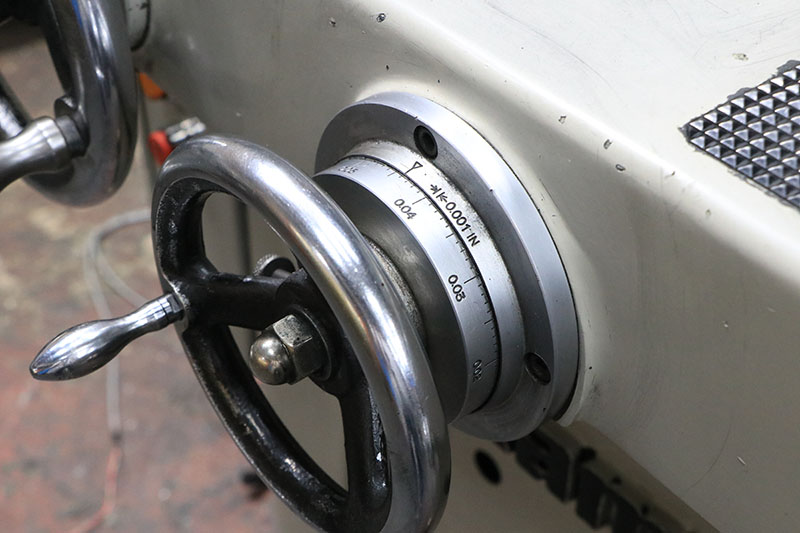

CROSS FEED PER REV. OF HANDWHEEL
(.001" GRAD.) ............................ 0.100"
CROSS FEED HANDWHEEL VERNIER READS TO .... 0.0001"

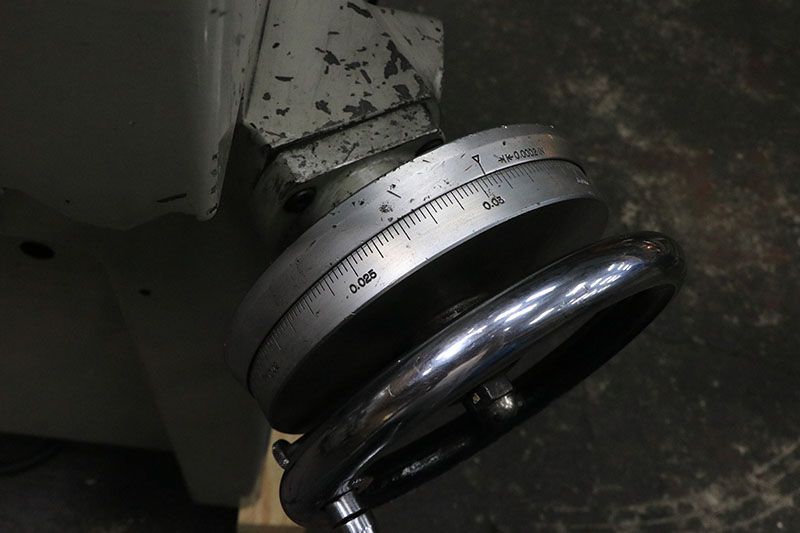

VERTICAL FEED PER REV. OF HANDWHEEL
(.0002" GRAD.) ........................... 0.0500"

APPROX. WEIGHT .......................... 2,020 LBS.
APPROX. DIMENSIONS ................ 58" x 46" x 71"H

  EQUIPPED WITH:

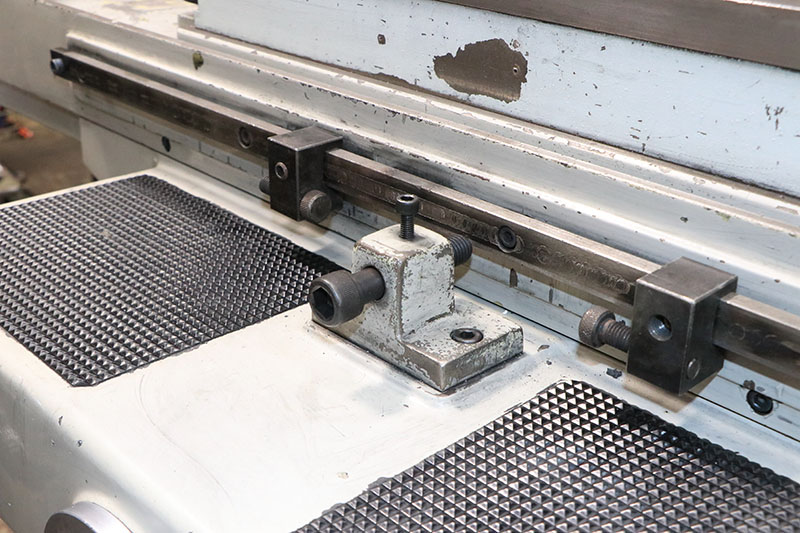

LONGITUDINAL TABLE TRAVEL ON LINEAR BALL
 BEARINGS DRIVEN BY CABLE SYSTEM
HARDENED AND GROUND WAYS ON TABLE, SADDLE AND COLUMN

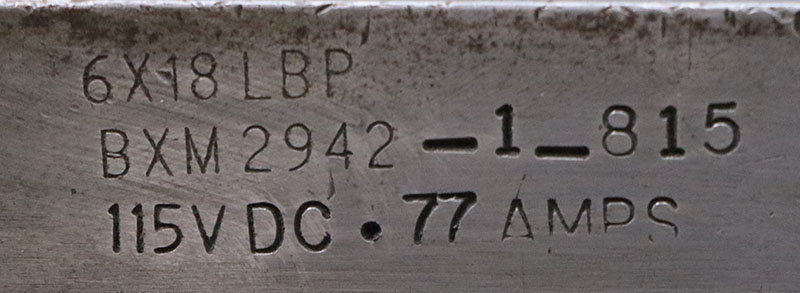

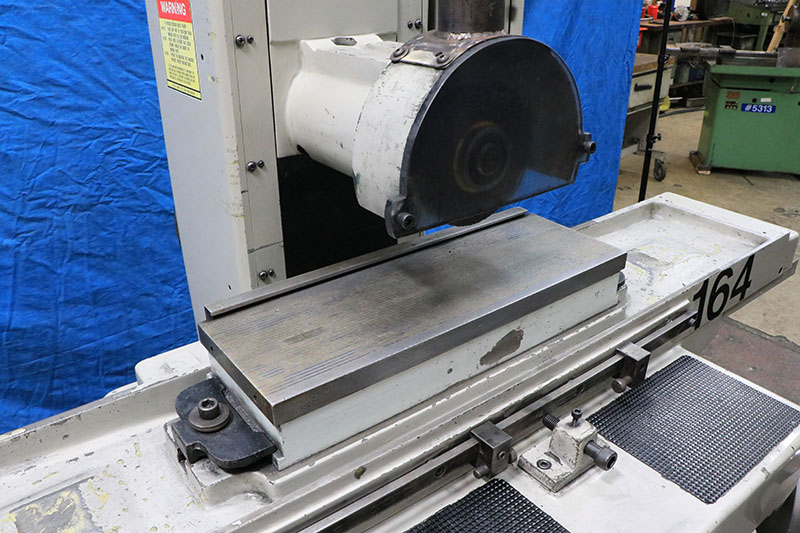

6" x 18" O.S. WALKER ELECTRO-MAGNETIC CHUCK,
 MODEL "LBP", FINE-DIVISION LINES

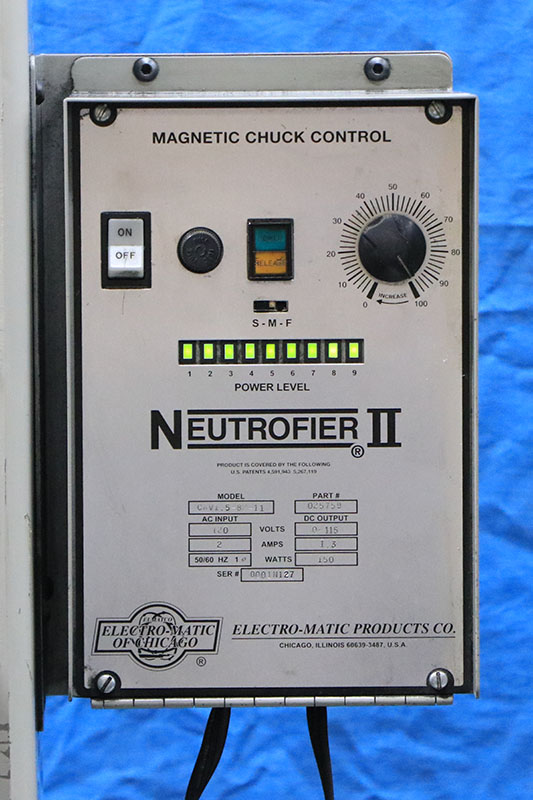

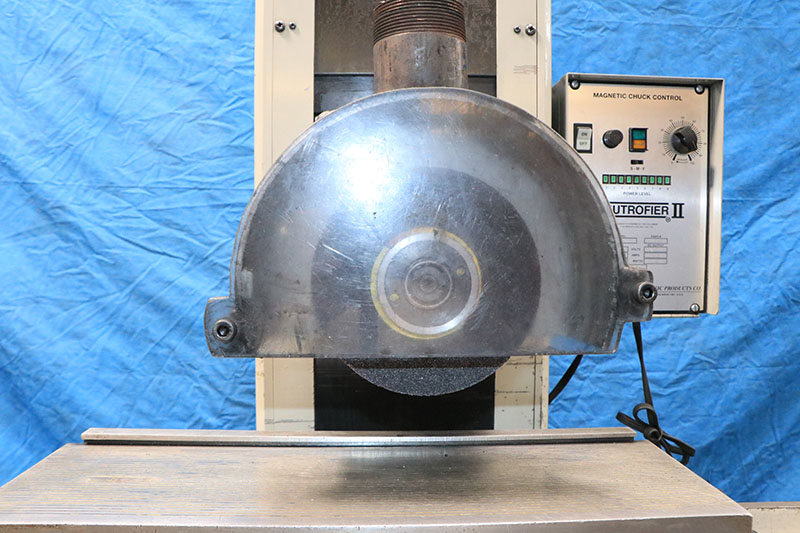

ELECTRO-MATIC "NEUTROFIER II" NEUTROFIER CONTROL,
 WITH VARIABLE HOLD POWER & DEMAG

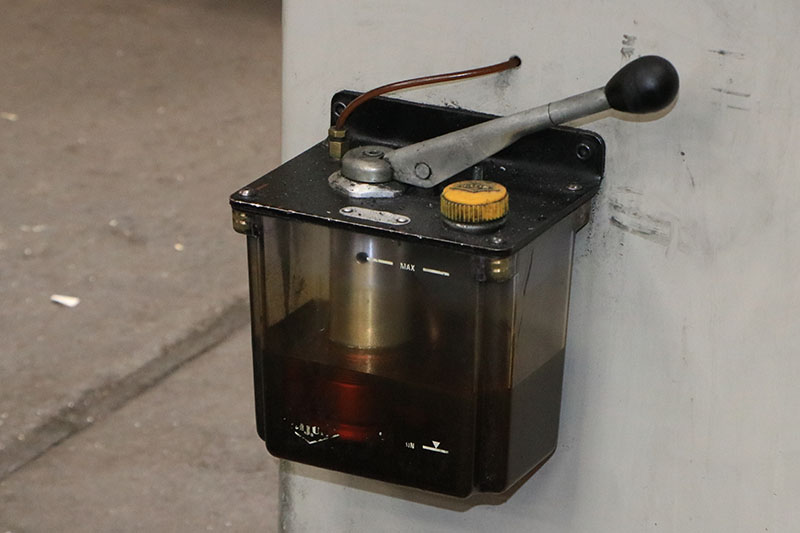

MANUALLY OPERATED ONE SHOT LUBRICATION SYSTEM

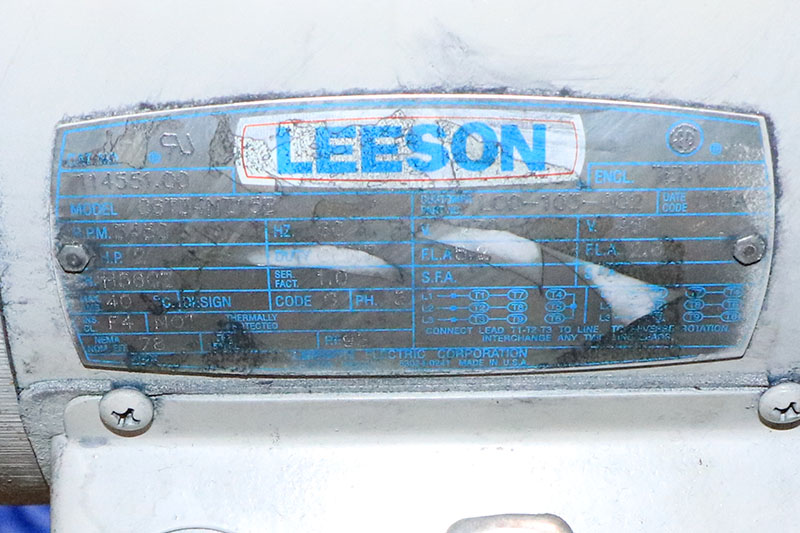

2 H.P. 3/60/230-460 VOLT HIGH-PRECISION
 DIRECT DRIVE CARTRIDGE-TYPE SPINDLE
WORK LIGHT

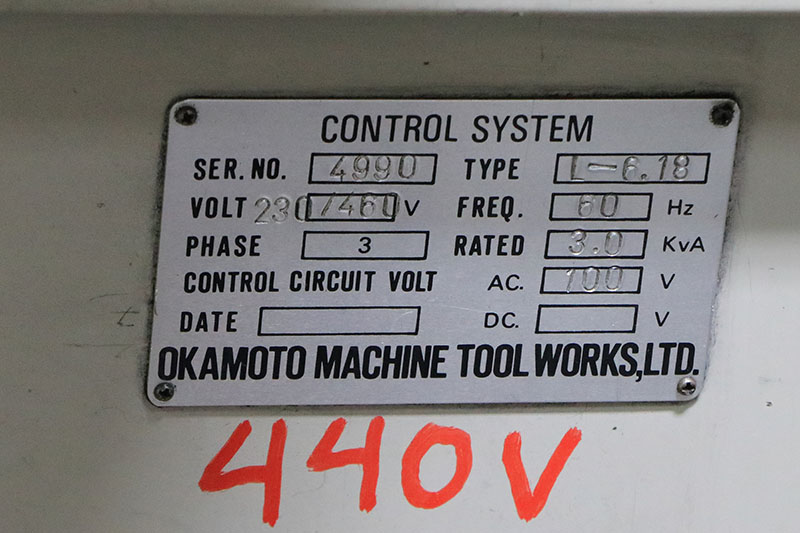

MACHINE IS PRESENTLY WIRED FOR 3/60/440 VOLTS

Link to video: https://youtu.be/obweFFTdUMA

** ORIGINAL PAINT - EXCELLENT CONDITION **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
