Okuma Captain L370 CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Okuma

Model:: Captain L370

Year:: 2005

Ref #:: 178214

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

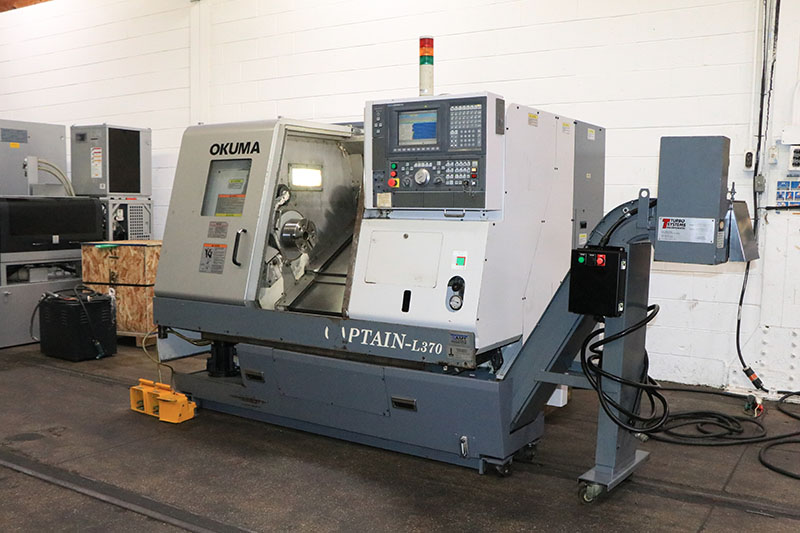

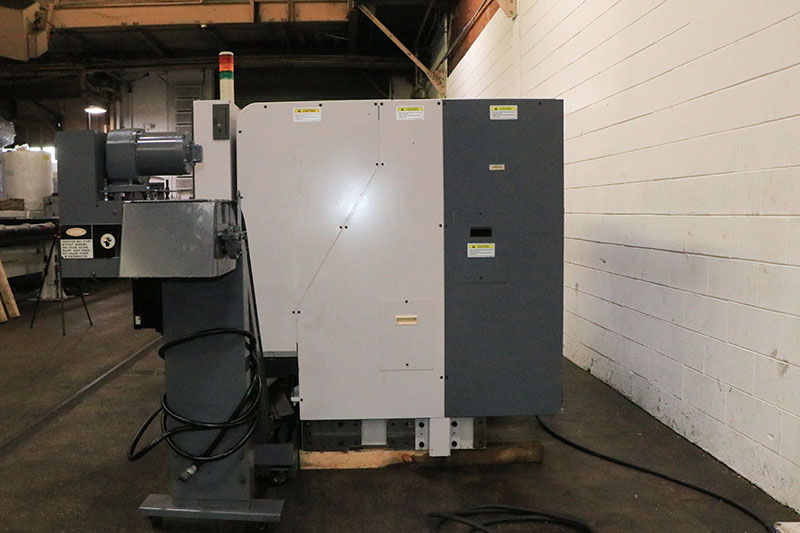

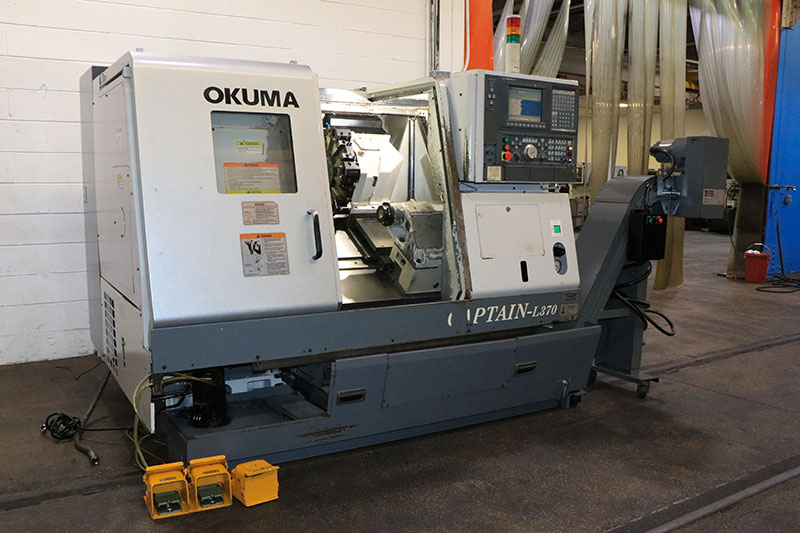

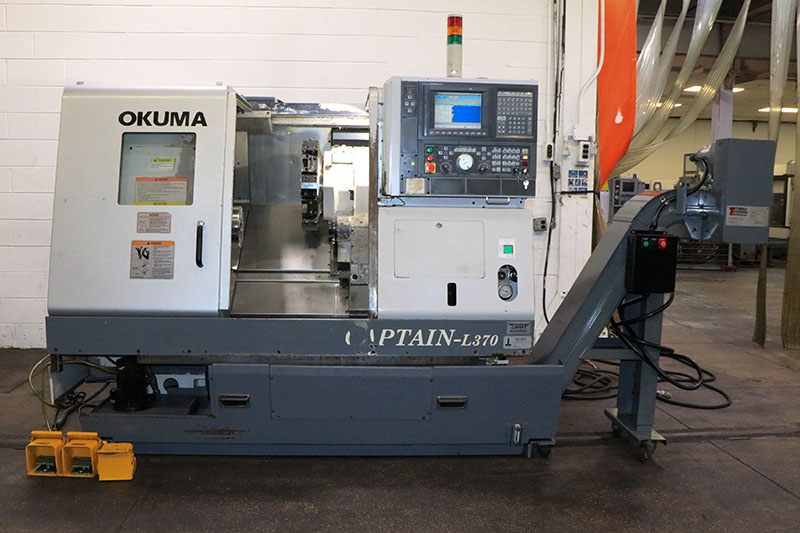

OKUMA CAPTAIN L370 CNC TURNING CENTER
NEW: 2005

SPECIFICATIONS:
NUMBER OF CONTROLLED AXES .. 2
MAX SWING OVER BED ......... 20.87"
SWING OVER SADDLE .......... 16.54"
MAX CUTTING DIAMETER ....... 14.56"
MAX CUTTING LENGTH ......... 19.68"
DISTANCE BETWEEN CENTERS ... 20.47"
BAR CAPACITY ............... 2.04"
SPINDLE BORE ............... 2.44"
SPINDLE NOSE ............... A2-6
SPINDLE MOTOR .............. 20 HP
SPINDLE SPEED .............. 45-4500 RPM
X-AXIS TRAVEL .............. 10.24"
Z-AXIS TRAVEL .............. 20.47"

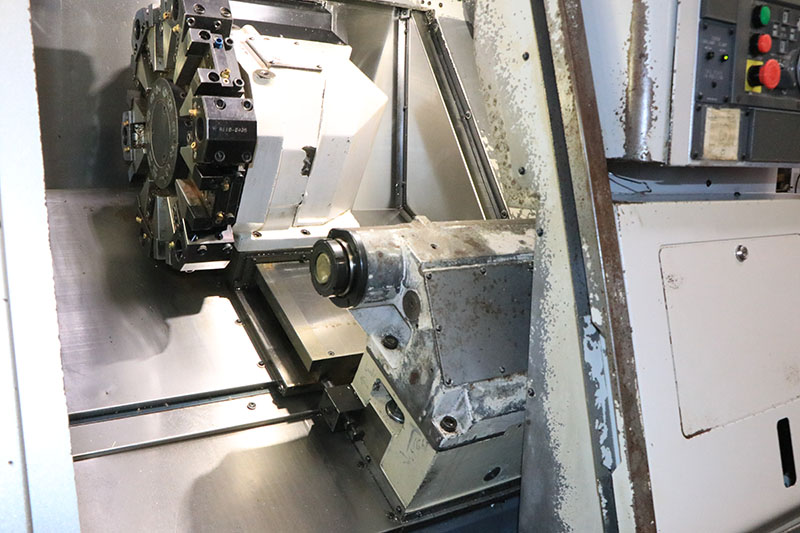

TURRET CAPACITY ............ 12 STATION
OD TURNING TOOLS ........... 1"
ID TURNING TOOLS ........... 1-1/2"
TAILSTOCK QUILL TYPE ....... MT#5
TAILSTOCK QUILL DIA. ....... 3.54"
TAILSTOCK QUILL STROKE ..... 4.72"
APPROXIMATE WEIGHT ......... 9,240 LBS.

EQUIPPED WITH:

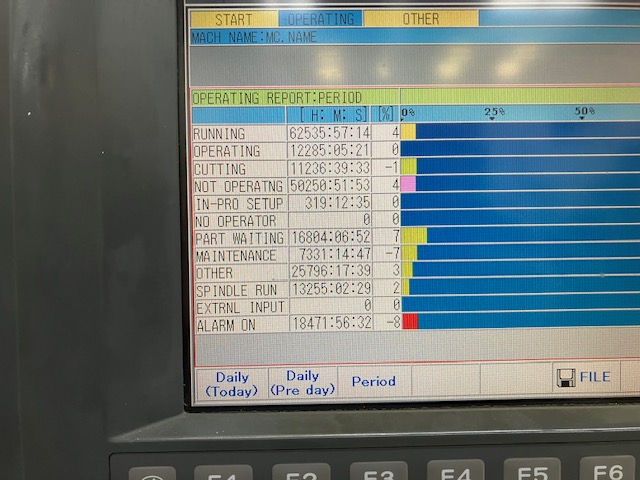

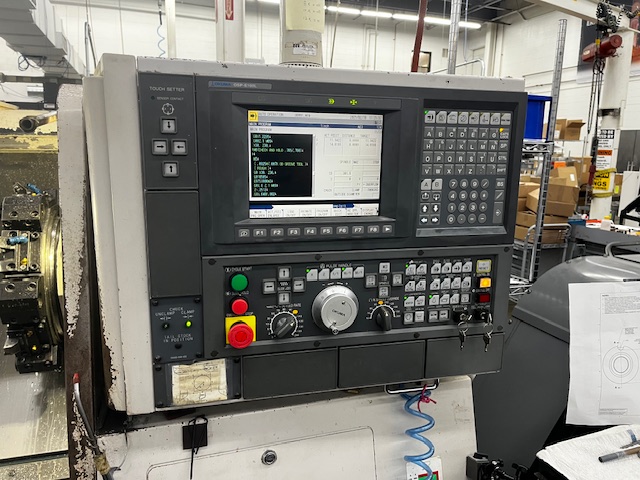

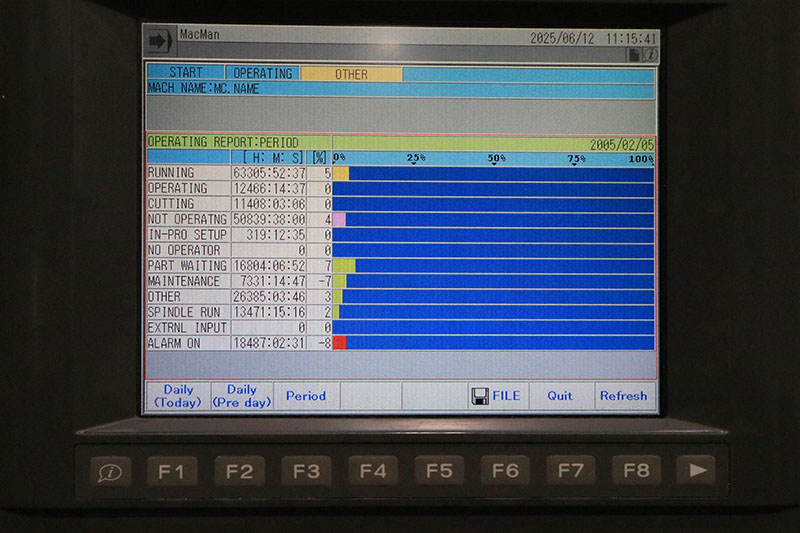

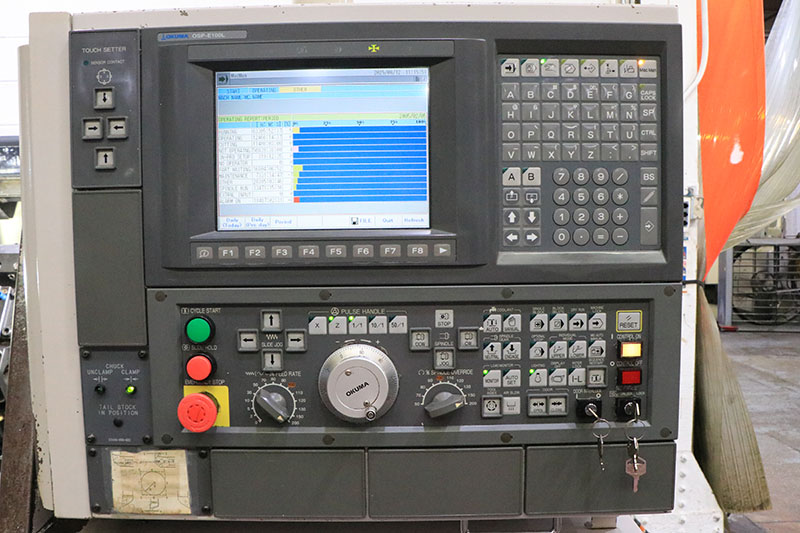

OSP-E-100L CNC CONTROL
TOOLSETTER

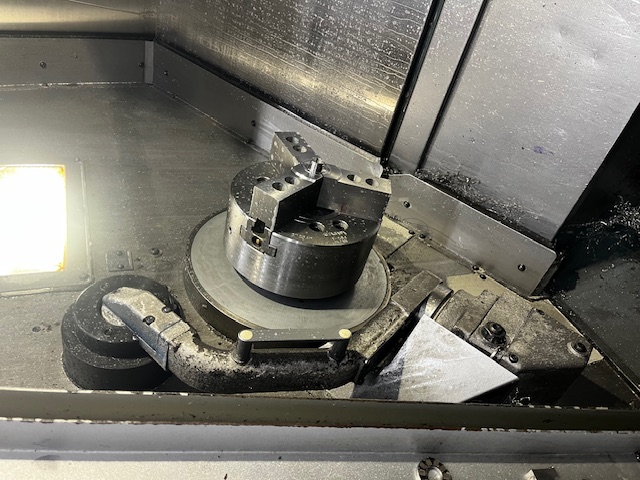

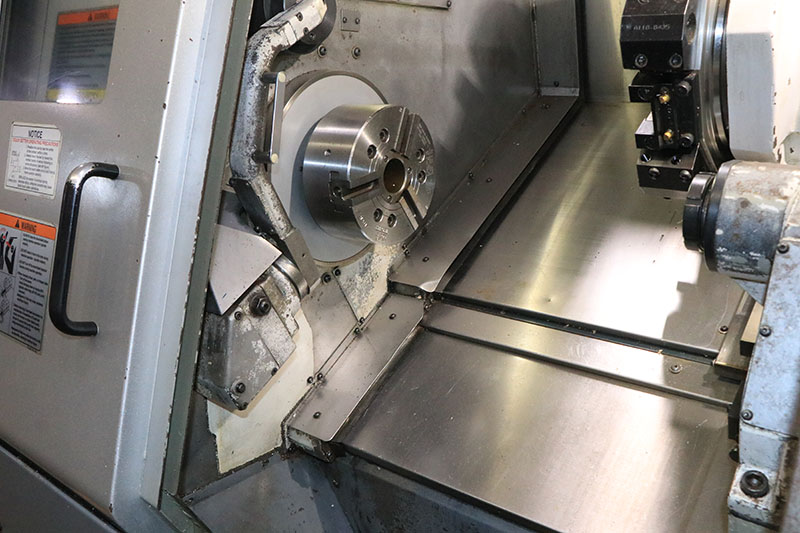

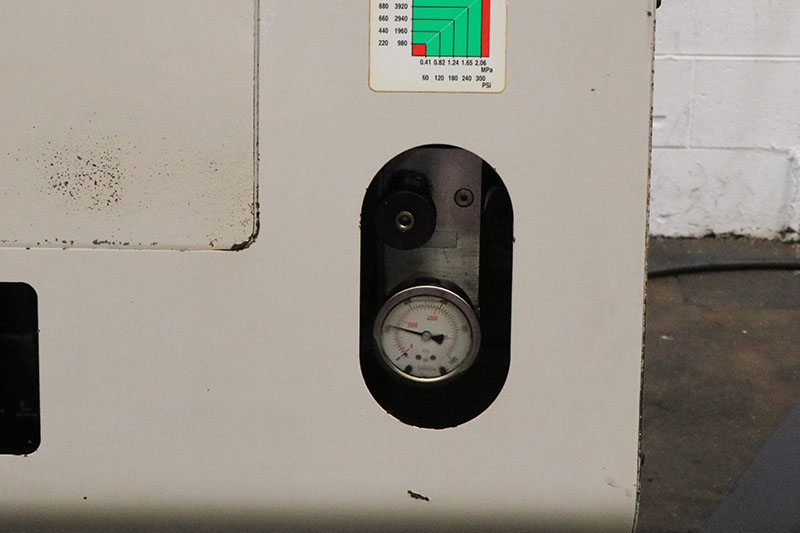

8" 3-JAW HYDRAULIC CHUCK

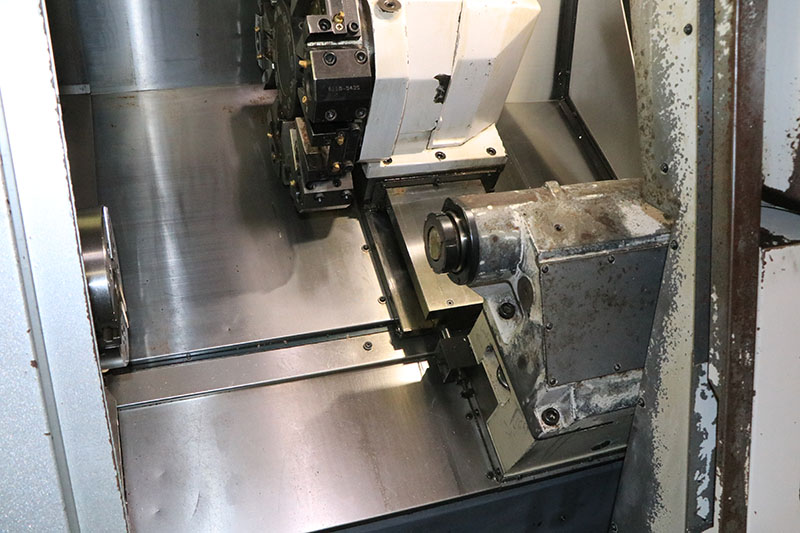

TAILSTOCK

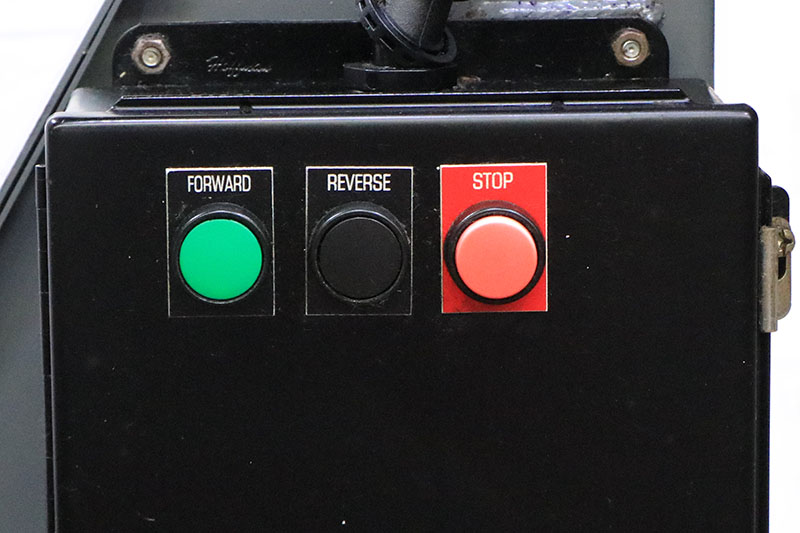

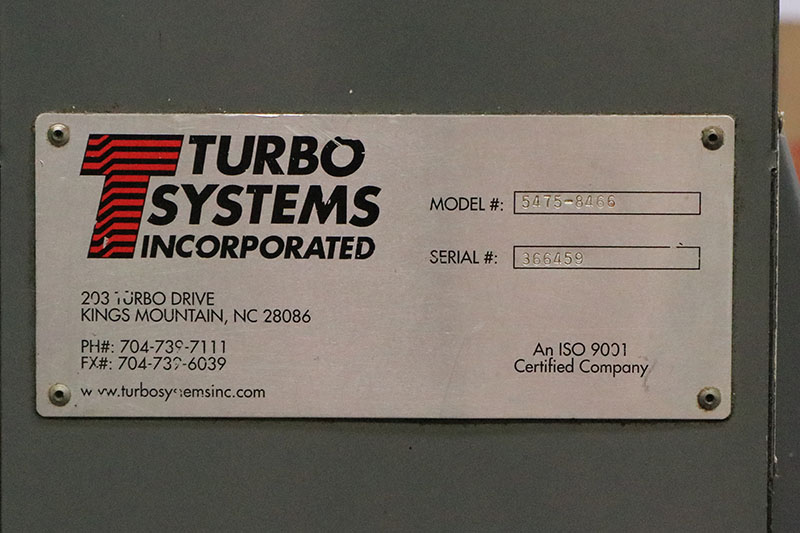

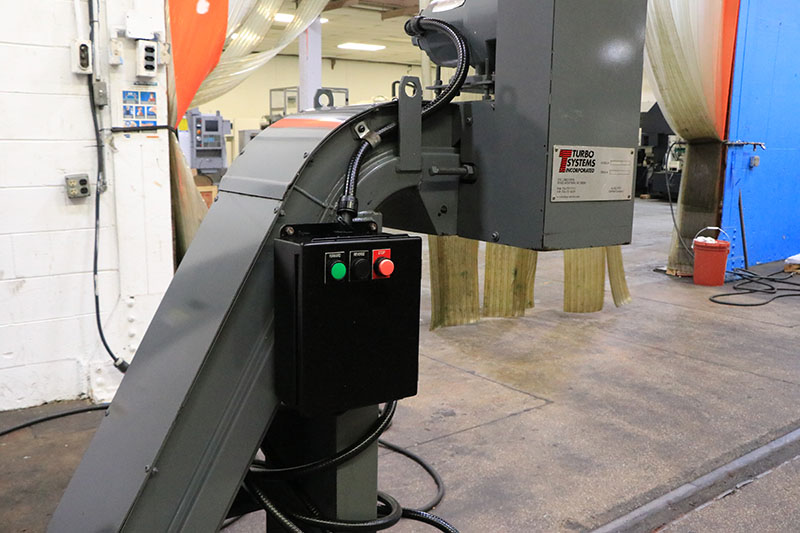

CHIP CONVEYOR
