Okuma Captain L470M - LIVE MILLING CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Okuma

Model:: Captain L470M - LIVE MILLING

Year:: 2008

Ref #:: 178365

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

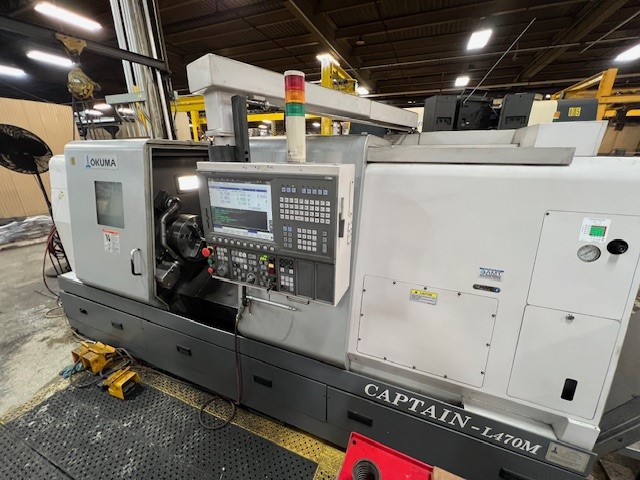

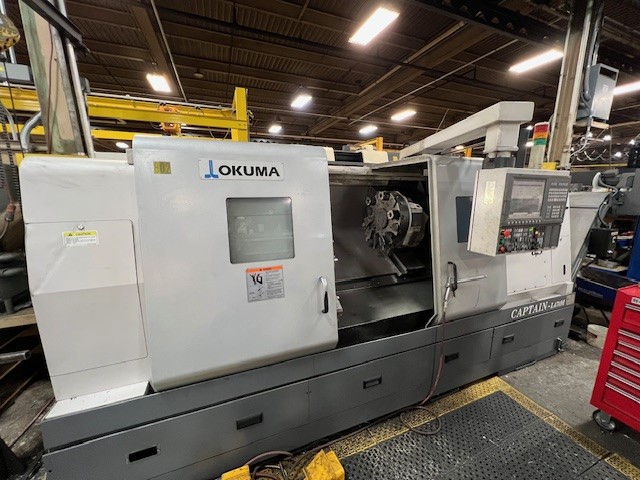

OKUMA CAPTAIN L470M/1250 CNC TURNING CENTER w/LIVE MILLING
NEW: 2008

Video Link: https://youtu.be/7yOlHEfzMl0?si=pJRaB86U5N-plzNW
Video Link: https://youtu.be/egQ6o1APW7E?si=cNgymysWkVb_0oNm

SPECIFICATIONS:
SWING OVER BED                 24.4"
SWING OVER CROSS SLIDE       18.89"
MAX CUTTING DIAMETER           16.53"
MAX CUTTING LENGTH           49.21"
X-AXIS TRAVEL                 11.81"
Z-AXIS TRAVEL                 50"
C-AXIS INDEXING              Yes
CHUCK SIZE                        12"
BAR CAPACITY                 3.5"
SPINDLE MOTOR                 30 hp
SPINDLE SPEED                 3,000 RPM
RAPID TRAVERSE RATE - X-AXIS     787 in/min.
RAPID TRAVERSE RATE - Z-AXIS     981 in/min.
TURRET CAPACITY              12
TURRET TYPE                       VDI
LIVE MILLING                 Yes
Weight                       18,000 LBS

Equipped With

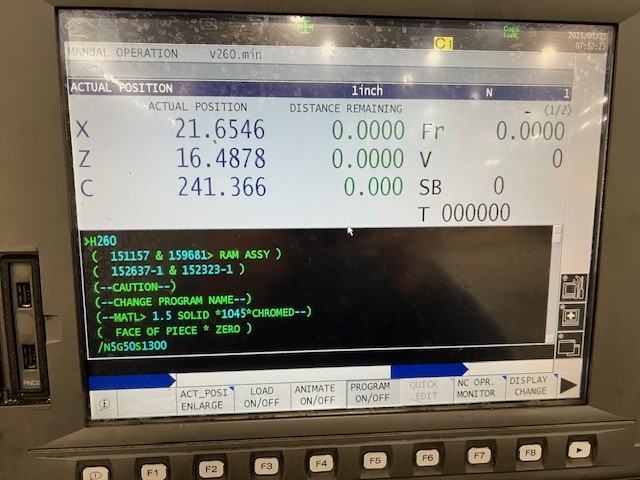

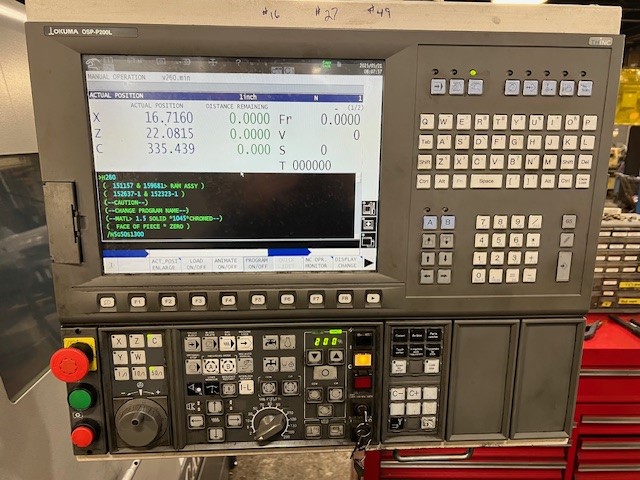

OSP-P200L CNC

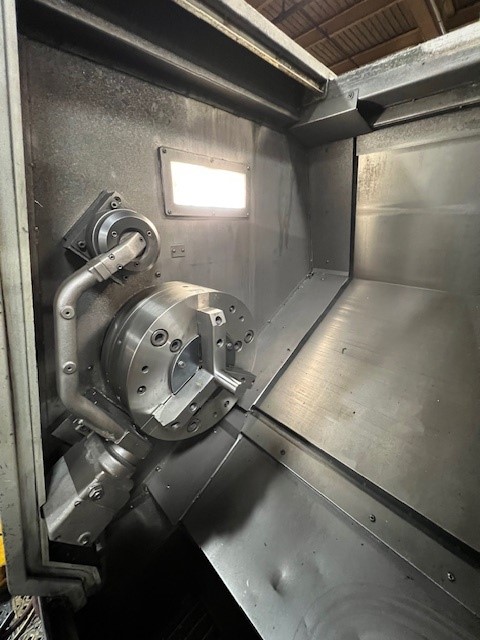

12" 3-JAW SAMCHULLY M212 HYDRAULIC CHUCK (CHUCK INSTALLED IN PICTURES NOT INCLUDED. SAMCHULLY INCLUDED IN SALE)
LARGE ASSORTMENT OF LIVE AND STATIONARY HOLDERS

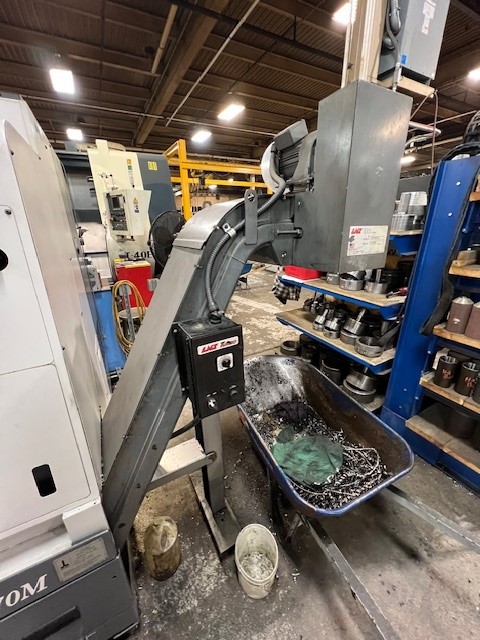

LNS CHIP CONVEYOR
TOUCH SETTER
TAILSTOCK - TOW STYLE

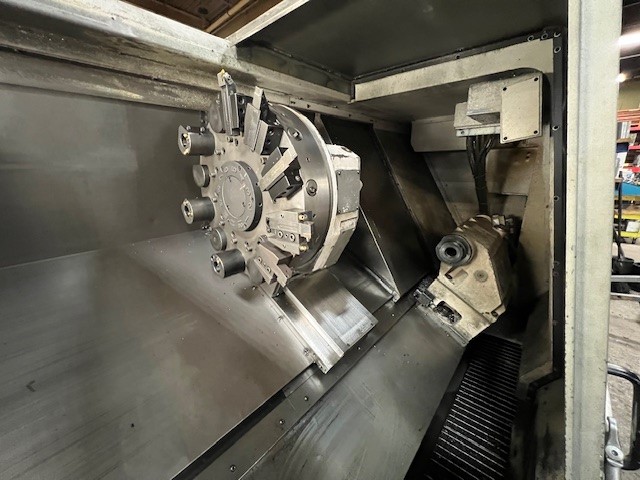

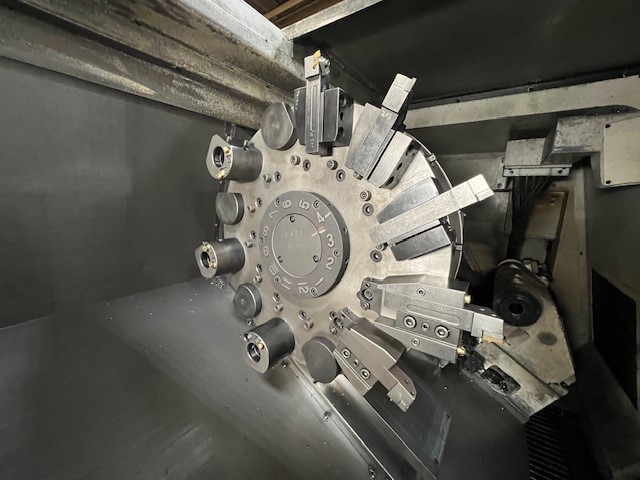

12 POSITION VDI TURRET
Hi-G CONTROL
TOOL LIFE MANAGEMENT
LAP4
NOSE-R 2B
USER TASK 2
3D ANIMATION
ANIMATION
M-AXIS ORIENT
ALL AVAILABLE MANUALS

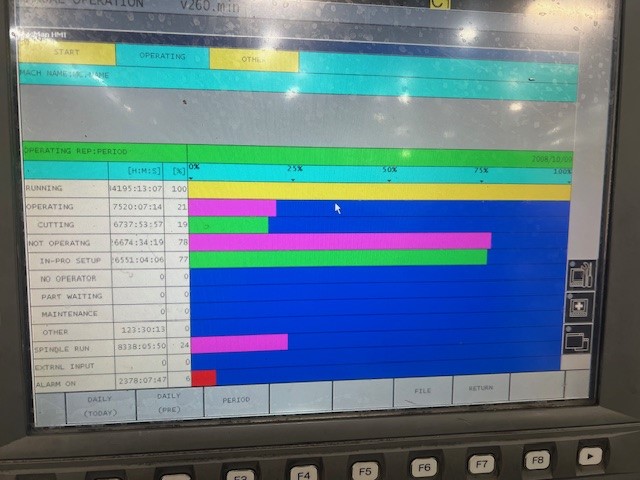

**OPERATING TIME: 7,502 HOURS
**CUTTING TIME: 6,722 HOURS

*** MACHINE CAME OUT OF SINGLE SHIFT SHOP ENVIRONMENT
