Okuma ES-L6 CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:

Okuma

Model:

ES-L6

Year:

2004

Ref #:

178374

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

---

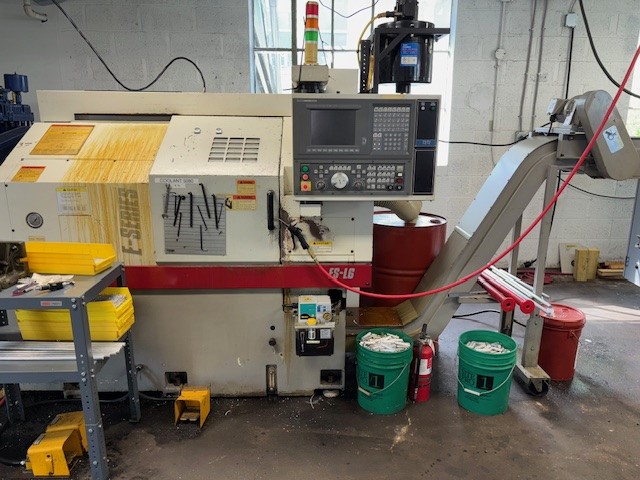

OKUMA ES-L6 CNC TURNING CENTER

NEW: 2004



VIDEO LINK https://youtu.be/9G-c3tLP7gs?si=cVSrZ0cSHdj8UIIm



SPECIFICATIONS:

NO. OF CONTROLLED AXES .................... 2

SWING OVER BED ............................ 17.72"

SWING OVER CARRIAGE ....................... 13.78"

SWING OVER CROSS SLIDE .................... 11.81"

MAX. TURNING DIAMETER X LENGTH ............ 8.27" X 11.02"

SPINDLE DIAMETER .......................... 3.15"

SPINDLE NOSE TYPE ......................... 140mm FLAT

THROUGH SPINDLE HOLE ...................... 2.09"

BAR CAPACITY .............................. 1.75"

NO. OF SPINDLE SPEED RANGES ............... STEPLESS

SPINDLE SPEED ............................. 133 to 6000 RPM

X-AXIS TRAVEL ............................. 6.10"

Z-AXIS TRAVEL ............................. 12.6"

RAPID FEEDRATE X/Z ........................ 590/787 IPM

TURRET TYPE ............................... V12

TOOL SIZE OD .............................. 1"

TOOL SIZE ID .............................. 1.25"

SPINDLE DRIVE MOTOR ....................... 10/7.5 HP

APPROX. MACHINE WEIGHT .................... 6,179 LBS.



EQUIPPED WITH:

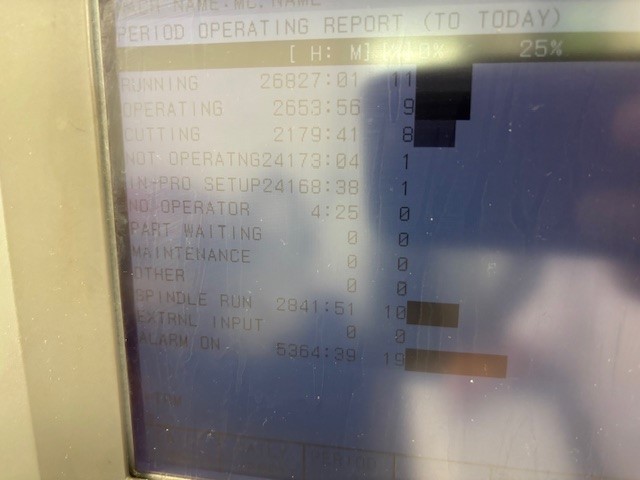

 - OSP U100L CNC CONTROL

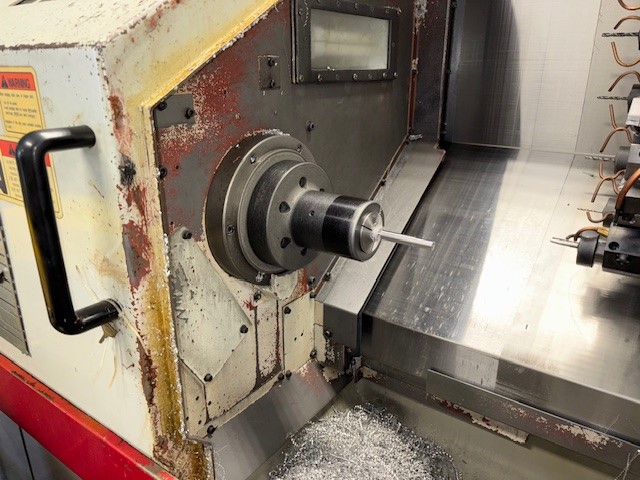

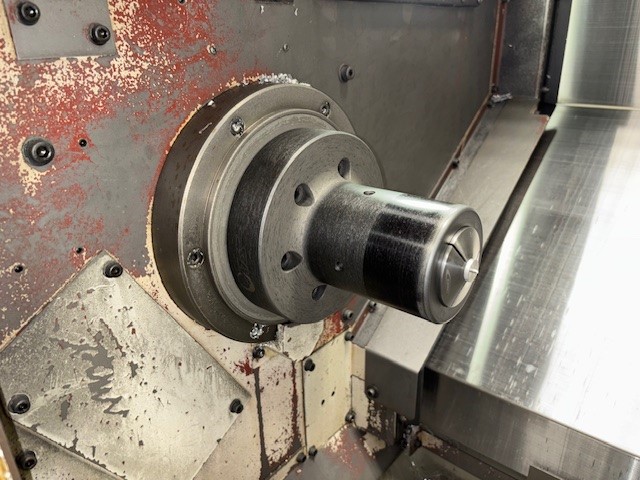

 - COLLET CHUCK

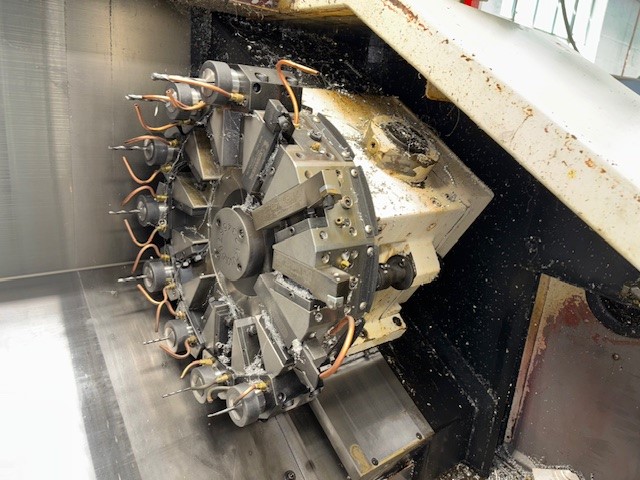

 - 12 POSITION TURRET

 - TAILSTOCK

 - ALL AVAILABLE TOOL HOLDERS

 - ALL AVAILABLE MANUALS
