Okuma ES-L6II CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Okuma

Model:: ES-L6II

Year:: 2006

Ref #:: 178373

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

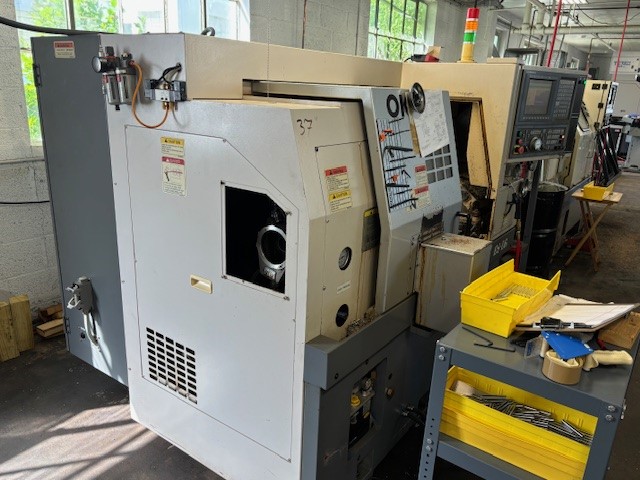

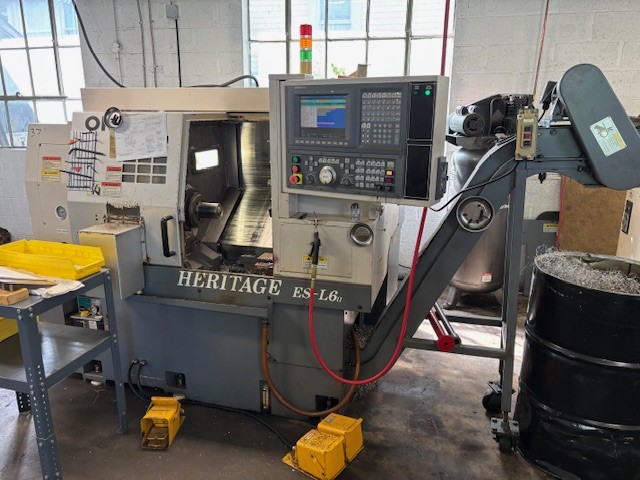

OKUMA ES-L6II CNC TURNING CENTER
NEW: 2006

VIDEO LINK: https://youtu.be/ERf_WAWbAho?si=SgK3F-77joAjdQFQ

SPECIFICATIONS:
Swing Over Bed ............... 17.72”
Swing Over Carriage .......... 13.78”
Swing Over Cross Slide ....... 11.81”
Max Turning Length ........... 11.02”
Max Turning Diameter ......... 8.27”
X-Axis Travel ................ 6.1”
Z-Axis Travel ................ 12.6”
Spindle Speed ................ 133 – 6,000 RPM
Spindle Motor ................ 10 H.P
Spindle Bore / Bar Capacity .. 2” / 1.62”

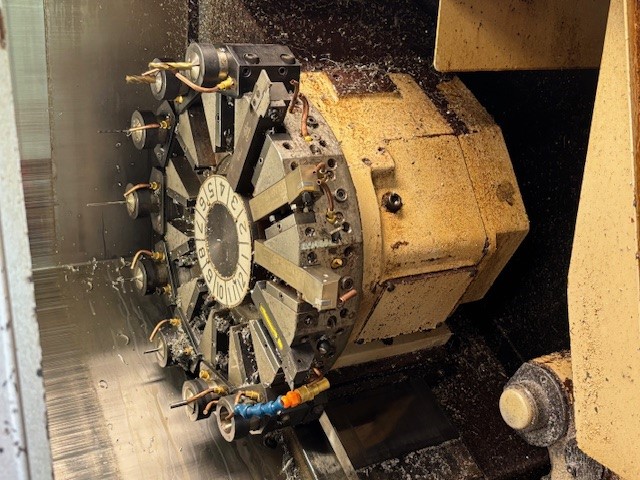

Turret Stations .............. 12 Stations
Tailstock quill dia / stroke.. 2.17" / 3/15"
Machine size: 75" x 68" x 67" H
Machine weight: 6,160 Lbs

EQUIPPED WITH:

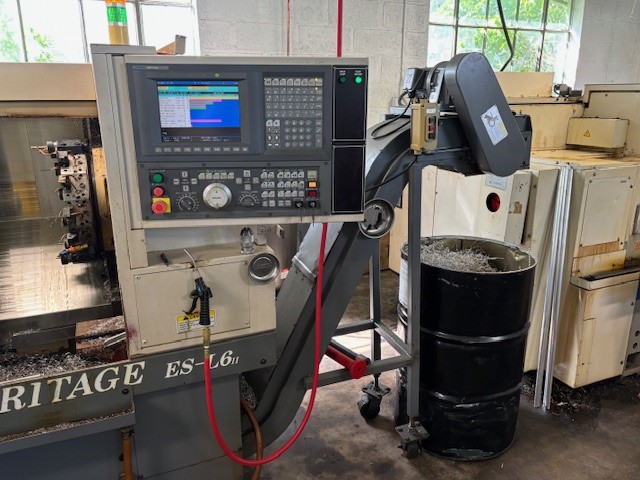

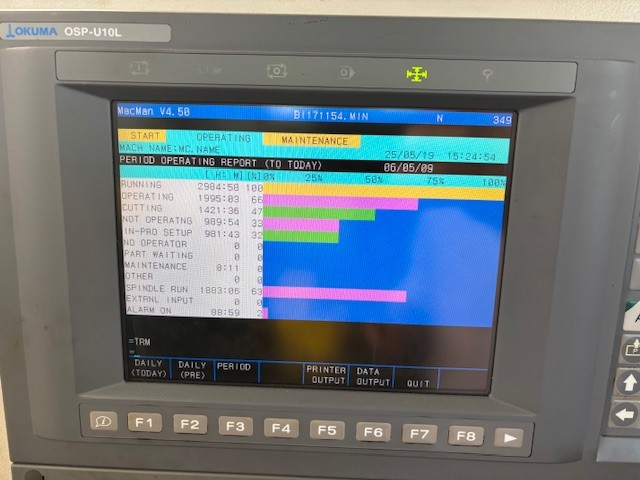

 - OSP U10L CNC CONTROL w/ONE TOUCH IGF

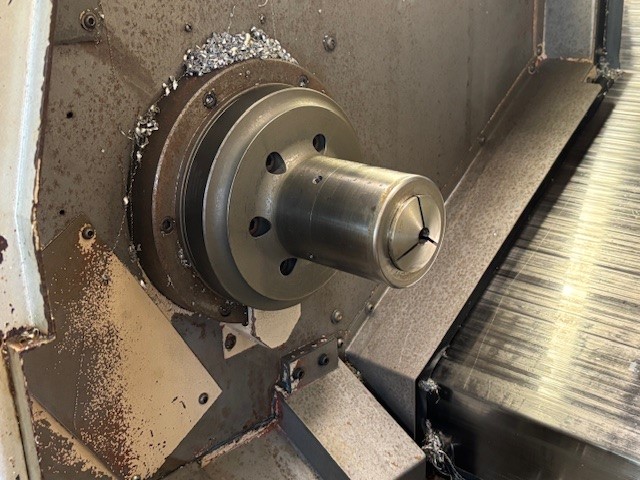

 - COLLET CHUCK

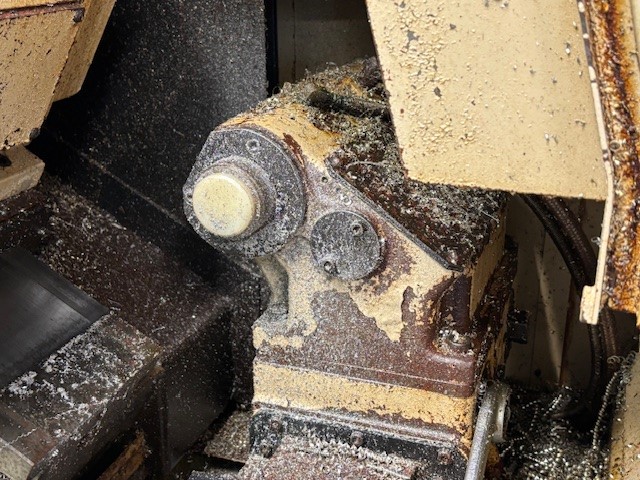

 - TAILSTOCK
 - CHIP CONVEYOR
 - BARFEED INTERFACE
 - ALL AVAILABLE TOOL HOLDERS
 - ALL AVAILABLE MANUALS
