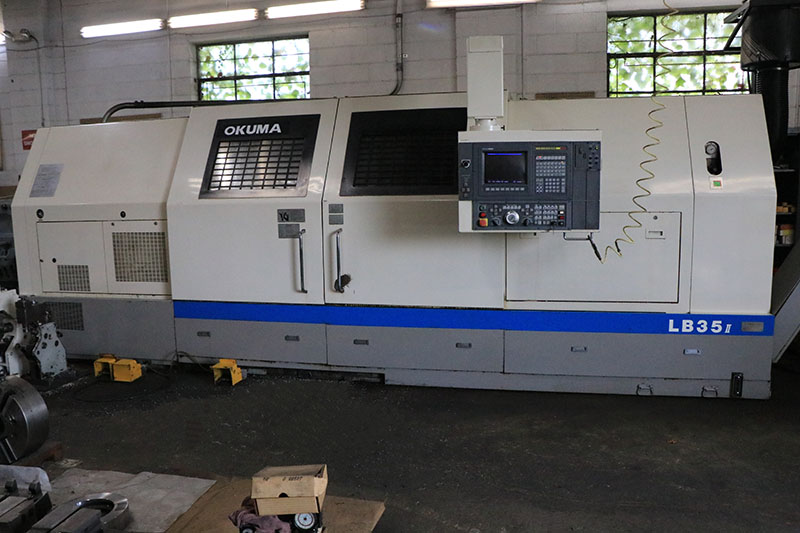

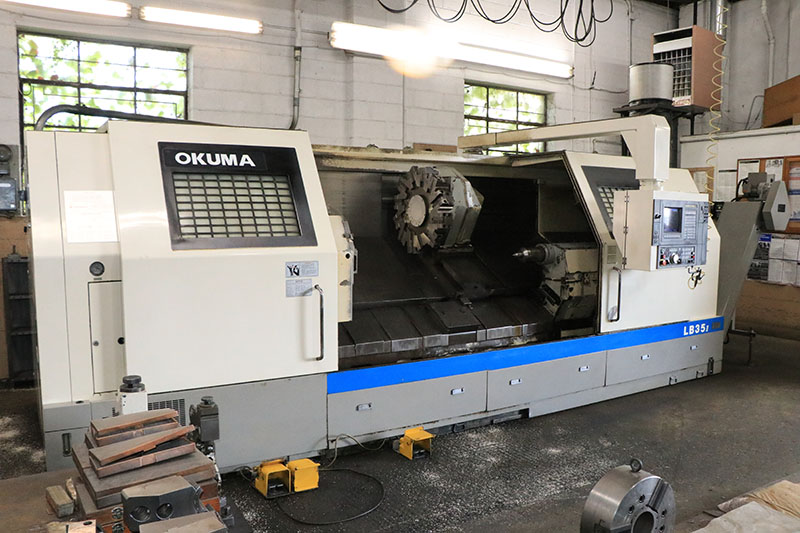

Okuma LB-35II-2000 CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Okuma

Model:: LB-35II-2000

Year:: 1995

Ref #:: 178659

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

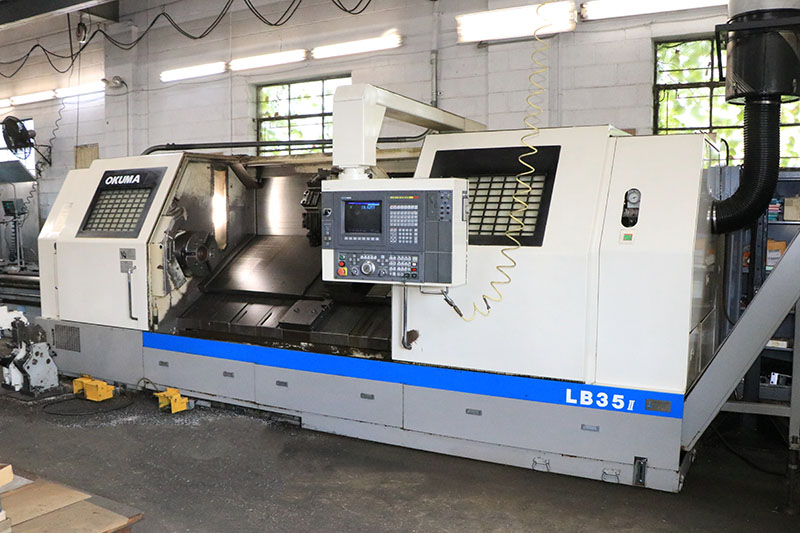

Okuma Model: LB-35/2000 CNC Turning Center
New:1995

Specifications:
Swing over bed:                  27.56"
Swing over cross slide:          16.93"
Max. turning diameter:           17.72"
Max. work length:                78.74"
Max. allowable weight, chucking: 660 lbs.
Max. allowable weight shaft work:2200 lbs.
Spindle nose:                    A2-8
Spindle bore:                    3.54"
Range of spindle speeds:         14 to 3200 rpm
Number of spindle speeds:        Auto 4 ranges
Tailstock quill diameter:        4.72"
Tailstock quill taper:           MT #5
Tailstock quill travel:          6.69"
X-axis travel:                   12.99"
Z-axis travel:                   81.99"
Rapid traverse rate X/Z:         590/787 ipm
Turret type:                     V12
Tool size OD:                    1" x 1"
Tool size ID, max:               2"

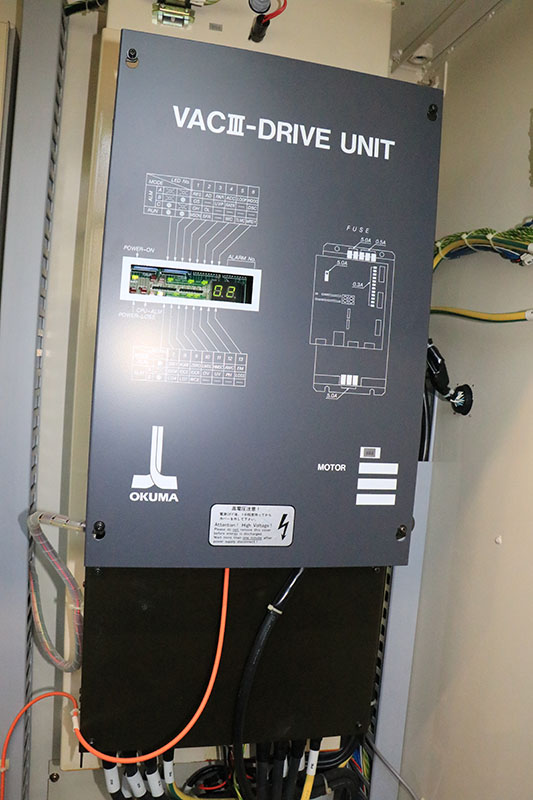

Main spindle motor:              VAC 40HP(30min)
                                 30HP Cont.
Approx. weight:                  28,400 lbs

Equipped With:

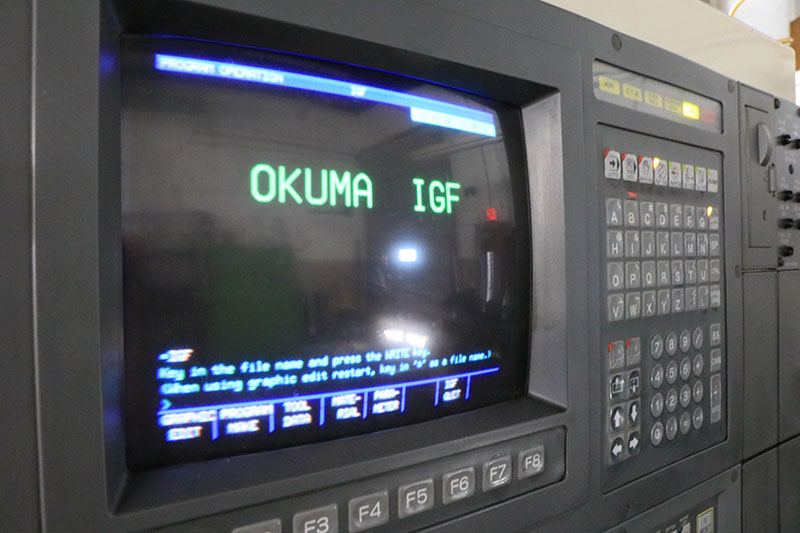

 - OSP 7000L Control w/ IGF

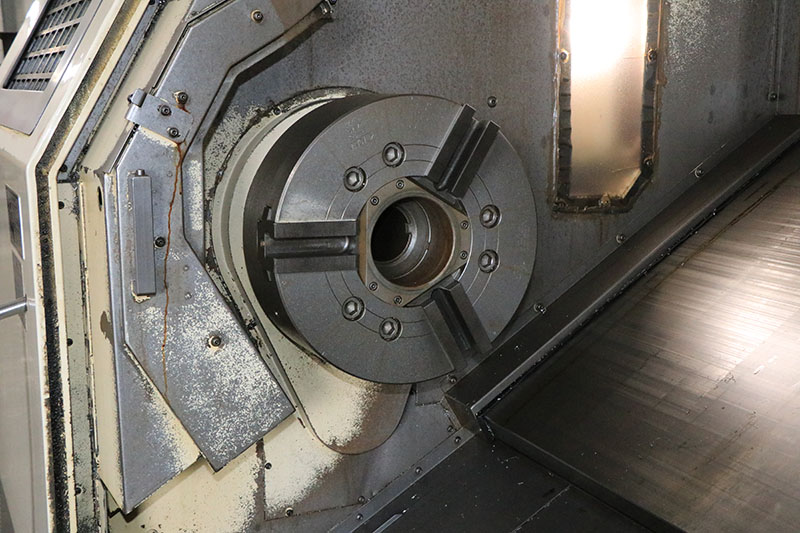

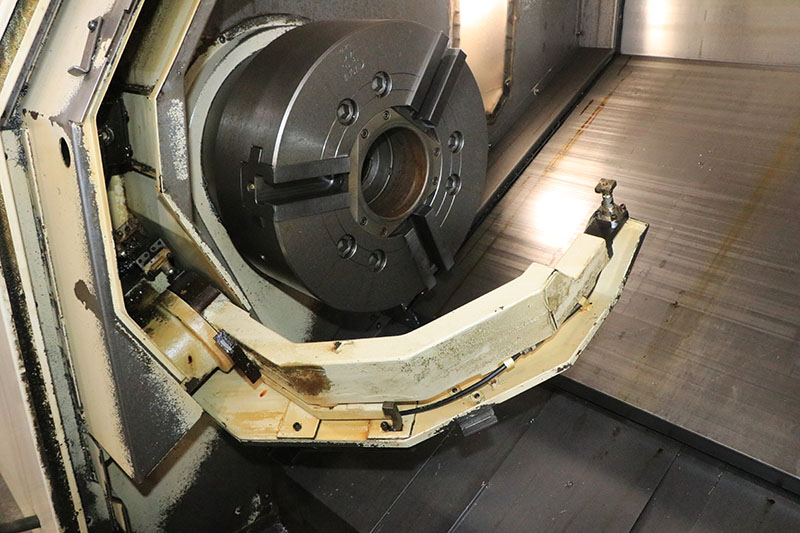

 - 15" 3-Jaw Hydraulic Chuck

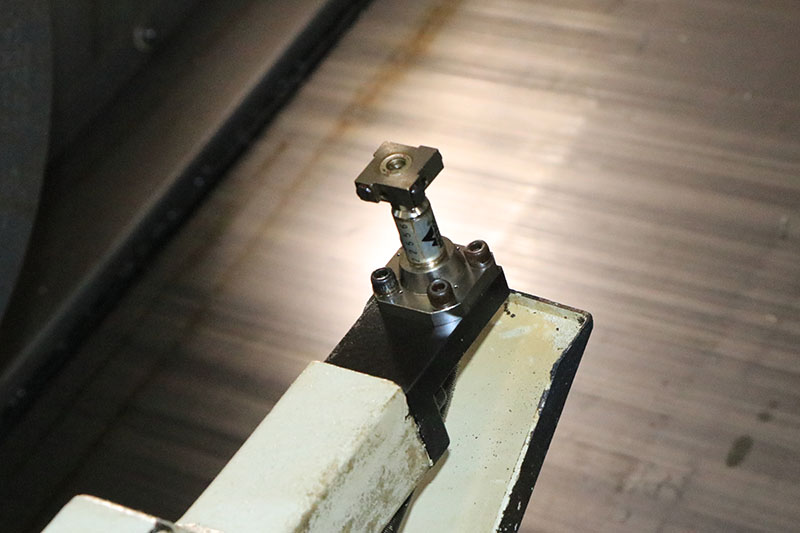

 - Touchsetter

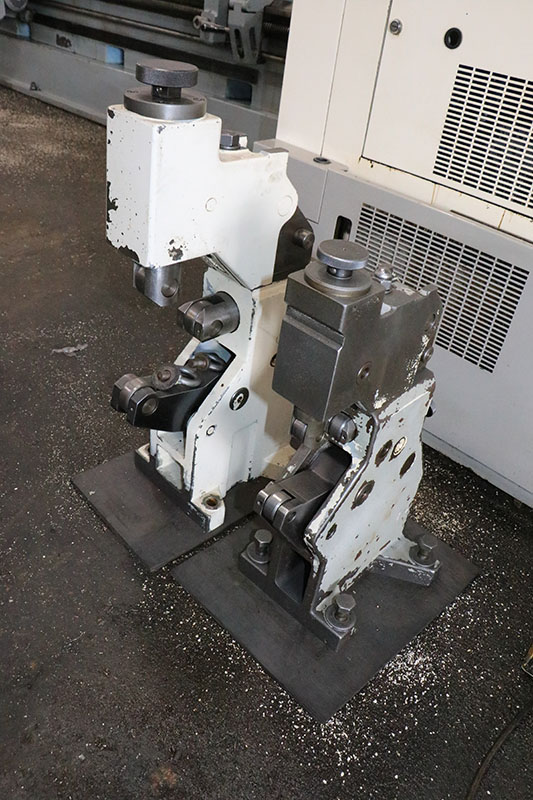

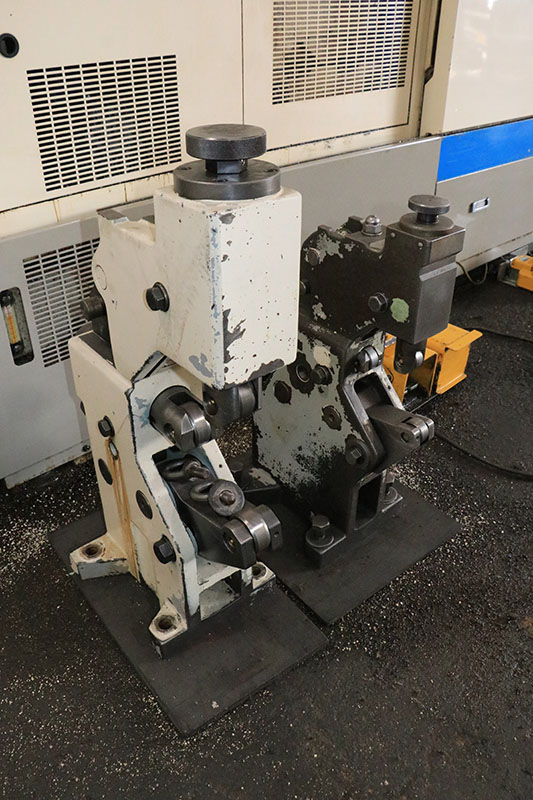

 - Steadyrest

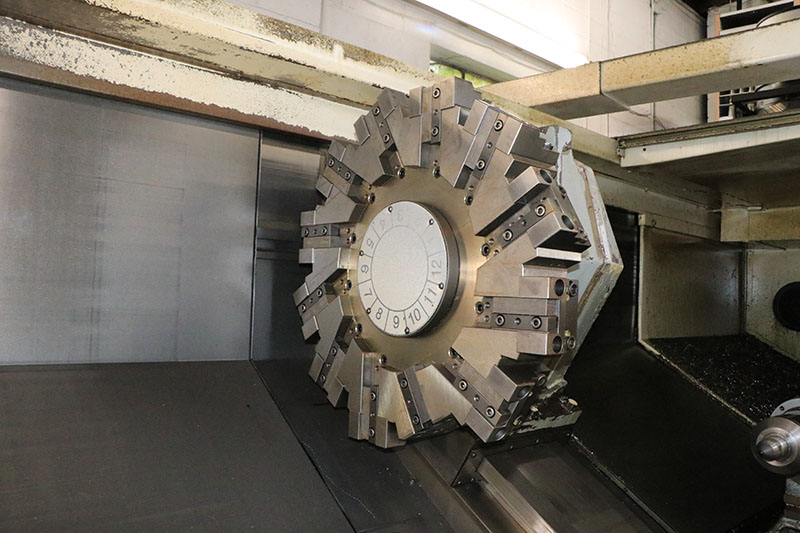

 - 12 Station Turret

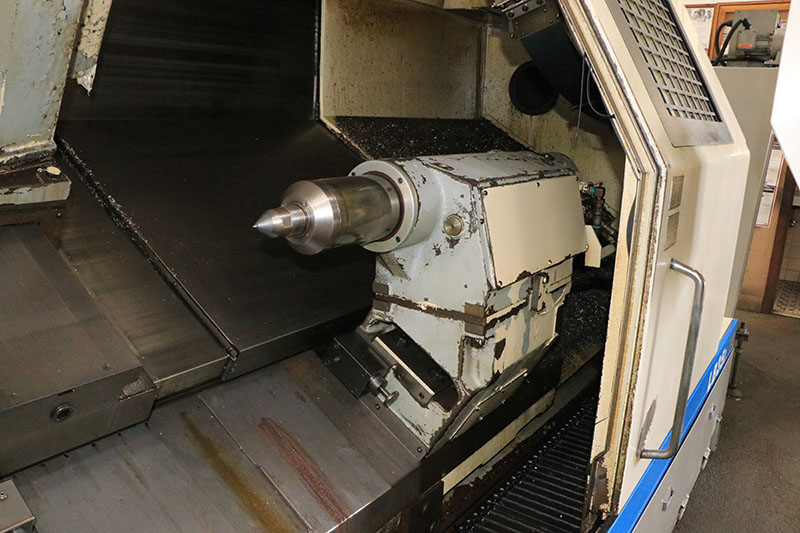

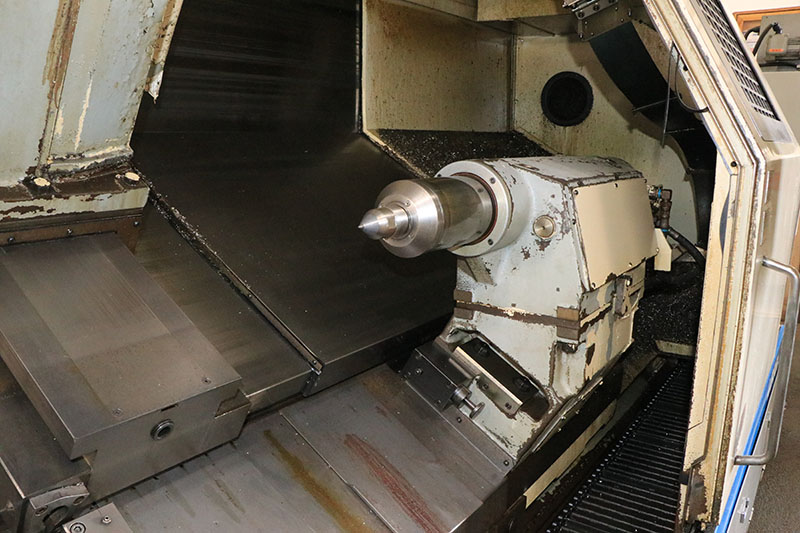

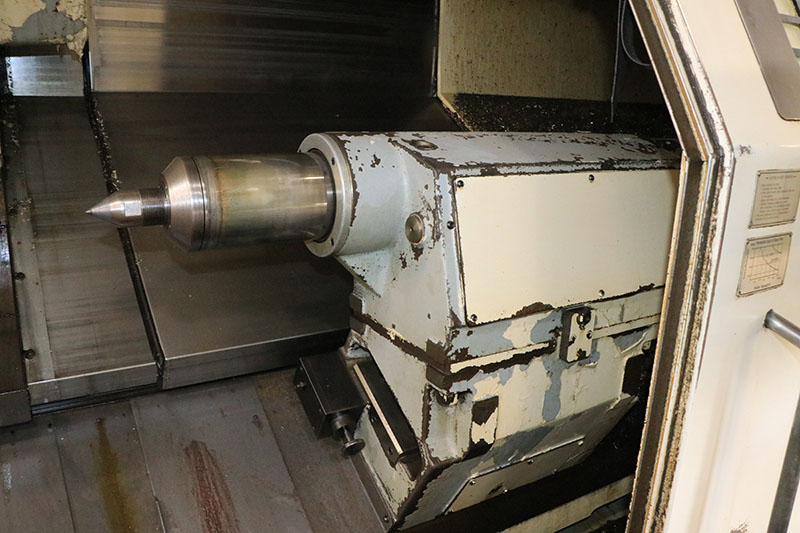

 - Tailstock

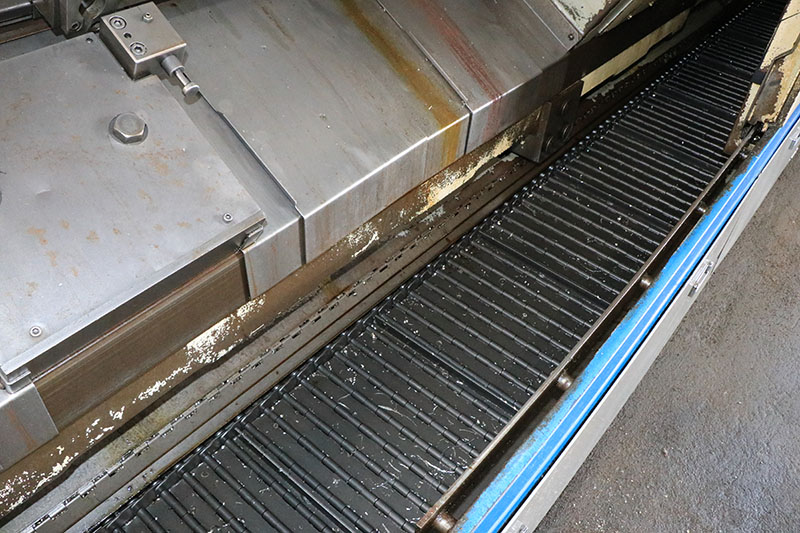

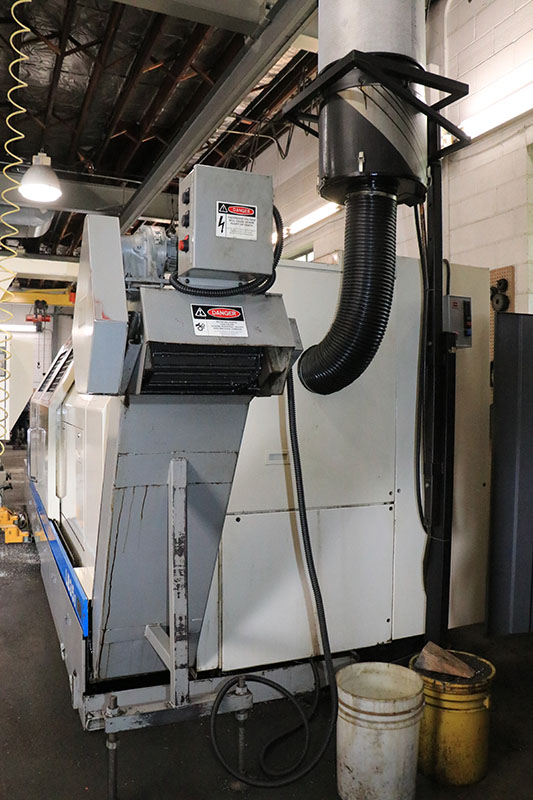

 - Chip Conveyor
