Okuma LB3000EX-IIMYW CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Okuma

Model:: LB3000EX-IIMYW

Year:: 2016

Ref #:: 178747

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

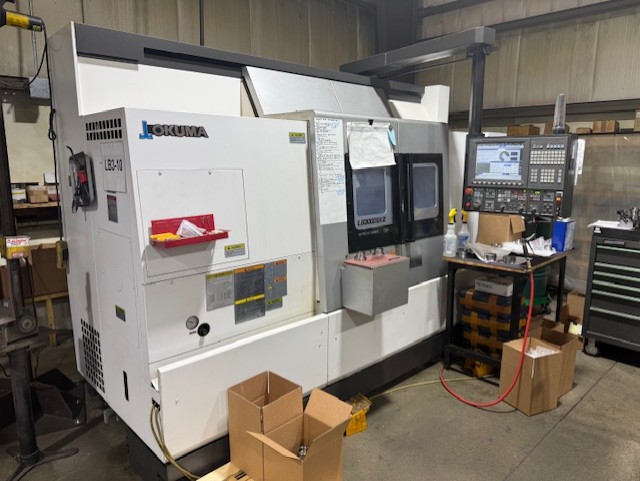

Okuma LB3000EXII-MYW/800 Multi-Axis CNC Turning Center
New: 2016

Specifications:
Swing Over Bed: 22.83"
Max. Swing Over Cross Slide: 18.5"
Max. Turning Diameter: 13.39"
Distance Between Spindles: 31.72"
Spindle Speed: 45-4500 RPM
Bar Capacity: 3.18"
Spindle Nose: A2-8
Spindle Motor: 40/30 HP
Sub Spindle Speed: 45-6000 RPM
Sub Spindle Motor: 15HP
X-Axis Travel: 10.24"
Z-Axis Travel: 39.76"
Y-Axis Travel: 4.53"
W-Axis Travel: 35.24"
C-Axis: 360 Degree/0.001 Degree Increments
Live Tooling/Milling Speed: 45-6000 RPM
Turret Capacity: 12 Station
Approx. Dimensions: 170"L x 96"D x 98" H
Approx. Machine Weight: 19,500 lbs.

Equipped With:
OSP 300 Touchscreen Control w/3D Animation, Animation, Pitch Error, 96 Tool Offsets, Tool Wear Compensation,
NC Work Counter, MAC Man, Plane Conversation, Profile Generator, Synchro Tapping, Helical Cutting, Spindle Orientation, M-Axis Orientation
Toolsetter

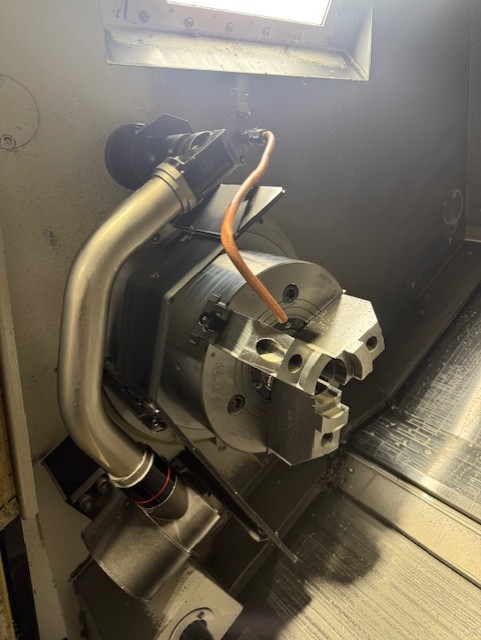

10" 3 jaw Kitagawa BB210 Chuck on Main Spindle

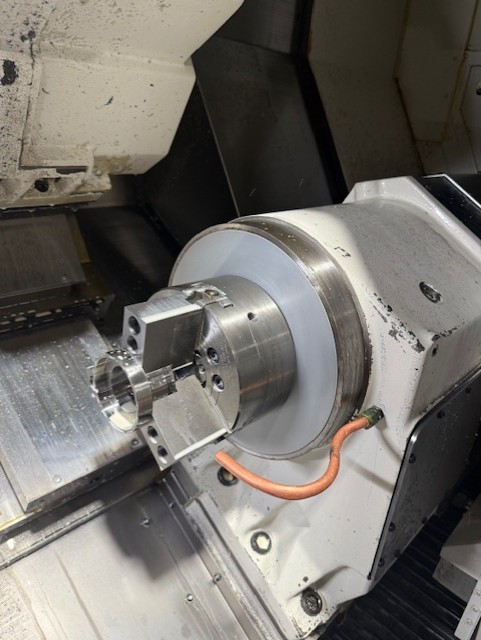

6.5" 3 jaw Kitagawa B206 Chuck on Sub Spindle
MP Systems High Pressure Coolant Systems 1000 PSI (7.5HP)
Chip Conveyor
