Okuma Multus B250II-1SW/750 CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Okuma

Model:: Multus B250II-1SW/750

Year:: 2022

Ref #:: 179296

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

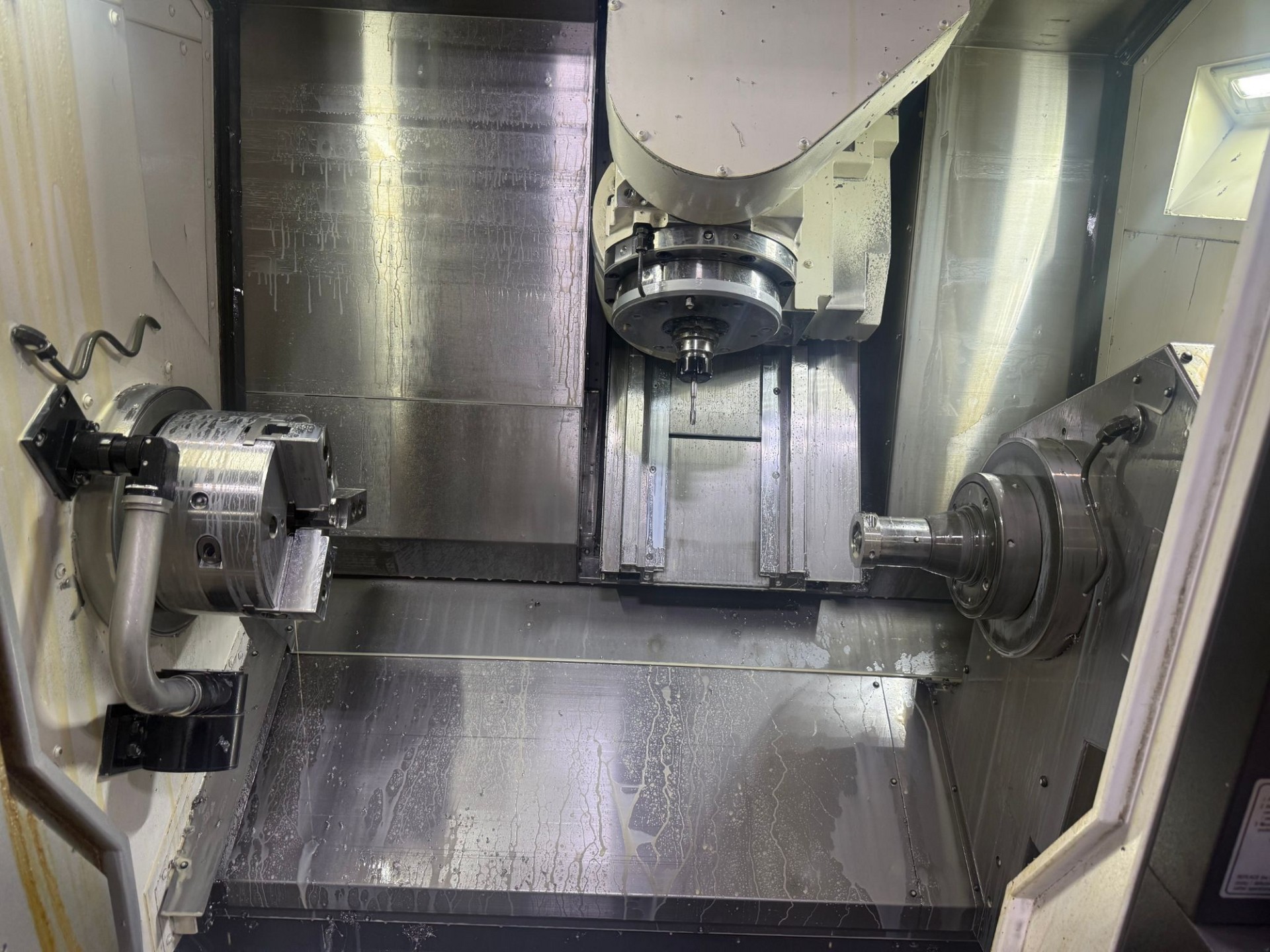

2022 Okuma Multus B250II-1SW/750 CNC Lathe with B-Axis
SWING OVER SADDLE: 24.8"
DISTANCE BETWEEN CENTERS: 35.43"
X-AXIS TRAVEL: 22.83"
Y-AXIS TRAVEL: +/- 3.15"
Z-AXIS TRAVEL: 35.51"
W-AXIS TRAVEL: 39.37"
B-AXIS TRAVEL: 30 TO +195 DEGREE
B-AXIS INDEXING: 0.001 DEGREE
MAIN SPINDLE CHUCK SIZE: 10"
MAIN SPINDLE SPEED: 5,000 RPM
MAIN SPINDLE POWER: 30 HP
SPINDLE NOSE: A2-6
MAIN SPINDLE BORE: 3.93"
MAIN SPINDLE BAR SIZE: 3.15"
SUB SPINDLE CHUCK SIZE: 8"
SUB SPINDLE SPEED: 6,000 RPM
SUB SPINDLE POWER: 15 HP
SUB SPINDLE BORE: 3.94"
SUB SPINDLE BAR SIZE: 3.15"
MILLING SPINDLE SPEED MAX: 12,000 RPM
MILLING SPINDLE TAPER: CAPTO C6
ATC CAPACITY: 120
MACHINE SIZE: 142.52" X 87.01" X 101.66"
MACHINE WEIGHT: 17,820 LBS

 Equipped With:

Equipped with to be verified by buyer

OSP-P300SA(LP) Control

Big Bore Option: 3.15" Bar capacity

ATC 60, Capto C6 Spindle Taper

Tool Presetter

Parts Catcher

Chip Conveyor, Hinge Style, High

VR8 480V High Pressure Coolant Pump, MP Systems

MP Systems 1200 PSI Coolant Thru Spindle

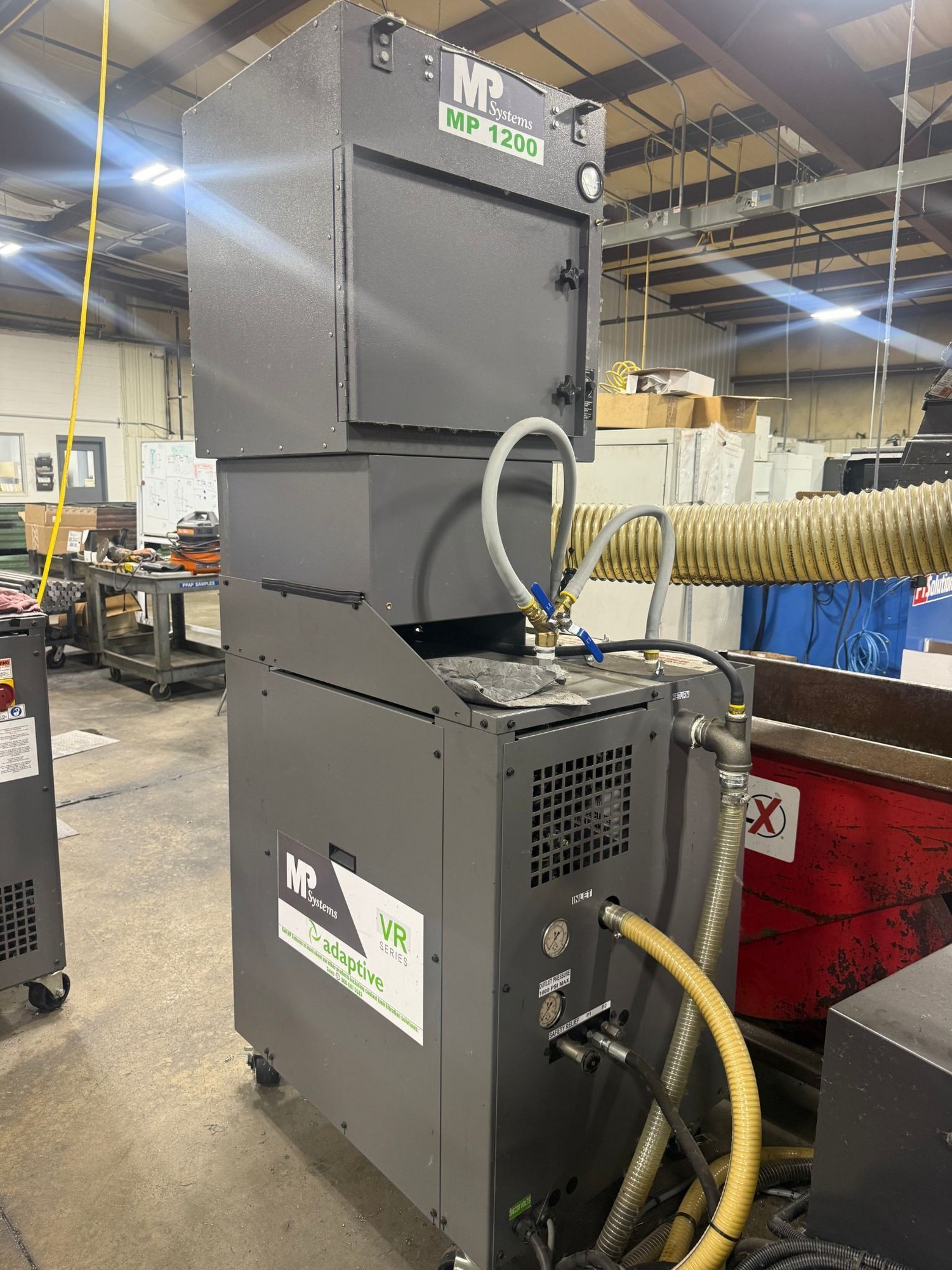

MP 1200 480V Pump Mounted Mist Collector
