Parker-Majestic 2Z, DRO, ELECTRONIC V-S SPINDLE, POWER ELEV. SURFACE GRINDERS, HAND FEED

Price on Request

Make:: Parker-Majestic

Model:: 2Z, DRO, ELECTRONIC V-S SPINDLE, POWER ELEV.

Year:: 1994

Ref #:: 178311

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

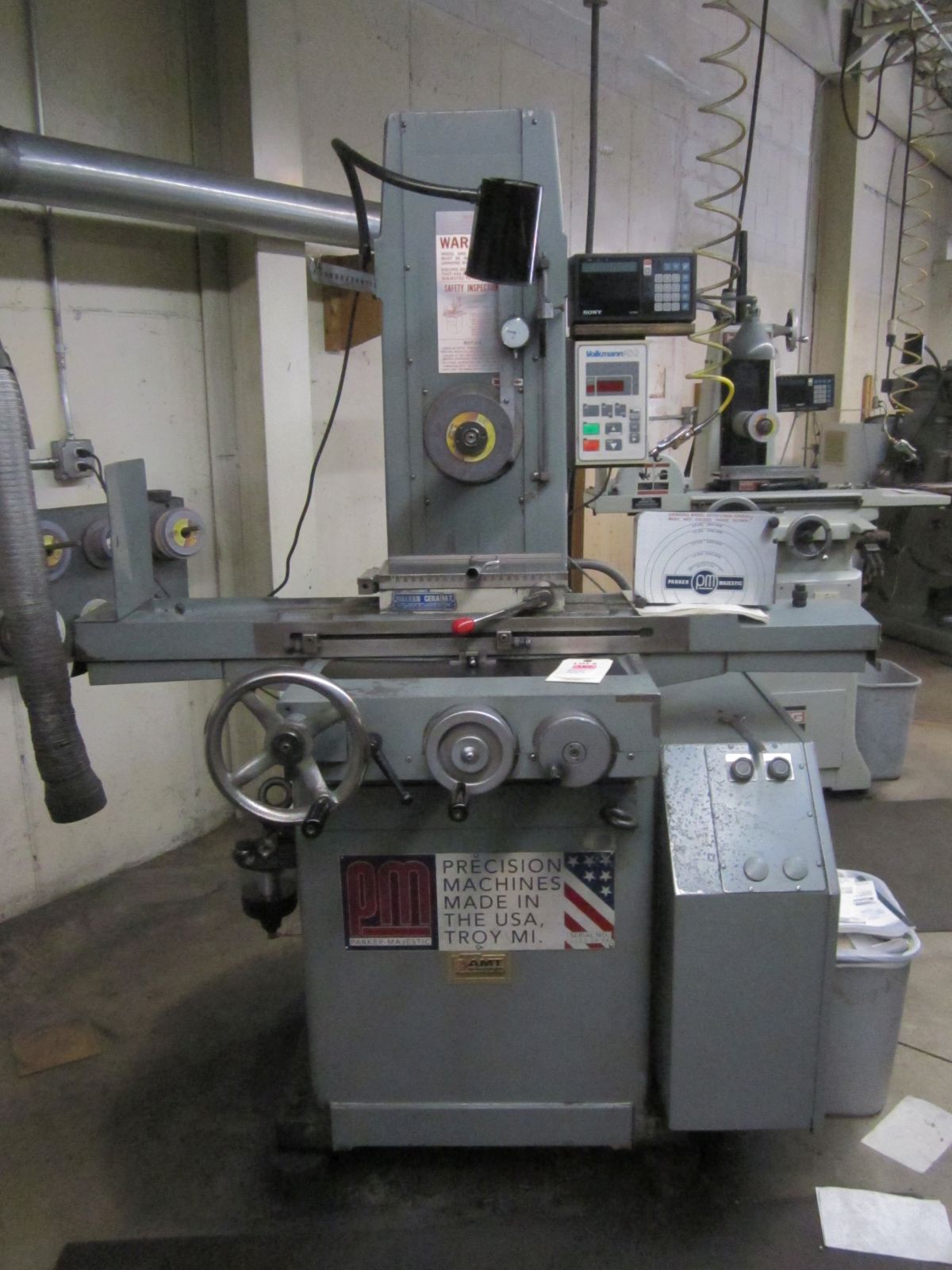

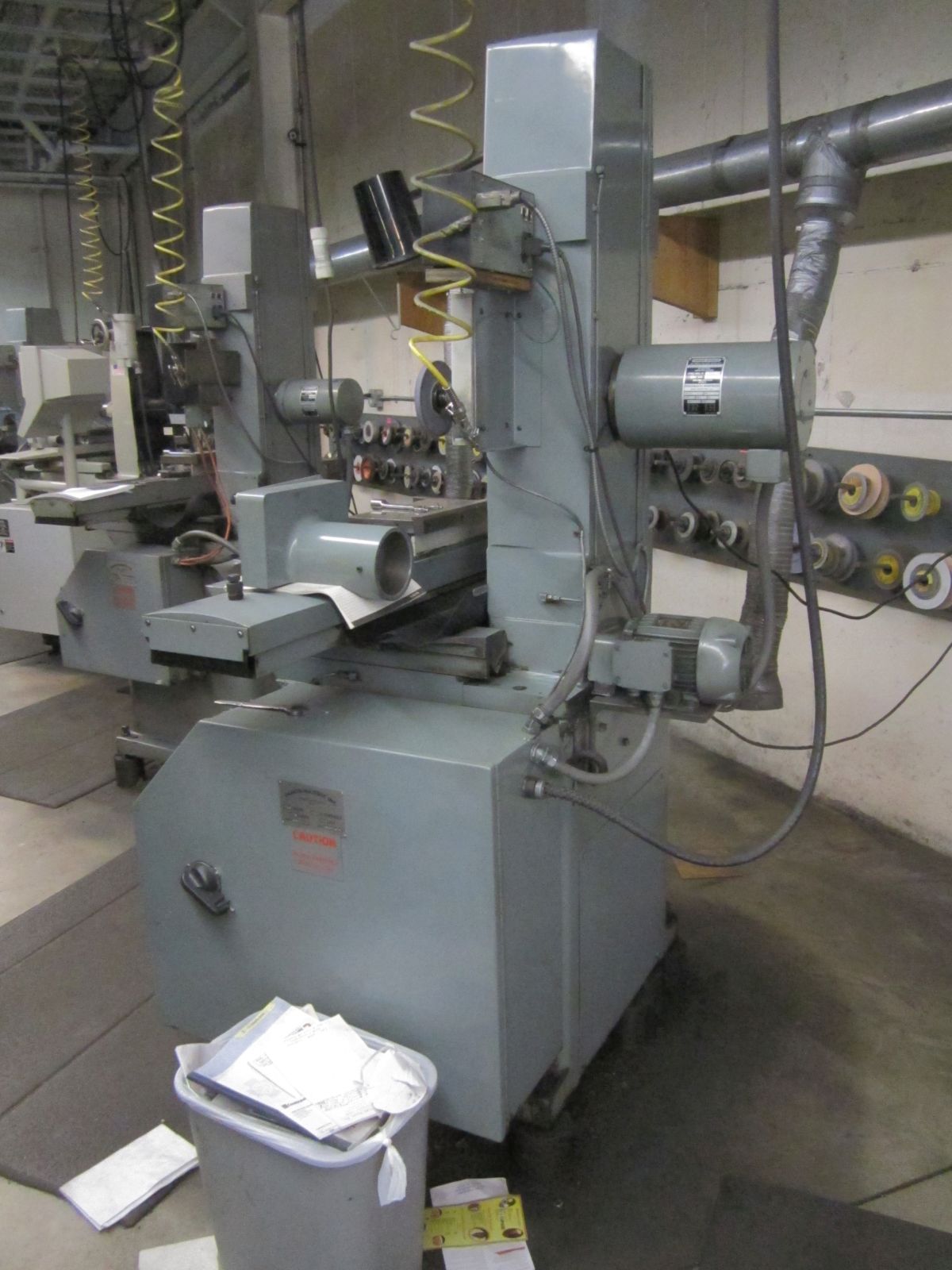

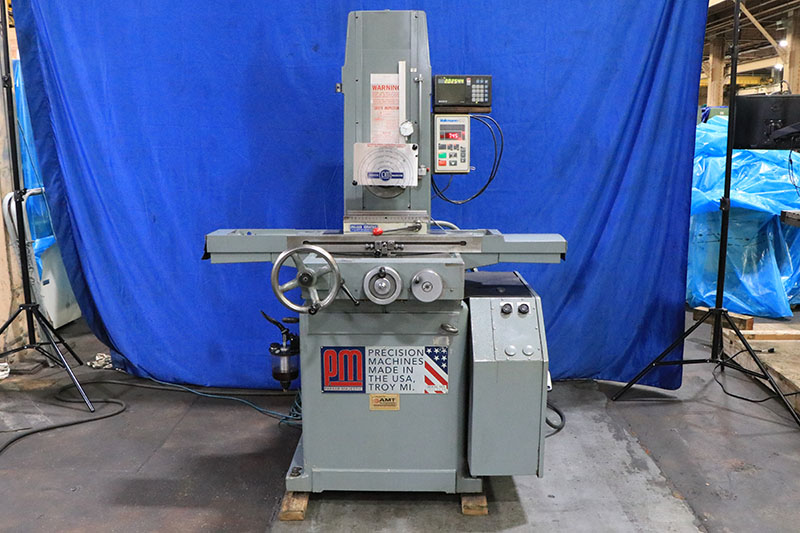

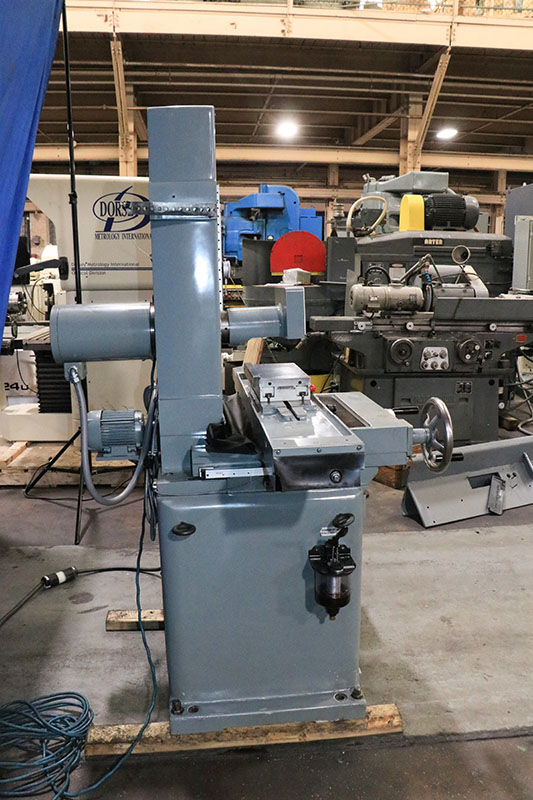

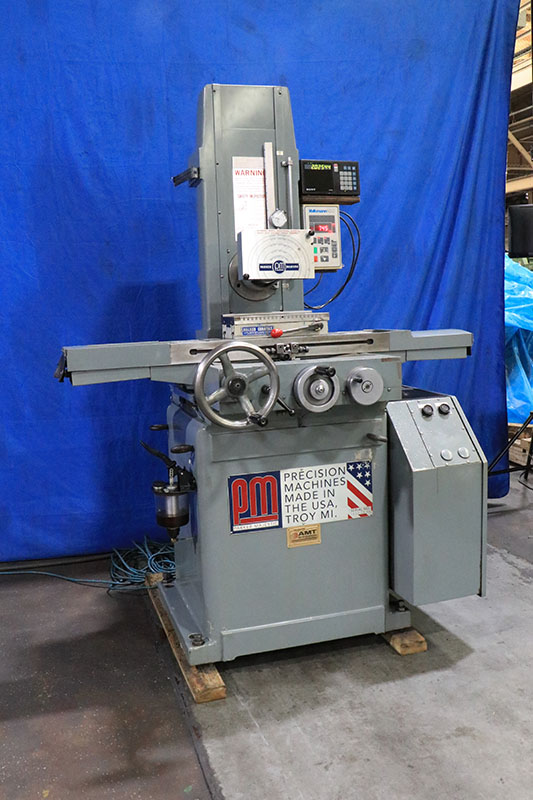

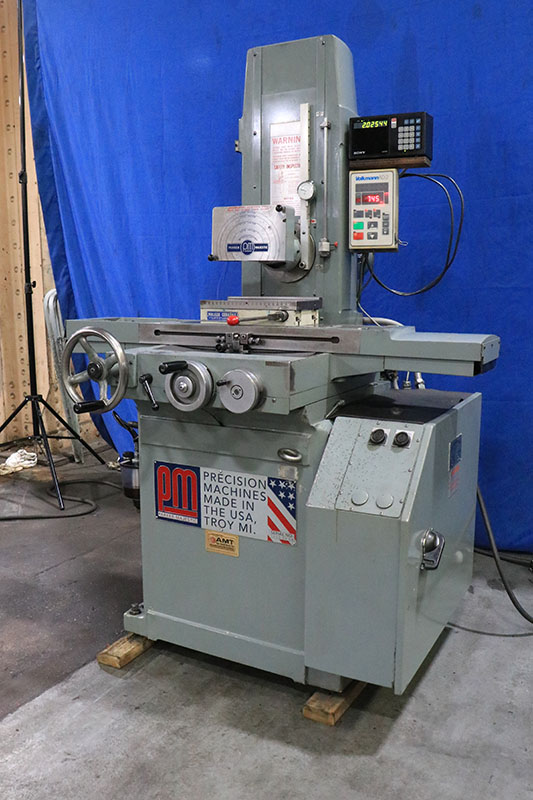

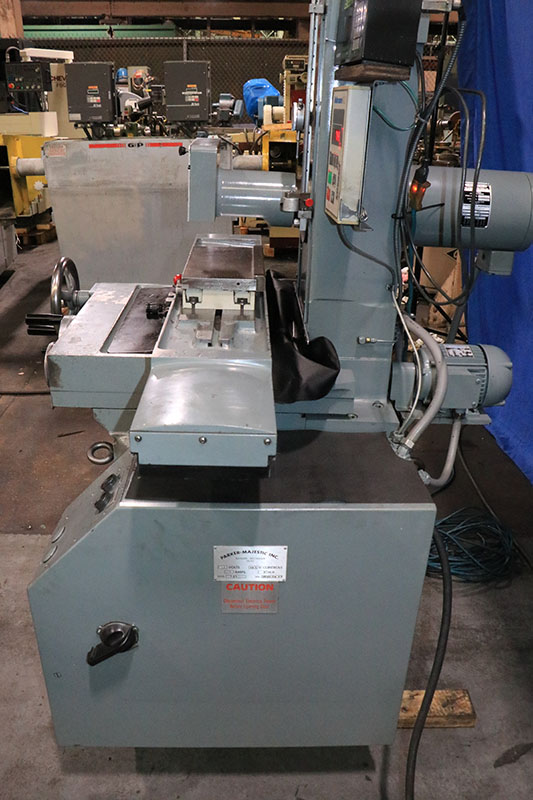

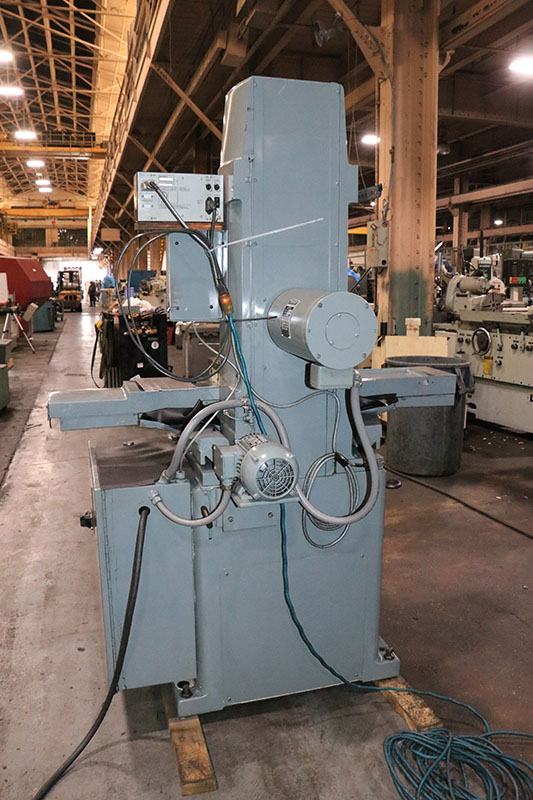

        6" X 18" PARKER-MAJESTIC
            "SUPER-PRECISION"
              "MADE IN USA"
        HAND FEED SURFACE GRINDER

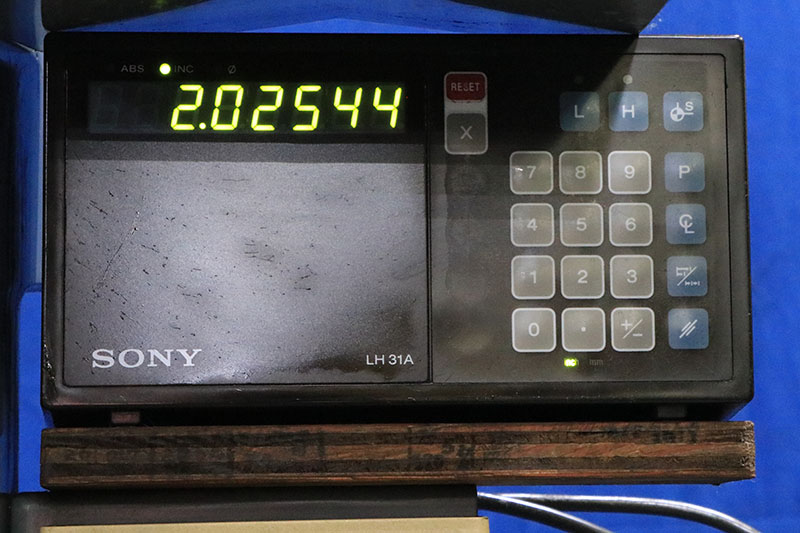

     ** "SONY" 1-AXIS DIGITAL READOUT **

 ** "VOLKMANN" ELECTRONIC VARIABLE SPEED CONTROL
       FOR THE GRINDING WHEEL SPINDLE **

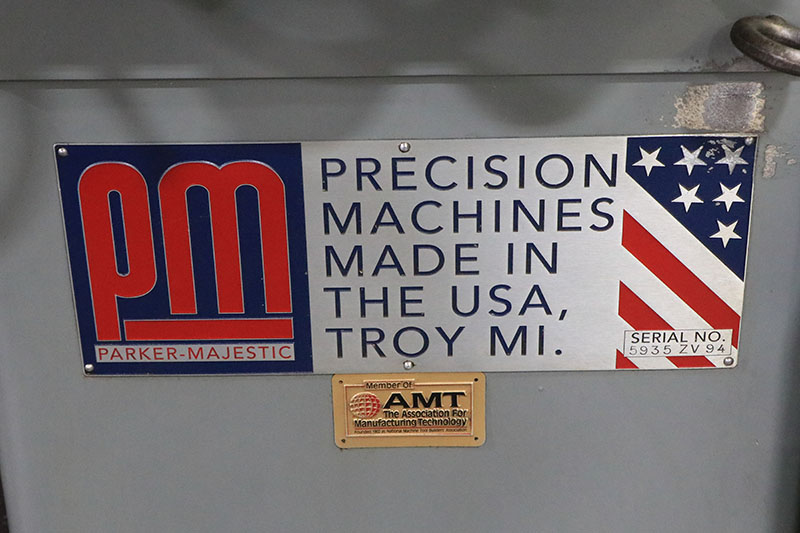

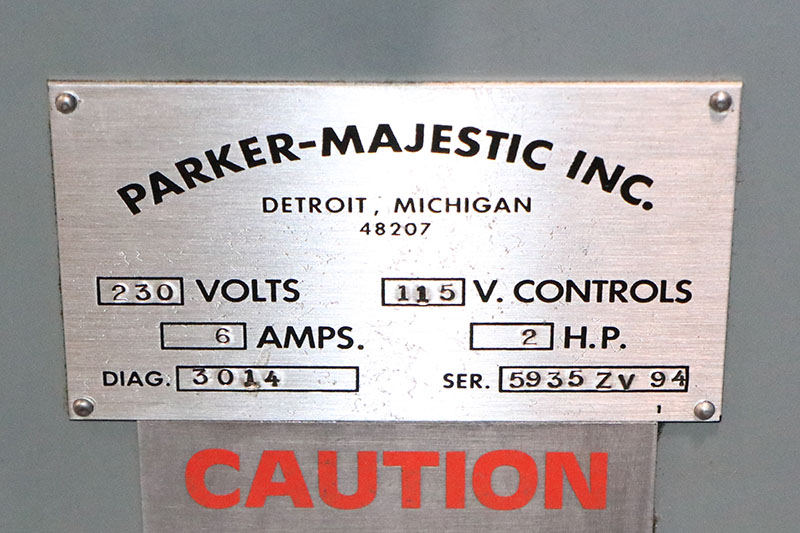

MODEL: #2Z      S/N: 5935ZV-94      NEW: 1994

LONGITUDINAL TABLE TRAVEL .................... 18"
TABLE TRAVEL PER ONE REV. OF HANDWHEEL ....... 3"
TRANSVERSE TABLE TRAVEL ...................... 6"
CROSS HANDWHEEL GRAD. ........................ 0.0001"
VERTICAL HANDWHEEL GRAD. ..................... 0.001"
VERTICAL HANDWHEEL VERNIER TYPE INDICATOR .... 0.0001"
ONE REV. OF VERT. HANDWHEEL IS ............... 0.010"
VERTICAL TRAVEL (FROM TABLE TOP TO SPINDLE
CENTERLINE) .................................. 20"

APPROXIMATE MACHINE WEIGHT ................... 1,800 LBS

STANDARD MACHINE FEATURES:

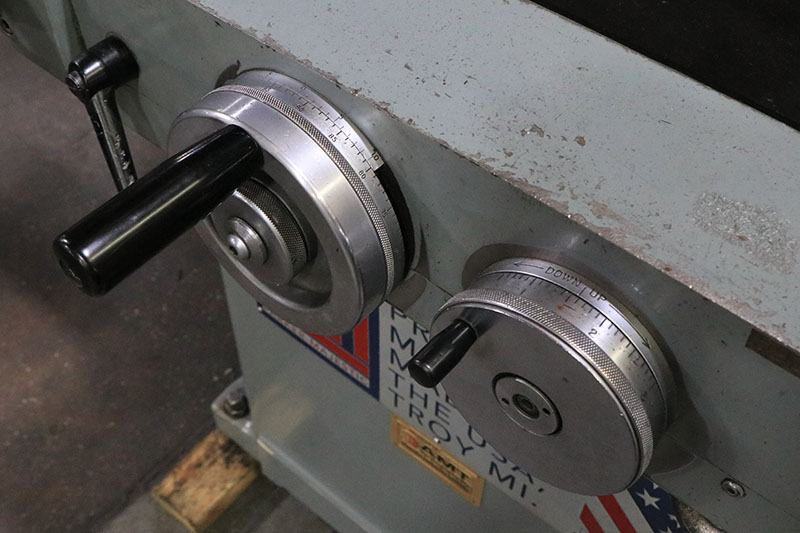

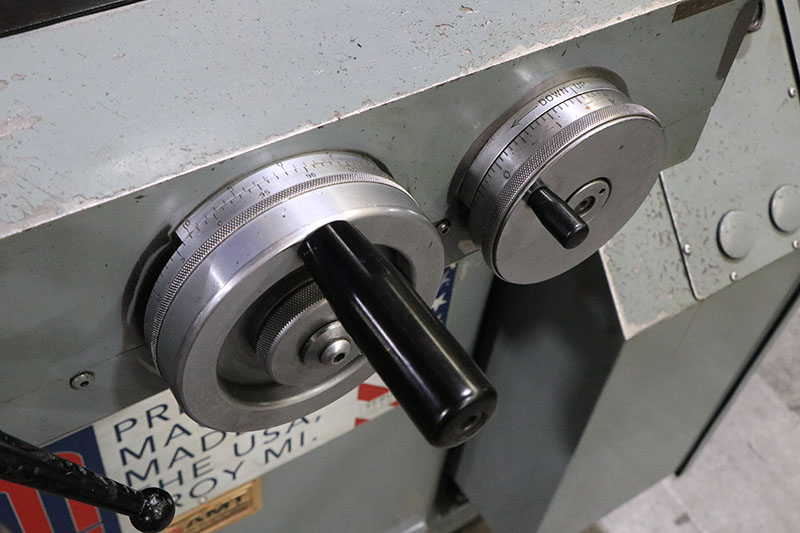

ALL THREE HANDWHEELS @ OPERATOR'S HIP LEVEL

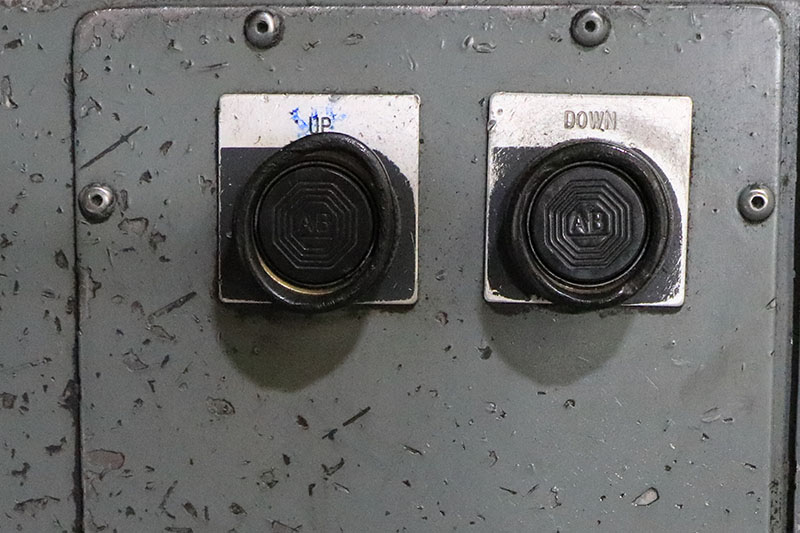

POWER ELEVATION OF WHEELHEAD MOVEMENT
STANDARD HAND FEED W/STEEL TAPES WOUND AROUND
 STEEL DRUMS.
TEFLON ON WAYS
CROSS FEED SADDLE LOCK

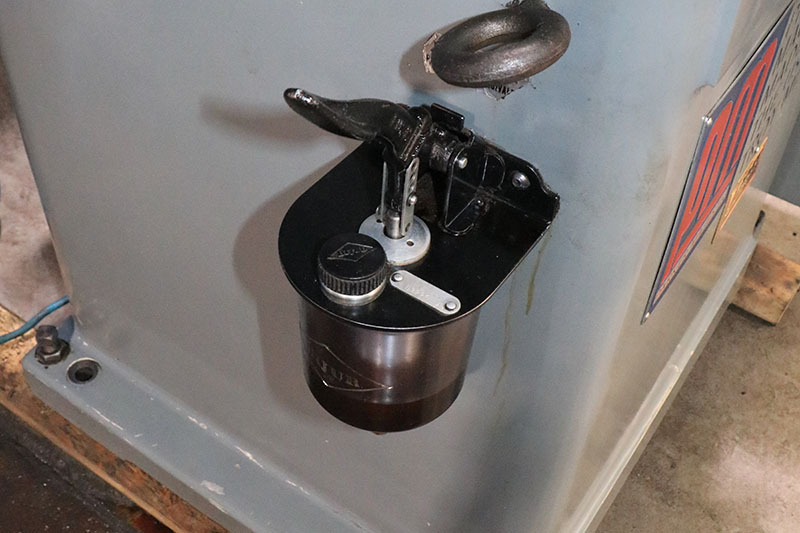

"BIJUR" LUBRICATOR

EQUIPPED WITH:
ACU-RITE 2-AXIS DIGITAL READOUT
"PARKER-MAJESTIC", "SUPER-PRECISION",

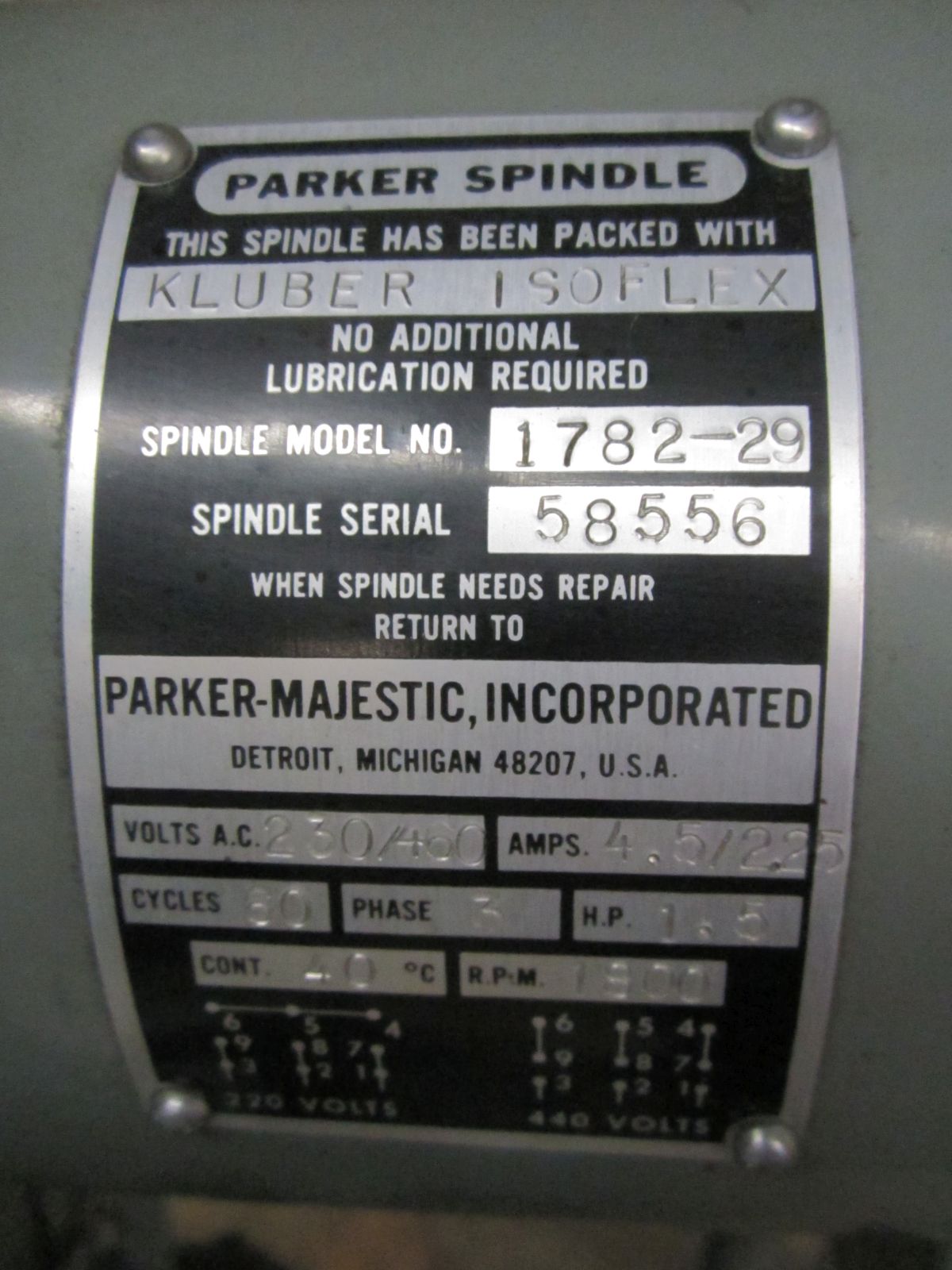

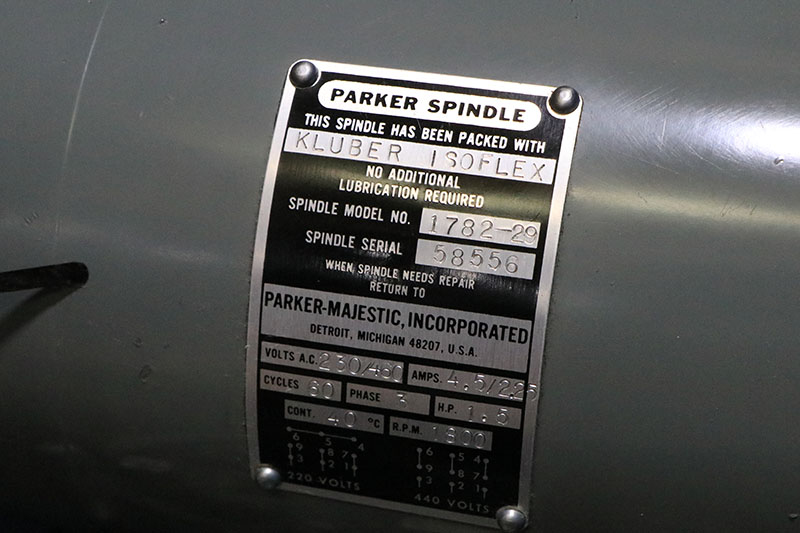

 1.5 H.P./3/60/230-460 VOLT, DIRECT DRIVE SPINDLE

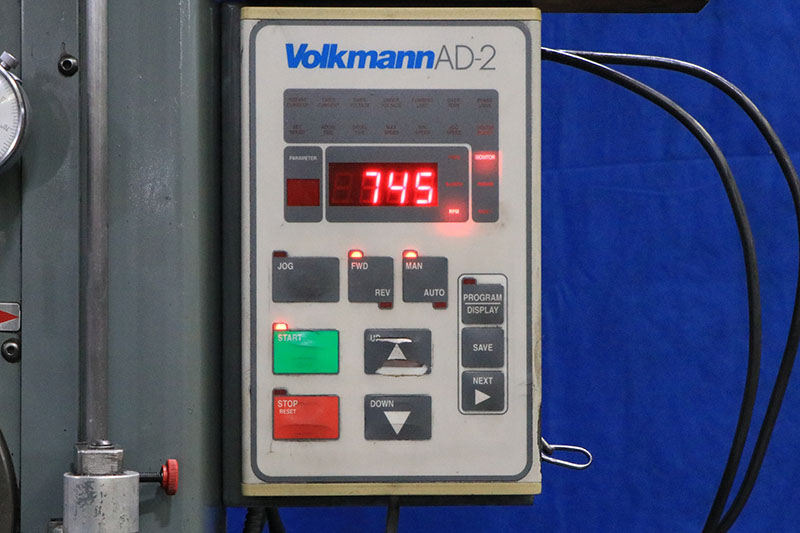

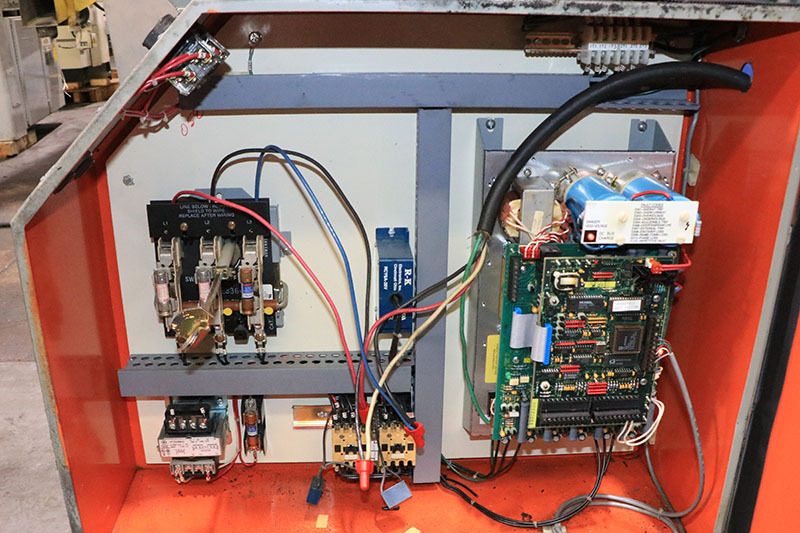

"VOLKMANN" ELECTRONIC VARIABLE SPEED DRIVE,
 PROVIDING INFINITELY VARIABLE SPINDLE SPEEDS
ORIGINAL GRINDING WHEEL COVER

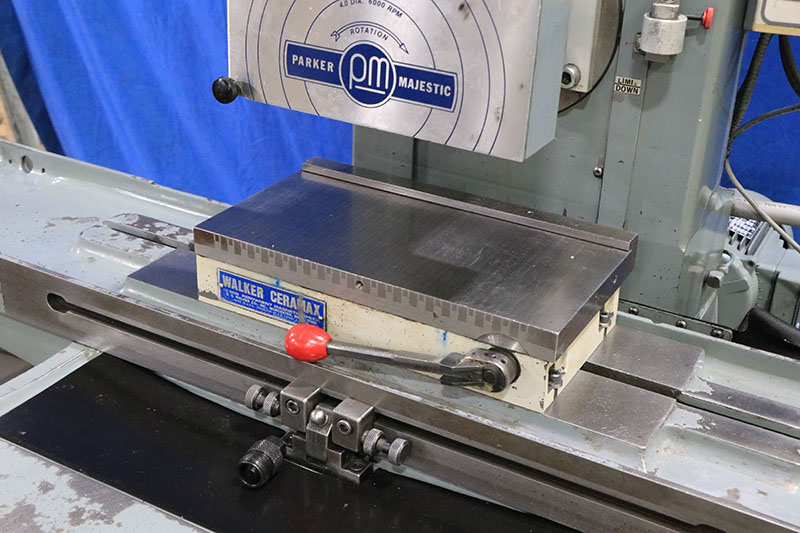

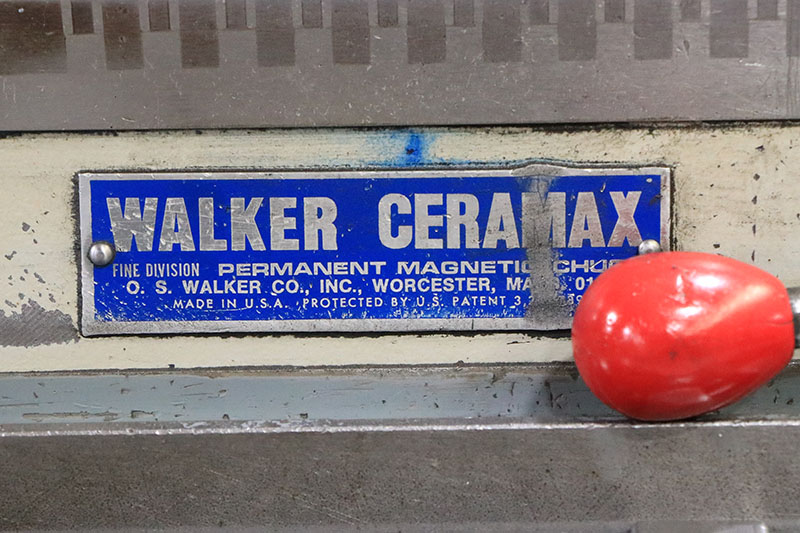

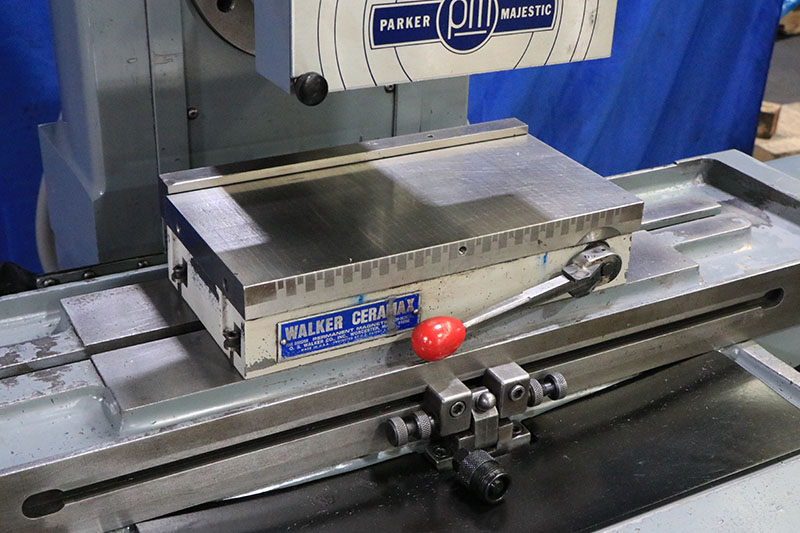

6" x 18" O.S. WALKER FINE-DIVISION PERMANENT MAGNETIC CHUCK
MACHINE IS WIRED FOR 3/60/230 VOLTS


** EXCEPTIONAL CONDITION & APPEARANCE - ORIGINAL PAINT**
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
