COMBINATION 50 TON H-FRAME PRESS
& 12 TON BROACHING PRESS
w/MOVABLE WORKHEAD
MODEL HFBP-50/12 MWH
NEW - IN STOCK FOR IMMEDIATE DELIVERY
H-FRAME SPECS:
RATED CAPACITY ............................... 50 TONS
STROKE ....................................... 12"
BORE ......................................... 6"
RAM SPEED: ADVANCE ........................... 20 IPM
RETURN ............................ 24 IPM
DISTANCE BETWEEN POSTS (RIGHT TO LEFT)........ 48"
DISTANCE BETWEEN POSTS (FRONT TO BACK)........ 10"
MAXIMUM DISTANCE FROM BED TO RAM ............. 34"
OVERALL HEIGHT ............................... 102"
OVERALL WIDTH ................................ 102"
OVERALL DEPTH ................................ 54"
WEIGHT ....................................... 2,800#

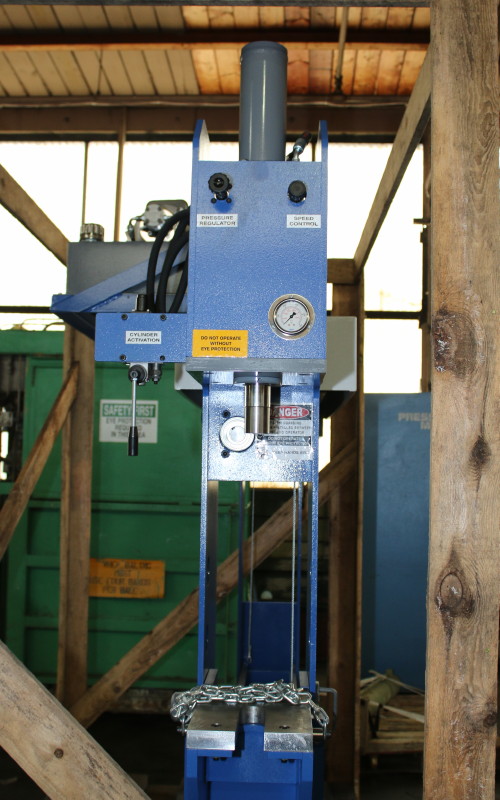

BROACHING C-FRAME SPECS:
CAPACITY ..................................... 12 TONS
STROKE ....................................... 20"
BORE ......................................... 3"
RAM SPEED: ADVANCE ........................... 80 IPM
RETURN ............................ 144 IPM
NOT A CHEAP IMPORT -
MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS
STANDARD FEATURES:
ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT PRESSING ACTION
OPEN SIDES TO FACILITATE WORK ON LONG PIECES
FLAT RAM NOSE CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE PRESS
TO A SPECIFIC JOB
LOW SPEED PUMP
SELF-LOCKING TABLE DESIGN ELIMINATES LATERAL MOVEMENT

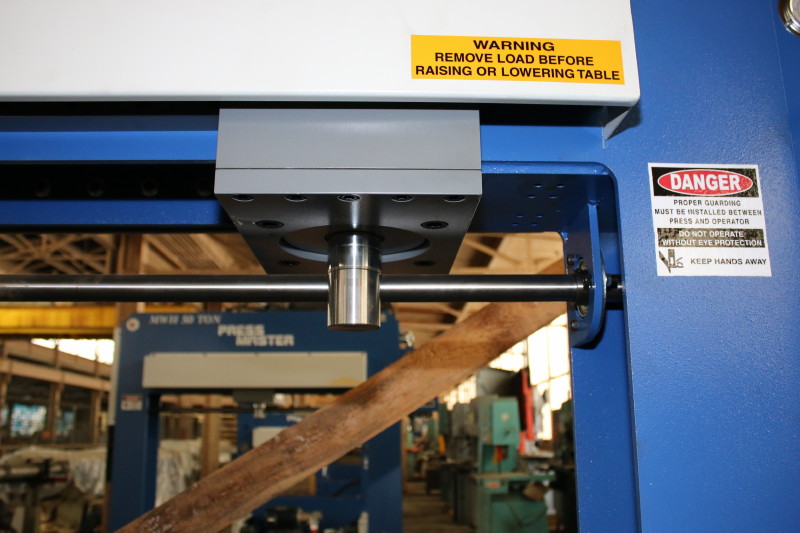

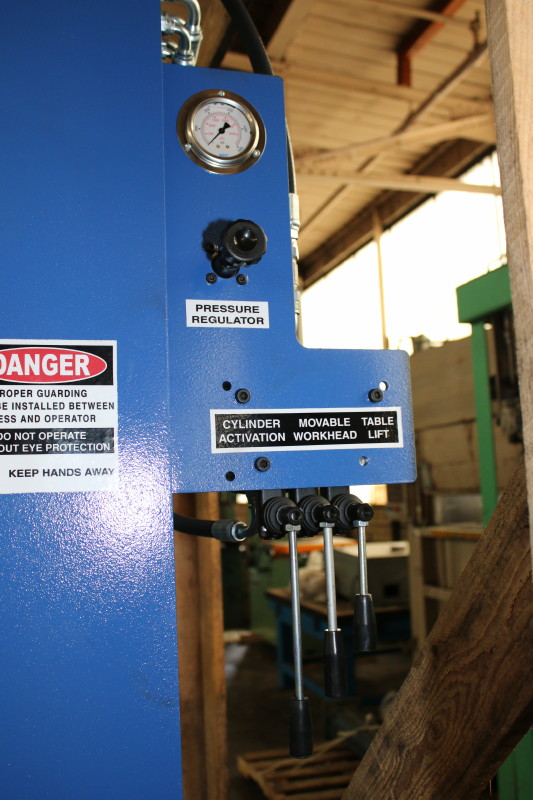

POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK ALLOWS OPERATOR TO POSITION
THE CYLINDER FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER.
HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF TABLE
PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE
CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS
ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR
TO CONTROL THE PROPER SPEED FOR THE TASK
HIGH CAPACITY 10 GAL. HYDRAULIC OIL RESERVOIR
LOW PRESSURE HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES,
RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION
BALDOR 5 HP, 230 VOLT / 1 PHASE MOTOR
STANDARD VOLTAGES AVAILABLE-PLEASE SPECIFY WHEN ORDERING
FULL ONE YEAR PARTS WARRANTY.

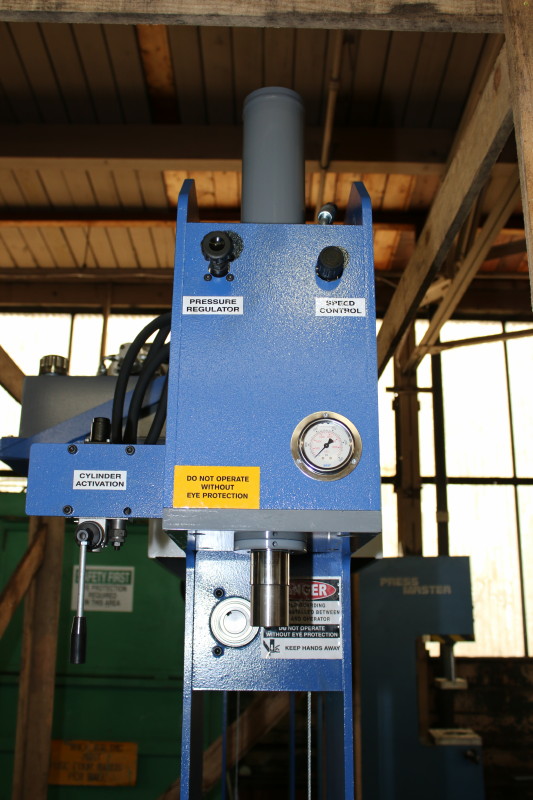

STANDARD FEATURES 12 TON C-FRAME:
PRESSURE REGULATOR
SPEED CONTROL
AVAILABLE OPTIONS:
- V-BLOCKS ................................... $650 SET
- STOP / START & EMERGENCY STOP .............. $900
- PRESSURE REGULATOR ......................... $900
- FRONT OR BACK SAFETY GUARD ................. $900 EA
- SIDE SAFETY GUARD ..............(PER SIDE).. $600
- FOOT PEDAL ................................. $3,400
- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $5,000
- 24” STROKE CYLINDER ........................ $1,400
- PRESS PLATE ................................ $1,500
- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND
LEXAN GUARDING ............................... $7,600
CAN BE INSPECTED IN OUR HARRISON, NJ WAREHOUSE
MACHINES IN STOCK AND CAN BE SHIPPED OUT TO YOU IMMEDIATELY
