Pressmaster HFP-50 MWH HYDRAULIC H-FRAME PRESSES

$18,950

Make:

Pressmaster

Model:

HFP-50 MWH

Year:

New

Ref #:

162197

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

---

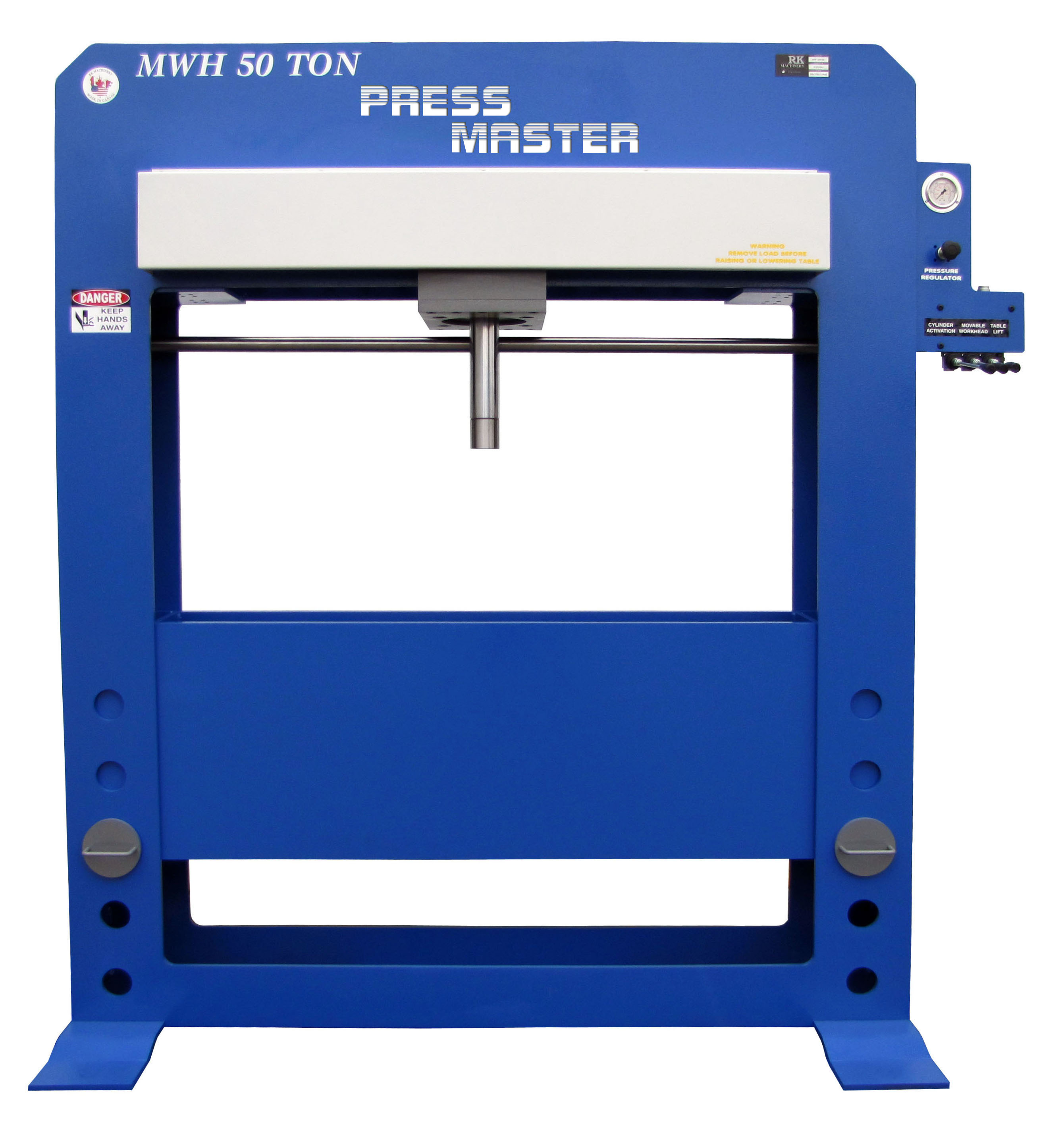

50 TON PRESSMASTER H-FRAME PRESS

MODEL HFP50T-MWH      NEW - IN STOCK FOR IMMEDIATE DELIVERY



RATED CAPACITY ............................... 50 TONS

STROKE ....................................... 12"

BORE ......................................... 6"

RAM SPEED: ADVANCE ........................... 20 IPM

           RETURN ............................ 24 IPM

DISTANCE BETWEEN POSTS (RIGHT TO LEFT)........ 48"

DISTANCE BETWEEN POSTS (FRONT TO BACK)........ 9"

MAXIMUM DISTANCE FROM BED TO RAM ............. 35"



OVERALL HEIGHT ............................... 101"

OVERALL WIDTH ................................ 88"

OVERALL DEPTH ................................ 50"

WEIGHT ....................................... 1,800 LBS.



NOT A CHEAP IMPORT -

MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS



POWERED MOVEABLE WORKHEAD FOR OFF-CENTER WORK, ALLOWS OPERATOR TO

POSITION RAM FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER.

HYDRAULIC POWER LIFT TABLE

ELECTRIC/HYDRAULIC OPERATION

HEAVY DUTY STEEL STRUCTURE

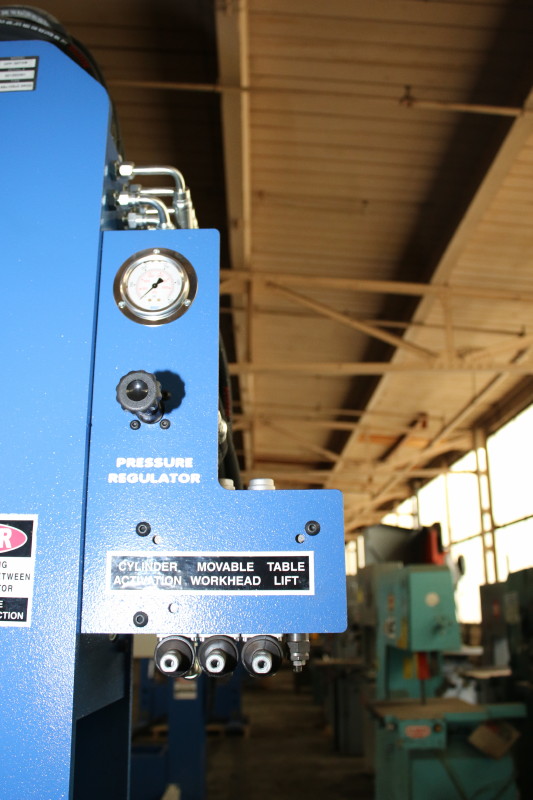

PRESSURE REGULATOR - LIMITS RAM PRESSURE

OPEN SIDES TO FACILITATE WORK ON LONG PIECES

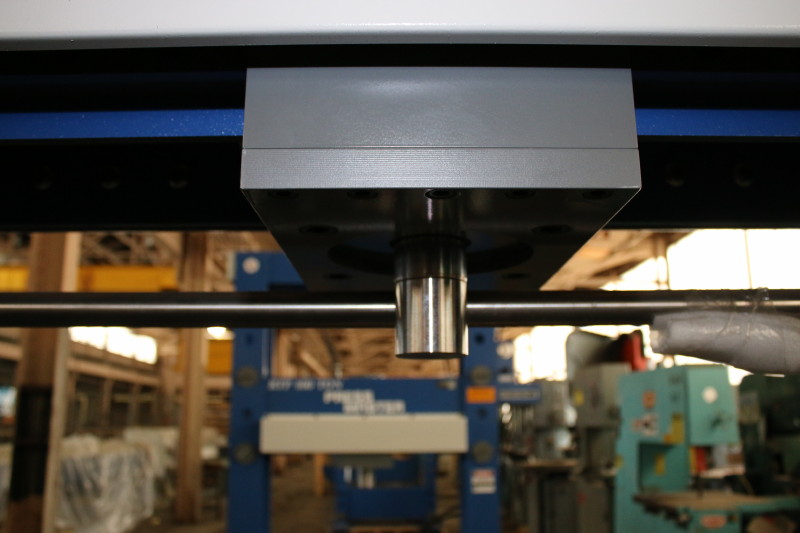

FLAT RAM NOSE TO ALLOW USER TO ADAPT THE PRESS TO A SPECIFIC JOB.

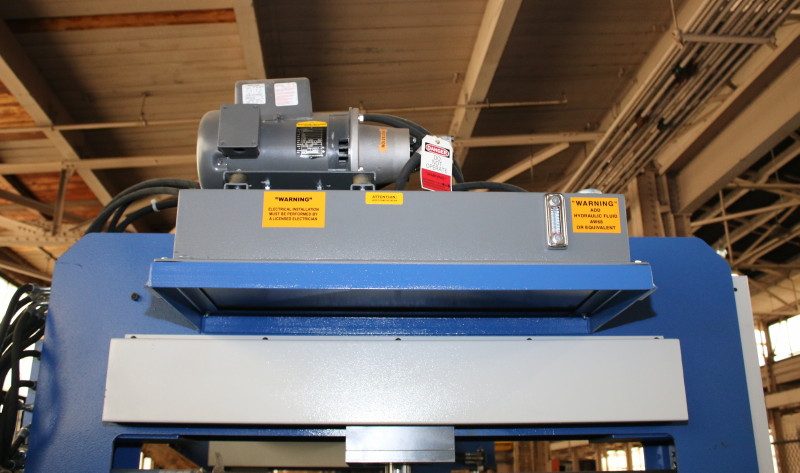

BALDOR 5 HP, 230 VOLT / 1 PHASE MOTOR

CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER

   IS ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE

   OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK.

LOW SPEED PUMP FOR QUIET DEPENDABLE OPERATION

SELF LOCKING TABLE DESIGN ELIMINATES LATERAL MOVEMENT

10 GALLON HYDRAULIC OIL RESERVOIR

LOW PRESSURE HYDRAULIC SYSTEM FOR LOWER OIL TEMPERATURES RESULTING

   IN HIGHER EFFICIENCY AND SAFER OPERATION



FULL ONE YEAR WARRANTY ON ALL PARTS

STANDARD VOLTAGES AVAILABLE-PLEASE SPECIFY WHEN ORDERING



AVAILABLE OPTIONS:

- V-BLOCKS ................................... $650 SET

- STOP / START & EMERGENCY STOP .............. $900

- FRONT OR BACK SAFETY GUARD ................. $900 EA

- SIDE SAFETY GUARD ..............(PER SIDE).. $600

- FOOT PEDAL ................................. $3,400

- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $5,000

- 24” STROKE CYLINDER ........................ $1,400

- PRESS PLATE ................................ $1,500

- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND

LEXAN GUARDING ............................... $7,600

- 60" BETWEEN POSTS .......................... $2,800
