Pressmaster HFP-30 MWH HYDRAULIC H-FRAME PRESSES

$12,950

Make:

Pressmaster

Model:

HFP-30 MWH

Year:

New

Ref #:

154121

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

---

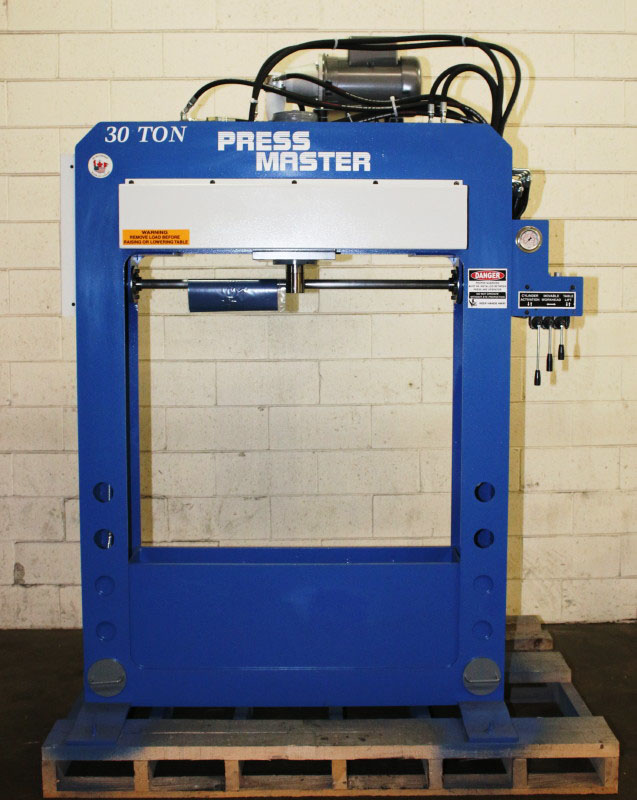

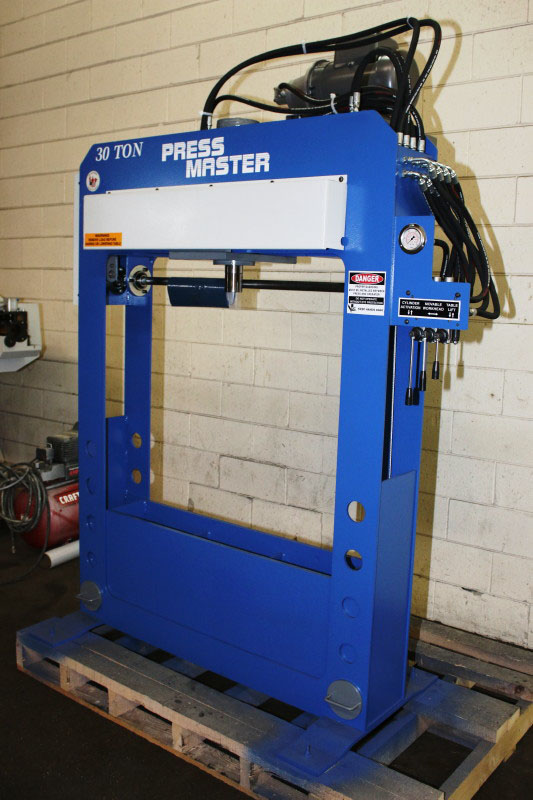

30 TON PRESSMASTER H-FRAME PRESS

MODEL HFP-30MWH      NEW - IN STOCK FOR IMMEDIATE DELIVERY



RATED CAPACITY ............................... 30 TONS

STROKE ....................................... 12"

BORE ......................................... 5"

RAM SPEED: ADVANCE ........................... 29 IPM

           RETURN ............................ 38 IPM

DISTANCE BETWEEN POSTS (RIGHT TO LEFT)........ 42"

DISTANCE BETWEEN POSTS (FRONT TO BACK)........ 9"

MAXIMUM DISTANCE FROM BED TO RAM ............. 34"



OVERALL HEIGHT ............................... 75"

OVERALL WIDTH ................................ 54"

OVERALL DEPTH ................................ 30"

WEIGHT ....................................... 1,600#



NOT A CHEAP IMPORT -

MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS



- POWERED MOVEABLE WORKHEAD FOR OFF-CENTER WORK, ALLOWS

OPERATOR TO POSITION RAM FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER.

- HYDRAULIC POWER LIFT TABLE

- ELECTRIC/HYDRAULIC OPERATION

- HEAVY DUTY STEEL STRUCTURE

- OPEN SIDES TO FACILITATE WORK ON LONG PIECES

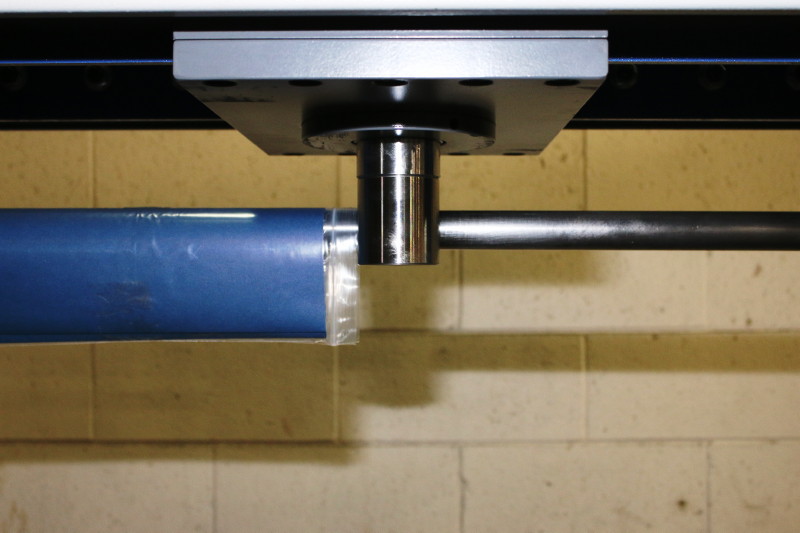

- FLAT RAM NOSE TO ALLOW USER TO ADAPT THE PRESS TO A SPECIFIC JOB.

- BALDOR, 230 VOLT / 1 PHASE MOTOR

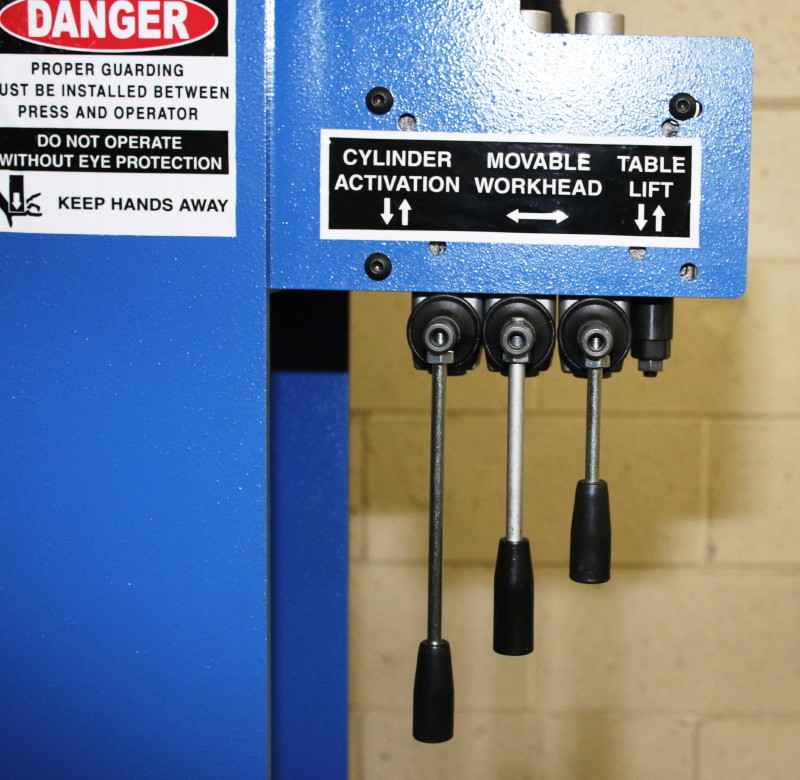

- CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE

THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO SET THE PROPER SPEED FOR THE TASK.

- LOW SPEED PUMP FOR QUIET DEPENDABLE OPERATION

- SELF LOCKING TABLE DESIGN ELIMINATES LATERAL MOVEMENT

- 10 GALLON HYDRAULIC OIL RESERVOIR

- LOW PRESSURE HYDRAULIC SYSTEM FOR LOWER OIL

TEMPERATURES RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION



FULL ONE YEAR WARRANTY ON ALL PARTS

STANDARD VOLTAGES AVAILABLE-PLEASE SPECIFY WHEN ORDERING



OPTIONS:

- V-BLOCKS ................................... $550 SET

- STOP / START & EMERGENCY STOP .............. $900

- PRESSURE REGULATOR ......................... $900

- FRONT OR BACK SAFETY GUARD ................. $900 EA

- SIDE SAFETY GUARD ..............(PER SIDE).. $600

- FOOT PEDAL ................................. $3,400

- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $5,000

- 24” STROKE CYLINDER ........................ $1,400

- PRESS PLATE ................................ $1,000

- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND

LEXAN GUARDING ............................... $7,600



CAN BE INSPECTED IN OUR HARRISON, NJ WAREHOUSE

MACHINES IN STOCK AND CAN BE SHIPPED OUT TO YOU IMMEDIATELY
