Reid "ROLLERWAY", 618-HR, WALKER PMC, 1980 SURFACE GRINDERS, HAND FEED

Price on Request

Make:

Reid

Model:

"ROLLERWAY", 618-HR, WALKER PMC, 1980

Year:

1980

Ref #:

179310

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

---

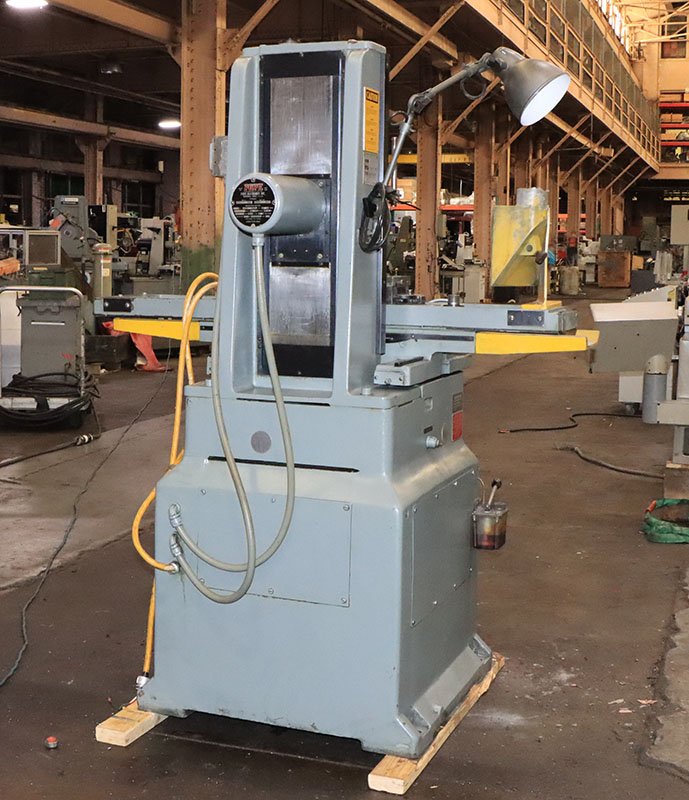

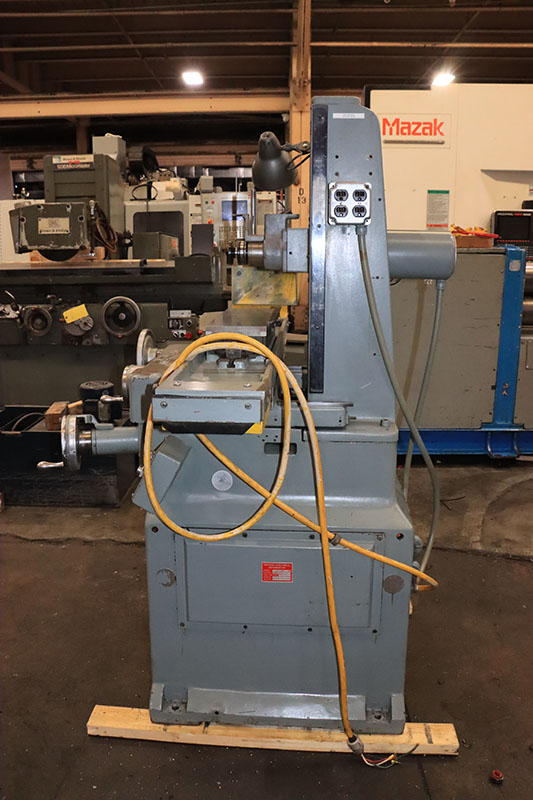

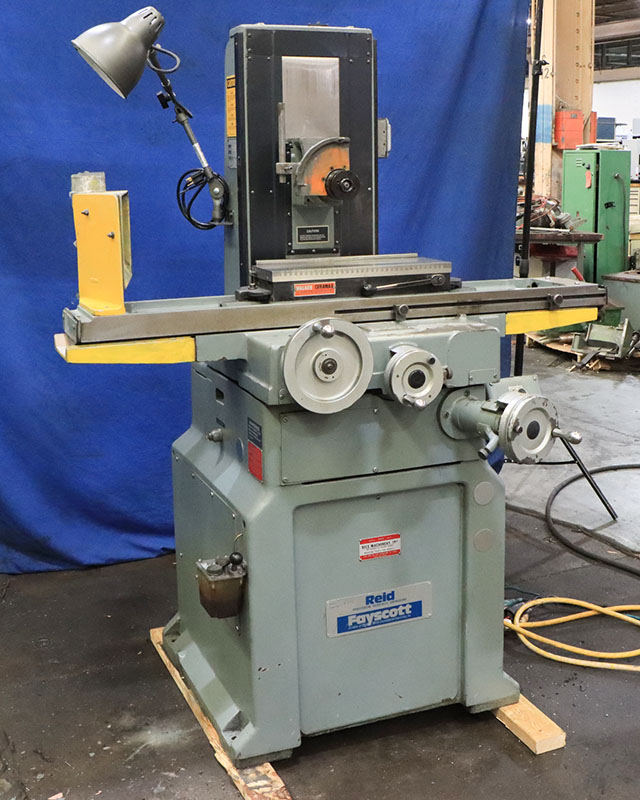

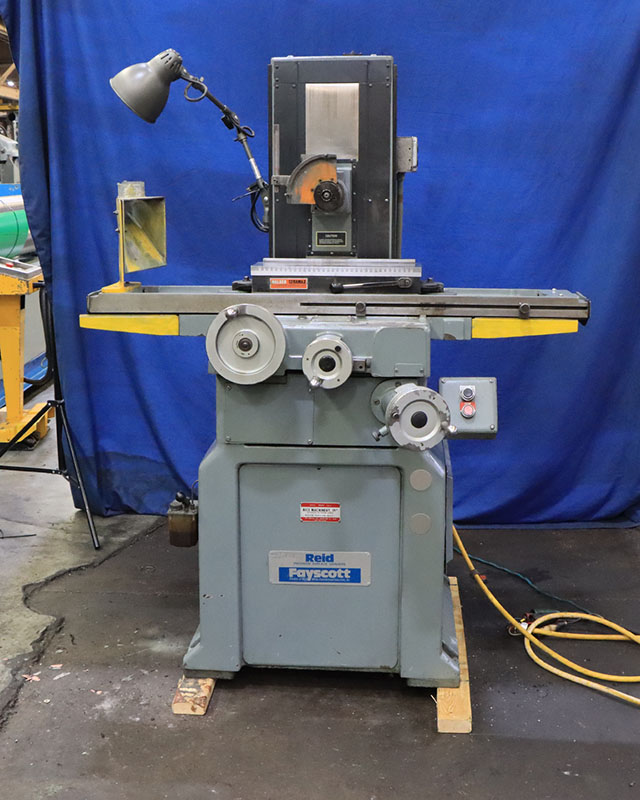

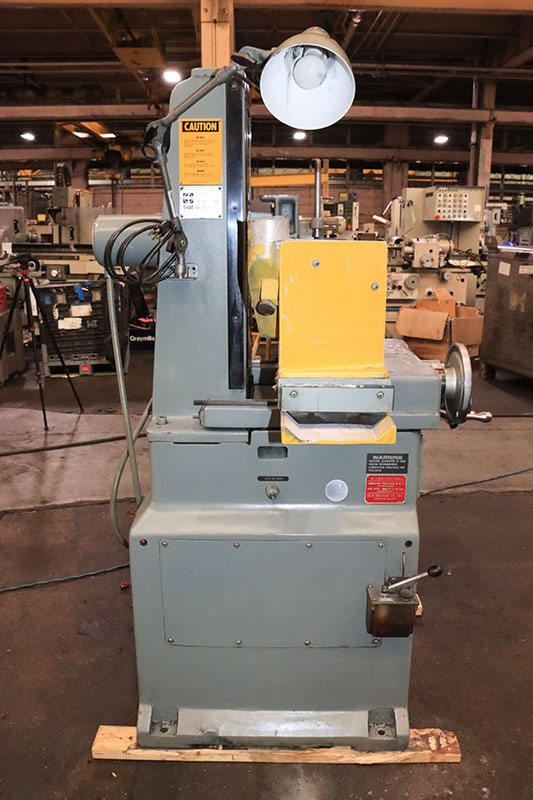

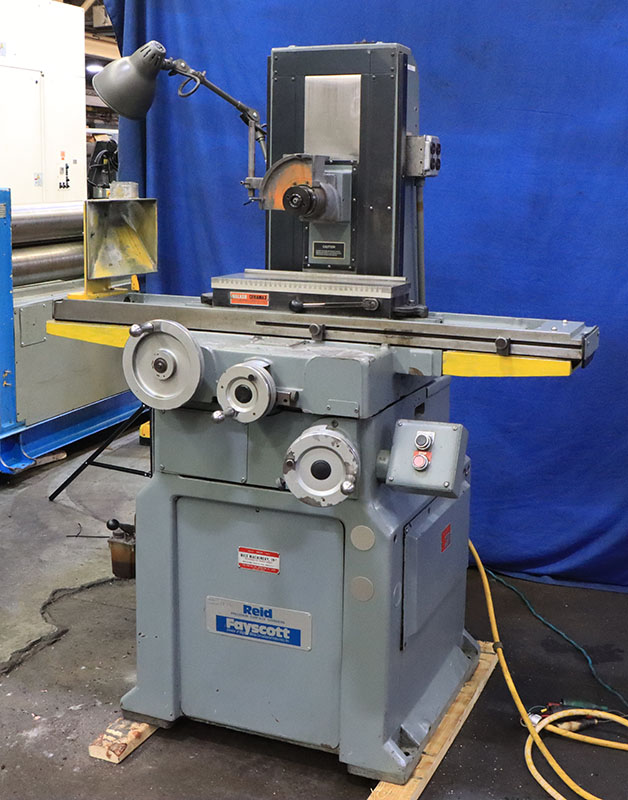

          6" X 18" REID "ROLLERWAY"

           PRECISION (MADE IN USA)

        HAND FEED, ROLLER BEARING TABLE

              SURFACE GRINDER

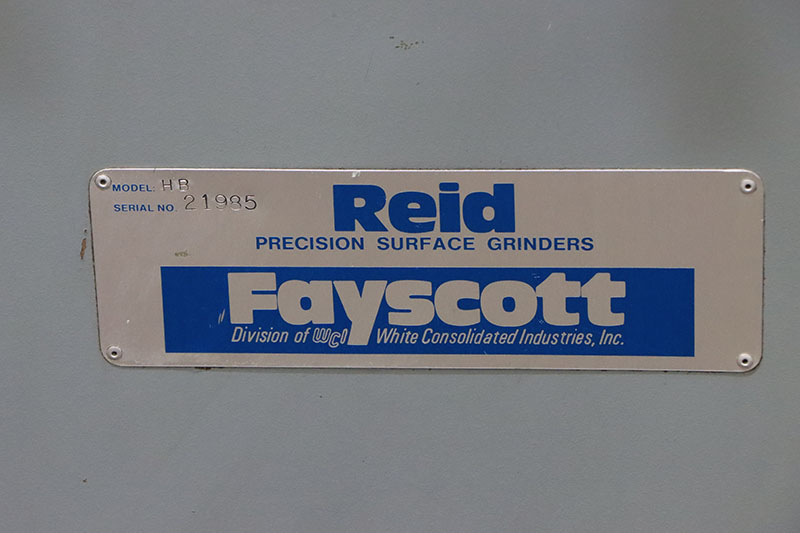

MODEL: ROLLERWAY      S/N: 21885      NEW: 1980



WORK CAPACITY ............................. 6" X 18"

WORK HEIGHT (UNDER 7" WHEEL TO TABLE) ..... 15"

MAXIMUM LONGITUDINAL TRAVEL ............... 20"

MAXIMUM CROSS TRAVEL ...................... 7"

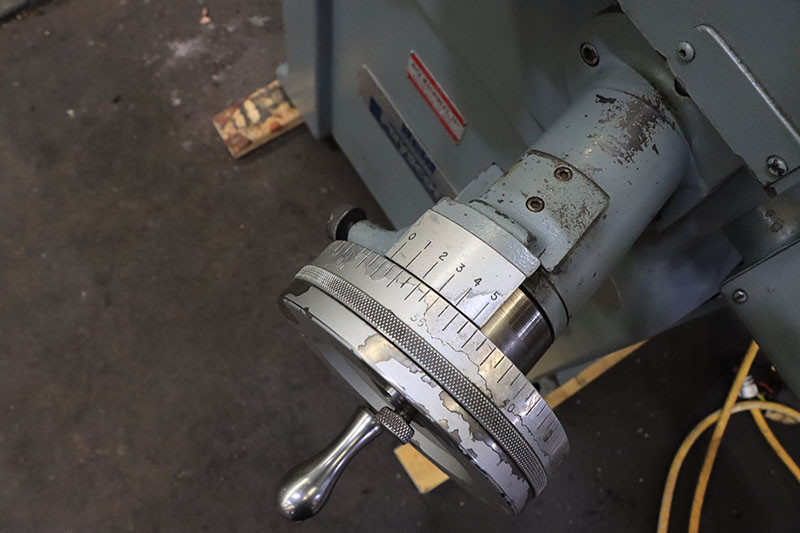

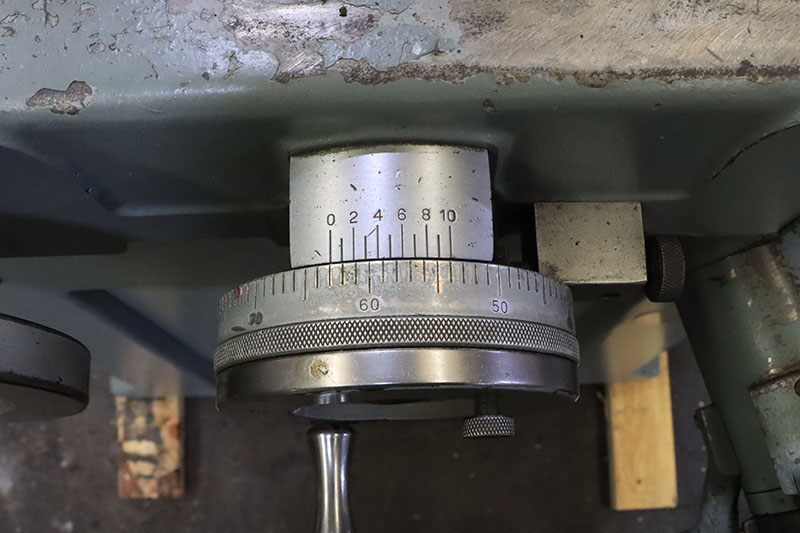

CROSSFEED HANDWHEEL, GRAD. ................ 0.0005"

VERTICAL HANDWHEEL GRAD. .................. 0.0005"





TRAVEL PER REV. OF HANDWHEEL, TABLE ....... 3- 5/16"

TRAVEL PER REV. OF HANDWHEEL, CROSS ....... 0.100"

TRAVEL PER REV. OF HANDWHEEL, VERTICAL .... 0.050"



STD. WHEEL SIZE ...................... 7" x 1/2" x 1.25"B



FLOOR SPACE ........................... 71" X 46" X 68"H

APPROXIMATE WEIGHT .................... 1,525 LBS



MACHINE FEATURES:

REID "ROLLERWAY" - ROLLER BEARING TABLE

LOCKING MECHANISM FOR THE CROSS-SLIDE

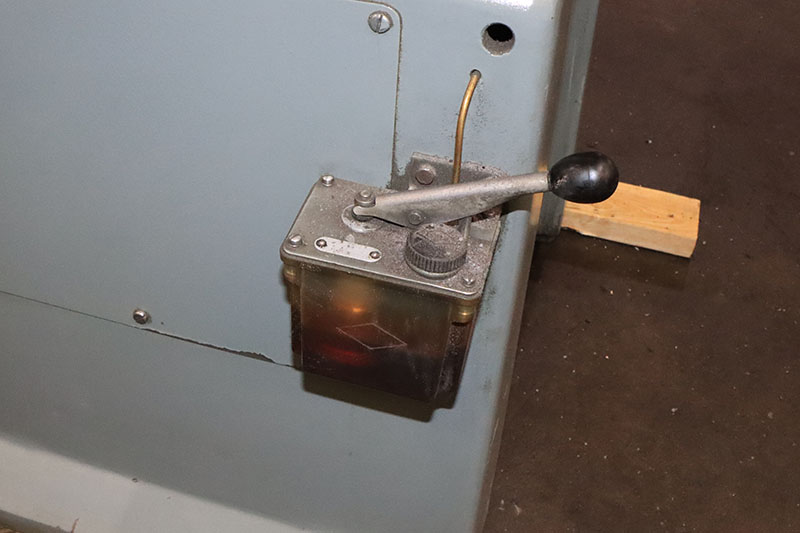

"BIJUR" ONE-SHOT LUBRICATOR





 OPTIONS/EQUIPPED WITH:

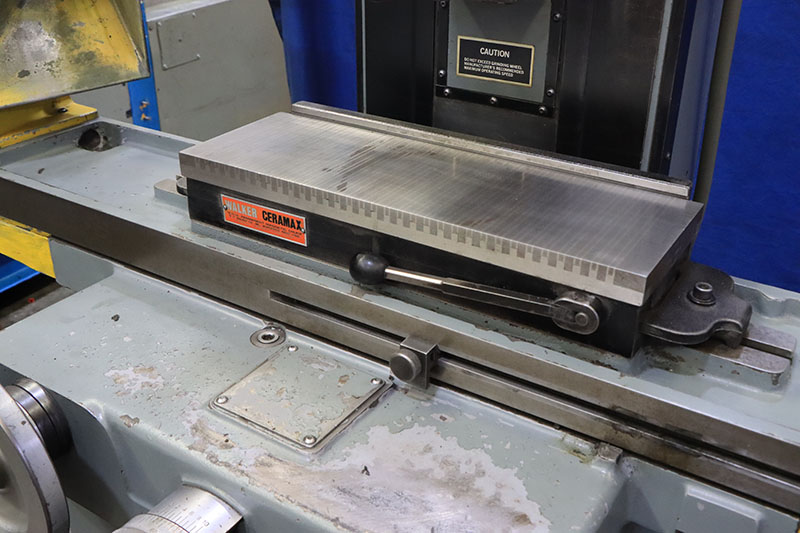

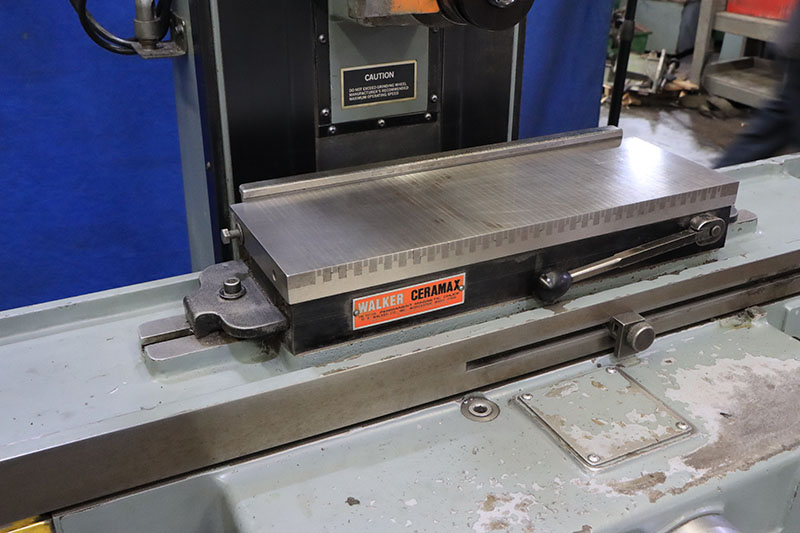

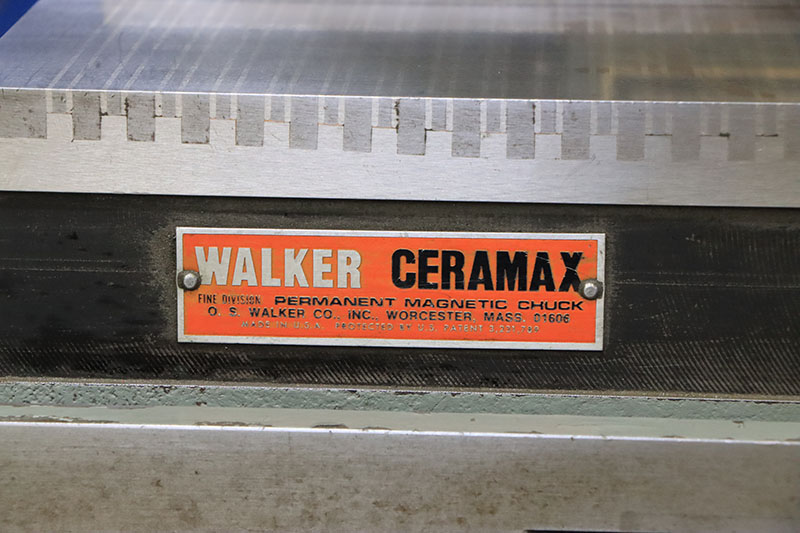

6" X 18" O.S. WALKER "CERAMAX" FINE-DIVISION

  PERMANENT MAGNETIC CHUCK

BIJUR ONE-SHOT LUBRICATOR

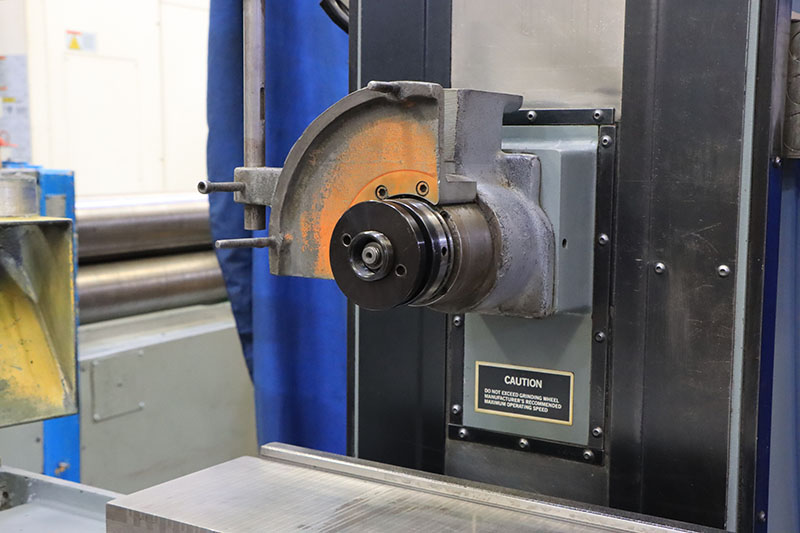

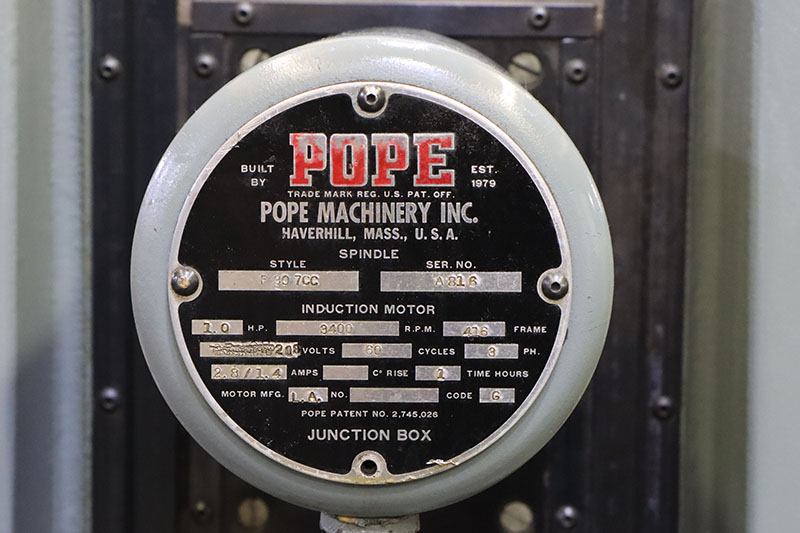

"POPE"  H.P. 3/60/230-460 VOLT SUPER-PRECISION"

  DIRECT DRIVE SPINDLE

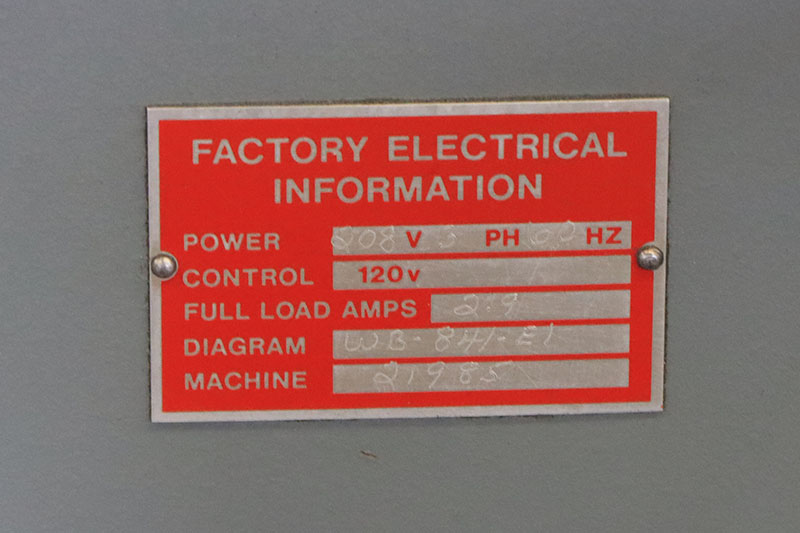

MACHINE IS PRESENTLY WIRED FOR  VOLTS



Link to video: https://youtu.be/a1ysF1CRqew?si=_g93BGG-5pqdsn-2



* INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE *

** EXCELLENT CONDITION & APPEARANCE  **
