Sharp 1660LV NEW LATHES

Price on Request

Make:: Sharp

Model:: 1660LV

Year:: NEW

Ref #:: 136730

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

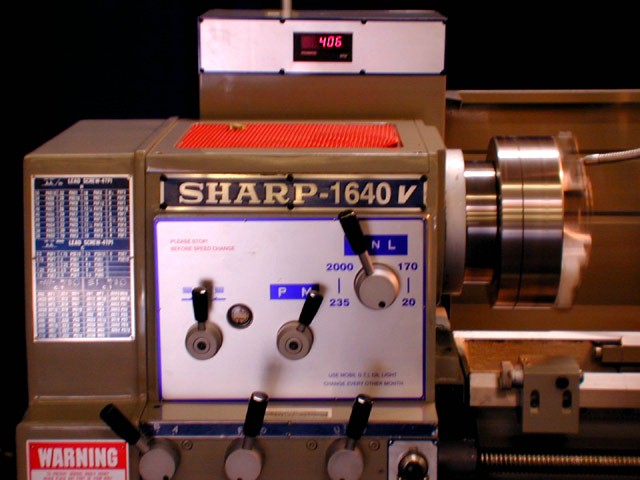

										NEW SHARP 16" x 60" HI-SPEED PRECISION LATHE

d MODEL: 1660LV   w/Digital Variable Speed
 *** MADE IN TAIWAN ***




CAPACITY
 Swing over bed: 16"
 Swing over crosslide: 8-3/4"
 Swing over gap, width: 24-3/8", 10-3/4"
 Distance between centers: 60"

 HEADSTOCK
 Spindle nose type: D1-8 Camlock
 Spindle bore: 3-1/16"
 Spindle Speeds (Inf. Variable): 20 - 2,000 RPM
 Taper of spindle bore: MT #6
 Taper of center: MT #4

 THREADS & FEEDS
 Longitudinal feeds - in/rev (18): 0.002 - .032"
 Crossfeed - in/rev (12):0.001 - 0094"
 Inch threads (36): 4 - 56 TPI
 Metric & module threads (17): 0.5 - 7mm
 D.P. threads (36): 4 - 56mm
 Leadscrew pitch, diameter: 4 TPI, 1-3/8"

 CARRIAGE
 Crosslide travel: 8.7"
 Compound rest travel: 4.9"
 Compound width: 4.5"

 BED
 Bed length: 79"
 Bed width: 11-3/4"

 TAILSTOCK
 Quill travel (graduated): 5"
 Quill diameter: 2-1/4"
 Quill taper: MT #4

 GENERAL
 7.5 HP Spindle motor (220V, 60 Cycle, 3 Phase)
 Requires a transformer for 440 volt operation
 Net weight (approximately): 4,100 lbs

 STANDARD EQUIPMENT
 10" 3-jaw chuck, coolant system, american toolpost, halogen work
 light, 16" face plate, steady rest (6"), longitudinal carriage stops,
 tool kit, splash guard, & follow rest.

 OPTIONAL EQUIPMENT (Call for prices)
 Follow rest, digital readout, tracer, taper attachment, micrometer
 carriage stop, quick-change tool holder, & 5C collet closer.
