Sharp 2680B ENGINE LATHES

$24,500

Make:: Sharp

Model:: 2680B

Year:: 2011

Ref #:: 178921

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

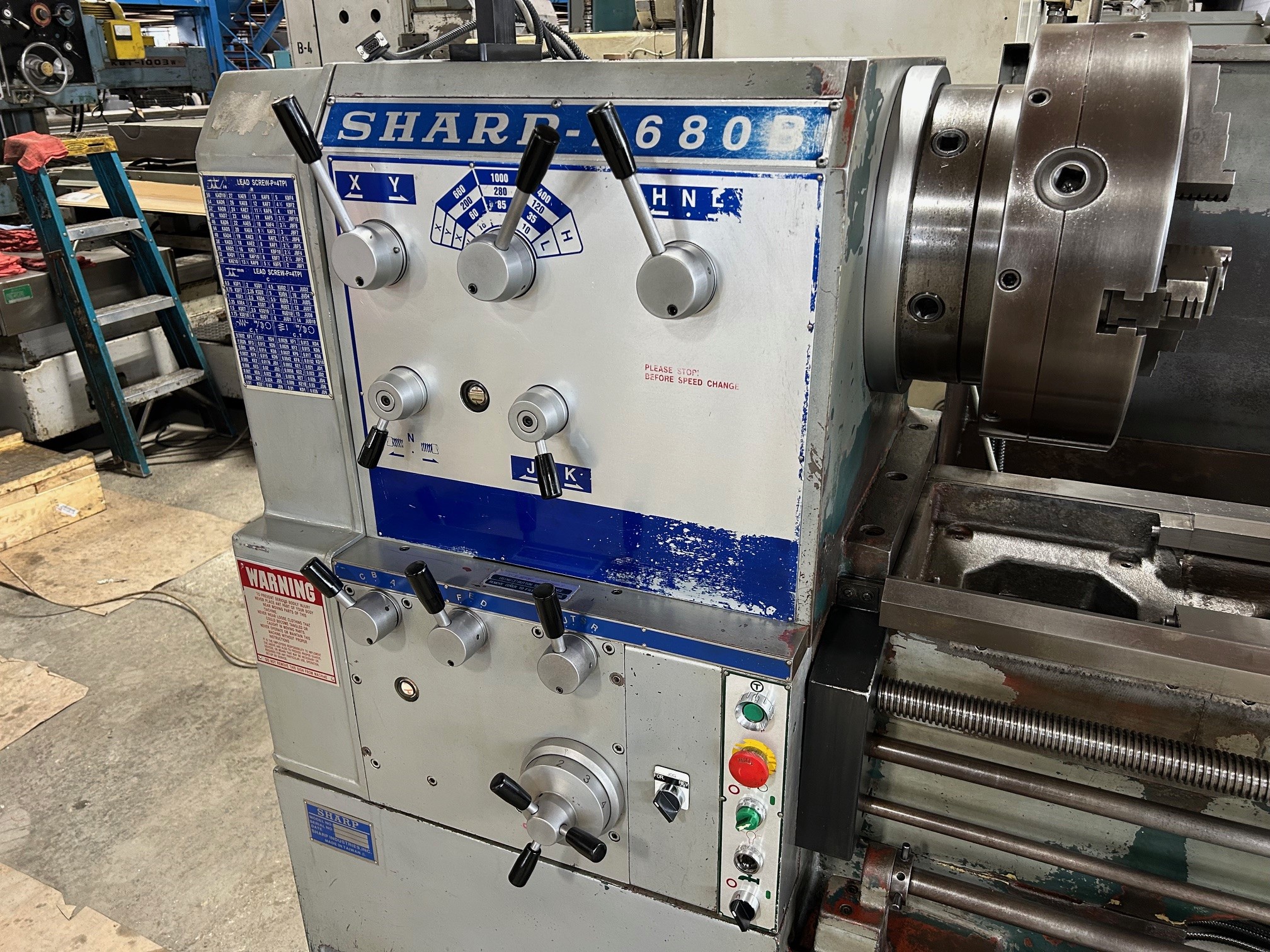

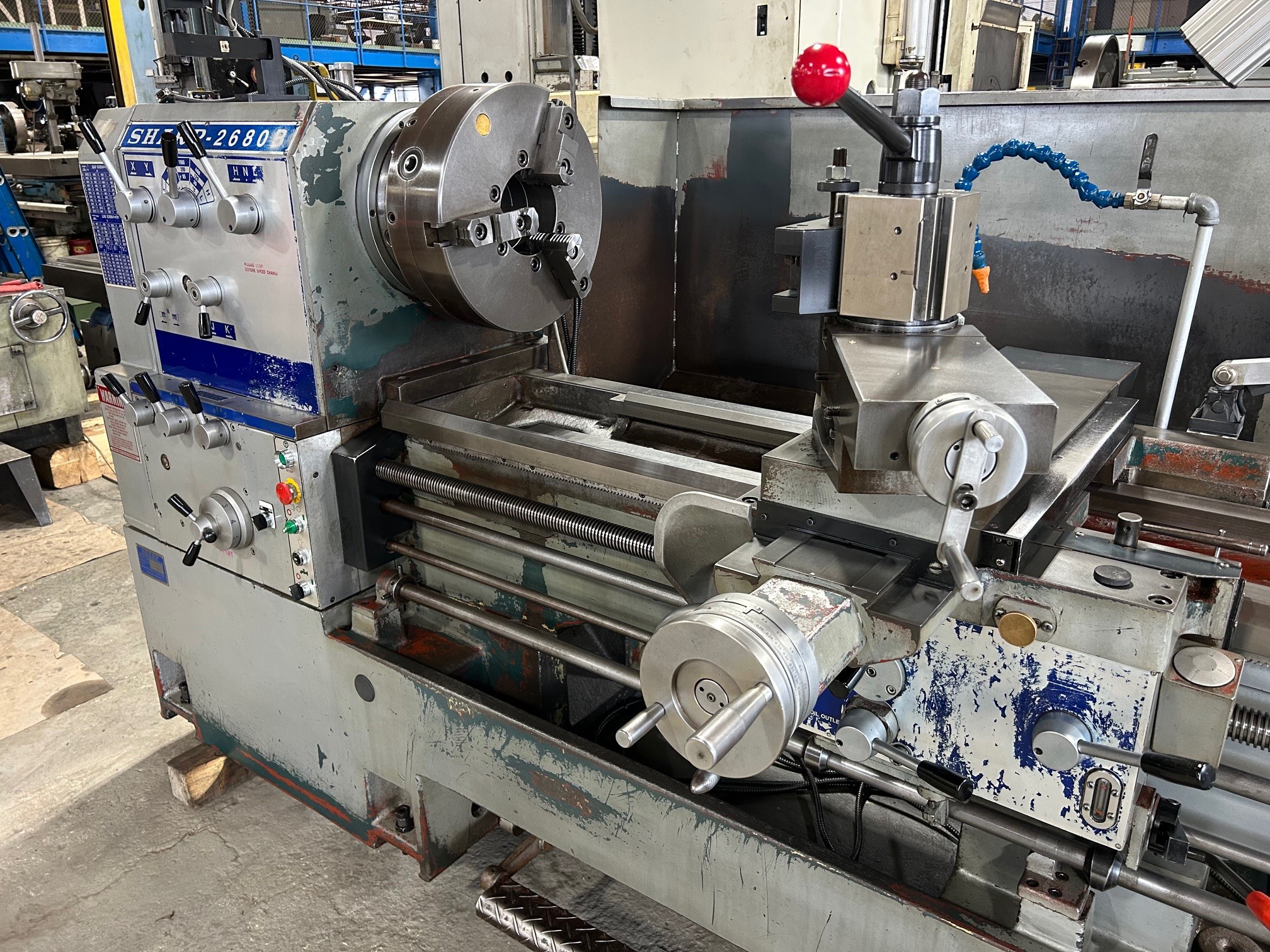

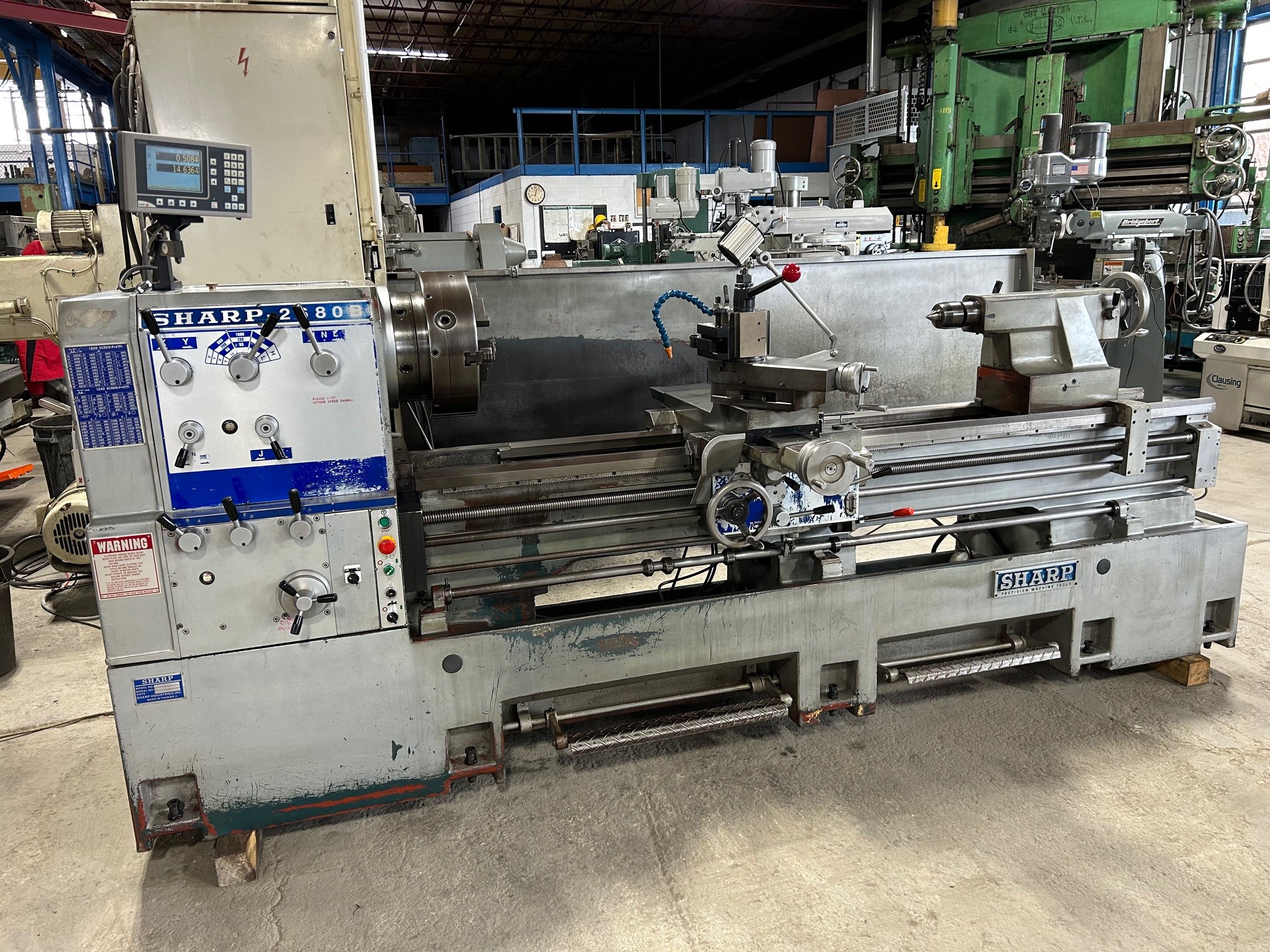

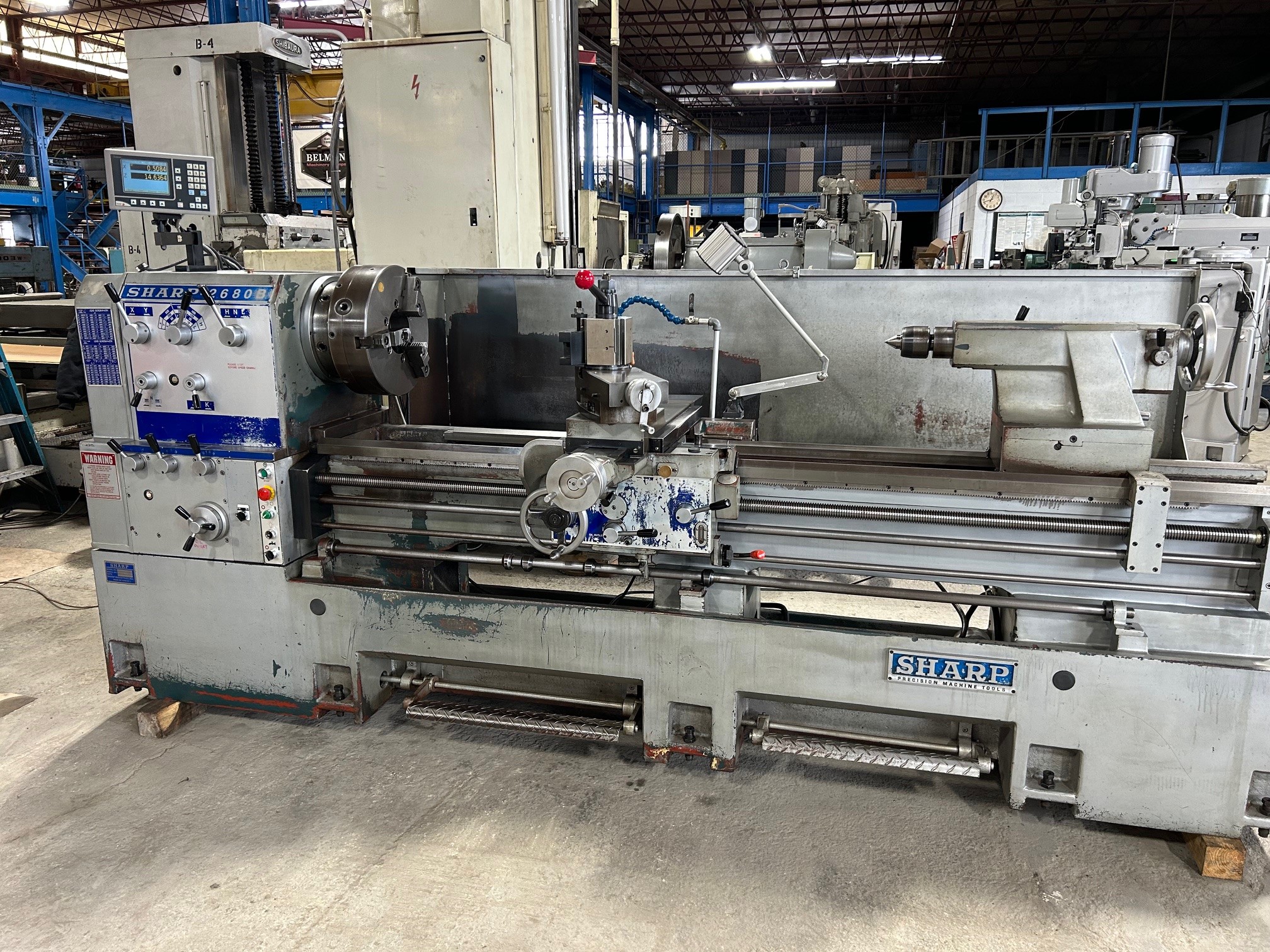

26"/35" X 80" SHARP REMOVABLE GAP BED ENGINE LATHE

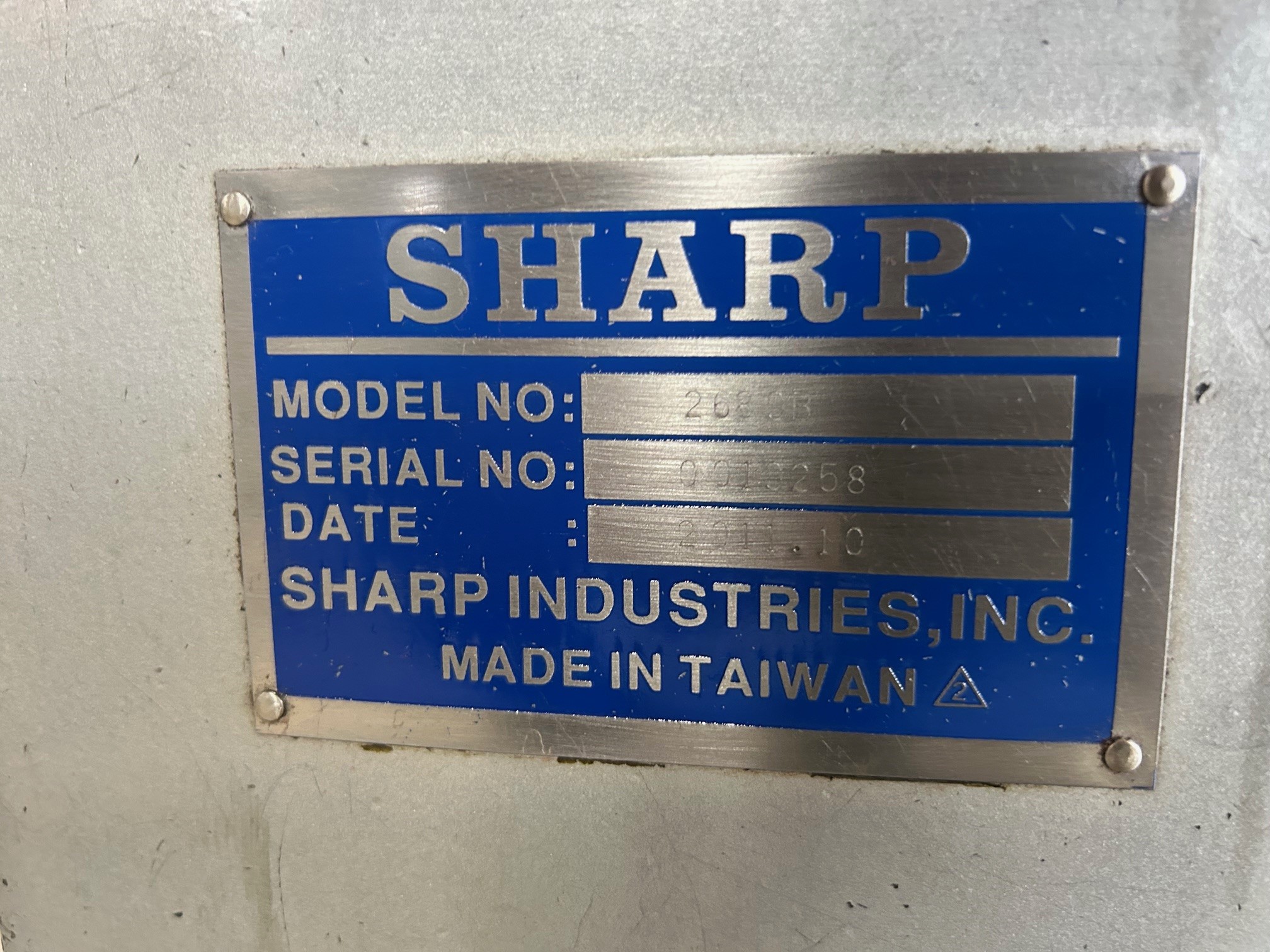

MODEL: 2680B,  S/N: 0010258,  NEW: 2011

SPECIFICATIONS:
SWING OVER BED ...................... 26"
SWING IN GAP ........................ 35"
SWING OVER CROSS SLIDE .............. 17.24"
DISTANCE BETWEEN CENTERS ............ 80"
WIDTH OF BED ........................ 15.75"
SPINDLE SPEEDS (12) ................. 10 - 1,000 RPM
SPINDLE NOSE, CAMLOCK, SIZE ......... D1-11

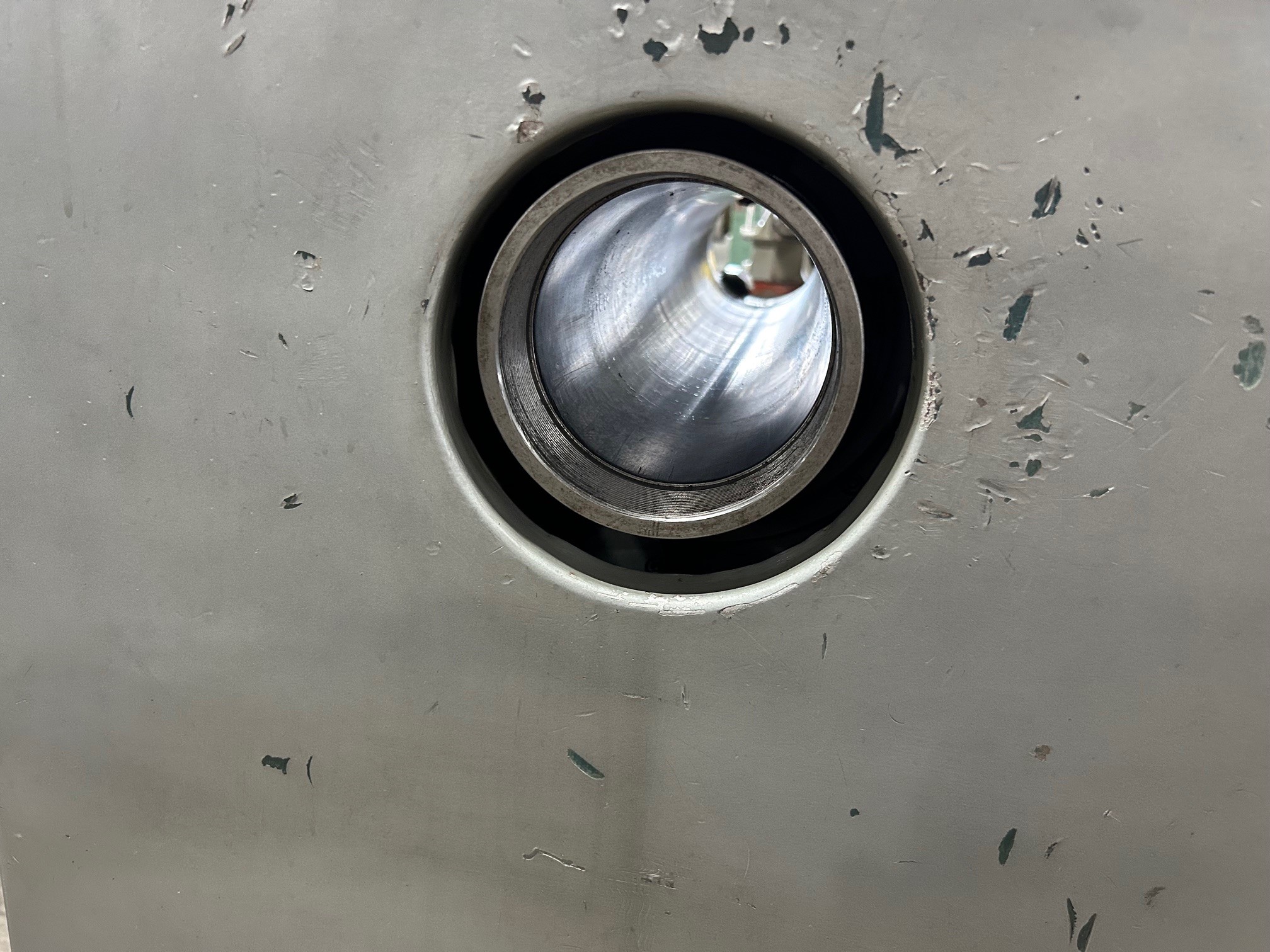

SPINDLE HOLE ........................ 4.5"
HEADSTOCK SPINDLE CENTER TAPER ...... #7 MORSE
LONGITUDINAL FEED RANGE ............. .002 TO .032 I.P.R.
CROSS FEED RANGE .................... .005 TO .018 I.P.R.
THREAD RANGE - INCH ................. 2 - 56 T.P.I.
THREAD RANGE - METRIC .............. .5 - 14 MM
TAILSTOCK QUILL TRAVEL .............. 6.5"
TAILSTOCK DIAMETER .................. 3.34"
TAILSTOCK SPINDLE TAPER ............. #5 MORSE
APPROX DIMENSIONS ................... 138"x 48"x 52"
APPROX WEIGHT ....................... 6,750 LBS.

EQUIPPED WITH:

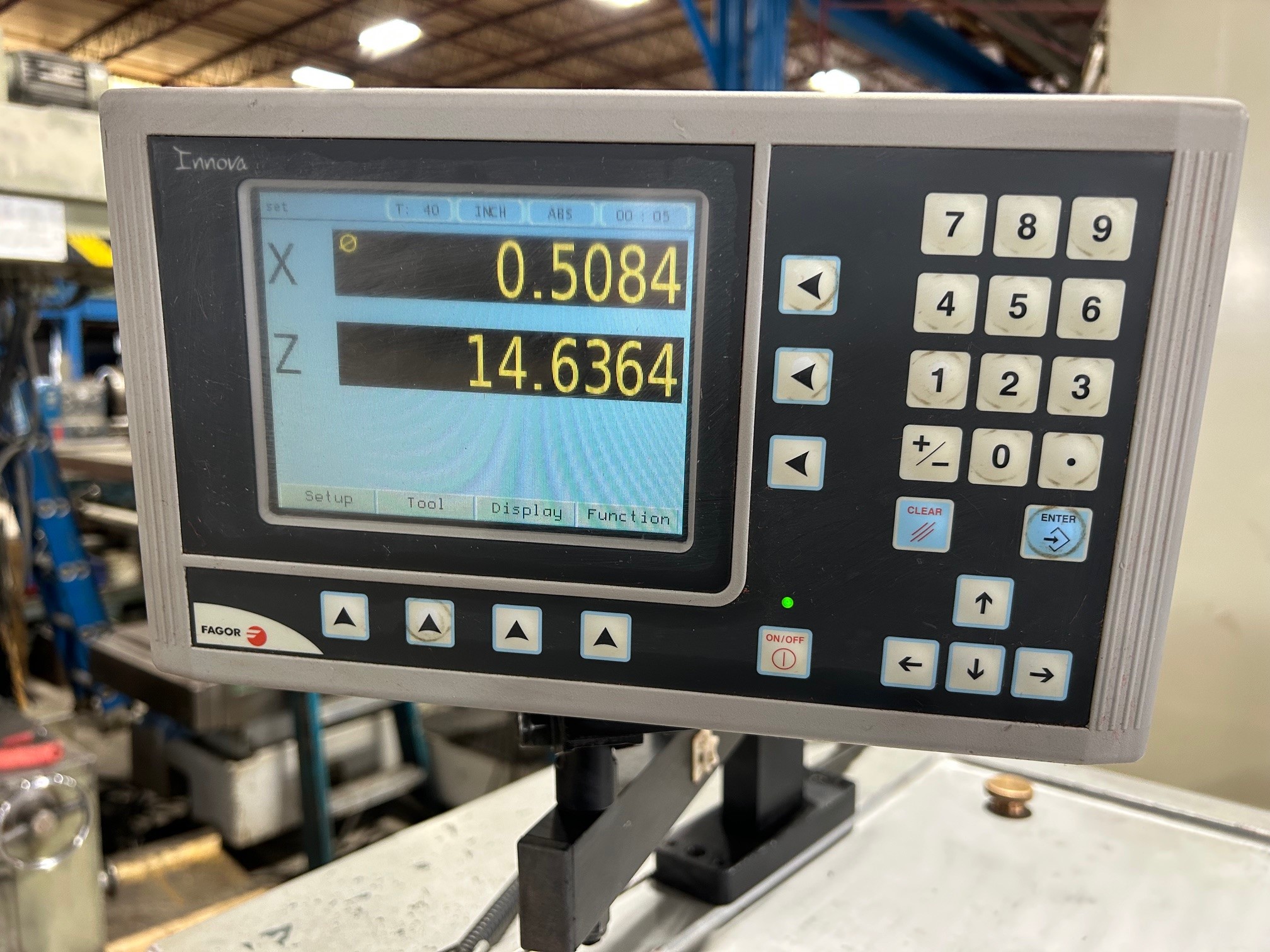

- FAGOR TWO-AXIS DIGITAL READOUT
- INCH & METRIC THREADING CAPABILITIES
- REMOVABLE GAP BED
- 3-JAW CHUCK

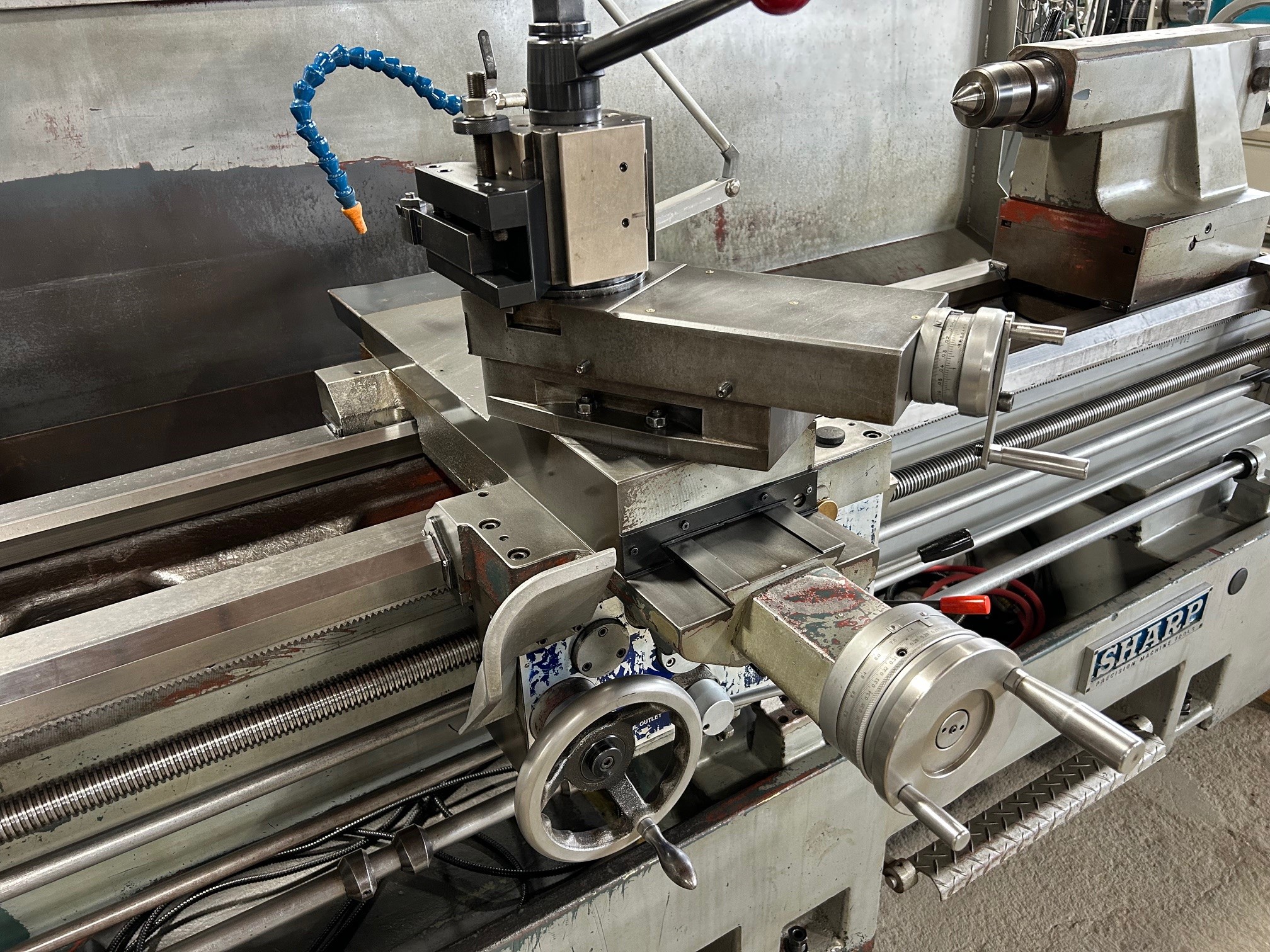

- QUICK CHANGE TOOLPOST
- THREADING DIAL
- FOOT TREADLE TYPE SPINDLE BRAKE

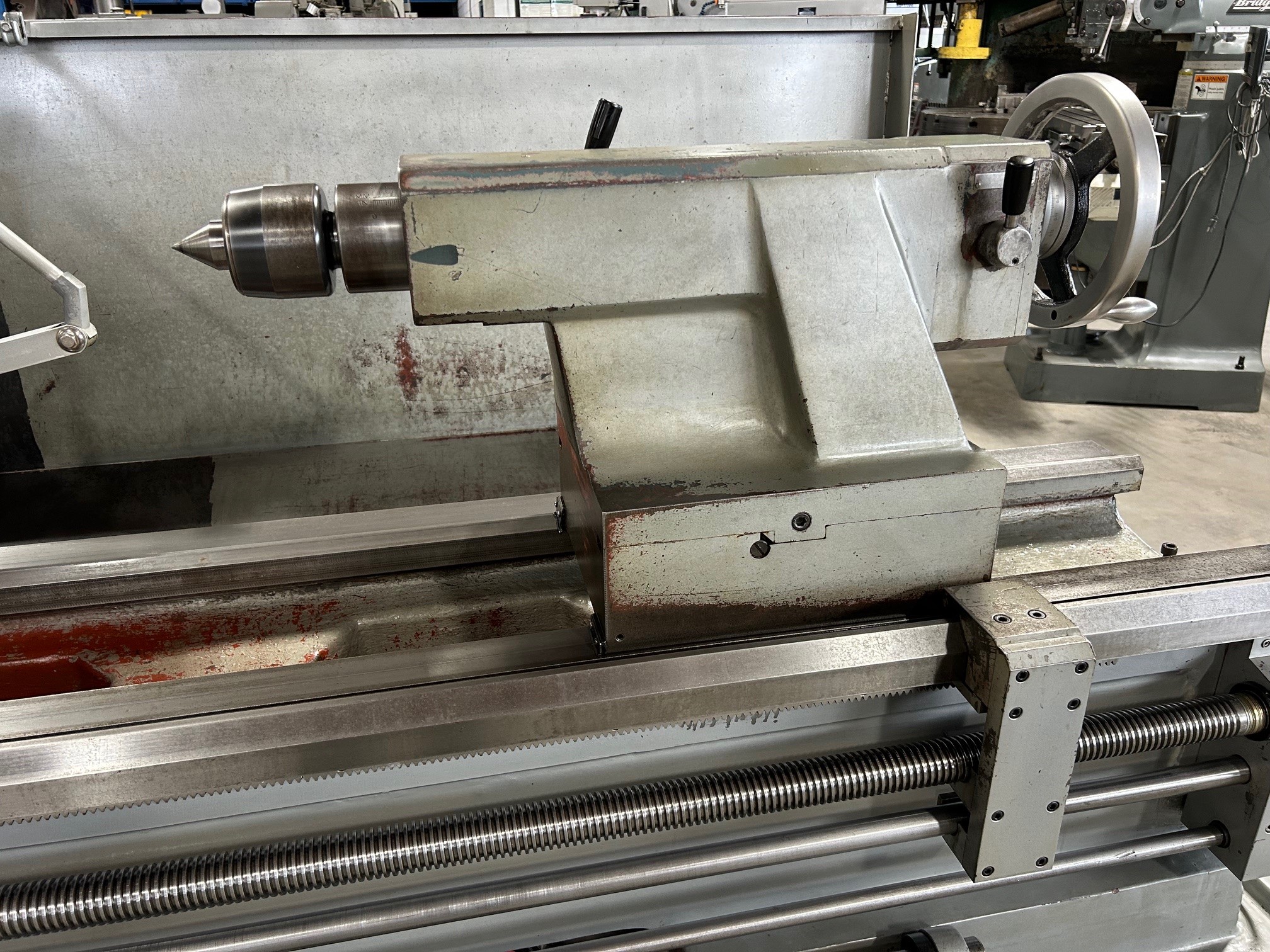

- TAILSTOCK WITH TWO-SPEED QUILL

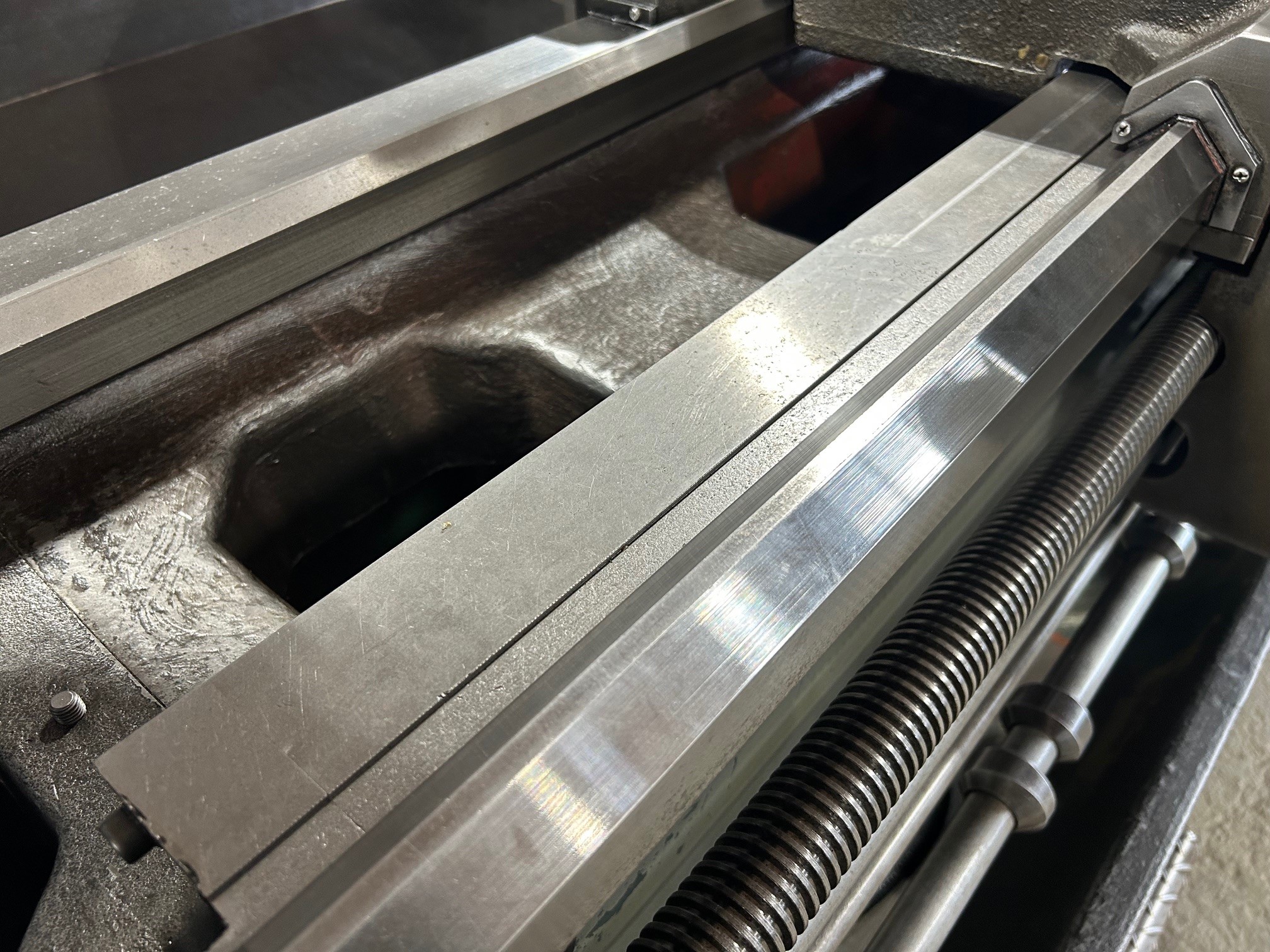

- HARDENED AND GROUND BED AND CROSS SLIDE WAYS
- SINGLE PIECE MEEHANITE CAST IRON BED
- SELF-CONTAINED COOLANT SYSTEM
- FULL LENGTH REAR SPLASH GUARD
- 15 HORSE POWER SPINDLE DRIVE MOTOR

INSPECT UNDER POWER IN A MIDWEST WAREHOUSE
