Victor 2080G ENGINE LATHES

$9,950

Make:: Victor

Model:: 2080G

Year:: 1980's

Ref #:: 178977

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

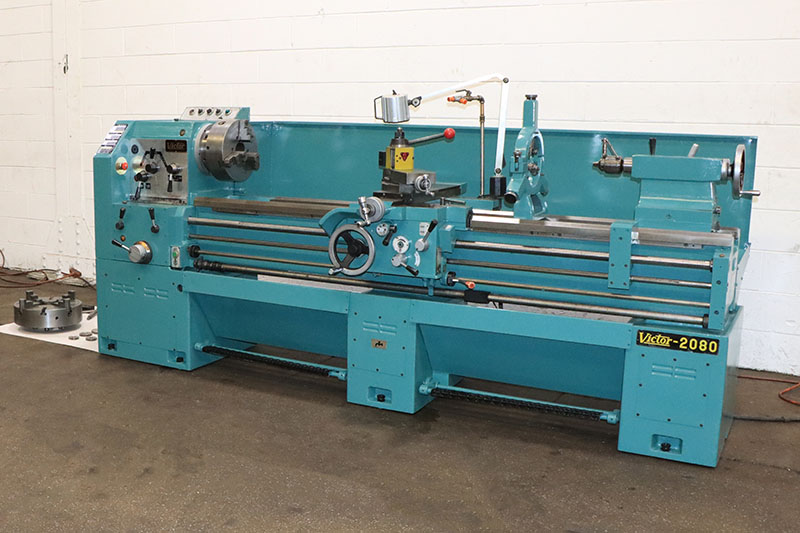

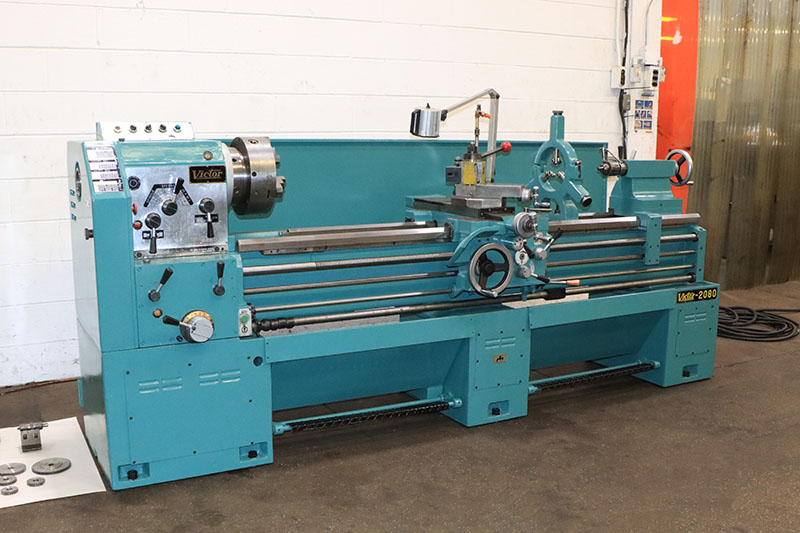

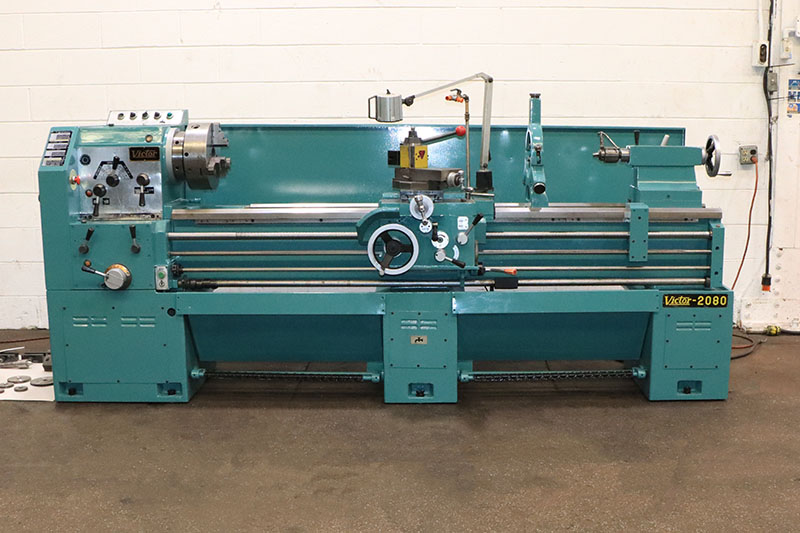

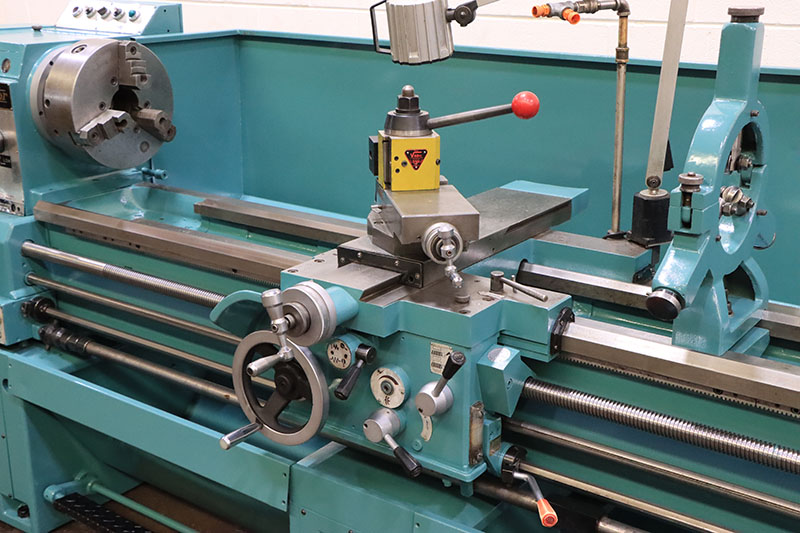

20"/29" x 80" VICTOR GAP BED ENGINE LATHE

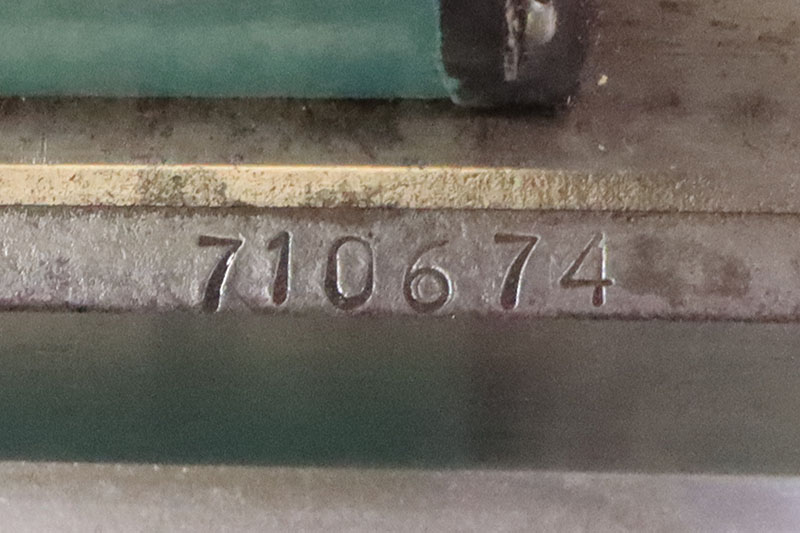

MODEL: 2080G,  S/N: 710674,  NEW: 1980's

SPECIFICATIONS:
SWING OVER BEDWAYS ................... 20"
SWING IN REMOVEABLE GAP .............. 29"
SWING OVER CROSS SLIDE ............... 11-1/2"

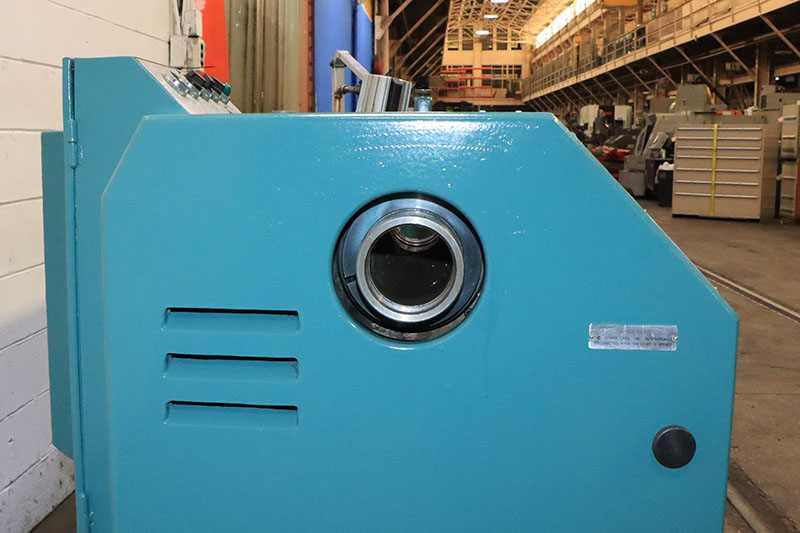

HOLE THRU SPINDLE .................... 3-1/8"
DISTANCE BETWEEN CENTERS ............. 80"
SPINDLE NOSE ......................... D1-8" CAMLOCK

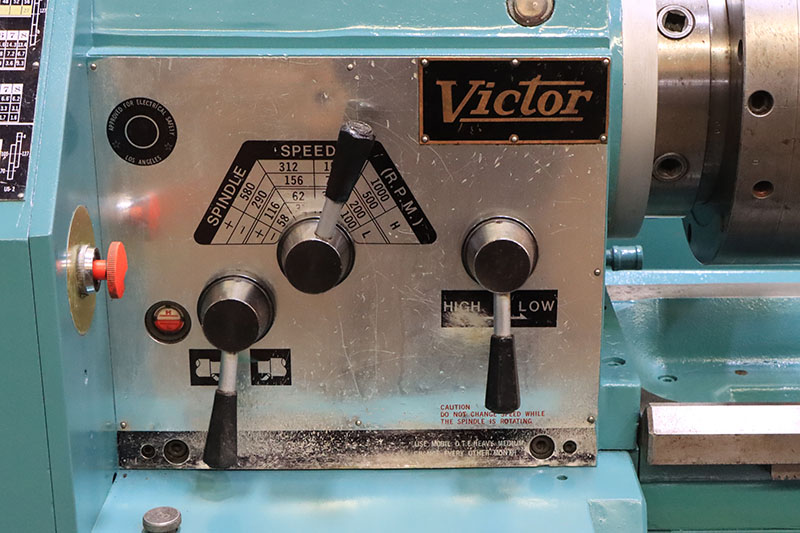

SPINDLE SPEED RANGE (16) ............. 31 - 1500 RPM

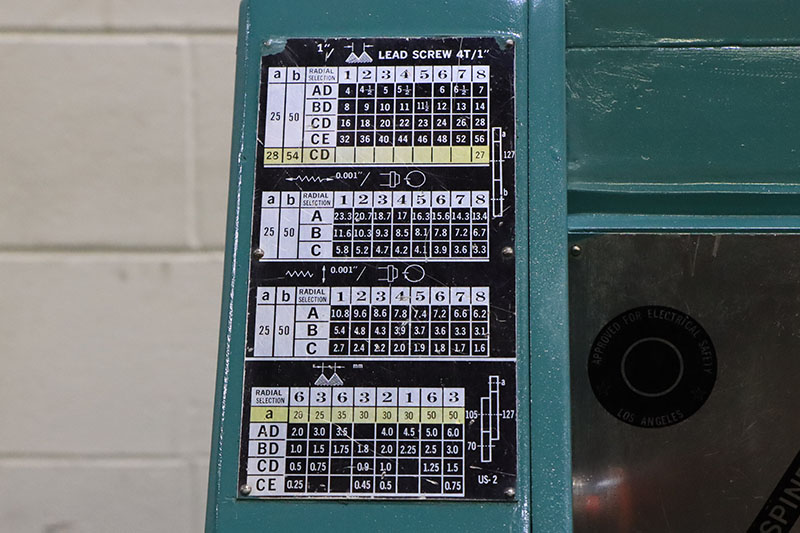

ENGLISH THREADING RANGE .............. 4 - 56 TPI
METRIC THREADING RANGE ............... .25 - 6 mm
LONGITUDINAL FEED RANGE .............. .0008" - .0117" IPR
CROSS FEED RANGE ..................... .0004" - .0054" IPR
TAILSTOCK SPINDLE TAPER .............. #4MT
TAILSTOCK SPINDLE TRAVEL ............. 5"
APPROXIMATE FLOOR SPACE .............. 85"L x 37"W x 60"H
APPROXIMATE WEIGHT ................... 4,750 LBS

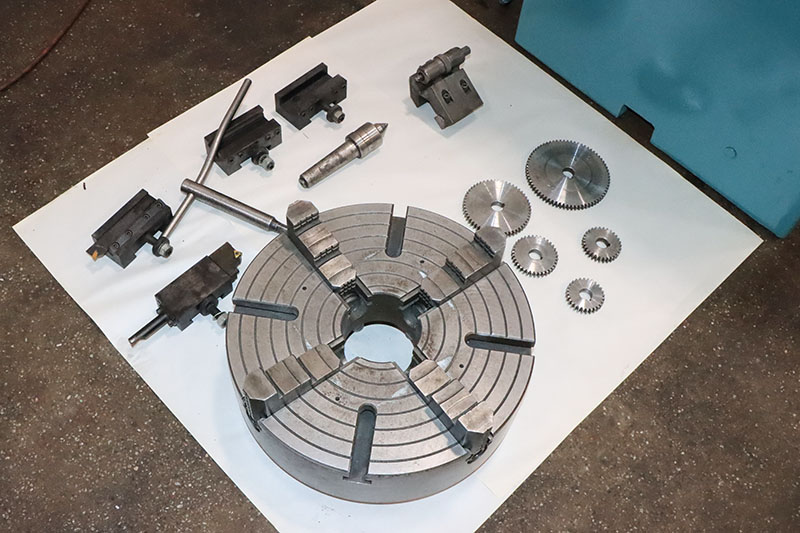

EQUIPPED WITH:
12" 3-JAW CUSHMAN CHUCK
15" 4-JAW CHUCK

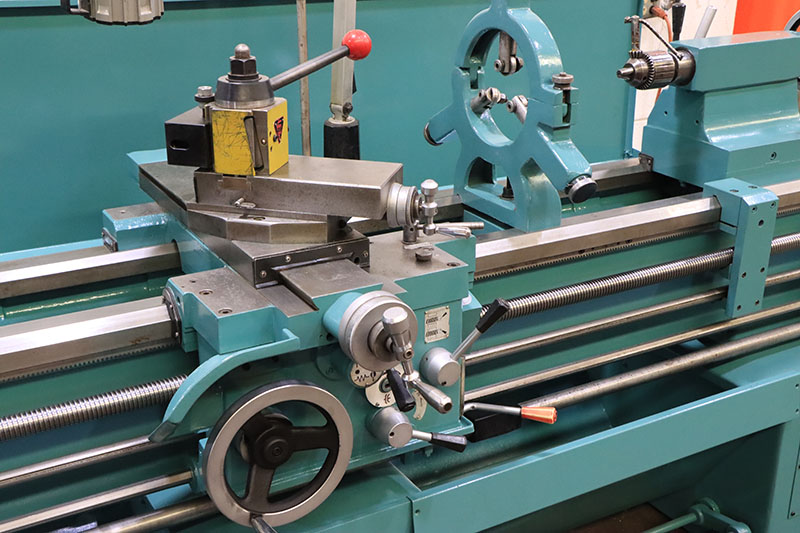

DORIAN QUICK CHANGE TOOLPOST

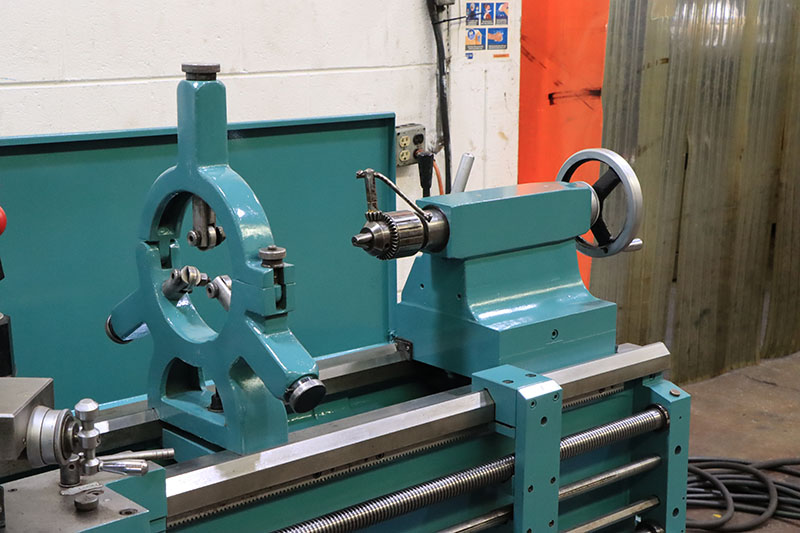

STEADY REST
3/4" CAPACITY JACOBS DRILL CHUCK
LIVE CENTER
MICROMETER CARRIAGE STOP
THREAD DIAL INDICATOR
FOOT BRAKE
COOLANT SYSTEM
10 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
