Sharp 2680C, Gap, Acu-Rite, 3&4 Jaw, Steady, Aloris ENGINE LATHES

$28,500

Make:: Sharp

Model:: 2680C, Gap, Acu-Rite, 3&4 Jaw, Steady, Aloris

Year:: 2006

Ref #:: 179112

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

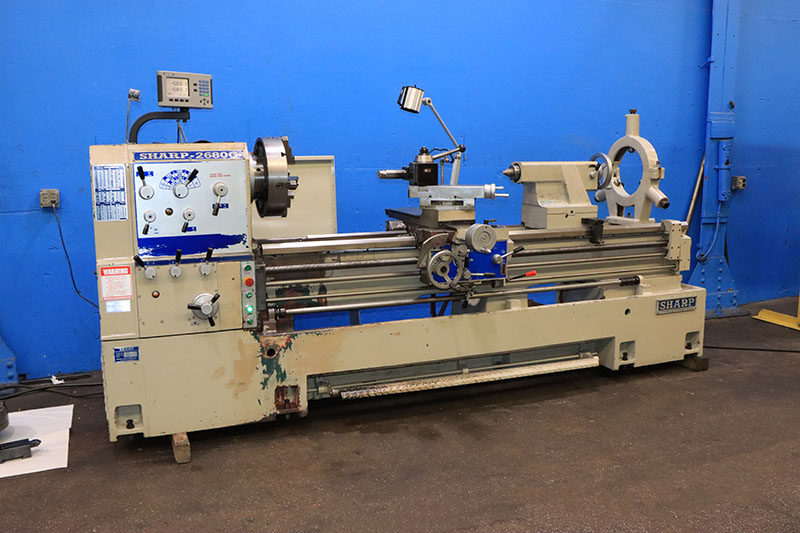

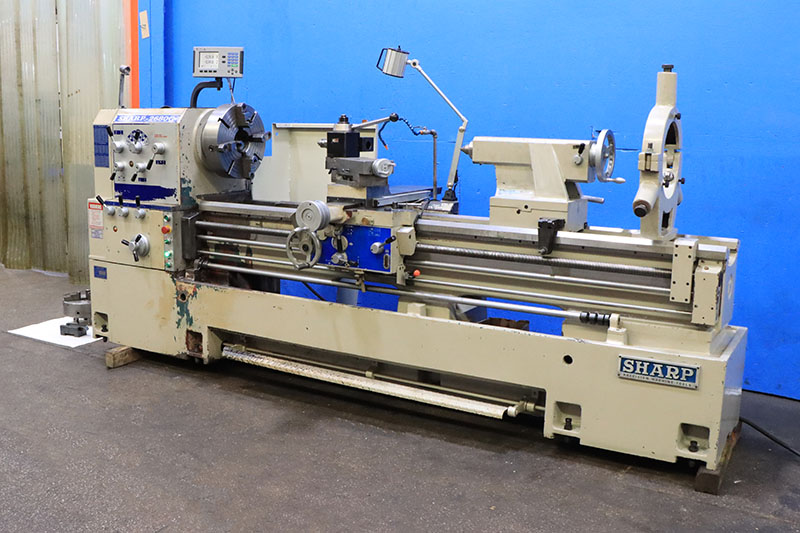

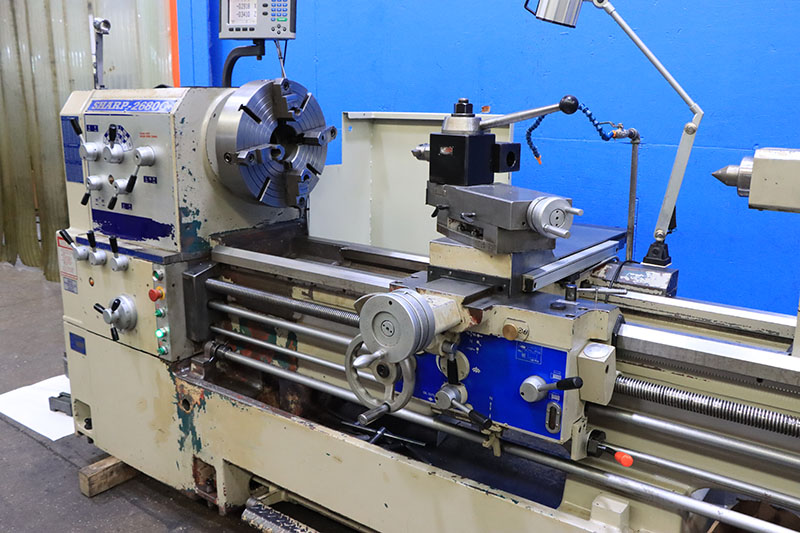

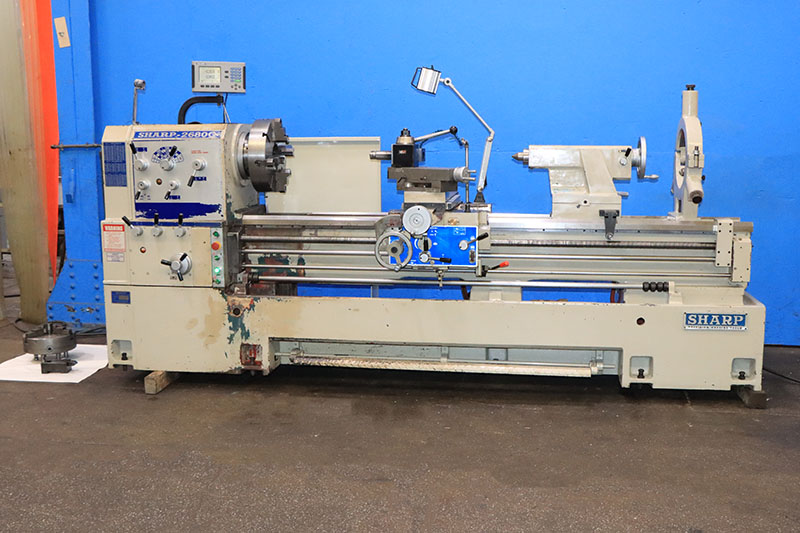

26"/35" X 80"CC SHARP GAP BED ENGINE LATHE

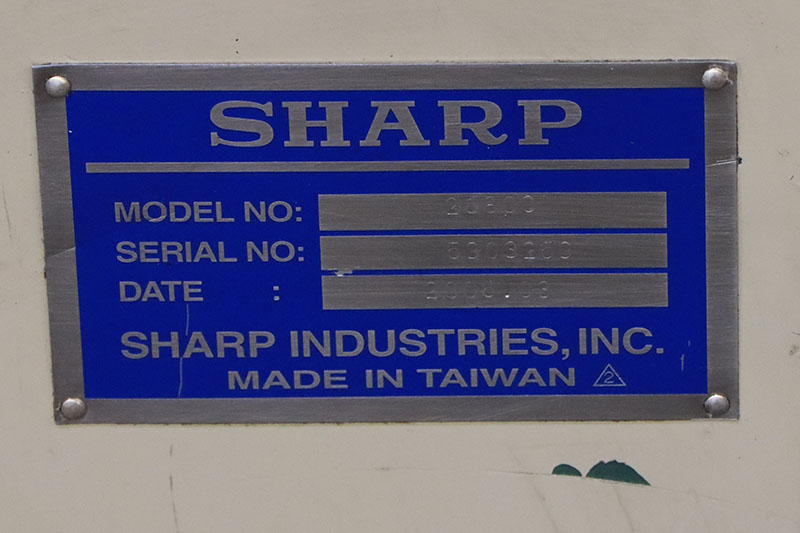

MODEL: 2680C,  S/N: 5003259,  NEW: 2006

SPECIFICATIONS:
SWING OVER BED ...................... 26"
SWING IN GAP ........................ 35"
SWING OVER CROSS SLIDE .............. 17.24"
DISTANCE BETWEEN CENTERS ............ 80"
CROSS SLIDE TRAVEL .................. 13.75"
WIDTH OF BED ........................ 15.75"

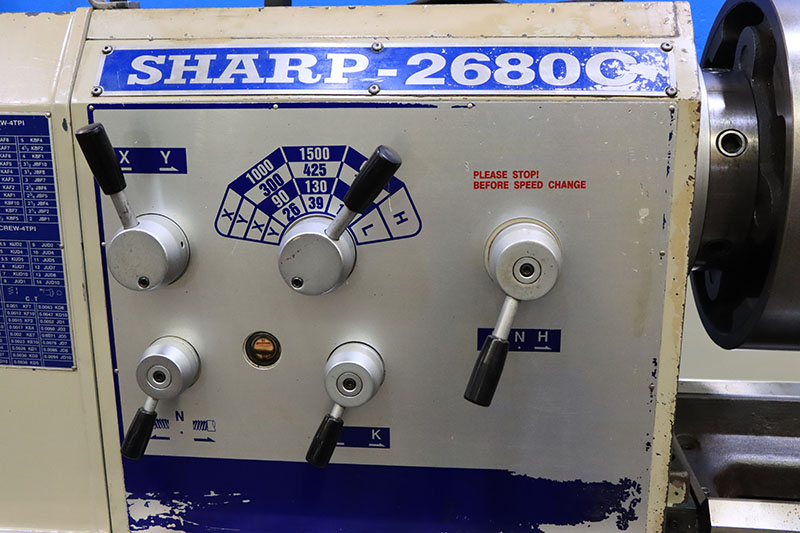

SPINDLE SPEEDS (12) ................. 15 - 1,500 RPM
SPINDLE NOSE, CAMLOCK, SIZE ......... D1-8

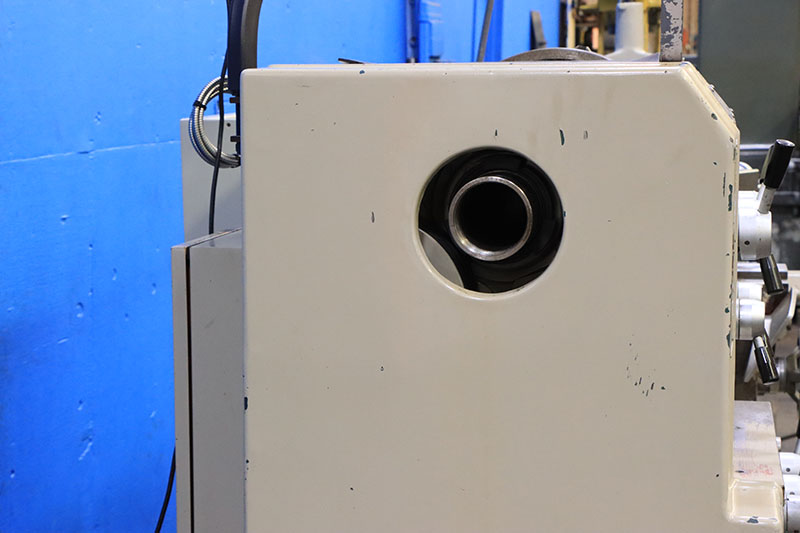

SPINDLE HOLE ........................ 3.125"
HEADSTOCK SPINDLE CENTER TAPER ...... #5 MORSE
LONGITUDINAL FEED RANGE ............. .002 TO .032 I.P.R.
CROSS FEED RANGE .................... .005 TO .018 I.P.R.
THREAD RANGE - INCH ................. 2 - 56 T.P.I.
THREAD RANGE - METRIC .............. .5 - 14 MM
TAILSTOCK QUILL TRAVEL .............. 6.5"
TAILSTOCK DIAMETER .................. 3.34"
TAILSTOCK SPINDLE TAPER ............. #5 MORSE
APPROX DIMENSIONS ................... 137"x 42"x 50"
APPROX WEIGHT ....................... 6,550 LBS.

EQUIPPED WITH:

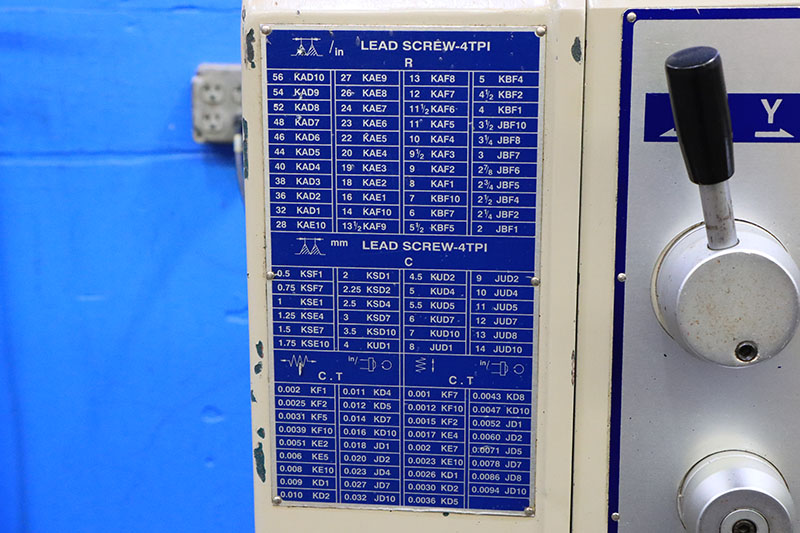

- INCH AND METRIC THREADING CAPABILITIES
- REMOVABLE GAP BED

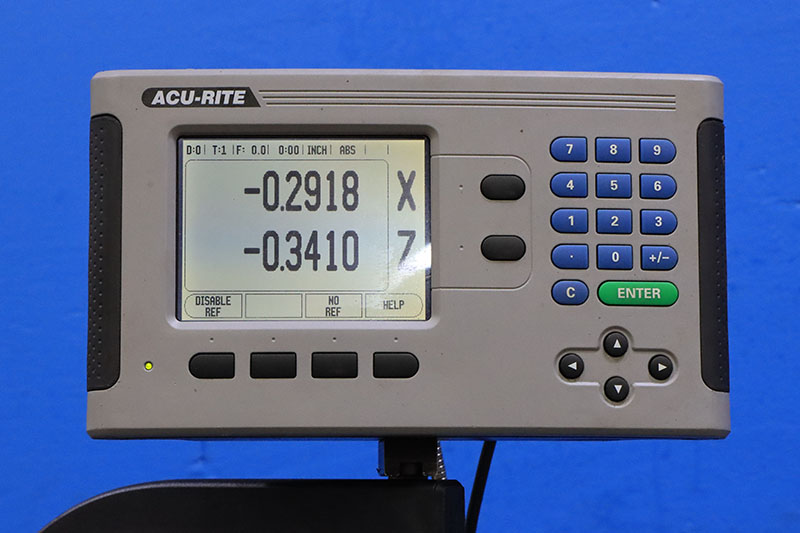

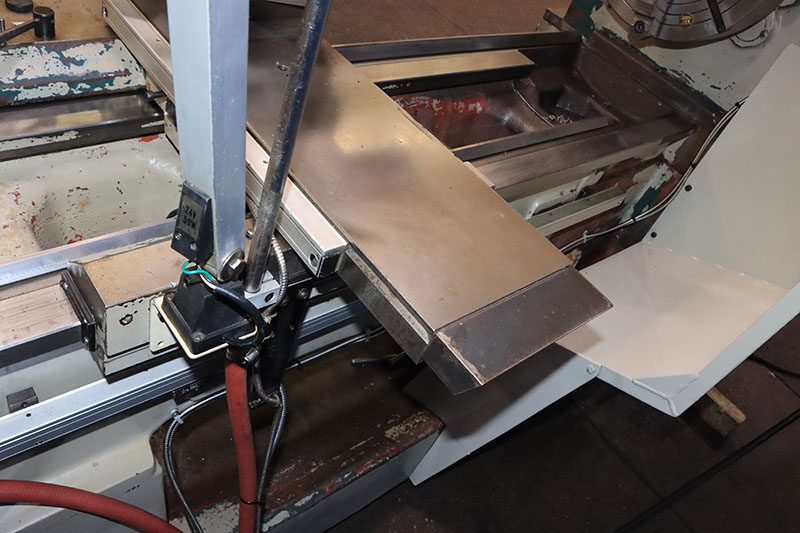

- ACU-RITE 2-AXIS DIGITAL READOUT

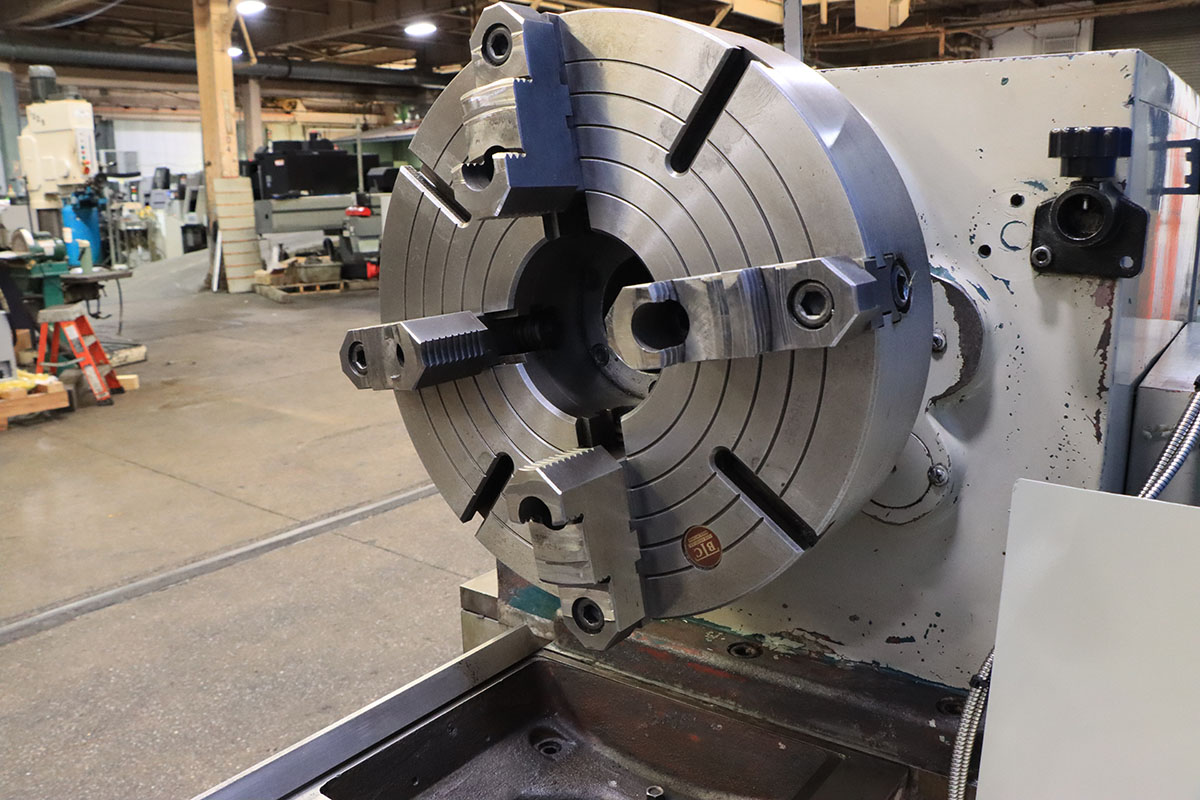

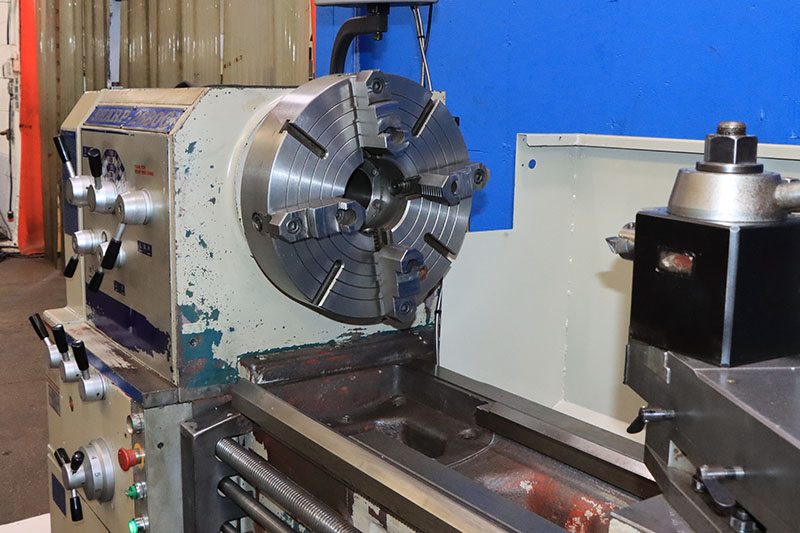

- 15-5/8" BTC 4-JAW CHUCK WITH REVERSIBLE JAWS

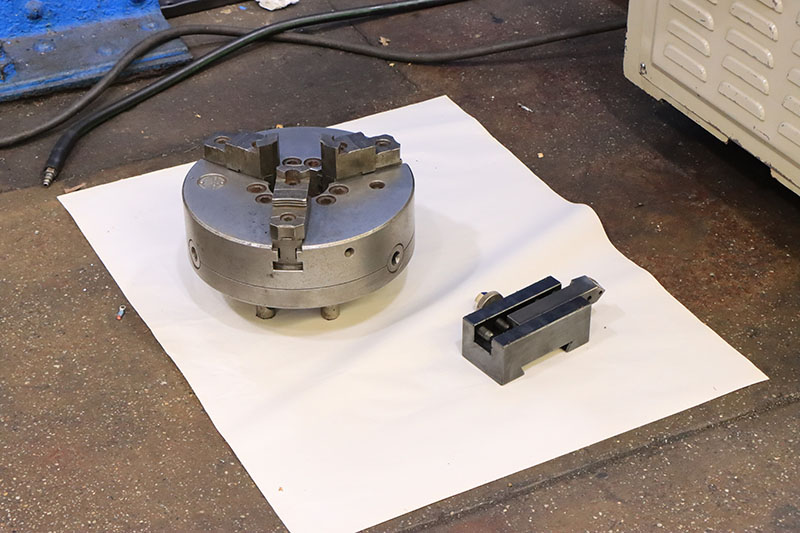

- 12" 3-JAW CUSHMAN CHUCK

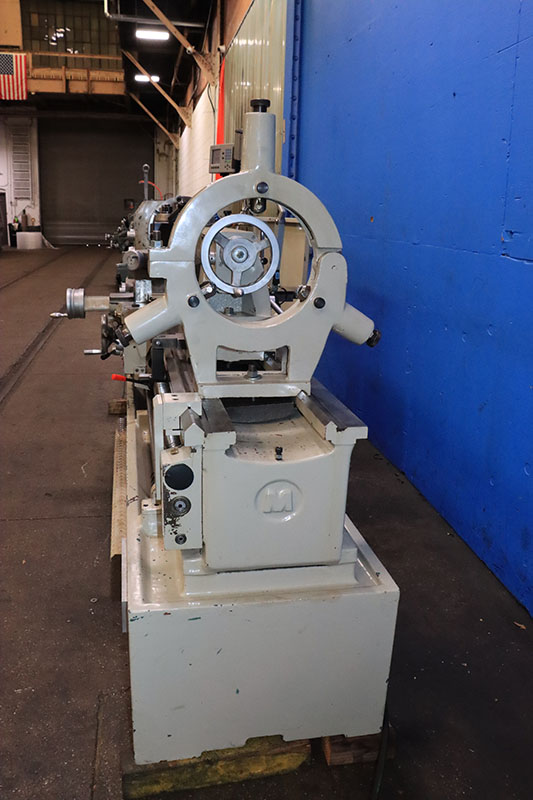

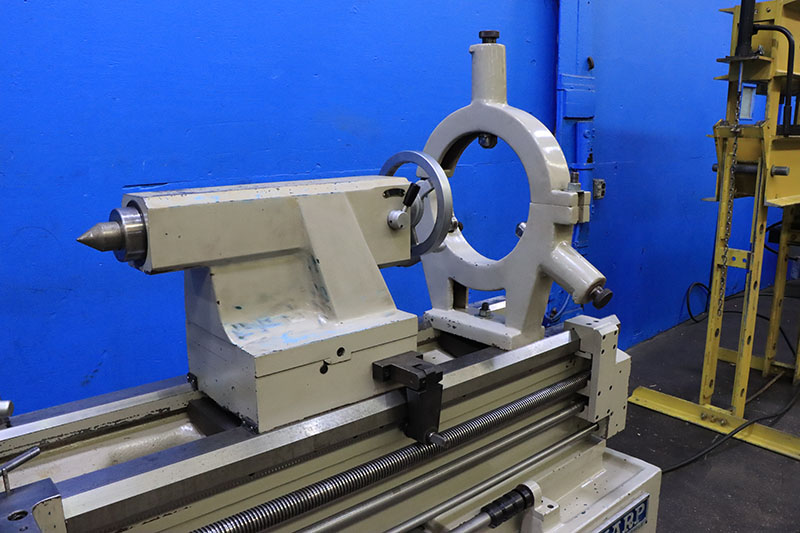

- 11-1/2" CAPACITY ROLLER TYPE STEADY REST

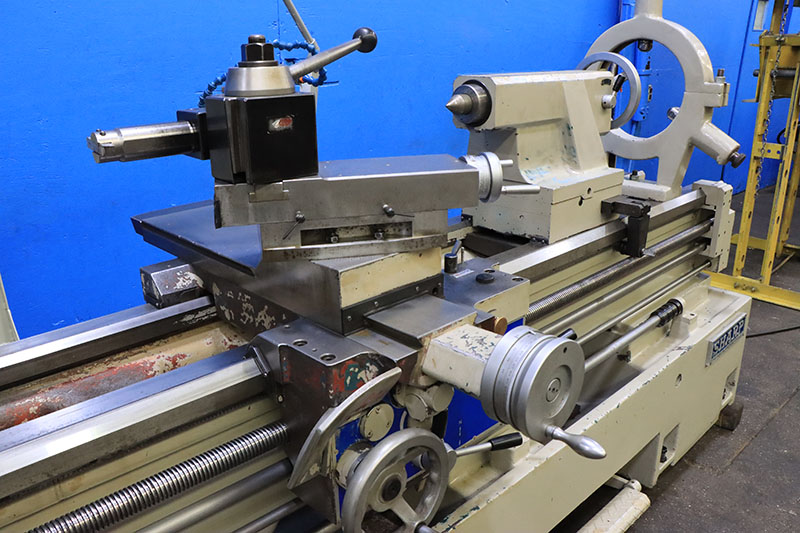

- ALORIS MODEL: DA QUICK CHANGE TOOLPOST
- THREADING DIAL
- FOOT TREADLE TYPE SPINDLE BRAKE
- TAILSTOCK WITH TWO-SPEED QUILL
- FOUR POSITION CARRIAGE STOP

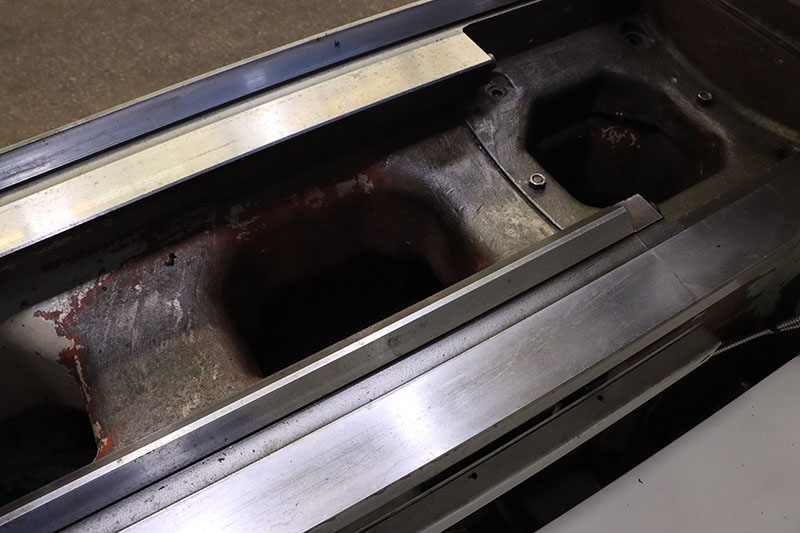

- HARDENED AND GROUND BED AND CROSS SLIDE WAYS
- SINGLE PIECE MEEHANITE CAST IRON BED
- SELF-CONTAINED COOLANT SYSTEM
- 15 HORSE POWER 3/60/220-440 VOLT SPINDLE DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
