Southwest Ind. TRL 2470RX, ProtoTrak RLX Control, 4"Hole CNC LATHES, FLAT BED (ENGINE LATHE STYLE)

Price on Request

Make:: Southwest Ind.

Model:: TRL 2470RX, ProtoTrak RLX Control, 4"Hole

Year:: 2023

Ref #:: 179478

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

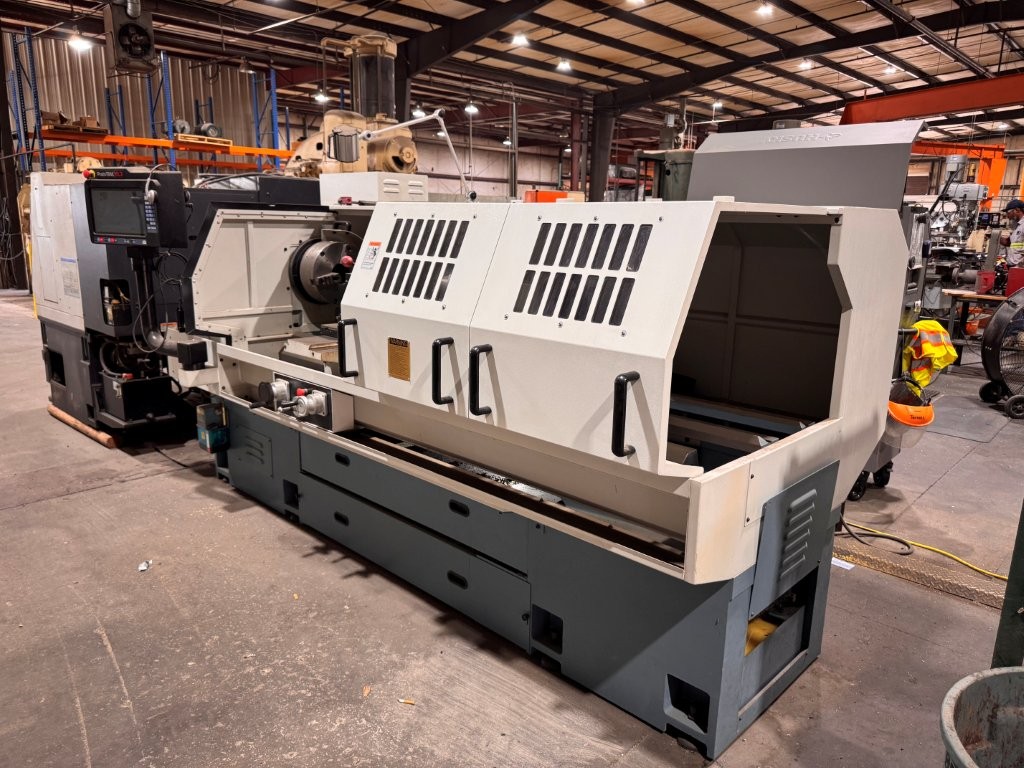

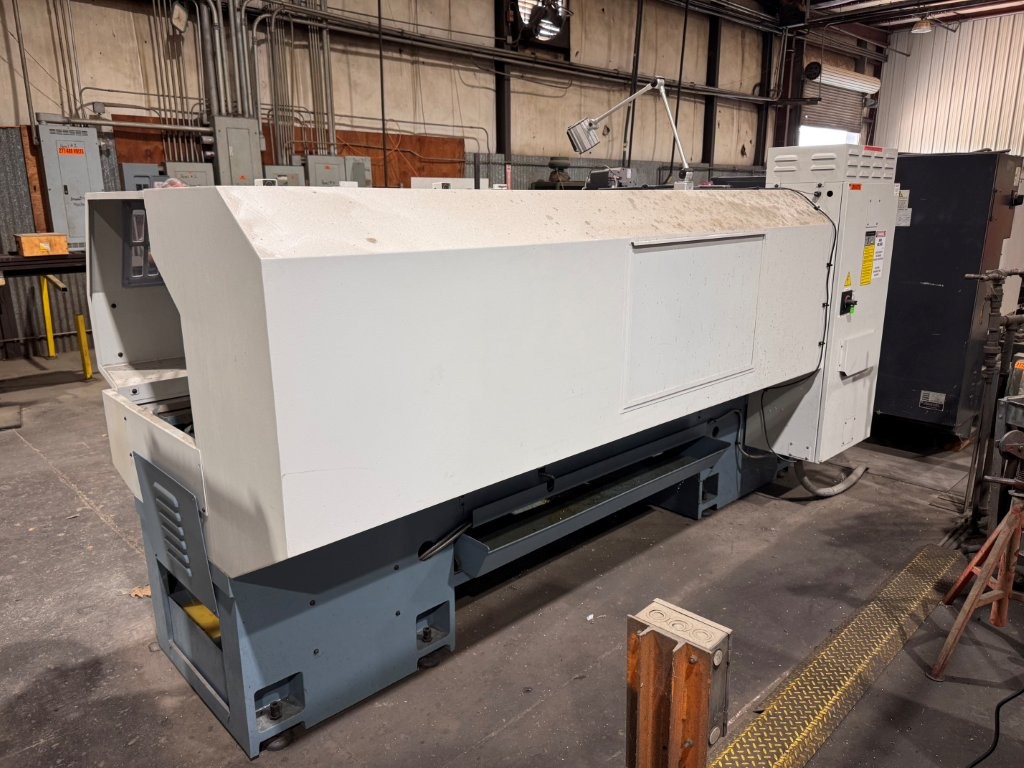

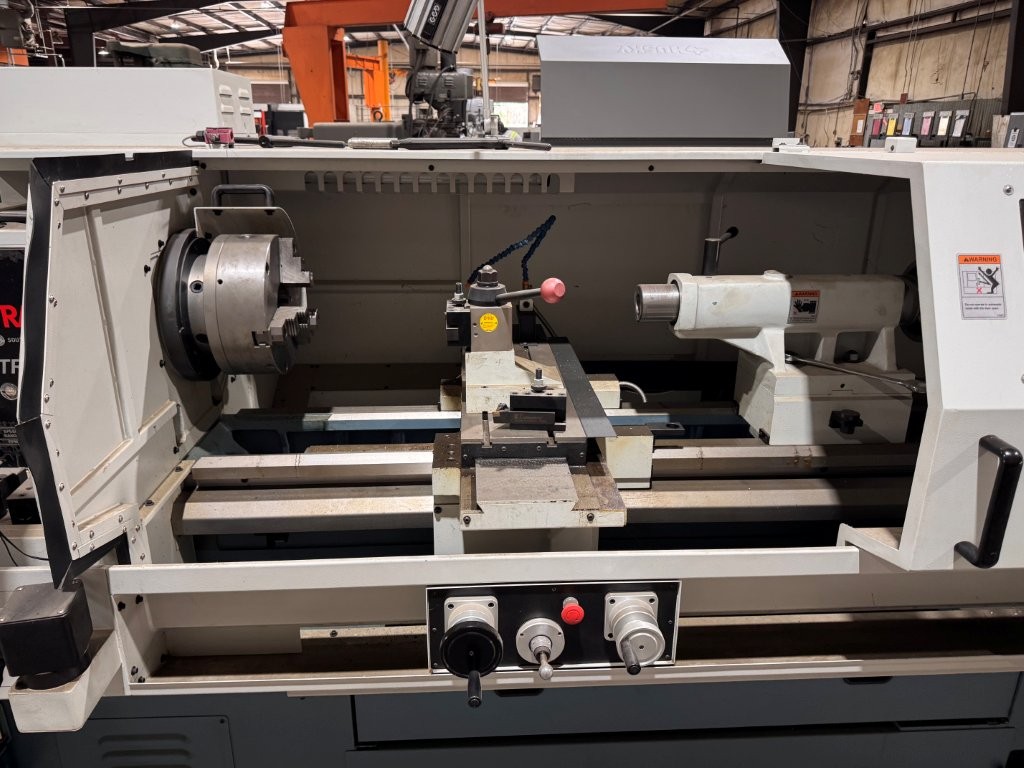

24" x 70" TRAK CNC TEACH LATHE

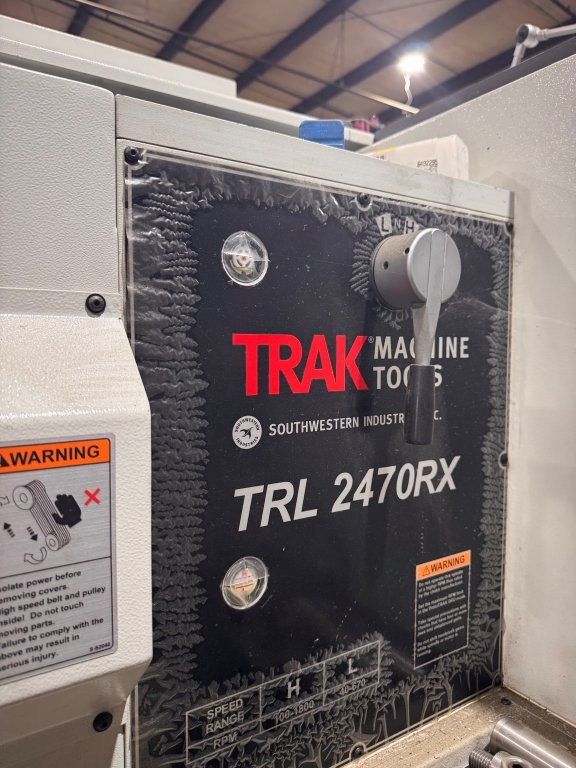

MODEL: TRL 2470, NEW: 2023

SPECIFICATIONS:
SWING OVER BED ........................ 24"
SWING OVER CROSS SLIDE ................ 14.5"
DISTANCE BETWEEN CENTERS .............. 70"
SPINDLE NOSE .......................... D1-8
HOLE THRU SPINDLE ..................... 4.09"
SPINDLE SPEEDS (2 RANGES) ............. 40 - 1800 RPM
MAIN SPINDLE MOTOR .................... 15 HP
TAILSTOCK QUILL DIAMETER .............. 3.5"
TAILSTOCK QUILL TAPER ................. #5 MT
TAILSTOCK QUILL TRAVEL ................ 8.5"
APPROXIMATE MACHINE DIMENSIONS ........ 134" x 85" x 80"H
APPROXIMATE MACHINE WEIGHT ............ 7,500 LBS

FEATURES:

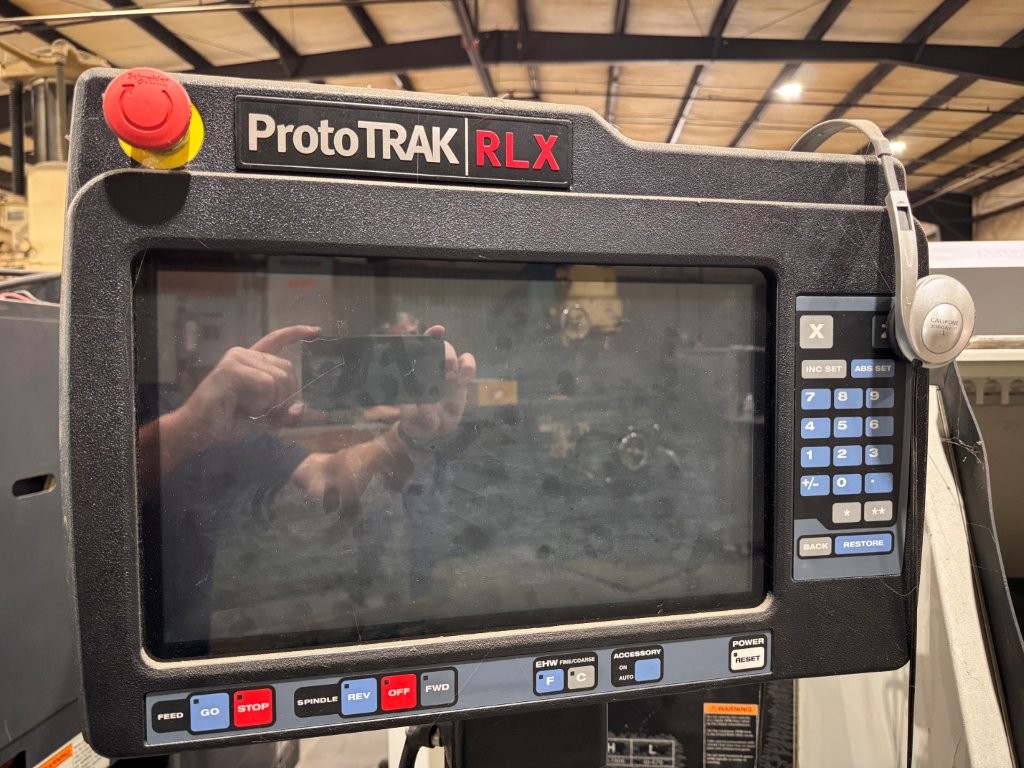

PROTOTRAK RLX CNC CONTROL
MANUAL OR CNC OPERATION
ELECTRIC HANDWHEELS & JOYSTICK
BRUSHLESS SERVO MOTORS
CONSTANT SURFACE SPEED (CSS) PROGRAMMING

EQUIPPED WITH:

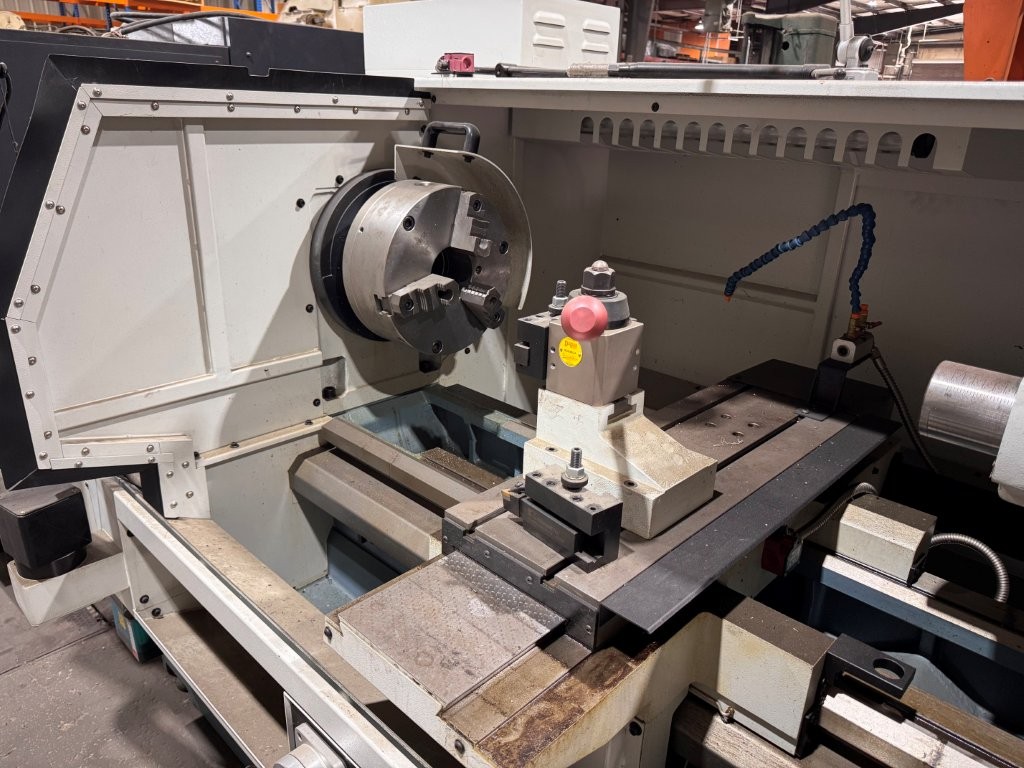

20" 3-JAW CHUCK
12" MANUAL CHUCK WITH 4-1/8" THRU HOLE

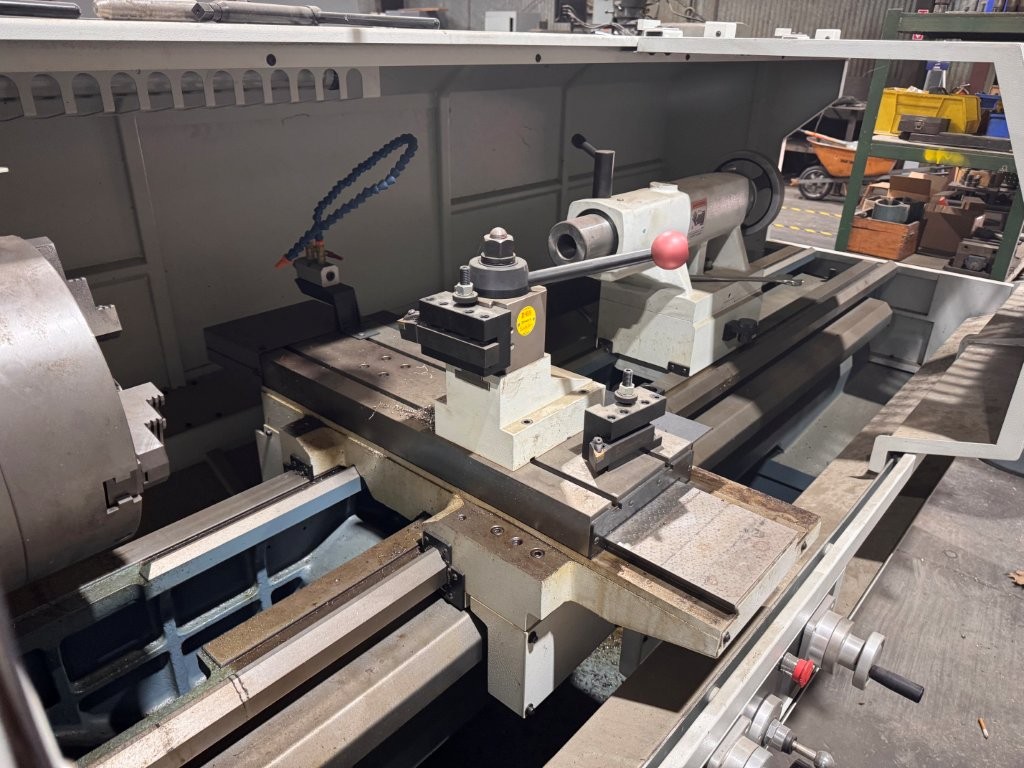

4-POSITION QUICK CHANGE TOOL POST

NOTE:
MACHINE HAS LESS THAN 10 HOURS OF USE. LIKE NEW.
