Southwest Ind. TRL 2470SX, Trak SLX Control, Dorian Turret, 3-Jaw CNC LATHES, FLAT BED (ENGINE LATHE STYLE)

Price on Request

Make:: Southwest Ind.

Model:: TRL 2470SX, Trak SLX Control, Dorian Turret, 3-Jaw

Year:: 2016

Ref #:: 179508

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

24" x 70" SOUTHWESTERN INDUSTRIES CNC LATHE
MODEL: TRL 2470SX, MFG: 2016

SPECIFICATIONS:
HEIGHT OF CENTERS ..................... 12"
DISTANCE BETWEEN CENTERS .............. 70"
SWING OVER BED ........................ 24"
SWING OVER SADDLE WINGS ............... 24"
SWING OVER CROSS SLIDE ................ 14.5"
CROSS SLIDE TRAVEL .................... 12.5"
TOOL SECTION MAXIMUM .................. 1"
COOLANT CAPACITY ...................... 15 GAL.
BED WIDTH ............................. 14.57"
BED HEIGHT ............................ 15"
SPINDLE NOSE .......................... D1-8
SPINDLE THROUGH HOLE .................. 4.09"
SPINDLE TAPER ......................... MT #8
REDUCTION SLEEVE TAPER ................ MT #5
SPINDLE DIAMETER FRONT BEARING ........ 5.51"
NUMBER OF SPINDLE BEARINGS ............ 2
BEARING CLASS (RADIAL RUNOUT) ......... NORMAL
NUMBER OF SPINDLE SPEED RANGES ........ 2
SPINDLE SPEED RANGE ................... 40 - 670 / 100 - 1800 RPM
SPINDLE MOTOR ......................... 15 HP
VOLTAGE ............................... 220 VOLTS
AMPS/FULL LOAD ........................ 42 AMPS
CONTROL POWER ......................... 110V / 1 PH / 12A
MACHINE POWER ......................... 220V / 3 PH / 60 HZ
TAILSTOCK QUILL TRAVEL ................ 8.5"
TAILSTOCK QUILL DIAMETER .............. 3.5"
TAILSTOCK QUILL TAPER ................. MT #5
COOLANT PUMP MOTOR .................... 1/8 HP
APPROXIMATE MACHINE DIMENSIONS ........ 129" x 60" x 77"H
APPROXIMATE SHIPPING DIMENSIONS ....... 134" x 64" x 77"H
APPROXIMATE MACHINE WEIGHT ............ 6,500 LBS.
APPROXIMATE SHIPPING WEIGHT ........... 6,900 LBS.

FEATURES:
DYNAMIC SPINDLE MOTOR BRAKE
DIRECT DRIVE HEADSTOCK - NO GEAR SHIFTING
QUIET OPERATION
DUAL SLIDING DOORS FOR CHIP & COOLANT CONTROL
ONE REMOVABLE SLIDING DOOR
MEEHANITE CAST MONOLITHIC BASE
HEAVY RIBBED BASE CONSTRUCTION
BEDWAYS HARDENED AND GROUND
SLIDING SURFACES TURCITE COATED
DOVETAIL CROSS SLIDE WITH V-WAYS ON SADDLE
ADJUSTABLE SADDLE GIBS
WAY SURFACE HARDNESS ........................ 480-560 HB
MAXIMUM RAPID ............................... 250 IPM

EQUIPPED WITH:
PROTOTRAK SLX CNC CONTROL

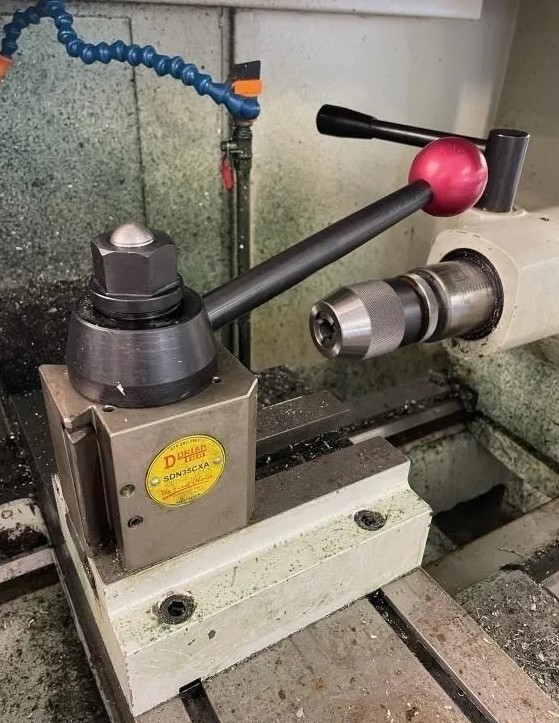

TOOL POST

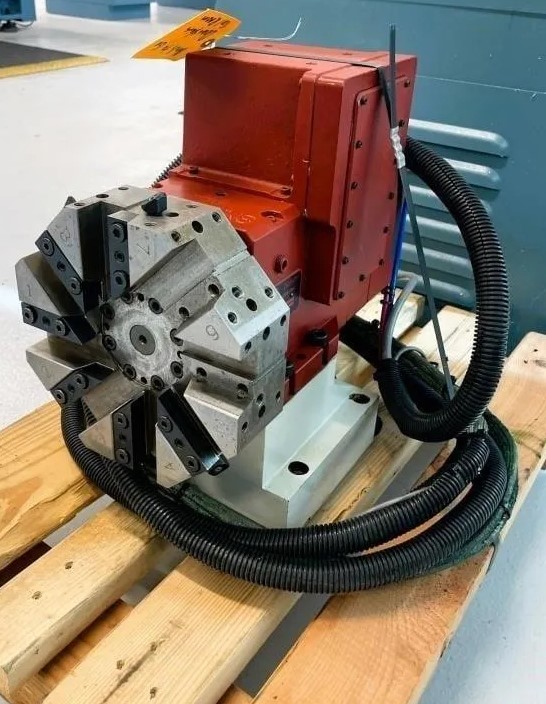

DORIAN SMART DEX 25N POWER TURRET

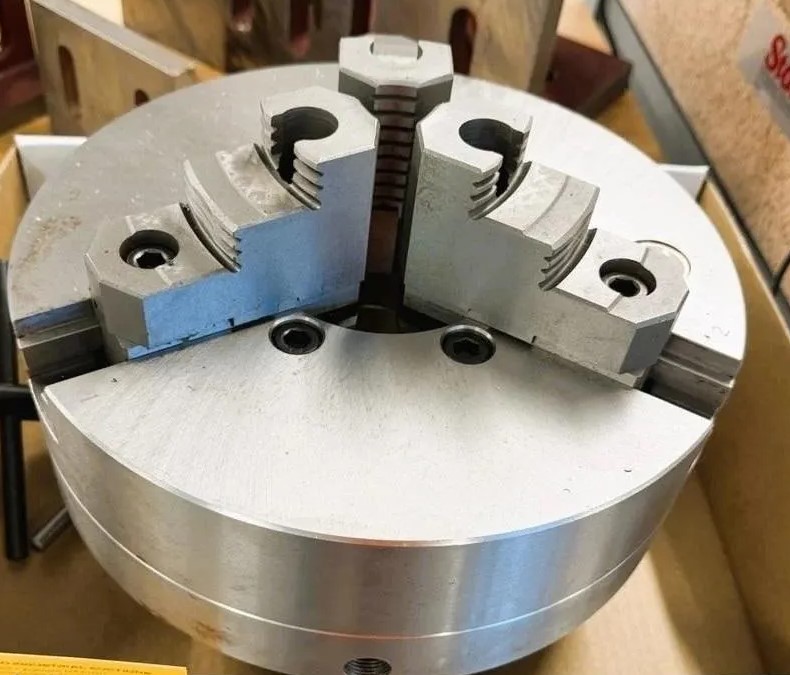

12" BTC 3-JAW CHUCK (#D1-8)
COLLET CLOSURE
