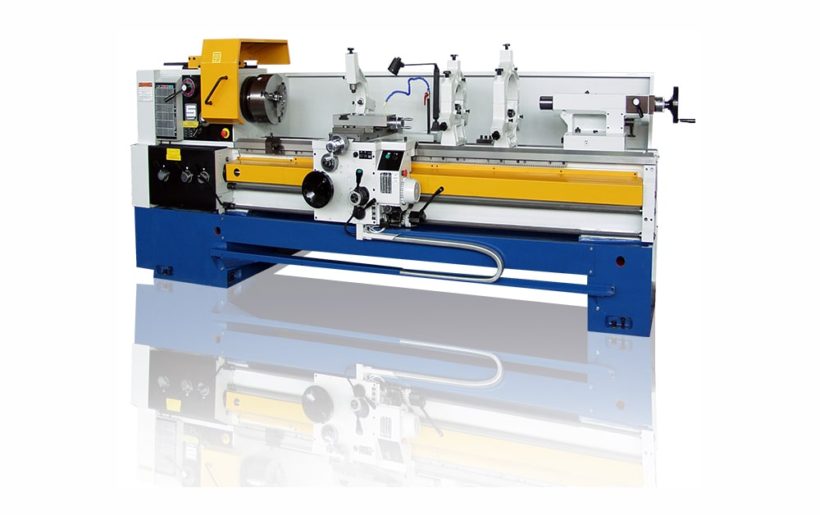

NEW SUMMIT 24-4 X 60 PRECISION ENGINE LATHE
"EUROPEAN MANUFACTURED UNDER ISO 9001:2015 CERTIFICATION

SPECIFICATIONS
CAPACITIES
SWING OVER BED 25”
SWING OVER CROSS SLIDE 17”
WORKPIECE WEIGHTS
AT THE HEADSTOCK 400 LBS.
BETWEEN CHUCK AND TAILSTOCK 2,000 LBS.
BETWEEN CHUCK AND TAILSTOCK
W/STEADY REST 4,000 LBS.
HEADSTOCK
SPINDLE SPEEDS (NO.) RANGE RPM (21) 20 -1250
HOLE THROUGH SPINDLE 4 1/8”
SPINDLE NOSE D1-8 CAMLOCK
HEADSTOCK CENTER #6 MT
QUICK CHANGE GEARBOX
THREADS PER INCH (NO.) RANGE (64) ¼ - 60
METRIC THREADS (NO.) RANGE (64) .5 - 120
MODULE THREADS (NO.) RANGE (64) .125 - 30
DIAMETRAL PITCH (NO.) RANGE (64) 1 - 240
LONGITUDINAL FEEDS (NO.) RANGE (124) .00145-.44474
CROSS FEEDS (NO.) RANGE (56) .0007-.22237
LEADSCREW (DIA) RANGE (2”) 2 TPI
FEED ROD DIAMETER 1”
CARRIAGE & APRON
CROSS SLIDE TRAVEL 12 ½”
COMPOUND REST TRAVEL 5 3/8”
GRADUATION OF APRON HANDWHEEL .020
GRADUATION OF CROSS SLIDE HANDWHEEL .002 (DIR READ)

 TAILSTOCK
TRAVEL OF SPINDLE BARREL 9 ½”
DIAMETER OF SPINDLE BARREL 3 ½”
TAPER OF CENTER #5 MT
TWO SPEED 1:1, 4:1
BED
WIDTH OF BED 15 ¾”
DEPTH OF BED 16 7/8”
HARDNESS OF BED (ROCKWELL C) 42-48
TAPER ATTACHMENT
DEGREES OF TAPER +/- 10 DEGREES
MAXIMUM TURNING LENGTH PER SETTING 15 ¾”
MOTORS
MAIN DRIVE 15 HP
COOLANT PUMP ¼ HP
STEADY AND FOLLOW REST
STANDARD STEADY REST ½”-6 1/8”
EXTRA CAPACITY STEADY REST 5 ½” – 13 ½”
FOLLOW REST ½”- 7 7/8”
SHIPPING DATA
OVERALL WIDTH 48”
OVERALL HEIGHT 62”
OVERALL LENGTH 136”
WEIGHT 7,600 LBS

STANDARD FEATURES
 BIG 4 1/8” THRU HOLE
 INCH/METRIC THREADS W/SINGLE SWITCH LEVER
 CUTS MOST INCH/METRIC THREADS WITHOUT CHANGE GEARS
 HARDENED & GROUND BEDWAYS
 FORCE LUBRICATION TO THE HEADSTOCK, CARRIAGE AND BEDWAYS
 MECHANICAL DISC CLUTCH
 PRECISION (3) BEARING SPINDLE
 CROSSFEED AND THREADING SAFETY INTERLOCK
 FEED REVERSING AT THE APRON
 4-WAY RAPID TRAVERSE
 SINGLE LEVER CONTROL FOR FEEDS AND RAPIDS
 TWO SPEED TAILSTOCK

INCLUDED ACCESSORIES
 STANDARD STEADY REST
 EXTRA CAPACITY STEADY REST W/ROLLERS
 FOLLOW REST
 THREAD DIAL
 COOLANT SYSTEM
 TAPER ATTACHMENT
 12” 3 JAW CHUCK W/2 PIECE JAWS
 CARRIAGE STOP
 WORK LIGHT
 FULL LENGTH SPLASH GUARD
 SERVICE WRENCHES & SPANNERS

OPTIONS
12” STEEL BODY PRECISION CHUCK
W/2 PIECE JAWS IN LIEU OF
STANDARD CHUCK
20” SEMI-STEEL 4 JAW CHUCK
20” STEEL BODY 4 JAW CHUCK
W/2 PIECE REVERSIBLE JAWS
ALORIS QUICK CHANGE TOOL POST
W/HOLDERS (2#1, 2#2)
NEWALL 2 AXIS DIGITAL READOUT INSTALLED
20 HP MAIN MOTOR IN LIEU OF 15 HP
**INSTALLATION ASSISTANCE TBD
ELECTRICS
220/440/3/60
