Victor 29120T ENGINE LATHES

Price on Request

Make:: Victor

Model:: 29120T

Year:: 1996

Ref #:: 178941

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

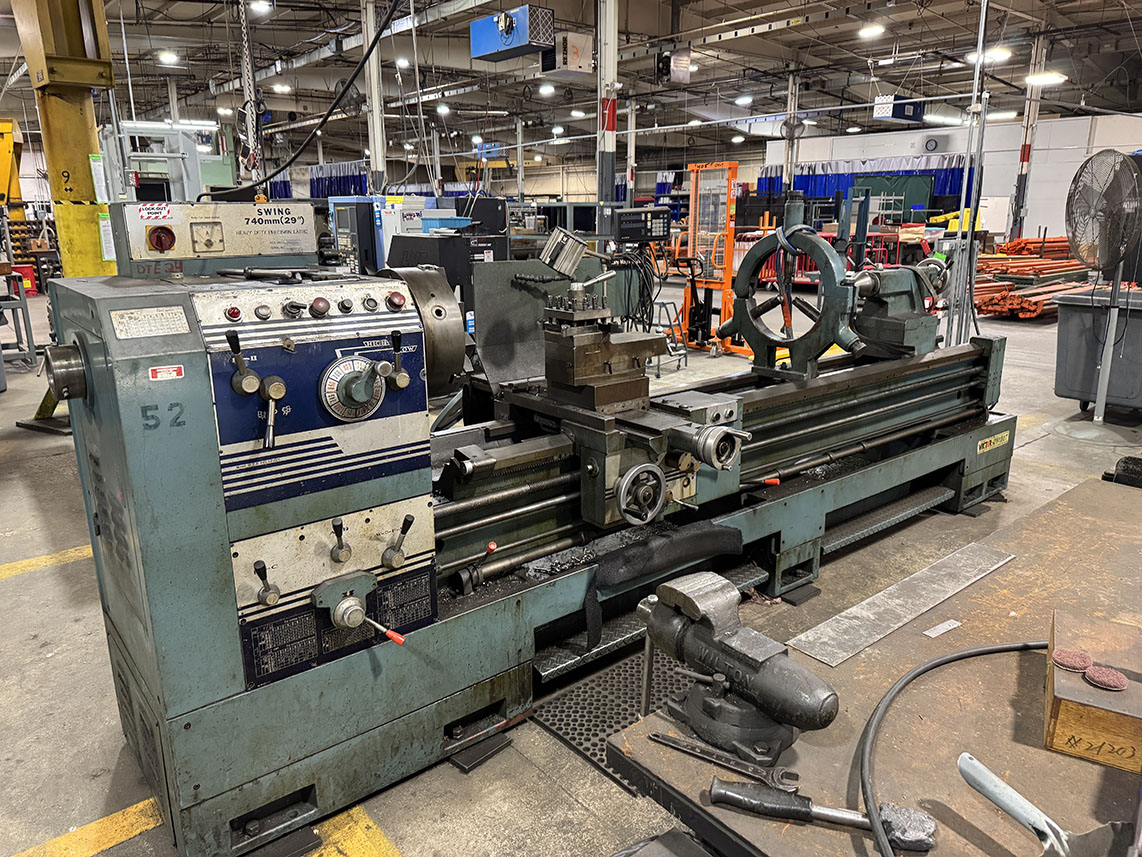

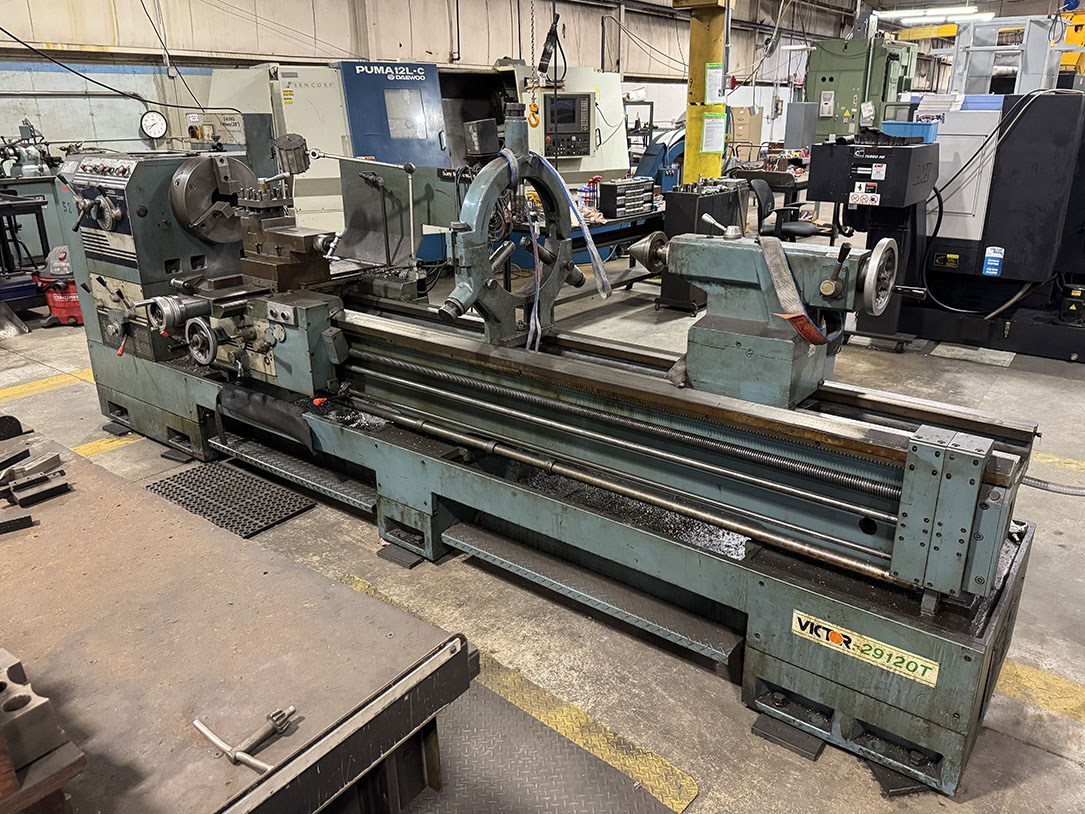

29" X 120" VICTOR GAP BED ENGINE LATHE
MODEL: 29120T, S/N: 96056,  NEW: 1996

SPECIFICATIONS:
SWING OVER BEDWAYS ............. 29-1/8"
SWING IN REMOVABLE GAP ......... 37-25/32"
SWING OVER CROSS SLIDE ......... 14-3/4"
DISTANCE BETWEEN CENTERS ....... 120"

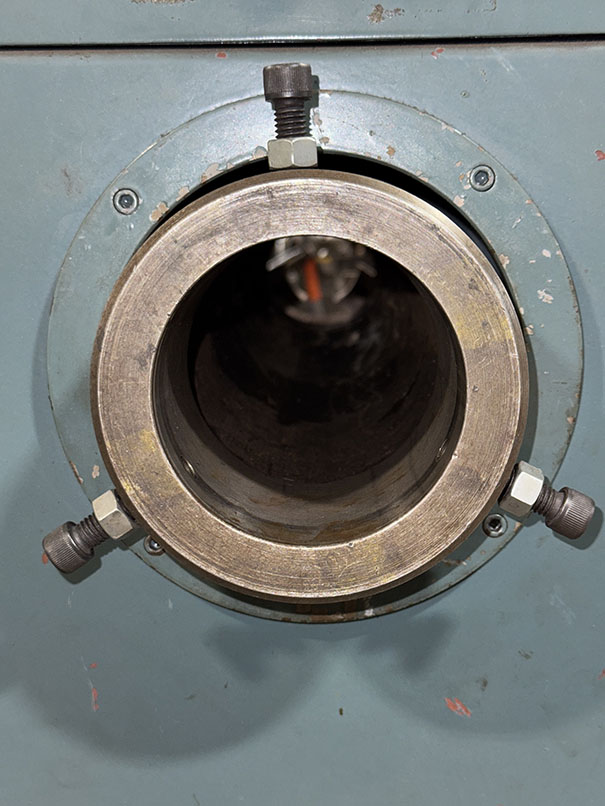

SPINDLE THRU HOLE .............. 4-1/8"
SPINDLE NOSE CAMLOCK ........... D1-11"
WIDTH OF BED ................... 16-1/2"
SPINDLE SPEEDS ................. 25 TO 1200 RPM
INCH THREADING RANGE ........... 2 - 56 TPI
METRIC TREADING RANGE .......... .5 - 14 MM
LONGITUDINAL FEED RANGE ........ .0012 - .0287 IPR
CROSS FEED RANGE ............... .0004 - .0118
TAILSTOCK SPINDLE TRAVEL ....... 7"
TAILSTOCK SPINDLE TAPER ........ #5MT
APPROX DIMENSIONS .............. 181" X 50" X 74"
APPROX WEIGHT .................. 10,500 LBS

EQUIPPED WITH:
INCH/METRIC THREADING
SONY TWO AXIS DIGITAL READOUT
THREAD DIAL INDICATOR

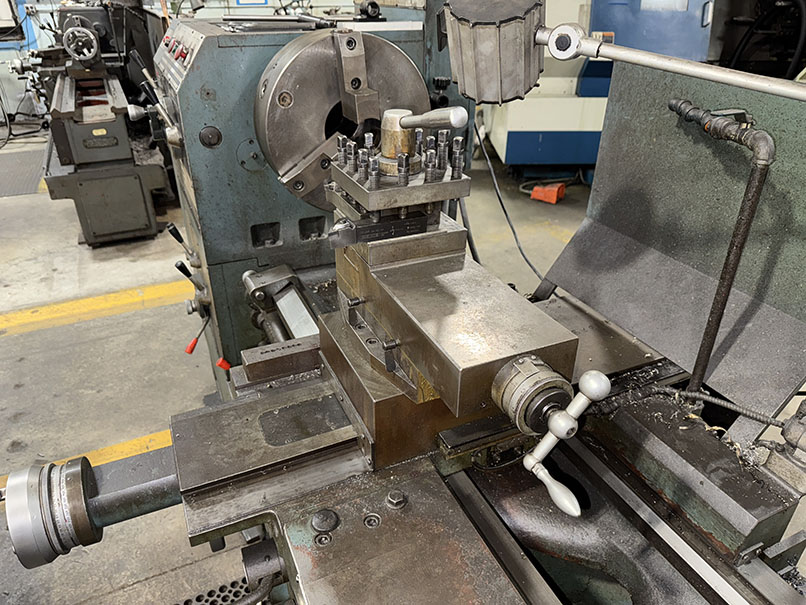

FOURWAY TURRET TOOLPOST
3-JAW BISON CHUCK

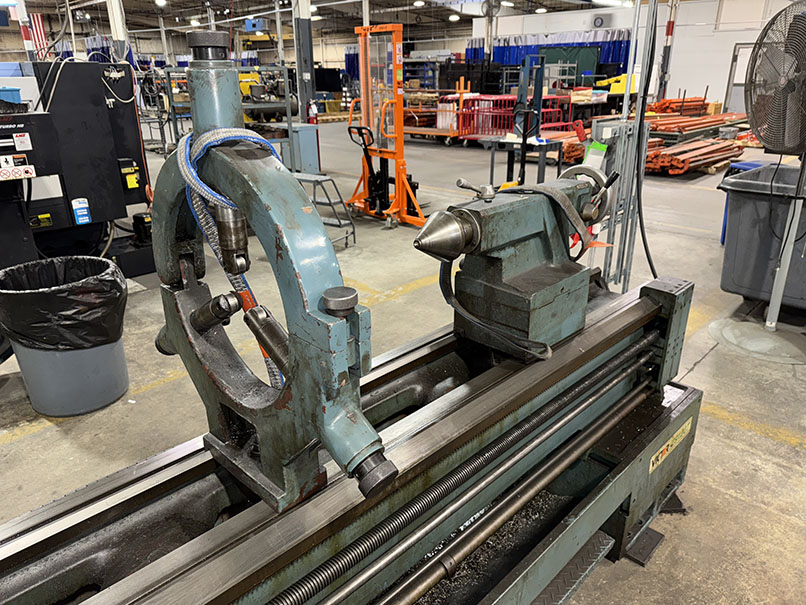

ROLLER TYPE STEADY REST
FOOT BRAKE
MICROMETER CARRIAGE STOP
HARDENED & GROUND BEDWAYS

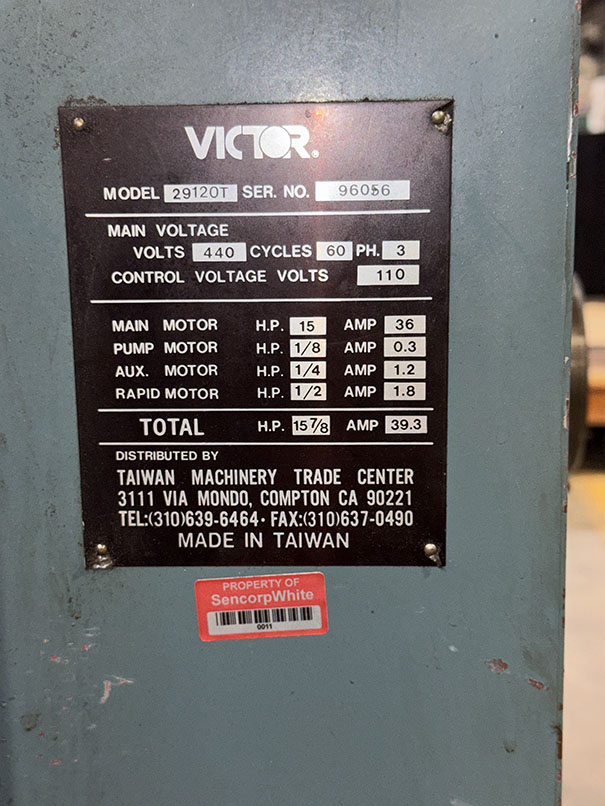

15 HORSE POWER MAIN DRIVE MOTOR
