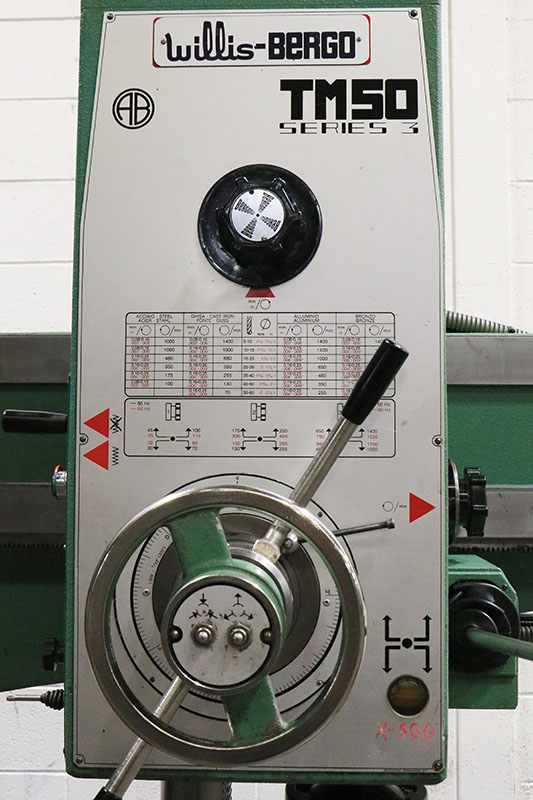

Willis-Bergonzi TM50 RADIAL ARM DRILLS

$14,500

Make:: Willis-Bergonzi

Model:: TM50

Year:: 1994

Ref #:: 164303

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

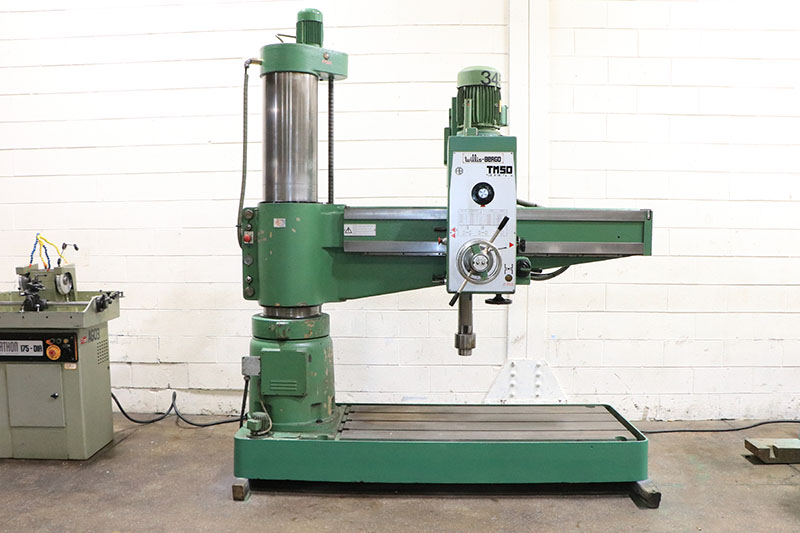

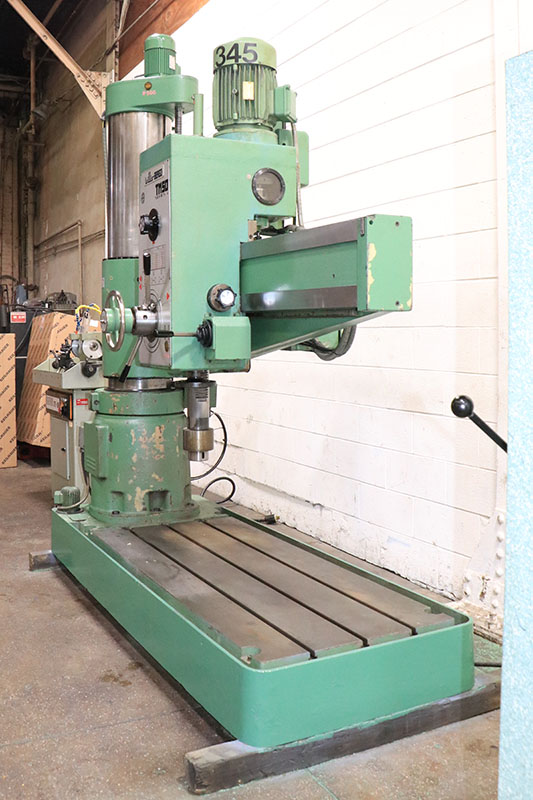

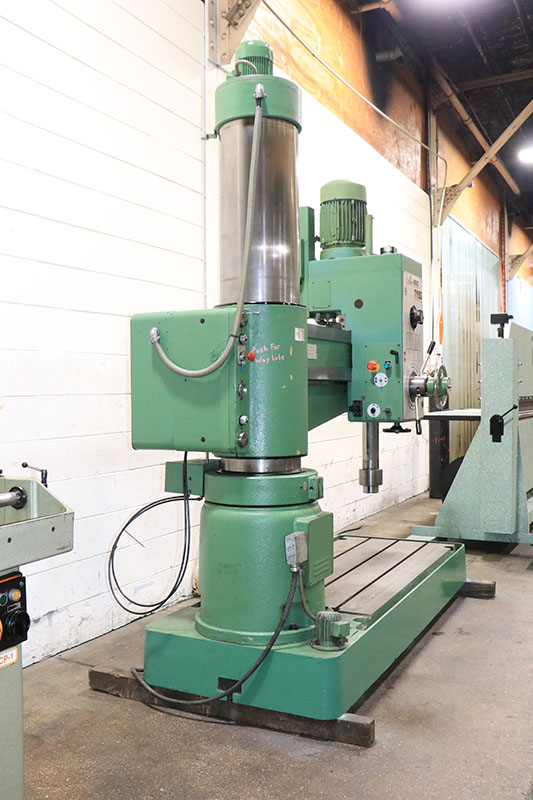

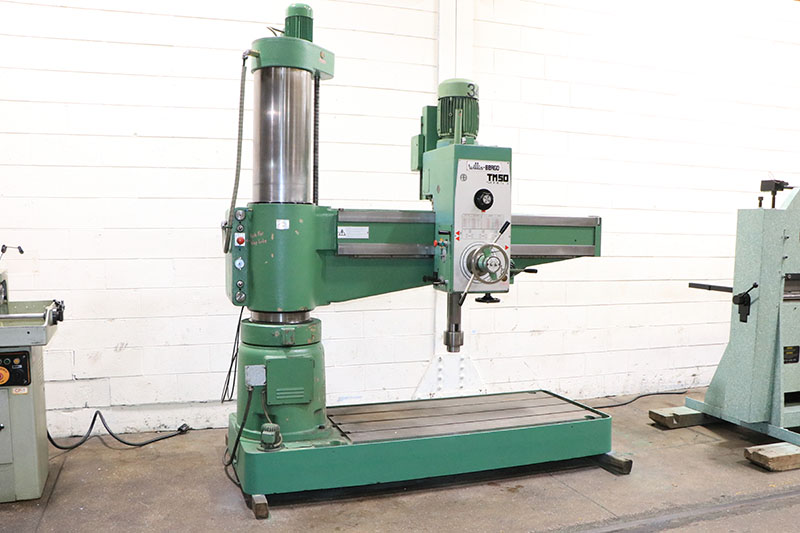

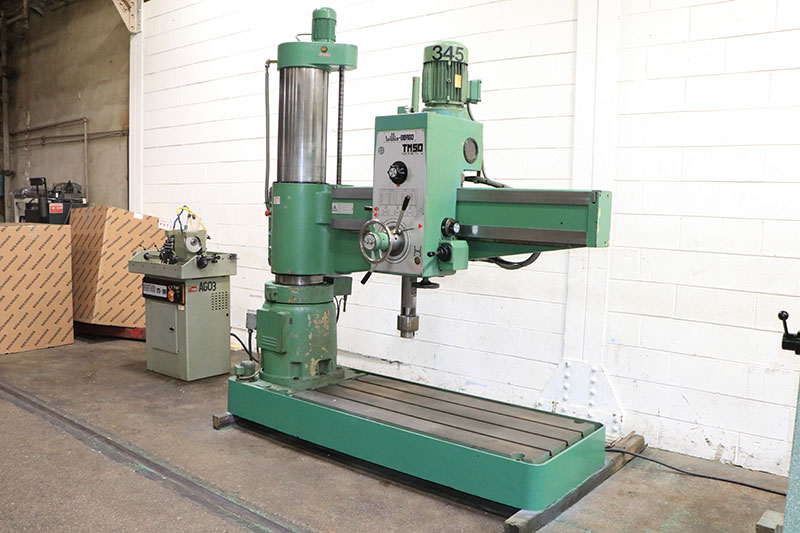

5' X 13" WILLIS-BERGONZI RADIAL DRILL

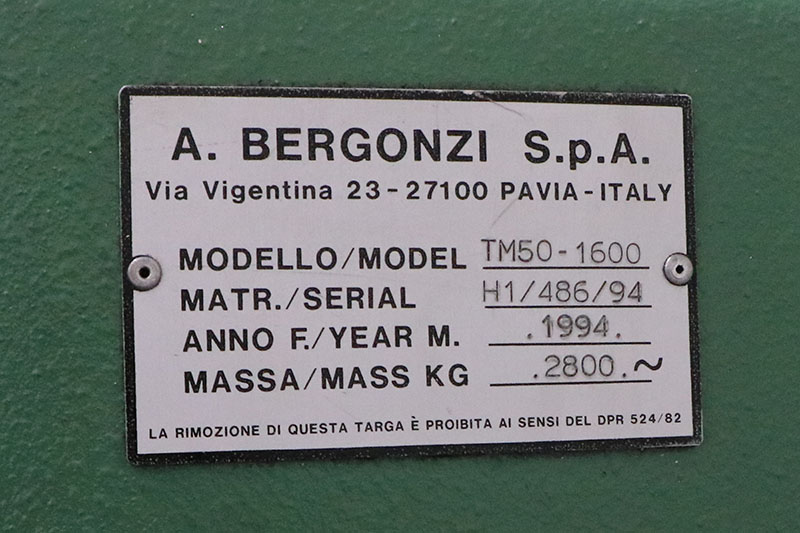

MODEL: TM50/1600, S/N: H1/486/94,  NEW: 1994


SPECIFICATIONS:
DISTANCE SPINDLE TO COLUMN ............ 11" - 63" MIN/MAX
COLUMN DIAMETER ....................... 13-1/2"
DISTANCE SPINDLE TO BASE  ............. 12" - 54" MIN/MAX
VERTICAL TRAVEL OF ARM ................ 30"
WORKING SURFACE OF BASE ............... 65" X 28"

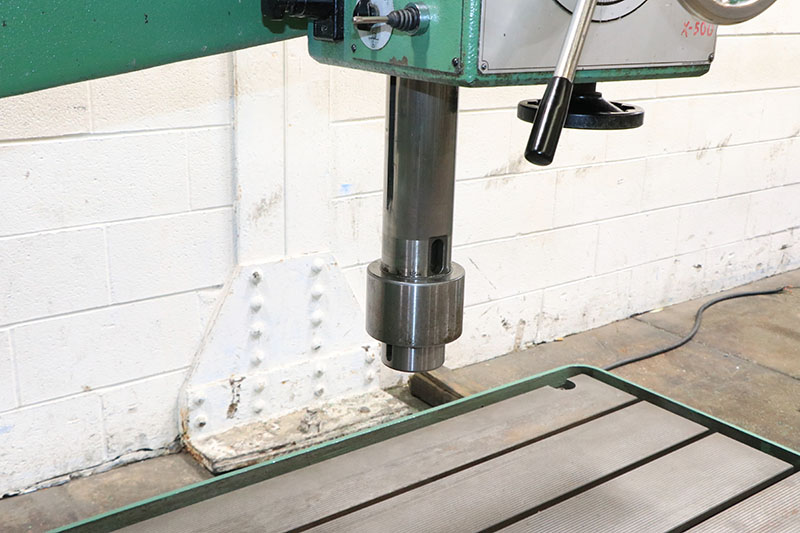

VERTICAL TRAVEL OF SPINDLE IN HEAD .... 11-7/8"
TAPER IN SPINDLE ...................... #5 MT
QUILL DIAMETER ........................ 3-3/8"
SPINDLE FEEDS (5) ..................... .003, .006, .009
                                         .013 & .015 IPR
SPINDLE SPEEDS (12) ................... 38 TO 1520 RPM
DRILLING CAPACITY:
MILD STEEL ............................ 2"
CAST IRON ............................. 2-9/16"
APPROXIMATE WEIGHT .................... 7,150 LBS
OVERALL DIMENSIONS HEAD DOWN .........  33"W x 89"L x 104"H

EQUIPPED WITH:
- DOUBLE DISK CLUTCH FOR SPINDLE ENGAGE/REVERSAL
- T-SLOTTED BASE
- POWER ELEVATION OF ARM ON COLUMN
- COOLANT SYSTEM
- 6.5 HORSE POWER SPINDLE MOTOR


INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
