Acer AGS-1224AHD, 1999, AUTO IDF, 3X AUTO FEEDS, 2X DRO SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Acer

Model:: AGS-1224AHD, 1999, AUTO IDF, 3X AUTO FEEDS, 2X DRO

Year:: 1999

Ref #:: 164354

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

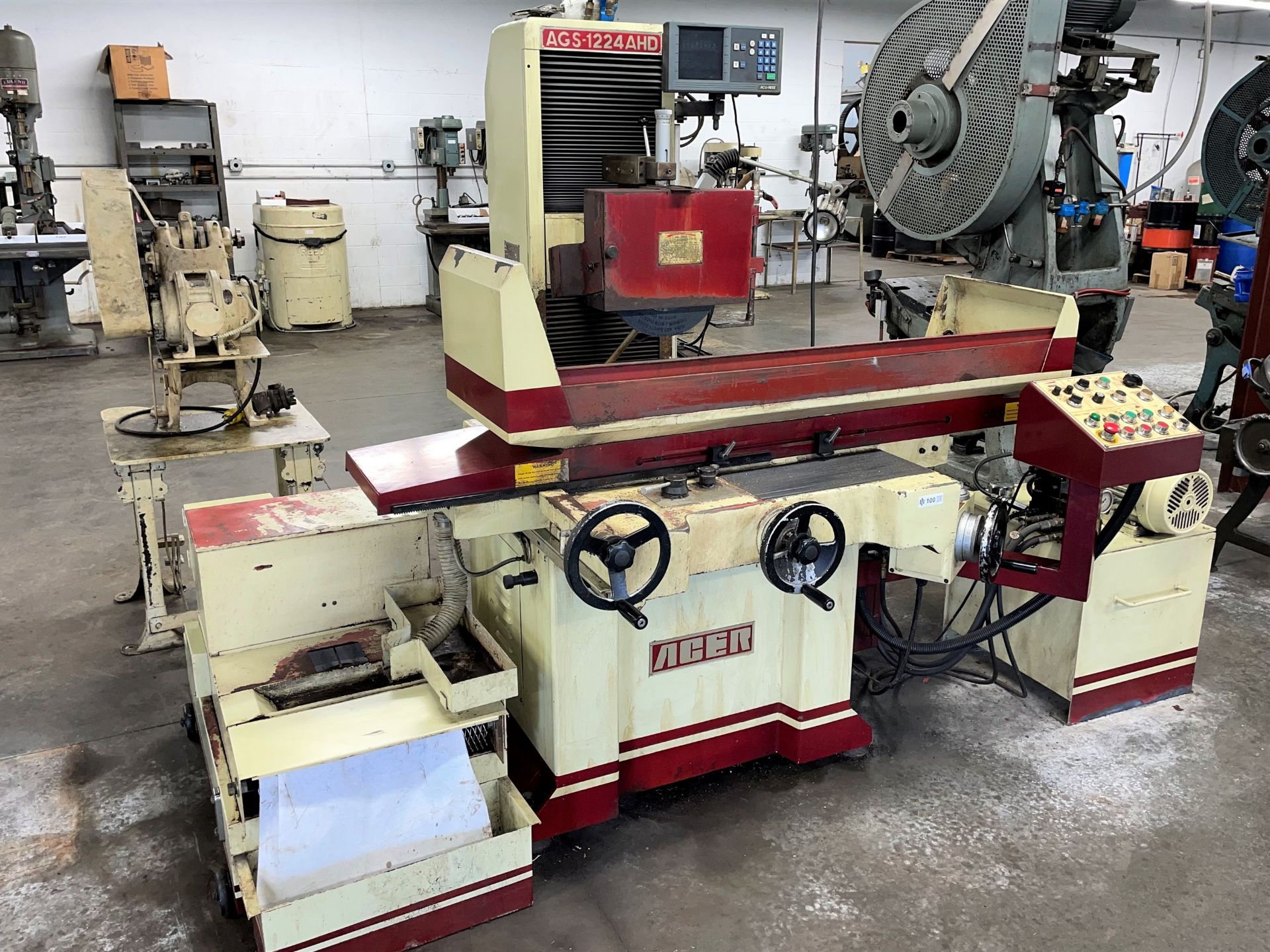

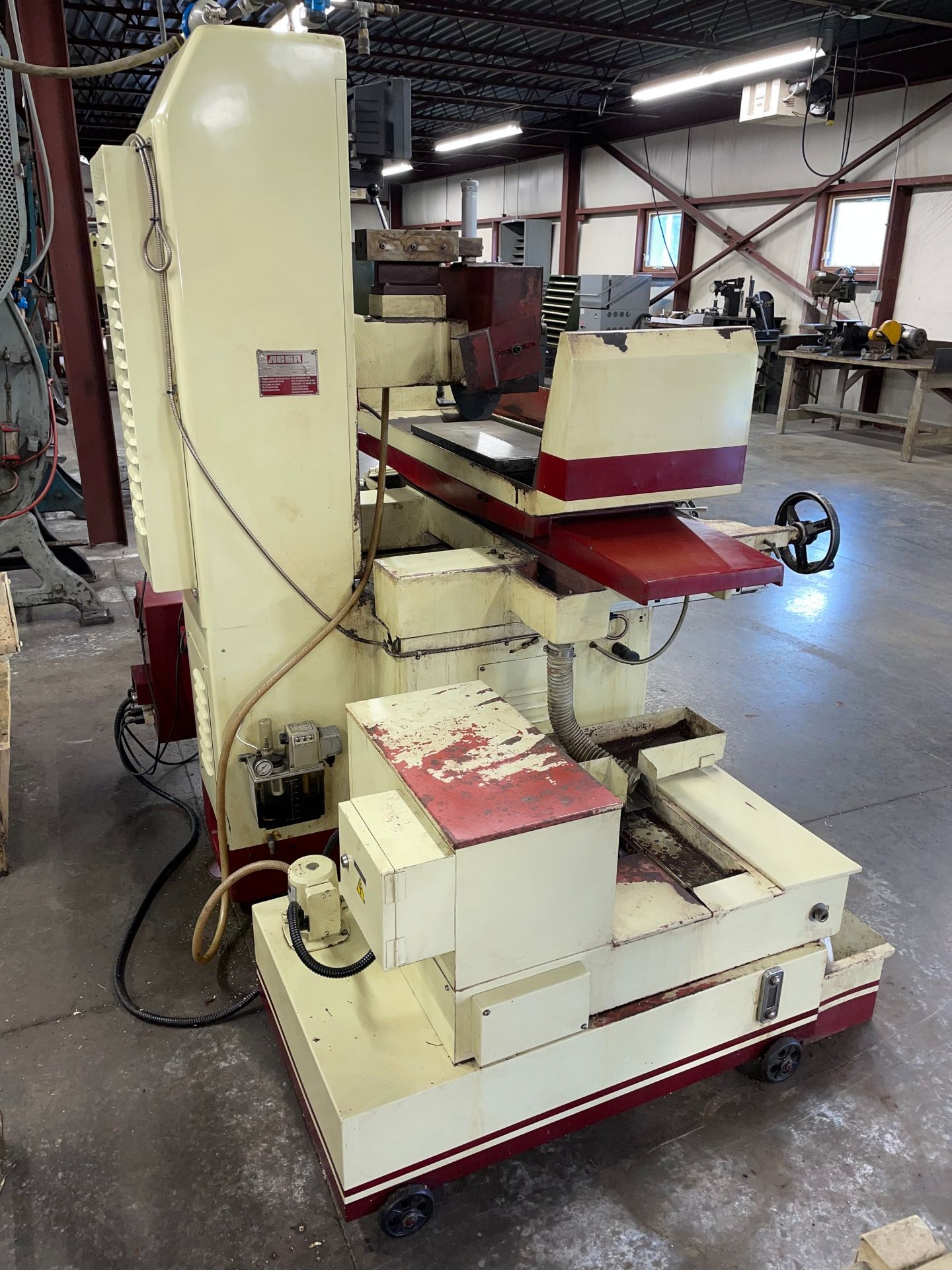

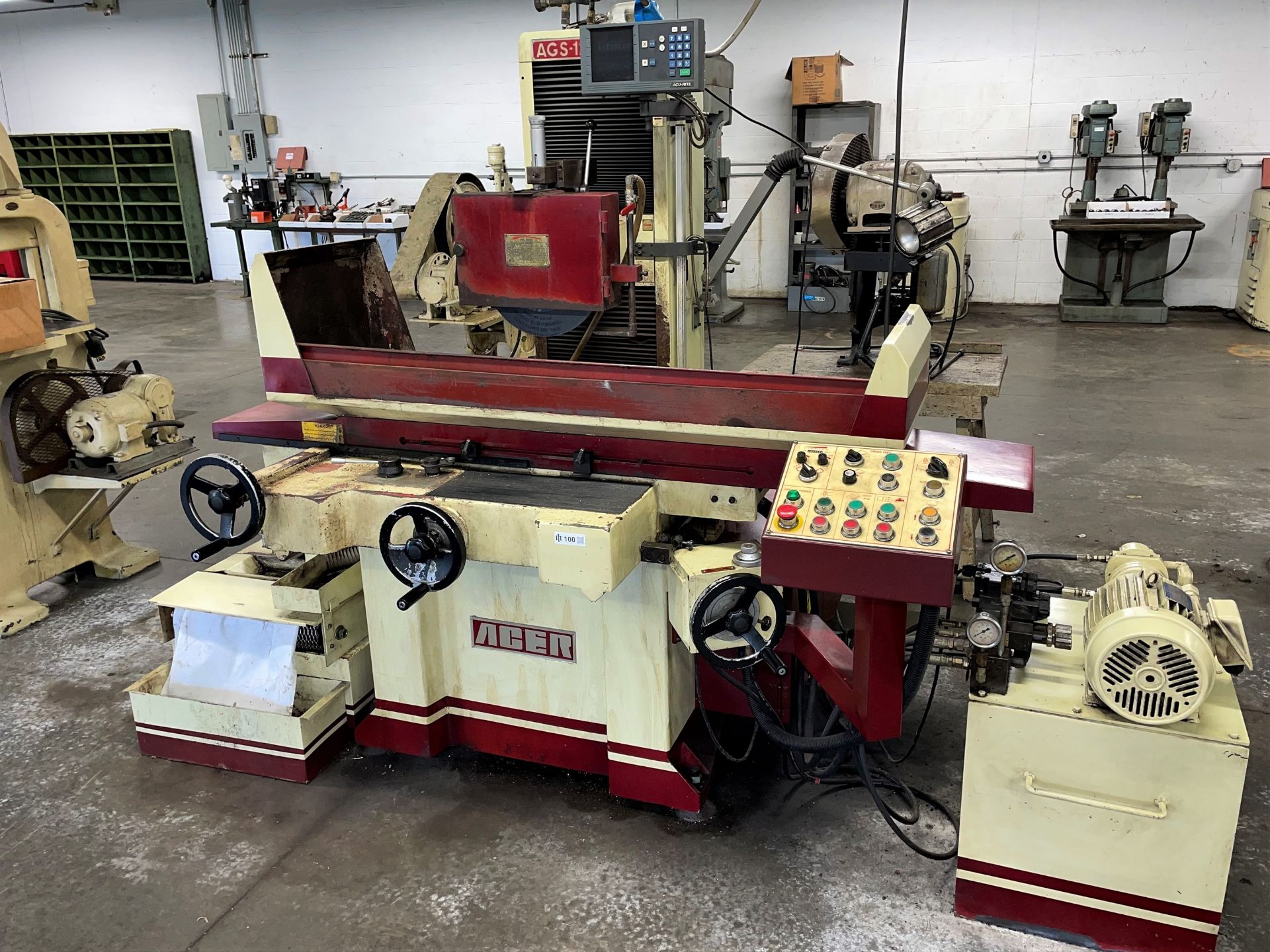

 12" X 24" ACER HYDRAULIC SURFACE GRINDER
  W/AUTOMATIC INCREMENTAL DOWNFEED
  WITH "ACU-RITE" 2-AXIS DRO

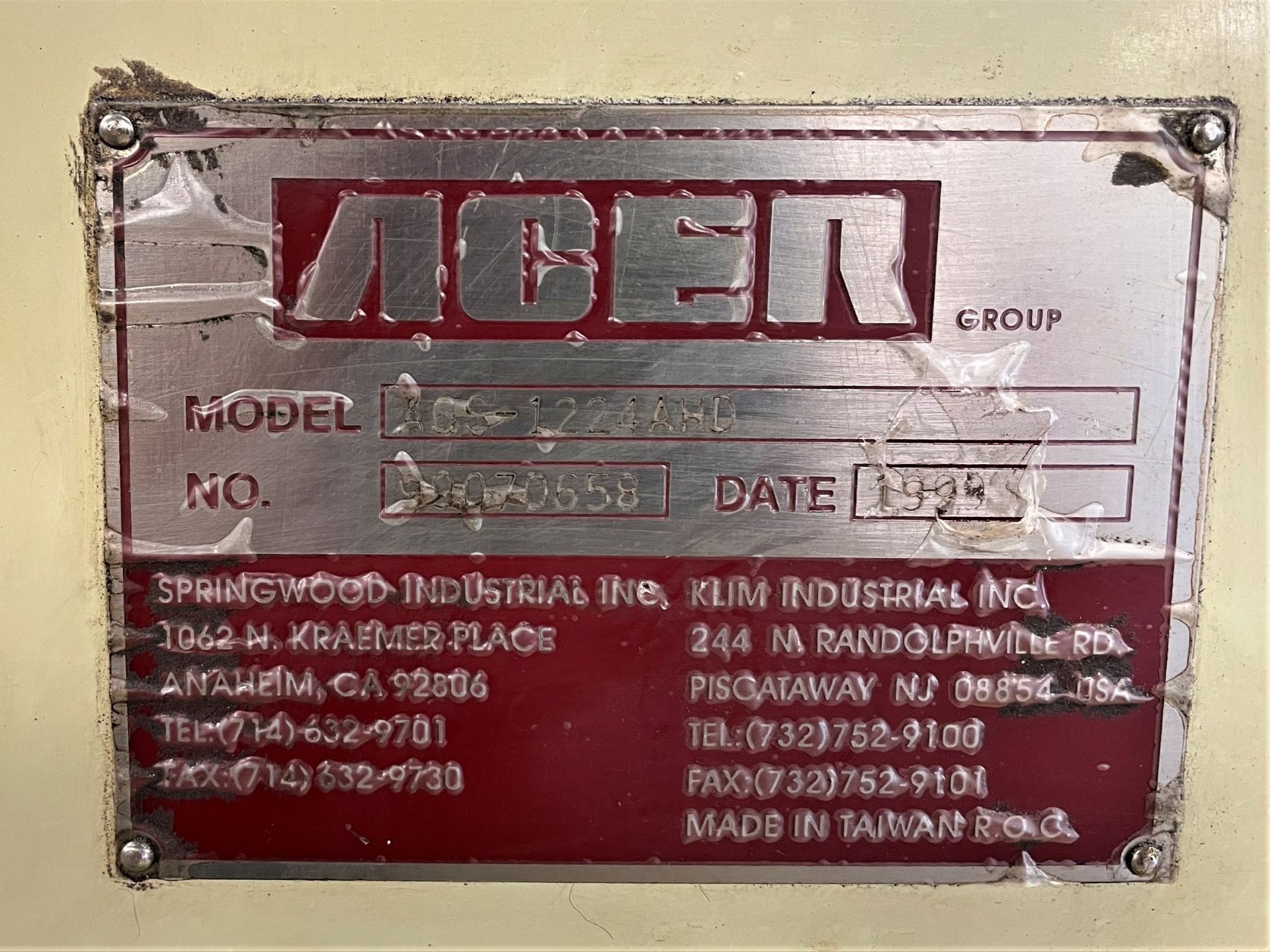

MODEL: AGS-1224AHD    S/N: 99070558    NEW: 1999

MAX. SURFACE GROUND ........................ 12" X 24"
DIST. FROM SPINDLE CENTER TO TABLE ......... 23- 1/2"
VARIABLE TABLE SPEED, HYDRAULIC ......       16' TO 80' FPM
MAX. TABLE TRAVEL .......................... 26.5"
AUTOMATIC CROSSFEED INCREMENT .............. 0" TO 1"
MAX. CROSSFEED TRAVEL (AUTO FEED) .......... 14"
PER REVOLUTION ............................. 0.1"
CROSSFEED HANDWHEEL PER GRADUATION ......... 0.001"
PER REVOLUTION ............................. 0.2"
AUTO INCREMENTAL DOWNFEED .................. 0.001" TO .0001"
VERTICAL GRADUATION ........................ 0.0005"
VERTICAL REVOLUTION ........................ 0.1"
MICRO ADJUSTMENT FOR VERTICAL HANDWHEEL .... 0.0001" GRAD.
SPINDLE MOTOR .............................. 5 H.P.
STANDARD GRINDING WHEEL .................... 14"D x 1- 1/4" x 5"
SPINDLE SPEED .............................. 1,750 RPM
MAXIMUM TABLE LOAD CAP. INCLUDING CHUCK ..   1,000 LBS.

APPROX. WEIGHT ............................. 4,180 LBS
FLOOR SPACE REQUIRED .................. 84"L-R x 67"W x 89"H

  EQUIPPED WITH:
AUTOMATIC INCREMENTAL DOWNFEED (SURFACE & PLUNGE)

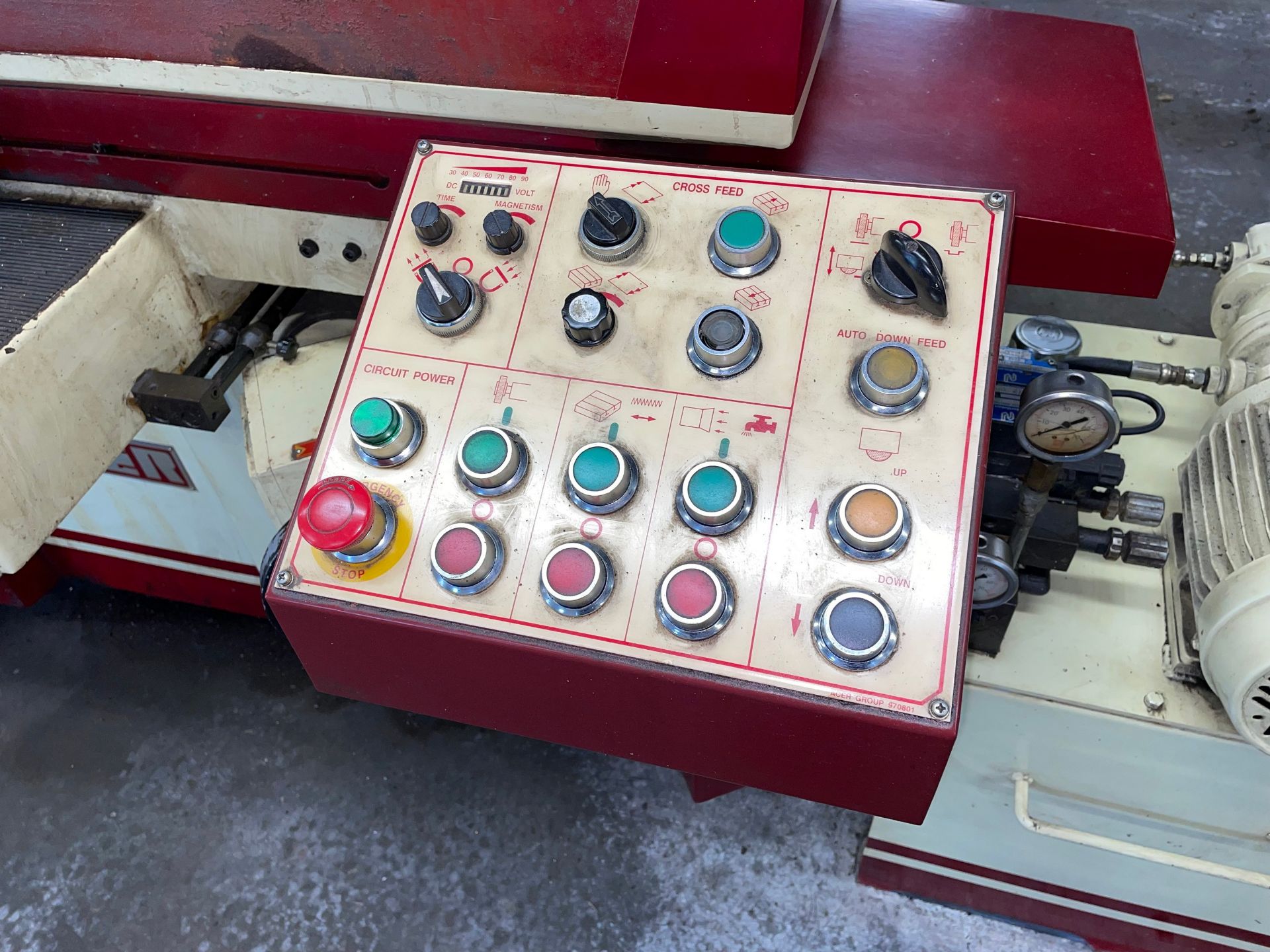

POWER RAPID WHEELHEAD POSITIONING BY PUSHBUTTON ON CONSOLE
HYDRAULICALLY POWERED LONGITUDINAL FEED
ELECTRONIC POWER CROSSFEED
TURCITE-B ON THE LONGITUDINAL WAYS (LOW FRICTION & WEAR)

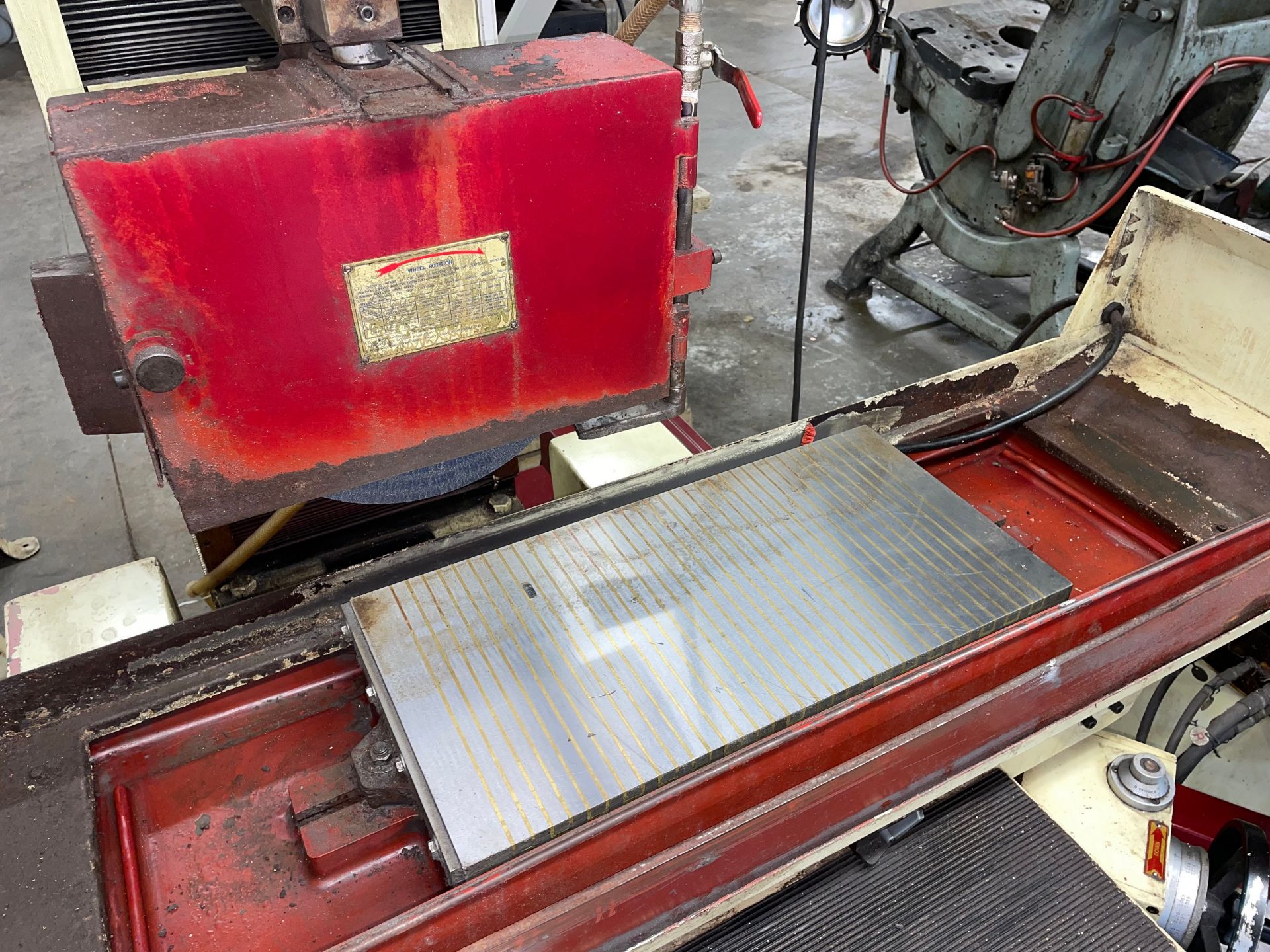

12" x 24" ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL, ON THE MACHINE CONSOLE CONTROL

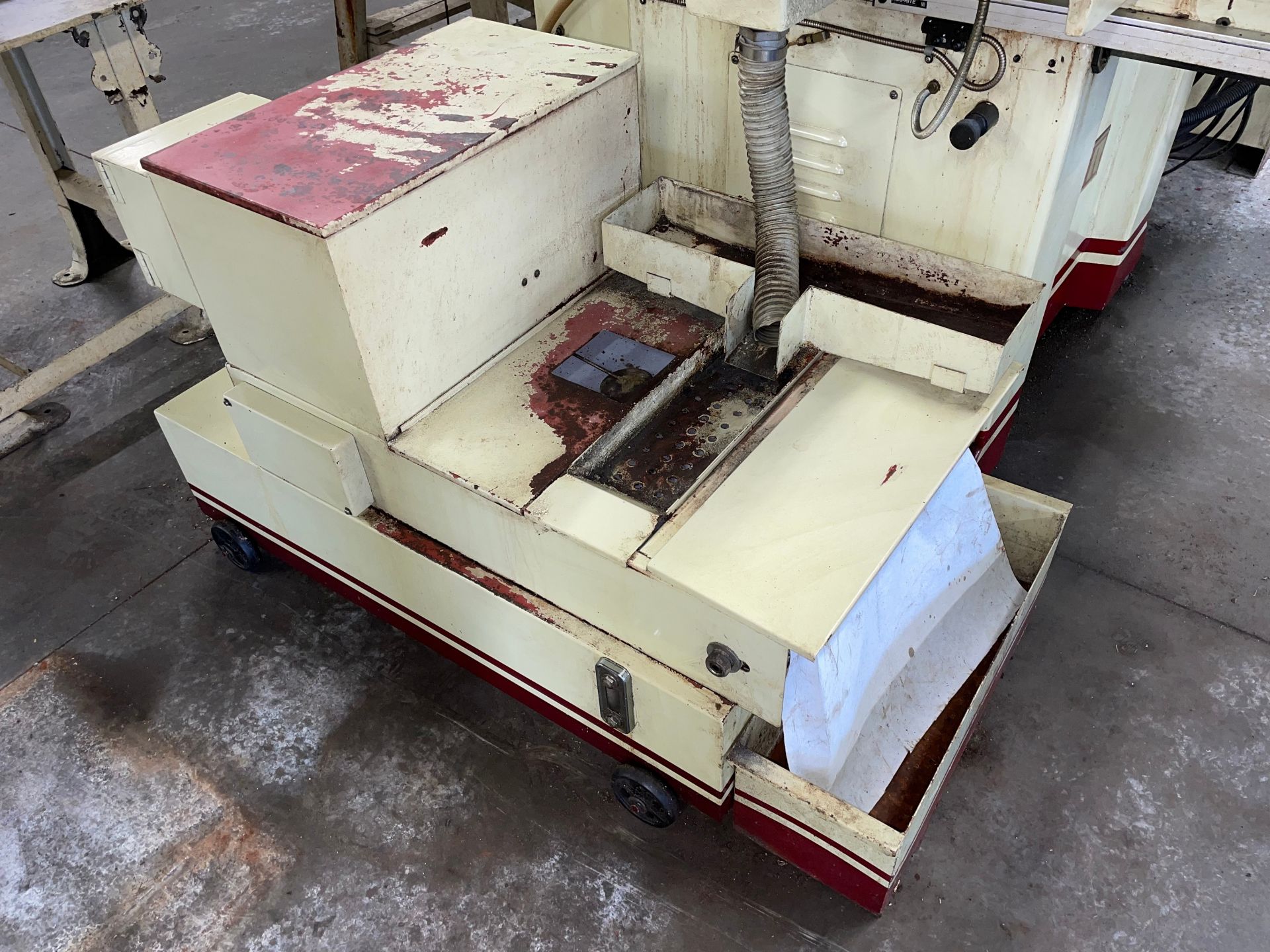

COOLANT SYSTEM WITH BOTH PAPER FILTRATION
OVER-THE-WHEEL DRESSER
EXTRA GRINDING WHEELS

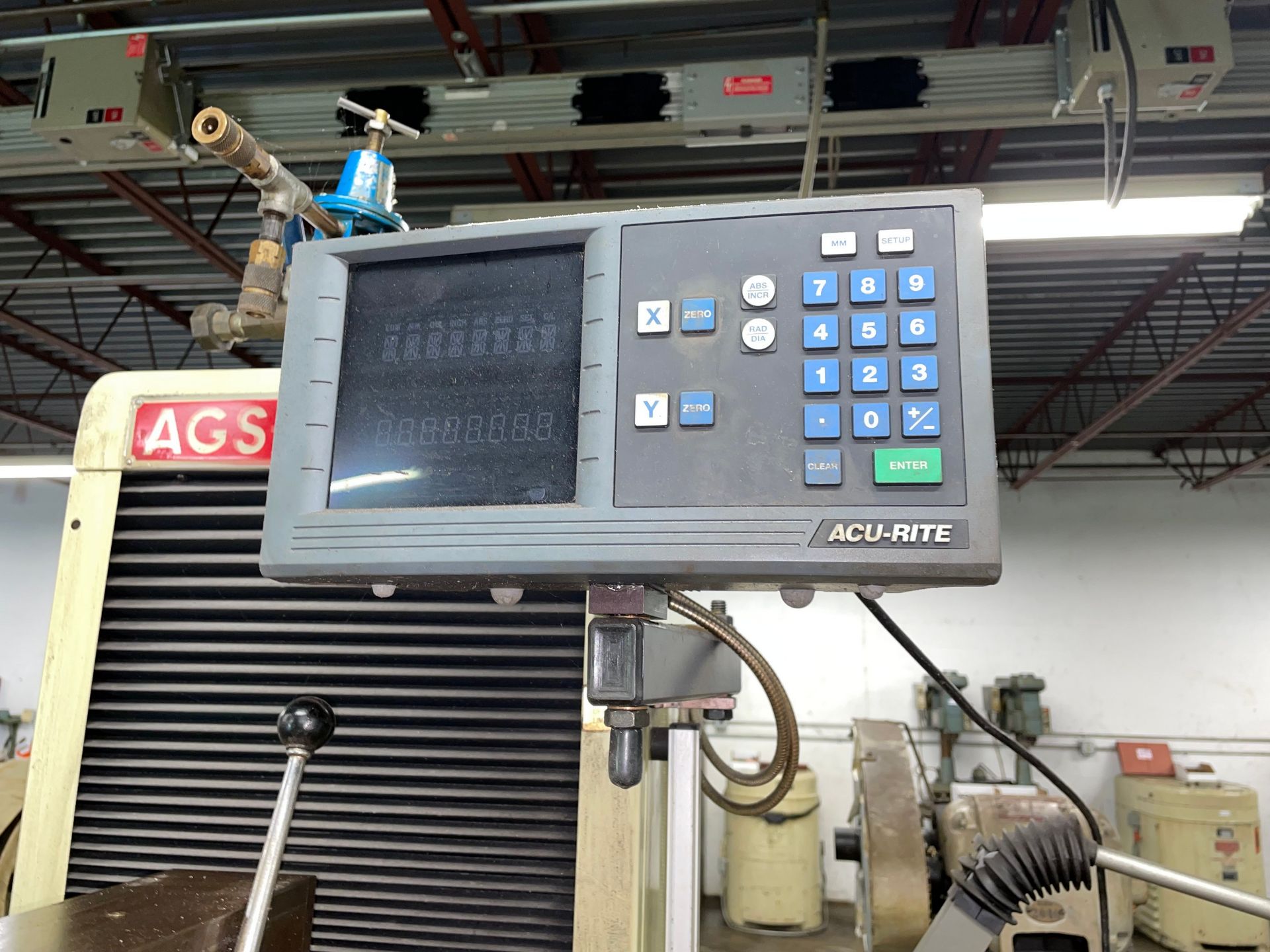

"ACU-RITE" 2-AXIS DRO
MEEHANITE CASTING
AUTO LUBE SYSTEM
EXTERNAL HYDRAULIC SYSTEM

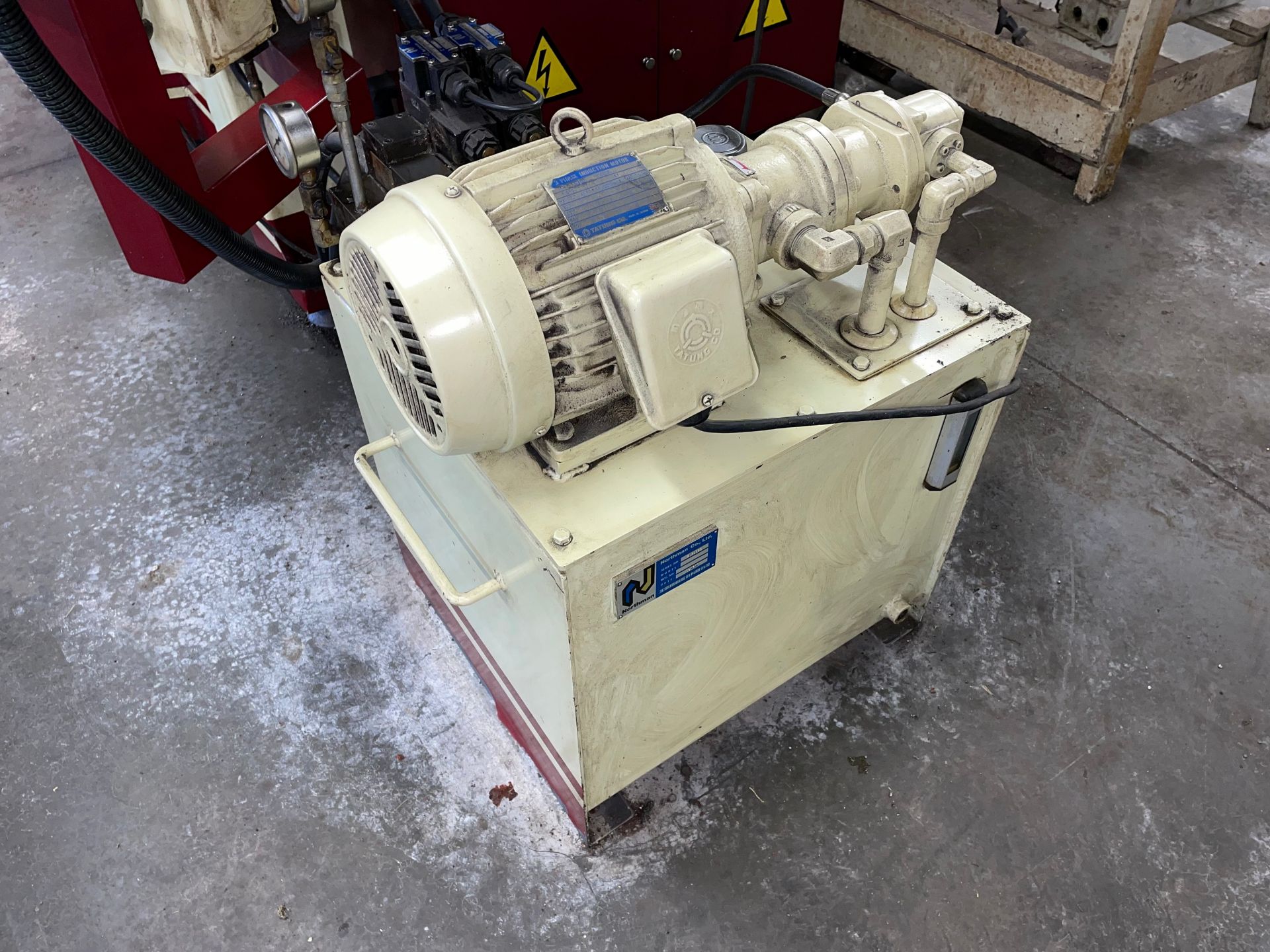

2 HP 3/60/230-460 VOLT EXTERNAL HYDRAULIC PUMP MOTOR & TANK
5 HP 3/60/230-460 VOLT SPINDLE MOTOR



** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT)  **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
