Acer SUPRA 1428AHD, 2002, PROG. AUTO IDF, 3X AUTO FEEDS SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Acer

Model:: SUPRA 1428AHD, 2002, PROG. AUTO IDF, 3X AUTO FEEDS

Year:: 2002

Ref #:: 177936

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

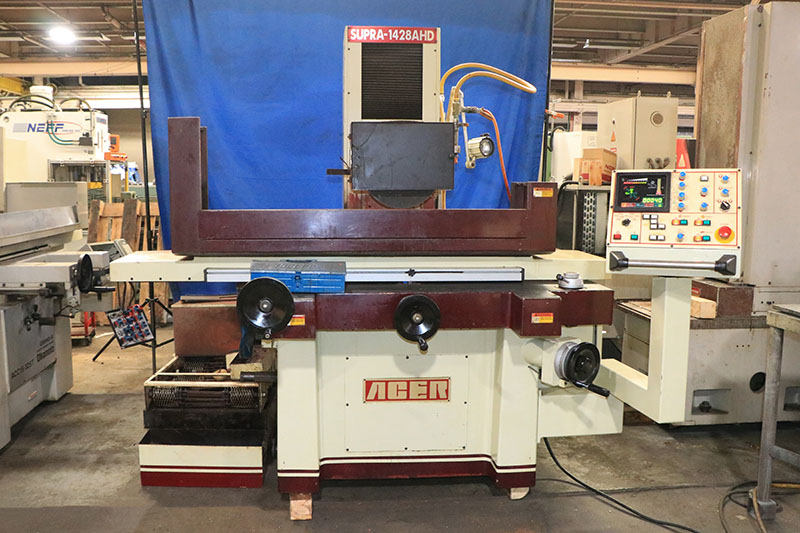

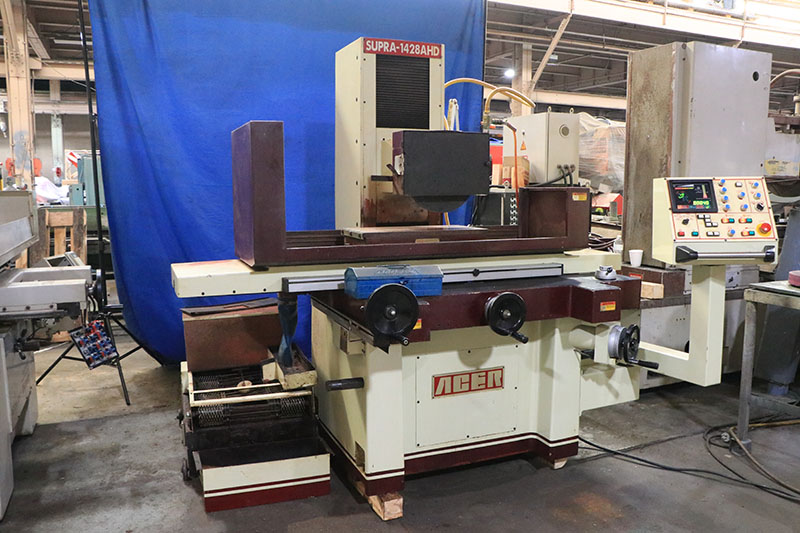

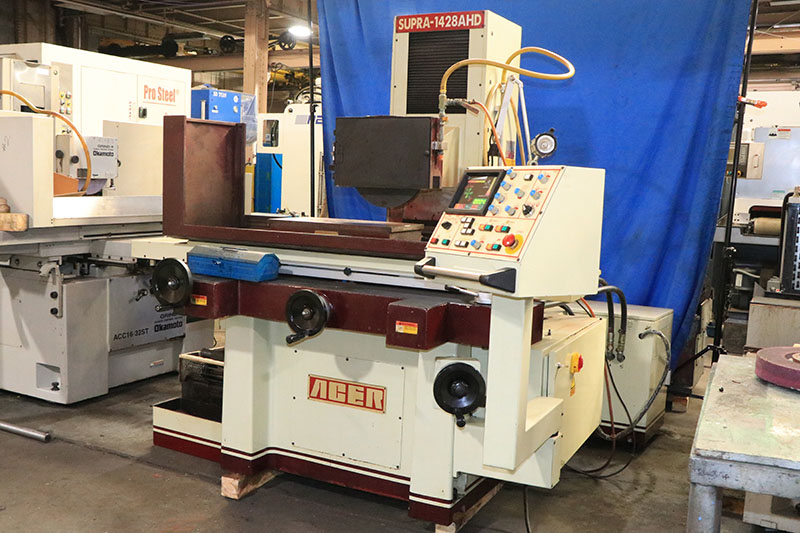

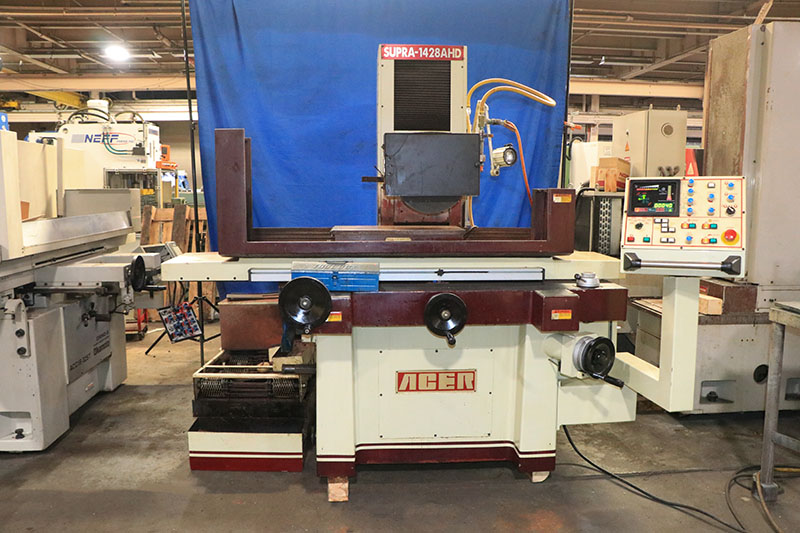

          14" X 28" ACER "SUPRA"
     HIGH PRECISION SERIES SURFACE GRINDER
      W/PROGRAMMABLE ELECTRONIC DOWNFEED

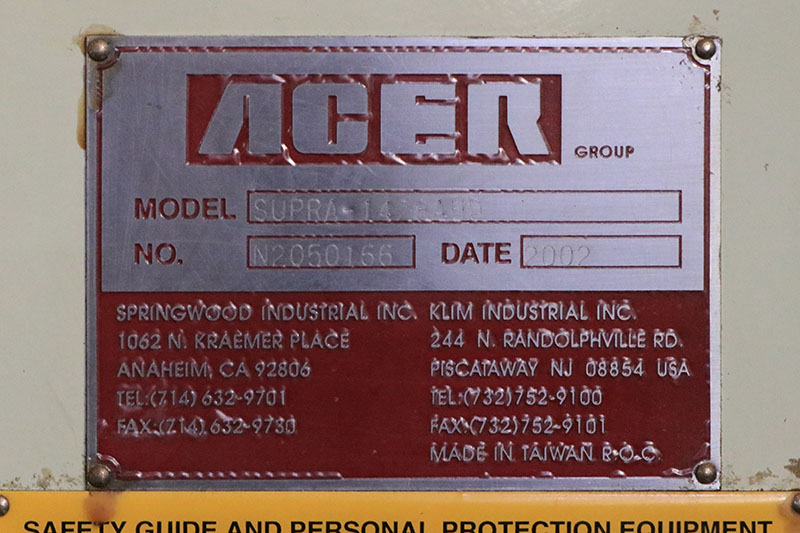

MODEL: SUPRA-1428AHD    S/N: N2050166     NEW: 2002

TABLE SIZE ............................. 12" x 26"
MAX. GRINDING CAPACITY ................. 14" X 28"
DIST. FROM SPINDLE CENTER TO TABLE ..... 28- 5/16"

LONGITUDINAL TABLE TRAVEL, HYDRAULIC ... 28"
LONGITUDINAL TABLE TRAVEL, MANUAL ...... 29- 1/2"

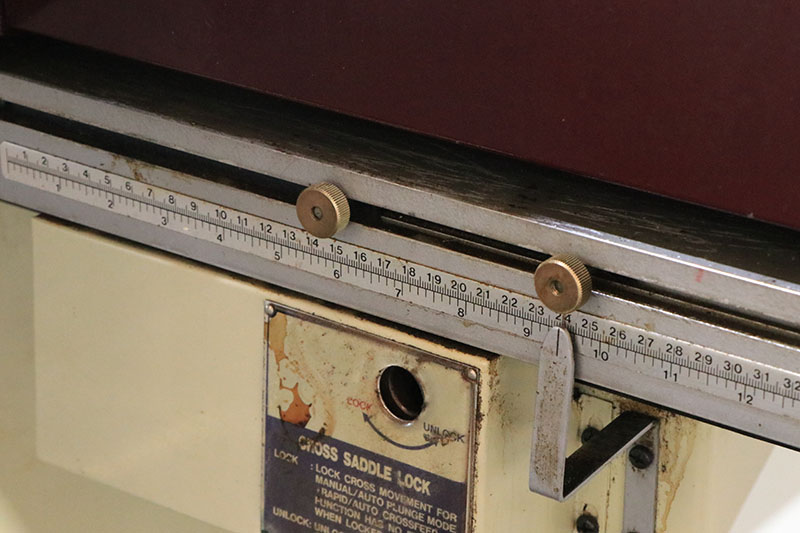

CROSS TRAVEL, POWER .................... 13- 3/4"
CROSS TRAVEL, MANUAL ................... 15"

VARIABLE TABLE SPEED, HYDRAULIC ........ 16' TO 80' FPM
AUTOMATIC CROSSFEED INCREMENT .......... 0.02" TO 0.5"
RAPID CROSS TRAVERSE RATE .............. 47- 1/4" IPM
CROSSFEED HANDWHEEL PER GRADUATION ..... 0.001"
PER REVOLUTION ............. ........... 0.2"
AUTO DOWN FEED INCREMENT (ROUGH)........ 0.00005" - 0.002"
AUTO DOWN FEED INCREMENT (FINE)......... 0.00005" - 0.00045"
RAPID VERTICAL POSITIONING RATE ........ 6" IPM

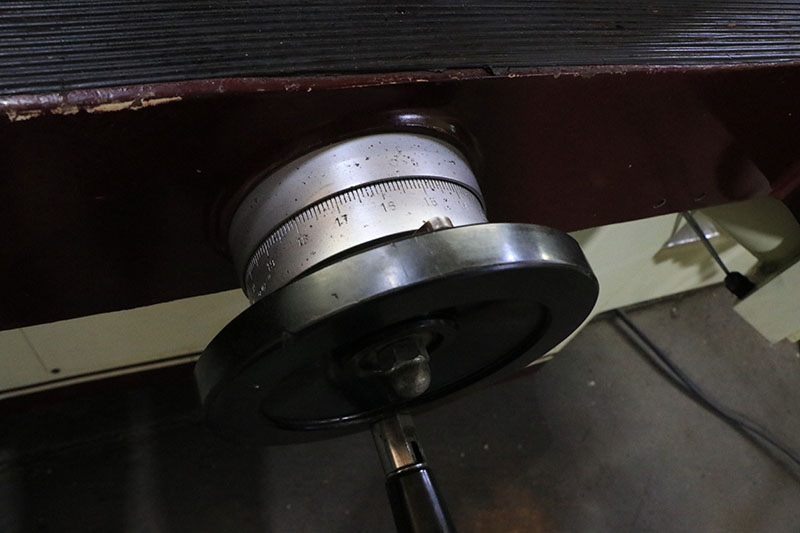

VERTICAL HANDWHEEL PER GRADUATION ...... 0.00005"
PER REVOLUTION ............. ........... 0.05"
SPINDLE MOTOR .......................... 7.5 H.P.
STANDARD GRINDING WHEEL ................ 14"D x 2" x 5"

APPROX. WEIGHT ......................... 7,000 LBS.
APPROX. DIMS. FOR SHIPPING ............. 87" x 77" x 88"H
APPROX. DIMS. FOR OPERATION ............ 110" x 78" x 81"H

  EQUIPPED WITH:

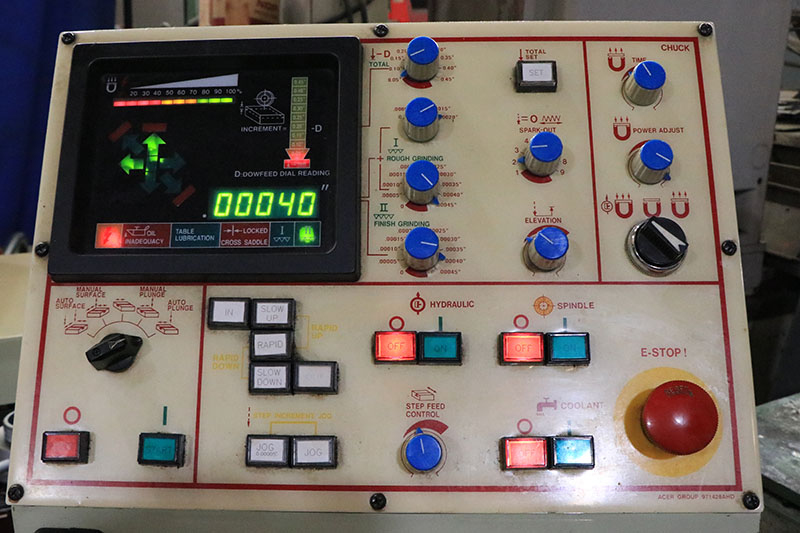

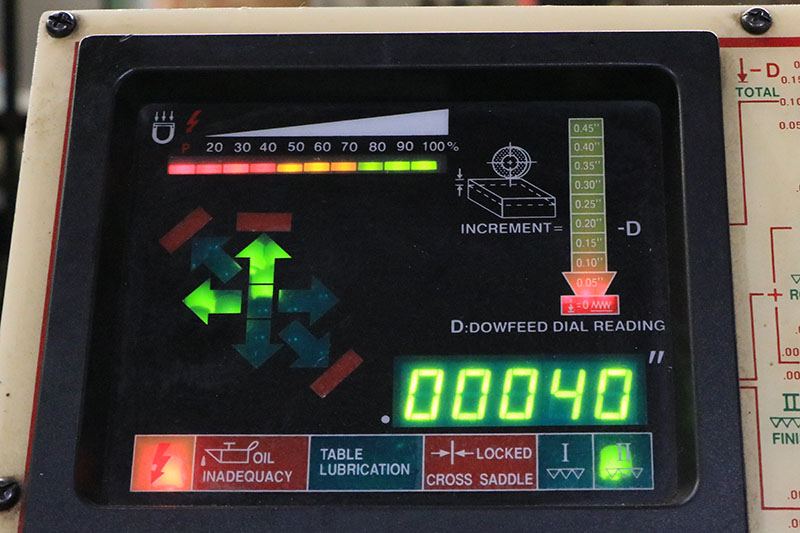

"LED" SCREEN DISPLAY FOR AUTO CYCLE CONTROLS
ELECTRONIC PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED
  CONTROL WITH MINIMUM INCREMENT 0.00005"
ROUGH & FINE FINE CYCLE OPTIONS FOR
 PLUNGE & SURFACE GRINDING MODES.
DOWNFEED CYCLE FEED AMOUNT CAN BE ONE TURN OF THE
  HANDWHEEL (.05" OR 9 TURNS OF THE HANDWHEEL, (0.45").
  THIS ALLOWS YOU TO DO "DEEP CUTS", A VERY NICE FEATURE.
SPARKOUT CYCLE (0 TO 9 PASSES) W/AUTO WHEEL RETRACTION
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
"TURCITE-B" ON "X" & "Y" AXES, INCREASES WAY LIFE
POWER CROSSFEED, DRIVEN BY BALL SCREW AND AC MOTOR,
 CONTROLLED ELECTRONICALLY
TURCITE-B FOR LONGITUDINAL & CROSS WAYS

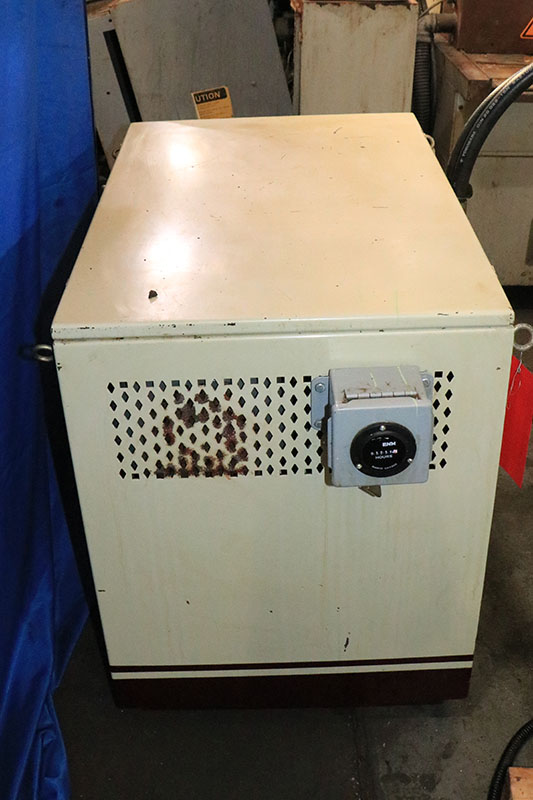

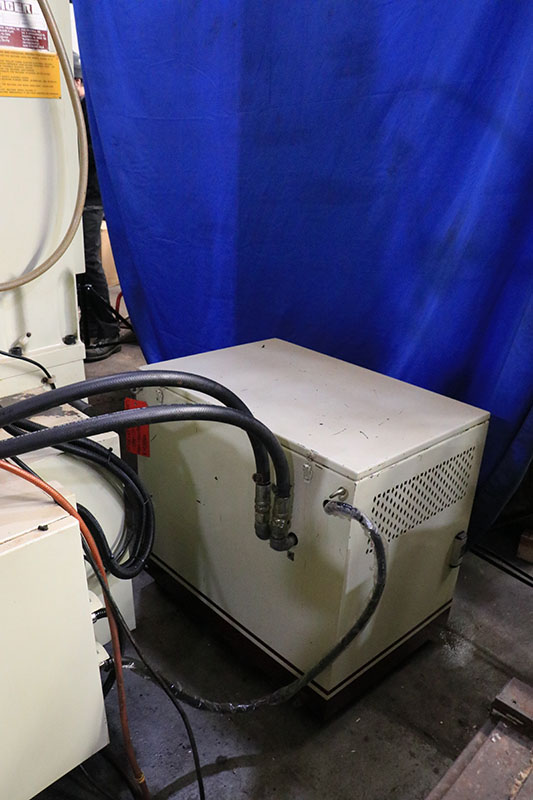

EXTERNAL HYDRAULIC SYSTEM

EQUIPPED WITH:

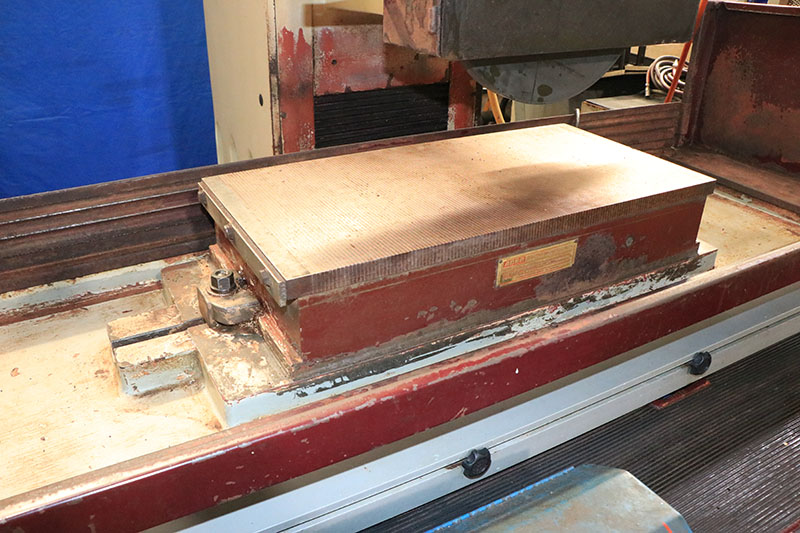

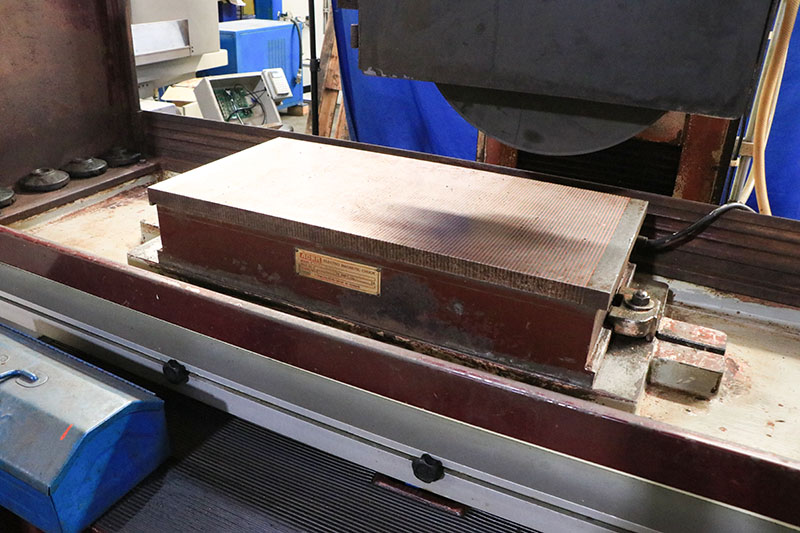

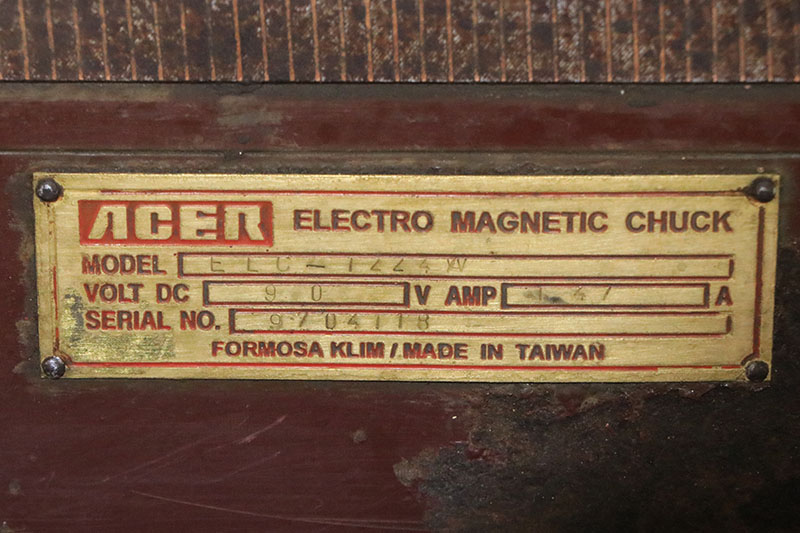

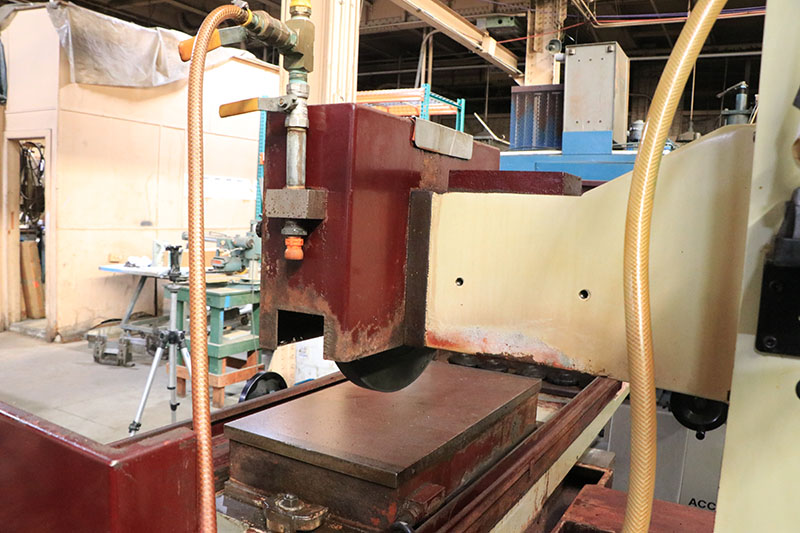

12" x 24" "ACER" MODEL "ELC-1224A" FINE-DIVISION
  "CROSS POLE" ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL

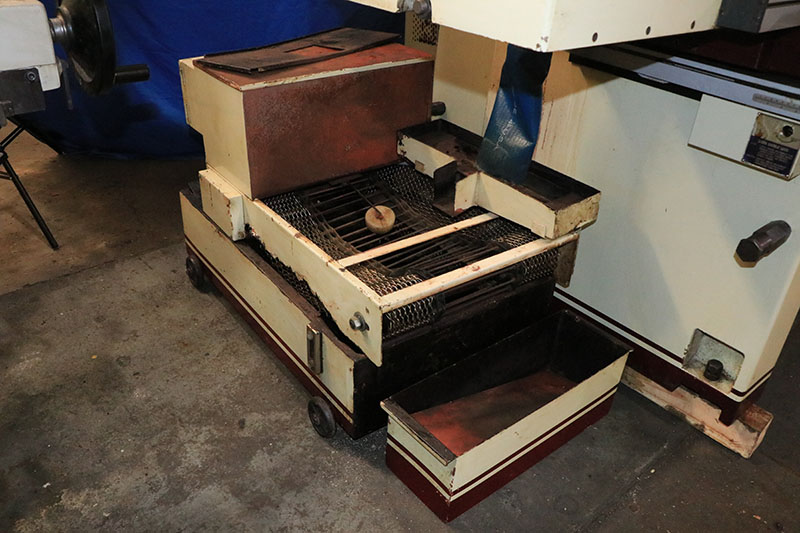

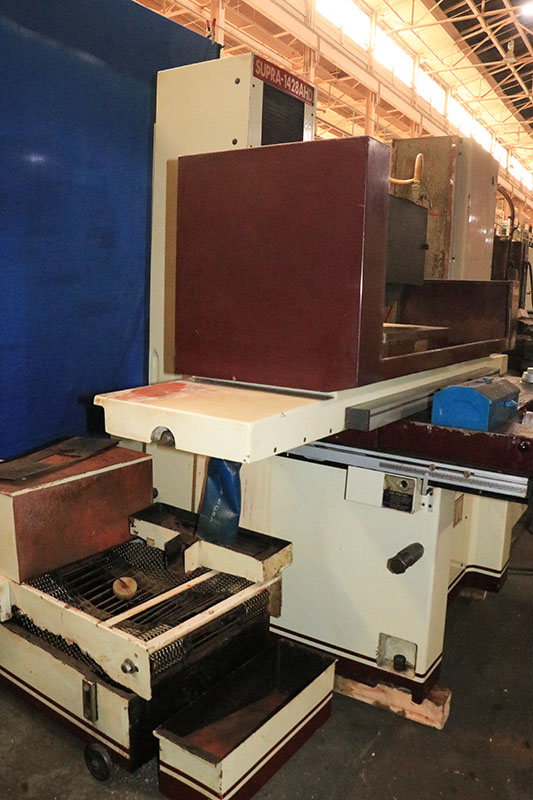

COOLANT SYSTEM WITH PAPER FILTRATION
5 H.P. DIRECT DRIVE SUPER-PRECISION SPINDLE

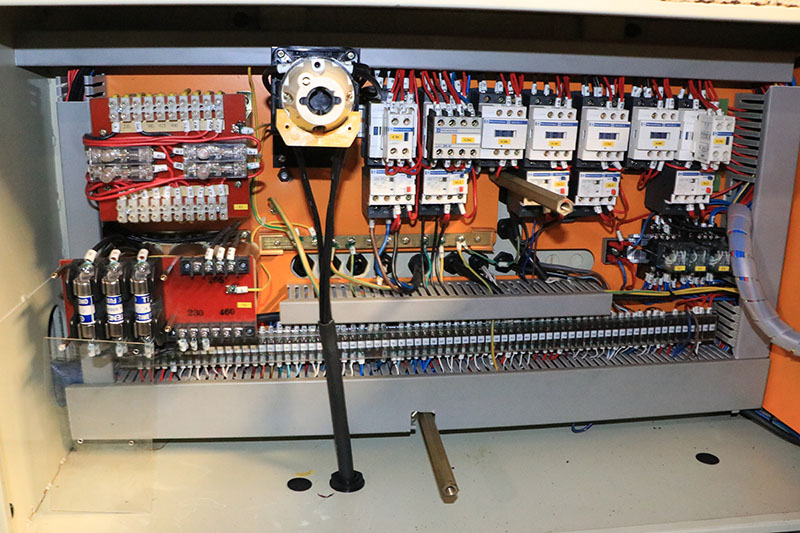

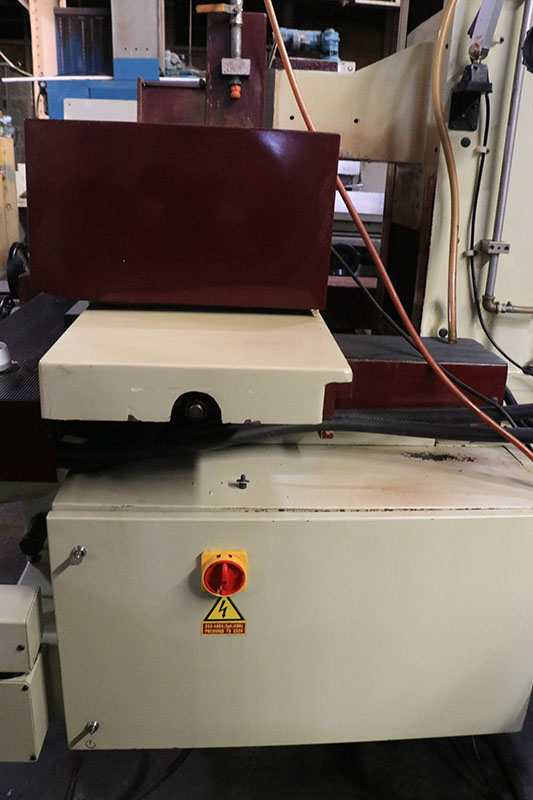

3/60/230-460 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 230 VOLTS

LINK TO VIDEO: https://youtu.be/OeXSTkQtxbw?si=Z3oSmNo5hYkS7VNr


** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
