Brown & Sharpe #13, NEW 1971,16" SWING w/RISERS TOOL & CUTTER GRINDERS

Price on Request

Make:: Brown & Sharpe

Model:: #13, NEW 1971,16" SWING w/RISERS

Year:: 1971

Ref #:: 158450

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

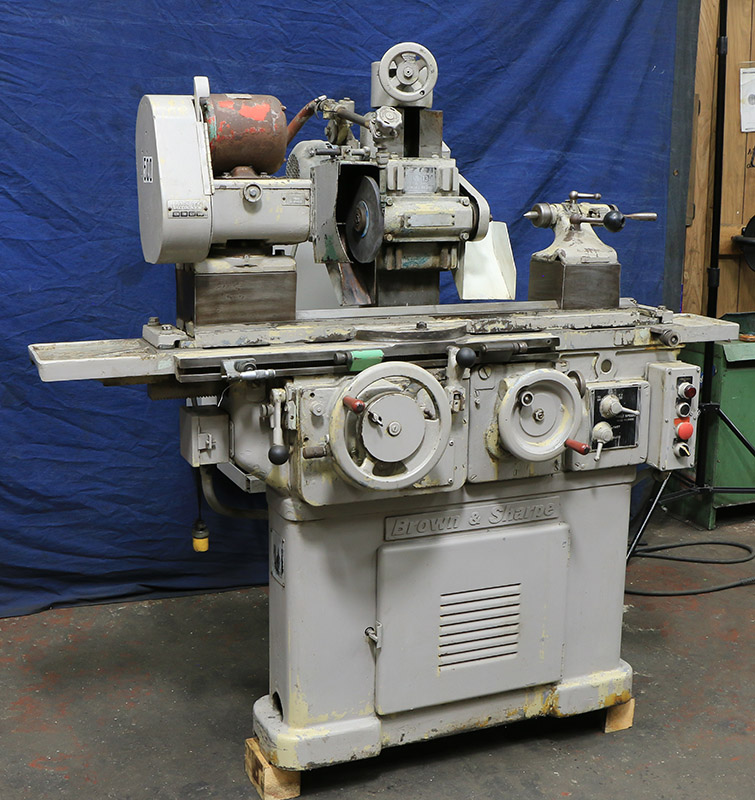

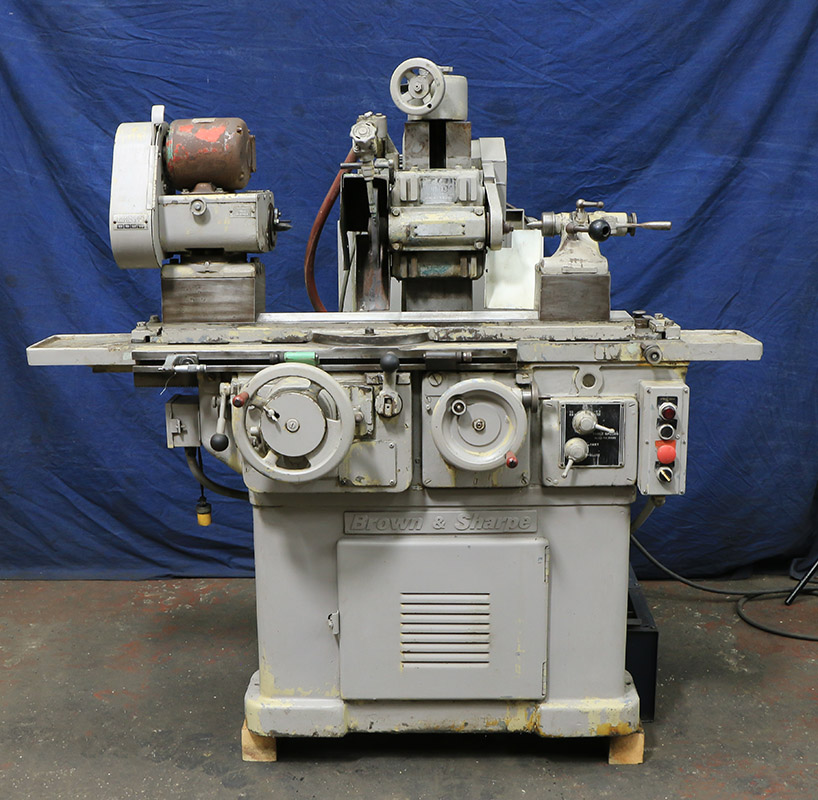

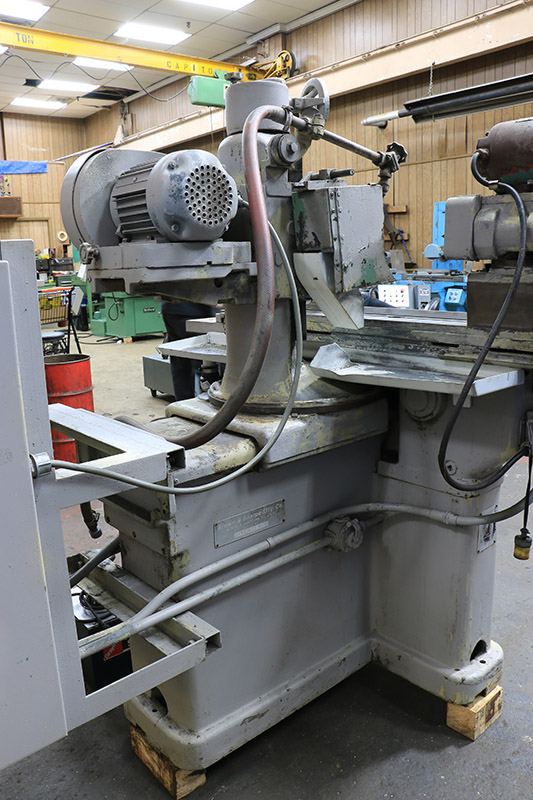

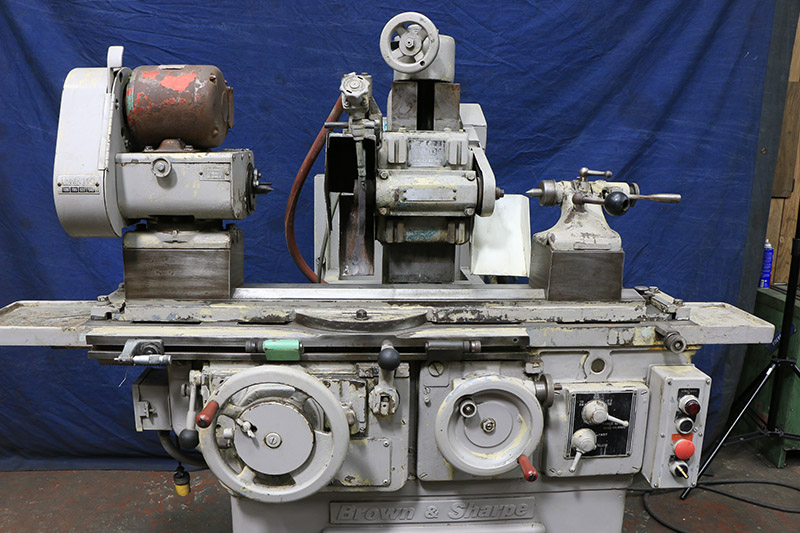

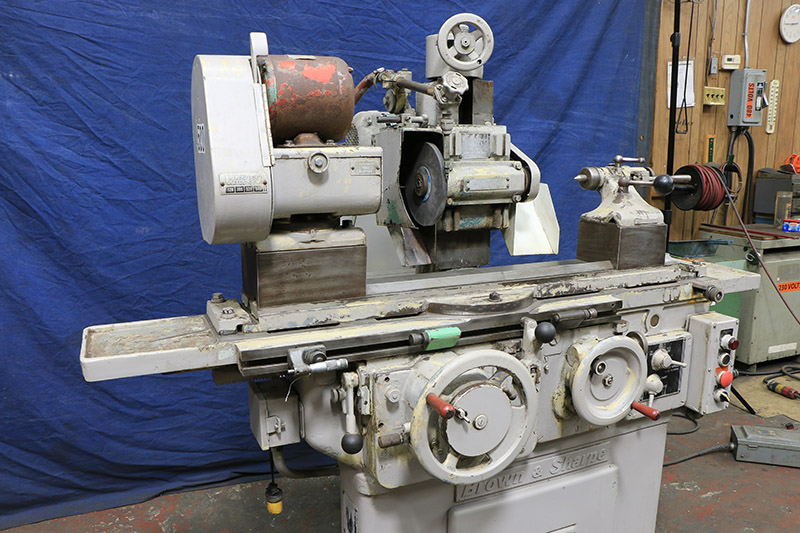

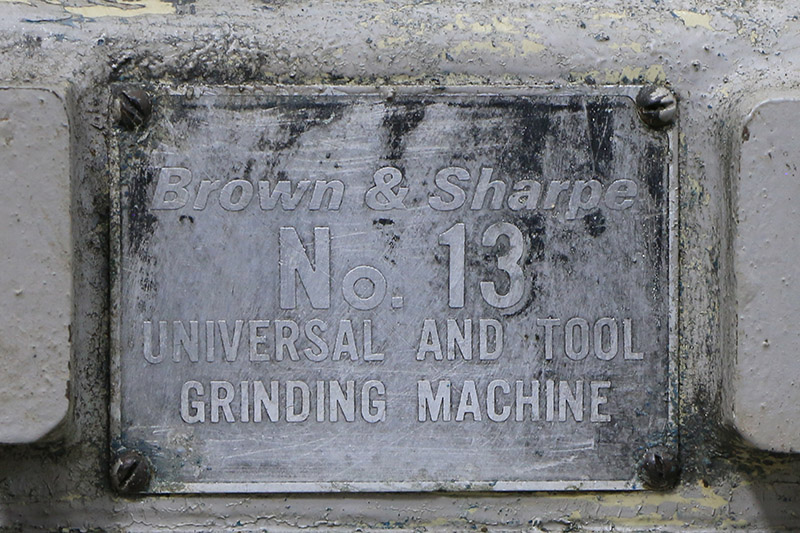

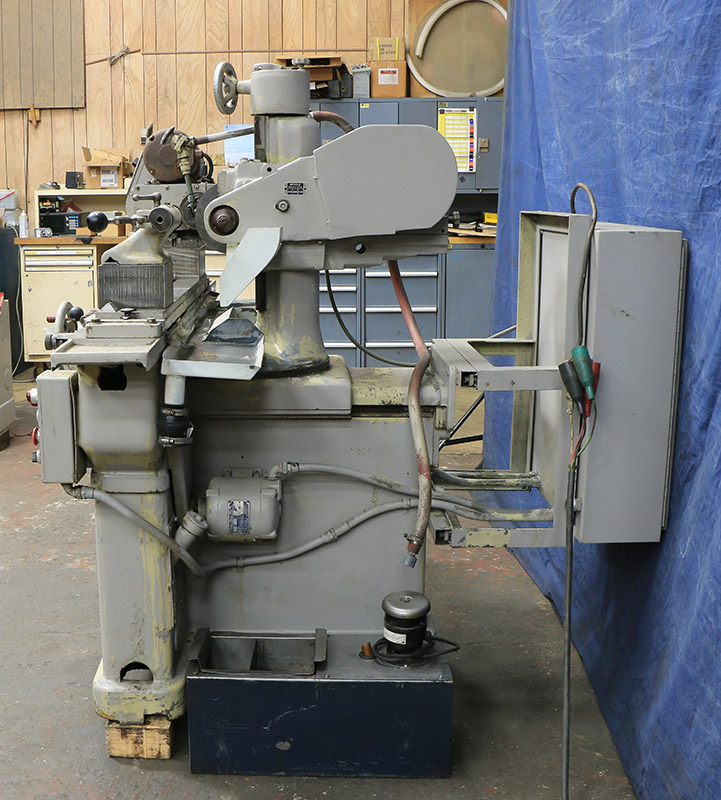

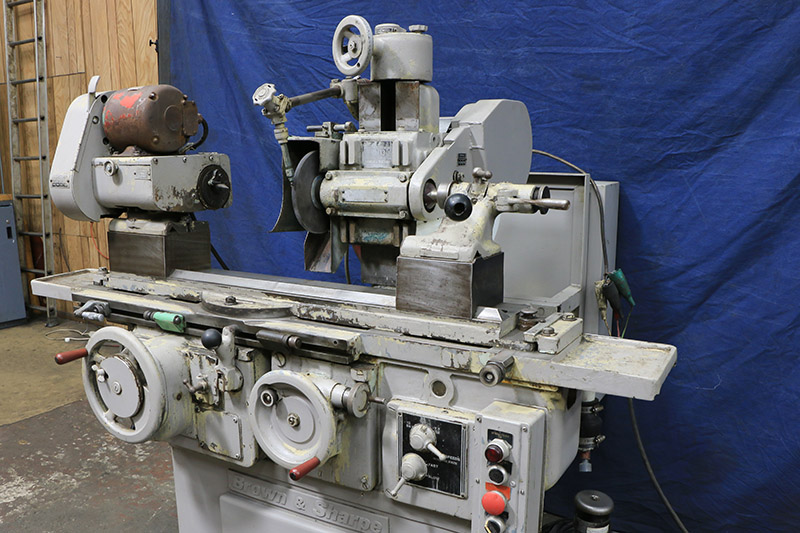

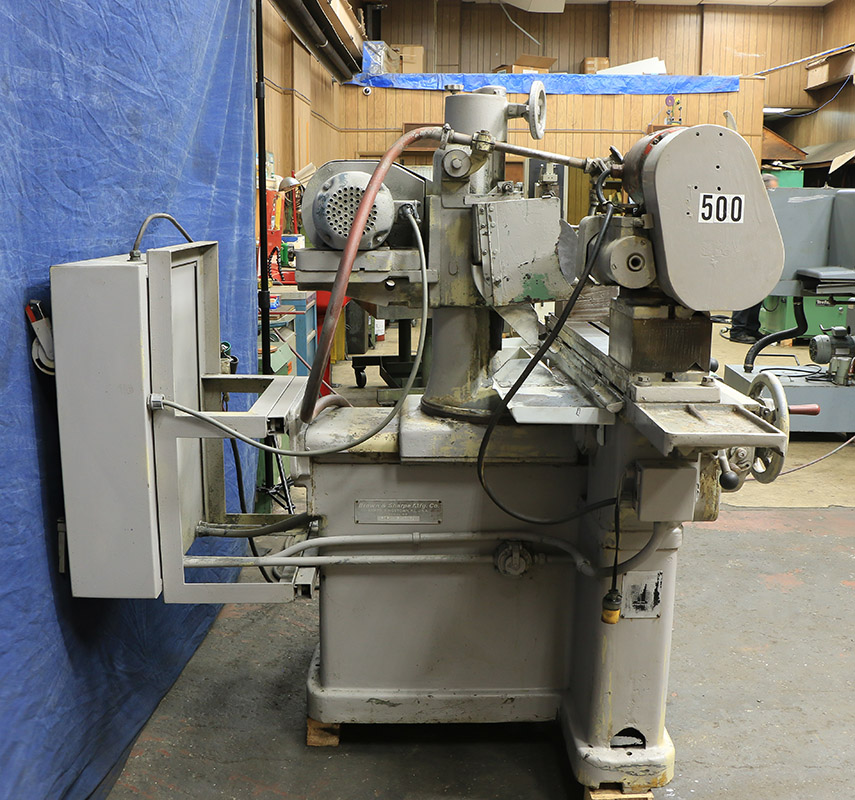

  BROWN & SHARPE #13 UNIVERSAL & TOOL GRINDING MACHINE
     WITH 4" RISERS, PROVIDING FOR 16" SWING - FOR INCREASED SWING CAPACITY

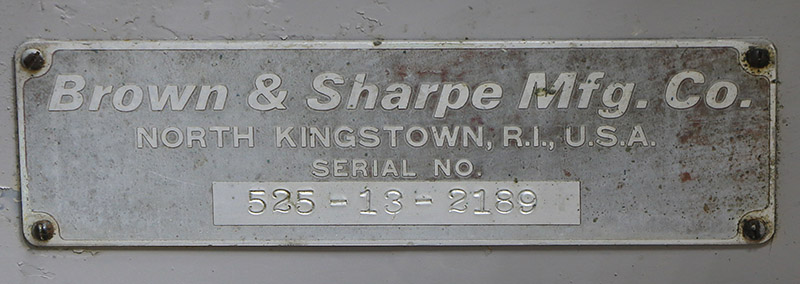

       S/N: 525-13-2189        NEW: 1971

  CAPACITY:
- NOMINAL CAPACITY WITHOUT RISERS ………………………………….. 8" DIAMETER
- GRINDS WORK WITH RISERS ....................... 16" DIAMETER
- GRINDS LENGTH ................................. 14"
- DISTANCE BETWEEN CENTERS ...................... 24"

  WHEELHEAD:
- GRINDING WHEEL SIZE ........................... 7" X 1/2" X 1-1/4"
- GRINDING WHEEL SPEEDS (3) ..................... 2730, 3600 & 5150 RPM
- WHEELHEAD TRAVEL .............................. 8-3/8"
- WHEELHEAD SWIVELS, LEFT & RIGHT ............... 110 DEGREES
- VERTICAL ADJUSTMENT ........................... 8-3/8"

  SWIVEL TABLE:

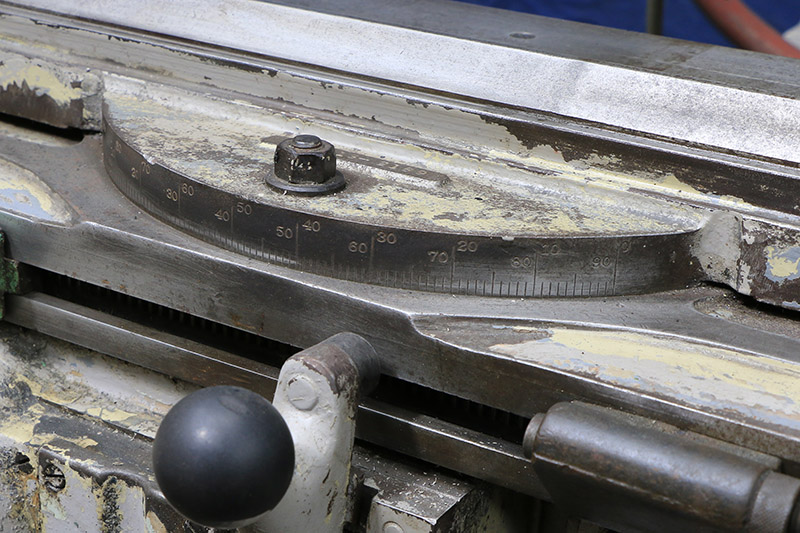

- ANGULAR SETTING TO LEFT & RIGHT ............... 90 DEGREES
- FINE SCREW ADJ. FOR SETTING TAPERS UP TO ...... 3" PER FT.
- TABLE TRAVEL .................................. 22"
- POWER TABLE SPEEDS (6) ........................ 7-3/4" TO 100" IPM
- TRAVEL PER REV. OF HANDWHEEL .................. 1/4" SLOW, 6-1/4" FAST

  HEADSTOCK & TAILSTOCK:
- SWIVELS LEFT & RIGHT .......................... 100 DEGREES
- SPINDLE SPEEDS (4) ............................ 128 TO 540 RPM
- SPINDLE TAPER FOR THE WORKHEAD & TAILSTOCK .... B & S No. 7

APPROX. DIMS. ................................... 68" x 55" x 65"H
APPROX. WIGHT ................................... 2,900 LBS.


  MACHINE FEATURES:
UNIVERSAL WHEELHEAD, TABLE & WORKHEAD
DOUBLE ENDED WHEEL SPINDLE
DUAL LIVE/DEAD HEADSTOCK SPINDLE
MANUAL TABLE TRAVERSE AND INFEED OF THE WHEELHEAD
FINE CROSS FEED KNOB (.0001" ON WORK DIA.)
VERTICAL HANDWHEEL GRADUATED TO READ .0005"
ANTI-FRICTION BEARING WHEELHEAD SPINDLE
1 H.P. 3/60/220-440 VOLT WHEELHEAD MOTOR
1/6 H.P. WORKHEAD MOTOR

EQUIPPED WITH:
4" RISER BLOCKS, INCREASES THE SWING TO 16" DIAMETER
10" DIAMETER WHEEL GUARD
MACHINE CAN USE 5", 7" OR 10" DIAMETER GRINDING WHEELS
WORKHEAD IS SET-UP WITH A "LIVE" CENTER PRESENTLY
COOLANT SYSTEM

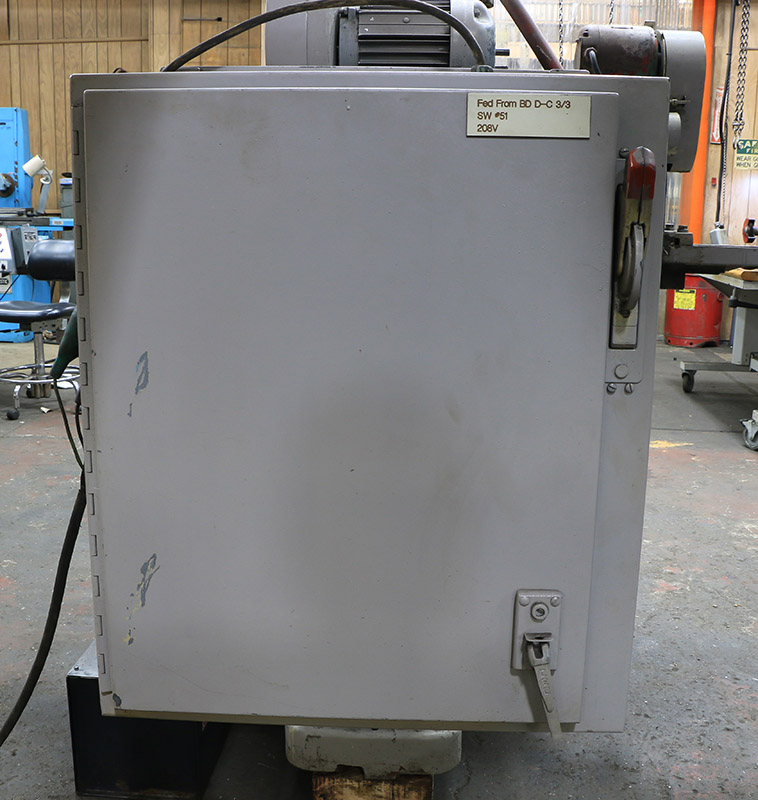

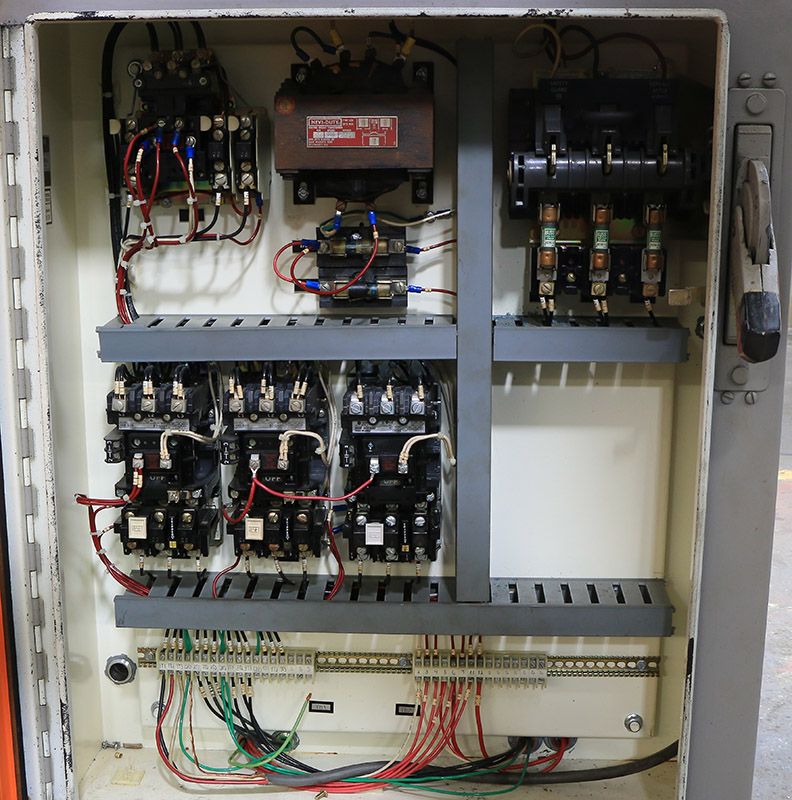

MACHINE IS CURRENTLY WIRED FOR 3/60/220 VOLTS


SPECIAL NOTE:
"VALUED BY TOOLMAKERS FOR THEIR VERSATILITY, THIS MACHINE HAS
 BROAD ADAPTABILITY  FOR GRINDING THE CONTOURS OF MILLING CUTTERS,
 REAMERS, FORM TOOLS DOING CYLINDRICAL  GRINDING AS REQUIRED
 BY THE TYPICAL SHOP."

* * "PAINT IS NOT GREAT BUT THE MACHINE OVERALL IS CLEAN & RUN WELL"  * *
     ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
