Chevalier FSG-1224AD, NEW 1995, PROGRAMMABLE AUTO IDF, SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Chevalier

Model:: FSG-1224AD, NEW 1995, PROGRAMMABLE AUTO IDF,

Year:: 1995

Ref #:: 160753

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

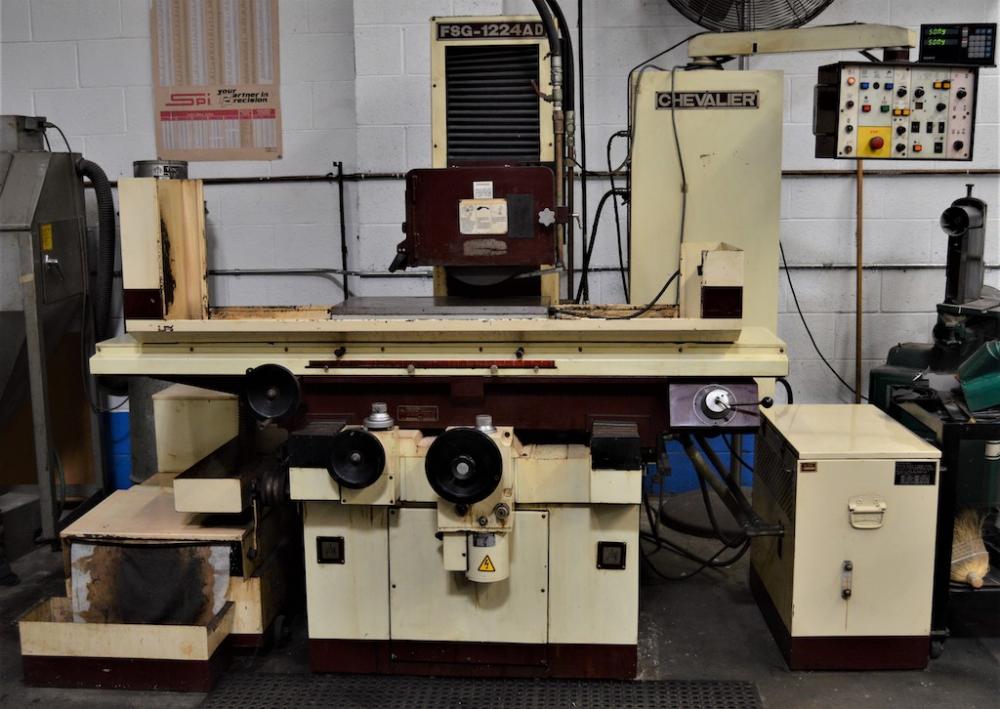

  12" X 24" CHEVALIER PRECISION SURFACE GRINDER
  W/PROGRAMMABLE MICROPROCESSOR AUTOMATIC
  INCREMENTAL DOWNFEED CONTROL (PENDANT MOUNTED)

MODEL: FSG-1224AD    S/N: F1841006   NEW: 1995

TABLE SIZE......................... 11-3/4" X 25-3/8"
MAX. GRINDING CAPACITY .................... 12" X 24"
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC ... 25-5/8"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ...... 27-1/2"
MAX. CROSSFEED TRAVEL, AUTOMATIC ................ 12"
MAX. CROSSFEED TRAVEL, MANUAL ............... 13-3/4"
DIST. FROM SPINDLE CENTER TO TABLE .......... 19-3/4"
VARIABLE TABLE SPEED, HYDRAULIC ...... 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT ........ 1/8" TO 1-1/4"
CROSSFEED HANDWHEEL, PER GRADUATION ......... 0.0025"
PER REVOLUTION ................................ 0.25"
MICROFEED, PER REVOLUTION ................... 0.0005"
PER GRADUATION ............................. 0.00005"
AUTOMATIC INCREMENTAL DOWNFEED .... 0.00005" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION ........... 0.0005"
PER REVOLUTION ................................ 0.05"
MICROFEED ........................... 0.00005"/.0001"
RAPID TRAVERSE RATE .......................... 8" IPM
SPINDLE MOTOR .................................. 5 HP
STANDARD GRINDING WHEEL ......... 14"DIA. X 2"W X 5"B

APPROX. WEIGHT ............................ 4,850 LBS
APPROX. DIMENSIONS ................. 98" X 68" X 88"H

  EQUIPPED WITH:
PENDANT MOUNTED AND MICROPROCESSOR CONTROLLED AUTOMATIC
  INCREMENTAL DOWNFEED OF GRINDING WHEELHEAD FROM 0.00005"
  T0 0.002" IN SURFACE OR PLUNGE MODES OF OPERATION.  FULLY
  AUTOMATIC GRINDING CYCLE INCLUDING RAPID ADVANCE OF
  GRINDING WHEELHEAD, 0 T0 7 SPARKOUT PASSES, AND RETRACTION
  OF WHEELHEAD TO A PRE-SET DISTANCE AT THE COMPLETION OF
  THE CYCLE.
HYDRAULICALLY ACUTATED LONGITUDINAL TABLE FEED
ELECTROMECHANICALLY ACTUATED FEED OF SADDLE
TABLE AND SADDLE GUIDE WAYS MADE OF SPECIAL STEEL RAILS
  WITH HIGH ACCURACY STEEL ROLLERS
PRECISION NEEDLE ROLLER BEARINGS USED ON THE ELEVATING
  GUIDE WAYS
FINE (MICRO) FEEDS GRADUATED TO .00005" FOR VERTICAL
  & CROSS FEEDS
11-3/4" X 23-5/8" KANETSU ELECTROMAGNETIC CHUCK WITH A
  PENDANT MOUNTED POTENTIOMETER FOR VARIABLE HOLDING POWER
  AND A SELECTOR SWITCH FOR AUTOMATIC DEMAGNETIZATION OF
  WORK PIECE
"SONY" TWO-AXIS DIGITAL READOUT DISPLAY
EXTERNAL COOLANT SYSTEM WITH PAPER FILTER
EXTERNAL HYDRAULIC PUMP AND TANK
5 HP 3/60/230-460 VOLT DRIVE SPINDLE MOTOR
MACHINE IS PREWIRED TO ACCEPT 230 OR 460 VOLTS

** ORIGINAL PAINT - EXCELLENT CONDITION & APPEARANCE!! **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
