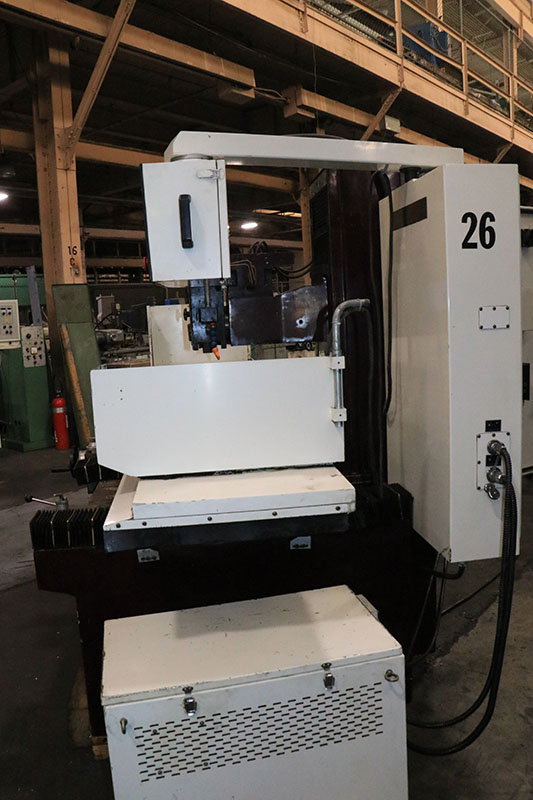

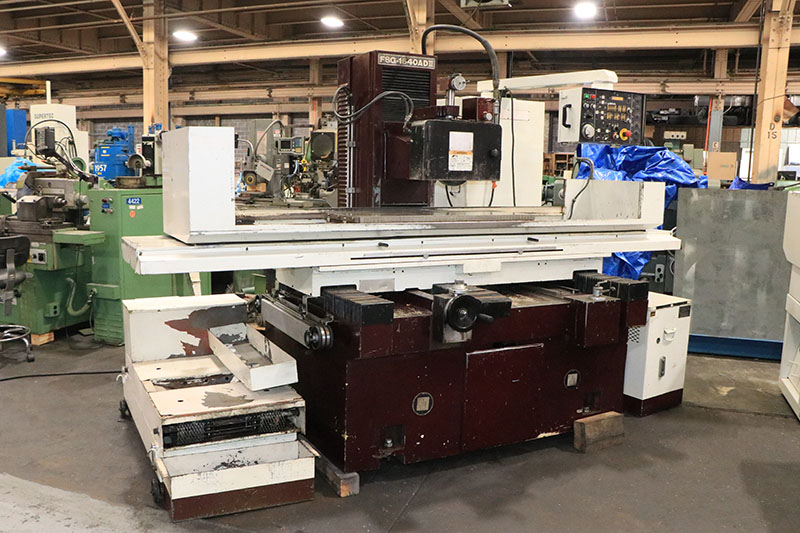

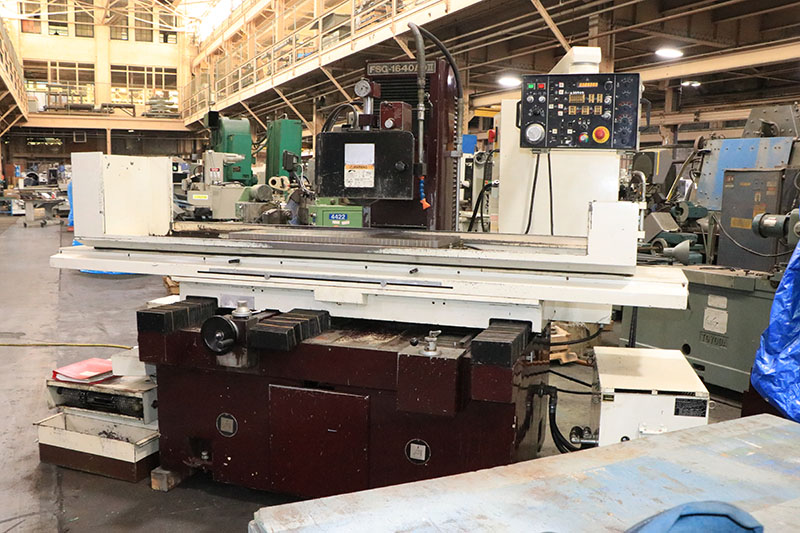

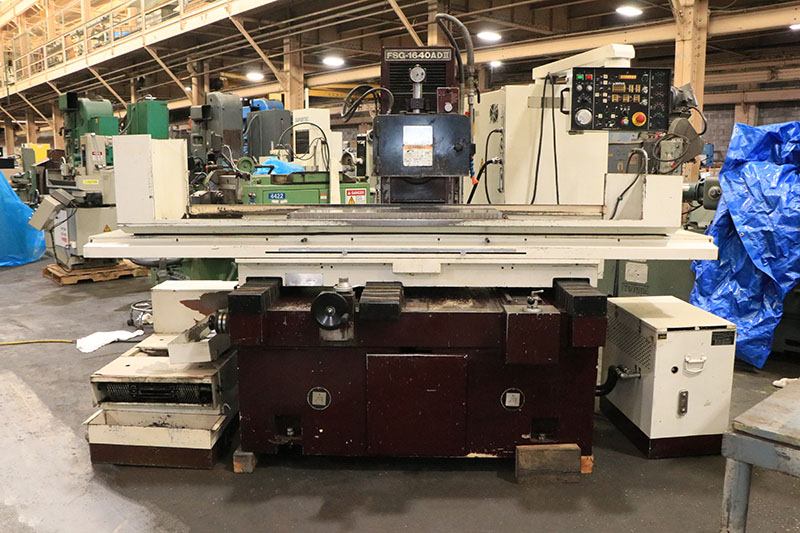

Chevalier FSG-1640ADII, 2001, 3X AUTO FEEDS, AUTO IDF SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Chevalier

Model:: FSG-1640ADII, 2001, 3X AUTO FEEDS, AUTO IDF

Year:: 2001

Ref #:: 164380

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com


16" X 40" CHEVALIER PRECISION SURFACE GRINDER
 W/PROGRAMMABLE MICROPROCESSOR AUTOMATIC
 INCREMENTAL DOWNFEED CONTROL (PENDANT MOUNTED)

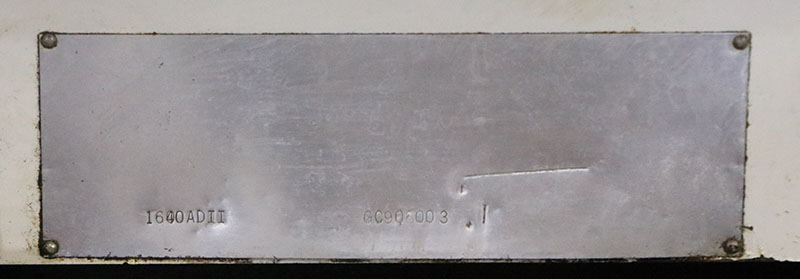

MODEL: FSG-1640ADII    S/N: GC908003   NEW: 2001


TABLE SIZE............................ 15-3/4" x 39-5/8"
MAX. GRINDING CAPACITY ............... 16" x 40"
DIST. FROM SPINDLE CENTER TO TABLE ... 24-3/8"

MAX. LONGITUDINAL TABLE TRAVEL,
 HYDRAULIC .......................... 41-5/16"
MAX. LONGITUDINAL TABLE TRAVEL,
 MANUAL ............................. 43-1/4"
VARIABLE TABLE SPEED, HYDRAULIC ..... 16' TO 82' FPM

MAX. CROSSFEED TRAVEL, AUTOMATIC .... 16"
MAX. CROSSFEED TRAVEL, MANUAL ....... 18"
CROSS RAPID TRAVEL .................. 12' FPM
AUTOMATIC CROSSFEED INCREMENT ....... 1/8" TO 1-1/4"
HANDWHEEL PER REV. .................. 0.25"
HANDWHEEL PER GRADUATION ............ 0.0025"
MICROFEED- PER REV. ................. 0.005"
MICROFEED- PER GRAD. ................ 0.00005"

AUTOMATIC INCREMENTAL DOWNFEED ...... 0.000050" TO .002"
VERTICAL RAPID TRAVERSE RATE ........ 8" IPM
SPINDLE MOTOR ....................... 5 HP
STANDARD GRINDING WHEEL ............. 14"DIA. x 2"W x 5"B
SPINDLE SPEED ....................... 1,750 RPM

APPROX. WEIGHT ...................... 9,240 LBS
APPROX. DIMENSIONS .................. 120" x 68" x 76"H
APPROX. DIMS. REQUIRED FOR OPS. ..... 158" x 68" x 76"H

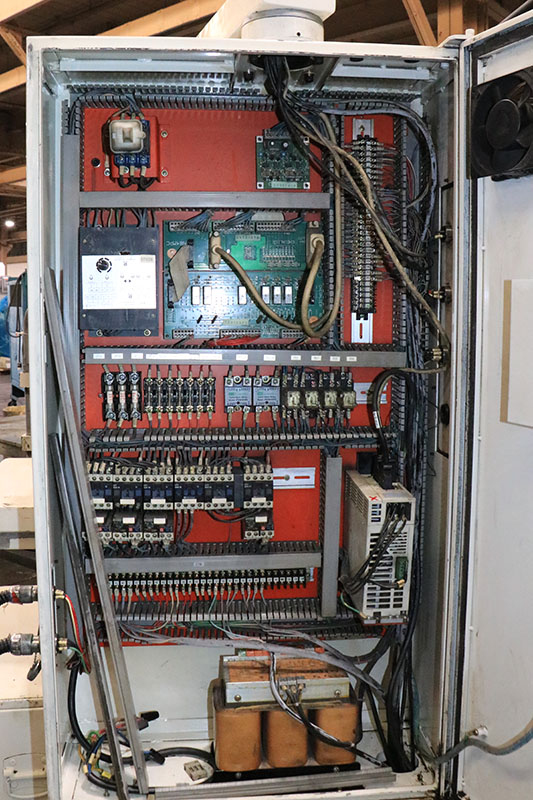

  EQUIPPED WITH:
HYDRAULICALLY ACUTATED LONGITUDINAL TABLE FEED,
 WITH HANDWHEEL FOR MANUAL TABLE MOVEMET
ELECTROMECHANICALLY ACTUATED FEED OF SADDLE
VERTICAL DRIVE BY AC SERVO MOTOR

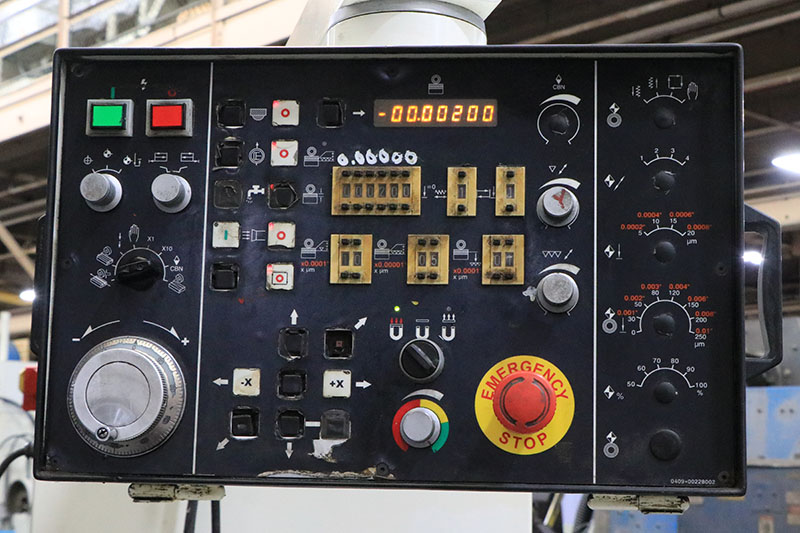

PENDANT MOUNTED AND MICROPROCESSOR CONTROLLED AUTOMATIC
  INCREMENTAL DOWNFEED OF GRINDING WHEELHEAD FROM
  0.00005" T0 0.002" IN SURFACE OR PLUNGE MODES OF
  OPERATION.  FULLY AUTOMATIC GRINDING CYCLE
  INCLUDING RAPID ADVANCE OF  GRINDING WHEELHEAD,
  0 T0 7 SPARKOUT PASSES, AND RETRACTION OF WHEELHEAD
  TO A PRE-SET DISTANCE AT THE COMPLETION OF THE CYCLE.
TABLE AND SADDLE GUIDE WAYS MADE OF SPECIAL STEEL RAILS
  WITH HIGH ACCURACY STEEL ROLLERS
PRECISION NEEDLE ROLLER BEARINGS USED ON THE ELEVATING
  GUIDE WAYS
FINE (MICRO) FEEDS GRADUATED TO .00005" FOR BOTH
 VERTICAL & CROSS FEEDS

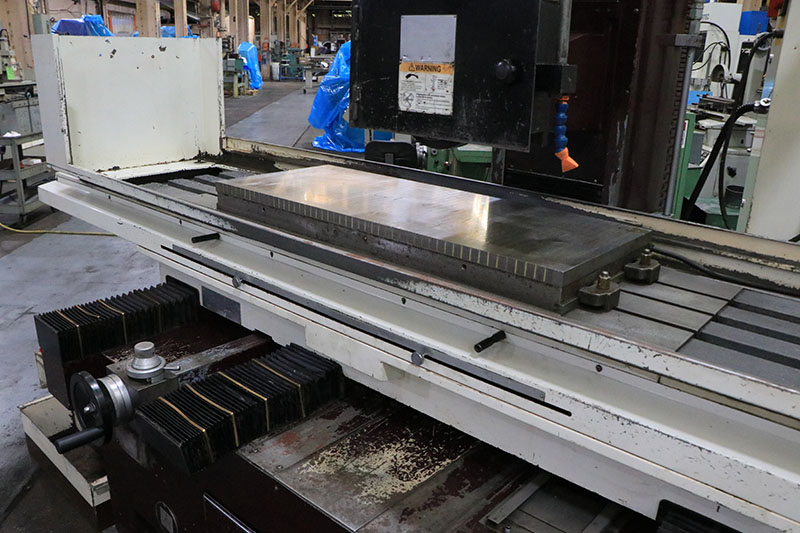

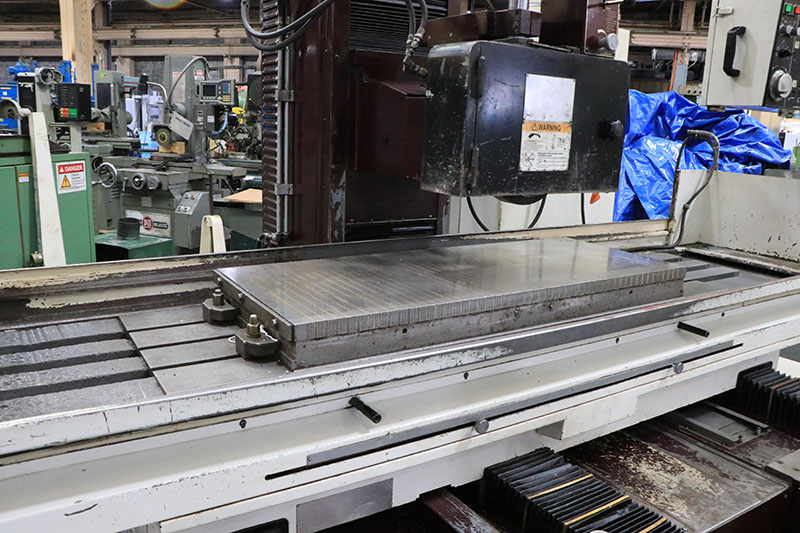

15-3/4" X 39-3/8" KANETSU MODEL KET-40100K
 ELECTRO-MAGNETIC CHUCK WITH A PENDANT MOUNTED
 POTENTIOMETER FOR VARIABLE HOLDING POWER AND A
 SELECTOR SWITCH FOR AUTOMATIC DEMAGNETIZATION
 OF WORK PIECE.

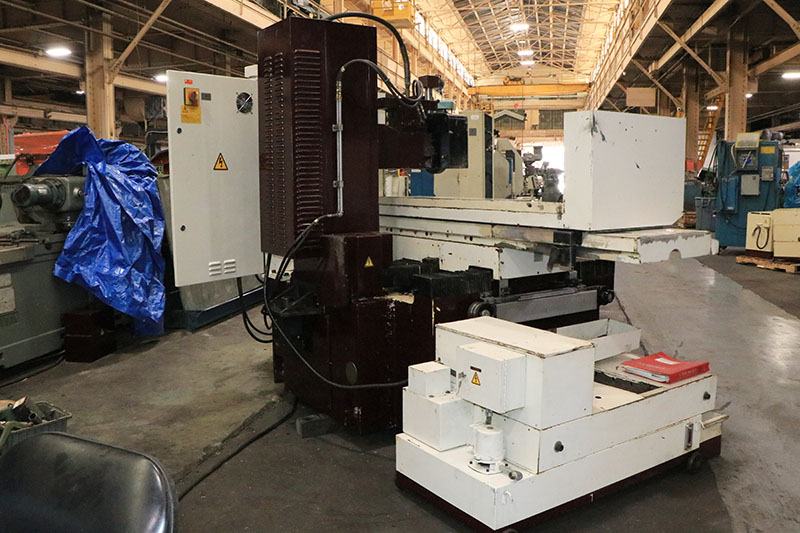

COOLANT SYSTEM w/PAPER FILTRATION

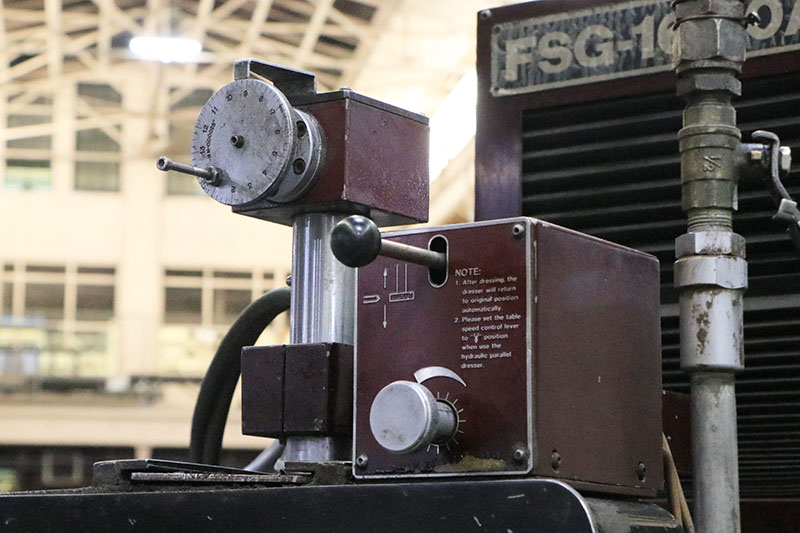

POWER "OVER-THE-WHEEL" DRESSER

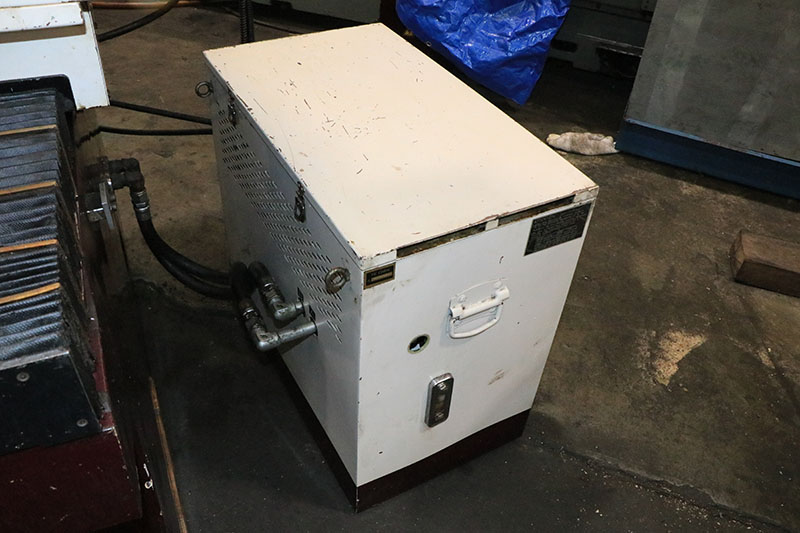

EXTERNAL HYDRAULIC PUMP AND TANK
5 HP 3/60/575 VOLT DRIVE SPINDLE MOTOR
TRANSFORMER WILL BE PROVIDED, WIRED FOR 200, 208,
 230, 240, 440, 460 OR 480 VOLTS.  PLEASE SPECIFIY
 YOUR VOLTAGE, AND WE WILL PROVIDE THE CORRECT
 TRANSFORMER.

LINK TO VIDEO: https://youtu.be/UF8wksWJnl0?si=RfWyWrINF7_NZpUs
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
