Cincinnati 2 OM, S/N: 2M2H1W-428, DRESSERS, WORKREST, CENTERLESS GRINDERS

Price on Request

Make:: Cincinnati

Model:: 2 OM, S/N: 2M2H1W-428, DRESSERS, WORKREST,

Year:

Ref #:: 178252

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

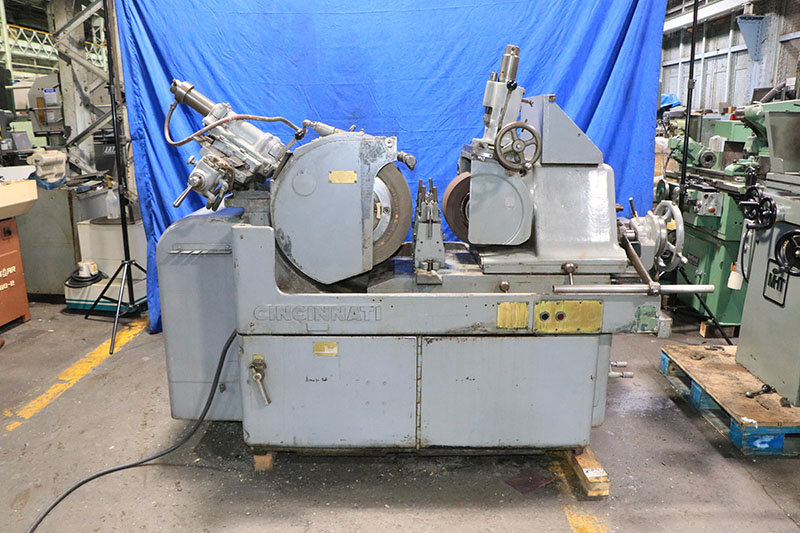

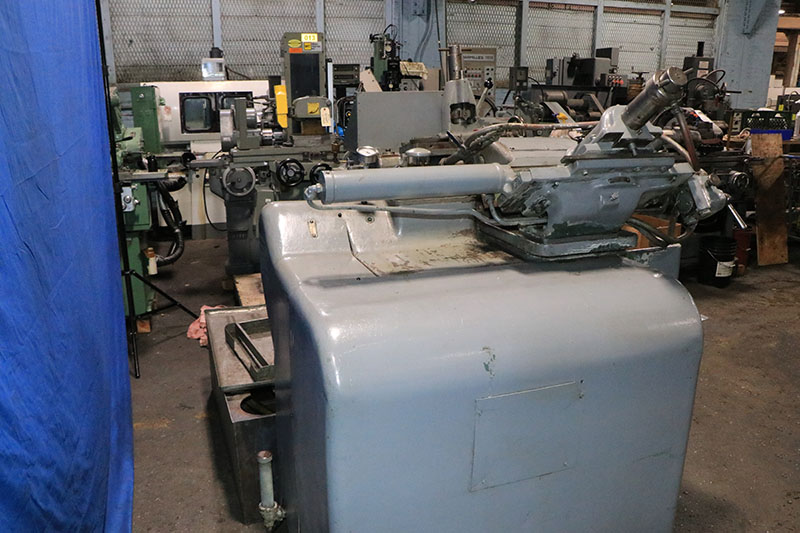

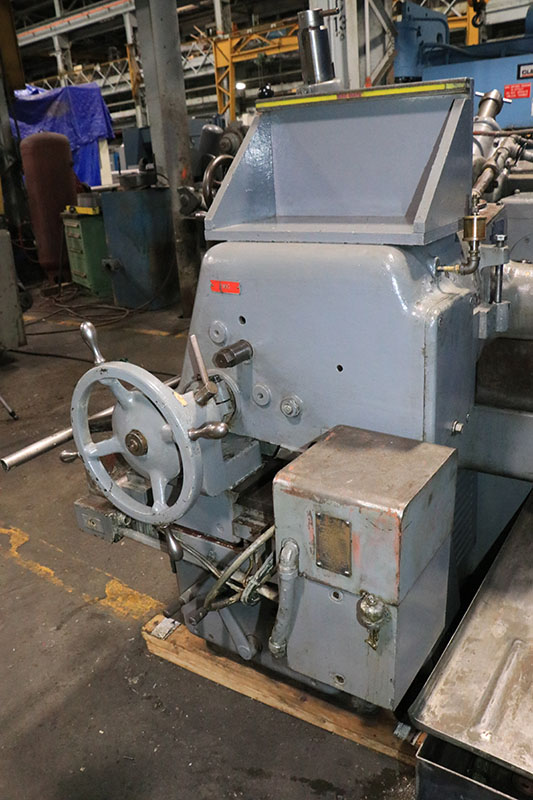

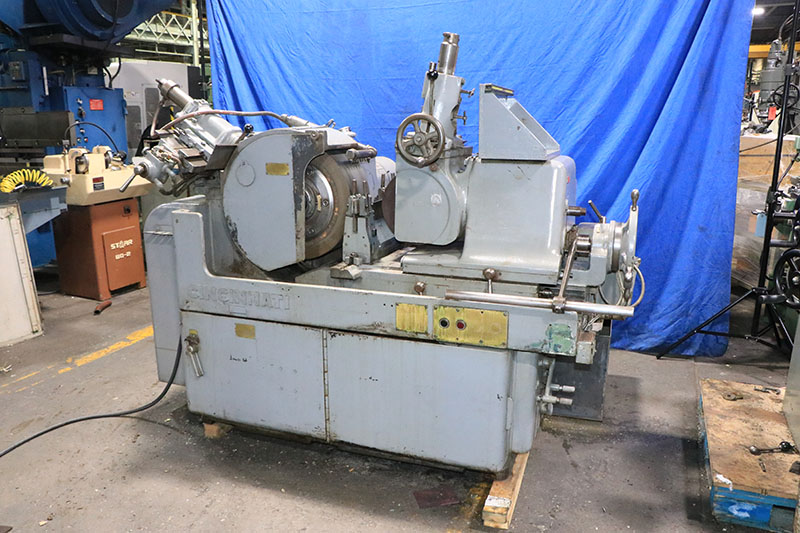

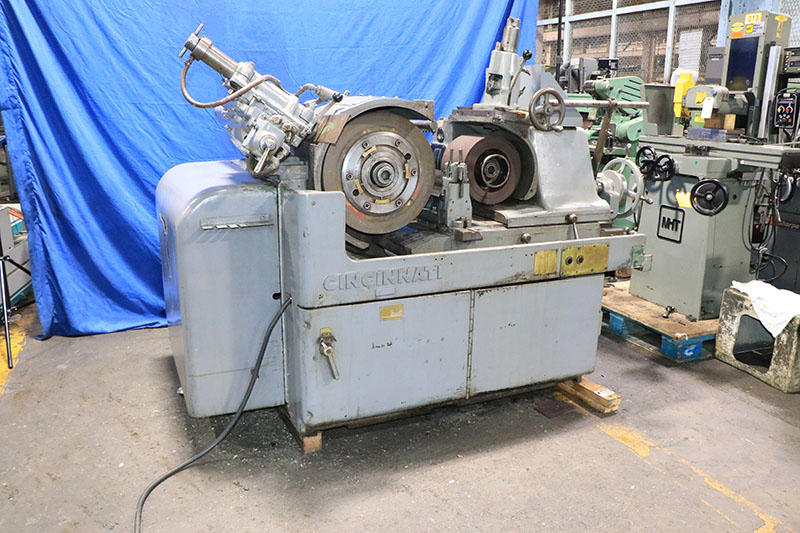

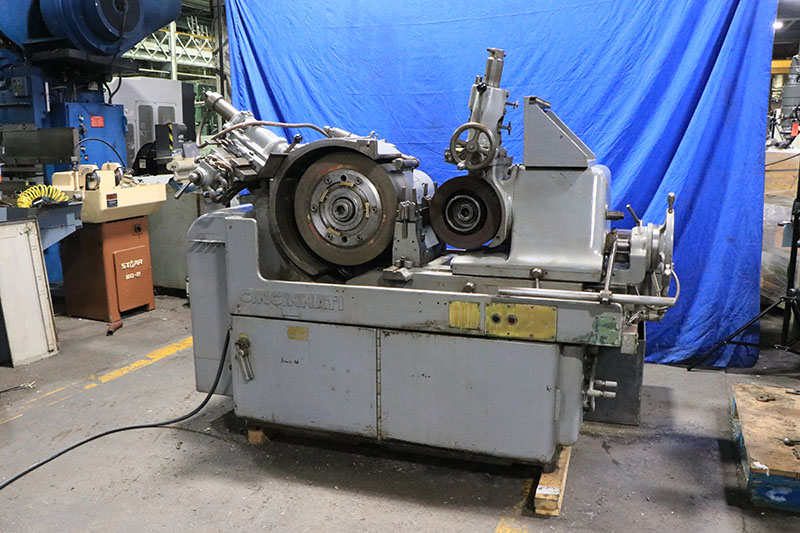

  CINCINNATI No. 2 "OM" CENTERLESS GRINDER

   (THIS MACHINE WAS MADE IN THE USA!)


 S/N: 2M2H1W-428


DIAMETER CAPACITY, NORMAL .......... 1/16" TO 3"
GRINDING WHEEL DIAMETER, MINIMUM ... 16"
GRINDING WHEEL DIAMETER, MAXIMUM ... 20"
GRINDING WHEEL HOLE DIAMETER ....... 12"
GRINDING WHEEL MOTOR ............... 15 H.P.
REGULATING WHEEL DIAMETER, MIN. .... 9.5"
REGULATING WHEEL DIAMETER, MAX. .... 12"
REGULATING WHEEL WIDTH, MAXIMUM .... 8"
REGULATING WHEEL HOLE DIAMETER ..... 5"
REGULATING WHEEL SPEEDS, RANGE ..... 12 TO 300 RPM
REGULATING WHEEL MOTOR ............. 1- 1/2 H.P.

APPROX. MACHINE WEIGHT ............. 8,000 LBS.
FLOOR SPACE ........................ 53" x 86"

EQUIPPED WITH:

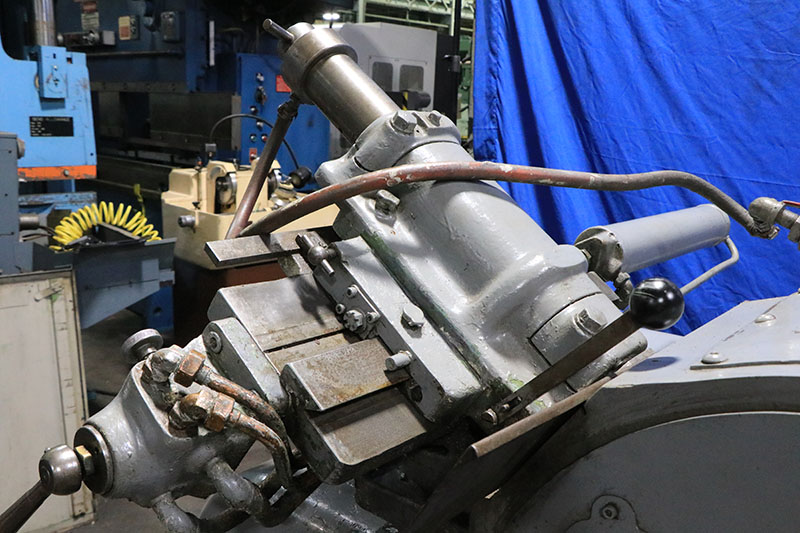

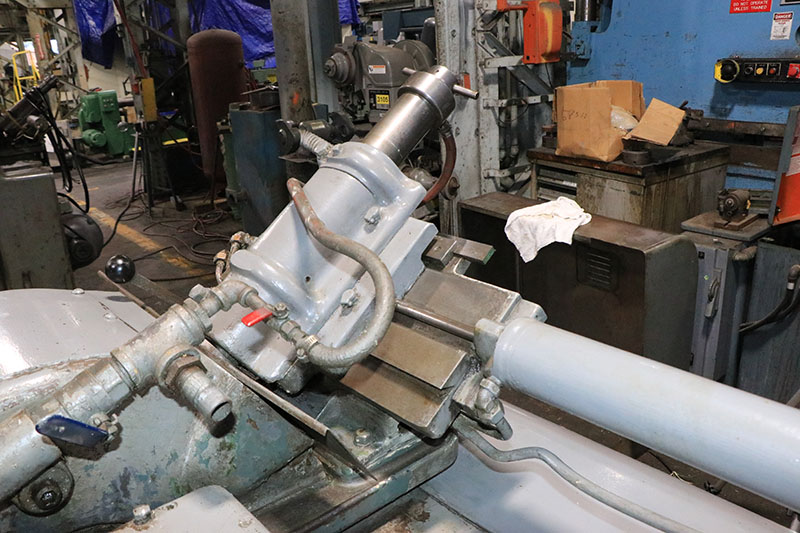

HYDRAULIC DRESSER FOR GRINDING WHEEL

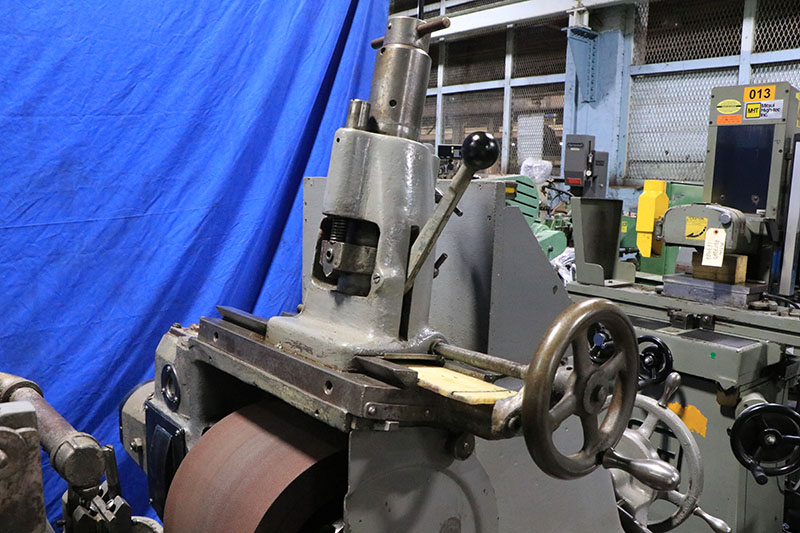

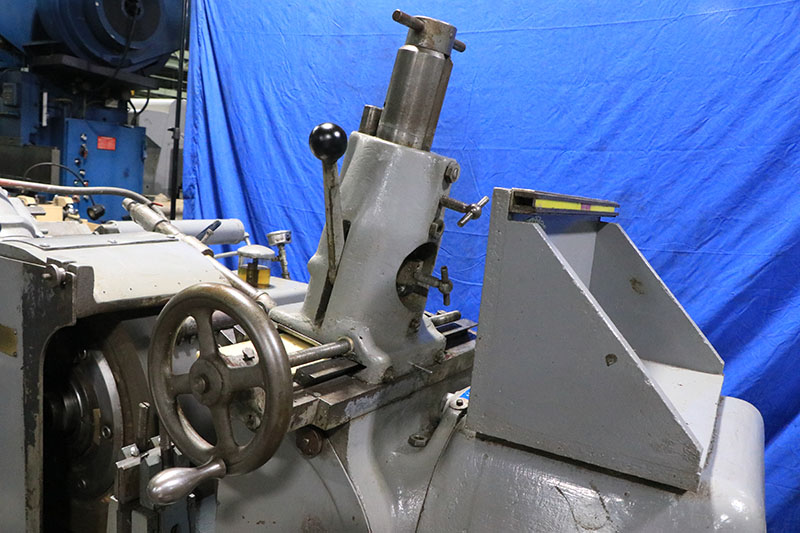

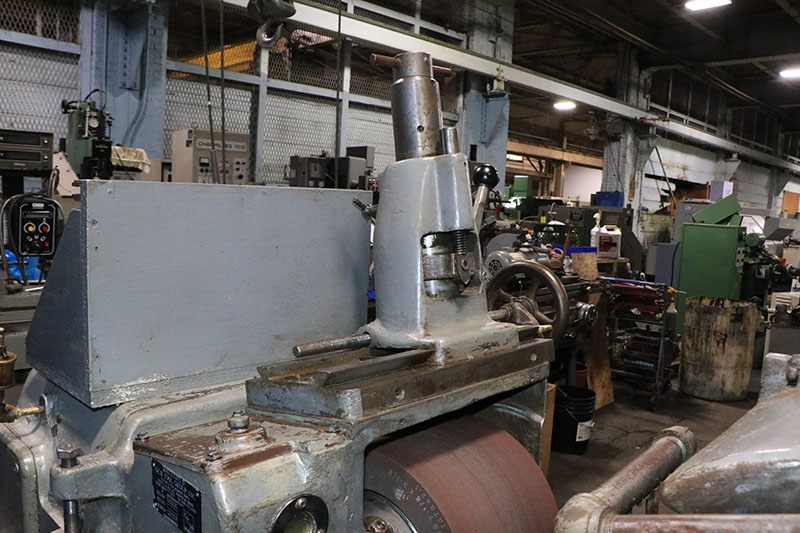

MANUAL DRESSER FOR REGULATING WHEEL

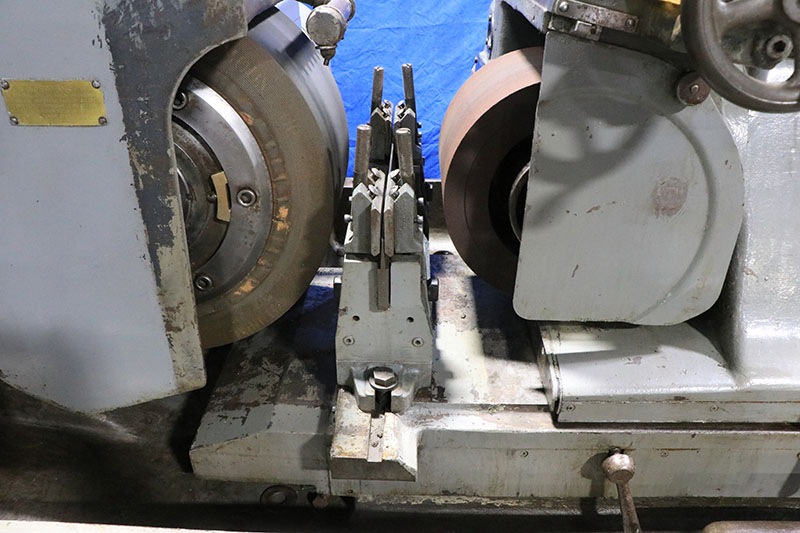

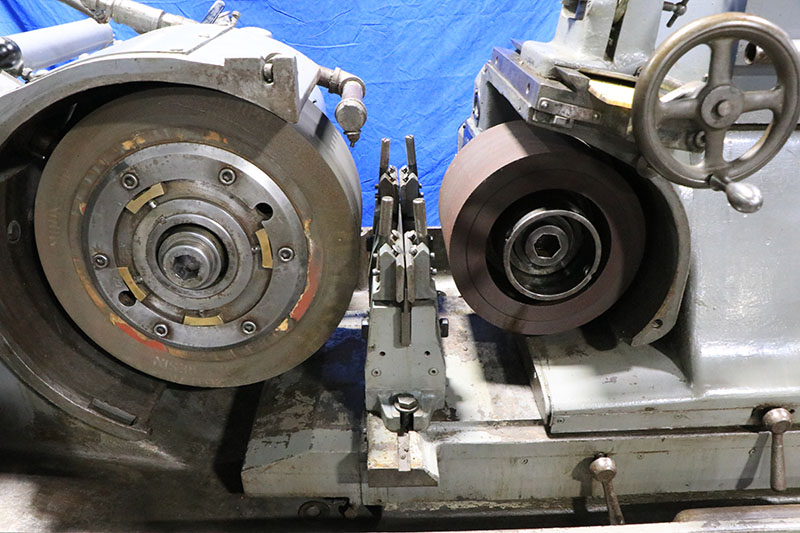

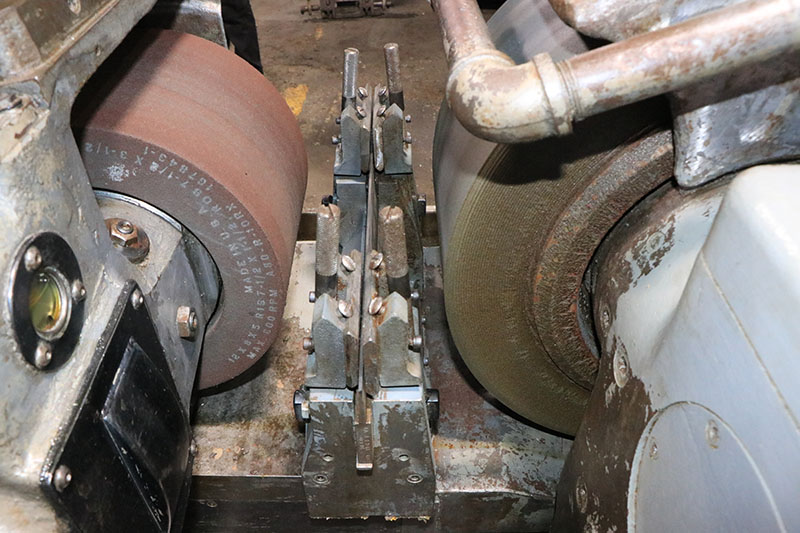

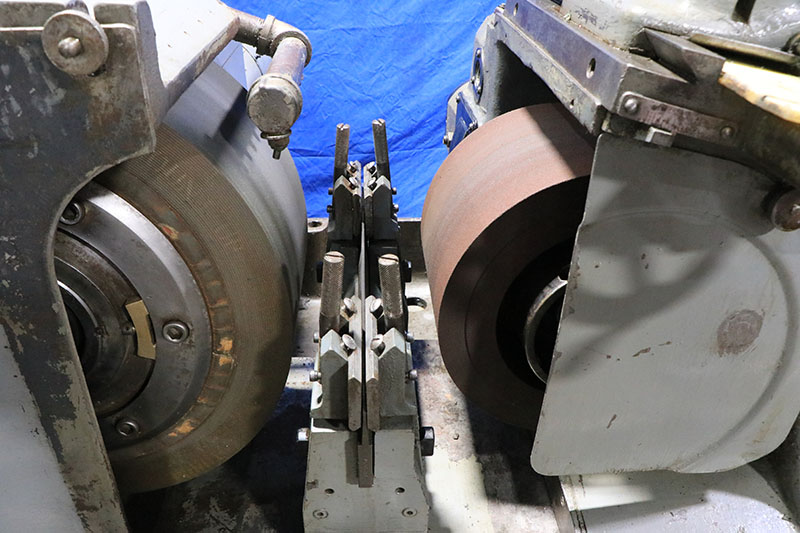

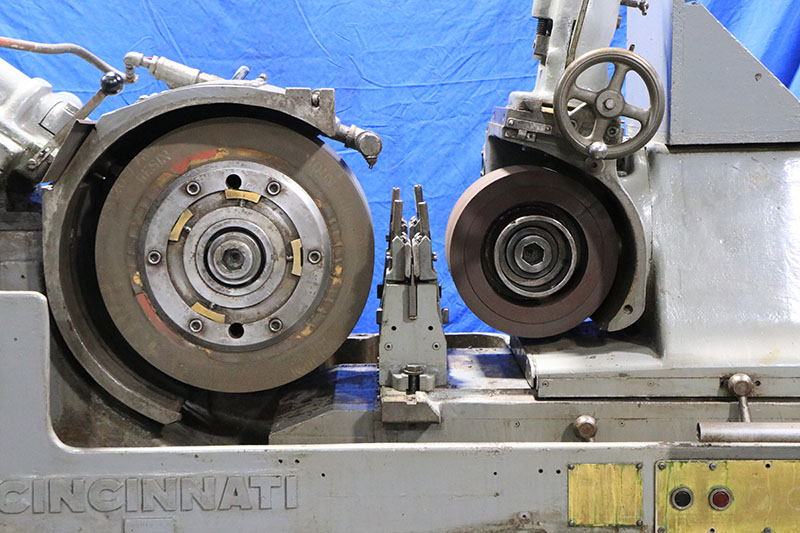

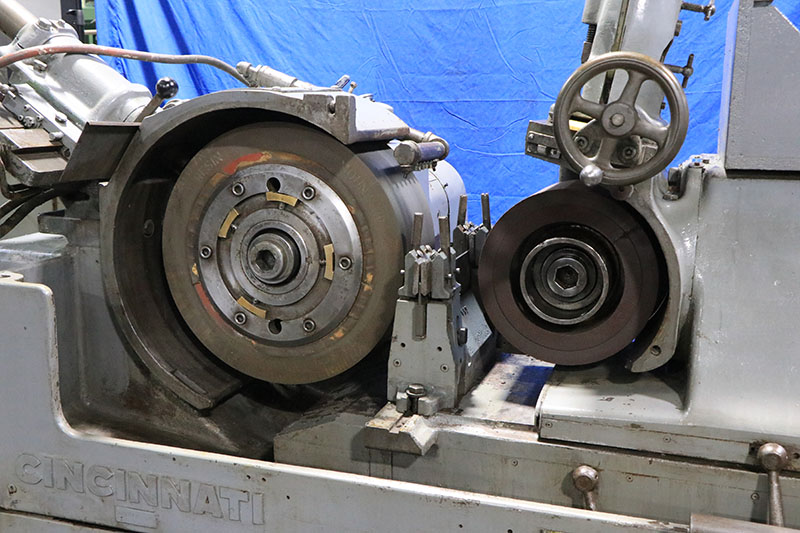

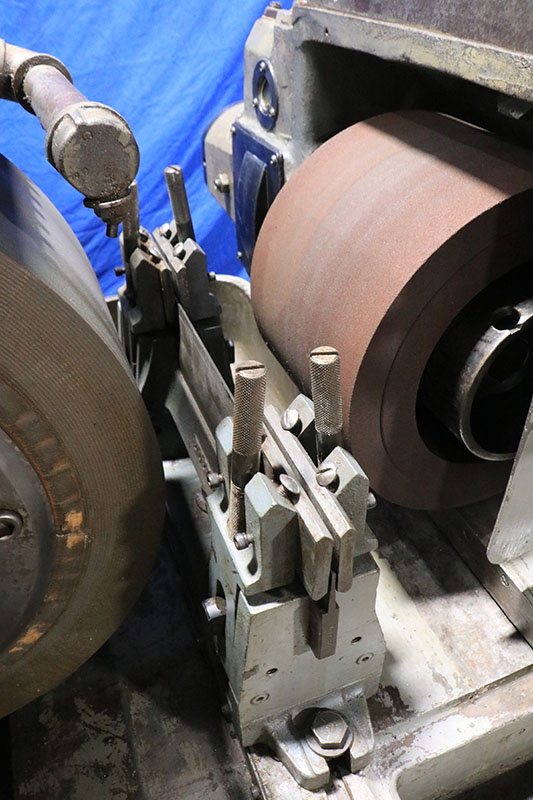

WORK REST WITH BLADE

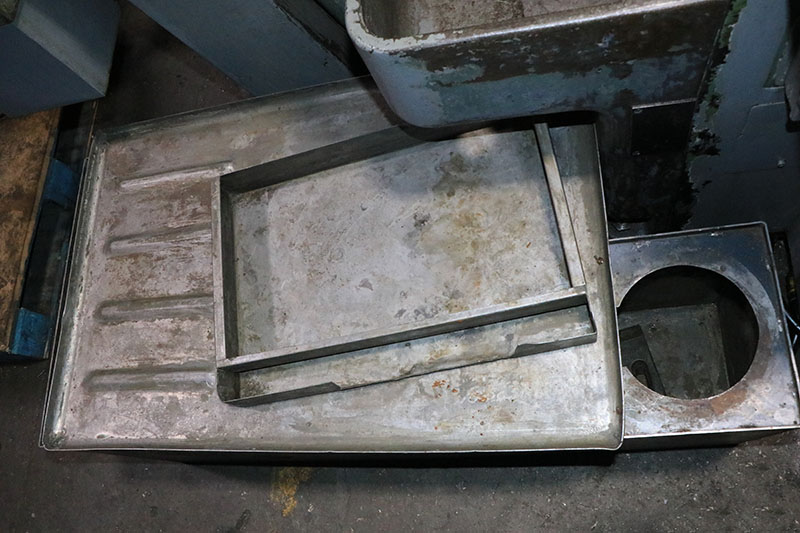

EXTERNAL COOLANT SYSTEM, TANK & PUMP
VARIABLE SPEED DRIVE FOR THE REGULATING WHEEL

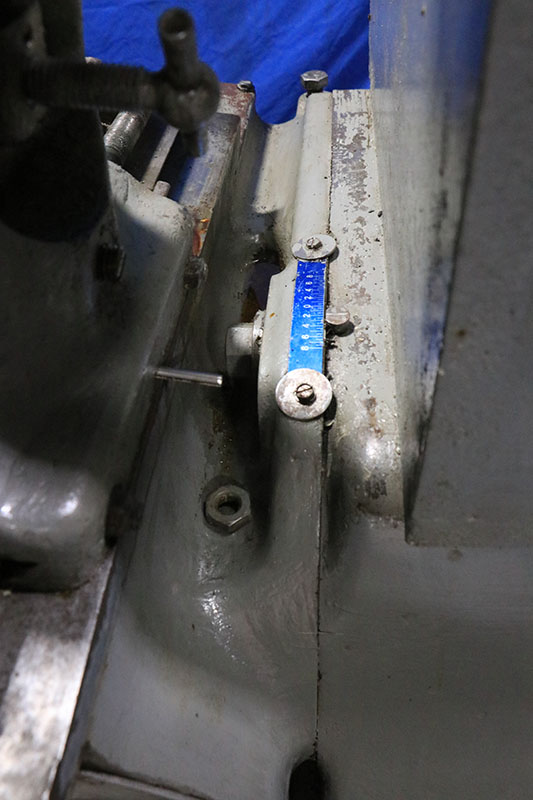

SWIVEL-TYPE REGULATING WHEEL UNIT - TAPER ADJUSTMENT
FILAMTIC GRINDING WHEEL SPINDLE BEARINGS

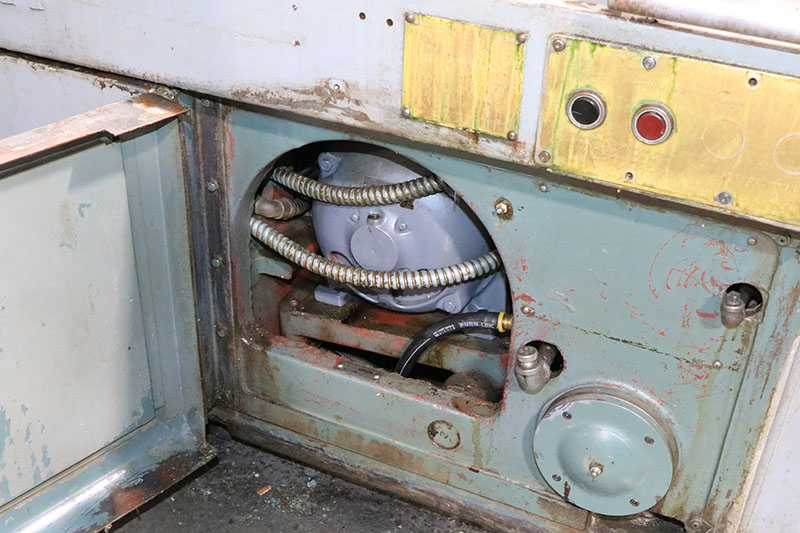

15 H.P./3/60/220-440 VOLT MOTOR FOR THE GRINDING WHEEL

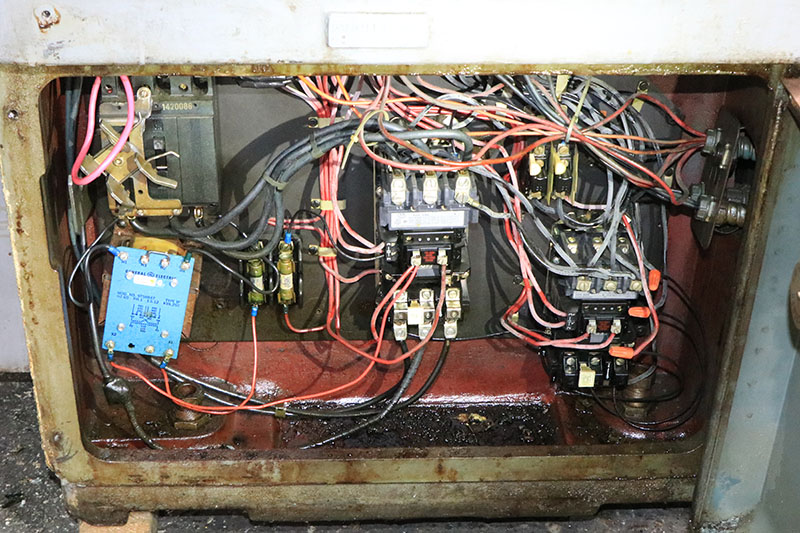

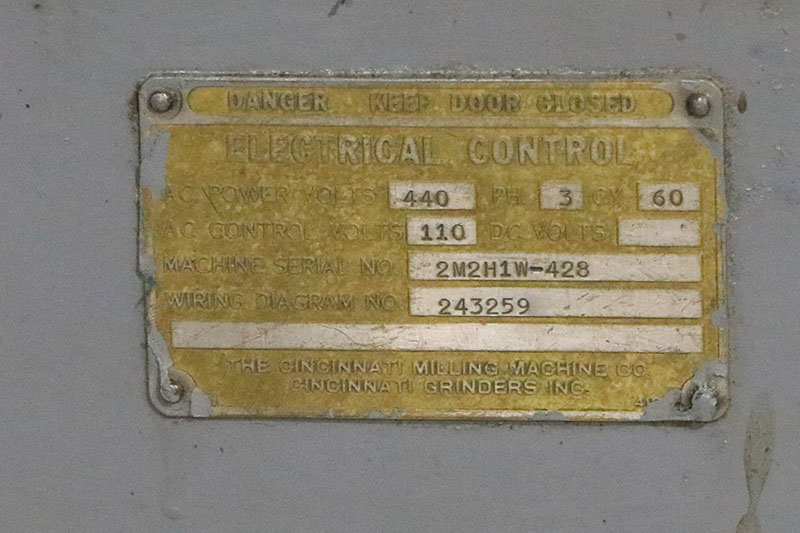

MACHINE IS WIRED FOR 440 VOLTS


** SEE VIDEO - SUPER RUNNING MACHINE!! **

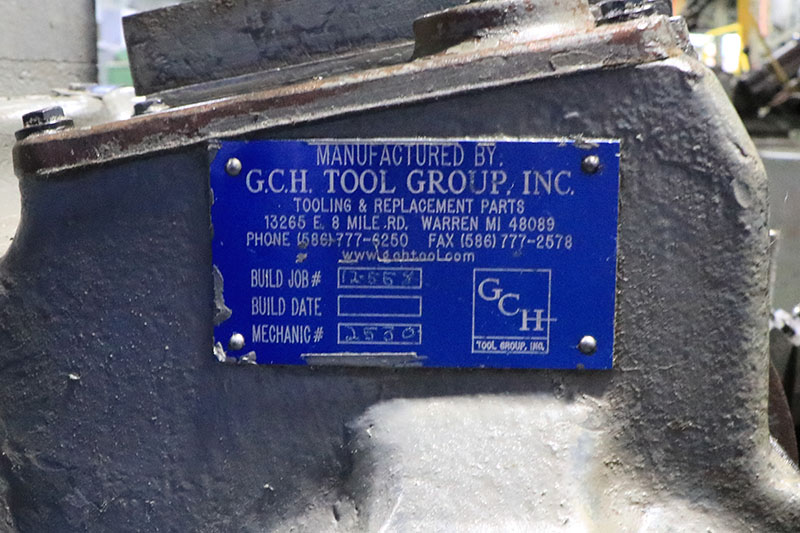

** NOTE, REBUILT SPINDLE BY GCH, BUILD JOB No. 12-558
** VERY PRESENTABLE, COMPLETE, RUNS QUIETLY, **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
