Tru-Tech TT-8000, CNC CENTERLESS, MANY UPGRADES '19 & '22 CENTERLESS GRINDERS

Price on Request

Make:: Tru-Tech

Model:: TT-8000, CNC CENTERLESS, MANY UPGRADES '19 & '22

Year:: 2003

Ref #:: 163852

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

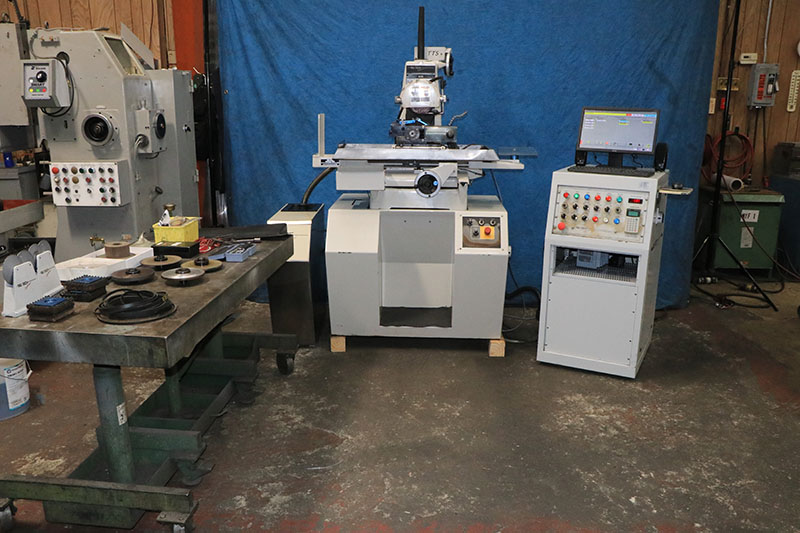

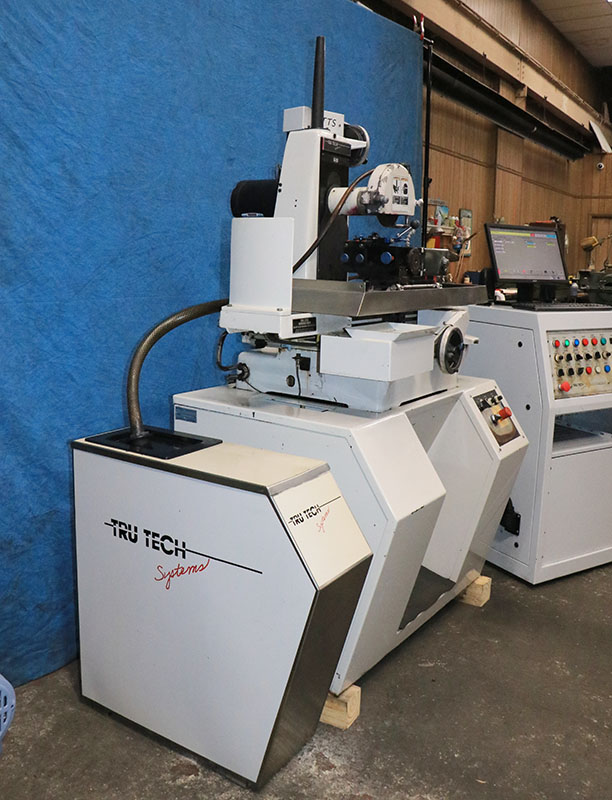

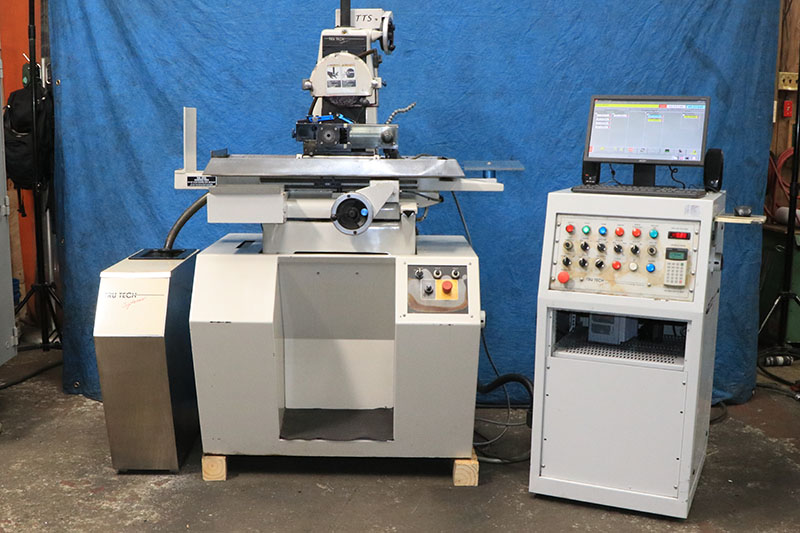

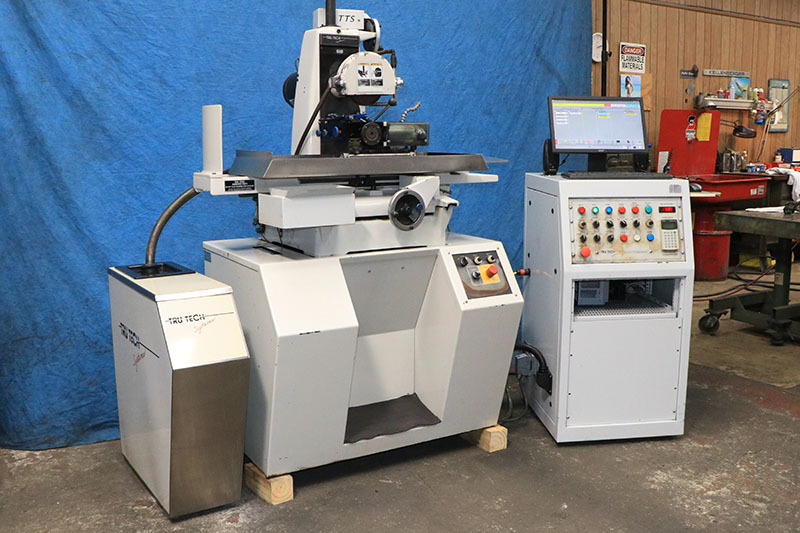

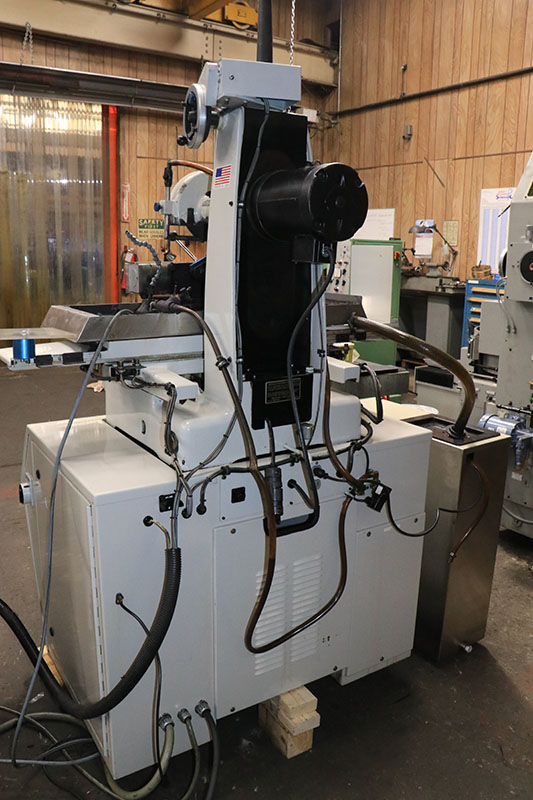

Tru Tech TT8000 3-Axis CNC
 Centerless Profile Grinder

** New Computer, Operating System, Software
   & Motion Control Board Purchased from
   Tru Tech in 2019 **

** Two New Drives 2022 **

** New Spindle 2022 **

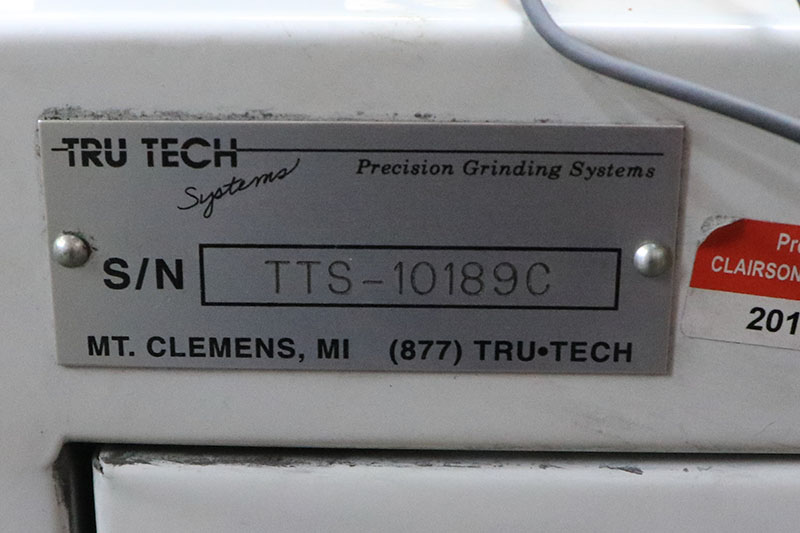

   S/N: TTS-10189C       New: 2003

"The Tru Tech TT-8000 makes easy work of
 Ultra-Precision Centerless Profile Grinding
 projects making it ideal for carbide blank
 preparation. Integrated into the machine is
 Tru Tech's patented PP-8000 precision grinding
 unit which holds concentricity within
 30 millionths. Intuitive Pick-N-Place software
 allows easy profile programming in minutes and
 grinds most profiles with a standard 1A1 wheel.
 Capable of plunge, peel, in-feed, and
 thru-feed grinding."


SPECIFICATIONS:
Maximum Grind Length:............. 6"
Maximum Grind Diameter:........... 3"
Maximum Travel X-Axis:............ 18"
Maximum Travel Y-Axis:............ 10.75"
Maximum Travel Z-Axis:............ 6"
Standard Wheel Size:.............. 8" max.
Spindle Drive:.................... 2 HP
Maximum Velocity Y-Axis:.......... 15 IPM
Maximum Velocity Z-Axis:.......... 15 IPM
Input Increment:.................. 0.000010"

Floor Space Required for Ops. .. 8'6"L-R x 5'6"F-B
Shipping Weight:.................. 2,500 LBS

EQUIPPED WITH:

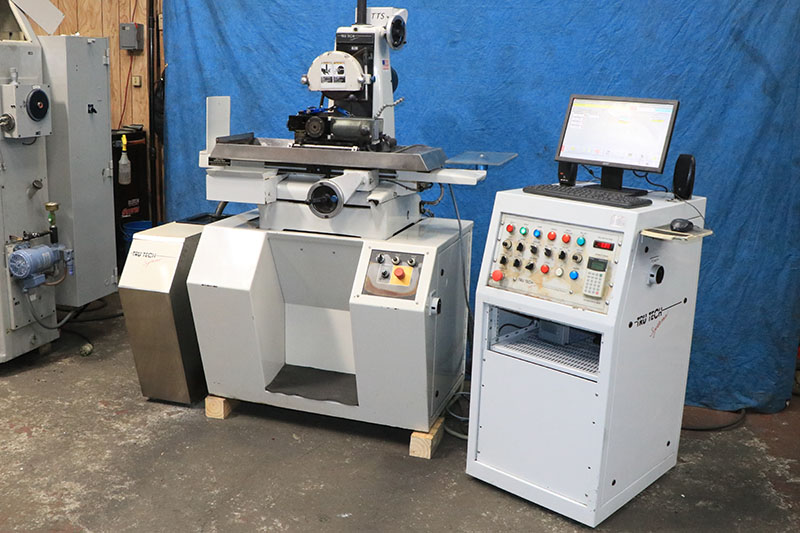

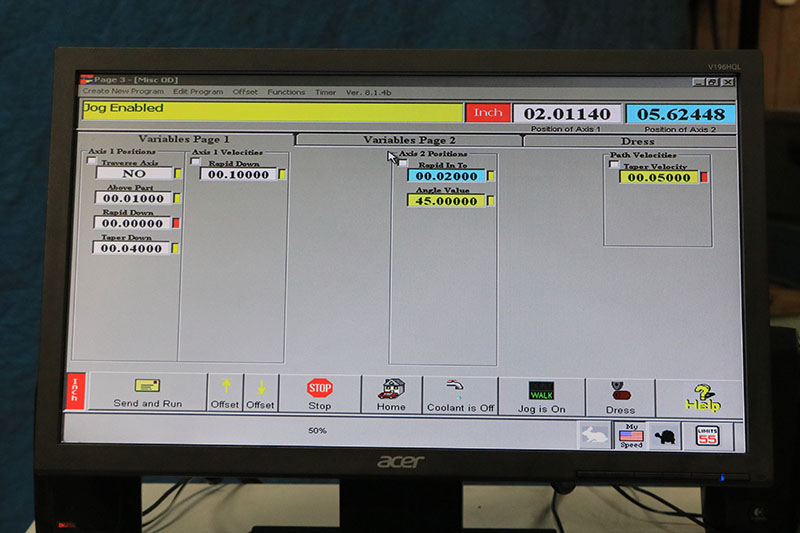

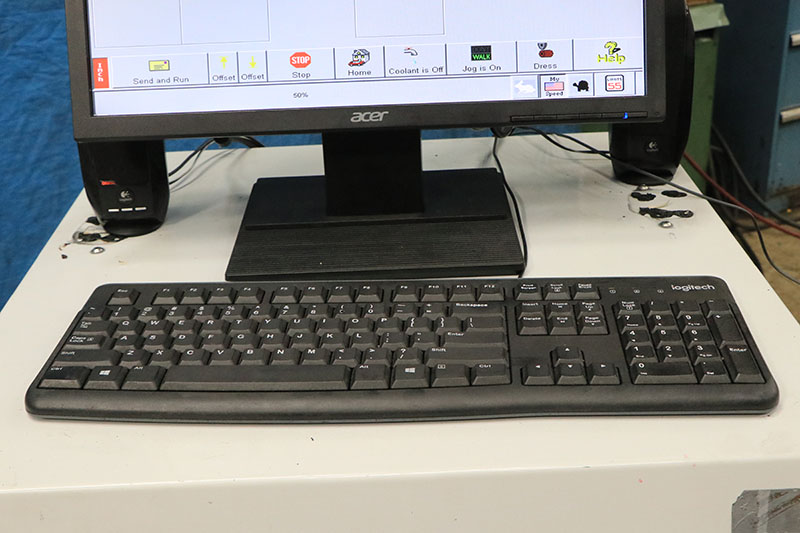

Trutech CNC Windows Based "Pick-Place" Controls
 & Programming  Software (Updated 2019)

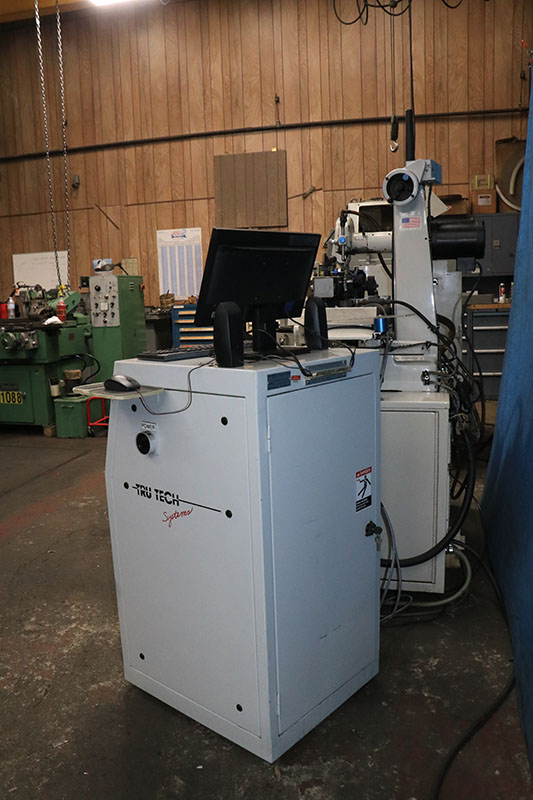

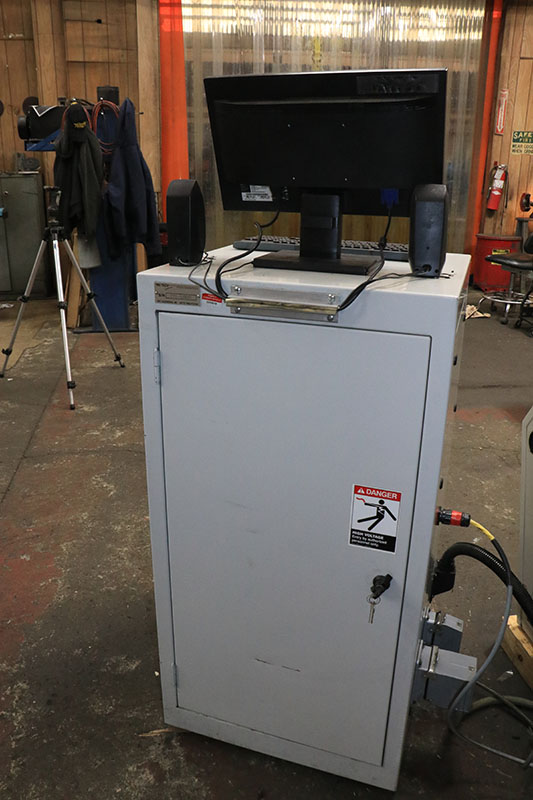

 In Console with CRT.

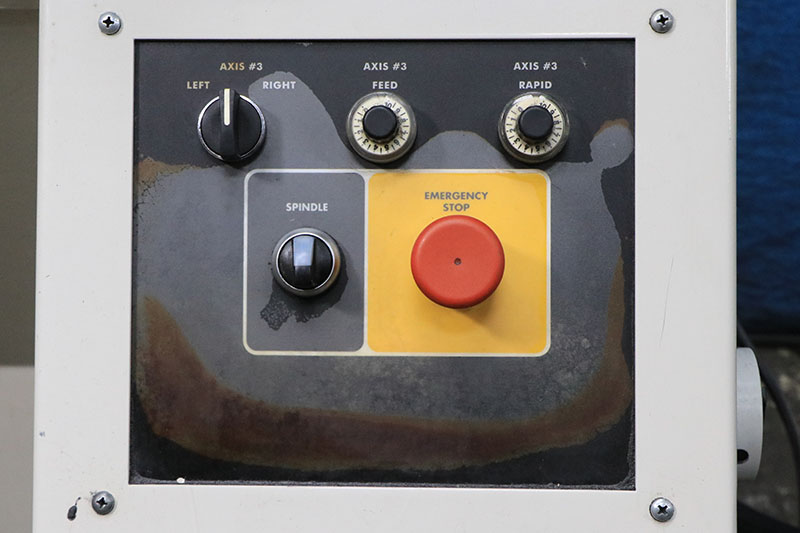

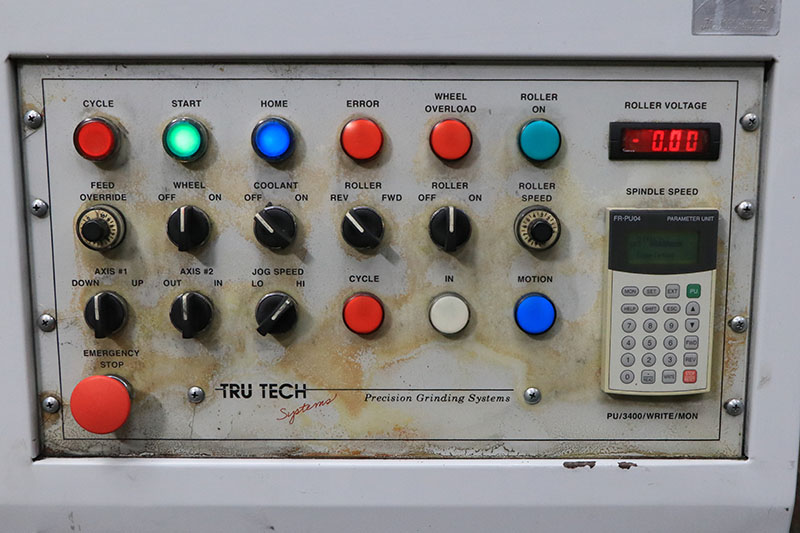

Push Button Controls.
Infinitely Variable Speed Grinding Spindle,
  Through the Control

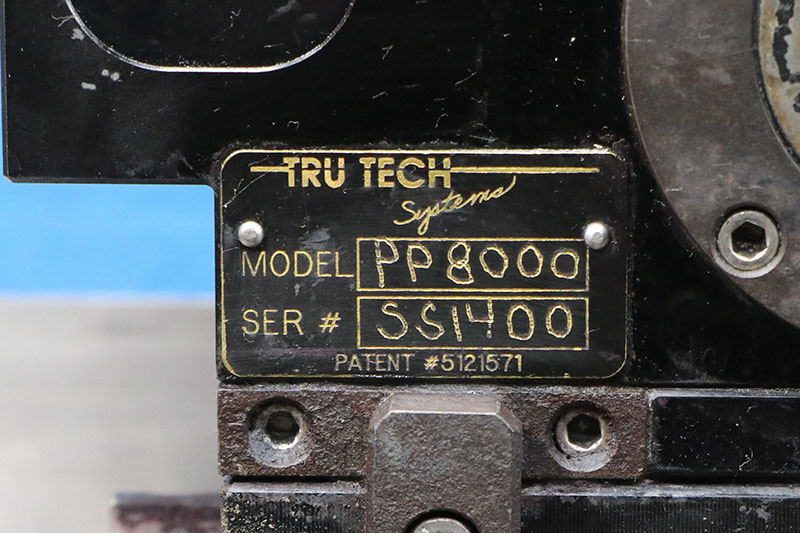

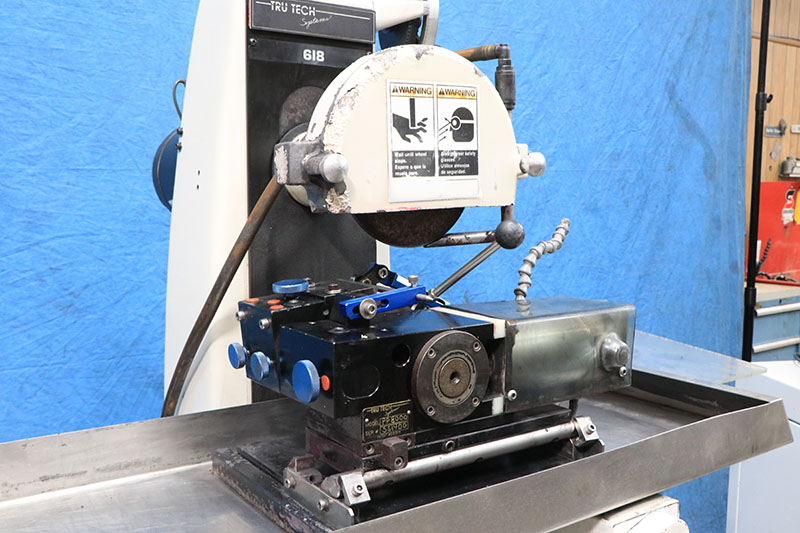

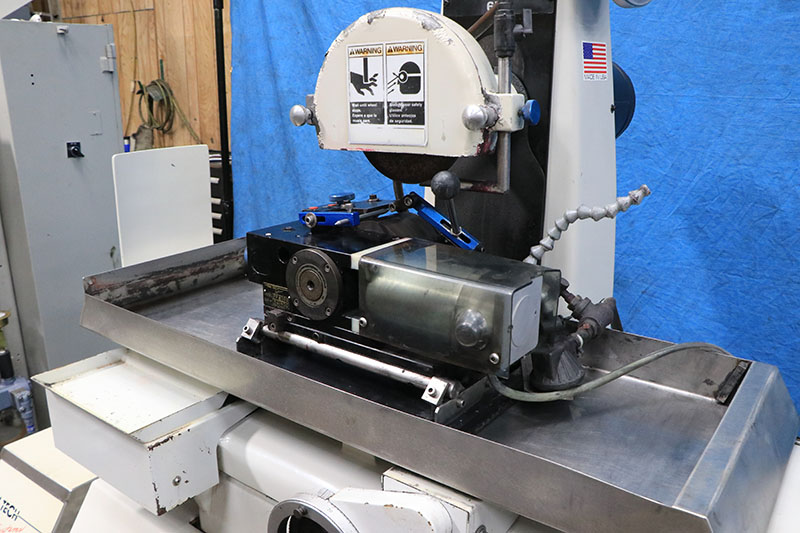

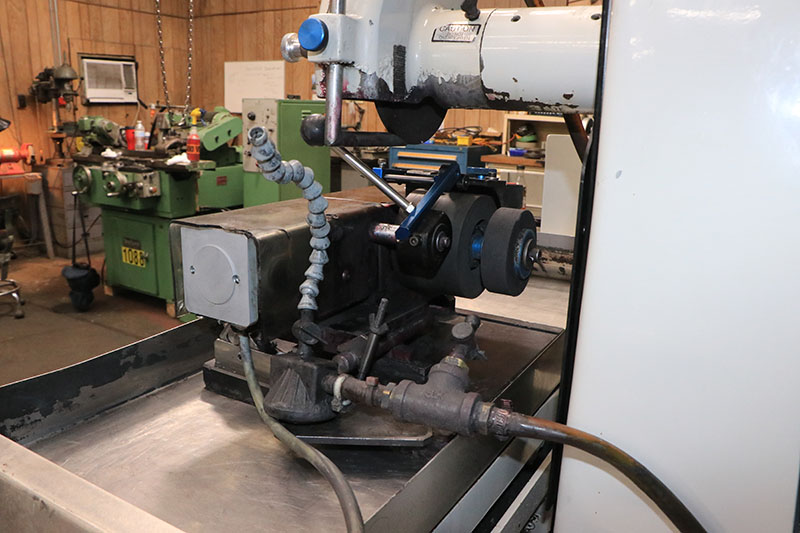

Tru Tech Model PP-8000 (S/N: SS1400)
 Centerless Grinding Unit,  Infinitely
 Variable Speeds Providied Through the Control

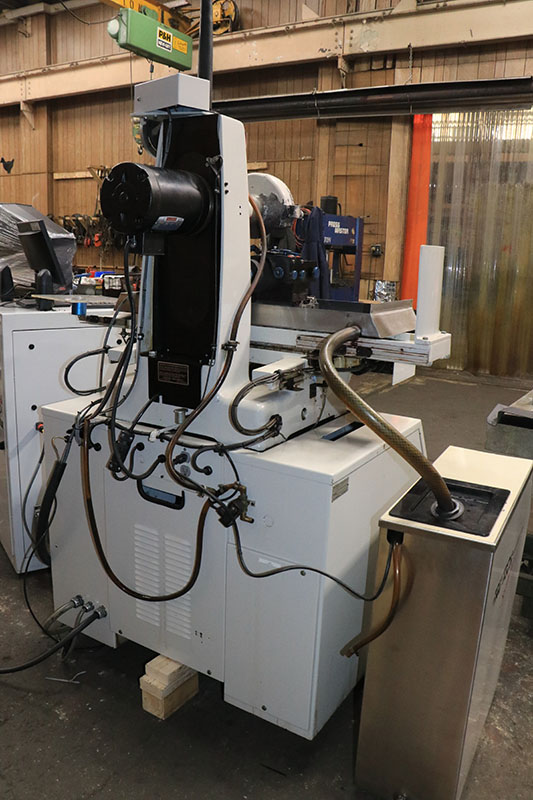

Tru Tech Coolant System, Stainless Steel Tank
Stainless Steel Grinding Environment

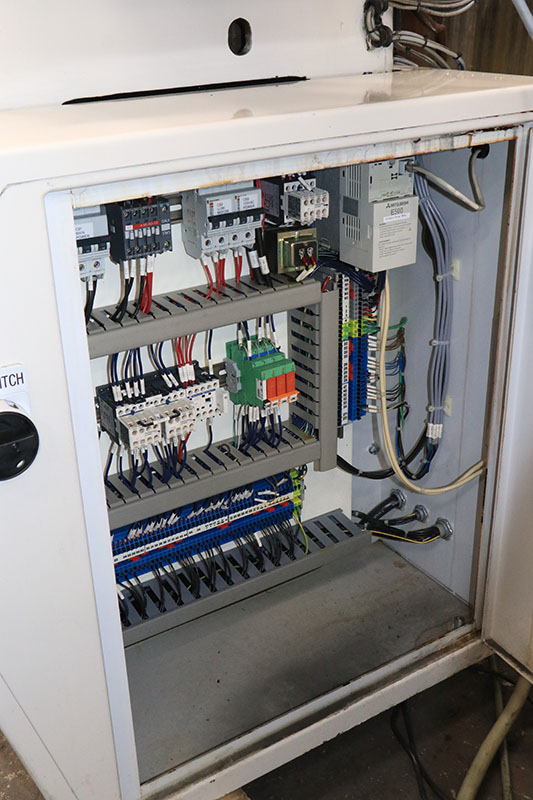

Machine is Presently Wired for 3/60/220 Volts

Comments from TruTech Systems:
"Quick Set-Up"
"Ultra-Precision"
"Plunge Grind, Peel Grind, In-Feed
  & Thru-Feed Capable"
"Intuitive Programming"
"Ideal For Carbide Blank Preparation."
"Easy To Use, Pick-N-Place Software Allows
  Easy Profile Programming  In Minutes And Grinds
  Most Profiles With A Stand 1A1 Wheel."

** Superb Condition & Appearance
      **- Original Paint - **

Special Note:
** Former Owner Purchased the Following Items,
    Enhancing this Machine:

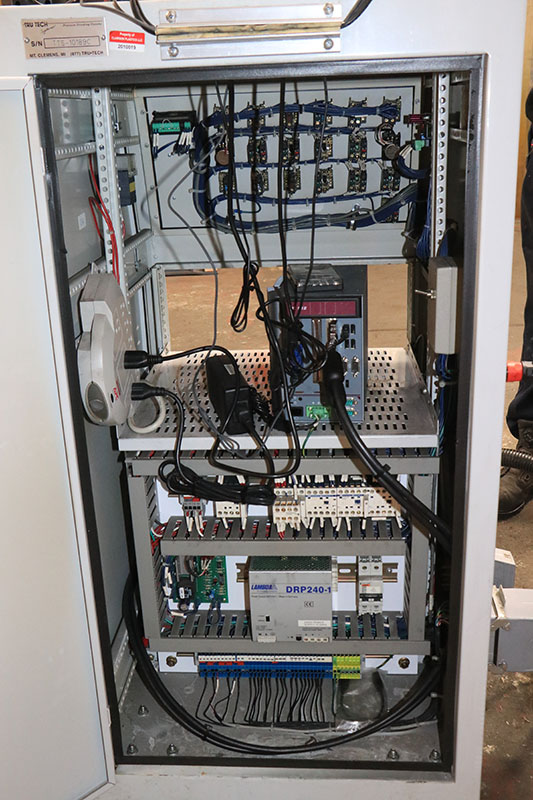

New Computer, Operating System, Software & Motion
   Control Board Purchased from Tru Tech in 2019.
   This allows the machine to function far better,
   no computer latency, very quick CNC programming
   & execution.

(2) New Drives Purchased in 2022

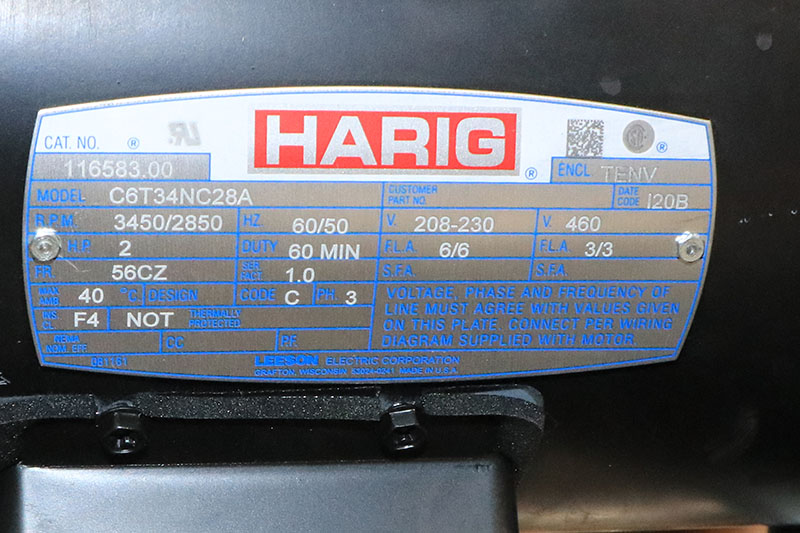

New Spindle 2022

** Superior Condition & Appearance - Wow!! **
** Inspect Under Power in our Harrison, NJ Warehouse **

  **Link to video: https://youtu.be/BUo-7ladt_k **
