Royal Master TG12x4, 2010, HYD.DRESSER FOR GRINDING WHEEL CENTERLESS GRINDERS

Price on Request

Make:: Royal Master

Model:: TG12x4, 2010, HYD.DRESSER FOR GRINDING WHEEL

Year:: 2010

Ref #:: 179741

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

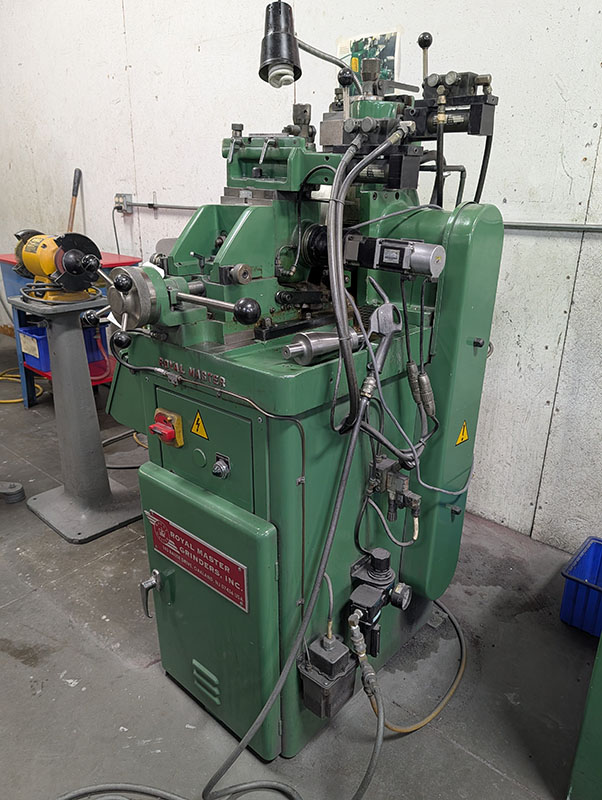

ROYAL MASTER "HIGH-PRECISION" CENTERLESS GRINDER

                MODEL: TG12X4
                  S/N: 2929
                  NEW: 2010

      ** SPECIAL PRE-REMOVAL PRICE SPECIAL
     ** FREE SHIPPING TO ANYWHERE IN THE USA **


CAPACITY:
INFEED AND THRUFEED .......... 0.004" TO 1.5" DIA.
LENGTH ....................... 12' ON 0.5" DIA.

MAXIMUM GRINDING WHEEL ....... 12" DIA. X 4.5" WIDE
MINIMUM GRINDING WHEEL ....... 10" DIA. X 1/4" WIDE
MAXIMUM REGULATING WHEEL ..... 6" DIA. X 4.5" WIDE
MINIMUM REGULATING WHEEL ..... 1/4" WIDE W/SPOOL

SPINDLE SPEEDS:
GRINDING WHEEL ............... CONSTANT SPEED 2,040 RPM
REGULATING WHEEL ............. INF. VARIABLE 25 TO 480 RPM


REGULATING WHEELHEAD:
MAX. ANGLE OF TILT FOR THRUFEED
GRINDING ......................... 6 DEGREES
MAX. SWIVEL FOR TAPER GRINDING ... 5 DEGREES

  APPROXIMATE FLOOR SPACE ........ 24" X 48"
APPROXIMATE WEIGHT ............... 2,800 LBS

EQUIPPED WITH:
"PRECISION" REGULATING WHEEL SPINDLE

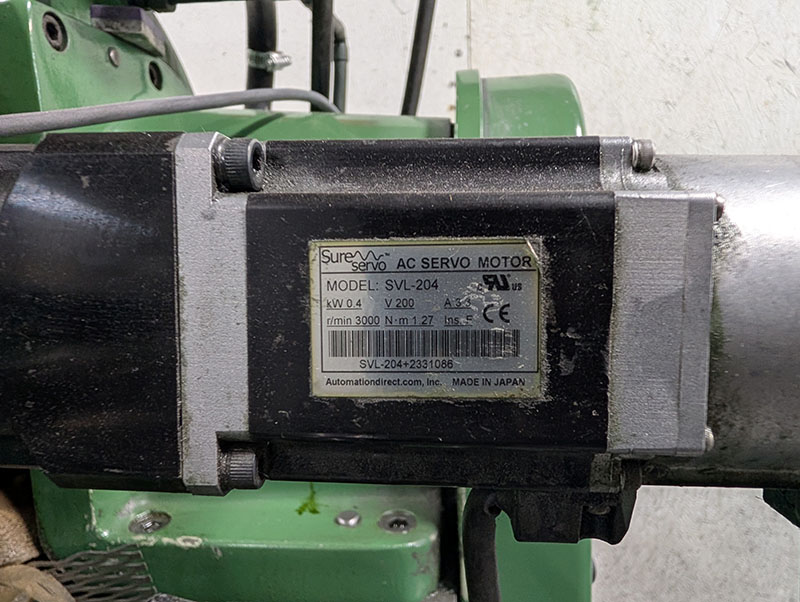

"SURE SERVO" MADE IN JAPAN AC SERVO DRIVE & DIGITAL CONTROL,
 PROVIDING FOR INFINITELY VARIABLE REGULATING WHEEL SPEEDS
HYDRAULIC DRESSER FOR THE GRINDING WHEEL
HYDRAULIC DRESSER FOR THE REGULATING WHEEL

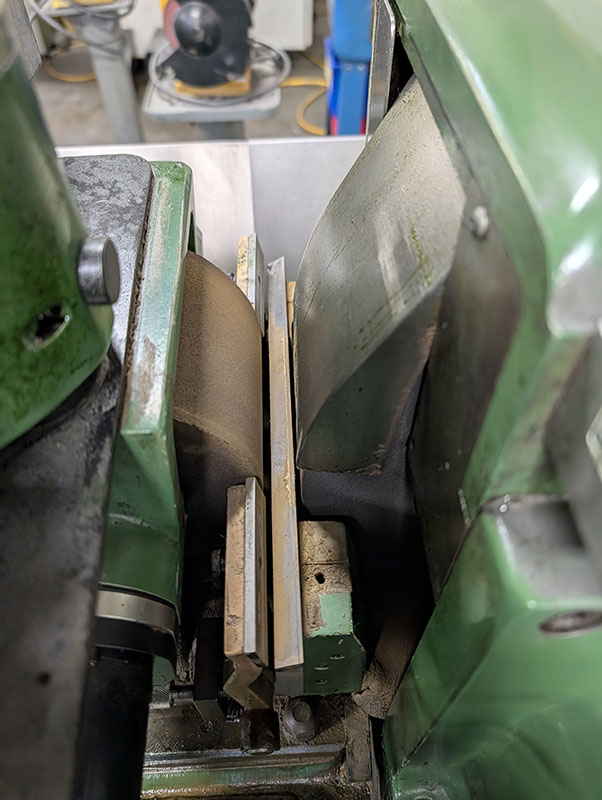

WORK REST WITH BLADES
DIAL INDICATOR FOR REGULATING WHEEL MOVEMENT
DIGITAL TACHOMETER & AMPERE GAUGE, FOR VARIABLE SPEED
 DISPLAY OF THE REGULATING WHEEL SPEEDS

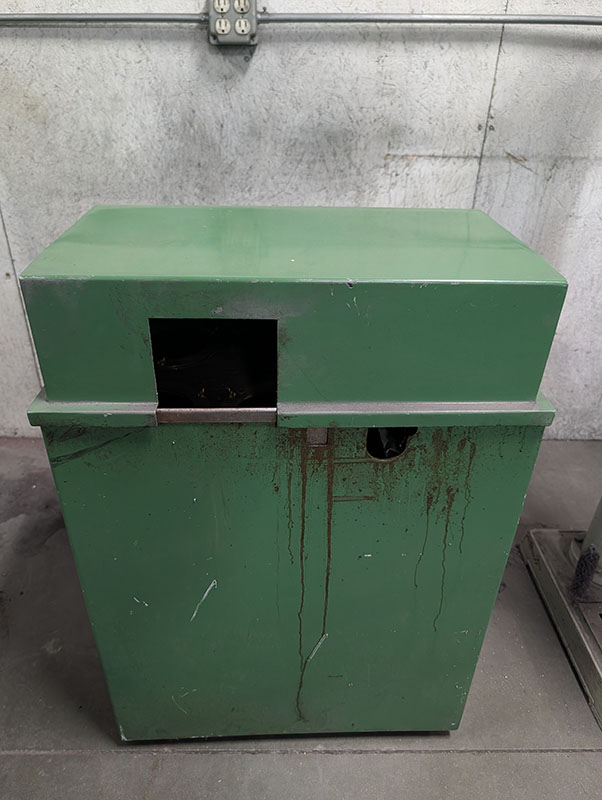

STANDARD RMG COOLANT SYSTEM
SELF CONTAINED HYDRAULIC SYSTEM
7.5 H.P. MAIN DRIVE MOTOR

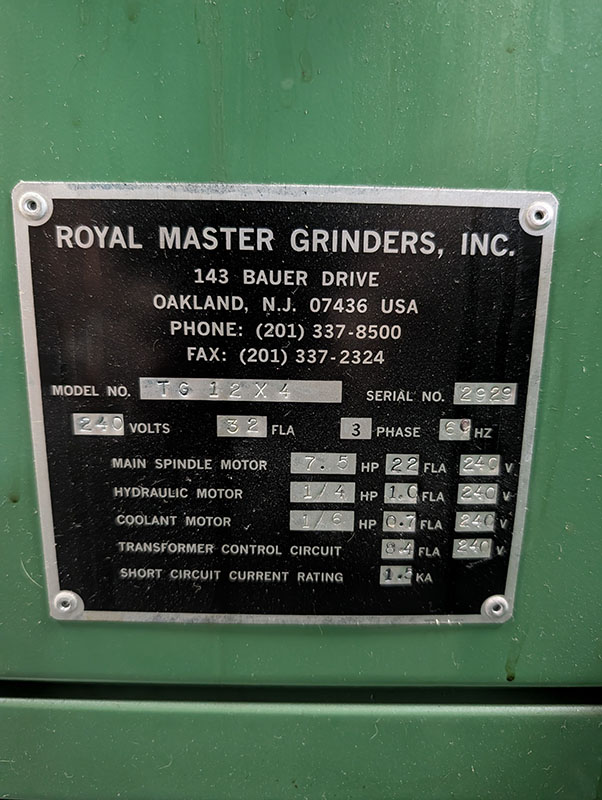

MACHINE IS PRESENTLY WIRED FOR 3/60/240 VOLTS, 32 FLA


** ORIGINAL PAINT - SUPERIOR CONDITION **
** SHIPS FROM COLORADO SHOP LOCATION **
** SOLD WITH MDNA 30 DAY RETURN PRIVILEGE **
** SPECIAL PRE-REMOVAL PRICE SPECIAL
** FREE SHIPPING TO ANYWHERE IN THE USA **
