SMTW M1050A, NEW 1995, CENTERLESS GRINDERS

Price on Request

Make:

SMTW

Model:

M1050A, NEW 1995,

Year:

1995

Ref #:

161564

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

---

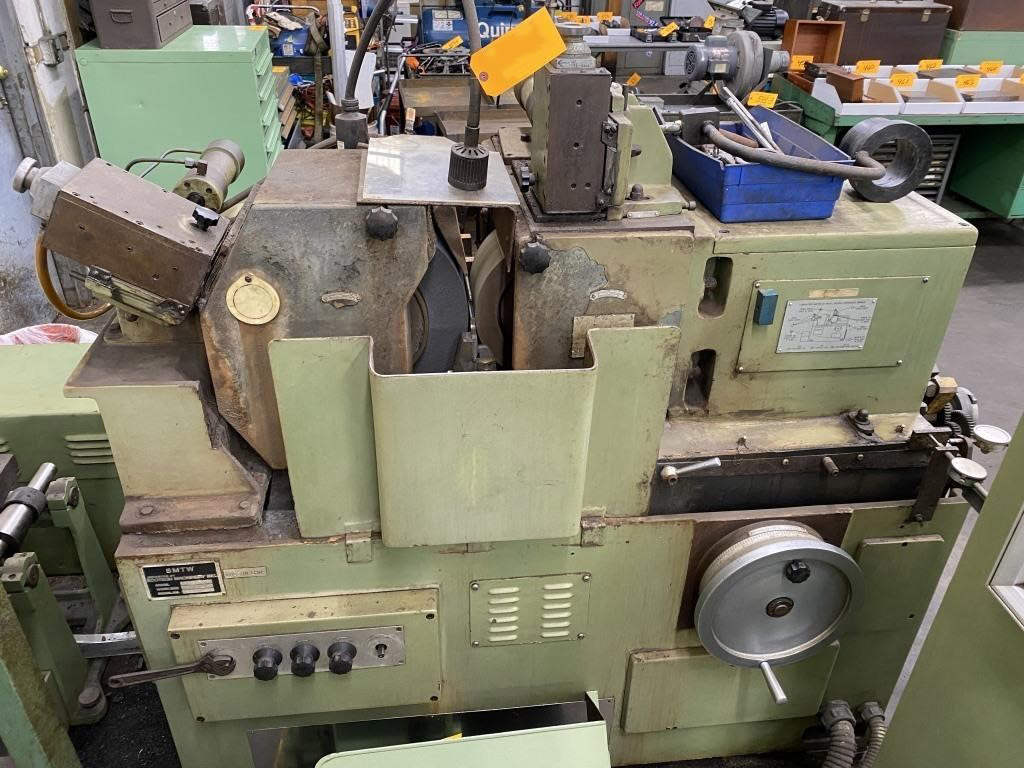

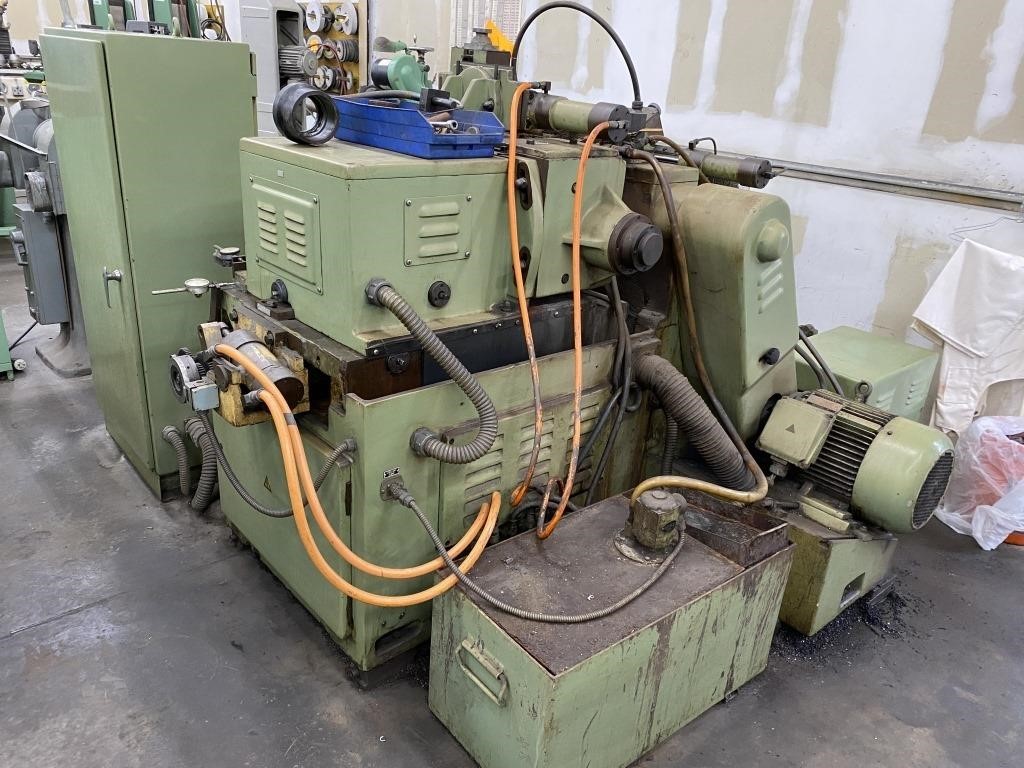

  SMTW CENTERLESS GRINDER

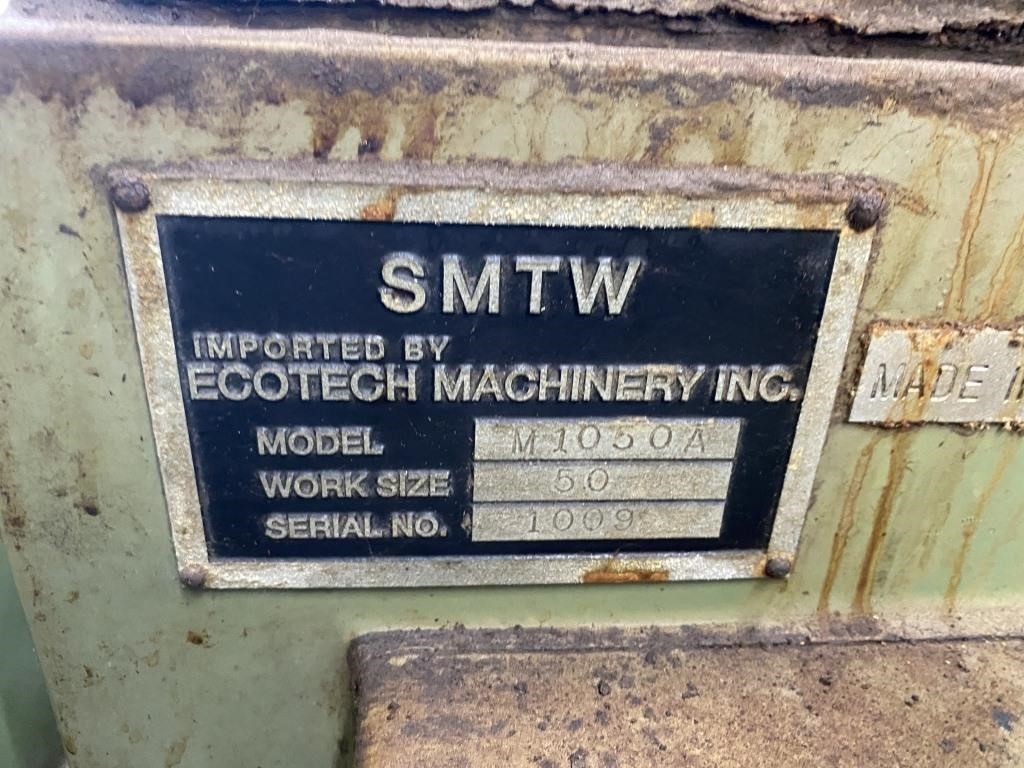

MODEL: M1050A    S/N: 1009    NEW:  1995





Work Capacity: 2" Diameter

Infeed Diameter: 0.28 (Min.)/2.0 (Max.) Inches Limited by Work Rest

Infeed Max. Length: 4.8 Inches

Center Height from Work Table: 8.66 Inches

Maximum Work Load (Infeed): 10 Lbs

Net Weight: 6,167 Lbs

Dimensions (LxWxH): 83.5 x 97.6 x 58.2 Inches

Thru Feed Diameter: 0.2 (Min.)/2.0 (Max.) Inches Limited by Work Rest

Grinding Wheel - Horsepower: 14.75 HP

Grinding Wheel - Wheel Size (DxWxB): 16 x 6 x 8 Inches

Grinding Wheel - Wheel Speed: 1668 RPM

Grinding Wheel - Surface Speed: 6855 SFM

Grinding Wheel - Rapid Travel: 30 IPM

Grinding Wheel - Spindle Taper: 1:5 Taper

Grinding Wheel - Dresser Unit: Variable Hydro Feed/Template Forming

Grinding Wheel - Dress Swivel: 1 Axis/± 3 Degrees

Grinding Wheel - Spindle Bearing: Cantilever Type/5 Shoe Hydrodynamic

Regulating Wheel - Hand Wheel/Rev: 0.016 Inches

Regulating Wheel - Hand Wheel/Div: 0.0001 Inches

Regulating Wheel - Maximum Travel RP: 0.07/0.13 Inches

Regulating Wheel - Maximum Travel HW: 4 Inches

Regulating Wheel - Spindle Taper: 1:5 Taper

Regulating Wheel - Oil Reservoir: 3 Gallon 60 ISO Viscosity Grade

Regulating Wheel - Horsepower (DC): 2 HP

Regulating Wheel - Wheel Speed (Variable): 20 - 200 RPM

Regulating Wheel - Vertical Swivel: - 2 Degrees/+ 5 Degrees

Regulating Wheel - Horizontal Swivel: -1 Degrees/+3 Degrees

Regulating Wheel - Wheel Size (DxWxB): 12 x 6 x 5 Inches

Regulating Wheel - Spindle Bearing: Cantilever Type/Bushing and Angular

Hydraulic System - Pressure: 114/128 PSI (Working) 14/21 PSI (Lub.)

Hydraulic System - Reservoir: 30 Gallon 32 ISO Viscosity Grade

Hydraulic System - Horsepower: 1.5 HP

Regulating Wheel - Dress Swivel: 2 Axis/1st -2 to +5/2nd -3 to +3 Degrees

Coolant System - Horsepower: 0.12 HP

Coolant System - Reservoir: 35 Gallons



Overall Size Machine: 70" L-R x 65" F-B x 62" H

Electric Cabinet: 26" L-R x 22" F-B x 60" High

Estimated Total Weight: 6,500 Lbs.







EQUIPPED WITH:

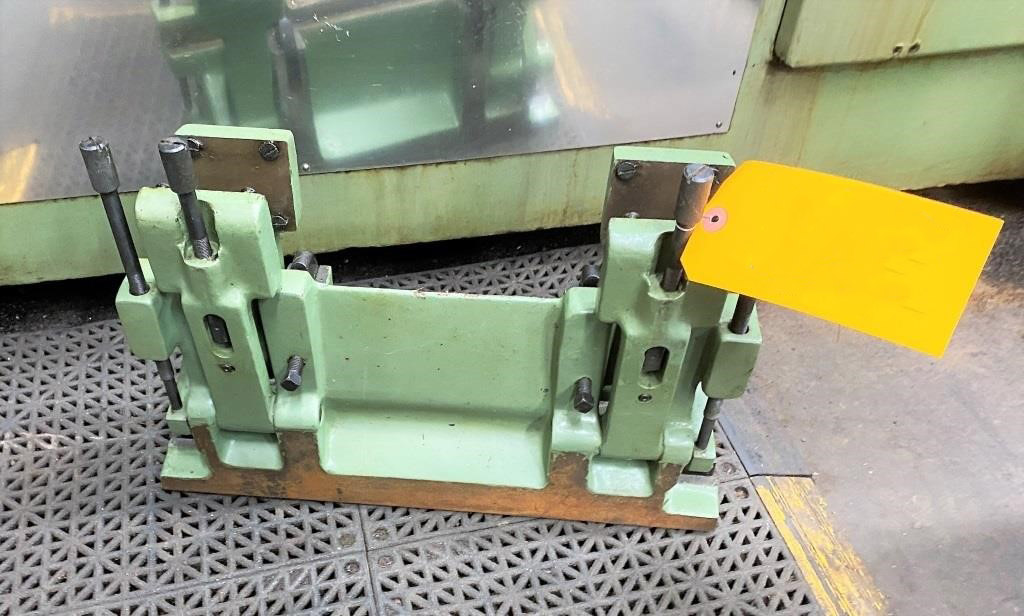

Infeed & Throughfeed Capability, with "BOTH" INFEED & THRUFEED Work Rests

Hydraulic Swiveling Wheel Head and Regulation Wheel Dressers

Motor and Belt Guarding



Machine Work Light

Wheel Guards



Cycle Features:

Thru Feed Grind, Plunge Grind, Work Ejection, Reg. Wheel Variable

 Speed, Feed Start, Feed Retraction, Sparkout Delay,

 Hydraulic & Wheel Start - Stop

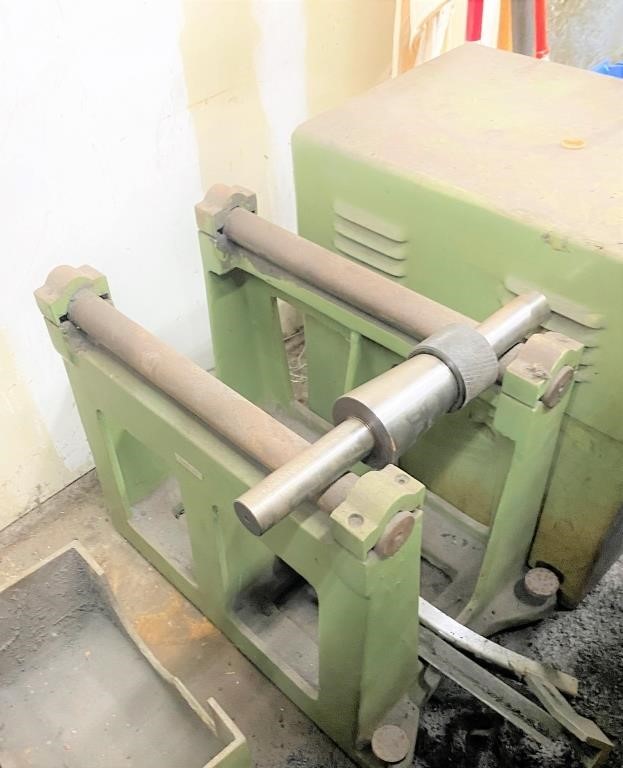

Static Type Wheel Balancing Stand and Arbor

Wedge Type Leveling Pads

Free Standing Control Panel

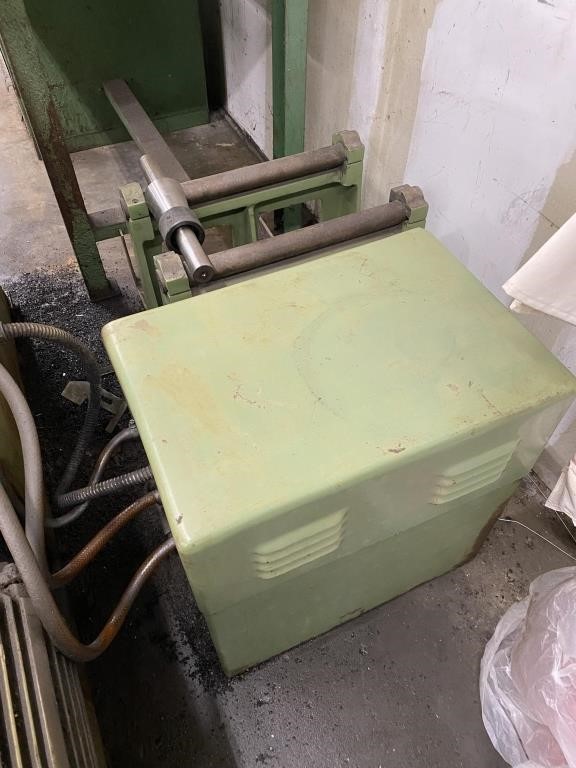

External Hydraulic Tank with Pump

Coolant System

Wired for 3 Phase, 60 Cycle, 230 Volts Only

Total KVA: 30 KVA



Made in China, Distributed by EcoTech Machinery



** SUPERB CONDITION & APPEARANCE **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
