Cincinnati 2EA, S/N: 2M2H1P-836, Std. Machine, CENTERLESS GRINDERS

Price on Request

Make:: Cincinnati

Model:: 2EA, S/N: 2M2H1P-836, Std. Machine,

Year:

Ref #:: 177878

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

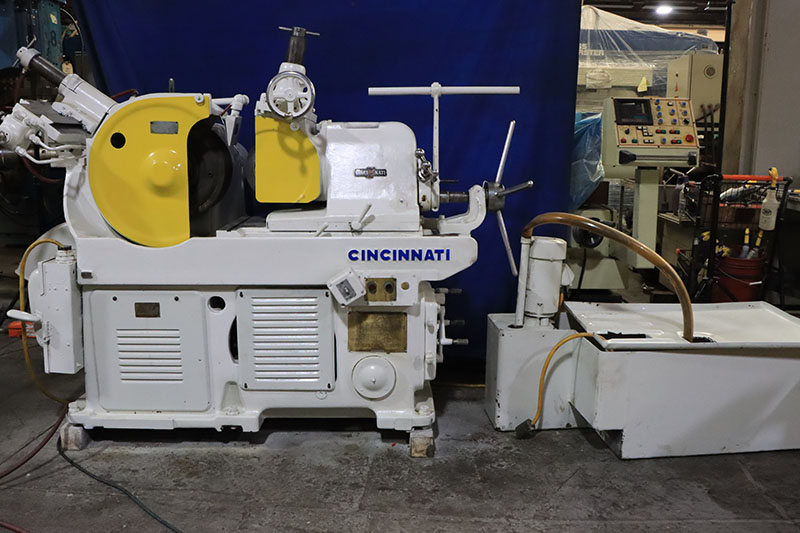

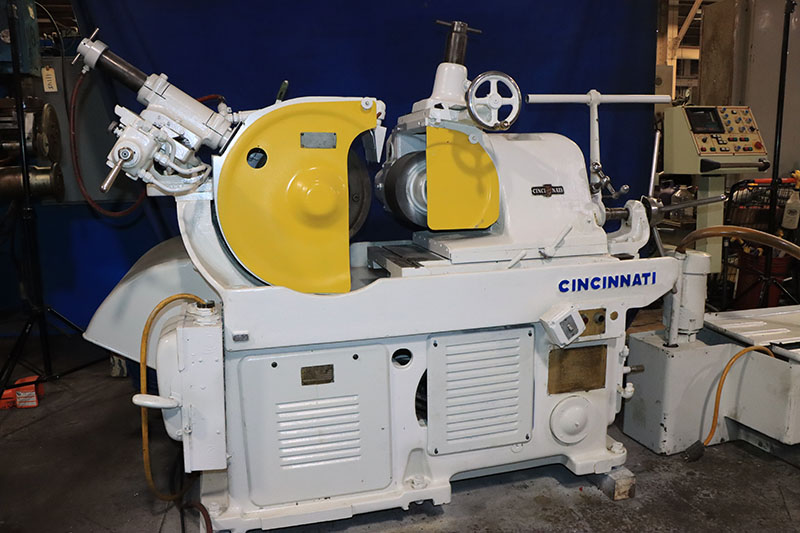

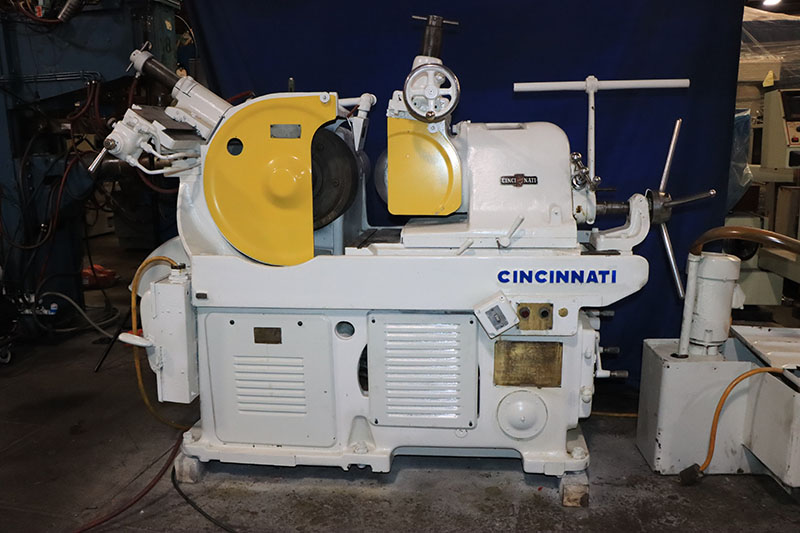

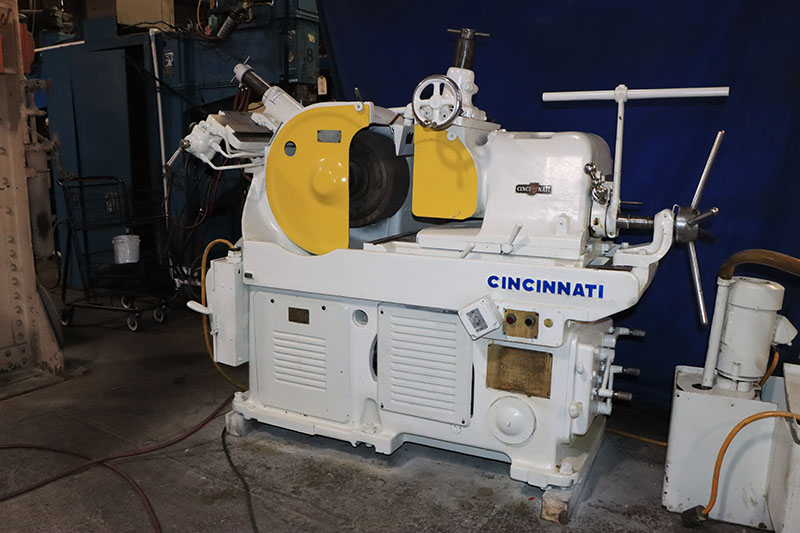

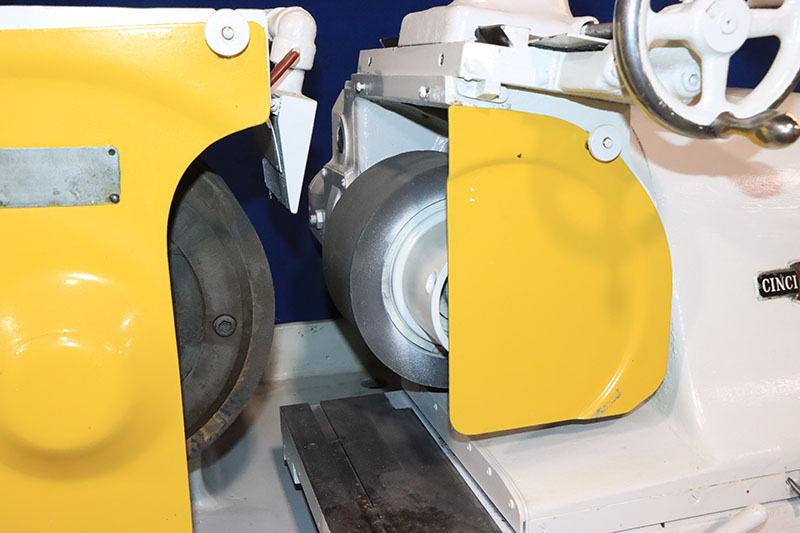

#2EA CINCINNATI CENTERLESS GRINDER

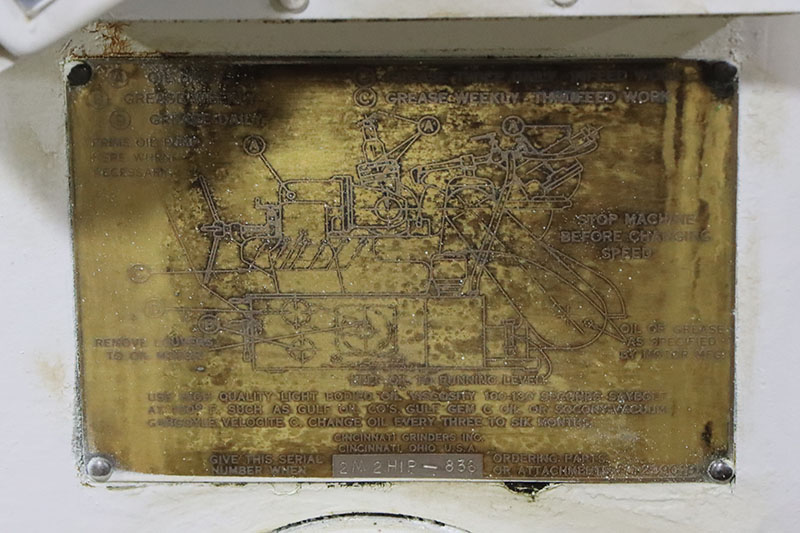

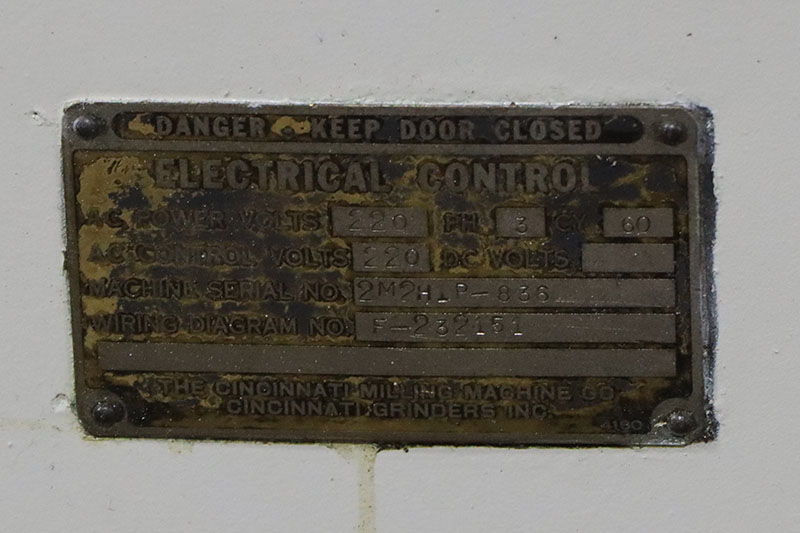

S/N: 2M2H1P-836

STANDARD CATALOG SPECIFICATIONS:
CAPACITY:
Standard work rest ...... 1/16" to 3- 1/2" Diameter
Low thru-feed work rest ... 2" to 4- 3/4" Diameter
Bar work ...(18' Long) .... 1/8" to 2" Diameter

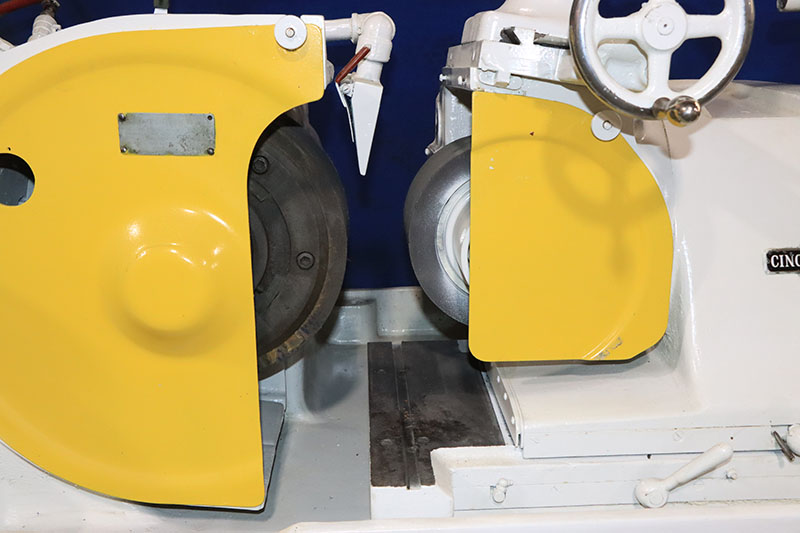

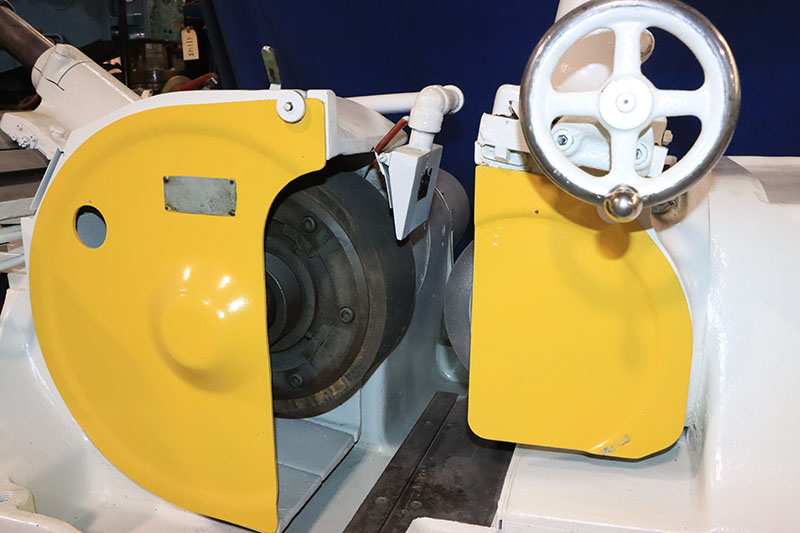

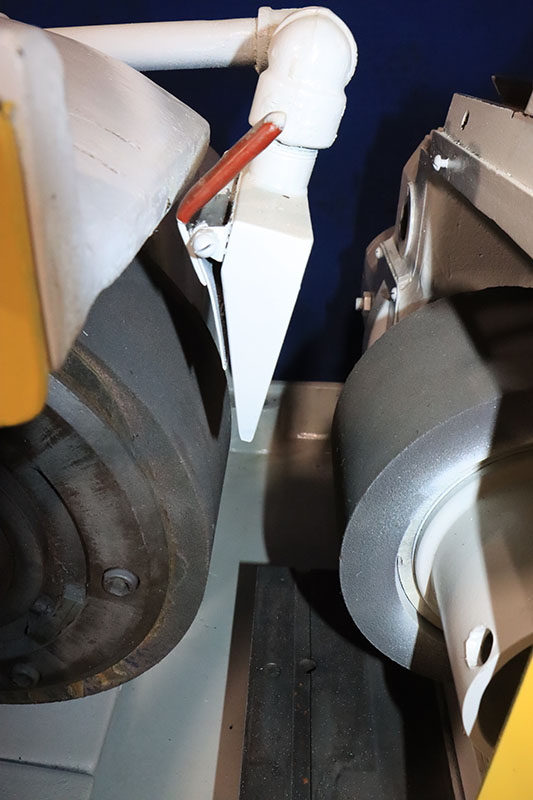

GRINDING WHEEL:
4", 6", or 8" Width - 12" Hole
20" Maximum Diameter
14" Minimum Diameter
Speed - 1200 RPM

REGULATING WHEEL:
4", 6", or 8" Width - 5" Hole
12" Maximum Diameter
9" Minimum Diameter

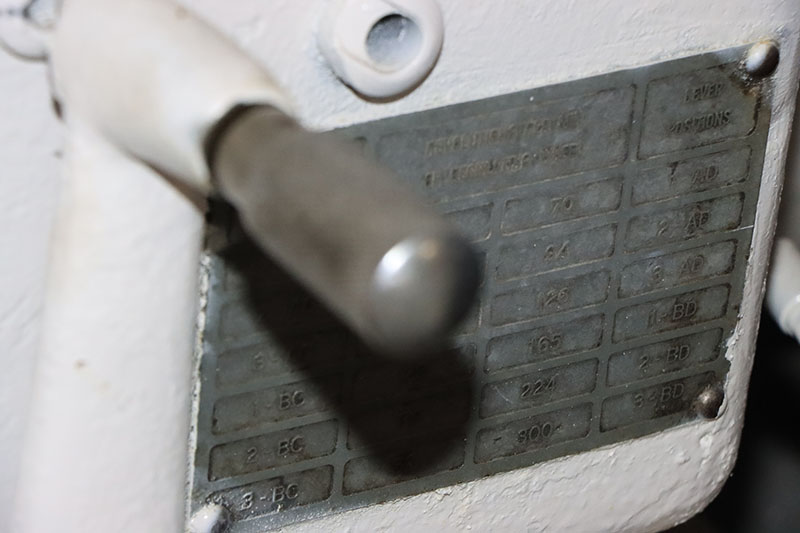

Range of speeds - 12 to 300 RPM

MOTOR DRIVES:
Grinding wheel......... 15 H.P.
Regulating wheel....... 1- 1/2 H.P.
Hydraulic pump......... 1- 1/2 H.P.
Cutting fluid.......... 1/4 H.P.

Floor space............ 53" x 86"
Weight................. 6,400 lbs.

EQUIPMENT FEATURES:
Filmatic Bearings

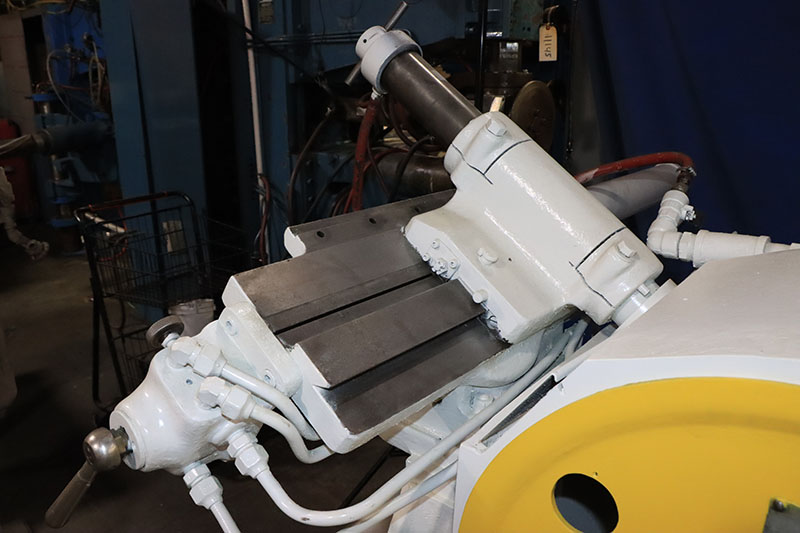

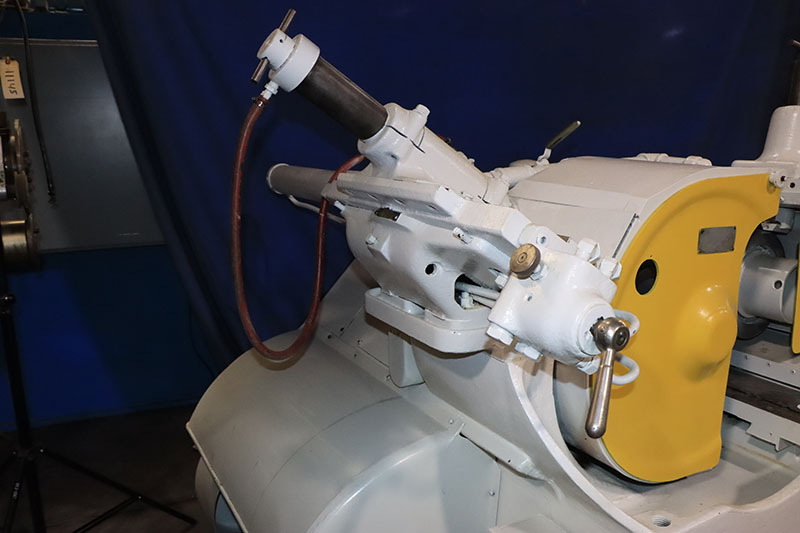

Hydraulic contour truing on grinding wheel

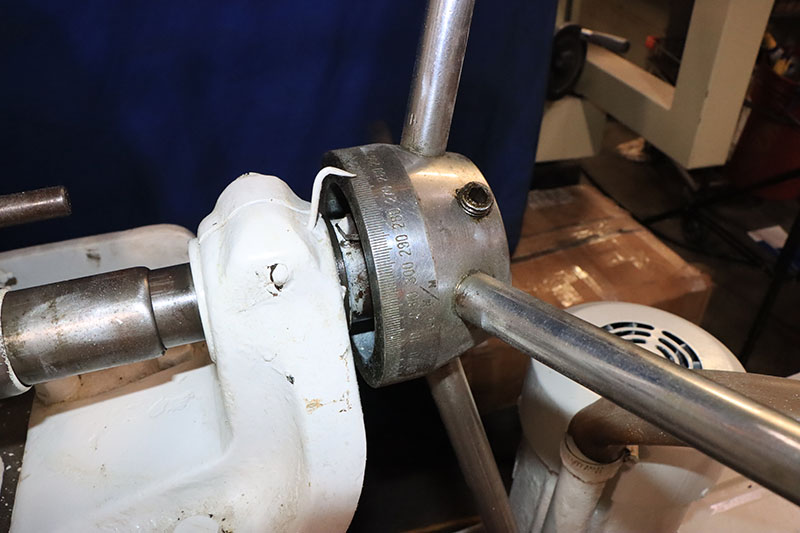

Screw type truing on regulating wheel
Grinding wheel mount for straight side wheel
Regulating wheel mount for straight side wheel

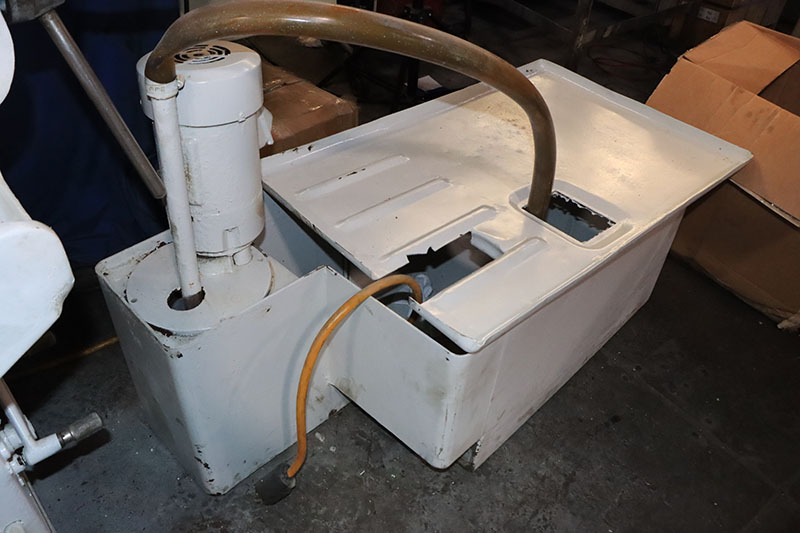

Coolant pump and tank

** Cleaned, Painted, Serviced & Cycled **
** In Stock, Excellent Condition **
