Hermes RC-812, PARAGON RC-18, NEW 1995, CENTERLESS GRINDERS

Price on Request

Make:: Hermes

Model:: RC-812, PARAGON RC-18, NEW 1995,

Year:: 1995

Ref #:: 174573

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

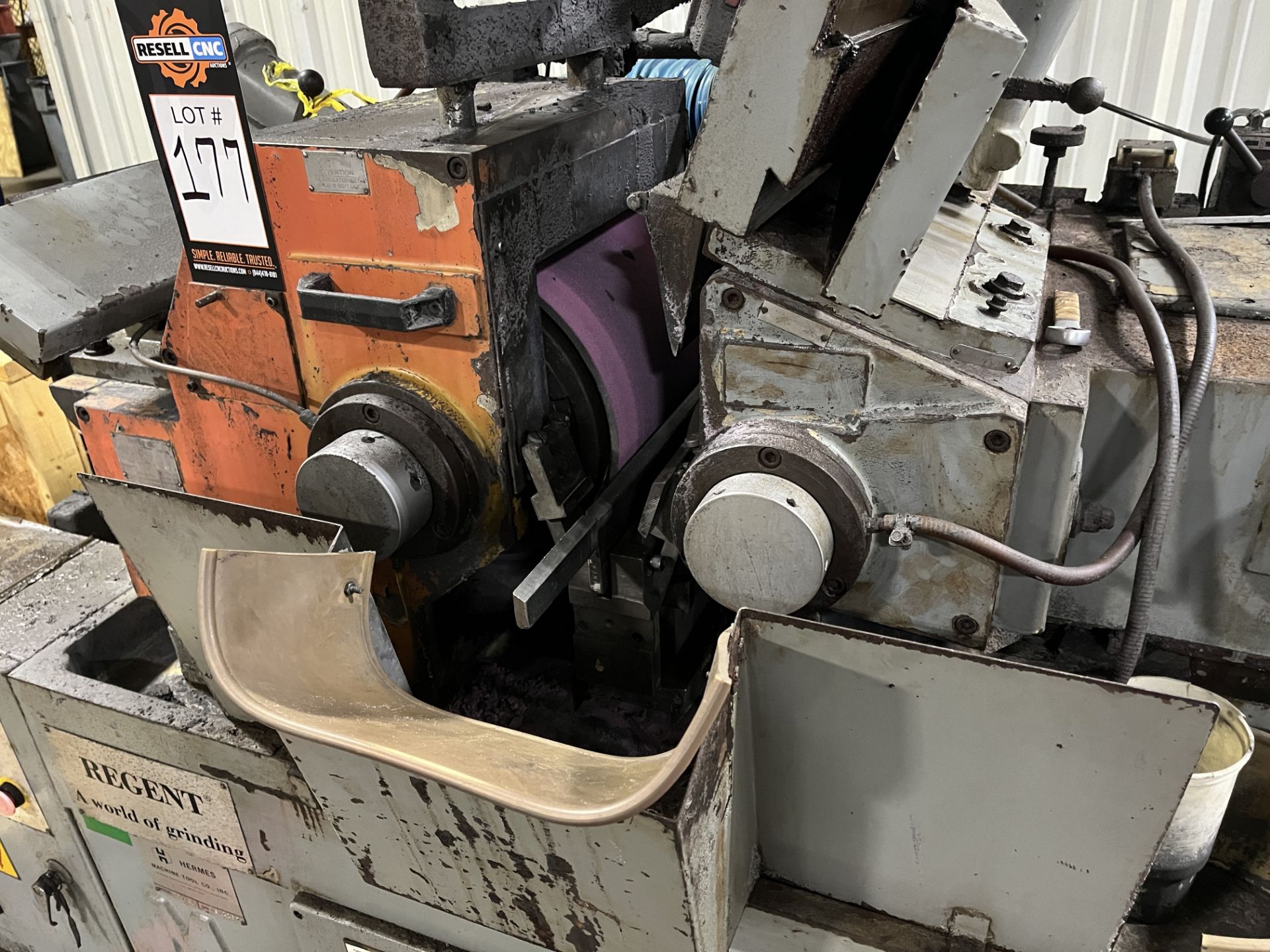

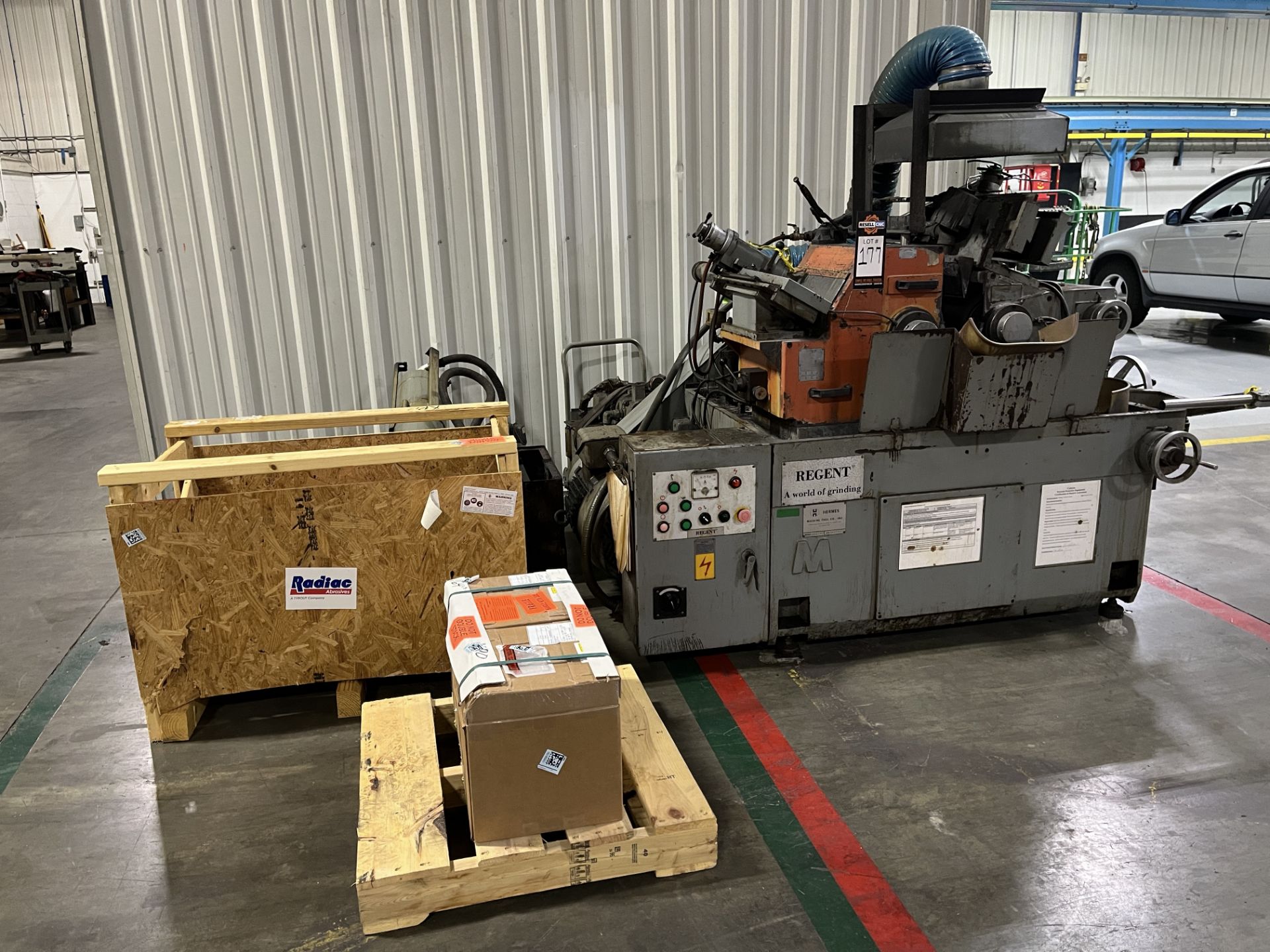

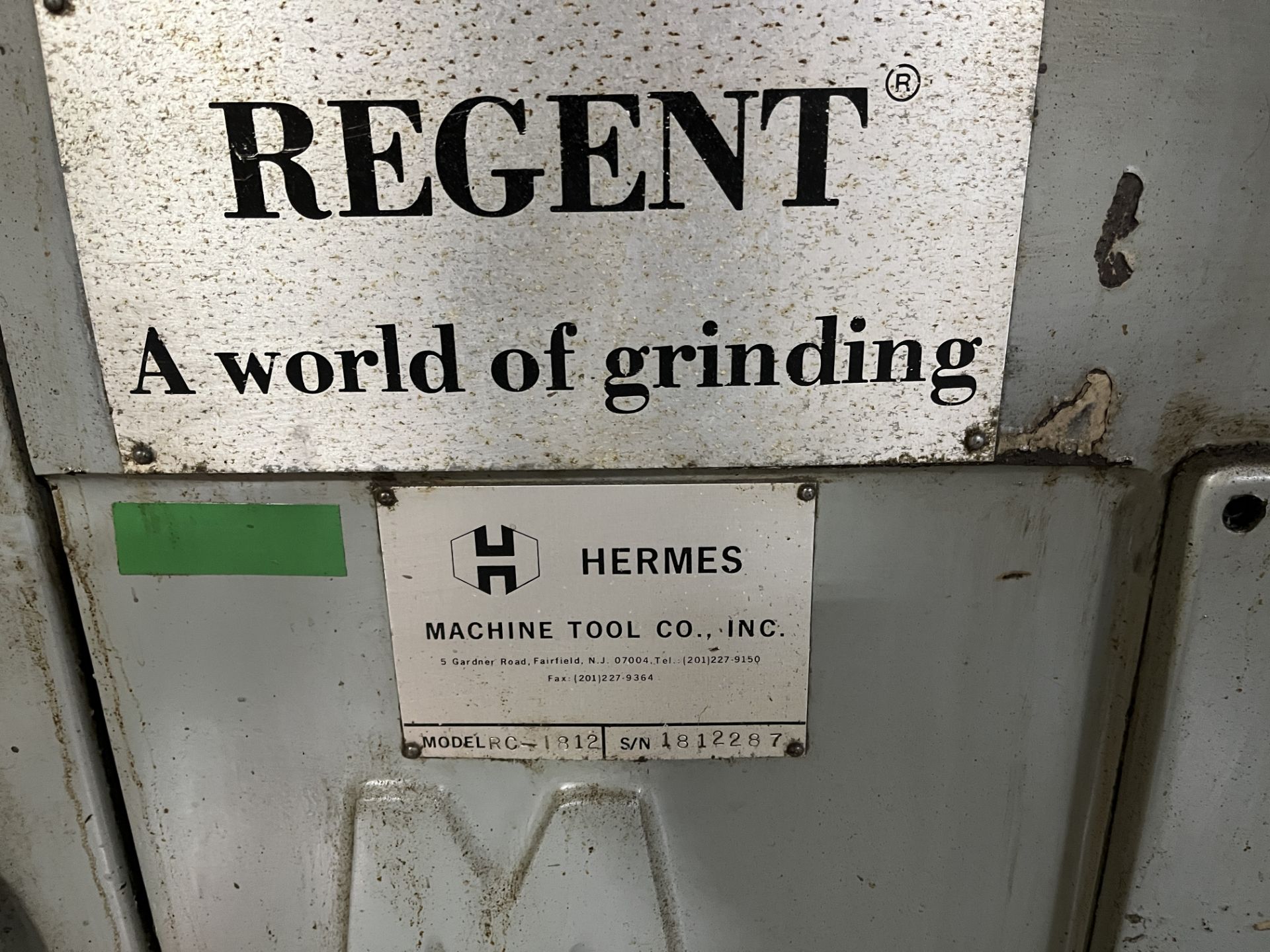

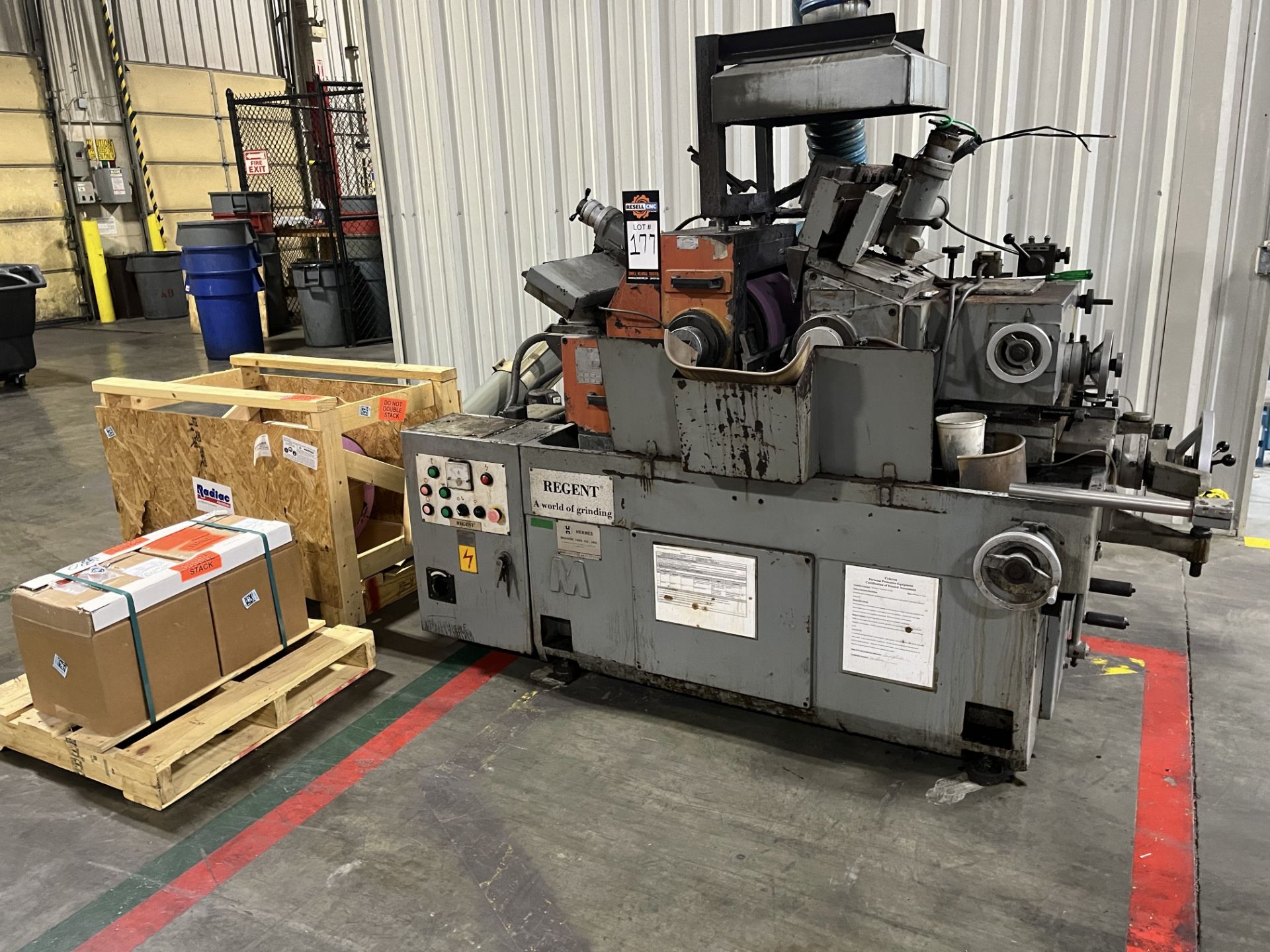

 HERMES "REGENT" - Made by "PARAGON"
       Centerless Grinder

Model:  RC-1812   S/N: 1812287    New:  1995

Capacity:  Up to 4" Diameter

Std. Grinding Wheel Size:
18"Dia. x 12"W x 10"B

Std. Regulating Wheel Size:
12"Dia. x 8"W x 10"B

Regulating Wheel Speeds (10):
Low Range:  13, 20, 35, 44 & 55 RPM
High Range:  70, 89, 121, 153 & 308 RPM

Regulating Wheel Tilt Angle:  +/- 5°

Equipped With:

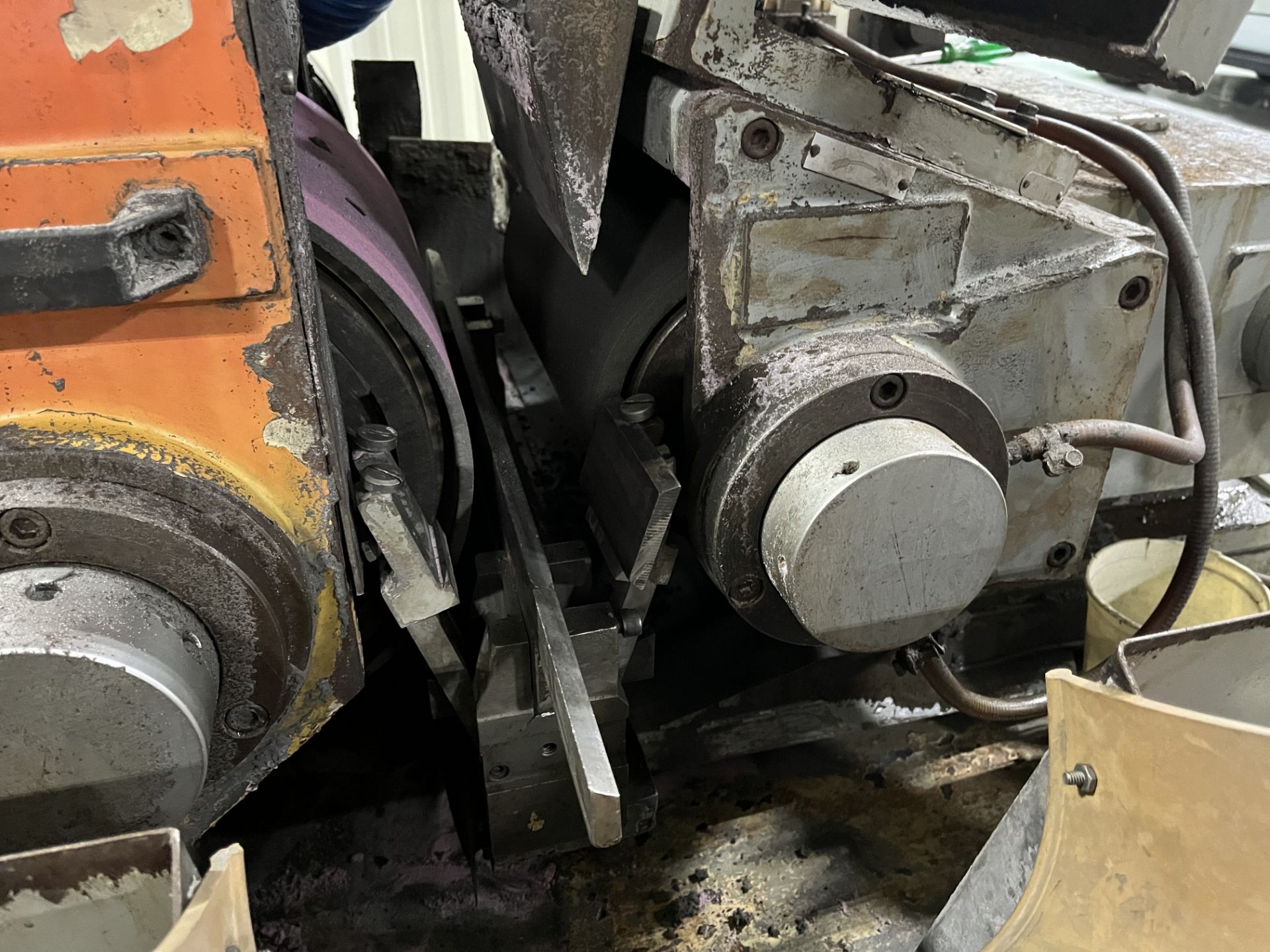

WorkRest

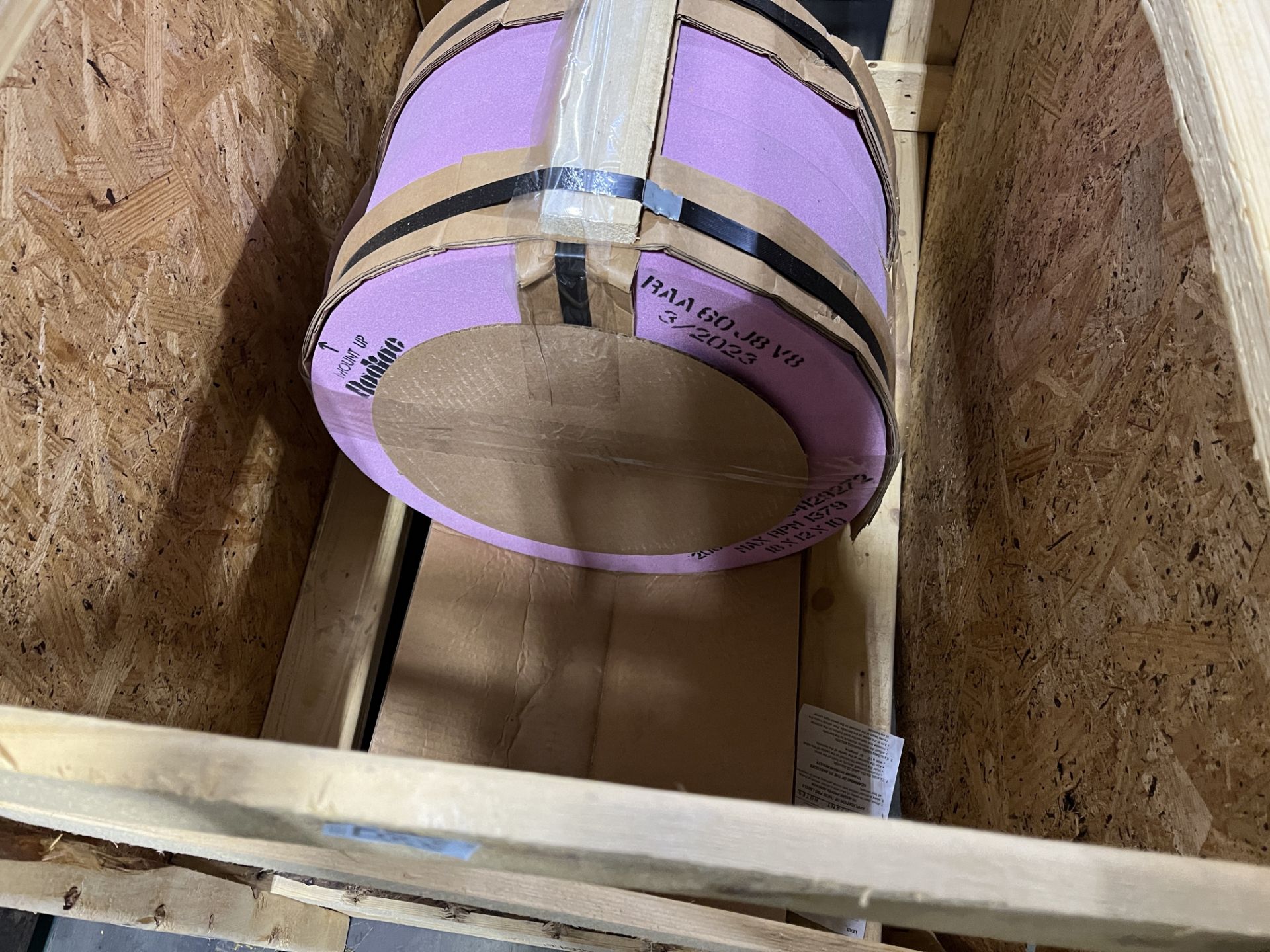

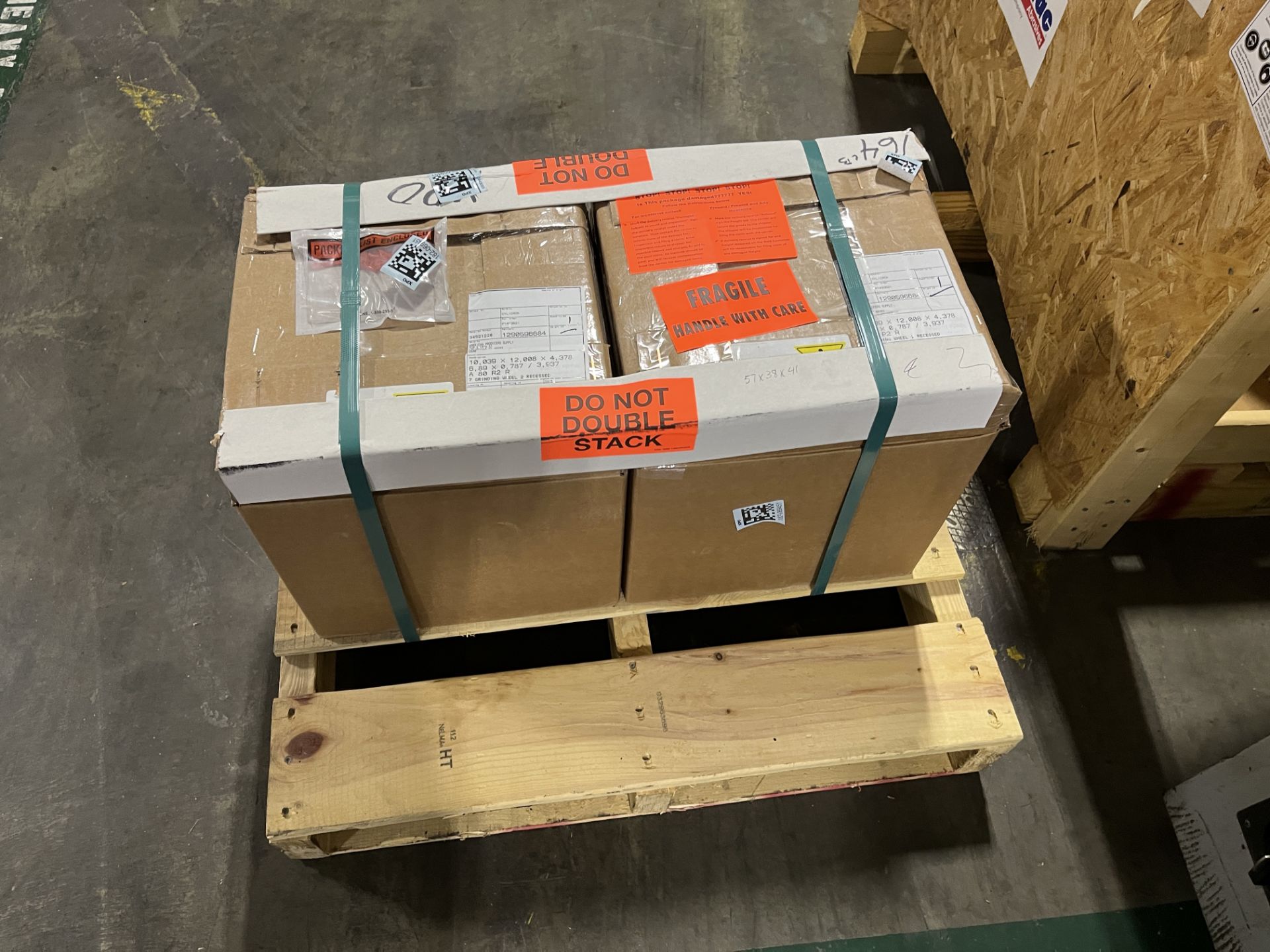

Extra Wheels

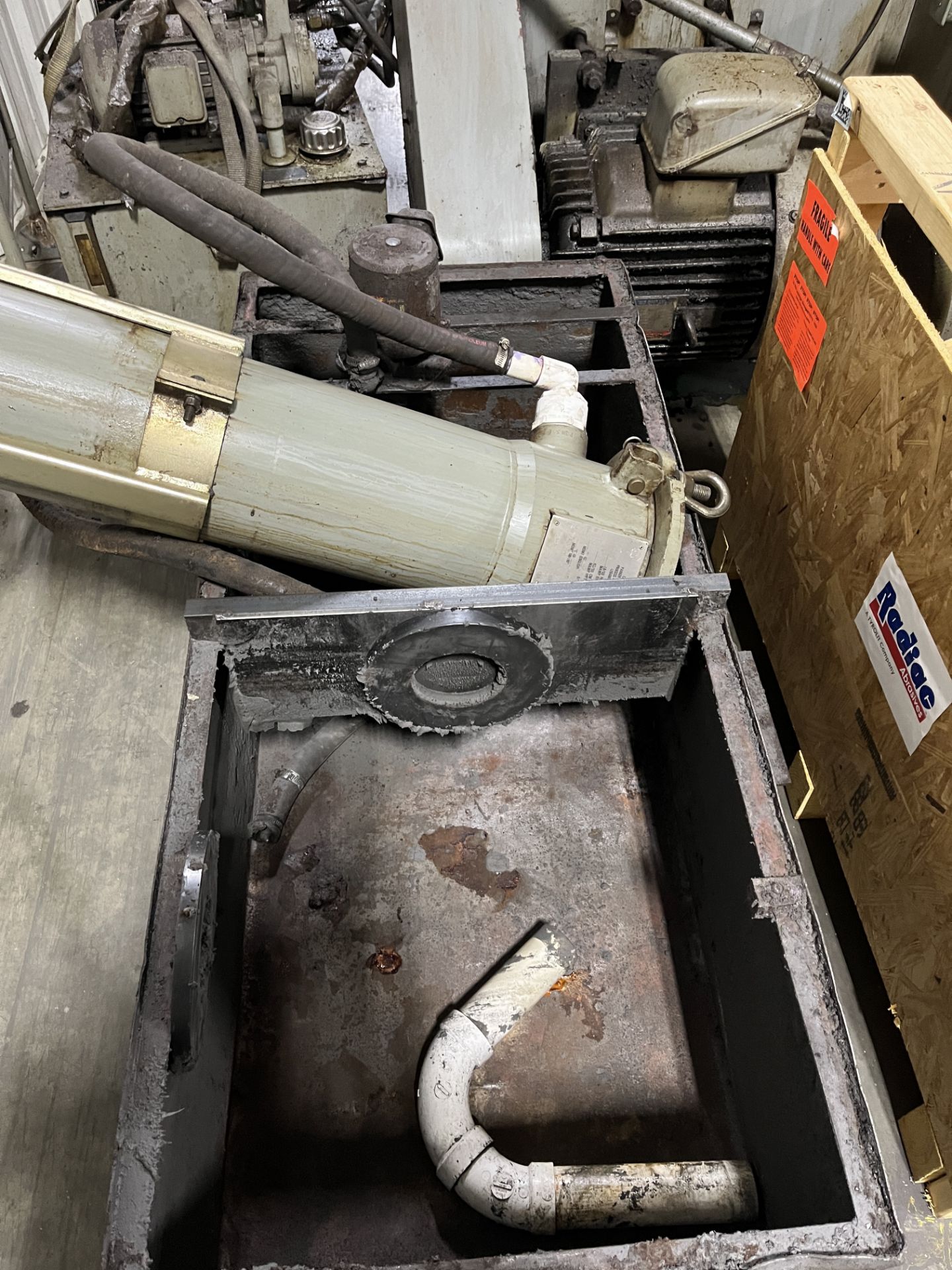

Coolant System
Hydraulic Grinding Wheel Dresser
Hydraulic Regulating Wheel Dresser

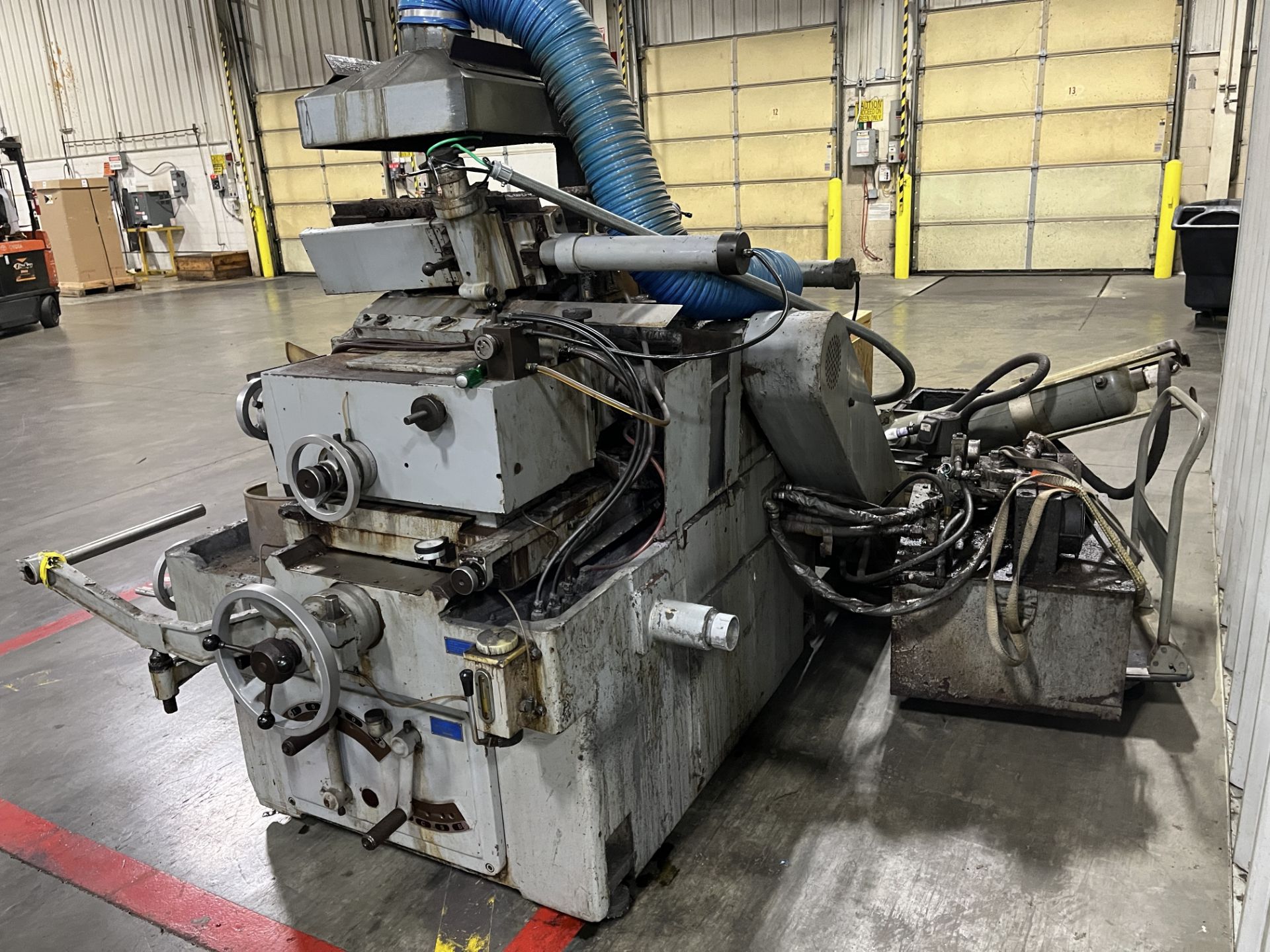

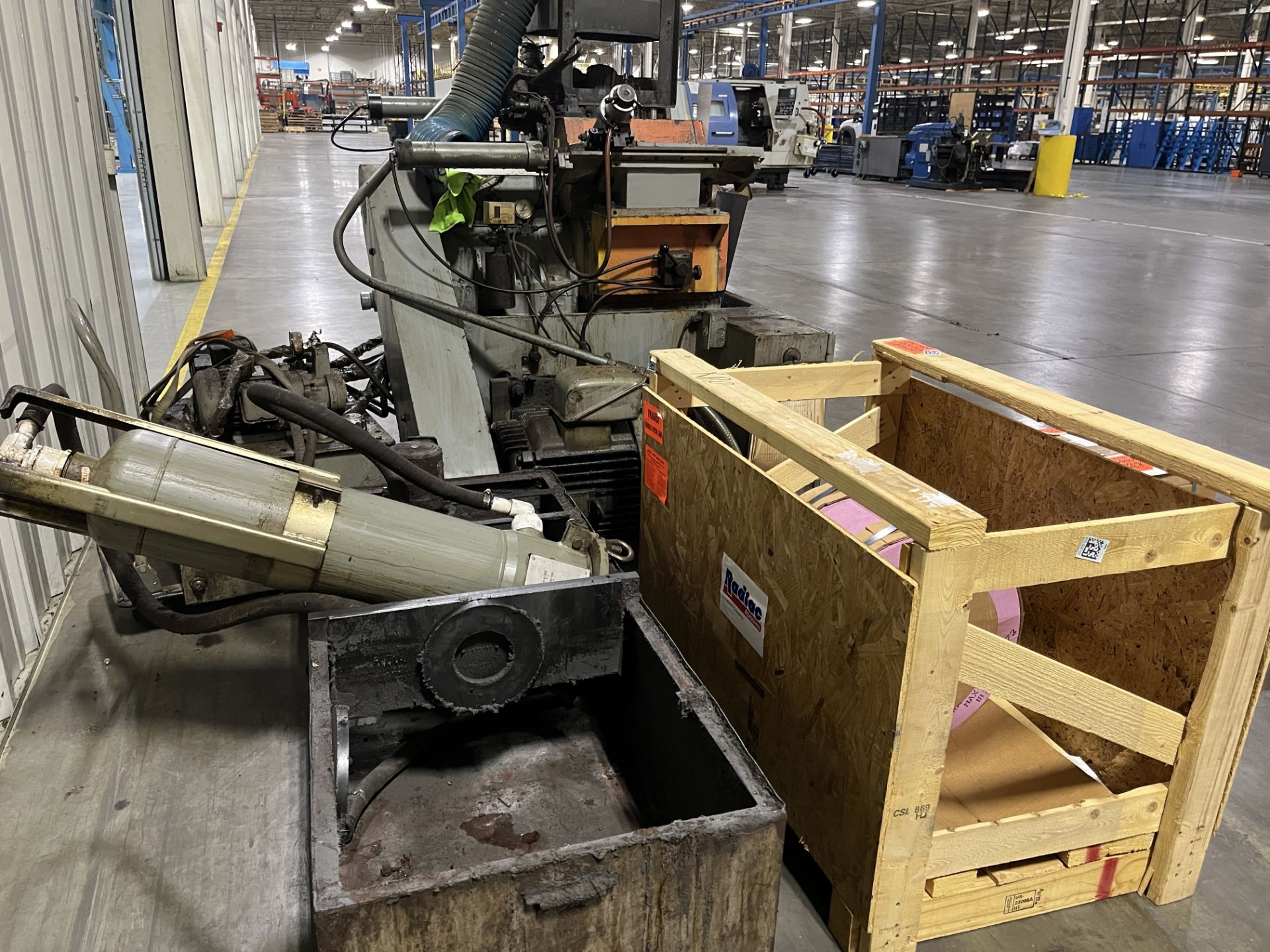

External Hydraulic System

30 H.P./3/60/230-460 Volts Grinding Wheel Motor,
 73.2 Amps with 230 Volts
 36.8 Amps with 460 Volts


Machine Features:

Grinding spindle with fine hand scraped
 hydrodynamic bearings made of steel
 and phosphor bronze alloy with oil
 lubrication, firmly maintaining high
 precision rotation and rigidity with
 heavy duty grinding.

Regulating Wheel is an advanced spindle
 that dose not require a flange and
 utilizes precision angular contact
 bearings. With dual-end supports firmly
 maintain spindle super precision
 rotation and rigidity.


Hydrostatic bearings of the grinding
 spindle are surrounded by high pressure
 oil film, eliminating metal-to-metal
 contact. This eliminates overheating,
 less power consumption, high vibration
 dampening and no oil leakage.

Upper & Lower Slides
