Cincinnati 2OM, REMANUFACTURED BY GCH IN 2020, CENTERLESS GRINDERS

Price on Request

Make:: Cincinnati

Model:: 2OM, REMANUFACTURED BY GCH IN 2020,

Year:: 2020

Ref #:: 178923

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

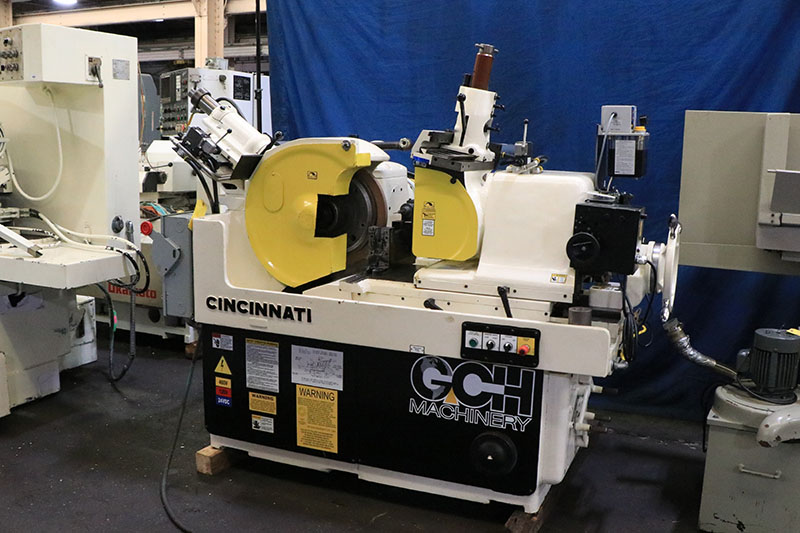

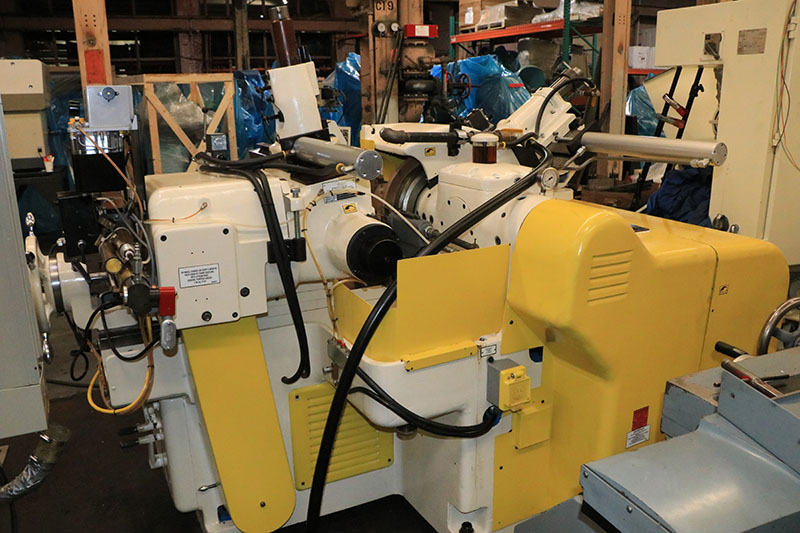

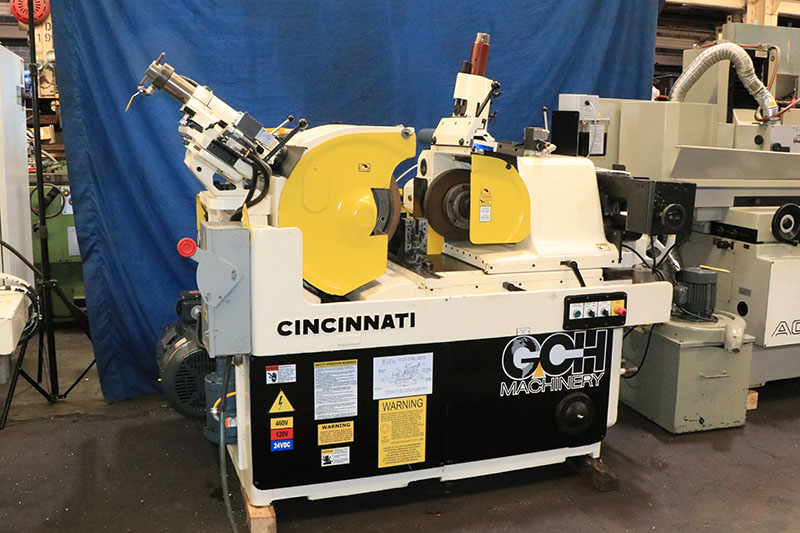

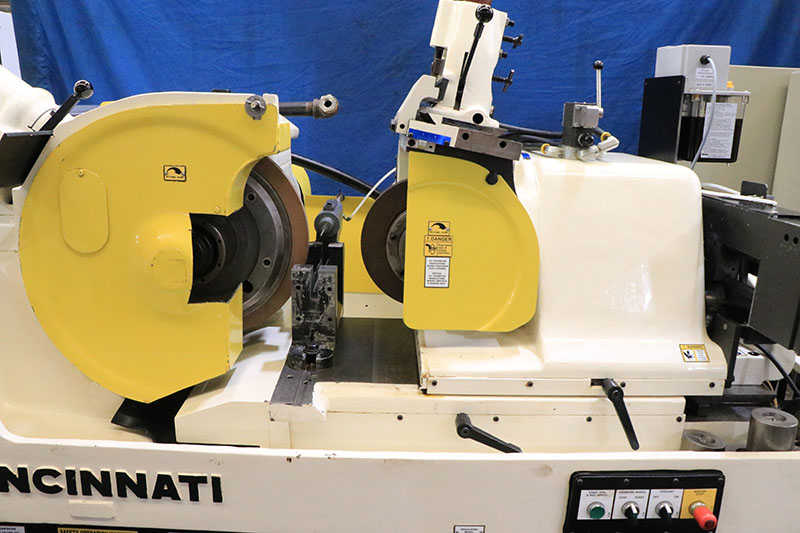

CINCINNATI No. 2 "OM" CENTERLESS GRINDER
(THIS MACHINE WAS MADE IN THE USA!)

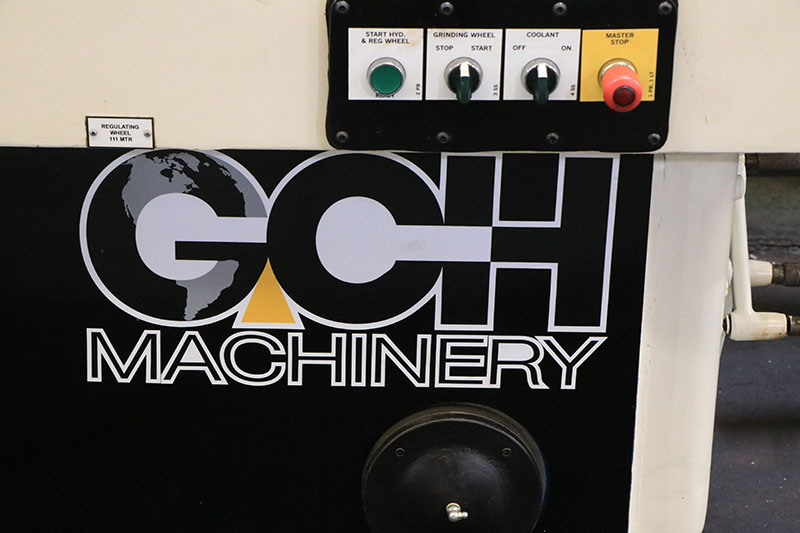

REMANUFACTURED IN 2020 BY OUR FRIENDS
         AT GCH MACHINERY

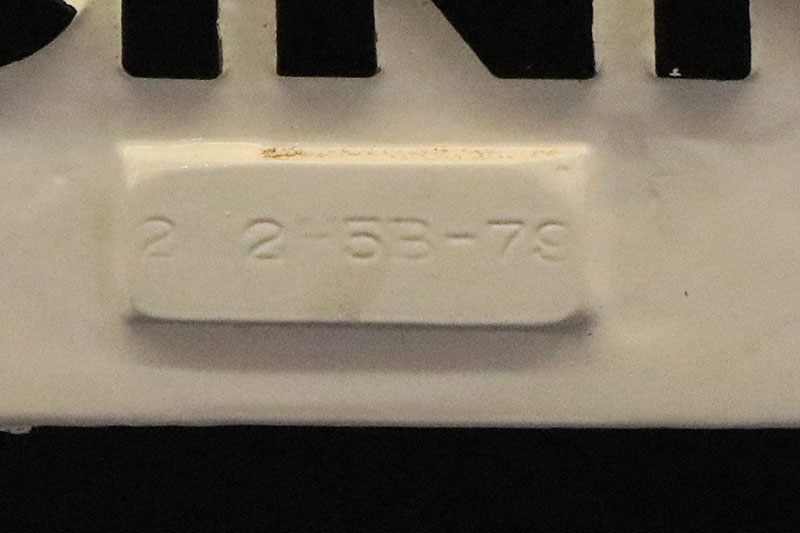

S/N: 2M2H5B-79


DIAMETER CAPACITY, STD. ........ 1/16" TO 3.5"
LOW THRU FEED WORK REST ........ 2" TO 4.75"
BAR WORK ................. 1/8" TO 2" DIA. 18" LONG

GRINDING WHEEL DIAMETER, MINIMUM ... 16"
GRINDING WHEEL DIAMETER, MAXIMUM ... 20"
GRINDING WHEEL WIDTHS. ........... 4", 6" OR 8"
GRINDING WHEEL HOLE DIAMETER ....... 12"
GRINDING WHEEL MOTOR ............... 20 H.P.

REGULATING WHEEL DIAMETER, MIN. .... 9"
REGULATING WHEEL DIAMETER, MAX. .... 12"
REGULATING WHEEL WIDTH, MAXIMUM .... 8"
REGULATING WHEEL WIDTHS. ........... 4", 6" OR 8"
REGULATING WHEEL HOLE DIAMETER ..... 5"

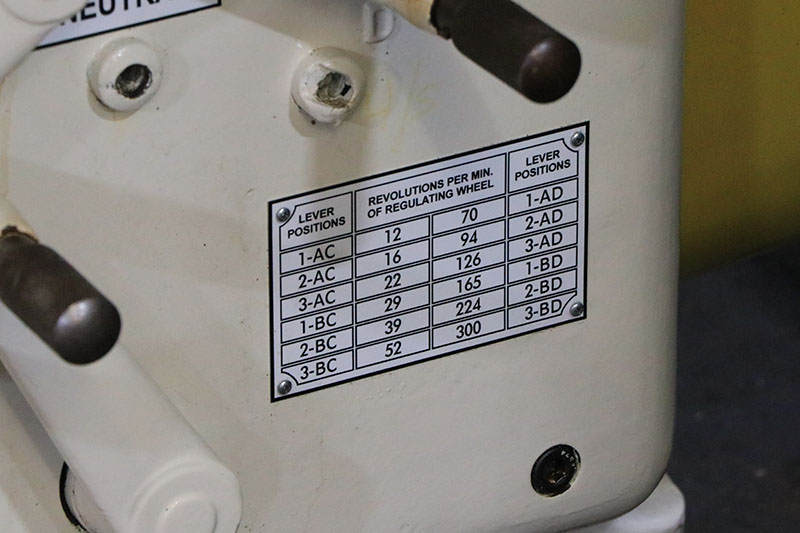

REGULATING WHEEL SPEEDS, RANGE ..... 12 TO 300 RPM
REGULATING WHEEL MOTOR ............. 1- 1/2 H.P.

APPROX. MACHINE WEIGHT ............. 7,000 LBS.
FLOOR SPACE ........................ 53" x 86"

EQUIPPED WITH:

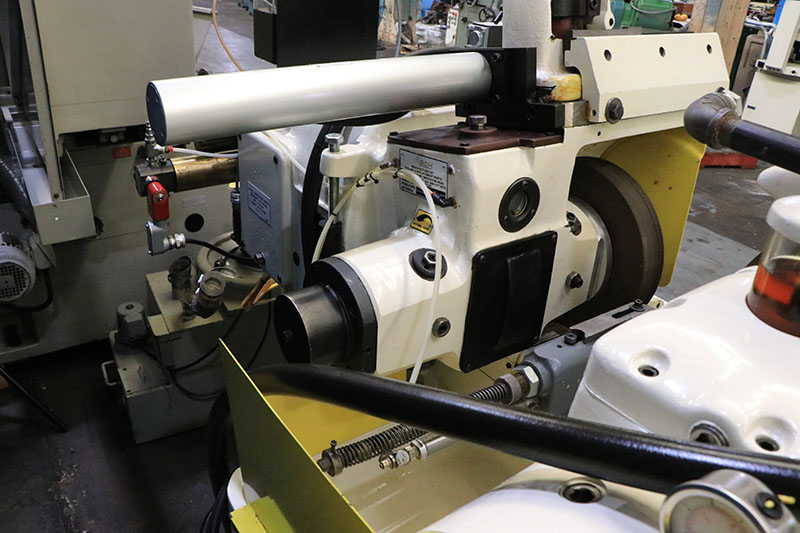

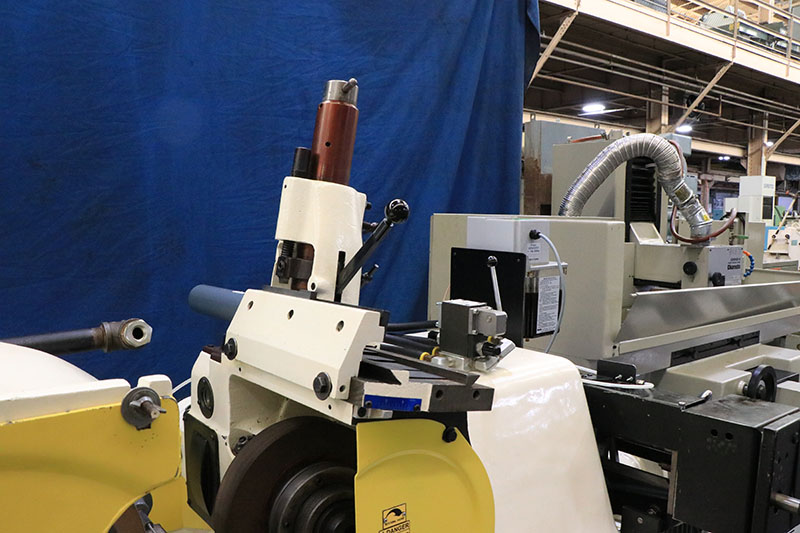

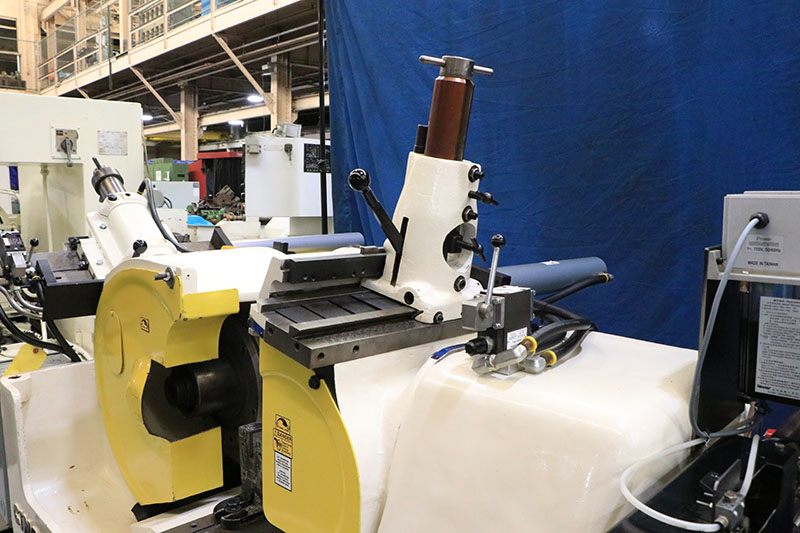

HYDRAULIC CONTOUR DRESSER FOR GRINDING WHEEL,
  WITH JOYSTICK
HYDRAULIC CONTOUR DRESSER FOR REGULATING WHEEL,
  WITH JOYSTICK
GCH MODEL "CLX" AIR-POWERED AUTO INFEED UNIT

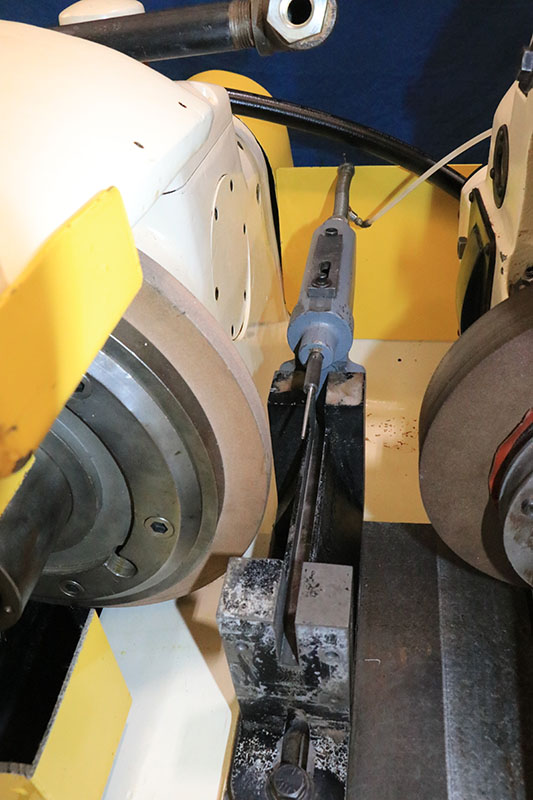

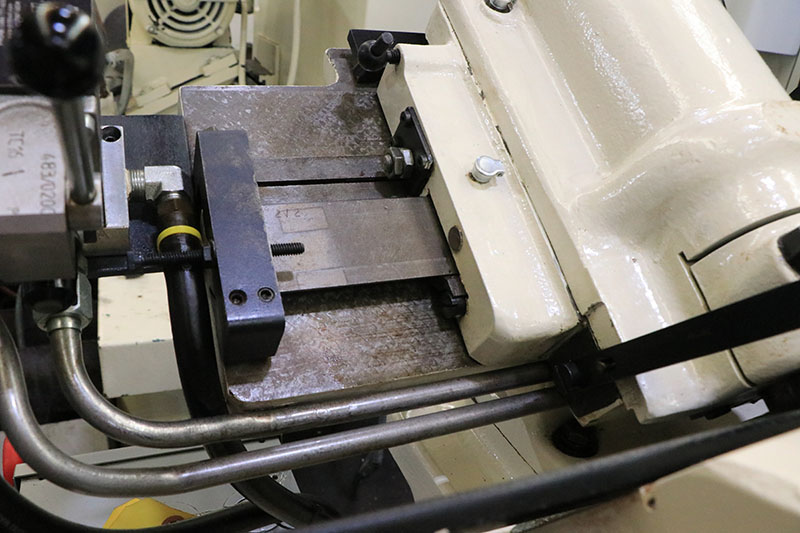

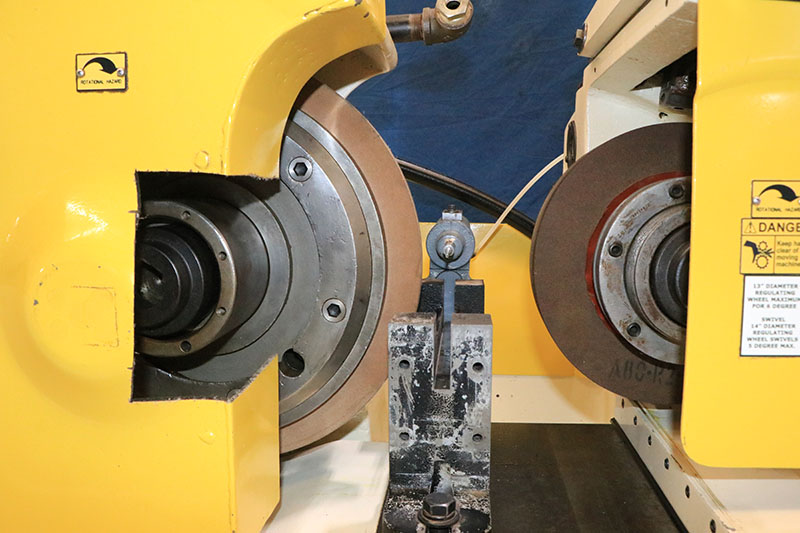

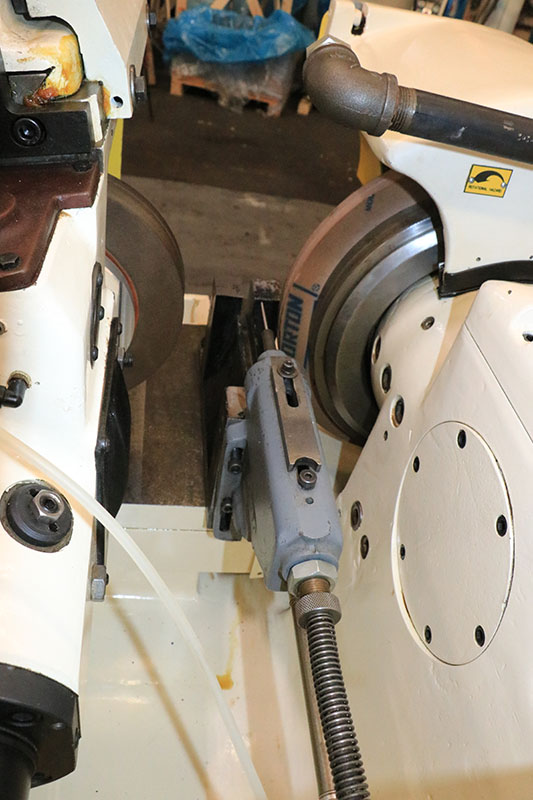

INFEED WORK REST WITHOUT BLADES, FOR 6" WIDE WHEELS
AIR KICKER, SYNCHED WITH THE AUTO INFEED UNIT

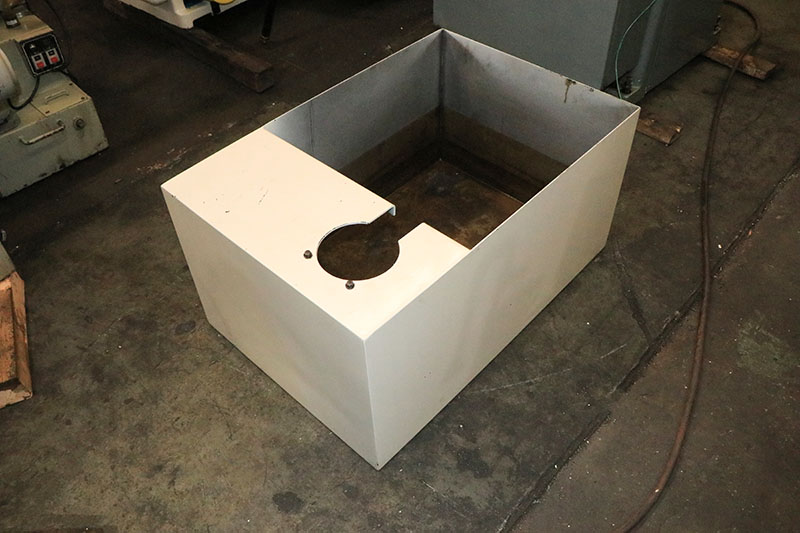

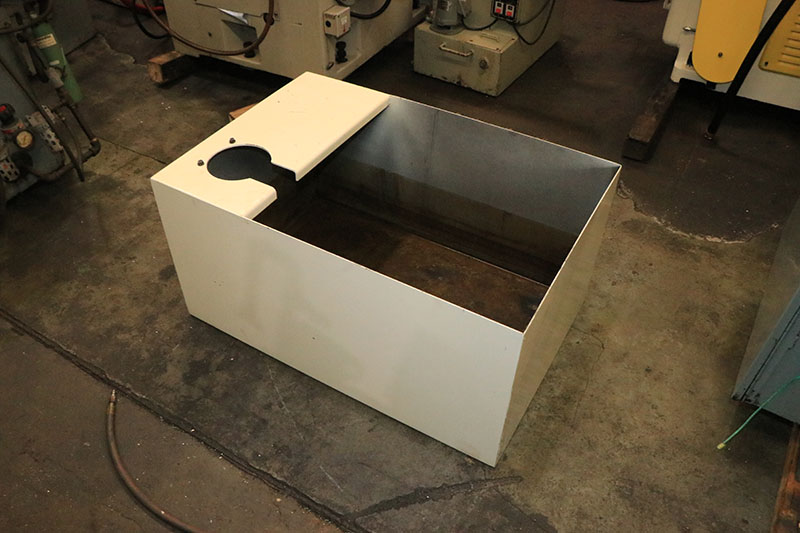

EXTERNAL COOLANT SYSTEM, TANK, WITH "NEW" PUMP
  TO BE SUPPLIED

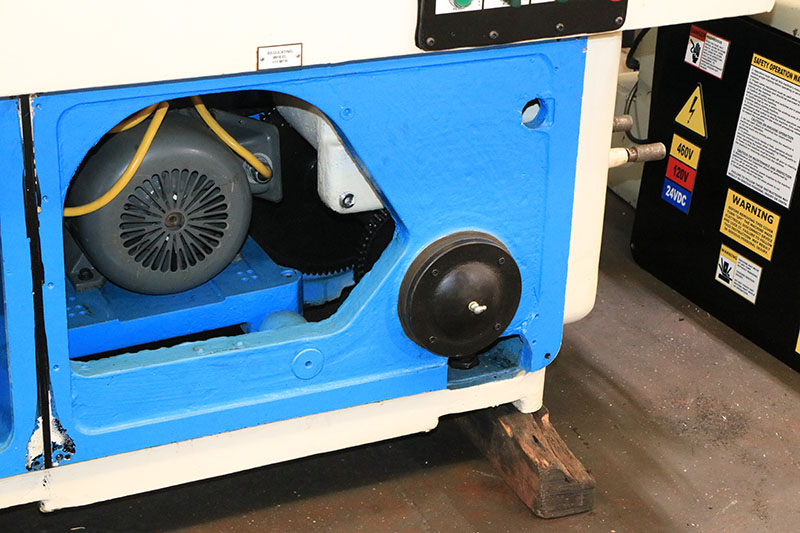

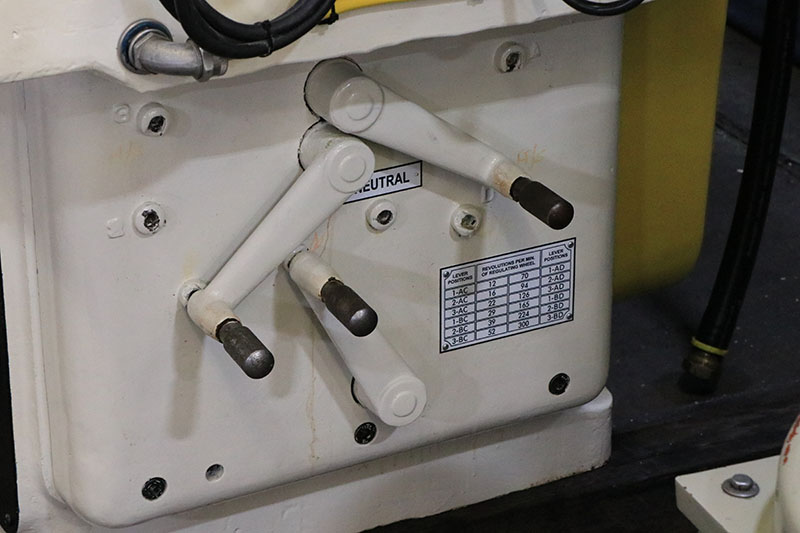

MECHANICAL TRANSMISSION, PROVIDING SET OF SPEEDS,
 FOR THE REGULATING WHEEL

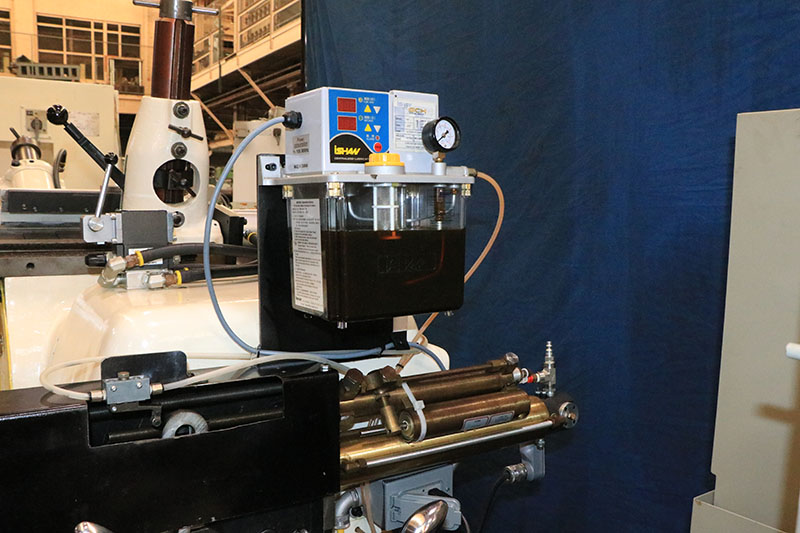

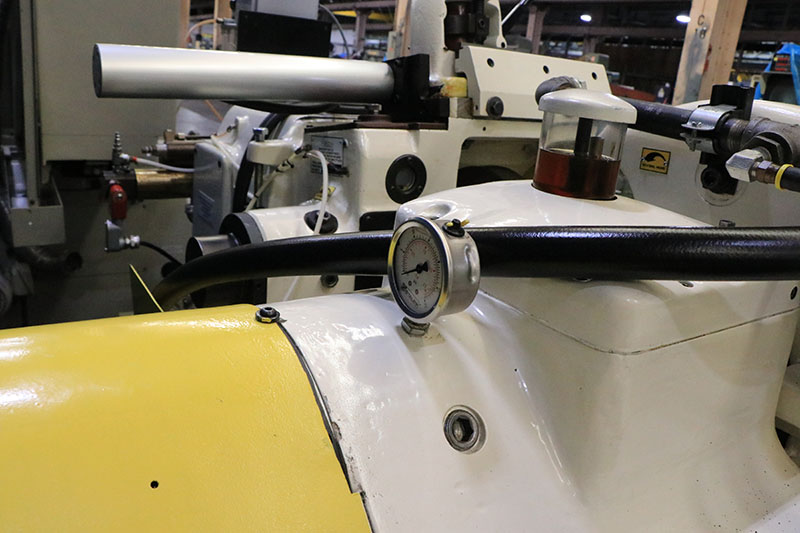

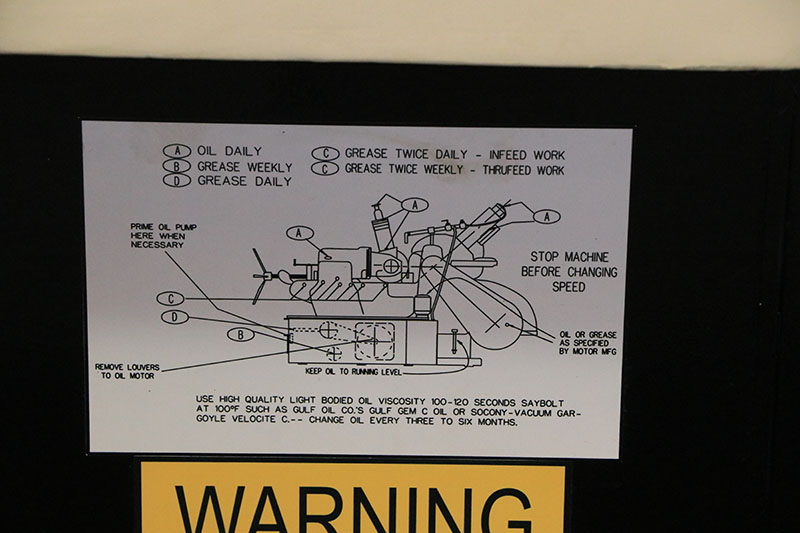

"ISHAW" AUTOMATIC CENTRALIZED LUBRICATION SYSTEM

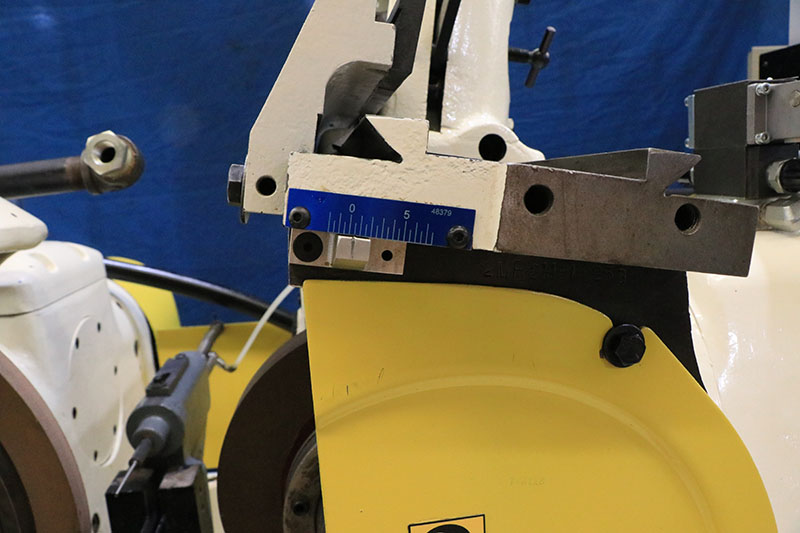

SWIVEL-TYPE REGULATING WHEEL UNIT
  - TAPER ADJUSTMENT
FILAMTIC GRINDING WHEEL SPINDLE BEARINGS

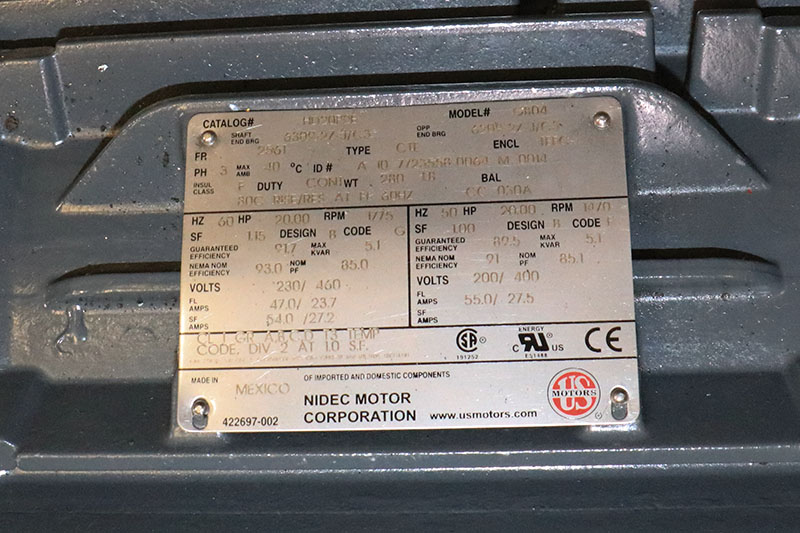

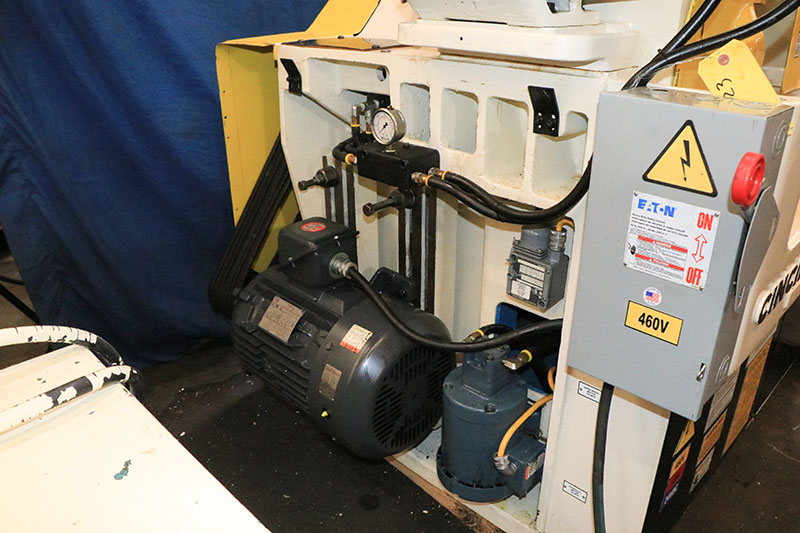

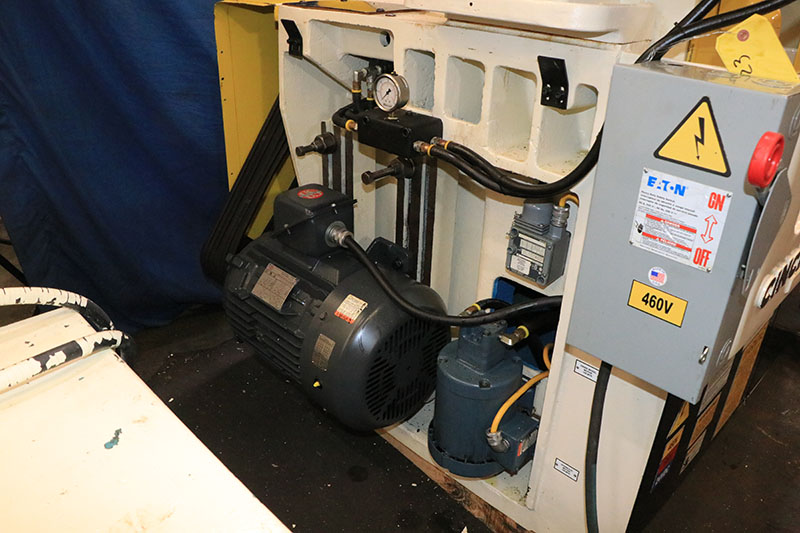

20 H.P./3/60/220-440 VOLT MOTOR
  FOR THE GRINDING WHEEL
MACHINE IS WIRED FOR 460 VOLTS

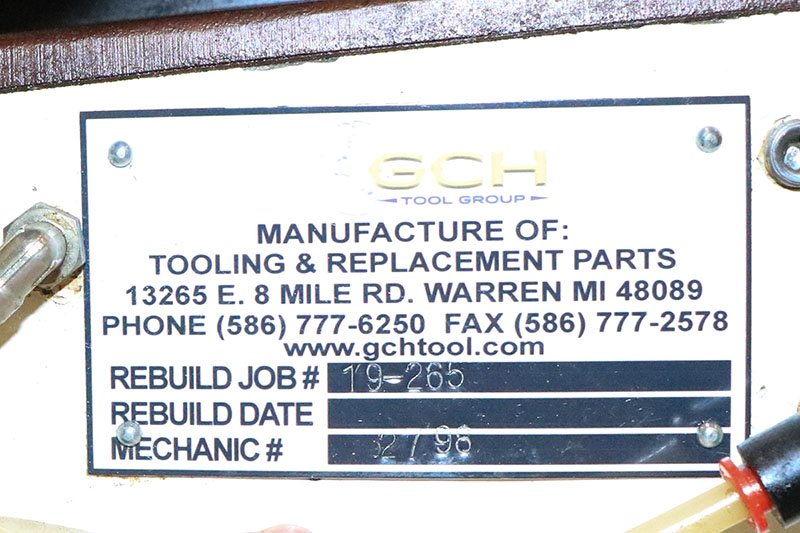

** REMANUFACTURED IN 2020 BY OUR FRIENDS AT GCH MACHINERY **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** WOW - REMANUFACTURED IN 2021, AND WITH NEARLY ZERO
    USE SINCE - HOLY COW!! **

Link to Video: https://youtu.be/So2_Nfo8z0g?si=DZzR1IpoQCgsWD33
