Cincinnati-Milacron No. 2, MODEL MT, 1990, TILT SPINDLE, ACCESSORIES TOOL & CUTTER GRINDERS

Price on Request

Make:: Cincinnati-Milacron

Model:: No. 2, MODEL MT, 1990, TILT SPINDLE, ACCESSORIES

Year:: 1990

Ref #:: 179417

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

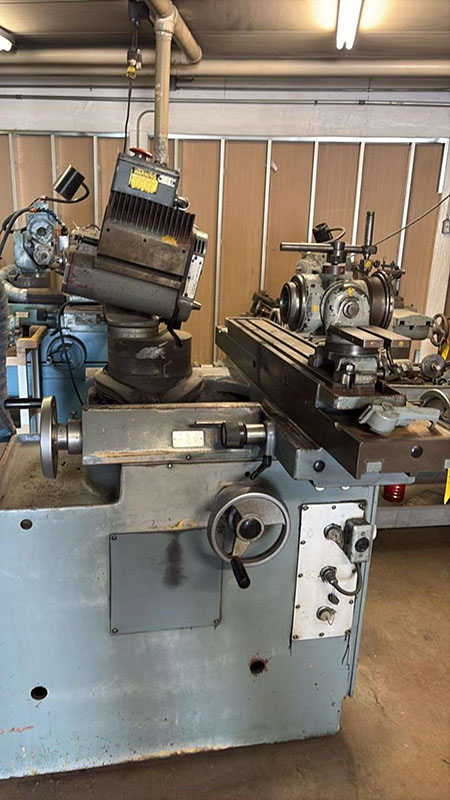

           #2 CINCINNATI-MILACRON
      UNIVERSAL TOOL& CUTTER GRINDER

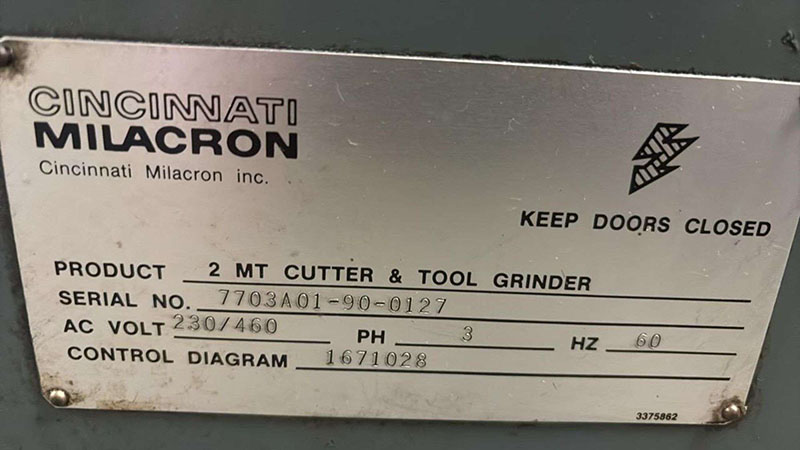

MODEL: MT     S/N: 7703A01-90-0127      NEW: 1990

    ** INSPECT UNDER POWER IN HOUSTON, TEXAS **
      ** EXCELLENT CONDITION & APPEARANCE **
              ** ORIGINAL PAINT **

CAPACITY:
SWING OVER TABLE DIAMETER ....................... 10"
LENGTH, BETWEEN RIGHT & LEFT-HAND TAILSTOCKS .... 27"
LENGTH, BETWEEN TAILSTOCK & WORKHEAD ........ 21-1/2"
FACE MILLS ON WORKHEAD DIAMETER ................. 10"
FACE MILLS USING FACE MILL
 GRINDING ATTACH. ........................... DIA. 18"
SAWS ON TABLE DIAMETER .......................... 48"
FORMED CUTTERS (USING 6" WHEEL) DIAMETER ........ 10"

RANGE:
TABLE SIZE ................................. 6" x 36"
LONGITUDINAL TABLE TRAVEL ....................... 16"
CROSS MOVEMENT OF TABLE ......................... 10"
TABLE SWIVEL ............................... 180 DEG.
TABLE TAPER PER FOOT ON DIA. (TOWARD & AWAY) ..... 5"
FINE ADJ. TAPER PER FT. ON DIA. (TOWARD & AWAY) .. 2"
TABLE GRADUATIONS IN CENTER, IN DEGREES ..... 90 DEG.
VERT. MOVEMENT OF GRINDING WHEEL SPINDLE .... 10-1/2"
MAX. DIST. CENTERLINE OF SPINDLE TO TABLE ... 13-1/2"
SPINDLE TILTS ABOVE AND BELOW CENTER ........ 15 DEG.
SWIVEL MOVEMENT OF GRINDING WHEEL SPINDLE .. 360 DEG.

SPINDLE SPEEDS:
6" WHEEL, SURFACE SPEED 6,022 FT./MIN. .... 3,834 RPM
3" WHEEL, SURFACE SPEED 5,887 FT./MIN. .... 6,425 RPM

WEIGHT & DIMS.
APPROXIMATE MACHINE WEIGHT .................. 3,000 LBS
APPROXIMATE DIMENSIONS ................ 36" x 38"D x 60"H


MACHINE FEATURES:

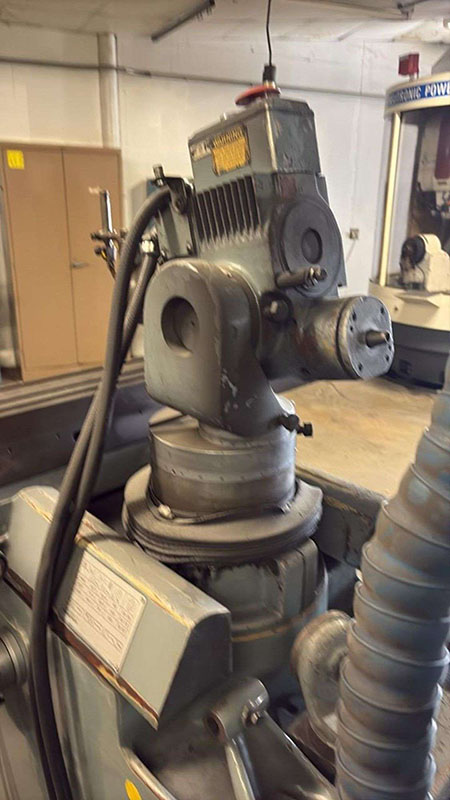

TILTING WHEELHEAD (15 DEG. ABOVE & BELOW)
DUPLICATE CONTROLS @ THE FRONT & REAR OF THE TABLE
BALL BEARING ANTI-FRICTION TABLE ROLLING IN
REPLACEABLE HARDENED STEEL V-WAYS
360 DEG. ECCENTRIC WHEELHEAD & SWIVEL TABLE WHICH
CAN INCREASE SPECIFIED CROSS RANGE BY 70%
CAST IRON CONSTRUCTION
ONE-SHOT LUBRICATION SYSTEM
2-SPEED SPINDLE, INSTANTLY REVERSIBLE
1 HP 3/60/230-460 VOLT SPINDLE MOTOR


EQUIPPED WITH:

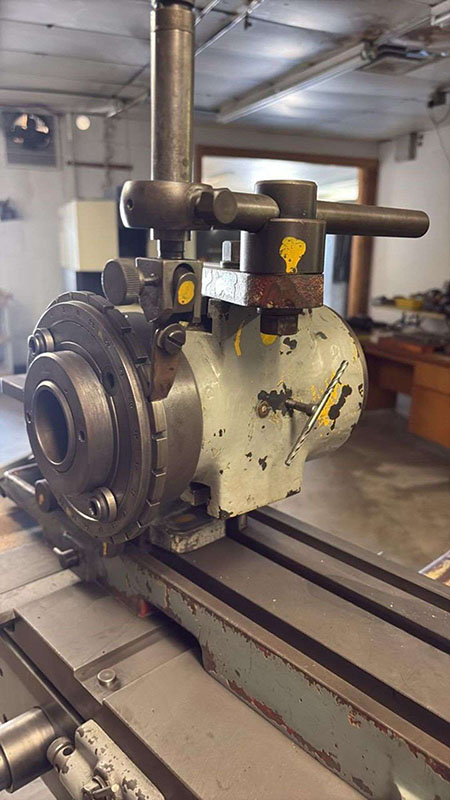

-CINCINNATI-MILACRON WORKHEAD WITH 24 POSITION
  INDEX PLATE, WORKHEAD HAS #5 MT& #50 NST TAPERS

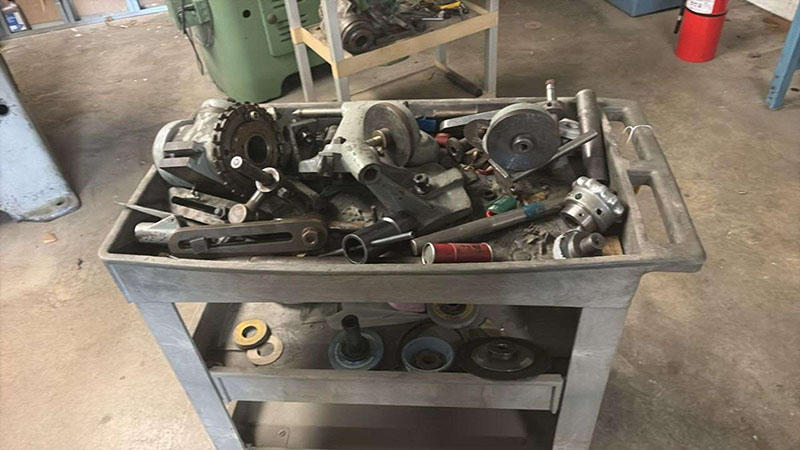

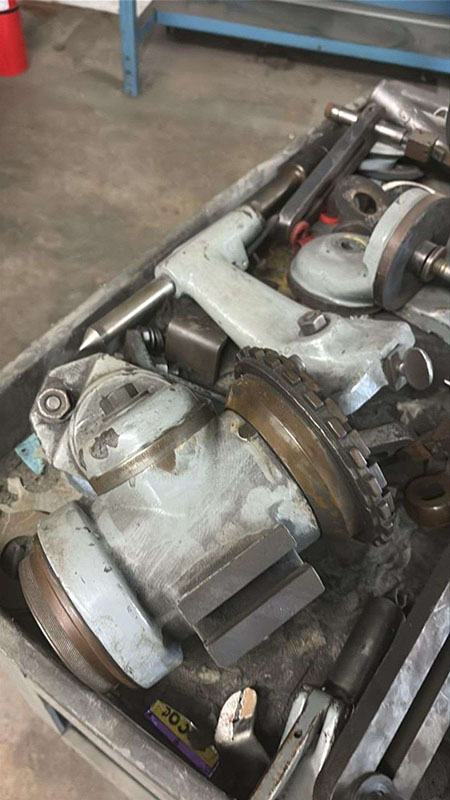

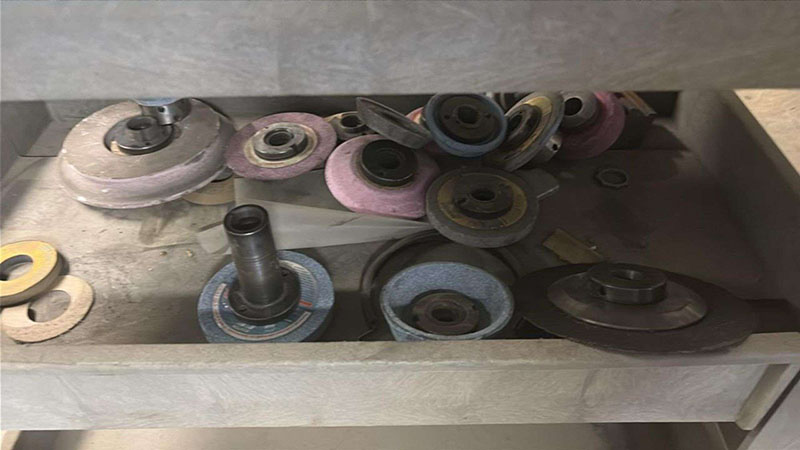

OTHER ACCESSORIES AS SHOWN IN THE PHOTOS

** LOCATED IN HOUSTON, TEXAS **
** ORIGINAL PAINT - EXCELLENT CONDITION & APPEARANCE **
