Cincinnati No. 1 SIZE, MODEL #107-4, S/N: 1M4H5M-29, CENTERLESS GRINDERS

Price on Request

Make:: Cincinnati

Model:: No. 1 SIZE, MODEL #107-4, S/N: 1M4H5M-29,

Year:: 1964

Ref #:: 163807

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

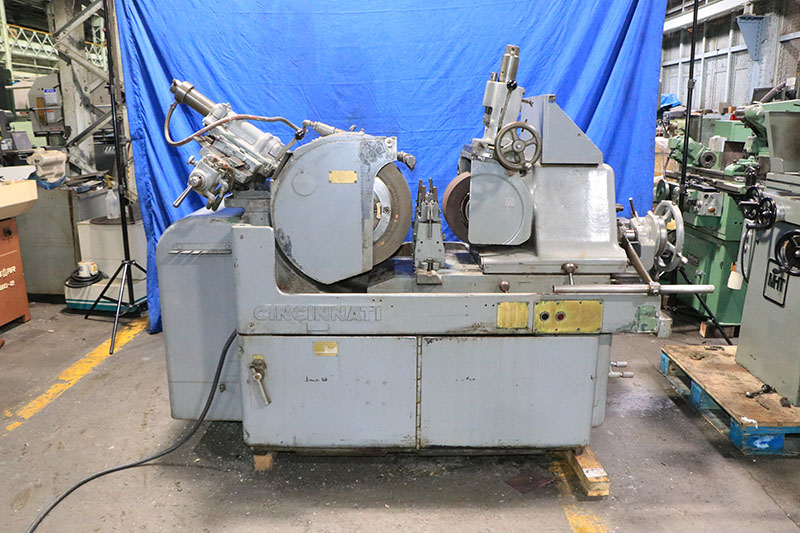

  No. 1 CINCINNATI CENTERLESS GRINDER

MODEL: 107-4       S/N: 1M1H5M-29     NEW: 1964

MAX. GRINDING DIAMETER ................... 0 TO 1- 1/2"
MAX. GRINDING WHEEL SIZE ................. 16" x 4"W x 10"B
MIN. GRINDING WHEEL DIA. ................. 12"
MAX. REGULATING WHEEL SIZE ............... 9" x 4"W x 4"B
MIN. REGULATING WHEEL DIA. ............... 7"
INF. VARAIBLE REG. WHEEL SPEEDS .......... 22 - 300 RPM
GRINDING WHEEL MOTOR ..................... 7.5 H.P.

APPROX. MACHINE WEIGHT ................... 4,560 LBS.
APPROX. DIMS. ............................ 63" x 61"

EQUIPPED WITH:
HYDRAULIC GRINDING WHEEL DRESSER
HYDRAULIC REGULATING WHEEL DRESSER
WORK REST
COOLANT SYSTEM
EMERSON ELECTRIC "HORIZON 1" VARIABLE SPEED
 CONTROL FOR THE REGULATING WHEEL
GRINDING WHEEL HAS "FILMATIC" BEARINGS
3/60/220-440 VOLT ELECTRICS
MACHINE IS WIRED FOR 3/60/220 VOLTS

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** OVERALL EXCELLENT CONDITION & APPEARANCE **
** OFFERED "AS-IS" WITH A 30 DAY RETURN PRIVILEGE WITH A LOWER
   PRICE, SERVICING WILL BE NEEDED AS WITH ANY OTHER MACHINE
   THAT IS COMING DIRECTLY FROM SERVICE **
