Royal Master TG12X4 HiACC, 2016, Parker PLC, Servo Motors, CENTERLESS GRINDERS

Price on Request

Make:: Royal Master

Model:: TG12X4 HiACC, 2016, Parker PLC, Servo Motors,

Year:: 2016

Ref #:: 177968

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

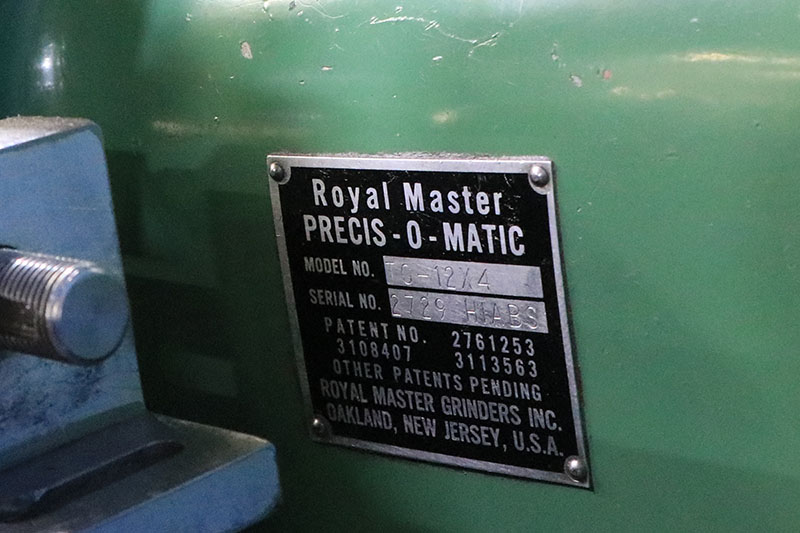

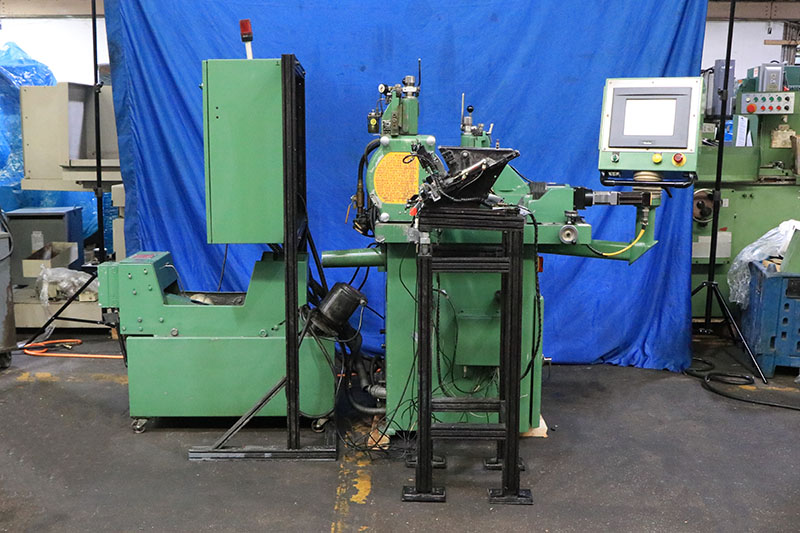

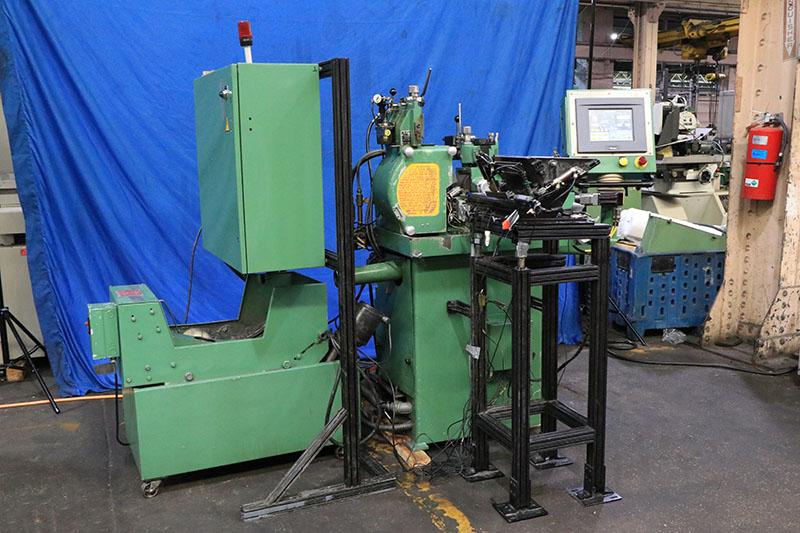

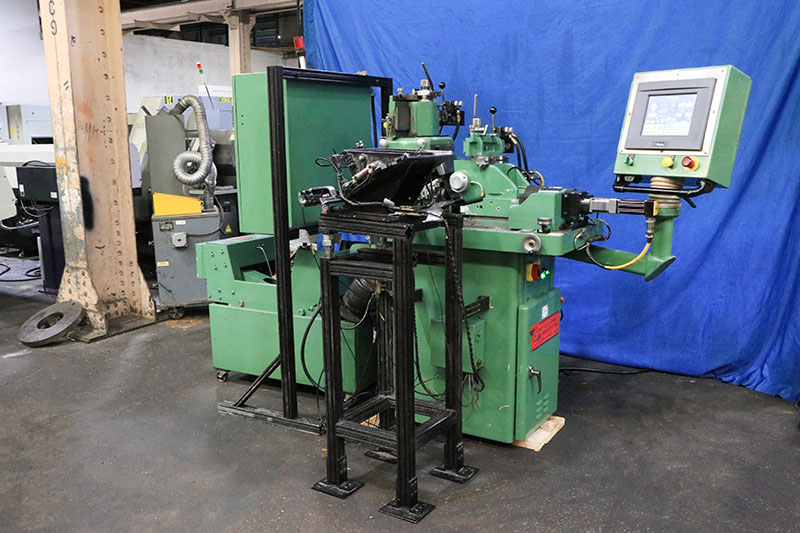

     Royal Master Model TG12x4-HIACC
         "Hi-Accuracy Systems"
          Centerless Grinder

              S/N: 2729

    Refurbished & Upgraded by RMG
              in 2016,

     With Parker Touch Screen Control
       Interface, Servo Drives, Servo
       Regulating Wheel Drive,
       Loader, Coolant System
       with Paper Filtration,
     ... Full & Complete Upgrade!


- Royal Master Grinders, Inc. literature:

"The machine's design is based on our
 standard grinder line with some very
 notable exceptions.  The machine
 bed has been enlarged to add to the
 stability of the system, and accommodate
 the new ram swiveling feature.

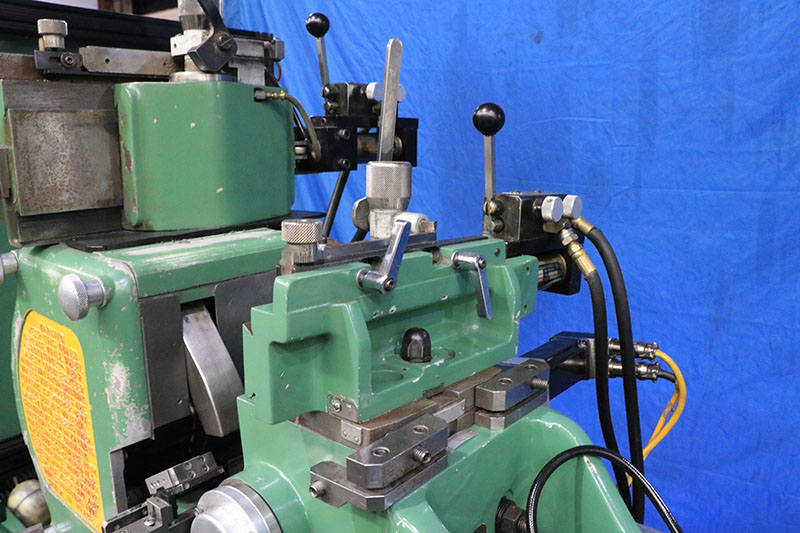

 The ram now swivels on a pivot under
 the ram, moving the entire lower ram
 and dresser assembly together.

This is an advantage during thrufeed
 grinding that the guides do not have to be
 readjusted when you swivel. Also the swivel
 is gauged by a digital indicator, and
 the adjustment is made by a easily
 accessed handle. We have also added a
 servo drive regulating wheel system.

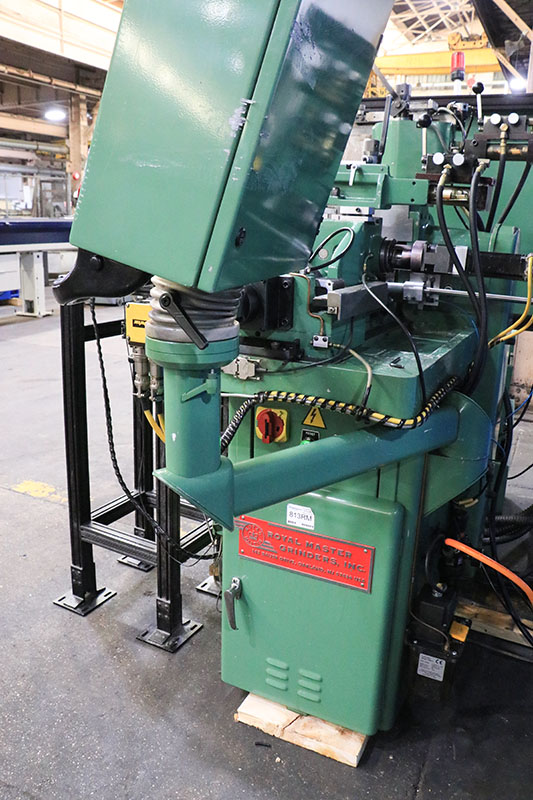

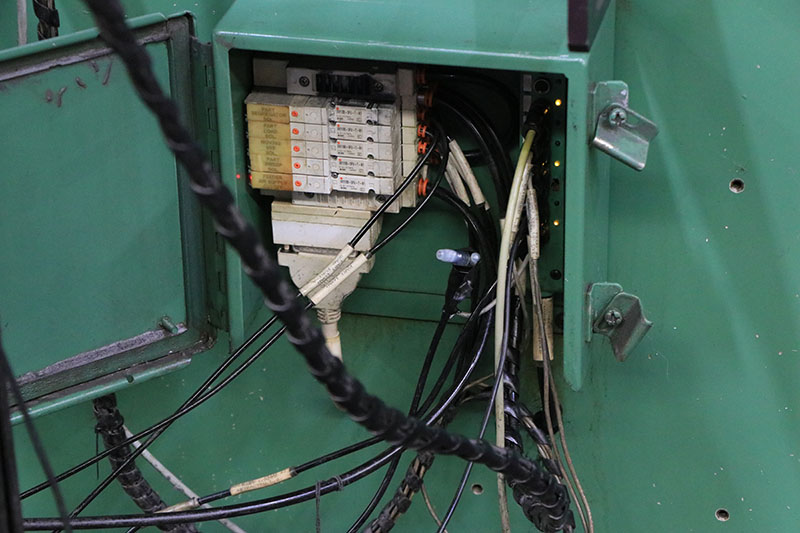

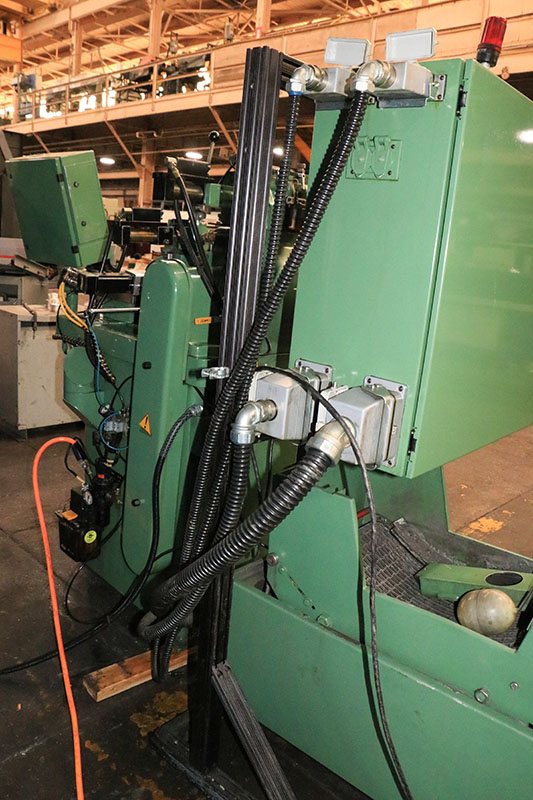

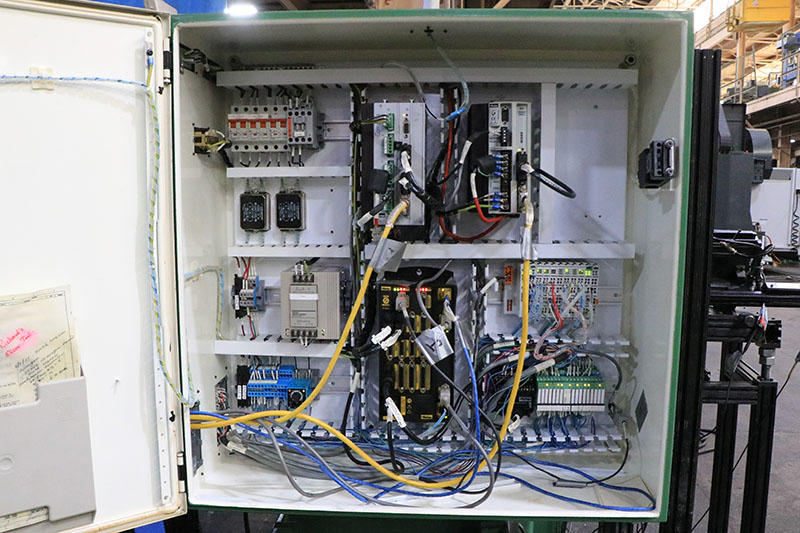

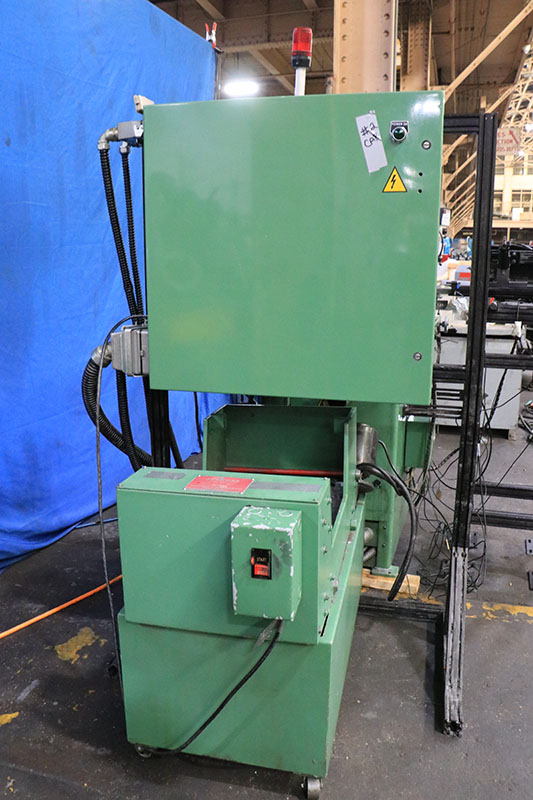

The electrical system is easily accessed
 by way of a JIC electrical enclosure
 mounted in a space saving position
 over the coolant tank.  The accuracy
 of the system was tested on customer
 applications, and the results were
 impressive.  We were able to achieve
 roundness to less than .000010", and
 straightness to less than .000010".
 We are able to make size compensations
 with this system in  0.000010" as well.
 The positioning system consists of
 a servo driven ball screw unit and
 the system's movements are verified with
 a glass scale  with .000004" resolution."


CAPACITY:
INFEED AND THRUFEED ......... 0.004" TO 1.5" DIA.
LENGTH ...................... 12' ON 0.5" DIA.

WHEELS:
MAXIMUM GRINDING WHEEL ...... 12" DIA. x 4.5" WIDE
MINIMUM GRINDING WHEEL ...... 10" DIA. x 1/4" WIDE
MAXIMUM REGULATING WHEEL .... 6" DIA. x 4.5" WIDE
MINIMUM REGULATING WHEEL .... 1/4" WIDE W/SPOOL

SPINDLE SPEEDS:
GRINDING WHEEL ....... CONSTANT SPEED 2,040 RPM
REGULATING WHEEL ..... INF. VARIABLE 25 TO 480 RPM

REGULATING WHEELHEAD:
MAX. ANGLE OF TILT FOR
 THRUFEED GRINDING .......... 6 DEGREES
MAX. SWIVEL FOR TAPER
 GRINDING ................... 5 DEGREES

APPROXIMATE FLOOR SPACE ..... 24" x 48"
APPROXIMATE WEIGHT .......... 2,800 LBS

EQUIPPED WITH:

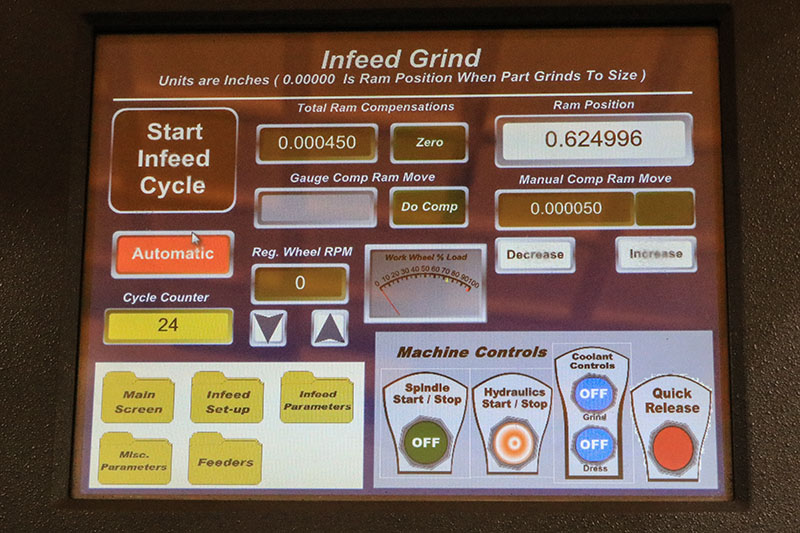

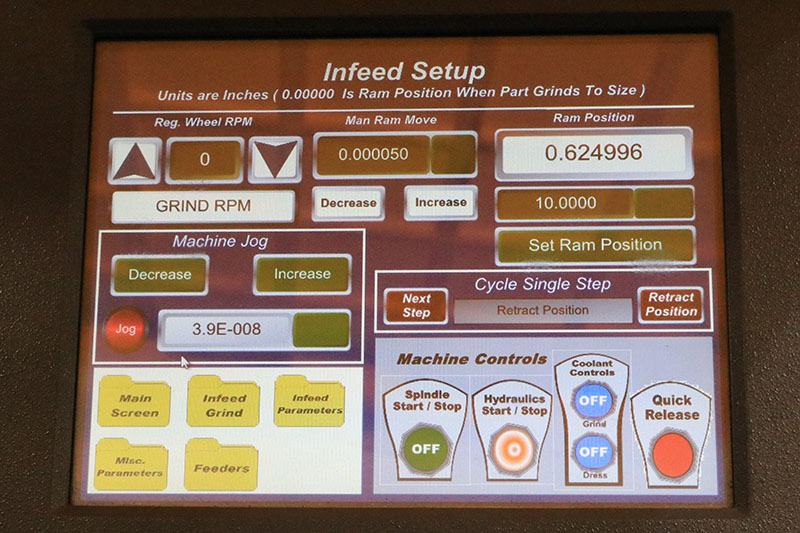

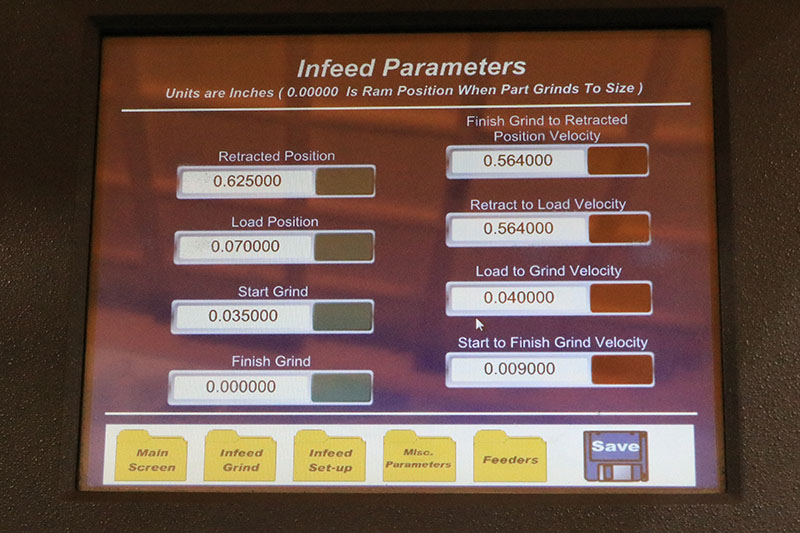

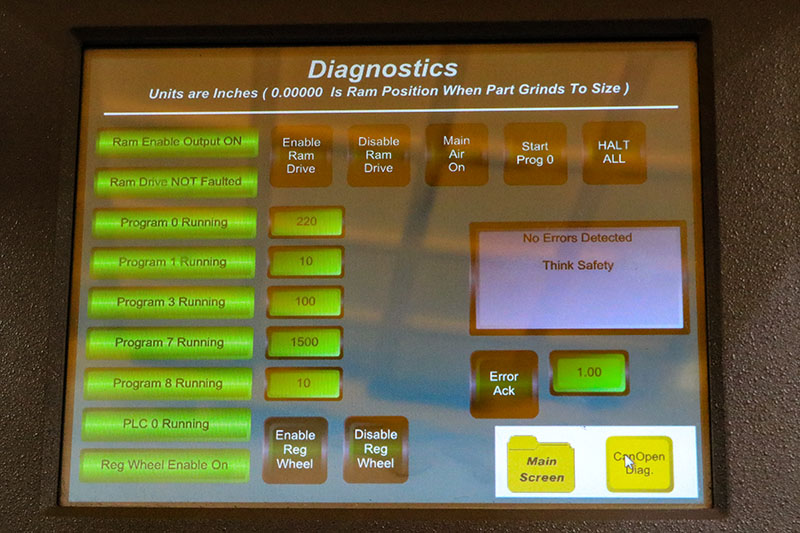

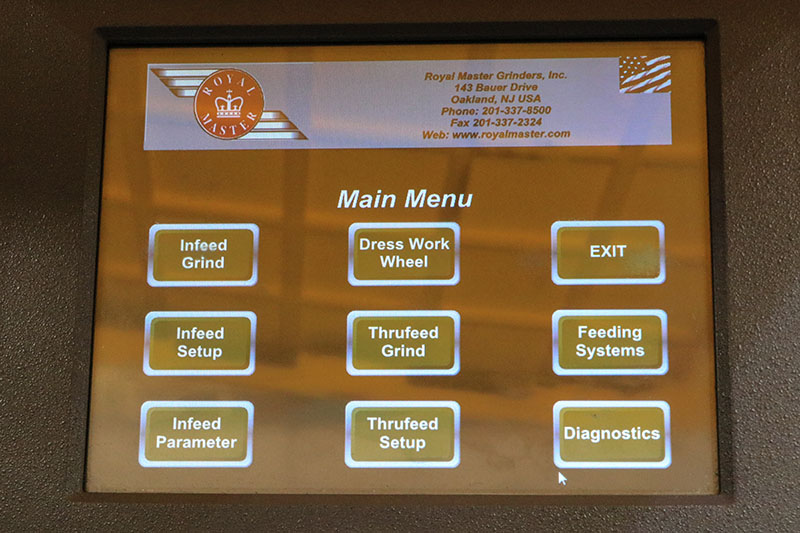

Parker Touch Screen Control Interface
Servo Drives

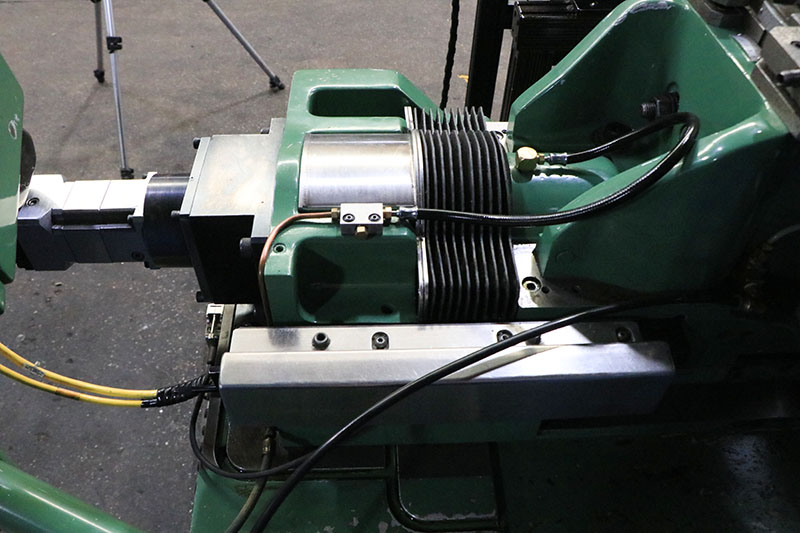

Servo Regulating Wheel Drive

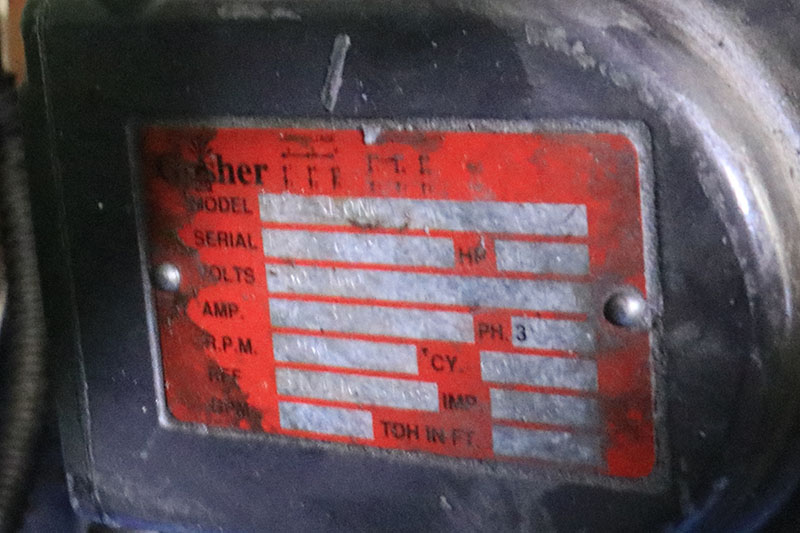

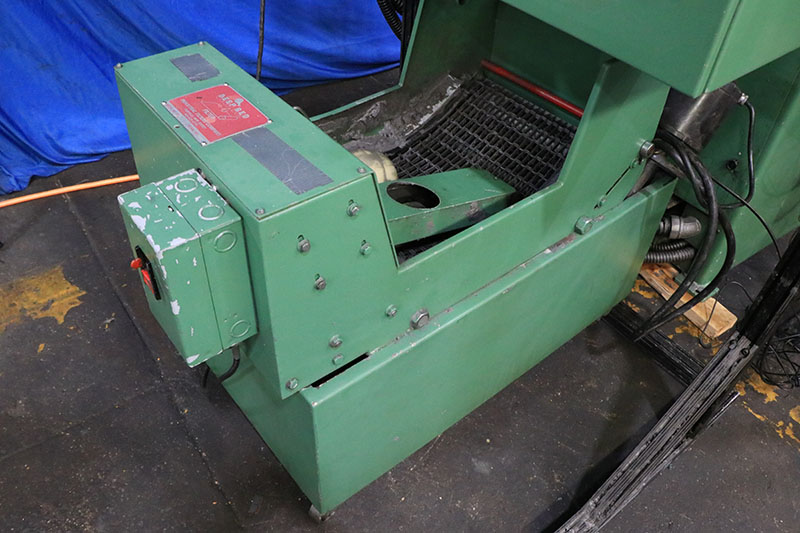

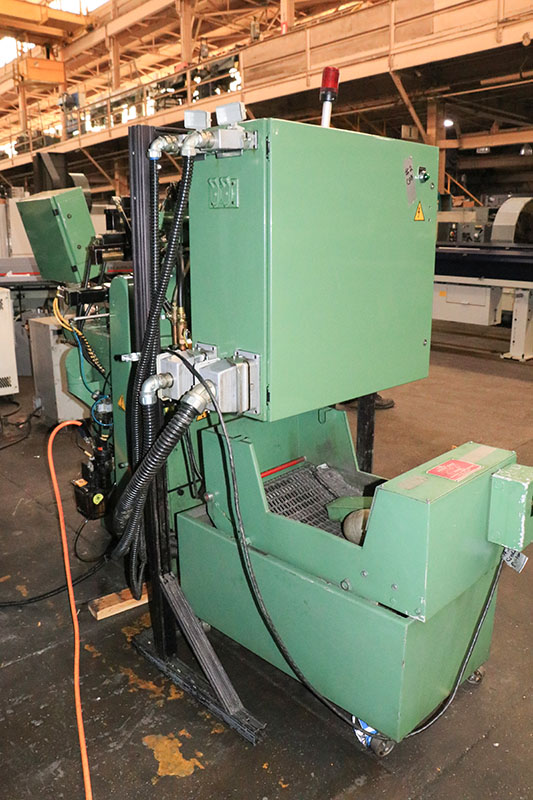

"Deep Bed" Coolant System, Gusher Pump,
 with Auto Powered Paper Filtration

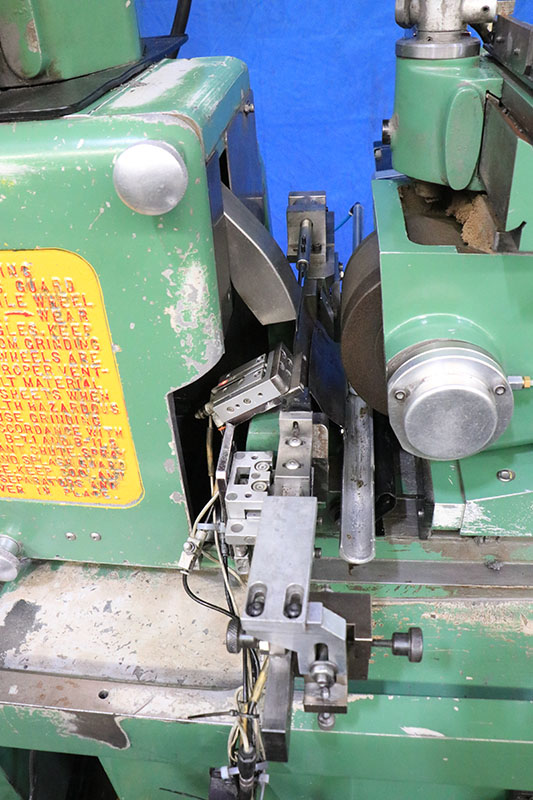

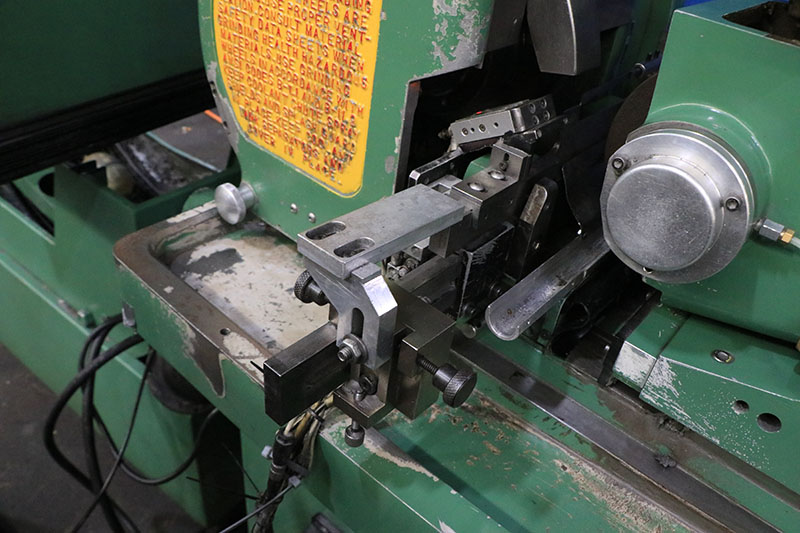

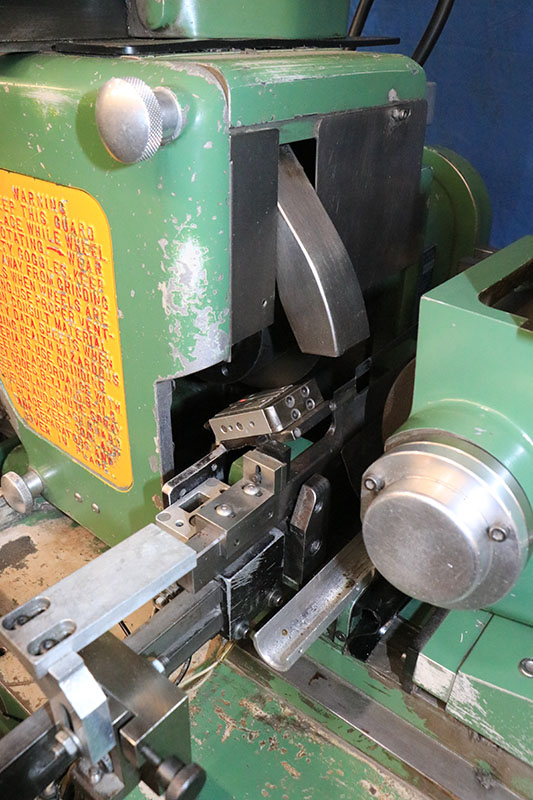

Work Rest

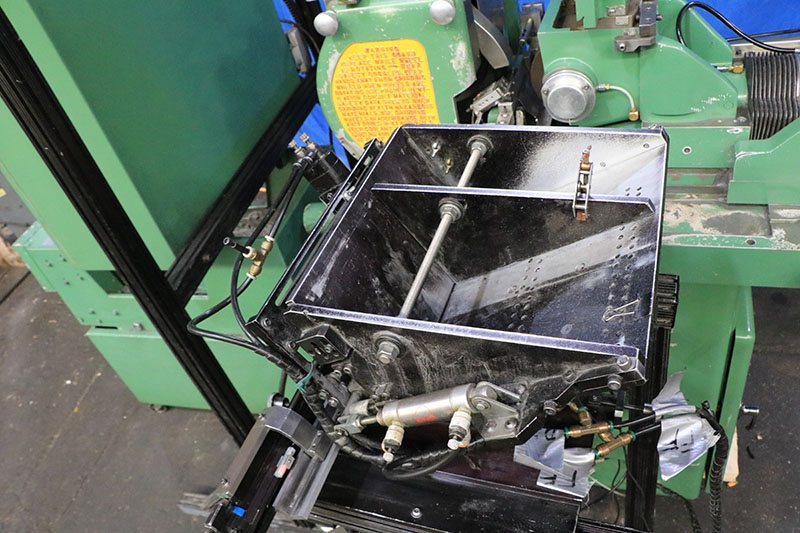

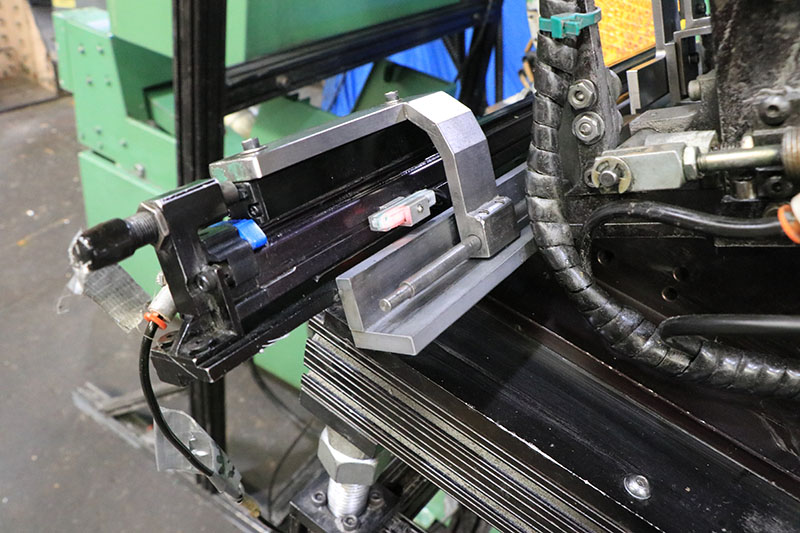

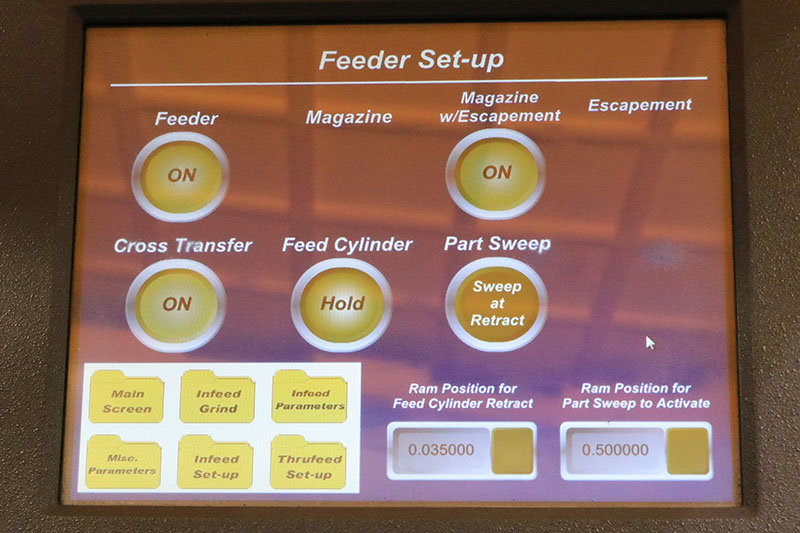

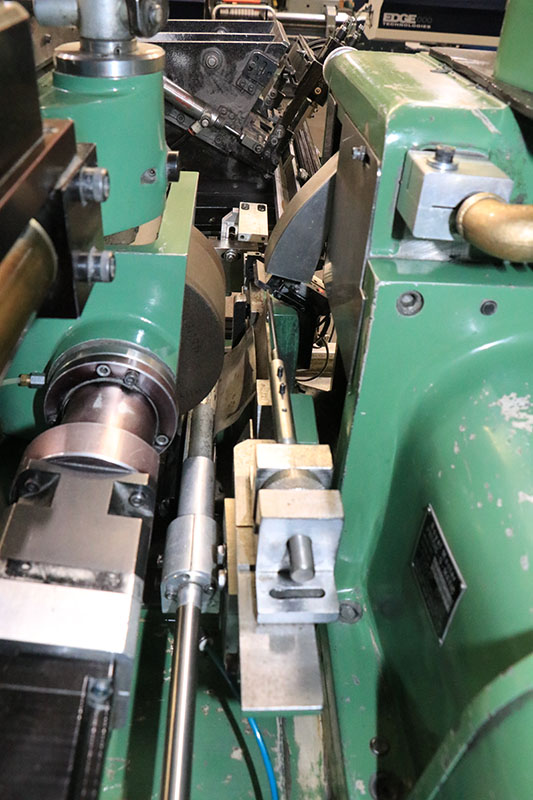

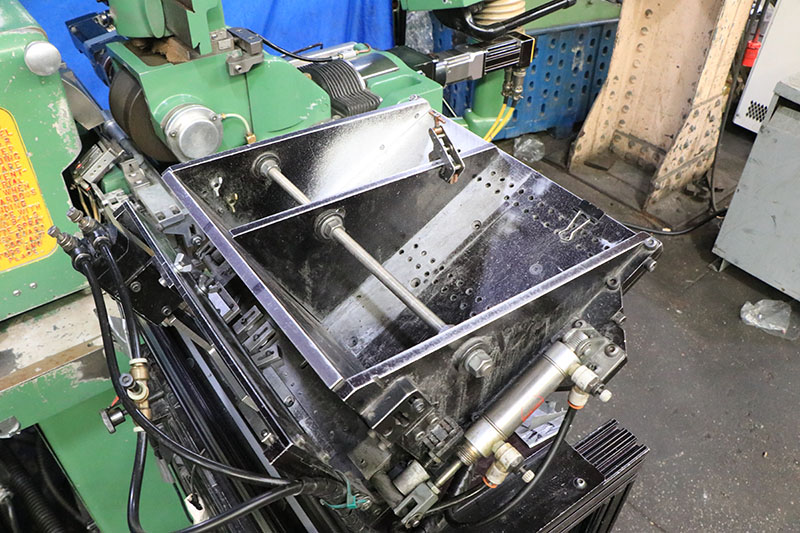

Integrated Feeder/Loader

"PRECISION" REGULATING WHEEL SPINDLE

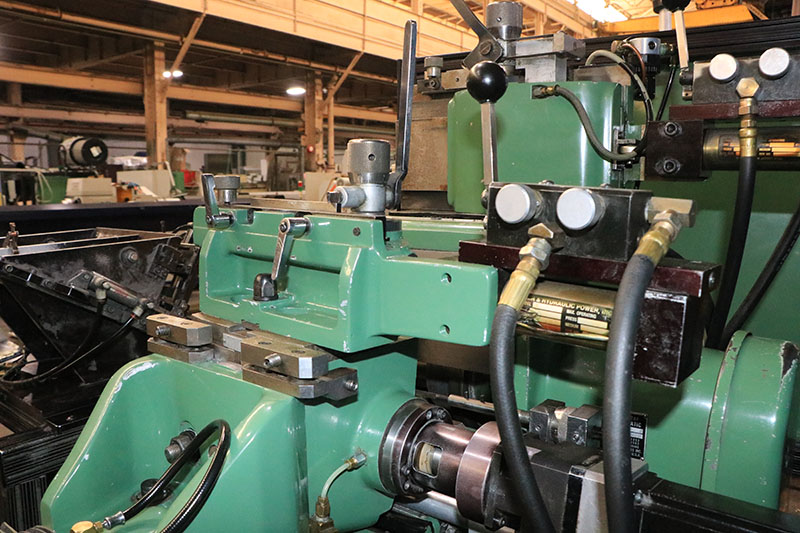

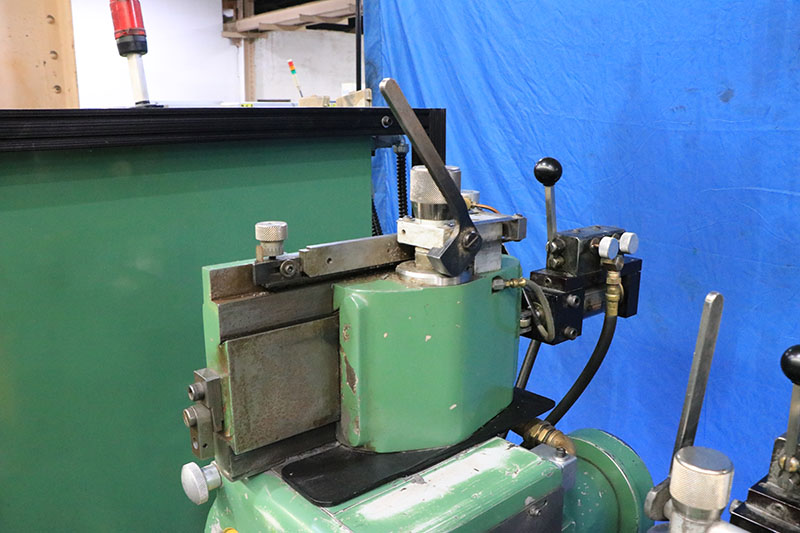

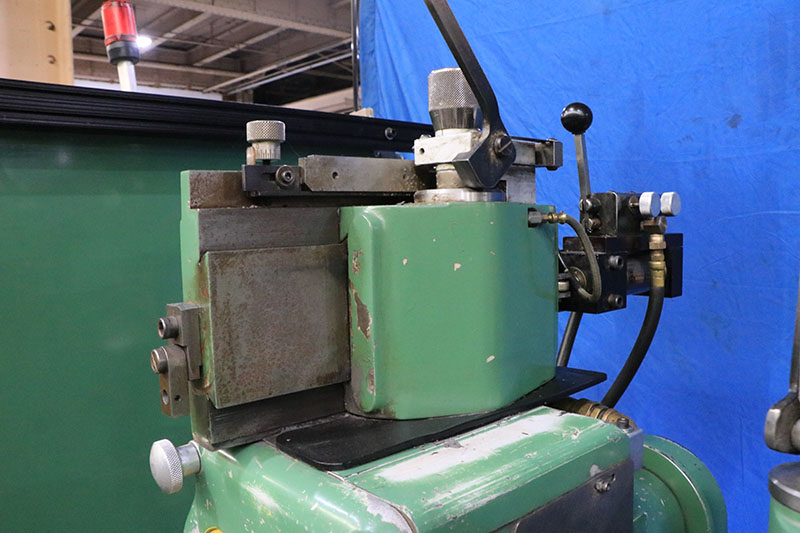

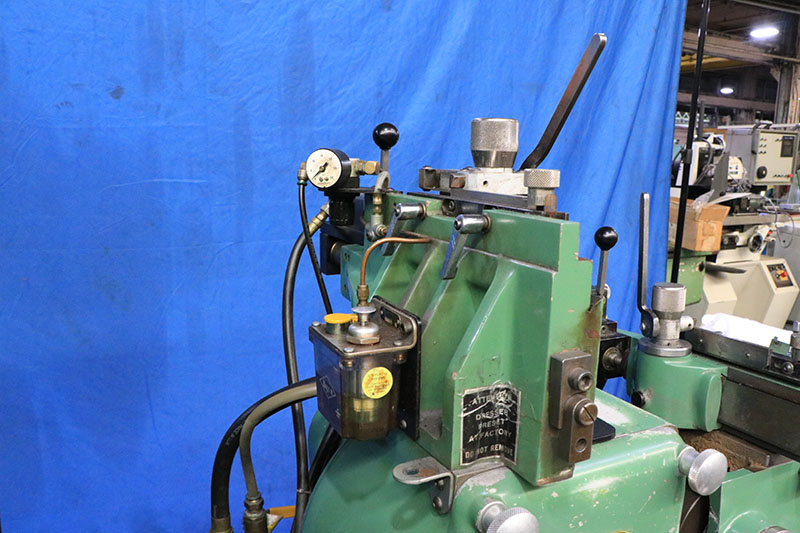

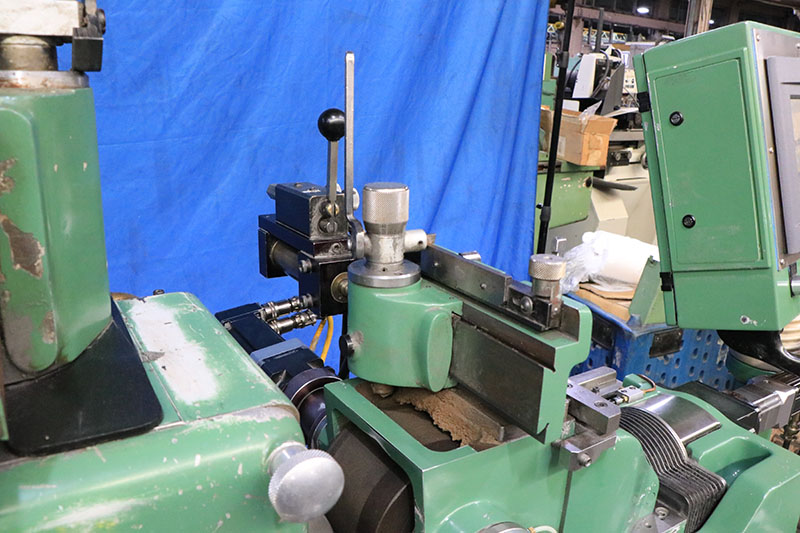

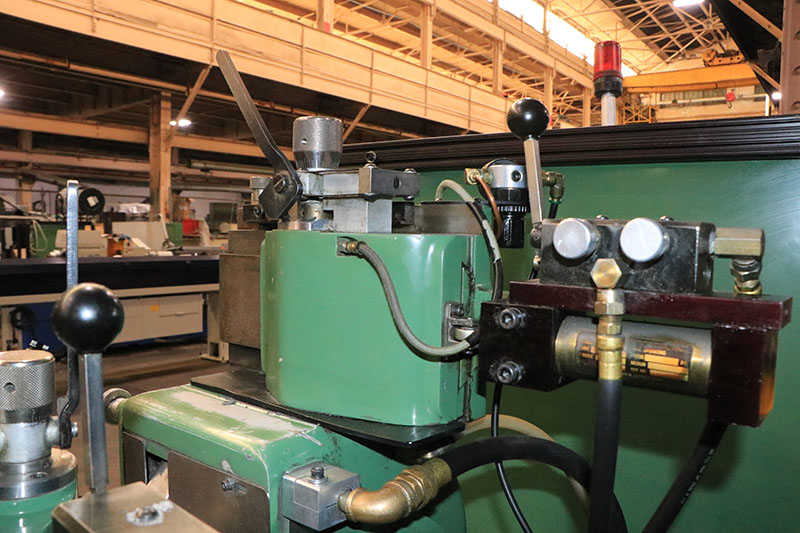

"AIR-SENSING" HYDRAULIC DRESSER,
 FOR THE GRINDING WHEEL
"STANDARD" HYDRAULIC DRESSER,
 FOR THE REGULATING WHEEL

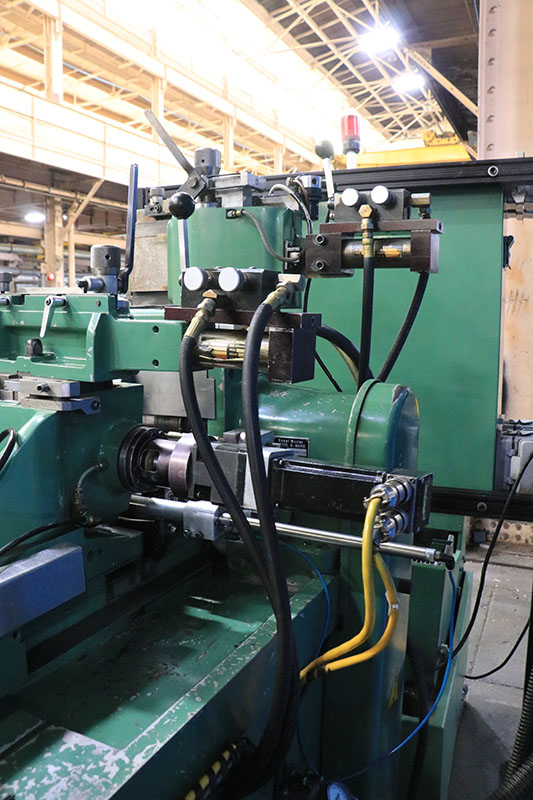

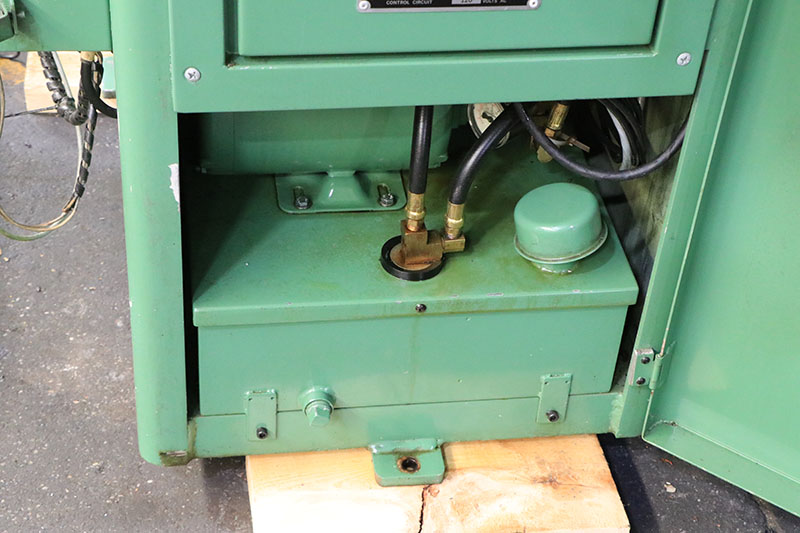

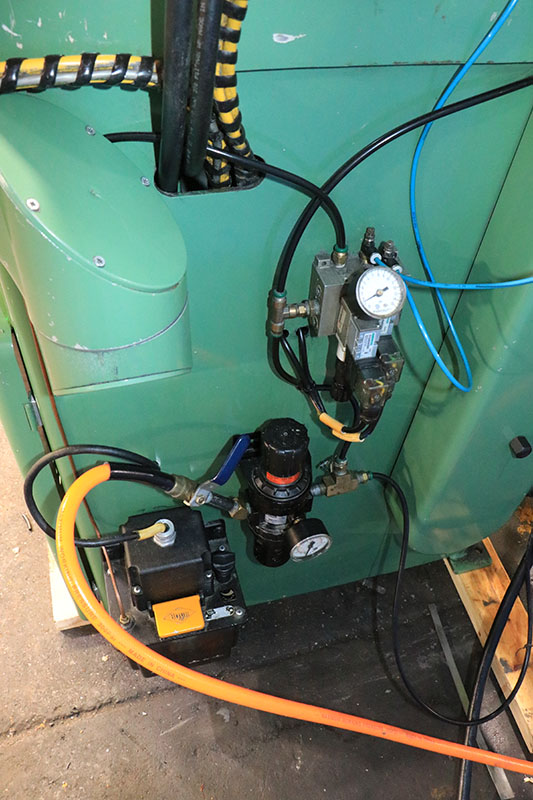

SELF CONTAINED HYDRAULIC SYSTEM

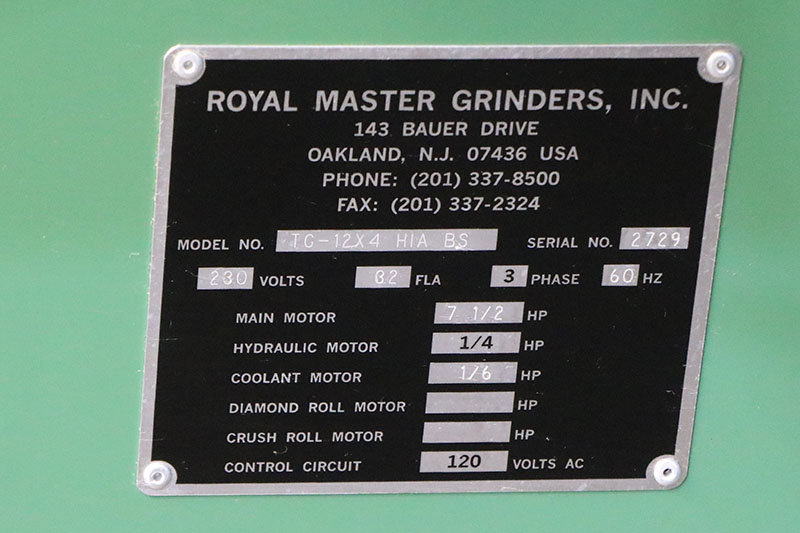

7.5 H.P. MAIN DRIVE MOTOR
3/60/208-230-460 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR
3/60/208 VOLTS, 25 FULL LOAD AMPS

 Link to video: https://youtu.be/AJgroxgT4wc?si=zmWP7vjMVViZdWJ5

** Beautiful, Original Condition & Appearance **
** Wow, What an Opportunity! **
