Citizen L-16 Type VI CNC SWISS TYPE MULTI-AXIS LATHES

$12,500

Make:: Citizen

Model:: L-16 Type VI

Year:: 1992

Ref #:: 152633

Or call us for a quote at (973) 497-7500 or send us an email at automatics@machineryvalues.com

CITIZEN MODEL:L16 TYPE VI CNC SWISS TYPE AUTOMATIC LATHE
NEW: 1992

SPECIFICATIONS:
MAX. MACHINING DIA. ..................... 0.63"
MAX. MACHINING LENGTH ................... 7.87"
MAX. DRILLING DIA. ...................... 0.31"
MAX. TAPPING DIA. ....................... M6
SPINDLE THRU HOLE DIA. .................. 0.79"
SPINDLE SPEED RANGE ..................... 300-10000 RPM
SPINDLE SPEED CHANGE STEPS .............. STEPLESS S5-DIGIT
ROTARY TOOL MAX. DRILLING DIAMETER ...... 0.16"
TOOL SPINDLE SPEED RANGE ................ 400-5000 RPM
TOOL SPINDLE SPEED CHANGE STEPS ......... STEPLESS S4-DIGIT
BACK SPINDLE MAXIMUM DIA. ............... 0.63"
BACK MACHINING WORKPIECE MAX. LENGTH .... 2.76"
BACK MACHINING WORKPIECE MAX. DRILL ..... 0.24"
BACK MACHINING SPINDLE SPEED RANGE ...... 100 to 3600 RPM
NUMBER OF MOUNTABLE TOOLS ............... 12 TOOLS
SPINDLE DRIVE MOTOR ..................... 2.2/3.3 kW

EQUIPPED WITH:

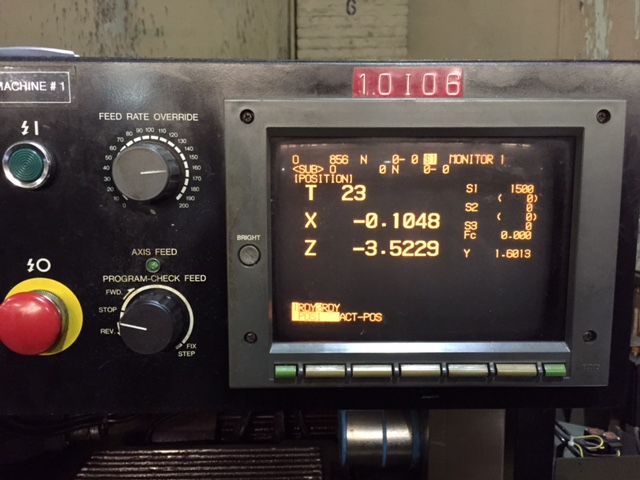

 - CINCOM SYSTEM IIC CNC CONTROL

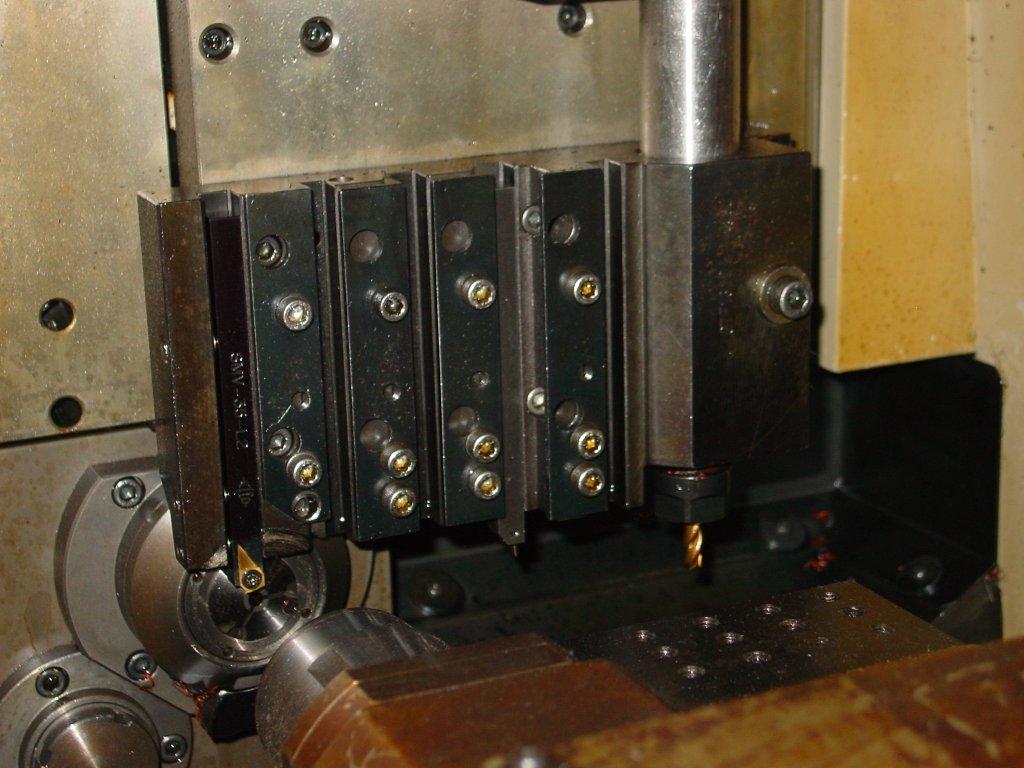

 - GTF 1310 6 TOOL VERTICAL HOLDER w/ONE ROTARY TOOL
 - SPEGO 123-4Z BARFEED w/Z-SORB s/n:506-087
 - MANUALS
