Dake 23-298 HYDRAULIC H-FRAME PRESSES

$29,500

Make:: Dake

Model:: 23-298

Year:: 1973

Ref #:: 178155

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

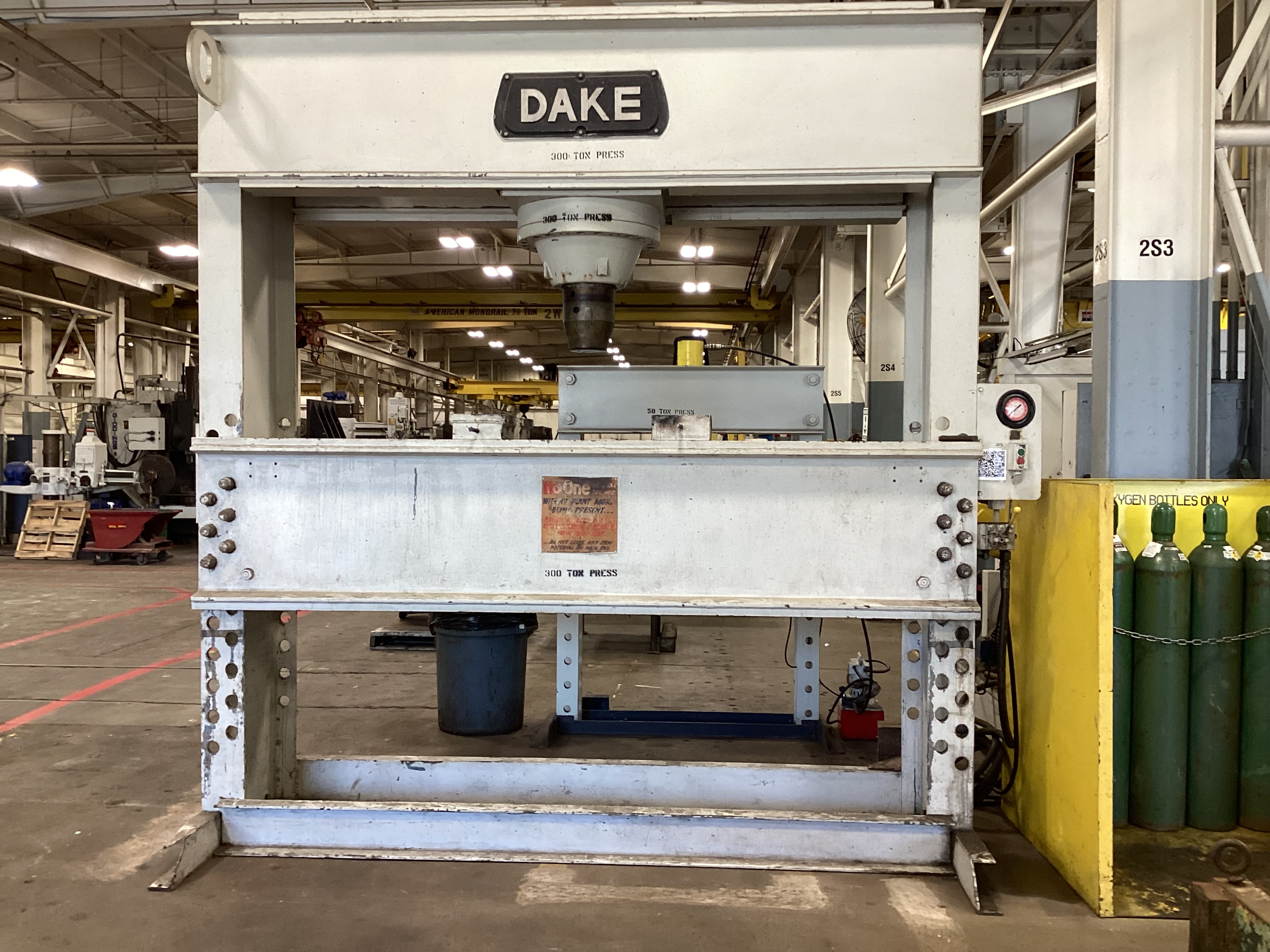

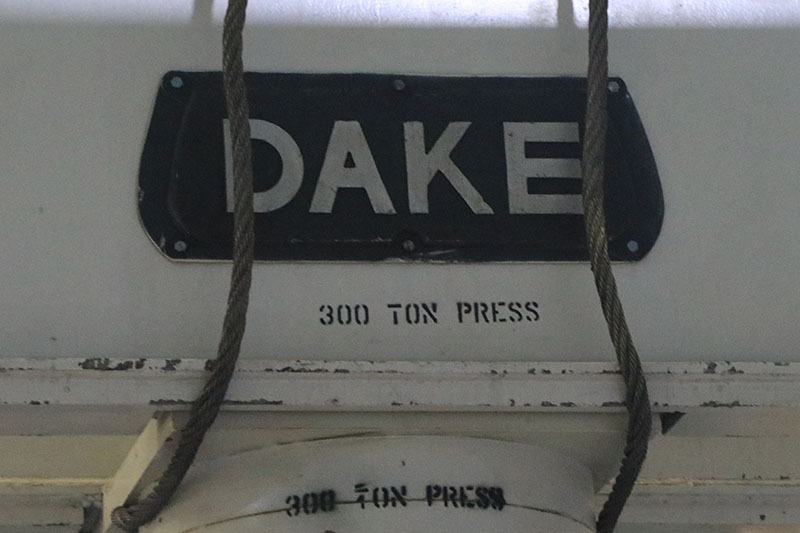

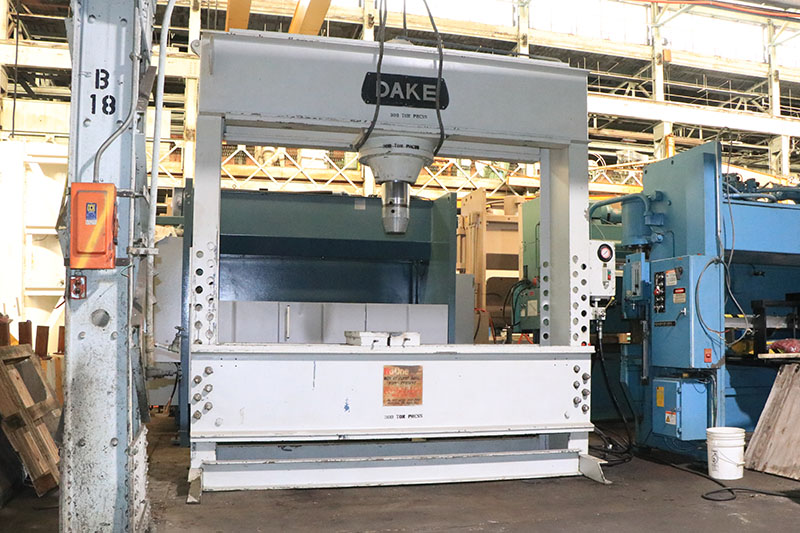

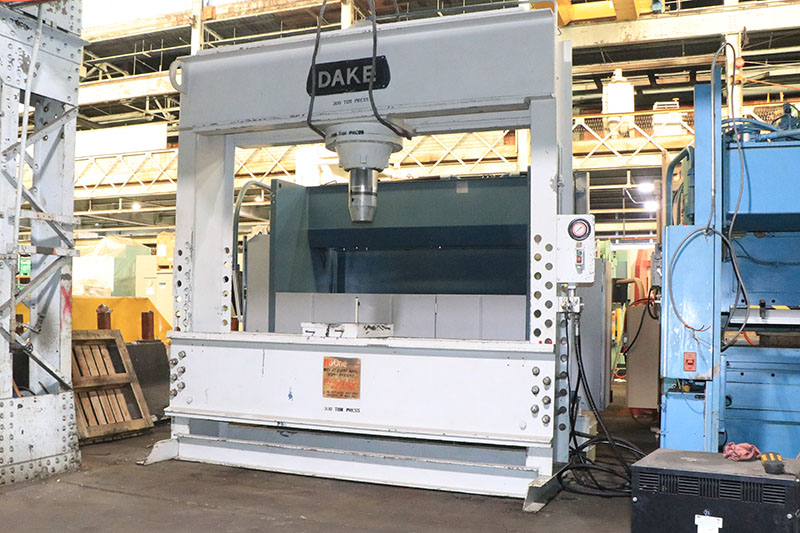

300 TON DAKE H-FRAME ELECTRIC / HYDRAULIC PRESS

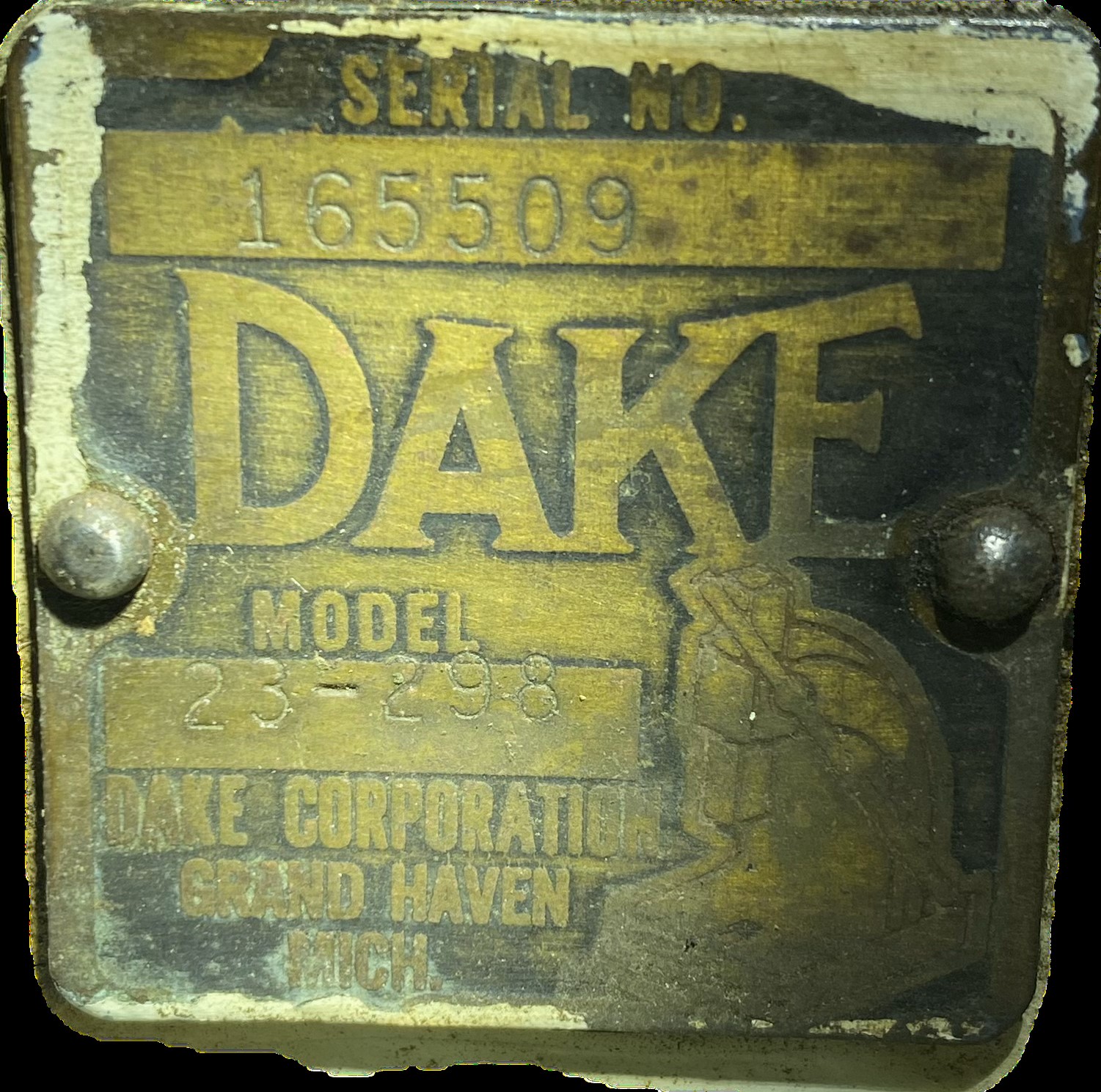

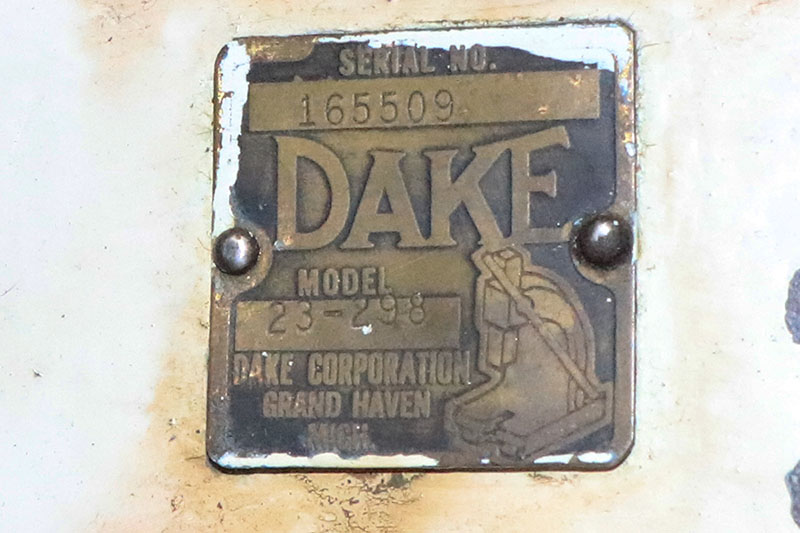

MODEL 23-298          S/N 165509          NEW 1973

RATED CAPACITY ........................... 300 TONS
UP STROKE CAPACITY ....................... 115 TONS

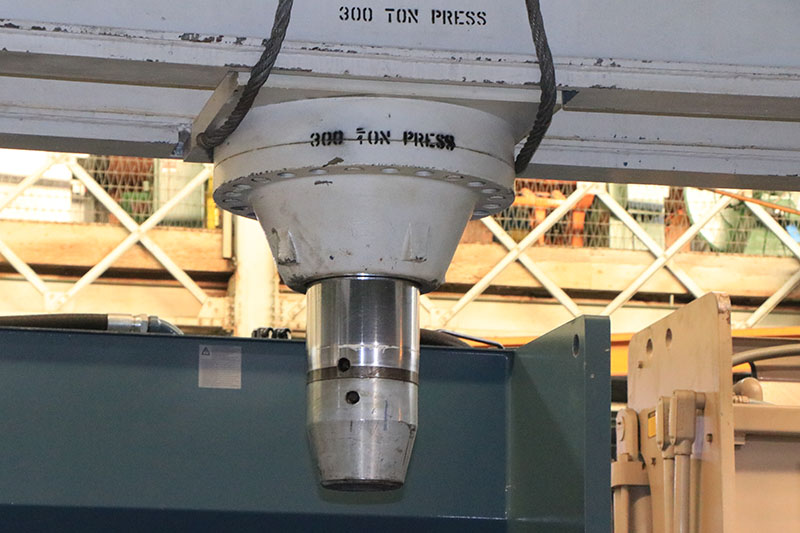

STROKE ................................... 16"
WIDTH BETWEEN UPRIGHTS ................... 108" L-R
TABLE DEPTH .............................. 31"
DISTANCE BETWEEN CROSSBARS ............... 18" F-B
MAXIMUM RAM TO TABLE ..................... 48"
MINIMUM RAM TO TABLE ..................... 8"
SPEEDS PRESSING .......................... 8 IPM
       RETURN ............................ 20 IPM
RESERVOIS ................................ 30 GALLONS

MOTOR SPECS ............... 10 HP / 230 / 460 / 3 PH.

DIMENSIONS: 60" X 152-1/4" X 11'8"
WEIGHT 17,500 LBS.

EQUIPPED WITH:

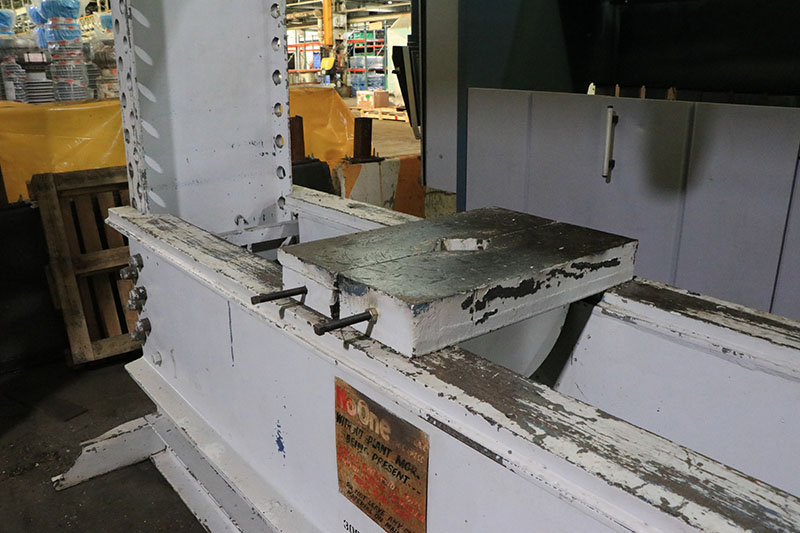

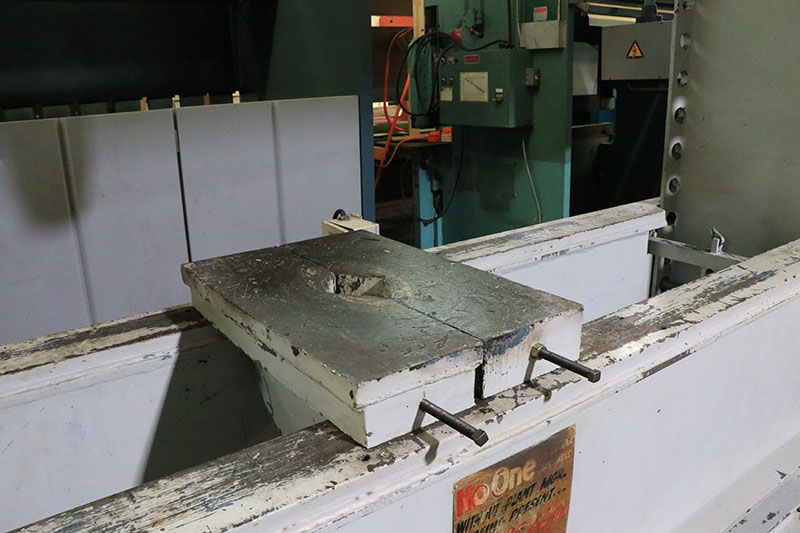

- HEAVY DUTY V-BLOCKS
- ADJUSTABLE TABLE (WITH FORKLIFT)

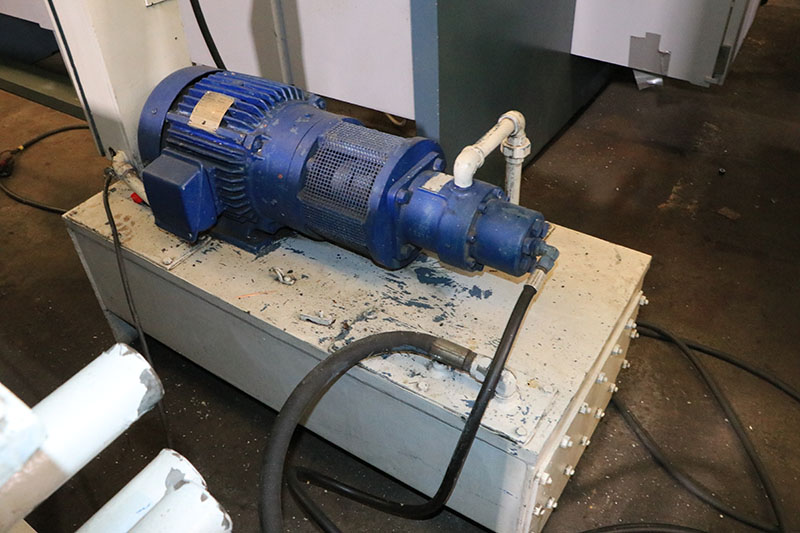

- SEPARATE HYDRAULIC UNIT
