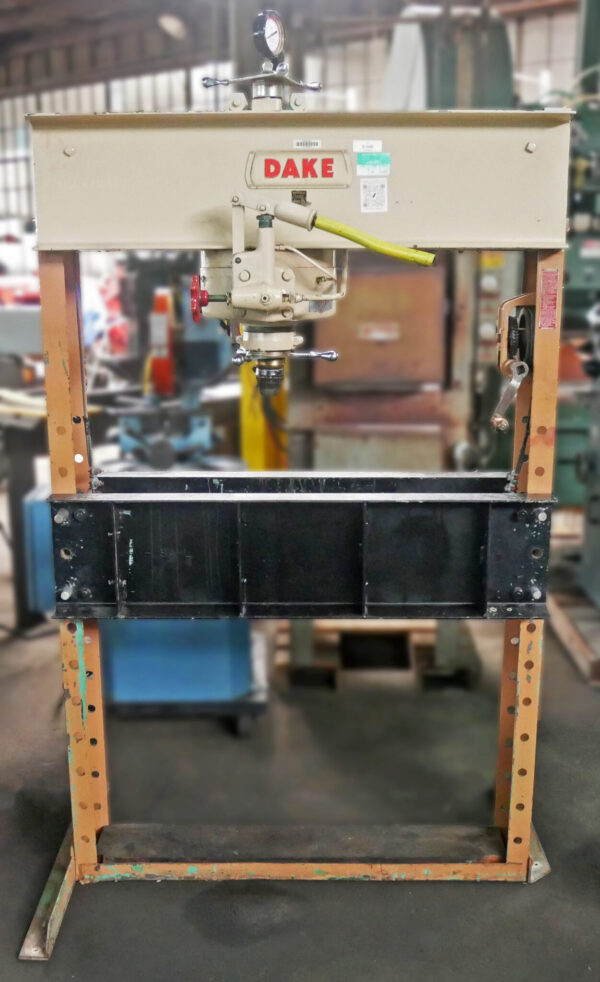

Dake 75H HYDRAULIC H-FRAME PRESSES

$7,500

Make:: Dake

Model:: 75H

Year:

Ref #:: 178558

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com


75 TON DAKE H-FRAME HAND OPER. HYD. PRESS
MODEL 75-H        S/N 150734

RATED CAPACITY ........................... 75 TONS
WIDTH BETWEEN UPRIGHTS ................... 44"
WIDTH BETWEEN TABLE CHANNELS ............. 8-1/4"
MINIMUM RAM TO TABLE ..................... 6"
MAXIMUM RAM TO TABLE ..................... 36"
RAM TRAVEL ............................... 4-1/2"
HORIZONTAL WORKHEAD TRAVEL ............... 29-5/8"
SCREW TRAVEL ............................. 7"

EQUIPPED WITH:

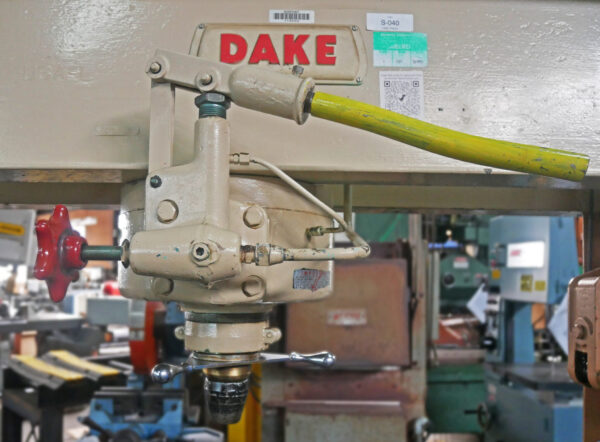

- MOVEABLE WORKHEAD

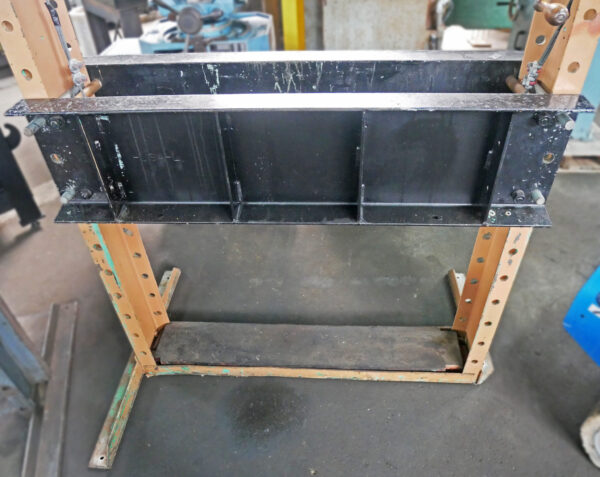

- ADJUSTABLE TABLE
- RAPID RAM RETURN
- RAPID SCREW TRAVERSE OF RAM

OVERALL DIMENSIONS: 55" X 36" X 87" H
WEIGHT: 1,245 LBS.
